Conrad FS20 TK 62 03 38 User manual

Version 12/06

OPERATING INSTRUCTIONS
Wireless doorbell
transmitter „FS20 TK“
Item No. 62 03 38

2
Table of contents
Page
1. Introduction ....................................................................................... 3
2. Prescribed use ................................................................................. 4
3. Scope of delivery ............................................................................. 4
4. Explanation of icons ......................................................................... 5
5. Safety instructions ........................................................................... 5
a) General information ................................................................... 5
b) Battery instructions .................................................................... 6
6. Description of functions ................................................................... 7
7. Installation ........................................................................................ 8
8. Programming and operation ............................................................ 9
9. Battery replacement ......................................................................... 9
10. Information on the range ............................................................... 11
11. Handling ......................................................................................... 12
12. Maintenance and cleaning ............................................................ 12
13. Disposal .......................................................................................... 13
a) General information ................................................................. 13
b) Batteries and rechargeable batteries ..................................... 13
14. Technical specifications and features .......................................... 14
15. Declaration of conformity (DOC) .................................................. 14


3
1. Introduction
Dear customer,
Thank you for purchasing this product.
This product meets the requirements of both current national and
European guidelines.
Please read the user manual completely and observe the safety and
operation instructions before using the product!
This user manual belongs to this product. It contains important
information specific to its operation and handling. Please bear
this in mind when passing on the product to a third party.
Therefore keep this user manual for future reference!
All company and product names contained herein are trademarks of
their respective owners. All rights reserved.
For more inquiries, contact or consult our technical service:
Germany: Tel. no.: +49 9604 / 40 88 80
Fax. no.: +49 9604 / 40 88 48
e-mail: [email protected]
Mon. to Thur. 8.00am to 4.30pm
Fri. 8.00am to 2.00pm

4
2. Prescribed use
The wireless doorbell system is designed to announce visitors in the typical
fashion or from a position up to 100m away (free-field range).
Thewirelessdoorbelltransmittermaynotbealteredormodifiedinanyway.
Doing so not only invalidates the licence (CE) but also the guarantee/
warrantee.
The product is intended for installation and operation in a protected outdoor
area.
Batteries must be used to power the device.
Any use other than the one described above may damage the product and
can also increase the risk of short-circuit, fire, electric shock, etc.
All the safety instructions and installation notes in this manual
must be observed without fail.
3. Scope of delivery
• Wireless doorbell transmitter ‘FS20 TK’
• User manual

5
4. Explanation of icons
The icon with a lightning flash in a triangle is used to alert you
to potential personal injury hazards such as electric shock.
The icon with an exclamation mark in a triangle points to
important instructions in this user manual that must be ob-
served.
The ‘hand’ symbol indicates special tips and information on
operation.
5. Safety instructions
The product’s guarantee becomes invalid if the product is
damaged as a result of failure to observe these operating
instructions.Wedonotassume anyliabilityfor anyresult-
ing damages!
Nor do we assume liability for damage to property or
personal injury caused by improper use or failure to ob-
serve the safety instructions. In such cases the product’s
guarantee becomes invalid!
a) General information
• Do not use this product in hospitals or medical institutions. Although the
product emits only relatively weak radio signals, these may cause life-
support systems to malfunction. This may also be the case in other
areas.
• For safety and licensing (CE) reasons any unauthorised alterations to
and/or modification of the product are not permitted.

6
• The product is designed to be installed and operated in a protected
outdoor area (for instance, under a projecting roof awning).
• This product is not a toy and should be kept out of the reach of children.
The product contains small parts and batteries.
• Do not leave packaging material lying around. This may become a
dangerous plaything in the hands of children.
• Handle the product with care; knocks, blows or even a fall from a low
height can damage it.
• If, during mounting, connection or installation you are not sure or have
doubts about how to proceed, contact a skilled technician.
b) Battery instructions
• Keep batteries out of the reach of children.
• Make sure that the polarity is correct when inserting the batteries.
• Do not leave batteries lying around as they could be swallowed by
children or pets. In such case seek immediate medical care.
• Leaking or damaged batteries/rechargeable batteries may cause acid
burns, if they come into contact with skin. Therefore, please make sure
you use suitable protective gloves.
• Make sure that batteries are not short-circuited or thrown into a fire. They
might explode!
• Never take the batteries apart!
• Conventional batteries must not be recharged. They might explode!
• If the device is not used for a longer period of time (for example when
stored), remove the inserted batteries to prevent the batteries from
leaking and causing damage.

7
• The power is supplied by two type LR44 button cells (for example,
Conrad order no. 652044).
For the environmentally friendly disposal of batteries and
rechargeable batteries, please read the section 13 ‘Dis-
posal’.
6. Description of functions
The wireless doorbell transmitter ‘FS20 TK’ is a component of the FS20
wireless switching system. The device can be used to transmit to any FS20
receiver device.
The device may be linked to any compatible actuator using the ‘FHZ 1000/
1300 PC’ home server system.
The ‘FS20 SIG’ is suitable for use as a doorbell signalling device.
Unlike standard FS20 transmitters, this device does not allow a house code
or address to be set. It comes with the factory-set house code and address
‘1111’.
The high range, of up to 100m (free-field) allows the device to be used to
transmit over long distances.
For more information, please read section 10 ‘Indications
relevant to radio range’.

8
23
11
4
7. Installation
The doorbell transmitter comes equipped with batteries, therefore it is
ready for immediate mounting on the wall.
• Working from the side, lever the facing from the catch using a small
screwdriver. Place the device on a flat surface before carefully lifting the
facing off.
Make sure the pressure spring does not fall out.
• Using the two mounting holes provided (see illustration below) attach the
lower part with 3mm screws, for instance, to the wall.
• A nameplate may be inserted into the facing. To do this, carefully remove
the transparent cover in the facing with a small, flat screwdriver.
• Replace the upper casing (and snap back into place, paying attention to
the catch protrusions: two narrow protrusions on one side, one broader
one on the other).

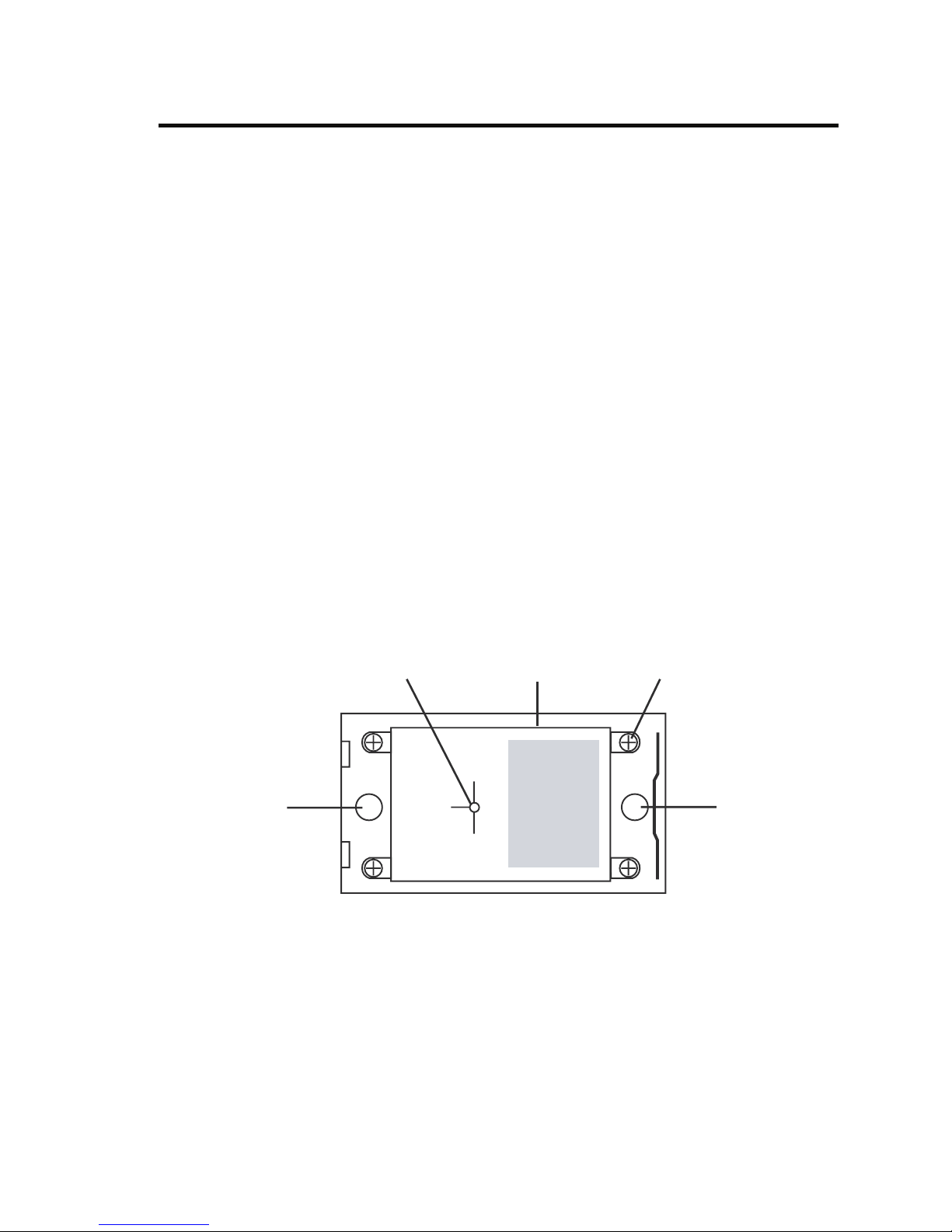

1 Mounting holes
2 Small steel spring
3 Four screws for removing the lid in order to change the batteries
4 Lid

9
8. Programming and operation
• Set the assigned FS20 receiver into operating mode, following the
operating instructions for this device.
• Now press the doorbell button.
• If the receiver has registered the signal, it will react as described in the
device’s operating instructions.
• Now test the transmission range, whilst continuing to press the doorbell
button.
• Each time you press the doorbell button, the assigned receiver should
react in accordance with its function.
Configuration notes:
The transmitter always sends a power-on command.
The transmitter’s factory set house code is found on the back
of the device ‘FS20 TK’.
9. Battery replacement
The two LR44 (AG-13) button cells will last for up to 10 years, depending
on the amount of use.
Ifthesignal failstorespond despitepressingthe doorbellbutton repeatedly,
the transmitter’s battery set should be changed:
• Working from the side, lever the facing from the catch using a small
screwdriver. Place the device on a flat surface before carefully lifting the
facing off.
Make sure the pressure spring does not fall out.
• Unscrew the four fastening screws on the lid (covering the internal
electronics).

10

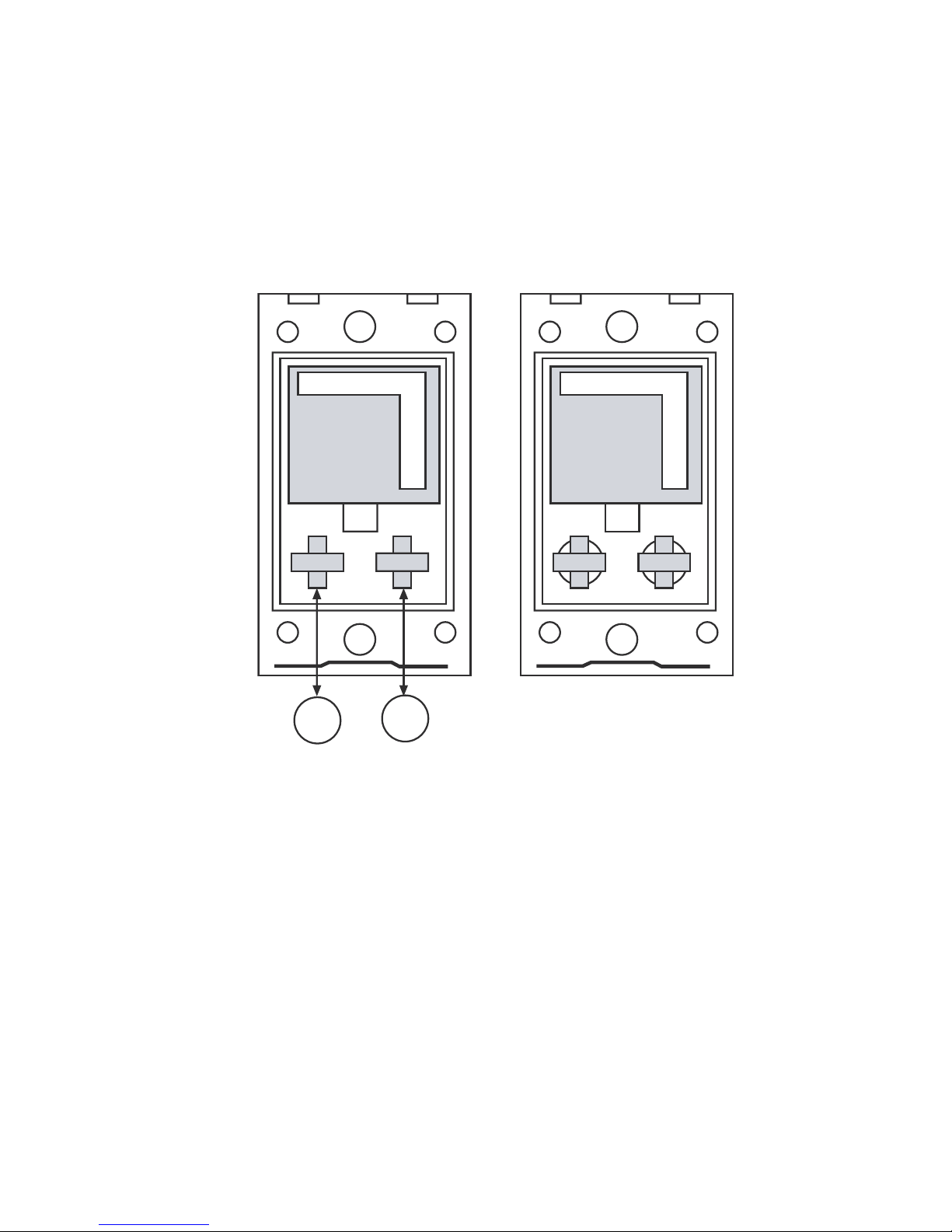

• Lift off the lid and remove the two button cells from their holders (see
illustration below).
• Insert two new button cells into the holders with the plus poles facing up
(see illustration).
Always replace both batteries at the same time.
• Put the lid back on and screw it down using the four fastening screws.
Take especial care that the seal does not fall out or get pushed
out.
• Replace the upper casing (and snap back into place, paying attention to
the catch protrusions: two narrow protrusions on one side, one broader
one on the other).
Sender
++
++
