Continental Girbau CG115-25 User manual

CG115-25
Installation Manual
WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
explosion or to prevent property damage,
personal injury or death.
Do not store or use gasoline or other flammable
vapor and liquids in the vicinity of this or any
other appliance.
WHAT DO YOU DO IF YOU SMELL GAS
*Do not try to light any appliance.
*Do not touch any electrical switch; do not use
any phone in your building.
*Clear the room, building or area of all
occupants.
*Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
*If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d’incendie ou d’explosion ou pour éviter tout
dommage matériel, toute blessure ou la mort.
Ne pas entreposer ni utiliser d’essence ni
d’autres vapeurs ou liquides inflammables dans
le voisinage de cet appareil ou de tout autre
appareil.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
*Ne pas tenter d’allumer d’appareil.
*Ne touchez à aucun interrupteur. Ne pas
vous servir des téléphones se trouvant dans
le bâtiment où vous vous trouvez.
*Évacuez la pièce, le bâtiment ou la zone.
*Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
*Si vous ne pouvez rejoindre le fournisseur
de gaz, appelez le service des incendies.
L’installation et l’entretien doivent être assurés
par un installateur ou un service d’entretien
qualifié ou par le fournisseur de gaz.
011601JEV/calbert CGI Part No. A113303
For replacement parts, contact the distributor from
which the dryer was purchased or
Continental Girbau, Inc.®
2500 State Road 44
Oshkosh WI 54904
Telephone: [phone] / Fax: [phone]
www.cont-girbau.com

Retain This Manual In A Safe Place For Future Reference
Continental Girbau, Inc.®product embodies advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble-free operation.
ONLY qualified technicians should service this equipment.
OBSERVEALLSAFETYPRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
“IMPORTANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or
liquids in the vicinity of this or
any other appliance.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables dans le voisinage de cet
appareil ou de yout autre appareil.
We have tried to make this manual as complete as possible and hope you will find it useful. Manufactuer reserves the right
to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change
or discontinue models.
Important
For your convenience, log the following information:
DATE OF PURCHASE______________________________ MODELNO. __________________________________________
DISTRIBUTOR’S NAME ____________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
Replacement parts can be obtained from your distributor or the Continental Girbau, Inc.® Please specify the dryer model
number and serial number in addition to the description and part number, so that your order is processed accurately and
promptly.
CG115-25

IMPORTANT
YOU MUST DISCONNECT and LOCKOUT THE ELECTRIC SUPPLY and THE GAS
SUPPLY or THE STEAM SUPPLY BEFORE ANY COVERS or GUARDS ARE
REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING,
ADJUSTING, INSTALLATION, or TESTING OF ANY EQUIPMENT per OSHA
(Occupational Safety and Health Administration)STANDARDS.
CHILDREN SHOULD NOTBEALLOWED TO PLAY ON OR NEAR THE DRYER(S).
WARNING
CHILDREN SHOULD BESUPERVISED IF NEAR DRYERS IN OPERATION.
DRYERS SHOULD NEVER BE LEFT UNATTENDED WHILE IN OPERATION.
CAUTION
FOR YOUR SAFETY
DO NOT DRY MOP HEADS IN THE DRYER.
DO NOT USE DRYER IN THE PRESENCE OF DRY CLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES should the dryer drawer switches, lint door switch,
heat safety circuit ever be disabled.
“Caution: Label all wires prior to
disconnection when servicing controls. Wiring
errors can cause improper operation.”
«Attention: Lordesopérationsd’entretien
des commandes étiqueter tous fils avant
de les déconnecter. Toute erreur de
câblage peut étre une source de danger et
de panne.»

WARNING
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONAL INJURY or FIRE COULD RESULT.
IMPORTANT
PLEASE OBSERVEALLSAFETY PRECAUTIONS displayed on the equipment and/or
specified in the installation manual included with the dryer.
Dryers mustnotbeinstalled or stored in an area where itwillbe exposedtowaterorweather.
The wiring diagram for the dryer is located in the front electrical control box area.
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FILTER/SCREEN IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
WARNING

Table of Contents
SECTION I
IMPORTANT INFORMATION..........................................................................3
A. Receiving and Handling ............................................................................................................... 3
B. Safety Precautions ...................................................................................................................... 4
SECTION II
SPECIFICATIONS/COMPONENT IDENTIFICATION..................................6
A. Specifications ............................................................................................................................. 6
B. Component Identification ............................................................................................................ 8
SECTION III
INSTALLATION PROCEDURES ....................................................................10
A. Location Requirements ............................................................................................................. 10
B. Unpacking and Setting Up .........................................................................................................11
C. Dryer Enclosure Requirements .................................................................................................. 14
D. Fresh Air Supply Requirements ................................................................................................. 15
E. Exhaust Requirements ............................................................................................................... 16
F. Electrical Information ................................................................................................................ 24
G. Gas Information........................................................................................................................ 30
H. Steam Information .................................................................................................................... 34
I. Preparation For Operation and Start-Up ................................................................................... 38
J. Preoperational Tests ................................................................................................................. 39
K. Shut Down Instructions ............................................................................................................. 42
SECTION IV
SERVICE and PARTS INFORMATION ..........................................................43
A. Service ..................................................................................................................................... 43
B. Parts ........................................................................................................................................ 43
SECTION V
WARRANTY INFORMATION .........................................................................44
A. Warranty .................................................................................................................................. 44
B. Returning Warranty Part(s)........................................................................................................ 44

SECTION VI
ROUTINE MAINTENANCE ............................................................................45
A. Cleaning ................................................................................................................................... 45
B. Adjustments ............................................................................................................................. 46
C. Lubrication ............................................................................................................................... 46
D. Lint Drawer Removal................................................................................................................ 47
SECTION VII
TROUBLESHOOTING.....................................................................................48
SECTION VIII
PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT
COMPONENTS ................................................................................................55
SECTION IX
BURNER and BASKET (TUMBLER)/LINT CHAMBER MANUAL RESET
HI-LIMIT INSTRUCTIONS .............................................................................57
Gas Models Only ........................................................................................................................... 57
Electric or Steam Models ................................................................................................................ 58
SECTION X
REVERSING TIMER SPIN/DWELL ADJUSTMENTS..................................59

3
SECTION I
IMPORTANT INFORMATION
A. RECEIVING and HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and wooden
skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect further
before delivering carrier leaves.
Dryers damaged in shipment:
1. ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the trucker’s receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers which were not damaged in a
damaged shipment should be accepted, but the number received and the number refused must be noted
on the receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carrier’s freight terminal immediately and file a claim. The freight company considers this concealed
damage. This type of freight claim is very difficult to get paid and becomes extremely difficult when more
than a day or two passes after the freight was delivered. It is your responsibility to file freight claims.
Dryer/parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.
Continental Girbau, Inc.®assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the Continental Girbau, Inc.®Traffic
Manager at [phone] Ext. 16.
IMPORTANT: The dryer must be transported and handled in an upright position at ALLtimes.

4
B. SAFETY PRECAUTIONS
WARNING: For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury, or loss of life.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY or FIRE COULD RESULT.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. Purchaser and user should consult the local gas supplier for proper instructions to be followed in the event
the user smells gas. The instructions should be posted in a prominent location.
3. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of ALL occupants.
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you cannot reach your gas supplier, call the fire department.
4. Installation and service must be performed by a qualified installer, service agency, or gas supplier.
5. Dryers must be exhausted to the outdoors.
6. Although Continental Girbau, Inc.®produces a very versatile dryer, there are some articles that, due to
fabric composition or cleaning method, should not be dried in it.
WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry
cleaning solvents, a combustible detergent, or “all purpose” cleaner.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,
or wax.
EXPLOSION COULD RESULT.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a
fire hazard.
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or
similarly textured rubber materials. Drying in a heated tumbler (basket) may damage
plastics or rubber and may be a fire hazard.

5
7. A program should be established for the inspection and cleaning of lint in the heating unit area, exhaust
ductwork, and inside the dryer. The frequency of inspection and cleaning can best be determined from
experience at each location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire
hazard.
8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the
National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical
Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failure to do so will VOID THE WARRANTY.
9. UNDER NO CIRCUMSTANCES should the dryer drawer switches, lint door switch, heat safety circuit
ever be disabled.
WARNING: PERSONAL INJURY or FIRE COULD RESULT.
10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
11. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
12. READ and FOLLOWALLCAUTIONandDIRECTIONLABELSATTACHEDTOTHEDRYER.
13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less
than sixty-six percent (66%) of its rated capacity.
WARNING: YOU MUST DISCONNECT and LOCKOUT THE ELECTRIC SUPPLY and
THE GAS SUPPLY or THE STEAM SUPPLY BEFORE ANY COVERS or
GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS
FOR CLEANING,ADJUSTING, INSTALLATION, or TESTING OF ANY
EQUIPMENT per OSHA (Occupational Safety and Health Administration)
STANDARD.

6
SECTION II
SPECIFICATIONS/COMPONENT IDENTIFICATION
A. SPECIFICATIONS
* Size of piping to dryer varies with installation conditions.
IMPORTANT: Steam dryers must be provided with a clean, dry, regulated 80 PSI ± 10 PSI (552
kPa ± 69 kPa) air supply.
NOTE: Manufacturer reserves the right to make changes in specifications at any time without notice or
obligation.
Gas*ElectricSteam*
BASKET DIAMETER 42” 106.7 cm
BASKET DEPTH 42” 106.7 cm
BASKET MOTOR 3/4 hp 0.560 kw
BLOWER MOTOR 3 hp 2.24 kw
DOOR OPENING (DIAMETER) 31-3/8” 79.7 cm
BASKET VOLUME 33.7 cu. ft. 0.98 cu. m.
AIRFLOW 2,100 cfm 59.5 cmm
VOLTAGE AVAILABLE 208-575v 3ø 3, 4w 50/60 Hz
APPROX. NET WEIGHT 1,260 lbs 572 kg
APPROX. SHIPPING WEIGHT 1,400 lbs 635 kg
HEAT INPUT 343,000 btu/hr 86,436 kcal/hr
EXHAUST CONNECTION (DIA)14” 35.56 cm
INLET PIPE CONNECTION 1” F.P.T.
OVEN SIZE
KW BTU/HR
60 HZ
KCAL/HR
50 HZ
60 205,000 51,600
72 246,000 61,900
APPLIED VOLTAGE/PHASE/APPROX. AMP DRAW
KW 208/3ø 240/3ø 380/3ø 416/3ø 460/3ø 575/3ø
60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz
60 178 -157 161 -99 -92 82 -68 -
72 212 -186 189 -117 -108 97 -80 -
VOLTAGE AVAILABLE 120-460v 1,3ø 3, 4w 50/60 Hz
APPROX. NET WEIGHT 1,735 lbs 787 kg
APPROX. SHIPPING WEIGHT 1,875 lbs 850.5 kg
EXHAUST CONNECTION (DIA.)16” 40.64 cm
COMPRESSED AIR VOLUME 0.75 cfh 0.02 cmh
COMPRESSED AIR CONNECTION 1/8” F.P.T.
STEAM CONSUMPTION BOILER HP NORMAL
LOAD
410 lbs/hr 186.3 kg/hr 12
OPERATING
STEAM PRESSURE SUPPLY CONNECTION RETURN CONNECTION
125 PSI max 8.6 bars 1-1/4” F.P.T. 1-1/4” F.P.T.

7
NOTE: Manufacturer reserves the right to make changes in specifications at any time without notice or
obligation.
Specifications
CG115-25 (Gas, Electric, Steam)

8
B. COMPONENT IDENTIFICATION
1. Dryer Front View
Illus. No. Description
1Microprocessor Control and Keyboard (touch pad) Panel Assembly (controls)
2Control (top access) Door Assembly
3Main Door Assembly
4Lint Door Assembly
5Lint Drawer
6Wire Diagram (located behind control door)
7Top Console (module) Assembly

9

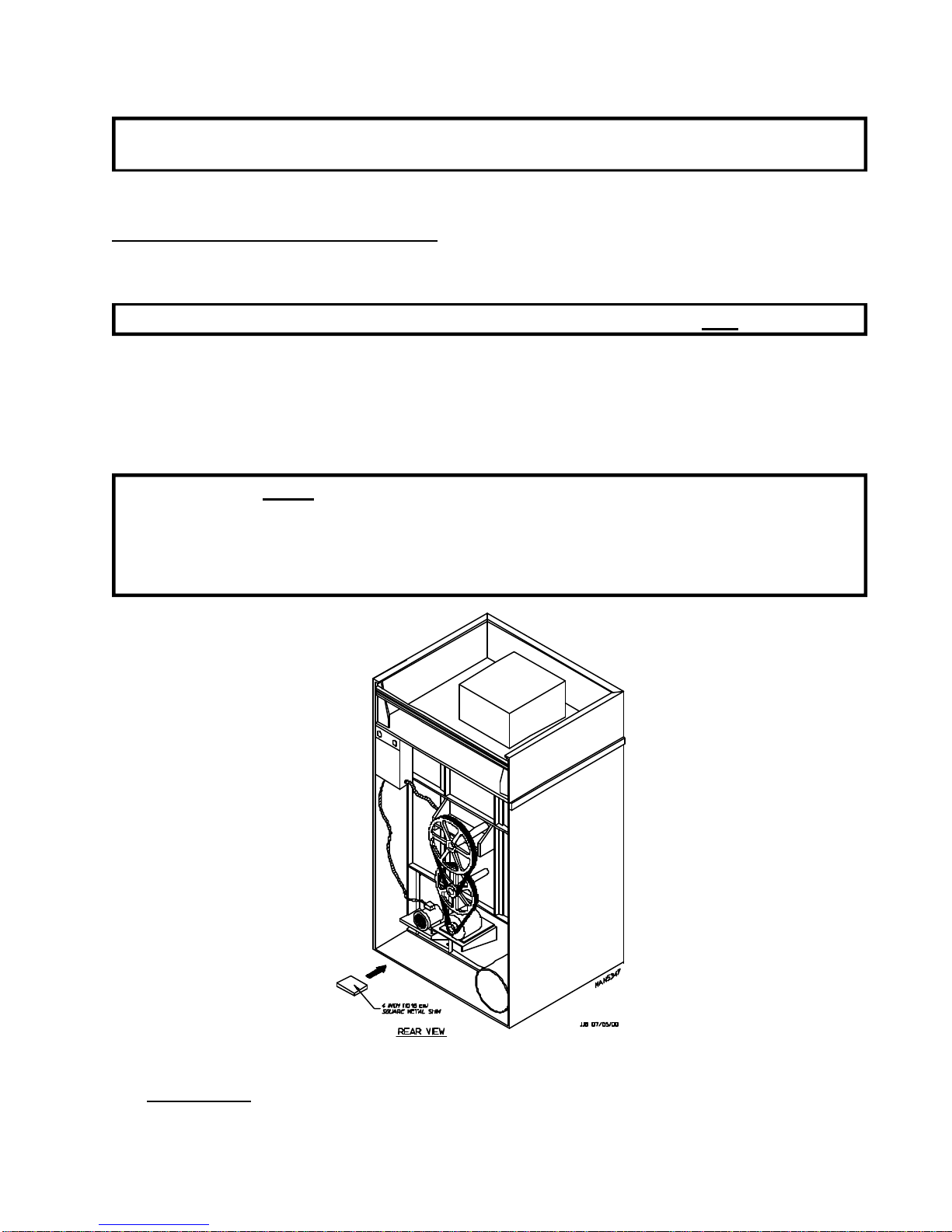

2. Dryer Rear View
Illus. No. Description
1Basket (drive) Motor Assembly
2Blower Motor Mount Assembly
3Impellor (fan/blower) Assembly
4Idler Bearing Mount Assembly
5Basket (tumbler) Bearing Mount Assembly
6* Electric Service Relay Box
7Heating Unit
8Data Label and Installation Label
*Electric service connections are made in this box.

10
SECTION III
INSTALLATION PROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation must conform toapplicable AmericanNational Standards:ANSI Z223.1-
LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codesor ordinancesthe locationmust conform with theNationalFuelGas CodeANSI.Z223.1 LATESTEDITION,
or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural
Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “The dryer must be installed on noncombustible floors only.”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. This dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in Section D).
5. Clearance provisions must be made from combustible construction as noted in this manual (refer to Dryer
Enclosure Requirements in Section C).
6. Provisions must be made for adequate clearances for servicing and for operation as noted in this manual
(refer to Dryer Enclosure Requirements in Section C).
7. Dryer must be exhausted to the outdoors as noted in this manual (refer to Exhaust Requirements in
Section E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary.
9. The dryer must be installed with a proper exhaust duct connection to the outside.

11
10. The dryer must be installed with provisions for adequate combustion and make-up air supply.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6
months, inspect the exhaust ducting and remove any lint build up.
B. UNPACKING and SETTING UP
Remove protective shipping material (i.e., plastic wrap and optional shipping box) from dryer.
IMPORTANT: Dryer must be transported and handled in an upright position at ALLtimes.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. To unskid the
dryer, locate and remove the four (4) lag bolts securing the base of the dryer to the wooden skid. Two (2) are
located at the rear base (remove the back panel for access), and two (2) are located in the bottom of the lint
chamber. To remove the two (2) lag bolts located in the lint chamber area, remove the lint drawer and the two (2)
Phillips head screws securing the lint door in place.
NOTE: Lint door cannot be removed totally from dryer due to a safety chain. The chain is secured to
the dryer and door with special tamperproof screws. The safety chain must not be removed
or cut from the lint door. Once these lag bolts are off, remove the eight (8) nuts and bolts
holding the skid together and take the skid apart. The dryer can now be removed from the
skid and set into place.
1. Leveling Dryer
a. To level dryer, place 4-inch (10.16 cm) square metal shims (refer to the illustration above) or other
suitable material under the base pads. It is suggested that the dryer be tilted slightly to the rear.

12
2. The V-belts are disconnected from the basket (tumbler) drive motor for shipping. Reconnect V-belts before
starting the dryer.
a. To reconnect V-belts
1) Remove hardware holding back (belt) guard and remove guard from dryer.
2) Lay one (1) belt into motor sheave (pulley) groove and wind belt into corresponding groove of the
idler pulley by rotating the idler pulley by hand. Rotate the idler pulley an extra turn or two (2) to
insure that the belt is tracking properly in the motor sheave (pulley) and idler pulley grooves without
twisting.
3) Repeat procedure to reconnect the remaining belt.
4) Replace back (belt) guard and hardware.

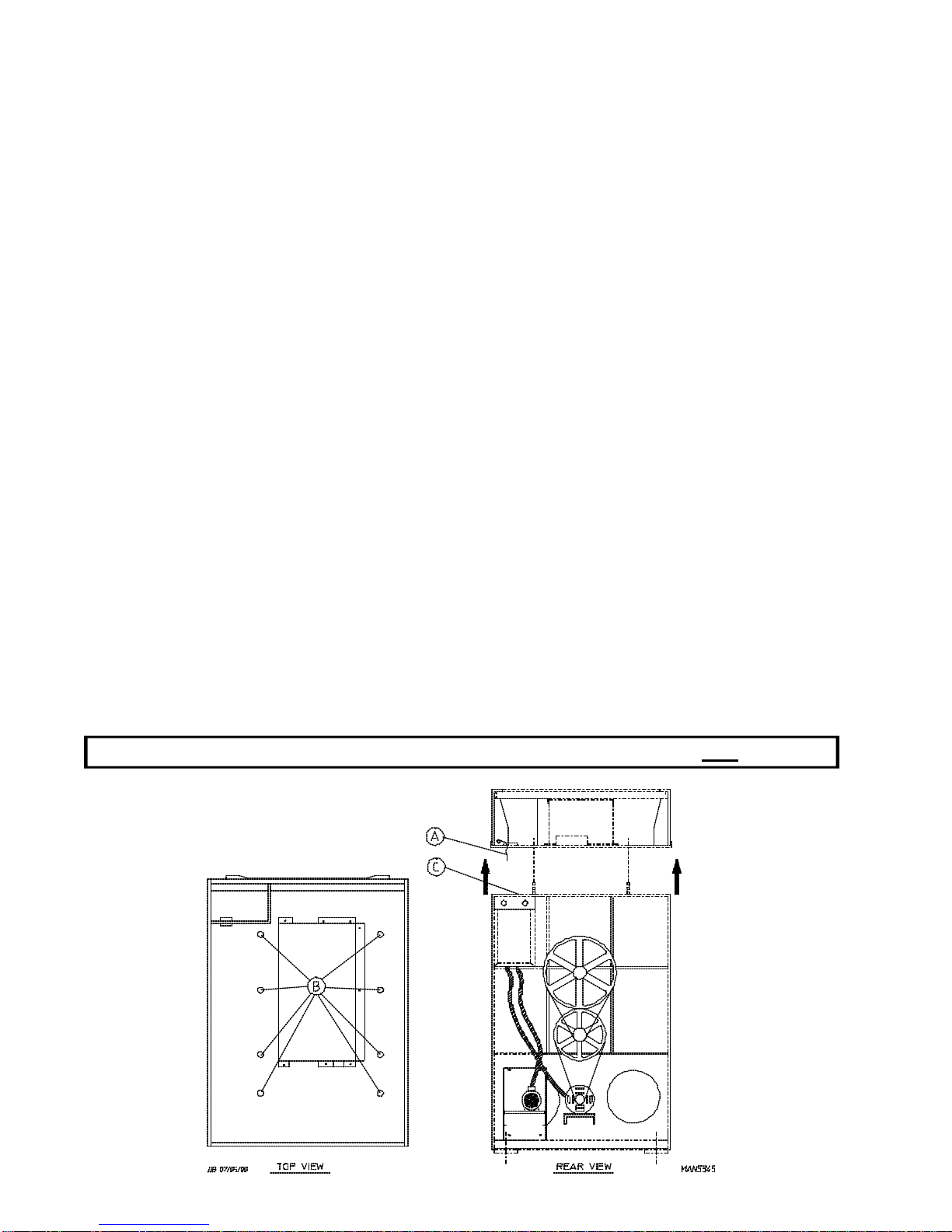

3. If more headroom is needed when moving dryer into position, the top console (module) may be removed.
a. To remove top console (module)
1) Disconnect the ground wire (A) at the rear upper left hand corner of dryer.
2) Remove the eight (8) sets of nuts and washers (B) holding the console (module) to base.
3) Open the control door and control panel, and disconnect the white 15-pin plug connector (C) located
in the base of the control box.
4) Disconnect white plug connector located outside backside of the control box (provides power to
heat circuit).
5) Lift the console (module) off of the dryer base.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.

13
4. Exhaust Transition Piece
a. Inside the tumbler (basket) of this dryer is an
exhaust transition piece that must be installed on
the outlet of the exhaust before any further venting
is connected:
1) Remove the exhaust transition piece from the
tumbler (basket) and place it on the exhaust
outlet.
2) Using the screws provided, secure the exhaust
transition piece to the dryer.
NOTE: It is recommendedthat this joint be taped
as well as ALL other duct joints to prevent
moisture and lint from escaping into the
building.
WARNING
Anexhaustducttransitionpieceisshippedinsideofthedryer’s
tumbler and MUST be installed on the dryer’s
exhaust duct, with the hardware provided, BEFORE
location venting is connected to the dryer.
THIS EXHAUST DUCT TRANSITION PIECE
MUST BE INSTALLED FIRST!
Failure to observe this installation requirement may result in
damage to the dryer, create aFIRE HAZARD and will VOID
the manufacturer’s warranty.
012999JEV-GS/cj P/N: 114092

14
C. DRYER ENCLOSURE REQUIREMENTS
It is recommended that the rear of the dryer be positioned approximately 3 feet (0.91 meters) from the nearest
obstruction (i.e., wall) for ease of installation, maintenance, and service. Bulkheads and partitions should be
made of noncombustible materials. The bulkhead facing must not be closed in ALL the way to the top of the
dryer. A 2-inch (5.08 cm) clearance is required.
NOTE: Bulkhead facing should not be installed until after dryer is in place. Ceiling area must be
located a minimum of 12-inches (30.48 cm) above the top of the dryer.
IMPORTANT: Even though a minimum of only 12-inches (30.48 cm) is required, 18-inches (45.72
cm) or more is suggested for steam dryers and especially in cases where sprinkler
heads are over the dryers.
NOTE: When fire sprinkler systems are located above the dryers, a minimum of 18-inches (45.72 cm)
above the dryer console (module) is suggested. Dryers may be positioned side wall to side
wall, however, 1 or 2-inches (2.54 or 5.08 cm) is suggested between dryers (or wall) for ease
of installation and maintenance. Allowances must be made for the opening and closing of the
control and lint doors.

15
IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes.
Make-up air that is contaminated by dry cleaning solvent fumes will result in
irreparable damage to the motors and other dryer components.
NOTE: Component failure due to dry cleaning solvent fumes will VOID THE WARRANTY.
D. FRESH AIR SUPPLYREQUIREMENTS
When the dryer is operating, it draws in room air, heats it, passes this air through the tumbler (basket), and
exhausts it out of the building. Therefore, the room airmust be continually replenished from the outdoors. If the
make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and sail
switch “fluttering” problems may result, as well as premature motor failure from overheating.
Air supply (make-up air) must be given careful consideration to assure proper performance of each dryer. An
unrestricted source of air is necessary for each dryer. An airflow of 2,100 cfm (cubic feet per minute) (59.4 cmm
[cubic meters per minute]) must be supplied to each dryer. As a general rule, an unrestricted air entrance from
the outdoors (atmosphere) of a minimum of 3 square feet (0.28 square meters) is required for each dryer.
To compensate for the use of registers or louvers used over the openings, this make-up air area must be
increased by approximately thirty-three percent (33%). Make-up air openings should not be located in an area
directly near where exhaust vents exit the building.
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL
the dryers. The dryer must be installed with provisions for adequate combustion and make-up air supply.
EXAMPLE: For a bank of six (6) gas dryers, two (2) openings measuring 3 feet by 3 feet
(0.91 meters by 0.91 meters) 9 square feet (0.84 square meters) is acceptable.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.

16
E. EXHAUST REQUIREMENTS
1. General Exhaust Ductwork Information
Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork
will create excessive back pressure which results in slow drying, increased use of energy, overheating of the
dryer, and shutdown of the burner by the airflow (sail) switches, burner hi-limits, or tumbler (basket) hi-heat
thermostats. The dryer must be installed with a proper exhaust duct connection to the outside.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.
CAUTION: DRYER MUST BE EXHAUSTED TO THE OUTDOORS.
CAUTION: IMPROPERLY SIZED orINSTALLED EXHAUSTDUCTWORKCAN
CREATE APOTENTIALFIREHAZARD.
NOTE: When a dryer is exhausted separately, it is recommendedthat a back draft damper be
installed.
NOTE: When dryers are exhausted into a multiple (common) exhaust line, each dryer must be
supplied with a back draft damper.
The exhaust ductwork should be laid out in such a way that the ductwork travels as directly as possible to
the outdoors with as few turns as possible. Single or independent dryer venting is recommended.
When single dryer venting is used, the ductwork from the dryer to the outside exhaust outlet must not
exceed20 feet (6.1 meters). In the case of multiple (common) dryer venting, the distance from the last
dryer to the outside exhaust outletmust not exceed20 feet (6.1 meters). The shape of the ductwork is not
critical so long as the minimum cross section area is provided. It is suggested that the use of 90º turns in
ducting be avoided; use 30º or 45º angles instead. The radius of the elbows should preferably be
1-1/2 times the diameter of the duct. Excluding tumbler (basket) and dryer elbow connections or elbows
used for outside protection from the weather, no more than two (2) elbows should be used in the exhaust
duct run. If more than two (2) elbows are used, the cross section area of the ductwork must be increased
in proportion to number of elbows added.
ALL ductwork should be smooth inside with no projections from sheet metal screws or other obstructions
which will collect lint. When adding ducts, the ducts to be added should overlap the duct to which it is
connected. ALL ductwork jointsmust be taped to prevent moisture and lint from escaping into the building.
Additionally, inspection doors should be installed at strategic points in the exhaust ductwork for periodic
inspection and clean-out of lint from the ductwork.
IMPORTANT: Exhaust back pressure measured by a manometer at the dryer exhaust duct area must
be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column
(W.C.).
NOTE: When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible
materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around).
The duct must be centered within this opening.
