Contro l4 C4-DIN-8RELSW-E User manual

DIN-Rail 8-Channel Relay Switch
Wiring Guide
Supported model
• C4-DIN-8RELSW-E DIN-Rail 8-Channel Relay Switch
Diagrams color code*:
Black Line
Red Load
Grey Neutral
Green Earth ground
Blue Ethernet
*Important! The wire colors shown in Figure 1 in the “Diagrams
color code” table are examples only. Actual wire colors dier by
country and/or voltage.
Wiring diagrams
Use these Control4 DIN-Rail 8-Channel Relay Switch wiring diagrams along
with the DIN-Rail 8-Channel Relay Switch Installation Guide
( ctrl4.co/8chrelay-ig ) to install DIN-Rail 8-Channel Relay Switches.
Figure 1. Wiring in Control4 panel
To Ethernet switch
Distribution
(breaker)
panel
Override switch
Load 1
Load 2
Line 1
Neutral Out 1
Neutral Out 2
Neutral In 1
Aux Override In
Aux Override Out
Ground
Load 3
Load 4
Line 2
Load 5
Load 6
Line 3
Load 7
Load 8
Line 4
Neutral Out 3
Neutral Out 4
Neutral In 2
Neutral Out 5
Neutral Out 6
Neutral In 3
Neutral Out 7
Neutral Out 8
Neutral In 4
Terminal block
Important: Remove the four bypass
jumpers that connect each black
terminal to two red terminals by
unscrewing all three screws in each
bypass jumper until the entire bypass
jumper can be pulled out.
C4-DIN-8RELSW-E 8-Channel Relay Switch
ATTENTION: Risque de choc électrique Ne pas ouvrir
This device complies with part 15 of the FCC rules and ISED’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3 (B)/NMB-3(B)
100-277V ,50/60 Hz 240V ,50 Hz 64A Max Total 16A Max per Circuit 16A Max per Channel 1 HP Max per Channel @ 120V 2 HP Max per Channel @240V Refer to documentation for load ratings Patent Pending
Load 3
Load 4
Load 5
Load 6
Load 7
Load 8
Load 1
Load 2
Neutral 1
Line 1
Neutral 2
Line 2
Neutral 3
Line 3
Neutral 4
Line 4
Aux in
Aux out
Load 3
Load 4
Load 5
Load 6
Load 7
Load 8
Note:
When less than four lines are
being used, jumper any
shared neutrals at the
Terminal Block

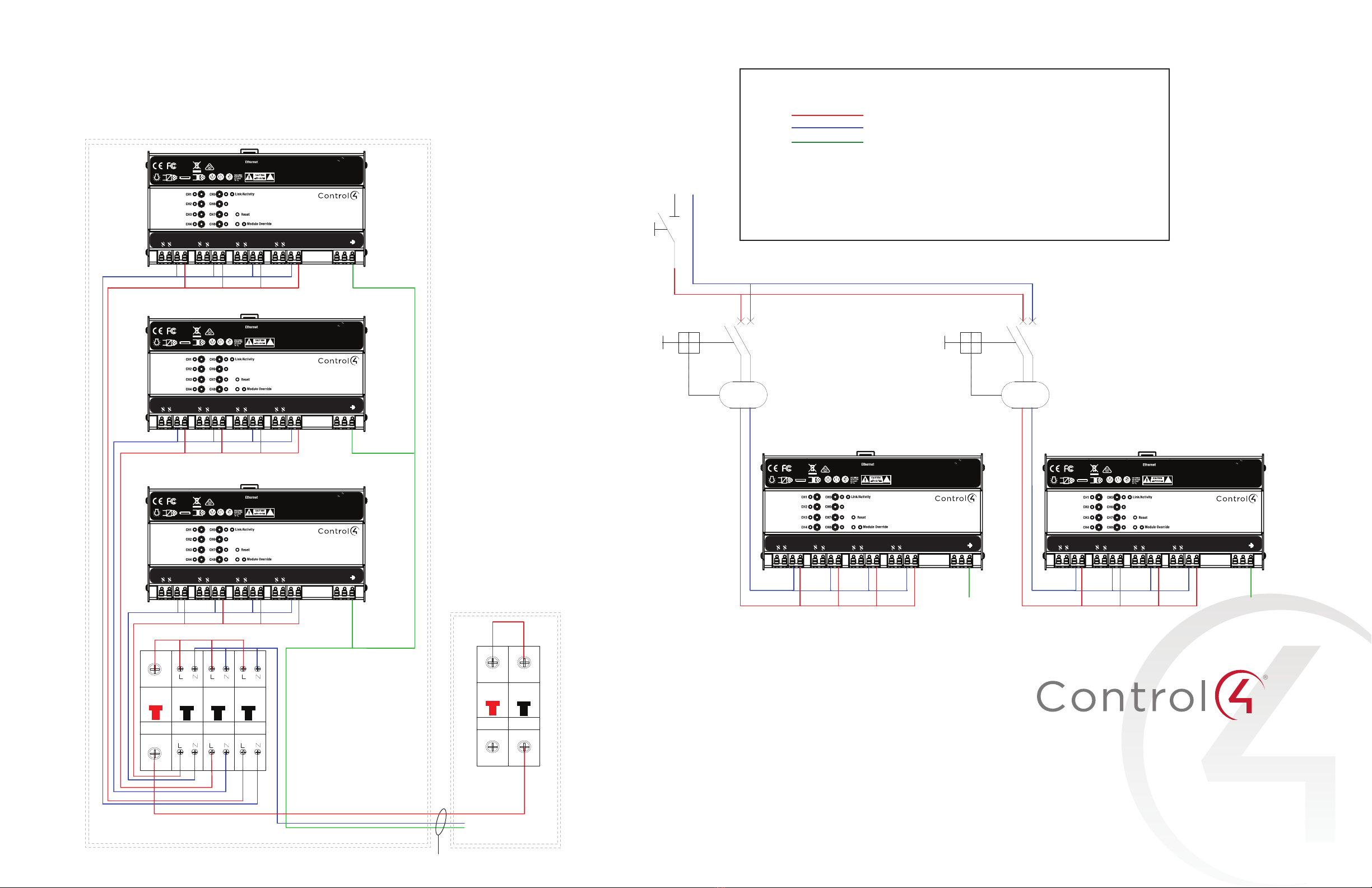

IEC Diagrams color code
Red Line
Blue Neutral
Green Earth ground
• The wire colors shown in the “IEC Diagrams color code” table are examples only.
Actual wire colors dier by country and/or voltage.
• Circuit breaker and RCBO sizes are indicative only, actual sizes could vary based on
local electrical requirements and regulations.
MAIN
SWITCH
220-240v Line Input
Neutral Line Input
16A
30mA
RCBO
Earth
Important!
Use at least 1 RCBO per unit.
A dedicated RCBO provides both
residual and over-current protection.
In countries using a single 300 mA to
500 mA RCBD, a dedicated RCCB or
MCB is recommended for each module.
16A
30mA
RCBO
Earth
C4-DIN-8RELSW-E
8-Channel Relay Switch
ATTENTION: Risque de choc électrique Ne pas ouvrir
This device complies with part 15 of the FCC rules and ISED’s license-exempt
RSSs. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
100-277V ,50/60 Hz
240V ,50 Hz
64A Max Total
16A Max per Circuit
16A Max per Channel
1 HP Max per Channel @ 120V
2 HP Max per Channel @240V
Refer to documentation
for load ratings
Patent Pending
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8 Load 1 Load 2
Neutral 1 Line 1 Neutral 2 Line 2 Neutral 3 Line 3 Neutral 4 Line 4
Aux in Aux out
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8
C4-DIN-8RELSW-E
8-Channel Relay Switch
ATTENTION: Risque de choc électrique Ne pas ouvrir
This device complies with part 15 of the FCC rules and ISED’s license-exempt
RSSs. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
100-277V ,50/60 Hz
240V ,50 Hz
64A Max Total
16A Max per Circuit
16A Max per Channel
1 HP Max per Channel @ 120V
2 HP Max per Channel @240V
Refer to documentation
for load ratings
Patent Pending
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8 Load 1 Load 2
Neutral 1 Line 1 Neutral 2 Line 2 Neutral 3 Line 3 Neutral 4 Line 4
Aux in Aux out
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8
Lighting Control Subboard
Main Electrical
Switchboard
Neutral & Earth bars
Sub-Main TPS Cable
C4-DIN-8RELSW-E
8-Channel Relay Switch
ATTENTION: Risque de choc électrique Ne pas ouvrir
This device complies with part 15 of the FCC rules and ISED’s license-exempt
RSSs. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
100-277V ,50/60 Hz
240V ,50 Hz
64A Max Total
16A Max per Circuit
16A Max per Channel
1 HP Max per Channel @ 120V
2 HP Max per Channel @240V
Refer to documentation
for load ratings
Patent Pending
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8 Load 1 Load 2
Neutral 1 Line 1 Neutral 2 Line 2 Neutral 3 Line 3 Neutral 4 Line 4
Aux in Aux out
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8
C4-DIN-8RELSW-E
8-Channel Relay Switch
ATTENTION: Risque de choc électrique Ne pas ouvrir
This device complies with part 15 of the FCC rules and ISED’s license-exempt
RSSs. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
100-277V ,50/60 Hz
240V ,50 Hz
64A Max Total
16A Max per Circuit
16A Max per Channel
1 HP Max per Channel @ 120V
2 HP Max per Channel @240V
Refer to documentation
for load ratings
Patent Pending
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8 Load 1 Load 2
Neutral 1 Line 1 Neutral 2 Line 2 Neutral 3 Line 3 Neutral 4 Line 4
Aux in Aux out
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8
C4-DIN-8RELSW-E
8-Channel Relay Switch
ATTENTION: Risque de choc électrique Ne pas ouvrir
This device complies with part 15 of the FCC rules and ISED’s license-exempt
RSSs. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CAN ICES-3 (B)/NMB-3(B)
100-277V ,50/60 Hz
240V ,50 Hz
64A Max Total
16A Max per Circuit
16A Max per Channel
1 HP Max per Channel @ 120V
2 HP Max per Channel @240V
Refer to documentation
for load ratings
Patent Pending
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8 Load 1 Load 2
Neutral 1 Line 1 Neutral 2 Line 2 Neutral 3 Line 3 Neutral 4 Line 4
Aux in Aux out
Load 3 Load 4 Load 5 Load 6 Load 7 Load 8
Isolation
SW RCBO 1Oa
30mA 30mA 30mA
RCBO
1Oa RCBO 1Oa
Main
SW MCB 16A
For IEC Installations
