Contro l4 LOZ-5S1-W User manual

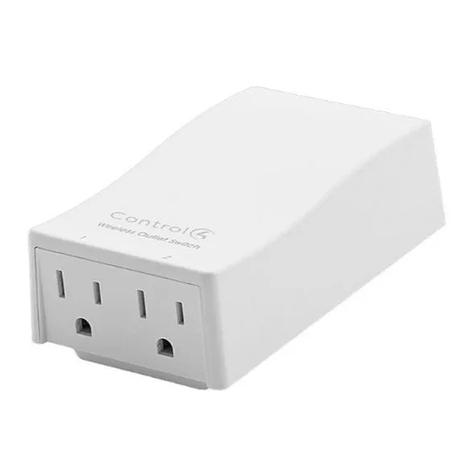

Wireless Outlet Switch
The Wireless Outlet Switch enables easy control of just about any plug-in device in
the home, immediately making it a part of the Control4®home automation sys-
tem. With intelligent power-sensing abilities, the Wireless Outlet Switch enables
increased control of audio/video devices as well as plug-in lighting and motorized
devices. What’s more, it communicates wirelessly with the home controller to trig-
ger and interact with other devices and systems throughout the home.
It’s all part of the Control4 vision. We bring the benets of a truly automated home
to more people with solutions that are affordable, easy to install and designed to
adapt to any home or lifestyle.
Looks Small, Thinks Big
Features and Benets
Drop a disc into your DVD player and
watch the TV automatically turn on and
tune to the correct input while the home
theater screen comes down.
Congure the lights in the backyard
pond to come on every evening at sunset.
Intelligent From Front To Back
• Built-in power sensing — From turning on the TV to turning off the game console, the Wireless
Outlet Switch learns a device’s power level and can automatically trigger relevant commands.
• Anytime control — Lights can be switched on or off based on the time of day or other activities
in the home.
• Anywhere control — Intelligent, reliable, wireless connectivity using the ZigBee™ (802.15.4)
mesh networking standard.
• Energy efcient — By automating plug-in devices, electricity is only used when needed.
Smart Design
• Low prole — Small form factor ts easily behind furniture.
• Dual outlets — Two independently switched outlets give added capacity.
• Secure mounting — Special screw tab design allows for the Outlet Switch to be securely
attached to the wall outlet so it won’t accidentally be unplugged.
Easy To Install and Use
• Wireless control — No special control cables to pull through the home.
• Easy recognition — Just plug it in, press a button, and it’s immediately recognized in the system.
• Integrated control — Immediately controllable from any Control4 interface in any room
Control4 • 11734 South Election Road • Salt Lake City, Utah 84020 • p: 801.523.3100/1.888.400.4070 • f: 801.523.3199 • www.control4.com

Technical Specications
Model Number
• LOZ-5S1-W
Power requirements
• Power Requirements: 120 VAC, 50/60 Hz, 1.7 W
• Power sensing range: 690 mA
• Power sensing resolution: 52 mA (5W)
Load Ratings (total across both outlets)
• 120 VAC, 1000 VA, Inductive, Total
• 120 VAC, 1/3 HP (7.2 FLA), Total
• 120 VAC, 7.2 A, Ballast, Total
Communications
• Wireless ZigBee (802.15.4) mesh networking
Environmental
• Operational 0°C to 40°C
• Humidity 5% to 95% Non-Condensing
• Storage -20°C to 70°C
Dimensions & Weight
• H x W x D: 4.5” x 2.6” x 1.6” (115mm x 67mm x 42mm)
• Weight: 8 oz (227 g)
Available Colors
• White
In addition to the Wireless Outlet
Switch, Control4 offers:
Wireless Outlet Dimmer — Ideal for
dimmable plug-in devices rated up to
400 watts.
Wireless Outlet Switch
Wireless Dimmer — For new or retrot
home automation solutions using
ZigBee wireless connectivity.
Related Control4 Products
©2006 Control4. All rights reserved. Control4 and the Control4 logo are registered trademarks. All other trademarks are property of their respective owners. C4-CSP-1
