Cooke & Lewis HEC60CL User manual

60cm Ceramic Hob
HEC60CL - Version: 01
GB IE 60cm Ceramic Hob - Barcode: 5052931258598
WARNING: Read the instructions before using the appliance.
HEC60CL-C&L-A5 GB-IM-10.indd 1 10/29/13 11:41 AM

[01] x 1 [02] x 4
HEC60CL 60cm Ceramic Hob
[03] x 4
1 : 1
HEC60CL-C&L-A5 GB-IM-10.indd 2 10/29/13 11:41 AM

3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Your product 04
Before you start 04
Safety 05
In more detail… 09
Operation 09
Care and maintenance 18
Troubleshooting 20
Recycling and disposal 20
Technical and legal information 21
Guarantee 24
CE Declaration of conformity 26
Appendix...
27
Installation
GB
IE
HEC60CL-C&L-A5 GB-IM-10.indd 3 10/29/13 11:41 AM

4
HEC60CL 60cm Ceramic Hob
Getting started...
GB
IE
Your product
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0844 800 1128 (UK) and 01 4475261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.

prevent personal injury or damage to the product.


If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need
Your product
Before you start
Installation guide
located at the end of
the guidebook
HEC60CL-C&L-A5 GB-IM-10.indd 4 10/29/13 11:41 AM

5
Getting started...
HEC60CL 60cm Ceramic Hob GB
IE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
All installation work must be carried

electrician.
This appliance must be installed correctly

following the manufacturer’s instructions.
This appliance complies with all current
European safety legislation, however, the
Manufacturer must emphasise that this
compliance does not prevent the surfaces of
the appliance from heating up during use and
remaining hot during its operation.
Accessible parts may become hot during
use. Young children should be kept away.
Care should be taken to avoid touching the
appliance.
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies
and small children.
If the surface of the hob is cracked, disconnect
from power supply of the appliance to avoid
any possibility of electric shocks.
HEC60CL-C&L-A5 GB-IM-10.indd 5 10/29/13 11:41 AM

6
HEC60CL 60cm Ceramic Hob
Getting started...
GB
IE
Safety
This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for isolating the appliance must be

with the current wiring regulations. An all-
pole disconnection switch having a contact
separation of at least 3 mm in all poles should

Regularly check the power plug and power
cord for damage. If the supply cord is
damaged, it must be replaced by a special
cord or assembly available from the
manufacturer or its service agent.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
HEC60CL-C&L-A5 GB-IM-10.indd 6 10/29/13 11:41 AM

7
Getting started...
HEC60CL 60cm Ceramic Hob GB
IE
Safety
Do not allow the electric cables to touch the
hot parts of the appliance.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
Please dispose of the packing material
carefully.

to the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
When a cooking zone has been on for a long
time, the surface remains hot for some time
afterwards so do not touch the metal surface.
HEC60CL-C&L-A5 GB-IM-10.indd 7 10/29/13 11:41 AM

8
HEC60CL 60cm Ceramic Hob
Getting started...
GB
IE
Safety

materials beneath the hob.
Do not leave hot oils or fats unattended as
they may catch light.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning! Unattended cooking on a hob with fat




 Do not store items on
the cooking surfaces.
After use, switch off the hob element by its
control. Do not rely on the pan detector.
The means for disconnection must be

with the wiring rules.
Caution! In order to avoid a hazard due to
inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an
external switching device, such as a timer, or
connected to a circuit that is regularly switched
on and off by the utility.
HEC60CL-C&L-A5 GB-IM-10.indd 8 10/29/13 11:41 AM

9
In more detail...
HEC60CL 60cm Ceramic Hob GB
IE
Operation
Product functions
 The ceramic hob caters for all kind of cooking and its electronic touch
controls and multi-functions, making it the ideal choice for the modern family.
 The ceramic hob is extremely user-friendly, durable and safe.
Special functions
Protection from over-heating
A sensor monitors the temperature in the cooking zones. When the temperature
exceeds a safe level, the cooking zone is automatically switched off.
Residual heat indicator
When the hob has been operating for some time, there will be some residual heat.
The letter “H” appears to warn you that it is too hot to touch the surface.
Auto shutdown
Another safety feature of the ceramic hob is auto shutdown. This occurs whenever
you forget to switch off a cooking zone.
The default shutdown times are shown in the table below:
Power level The heating zone shutdown automatically after
1-3 8 hours
4-6 4 hours
7-9 2 hours
HEC60CL-C&L-A5 GB-IM-10.indd 9 10/29/13 11:41 AM

10
In more detail...
HEC60CL 60cm Ceramic Hob
GB
IE
Operation
Function keys
Power regulating key
On/off keyZone positionTimer
Child
lock
Dual
zone
Timer
control
Reference Description
Zone position
Power regulating key (decrease/increase)
Dual zone
Child lock
On/off key
Timer key
HEC60CL-C&L-A5 GB-IM-10.indd 10 10/29/13 11:41 AM

11
In more detail...
HEC60CL 60cm Ceramic Hob GB
IE
Operation
Preparation before use
 When the power is switched on, the buzzer will sound once and all the
indicators will switch on for one second and then switch off. The hob is now
in standby mode. Place the pan in the centre of the cooking zone.
Caution
 When the ON/OFF key is pressed, the ceramic hob returns to
standby mode if no other operation is carried out within one minute.
Heating zone operation
When the ON/OFF key is pressed, all the indicators show "-".
1. Select the hotplate and select the power level by sliding the key for
the relevant hotplate.
2. Adjust up or down by sliding the key.
3. If you press the keys at the end of the control simultaneously, the
power setting returns to "0" and the entire cooking zone switches off.
4. 
The above may vary according to the size of the pan and the material from which
it is made.
Heating Zone Max. Power (W) Cooking Zone
Left 1200 2#
Right 1100/2000 3#
Right 1200 4#
Left 1000/2200 1#
2# 3#
4#
1#
HEC60CL-C&L-A5 GB-IM-10.indd 11 10/29/13 11:41 AM

12
In more detail...
HEC60CL 60cm Ceramic Hob
GB
IE
Operation
Double zone function

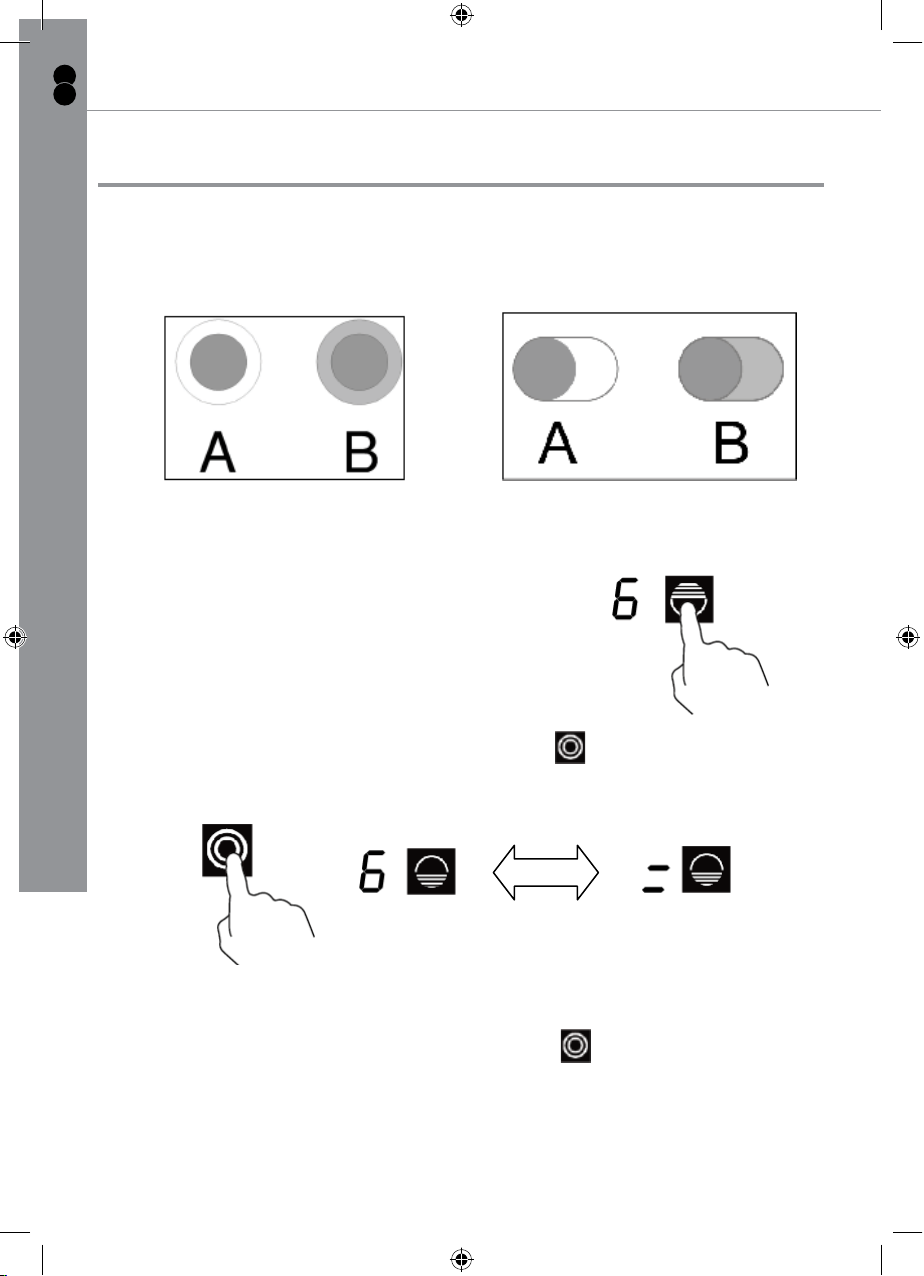

The function only work in 1# and 3# cooking zone
1. The dual cooking zone has two cooking areas that you can use a
central section and an outer section. You can use the central section (A)
independently or both sections (B) at once.
Zone 1# Zone 3#
Activate the double zone (e.g. power level is 6)
1. Press the heating zone selection control of the
double loop heating zone.
2.  " , after 5 seconds, the

shows "6" and "=" alternately.
Deactivate the double zone
1. Press the heating zone selection control of the double loop heating zone.
 ", the double loop
function will be cancelled, and power level return to "6" .
Note:
 The double loop is available only in the 1# and 3# cooking zone.
 You can select the function from level 1 to level 9.
 When you deactivate the double zone function, the power level will be the

HEC60CL-C&L-A5 GB-IM-10.indd 12 10/29/13 11:41 AM

13
In more detail...
HEC60CL 60cm Ceramic Hob GB
IE
Operation

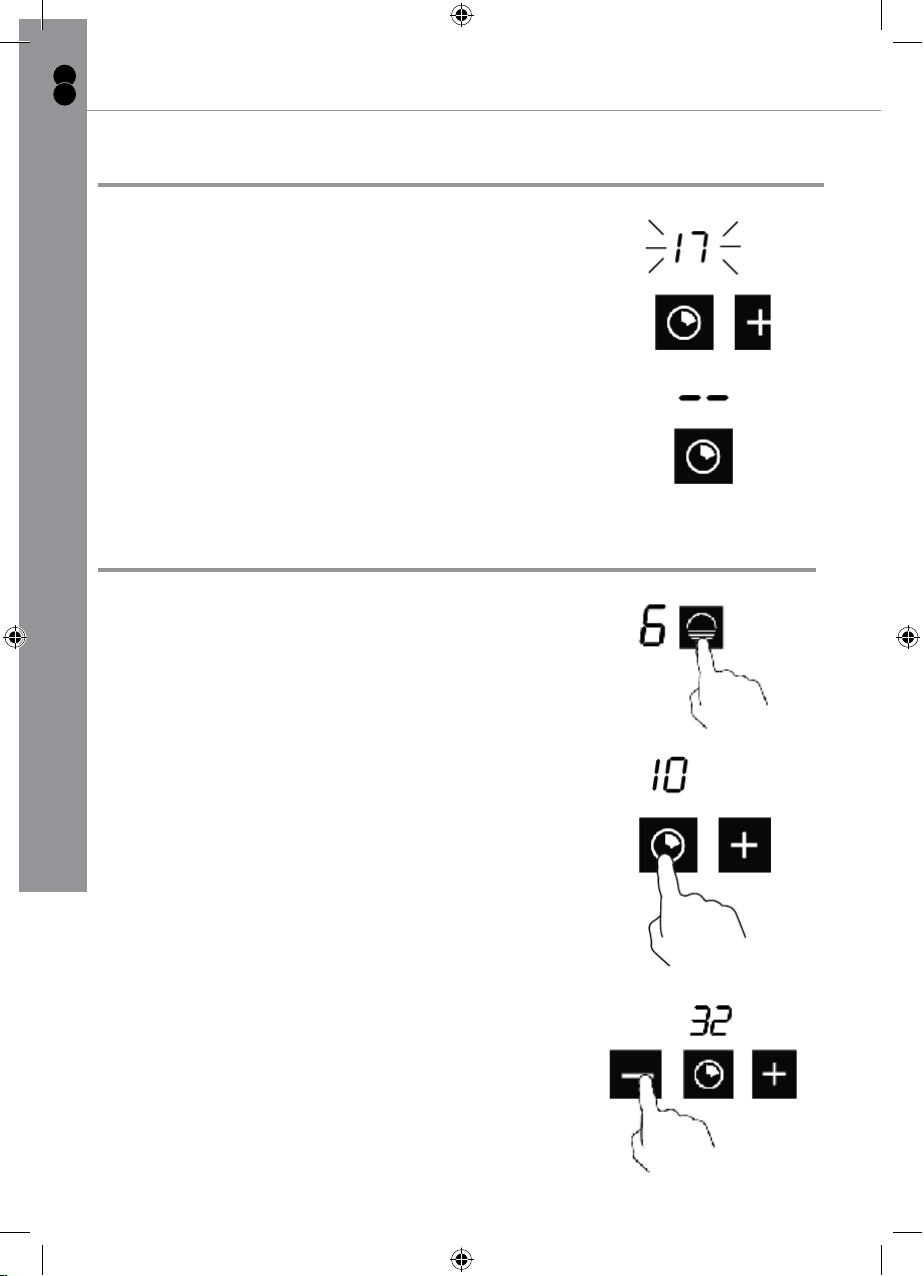

Using the timer
You can use the timer in two different ways:
 You can use it as a minute reminder. In this case, the timer will not turn any
cooking zone off when the set time is up.
 You can set it to turn all the cooking zone off after the set time is up.
 You can set the timer for up to 99 minutes.
Using the timer as a minute reminder
If you are not selecting any cooking zone
1. Make sure the cooktop is turned on.
Note: You can use the minute reminder even if you are not selecting any
cooking zones.
2. Touch the timer control, the timer indicator show
"--".
3. Adjust the timer setting by touching the "-" or "+"
control. The minute reminder indicator will start

Hint: Touch the "-" or "+" control of the timer once to
decrease or increase by 1 minute.
Touch and hold the or control of the timer to
decrease or increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer will
automatically return to 0.
4. Touch "-" and "+" simultaneously to cancel the timer . The "--" is show
on the minute display.
HEC60CL-C&L-A5 GB-IM-10.indd 13 10/29/13 11:41 AM

14
In more detail...
HEC60CL 60cm Ceramic Hob
GB
IE
Operation
Using the timer as a minute reminder
5. When the time is set, it will begin to count down
immediately. The display will show the remaining

seconds.
6. Buzzer will beep for 30 seconds and the timer
indicator shows "- - " when the setting time

Setting the timer to turn one cooking zone off
1. Touch the heating zone selection control.
2. Touch the timer control, the timer indicator show
"10".
3. Set the time by touching the control of the timer.
Hint: Touch the "-" or "+" control of the timer once
will decrease or increase by 1 minute.
Touch and hold the "-" or "+" control of the timer
will decrease or increase by 10 minutes.
If the setting time exceeds 99 minutes, the timer
will automatically return to 0.
HEC60CL-C&L-A5 GB-IM-10.indd 14 10/29/13 11:41 AM

15
In more detail...
HEC60CL 60cm Ceramic Hob GB
IE
Setting the timer to turn one cooking zone off
4. Touch "-" and "+" simultaneously to cancel the timer. The "--" is show on the
minute display.
5. When the time is set, it will begin to count down
immediately. The display will show the remaining

Note: The red dot next to power level
indicator will illuminate indicating that zone
is selected.
Setting the timer to turn more than one cooking zone off
1. If more than one heating zone use this function, the timer indicator will show
the shortest time.
(e.g. zone 1# setting time of 5 minutes, zone 2# setting time of 15 minutes,
the timer indicator shows “5”.)
Note: 
(set to 15 minutes)
(set to 5 minutes)
Operation
HEC60CL-C&L-A5 GB-IM-10.indd 15 10/29/13 11:41 AM

16
In more detail...
HEC60CL 60cm Ceramic Hob
GB
IE
Operation
Setting the timer to turn more than one cooking zone off
2. Once the countdown timer expires, the corresponding zone will switch off.
Then it will show the new min. timer and the dot of corresponding zone will

3. When cooking timer expires, the corresponding cooking
zone will be switch off automatically.
Note: If you want to change the time after the timer is set, you have to
start from step 1.
Safety mode (Child lock)

To lock:
Hold down the "Lock" ; the hob then switches to "Lock" mode, the timer
displays "Lo" and the rest of the keys are disabled except the "ON/OFF" key.
Unlocking:
Hold down the "Lock" key for 2 seconds and the hob will return to normal
working mode.
HEC60CL-C&L-A5 GB-IM-10.indd 16 10/29/13 11:41 AM

17
In more detail...
HEC60CL 60cm Ceramic Hob GB
IE
Care and maintenance
Care and maintenance
OFF
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,

If the supply cord is damaged, it must be replaced by a special cord
or assembly available from the manufacturer or its service agent.
For domestic use only.
Never place the ceramic hob directly into water.
Never place an empty pan on the hob as this will cause an error
message to appear on the control panel.
When a cooking zone has been on for a long time, the surface
remains hot for some time afterwards so do not touch the ceramic
surface.
Occasionally check that nothing is obstructing the air inlet beneath
the ceramic hob.
If the surface of the hob is cracked, disconnect from power supply
the appliance to avoid any possibility of electric shocks.
Do not place rough or uneven vessels on the hob, as they could
damage the ceramic surface.
Avoid banging pots and pans down on the hob.
The ceramic surface is tough but not unbreakable.
Do not leave metal objects, such as knives, forks, spoons and lids
on the hob as they may get hot.

HEC60CL-C&L-A5 GB-IM-10.indd 17 10/29/13 11:41 AM

18
In more detail...
HEC60CL 60cm Ceramic Hob
GB
IE
Care and maintenance
Care and maintenance
Caution
 Avoid rubbing with any abrasive or with the base of the pans, etc, as
this will wear the markings on the top of the ceramic hob over time.
 Clean the ceramic hob on a regular basis to prevent the build up of
food residue.
 The appliance should be cleaned after use.
 The surface of the induction hob may be easily cleaned in the following way:
Type of dirt Cleaning method Cleaning materials
Lime scale Apply white vinegar to the
surface, then wipe it dry with
soft cloth
Special ceramic cleaner
Burnt-on stains Clean with damp cloth and
dry it with a soft cloth
Special ceramic cleaner
Light stains Clean with damp cloth and
dry it with a soft cloth
Cleaning sponge
Melted plastics Use a scraper suitable for
ceramic glass to remove
residue
Special ceramic cleaner
HEC60CL-C&L-A5 GB-IM-10.indd 18 10/29/13 11:41 AM

19
In more detail...
HEC60CL 60cm Ceramic Hob GB
IE
Troubleshooting
Recycling and disposal
Troubleshooting
Before calling the customer services, please check that the appliance is correctly
connected, any of the following cases are not covered by the guarantee
 Damage caused by improper use, storage or maintenance
 Damage caused by unauthorised disassembly and repair.
 Damage caused by misuse.
 Using the ceramic hob for commercial purposes.
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.

Supply voltage 220-240V~, 50Hz
Dimensions (W x H x D) 590 x 55 x 520mm
Max. power consumption 6000-7200W
Net weight 9kg
HEC60CL-C&L-A5 GB-IM-10.indd 19 10/29/13 11:41 AM

20
In more detail...
HEC60CL 60cm Ceramic Hob
GB
IE
Technical and legal information
Wiring
All installation work must be carried out by a competent

Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct Connection
USE A 32AMP FUSE
N (Blue and Grey)
L (Brown
and Black)
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies with wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
HEC60CL-C&L-A5 GB-IM-10.indd 20 10/29/13 11:41 AM
