Coredy FL022 User manual

Owner's
Manual
FL022

TABLE OF CONTENTS
1. Important of Safety Information .......................................................................................................................................
1.1 Use Restrictions .........................................................................................................................................................................................................................
1.2 Battery and Charging ...............................................................................................................................................................................................................
2. Product Diagram .......................................................................................................................................................................
2.1 Robot .................................................................................................................................................................................................................................................
2.2 Accessories ...................................................................................................................................................................................................................................
2.3 Charging Dock .............................................................................................................................................................................................................................
2.4 LED Indication ..............................................................................................................................................................................................................................
3. Operating and Programming .............................................................................................................................................
3.1 Important Tips Before Use ...................................................................................................................................................................................................
3.2 Map Navigation and Management ....................................................................................................................................................................................
3.3 Quick Start ....................................................................................................................................................................................................................................
3.4 Use Your FL022 with the “Coredy Robot” App ...........................................................................................................................................................
3.5 Using the Water Tank and Mopping Cloth ....................................................................................................................................................................
4. Regular Maintenance .............................................................................................................................................................
4.1 Emptying Robot’s Bin ..............................................................................................................................................................................................................
4.2 Clean Robot's Filter ...................................................................................................................................................................................................................
4.3 Dry the Dust Bin and Filter Components ......................................................................................................................................................................
4.4 Clean Robot's Water Tank and Mopping Cloth ..........................................................................................................................................................
4.5 Clean Robot's Side Brush .....................................................................................................................................................................................................
4.6 Cleaning Robot’s Cliff Sensors and Charging Contacts .......................................................................................................................................
4.7 Cleaning Robot’s Front Bumper ........................................................................................................................................................................................
4.8 Cleaning Robot’s Rolling Brush ..........................................................................................................................................................................................
4.9 Battery and Charging Information .....................................................................................................................................................................................
5. Troubleshooting ........................................................................................................................................................................
6. Wi-Fi Connection ......................................................................................................................................................................
7. Specification ...............................................................................................................................................................................
01
01
02
04
04
06
07
08
09
09
11
12
15
26
27
28
29
29
30
31
31
32
32
34
36
40
41

01
1.1 Use Restrictions
1. Important Safety Information
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or
responsible for any damages or injuries caused by improper use.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
Please contact your local or regional waste authority for more information on collection, reuse and recycling programs.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for future reference.
Heed all warnings on your robot, battery, charging dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its package indicates:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environment.
Before using this device, please pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords,
and any fragile objects. If the device passes over a power cord and drags it, there is a chance an object could be pulled from
a table or shelf.

02
1.2 Battery and Charging
Your robot is not a toy. Do not sit or stand on this device. Children and pets should be supervised when your robot is
operating.
Store and operate your robot in room temperature environments only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, other chemicals, or anything wet.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure
safe operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own. Take care when walking in the area where the robot is operating and avoid
stepping on it.
Do not operate the robot in areas with exposed electrical outlets on the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
Charge using a standard outlet only. The product may not be used with any type of power converter. The use of other power
converters will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the manu-
facturer or similarly qualified persons.
Always remember to remove the battery from your robot and accessories before long-term storage or transportation.
Charge indoors only.

03
Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure the voltage rating for the enclosed Charging Dock matches the standard outlet voltage.
Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental
regulations.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack leaks, please don’t hesitate to contact Coredy.
Customer Service for disposal. The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operations.

04
2.1 Robot
Press and hold for 3 seconds to active Wi-Fi paring or reset
Wi-Fi connection
2. Product Diagram
Press and hold for 3 seconds to turn on or off
Press to start Auto cleaning
Press to pause the current cleaning when working
Press to return Coredy FL022 to the charging dock
Press again to pause

05
WiFi Status Light
Power Button
Recharge Button
Front Bumper
Cliff Sensors
Side Brushes
Side Wheels
Dust Bin
Charging Contacts
Universal Wheel
Battery Compartment
Brush Guard
Rolling Brush
Laser Distance Sensor
Cover
Dust Bin Release Button

06

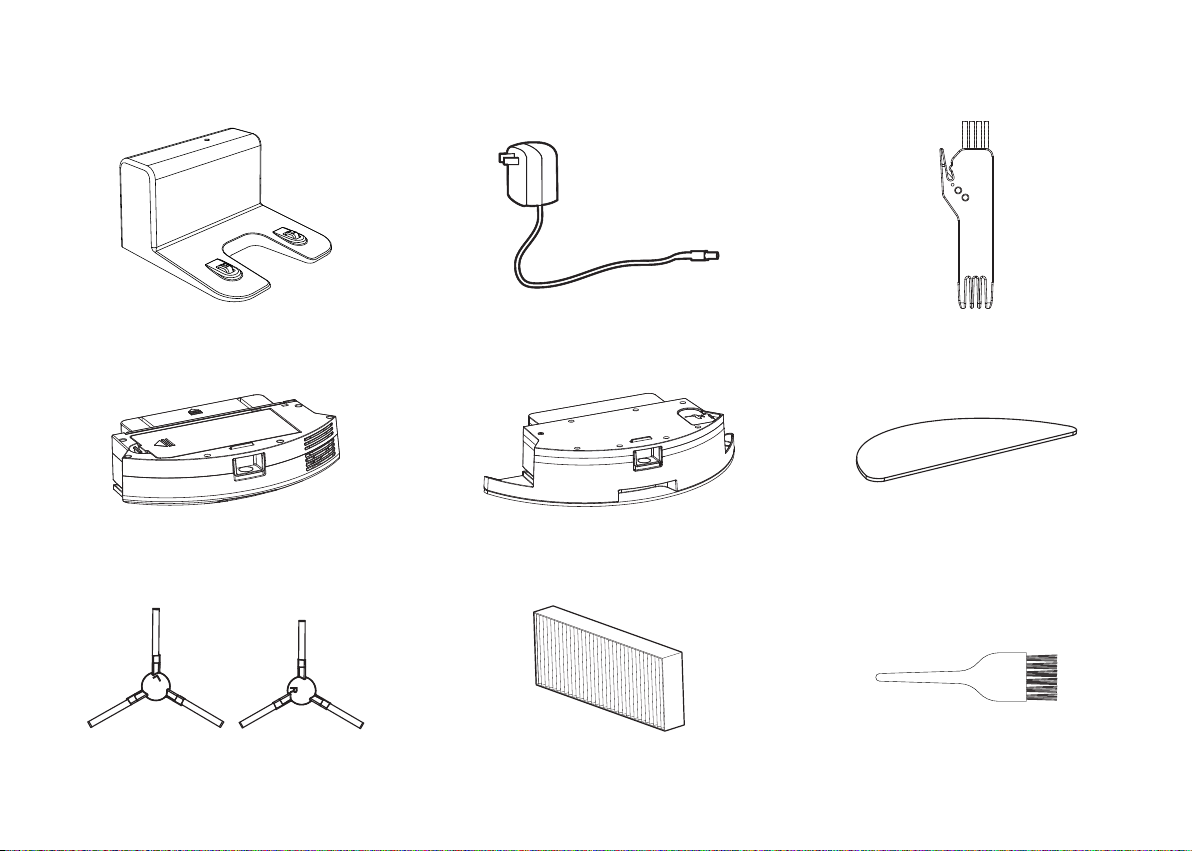

2.2 Accessories
1 x Charging Dock 1 x Power Adapter 1 x Cleaning Tool
1 x Dust Bin 1 x Water Tank (with Mopping Cloth) 1 x Mopping Cloth
4 x Side Brush 2 x HEPA Filter 1 x Cleaning Brush

07

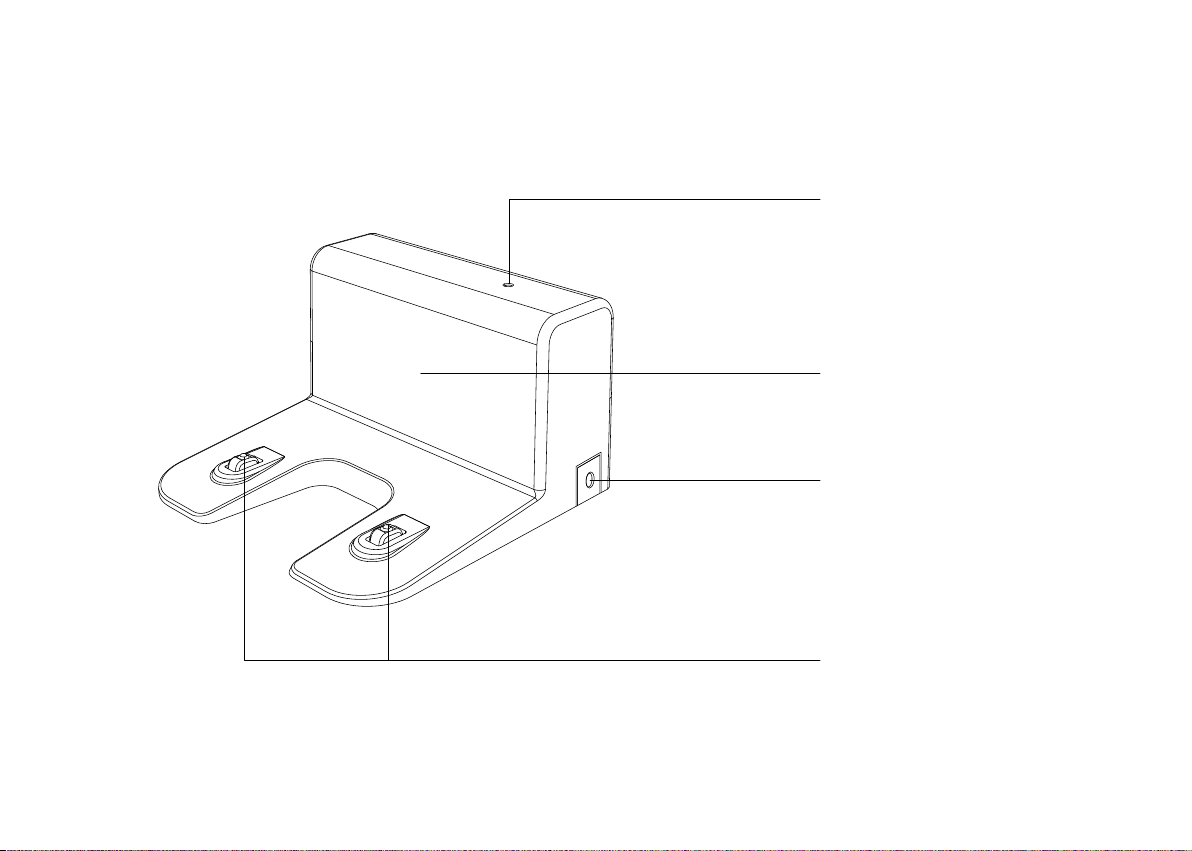

2.3 Charging Dock
Charging Indicator
Signal Transmission Area
Power Socket
Charging Contact Pins

08
2.4 LED Indication
Light Light Status Status
Solid red Error indication
Flashing blue
+
+
Pause
Flashing blue, purple, red alternately,
Rapidly flashing purple Waking up
Solid blue
Standby
Cleaning
Fully charged
Solid purple Low power and returning to Charging Dock
Breathing blue Charging
Slowly flashing blue Waiting for Wi-Fi connection
Solid blue Wi-Fi connected

09
3.1 Important Tips Before Use
3. Operating and Programming
abc abc
a. Please remove power cords and small objects on the floor that may entangle Coredy Robot FL022.
b. Please fold tasseled edges of area rugs back underneath to prevent tangling Coredy Robot FL022. Avoid cleaning very
dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they may cause Coredy Robot FL022 to malfunction.
c. Keep Coredy Robot FL022 away from spaces lower than 3.38 in/96 mm to prevent Coredy Robot FL022 from getting
stuck. If necessary, place a physical barrier to block off the problem areas.

10
def def
d. Keep Coredy Robot FL022 away from wet areas during cleaning.
e. Coredy Robot FL022 may climb on top of objects less than 0.59 in/15 mm in height (the height will be reduced if the
mopping module is installed). Remove these objects if possible.
f. Anti-drop sensors will prevent Coredy Robot FL022 from tumbling down the stairs and steep drops in most cases.
Sensors are less effective if dirty or used on carpeted/reflective/very dark-colored floors. It is recommended to place
physical barriers to block off areas where Coredy Robot FL022 may fall.

11

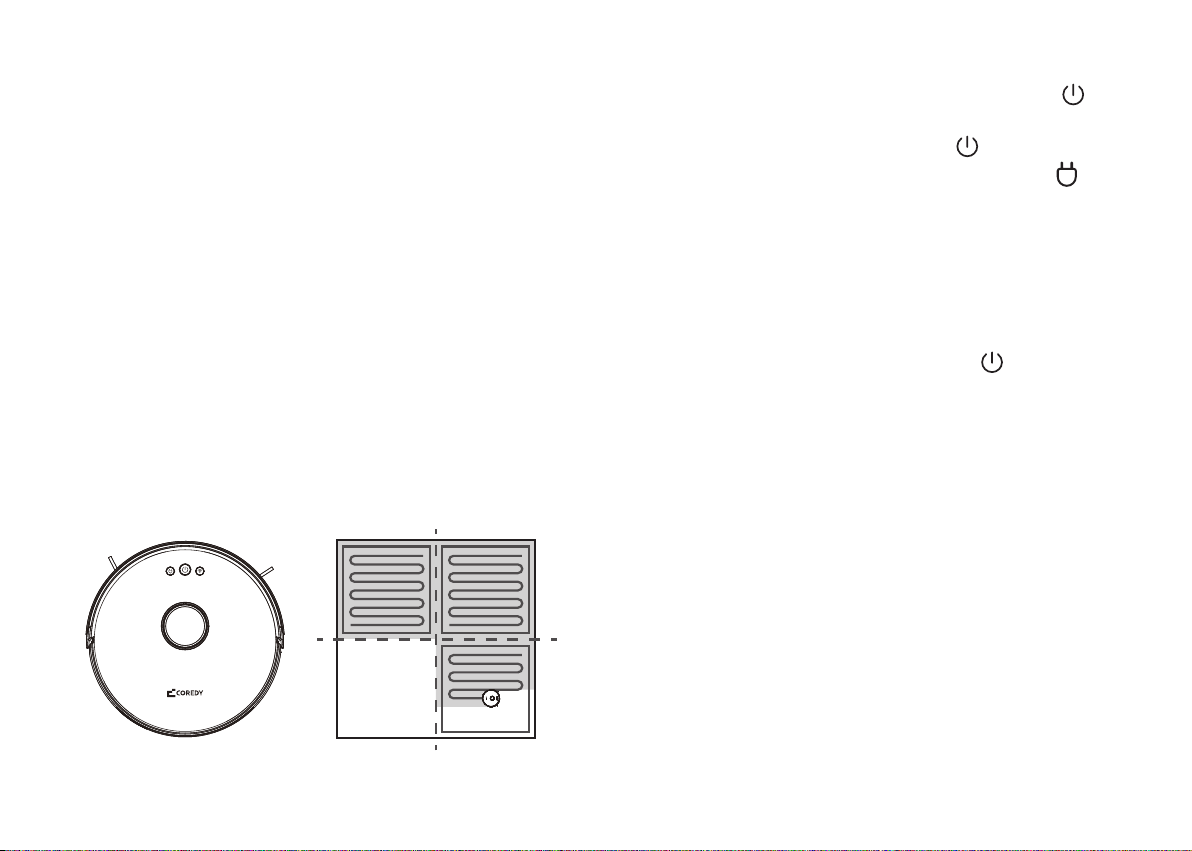

3.2 Map Navigation and Management
Once plan cleaning gets started, Coredy Robot FL022 will
move from the Charging Dock, automatically scan to
generate maps, intelligently plan its cleaning route, and
divide the space into zones.
The cleaning paths are planned along the walls, following
a bow-shaped cleaning method to complete the cleaning
of each zone one by one.
Navigation
Real-time mapping can help you learn about the cleaning
path and environment easily. A floor plan will be built up
after cleaning. The map will be updated instantly during
each cleaning to ensure normal navigation.
Real-time Mapping & Floor Plan
1. Open your doors for Coredy Robot FL022 to map each
room;
2. Remove any objects that may be in the way.
Note:
Do not remove the Charging Dock after a floor plan is
created.
Note:
Make sure Coredy Robot FL022 starts each cleaning from
the Charging Dock.
During cleaning, do not move the device frequently. If
moved, place Coredy Robot FL022 back to the original
position.
To create a complete floor plan:
If the position of Coredy Robot FL022 / Charging Dock is
adjusted or the surroundings are changed significantly,
Coredy Robot FL022 will try to relocate and may remap to
match the surroundings.
Coredy Robot FL022 will resume cleaning if the
relocalization is successful.
Relocation & Remapping
If the relocalization fails, Coredy Robot FL022 will remap
to ensure normal navigation with a new cleaning.
If it is in a No-go zones, Coredy Robot FL022 will not
start cleaning.

12
1. Tie up the redundant cable with a cable tie, otherwise,
the cable may be dragged or disconnected the power
supply to the charging dock.
2. Place the Charging Dock on a hard, level surface and
position it against a wall.
3. Charging Dock Position
Ensure a space of at least 0.5m on both the left and right
sides of the charging dock, and a space of at least 1.5m in
front of it.
4. Install Side Brush
Attach Side Brushes to the bottom of Coredy FL022 by
pressing a brush into each slot until it clicks.
Note:
Do not expose the charging dock to sunlight directly.
3.3 Quick Start
0.5m/1.6ft 0.5m/1.6ft
1.5m/5.0ft

13
5. Activate the Robot
Before using the FL022 Robot, remove the protective strip
from the FL022 Robot.
6. Charging
Place the FL022 Robot on the docking station to charge
the FL022 Robot. During charging, the indicator blinks.
When charging is completed, the indicator is steady. It
takes about 6 hours to fully charge the FL022 Robot.
7. Start Cleaning Cycle
Press the power button and hold on about for 3
seconds to power on Coredy Robot FL022.
During the cleaning process, the FL022 Robot automatically
checks its battery level. If the power is insufficient, the FL022
Robot activates the "Return to docking station" mode and
automatically returns to the docking station for charging.
Alternatively, you can tap the "Return to docking station"
button in the App to activate the "Return to docking
station" mode of the FL022 Robot.
Place Coredy FL022 onto the Charging Dock, making sure
the metal butting charging pole piece on the Charging
Dock match up with those underneath the robot.
If successful, you will hear a series of tones. Once the
power button illuminates, Coredy FL022 is ready for use.
Note:
Do not use the docking station in a highly reflective environ-
ment such as the environment exposed to direct sunlight or
with mirrors nearby.
To ensure the normal working time of the FL022 Robot, fully
charge the FL022 Robot before use. The charging time is
about 6 hours.
To ensure the safety of charging and prevent the damp cloth
from damaging the floor, remove the water tank before
charging the FL022 Robot.
Press the power button again to start a cleaning
cycle.

14
Note:
If the power is too low, the robot cannot start cleaning.
Therefore, charge the robot before starting it.
If the cleaning area is less than 2 square meters, the robot
will clean the area twice by default.
If the power is insufficient in the cleaning process, the FL022
Robot will automatically return to the docking station for
charging. When charged to 80%, the FL022 Robot will
automatically return to the breakpoint to continue cleaning
(ensure that you have enabled the “Continue cleaning at
breakpoint”).
Note:
In pause state, if the robot returns to the docking station for
charging, the current cleaning task is stopped.
Note:
The robot will not enter sleep mode while on the charging
dock.
Note:
The robot will automatically enter sleep mode after 10
minutes of inactivity.
In faulty state, if the robot returns to the docking station for
charging, the current cleaning task is stopped.
The robot will automatically turn off after being in sleep mode
for 12 hours.
Coredy FL022 dynamically plans the cleaning route
according to the map generated after scanning and
completes the cleaning of different zones one by one. In
each zone, Coredy Robot FL022 first sweeps the floor
along the wall and then moves in bow-shaped cleaning
mode to clean the remaining part of the zone in an
orderly and efficient manner.
8. Pause
To pause the robot during a cleaning cycle press the
power button on robot.
9. Sleep Mode
The Coredy Robot FL022 will automatically enter sleep
mode after 10 minutes of inactivity and the power
indicator. To wake it up, press any button or use the App.
10. Fault Status
If Coredy Robot FL022 encounters an error during operation,
the power indicator blinks red quickly and you will hear a
voice prompt. To check for a solution, please refer to the
Troubleshooting section.
To resume the cleaning cycle, press the power button again.
To send robot back to the Charging Dock, press the
button on the robot.
Zone 1: Cleaned Zone 2: Cleaned
Zone 4: To be cleaned Zone 3: Cleaning

15
3.4 Use Your FL022 with the “Coredy Robot” App
Before you start, make sure that：
To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App.
1. Your smartphone or tablet is connected to a 2.4GHz Wi-Fi network ( Only support 2.4GHz network).
2. Your smartphone or tablet is running iOS 11.0 (or above) or Android 5.0 (or above).
3. The Wi-Fi status light on Robot is slowly flashing blue.
4. Robot is attached to the Charging Dock to ensure it has enough power during setup.
Coredy Robot
Scan the QR code as below to download the latest version of App or download from the App Store
(iOS devices) or Google Play (Android devices).
Download on the
App Store
Get it on
Google play
Coredy Robot

16
1. Create a User Account
1. Open the Coredy Robot app
and create a user account.
2. Click "Agree." 3. Create your Coredy account.

17
4. Enter the verification code. 5. Set your password to
6~20 characters, and click
"Done."
6. To provide better services, you can allow the following
permissions (or not) for the App, then click "Go to App."

7. Enable the Coredy App to send notifications, then click
"Continue."
18
2. Add Device
1. Click "Add Device" or tap
"+" in the upper right corner.
