1.1 Use Restrictions
1 Important Safety Information
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environments.
Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any
fragile objects. If the device passes over a power cord and drags it, there is a chance an object could be pulled or a table or
shelf.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for future reference.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01

1.2 Battery and Charging
Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when your robot is
operating.
Store and operate your robot in room temperature environments only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure
safe operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping
on it.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert-
ers will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the manu-
facturer or similarly qualified persons.
Always charge and remove the battery from your robot and accessories before long-term storage or transportation.
Charge indoors only.
02

Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock matches standard outlet voltage.
Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental regula-
tions.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack is leaking, contact Coredy Customer Service for disposal.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
03

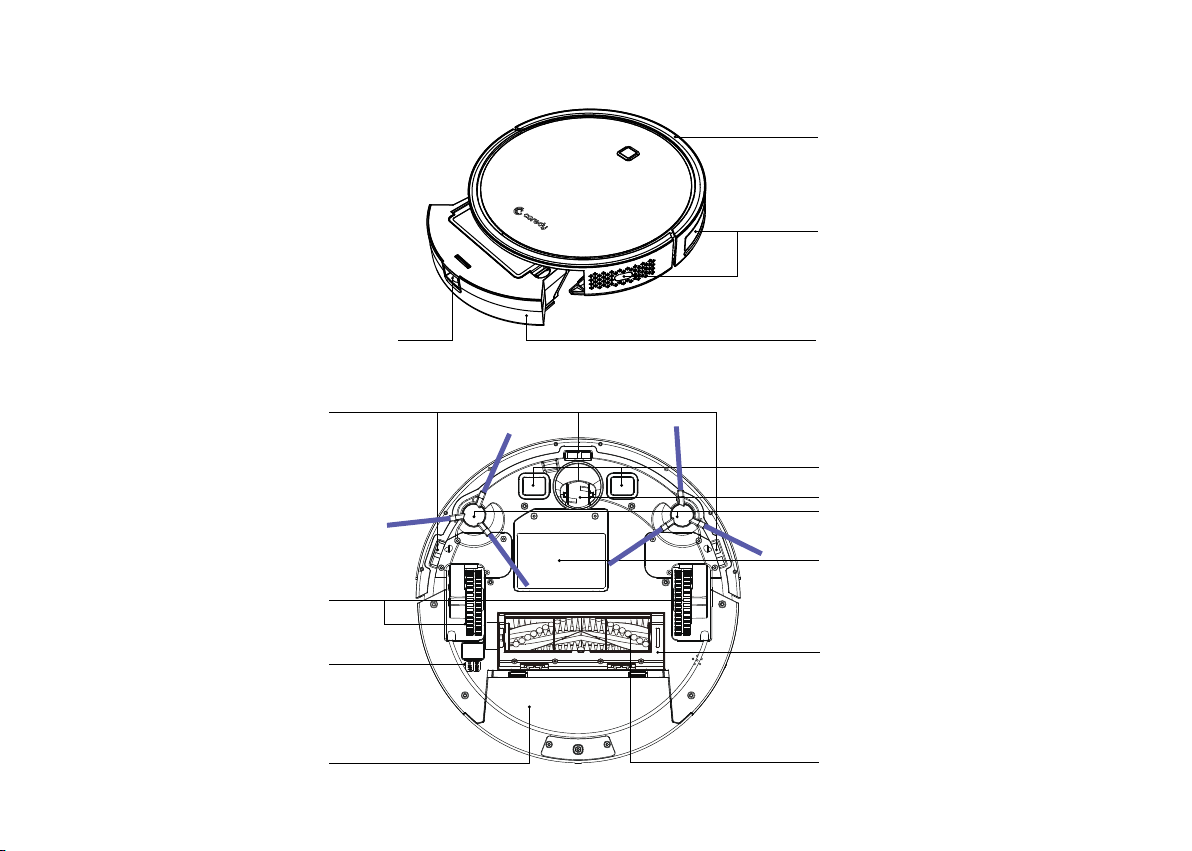

2 Product Diagram
2.1 Robot
Cleaning/Reset the Wi-Fi Connection
Press to Start Cleaning
Long-press for 5 seconds to reset wifi connection
Indicator
Indicator Light Blue: Cleaning/ Standby Mode/ Full Charging
Indicator Light Orange: Self-Charging and Standby Mode under Low Power
Indicator Light Blinks Orange: Charging
Indicator Light off: Sleep Mode
Indicator Light or Blinks Red Accompanied with Sound Alarm: Troubleshooting
04

Dust Bin
Driving Wheels
Power Switch
Anti-Drop Sensors
Charging Contacts
Universal Wheel
Side Brushes
Battery Pack
Brush Guard
Main Brush
05
Dust collector release button Dust collector
Infrared sensor
Bumper

2.2 Accessories
1 x Charging Dock 1 x Adapter 1 x Remote Control
(with 2 x AAA batteries)
1 x Dust Bin4 x Side Brushes
1 x Cleaning Brush 1 x Main Brush
1 x Washable HEPA Filter
and Sponge Filter
06
MAX
2 x Boundary Strips 6.6 ft/2m Length
1 x Water Tank 2 x Cleaning Cloths

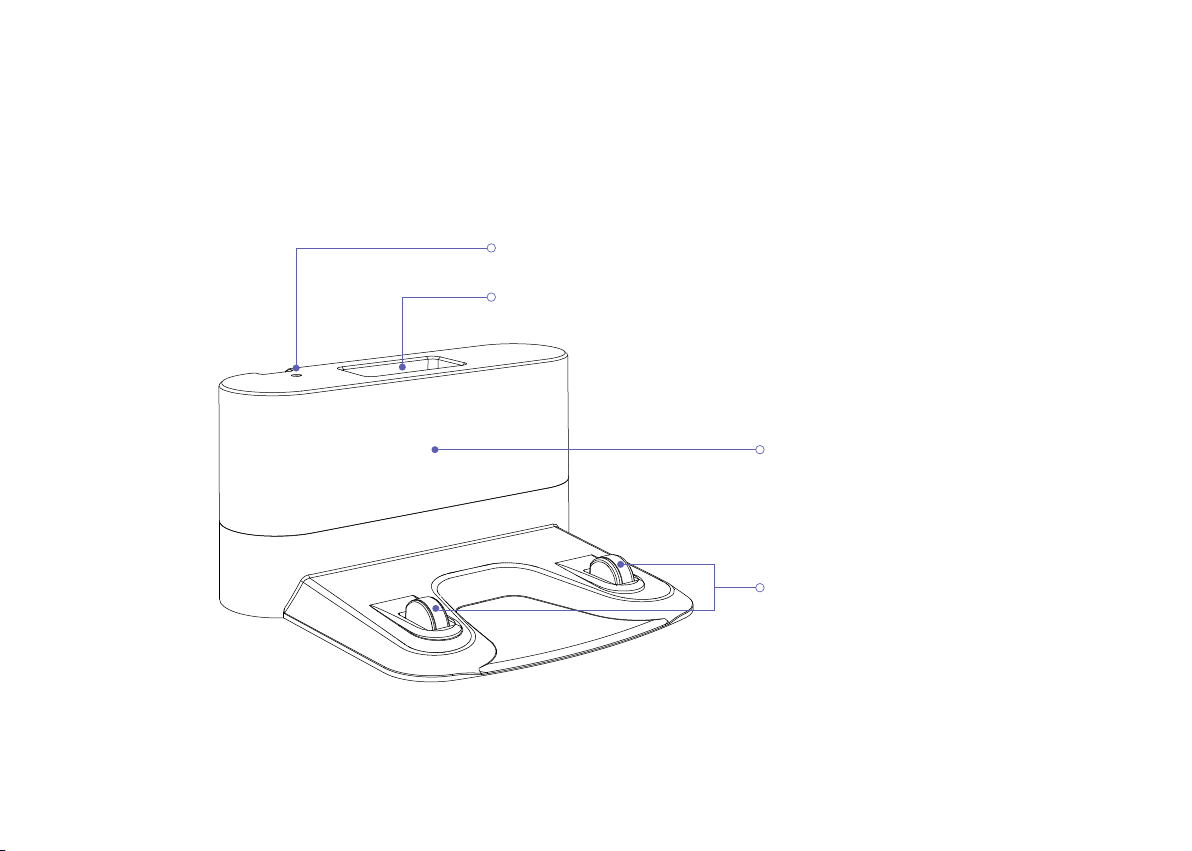

2.3 Charging Dock
07
Charging indicator
Location for remote control
Signal transmission area
Butting charging pole piece

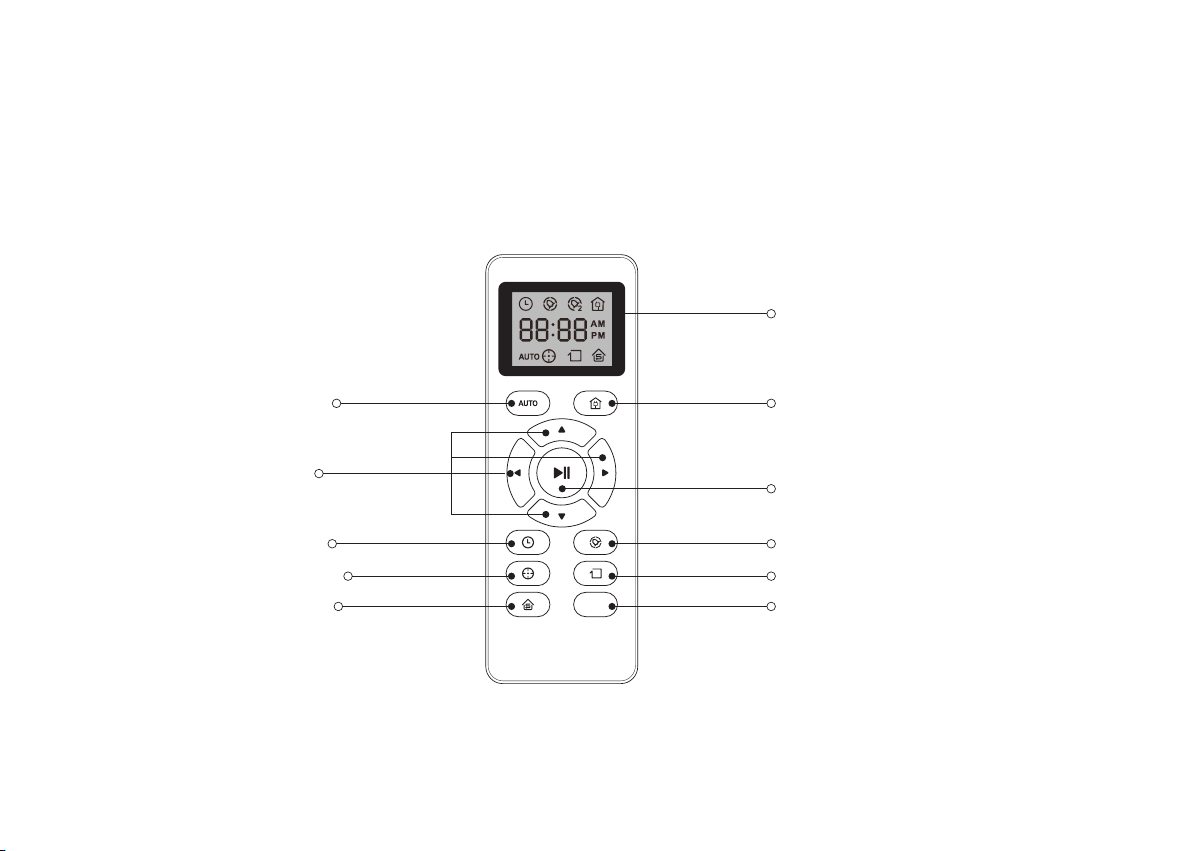

2.4 Remote Control
08
Mode and time display screen
Automatic re-charging button
Automatic cleaning
Direction buttons
Clock setup button Scheduling button
Start / Pause button
Spot cleaning button Edge cleaning button
Small-space button Changing cleaning suction button
*Install 2 AAA batteries (included in the package) before using the remote control for the first time.
MAX

3 Operating and Programming
3.1 Notes Before Cleaning
Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords,
and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be
pulled off a table or shelf.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony
and ensure safe operation.
09

3.2 Quick Start

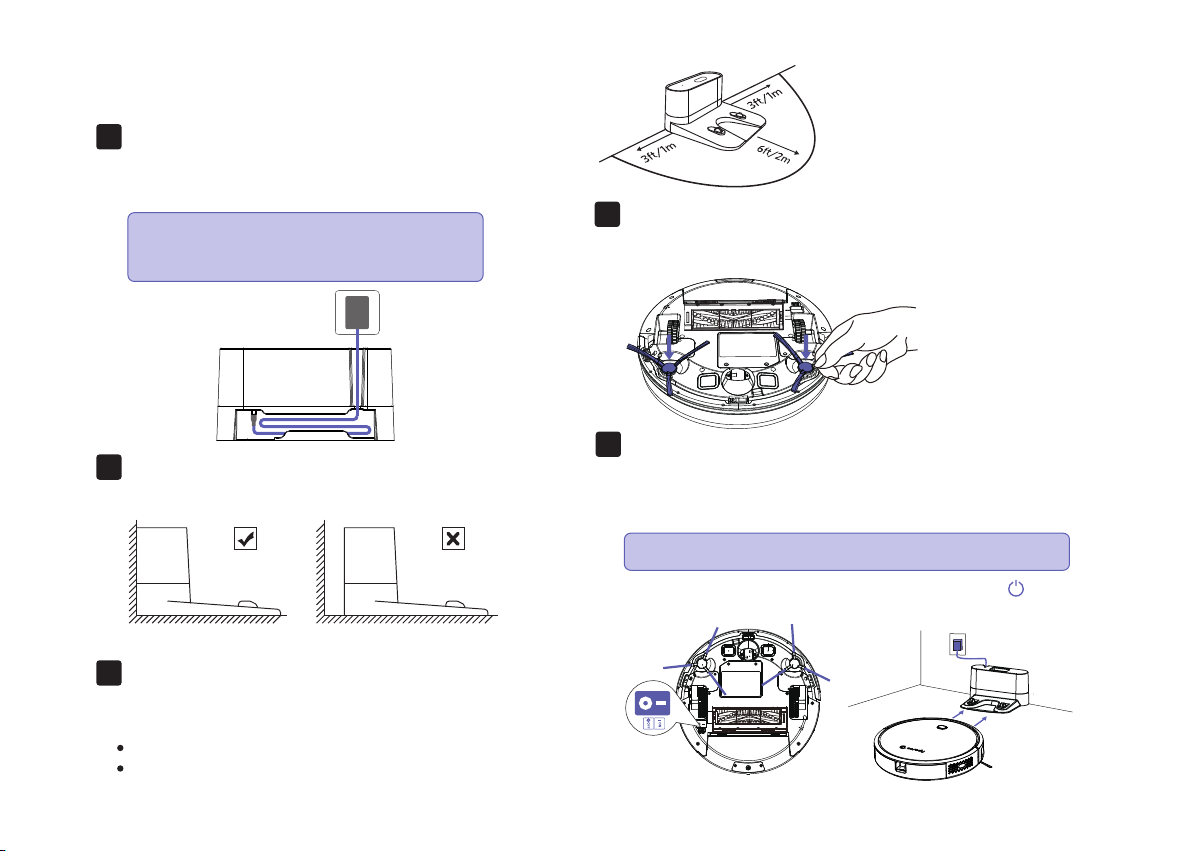

Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
Place the Charging Dock on a hard
level surface and against a wall.
2 meters (6 feet) in the front of the Charging Dock.
1 meter (3 feet) on both sides of the Charging Dock.
Attach Side Brushes to the bottom of Coredy R750 by pressing a
brush into each slot until it clicks.
Plug in the Charging Dock and place
the remaining wire into the trunking
at the bottom of the Charging Dock
1.
3.
2.
Install Side Brushes
4.
Activate the Robot
Place Coredy R750 onto the Charging Dock, making sure the
metal charging contacts on the Charging Dock match up with
those underneath the robot.
If successful, you will hear a series of tones. Once the
Power button illuminates, Coredy R750 is ready for use.
5.
10
Initial Use, Switch on the Power Button on the Bottom.
Note:
Note: Failure to place the remaining wire
into the trunking, may cause Robot to
become stuck while charging or cleaning.

If the Charging Dock is inaccessible, Robot will not be able to
recharge, please place the robot manually on Charging Dock for
charging. (Refer Activate the Robot)

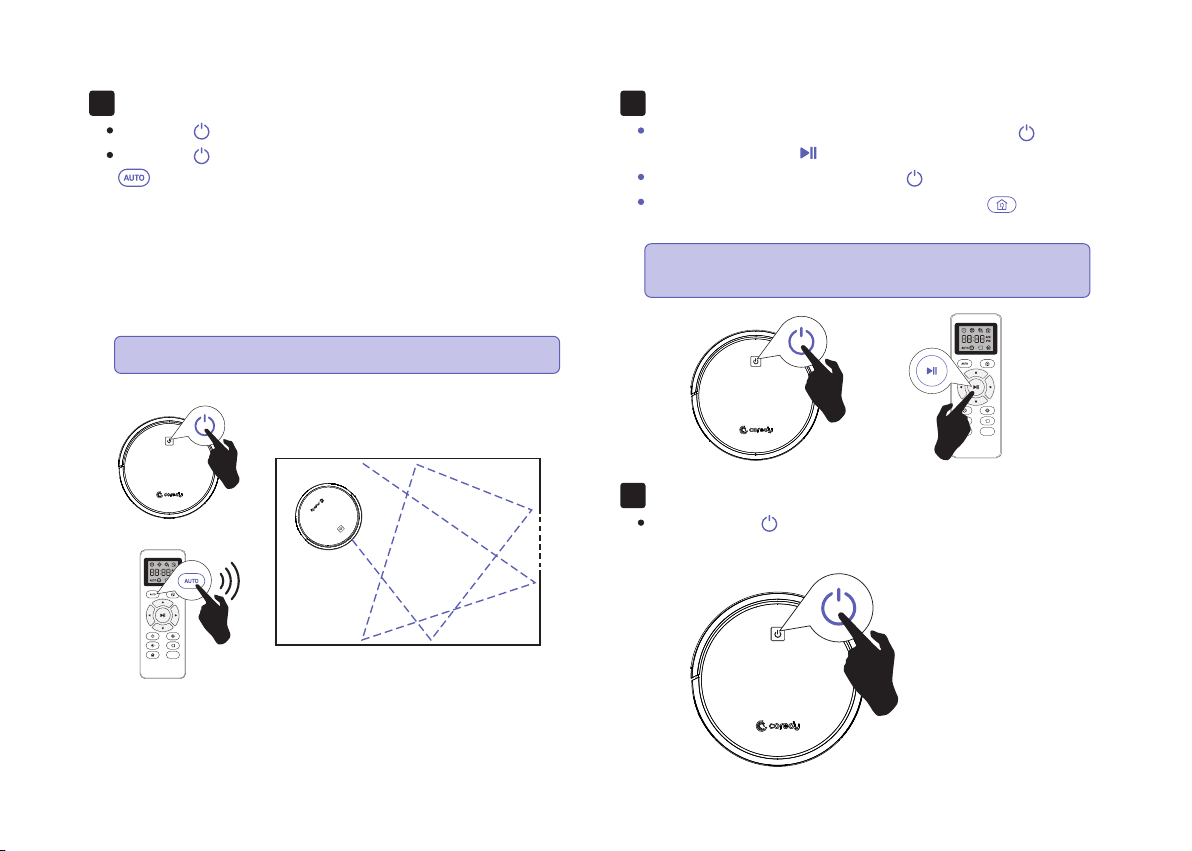

Start Cleaning Cycle
Press the power button once to wake up the robot.
Press the power button again to start a cleaning cycle (or
button on Remote Control).
If its battery gets low before finishing a cleaning cycle, robot
returns to the Charging Dock to recharge.
6. Pause
To pause the robot during a cleaning cycle press the button
on robot or press the button on the Remote Control.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press button on
the Remote Control.
7.
Reset
Long-press the button for 5 seconds to reset wifi connection
mode.
8.
11
Please refer to section 3.4 for more Cleaning Mode.
Note:
Note: The actions listed above can also be managed from
the Remote Control.
MAX
MAX

3.3 Use Your R750 with the “Coredy Robot” APP
Before you start, make sure that：
To enjoy all available features, it is recommended to control your Robot via the Coredy Robot app.
1. Your smartphone or tablet is connected to a 2.4GHz Wi-Fi network ( Only support 2.4GHz network).
2. Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.4 (or above).
3. The Wi-Fi status light on Robot is rapidly flashing blue.
4. Robot is aached to the Charging Base to ensure it has enough power during setup.
12
Coredy Robot
Coredy Robot
Scan the QR code as below to download the latest version of APP or download from the App
Store (iOS devices) or Google Play (Android devices).

Create a user account
13
1. Open the app and create a
user account.
2. Agree the “privacy Policy” 3. Create your account with the
mobile phone number
or E-mail ID.
4. Enter verificaon code
1.

14
Add Device
1. Press “Add Device” or tap the
“+” in the top right corner to
add.
2. Add a Coredy R750 Robot to
your Coredy account.
1. Turn on the main power switch
on the boom of Robot, make
sure the Wi-Fi indicator light on
Robot is flashing rapidly, then
press “Next”.
Wifi Connecon
5. Set your password with
6-20 characters.
2. 3.

15
2. Select the network you want
Robot to use. You need to select
an exact Wi-Fi as your usually
using network. If no Wi-Fi network
list for you choosing, check and set
your phone Wi-Fi seng first, then
press " " to connect and choose
the exact network you need. Enter
Wi-Fi password, press "Confirm"
to connect.
3. Waing for the connecng
unl “100%”.
4. Device added successfully,
then press“Done”.
5. Wait 1-2 seconds, Coredy
R750 is on standby.

16
Coredy APP Control
Reset the Wi-Fi Connecon
Follow the instrucons in the app to set up the Wi-Fi connecon.
- Aer connecng successfully, you can control Robot via the app.
- With the app, you can select a cleaning mode, set the me,
schedule a cleaning, view the system status, receive noficaons
and access addional features.
Press and hold the buon on Robot for 5 seconds to reset the
Wi-Fi connecon.
If Wi-Fi connecon reset successfully, 1 "beep" will sound and Wi-Fi
status light will flash blue rapidly. Then you can follow the Wi-Fi
instrucons in the Coredy Robot app to set up the Wi-Fi connec-
on.
Using Amazon Alexa
Follow the instrucons to control your Coredy devices with Amazon
Alexa. If you run into any difficules during the process, please
scroll down to the boom for Troubleshoong.
Your Coredy Devices are connected with the Coredy Robot app.
You have an Alexa-enabled device (i.e. Amazon Echo, Echo Dot and
Amazon Tap).
The Amazon Alexa app is installed on your smart device and you
have created an account.
To control Coredy devices with Amazon Alexa:
For Robot only, do the following steps:
1. Open the Alexa app and select “Skills & Game” from the menu.
2. On the Skills screen, search for “ Smart Life”.
3. Select your Smart Life skill, then press "Enable".
4. Login with your Coredy Robot account so Alexa can control your
Coredy devices.
5. Using “Smart Life” skill (for Robot only):
You do not need to discover your device as you can control the
Robot with your voice.
Say simple commands to Alexa. Examples:
"Alexa, turn on Coredy R750"
"Alexa, turn off Coredy R750"
Note: If you have any problems during the Wi-Fi setup process,
refer to the “Troubleshooting > FAQ” section in APP.
If Robot gets stuck in any space, tap “Find me” in the app to find
the machine.
Before you start, make sure that:
4.
5.
6.

17
6. If you add two or more Robot devices to Coredy Robot App, you
can edit name for each Coredy robot on Coredy App or Alexa,
they're Synchronous. Aer named, giving a command by using your
robot name. Examples, named "Robot 1":
What do I do if Alexa fails to discover my devices?
Check if there are any Internet connecon problems.
Try to reboot the smart device and re-discover the device on Alexa.
Why does the device’s status Show “Offline” on Alexa?
Your wireless connecon might have been lost. Reboot the smart
device and re-discover on Alexa.
Internet access on your router could be unavailable. Check if your
router is connected to the Internet and try again.
Why can't I control Coredy devices with Amazon Alexa?
Check if there are any Internet connecon problems.
Check if you are using the proper commands when talking to Alexa.
You must say the wake word “Alexa” first when making your
request.
Repeat your queson. Speak naturally and clearly to Alexa.
Make sure your Coredy device is at least eight inches away from
walls or other objects that may cause interference (such as
microwave ovens).
Troubleshoong
"Alexa, turn on Robot 1"
"Alexa, turn off Robot 1"
Using Google Assistant
These instrucons will help enable you to control your Coredy
devices with Google Assistant.
Your Coredy Devices are connected with the Coredy Robot app.
You have a Google Assistant enabled device (i.e. Google Home).
The Google Home app is already installed on your smart device,
and you have created an account.
To control Coredy devices with Google Assistant:
For Robot only, do the following steps:
1. Open the Google Home app.
2. Say “OK Google, talk to Robot” to the Google Assistant-enabled
device (i.e. Google Home) to iniate the Google acon for Robot.
3. Follow the instrucons in the Google Home app to authorize
Google Assistant with your Coredy Robot account.
4. To control Robot with your voice, say simple commands to
Google Assistant:
5. If you add two or more Robot devices to Coredy Robot App, you
can edit name for each Coredy robot on Coredy App or Alexa,
they're Synchronous. Aer named, giving a command by using your
robot name. Examples, named "Robot 2":
"OK Google, turn on Coredy R750"
"OK Google, turn off Coredy R750"
"OK Google, find Coredy R750"
"OK Google, go home Coredy R750"
Before you start, please make sure that:
"OK Google, turn on Robot 2"
"OK Google, turn off Robot 2"
"OK Google, find Robot 2"
"OK Google, go home Robot 2"
7.

Cleaning Preferences
Spot Cleaning

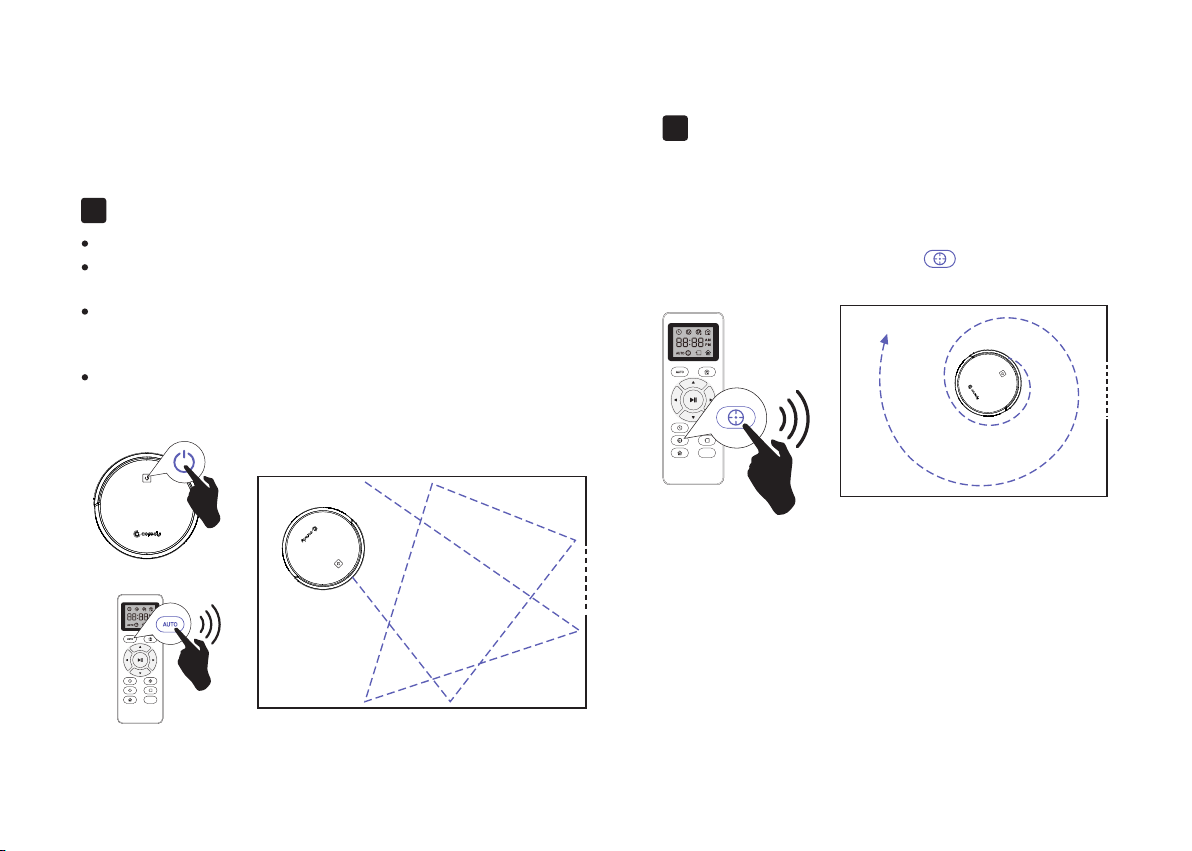

When you select Spot Cleaning, robot intensely cleans a localized
area by spiraling outward about 3 feet (1 meter) in diameter and
then spiraling inward to where it started. When Spot Cleaning,
robot boosts its vacuum power to provide the best cleaning
possible where you need it. To use Spot Cleaning, place robot on
top of the localized debris and press (Spot) on the Remote
Control.
2.
18
MAX
3.4 How Coredy R750 Clean Your Home
Auto Cleaning
Coredy R750 continues this process until it has cleaned an entire level
of your home. If its battery gets low before finishing a cleaning cycle,
Coredy R750 returns to the Charging Dock to recharge.
Cleaning in random pattern for seamlessly and thoroughly clean.
At various times throughout the cleaning cycle, Coredy R750 touches up
around the edges of the room, as well as chair legs and other furniture.
Coredy R750 continues this process until it has cleaned an entire
level of your home. If its battery gets low before finishing a cleaning
cycle, Coredy R750 returns to the Charging Dock to recharge.
Once Coredy R750 finishes its cleaning cycle, Coredy R750 returns to
the Charging Dock to recharge.
1.
MAX
