1.1 Use Restrictions
1 Important Safety Information
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environments.
Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any
fragile objects. If the device passes over a power cord and drags it, there is a chance an object could be pulled or a table or
shelf.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for future reference.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01

1.2 Battery and Charging
Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when your robot is
operating.
Store and operate your robot in room temperature environments only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure
safe operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping
on it.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert-
ers will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the manu-
facturer or similarly qualified persons.
Always charge and remove the battery from your robot and accessories before long-term storage or transportation.
Charge indoors only.
02

Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock matches standard outlet voltage.
Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental regula-
tions.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack is leaking, contact Coredy Customer Service for disposal.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
03

2 Product Diagram
2.1 Robot
Power On / Cleaning
Press and Hold On to Power On or Power Off
Press to Start Cleaning
To send R300 Robot back to the Charging Dock, press on
robot or press on Remote Control.
Indicator
Dock Button
Indicator Lights Orange: Low Power
Indicator Blinks Green: Charging
Indicator Lights Green: Full Charging/ Standby Mode/ Cleaning
Indicator Lights or Blinks Red: Troubleshooting
04

05
Anti-Collision Sensors
Middle Cover
Bumper
Dust Bin
Remote Control Receiver
Surface Case
Anti-Drop Sensors
Driving Wheels
Dust Scraping
Power Switch
Charging Contacts
Universal Wheel
Side Brushes
Battery Pack
Suction Channel
Bottom Case

2.2 Accessories
1 x Charging Dock 1 x Adapter 1 x Remote Control
(with 2 x AAA batteries)
1 x Dust Bin 4 x Side Brushes
1 x Cleaning Brush1 x Mop Cloth and Holder (sold separately)1 x Water tank (sold separately)
1 x High Efficiency Filter
06

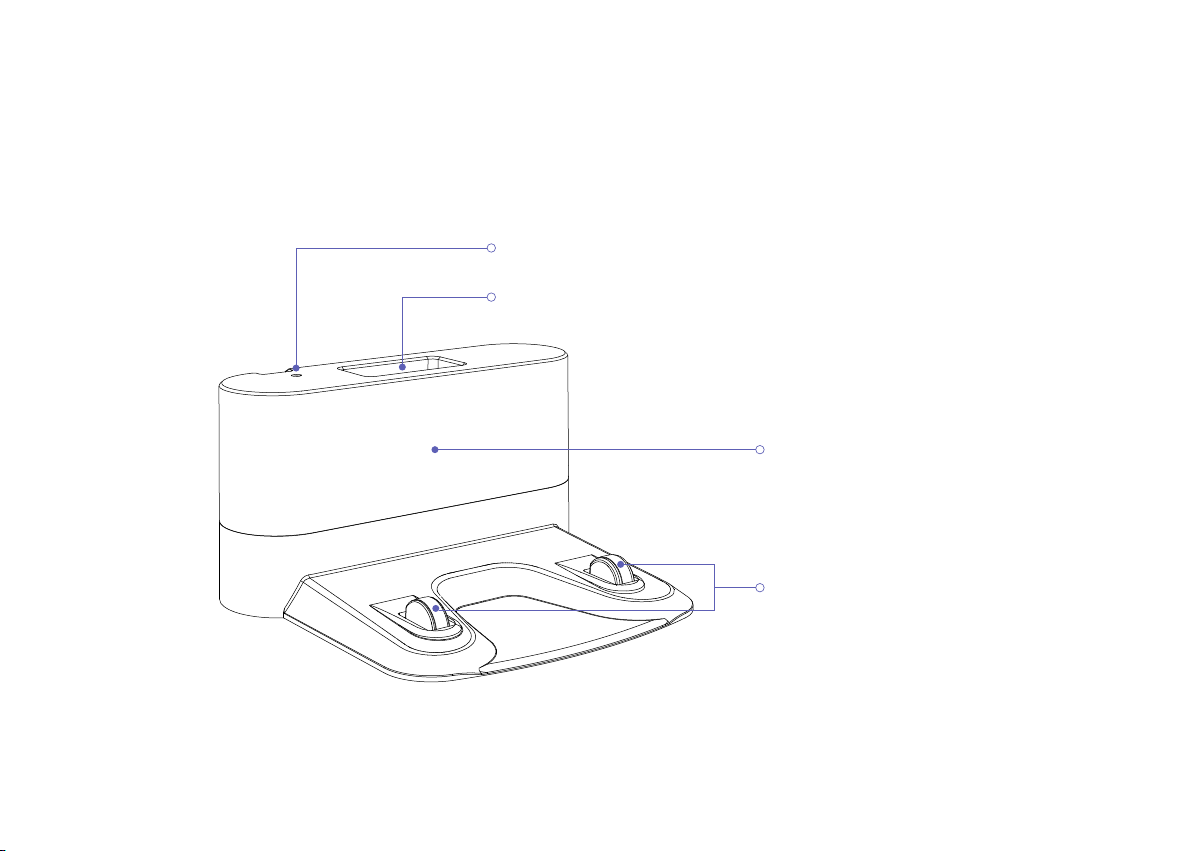

2.3 Charging Dock
07
Charging indicator
Location for remote control
Signal transmission area
Butting charging pole piece

2.4 Remote Control
Mode and time display screen
Automatic re-charging button
Automatic cleaning
Direction buttons
Clock setup button Scheduling button
Start / Pause button
Spot cleaning button Edge cleaning button
Small-space button Lower Suction Cleaning Button
Control suction power by this button
(800Pa/1200/Pa/1700Pa)
08

2.5 Dust Bin
09
Handle
Dust Bin Cover
Primary Holder
Dust Bin
High Efficient Filter
High Efficient Filter Frame

3 Operating and Programming
3.1 Notes Before Cleaning
Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords,
and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be
pulled off a table or shelf.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony
and ensure safe operation.
10

3.2 Quick Start

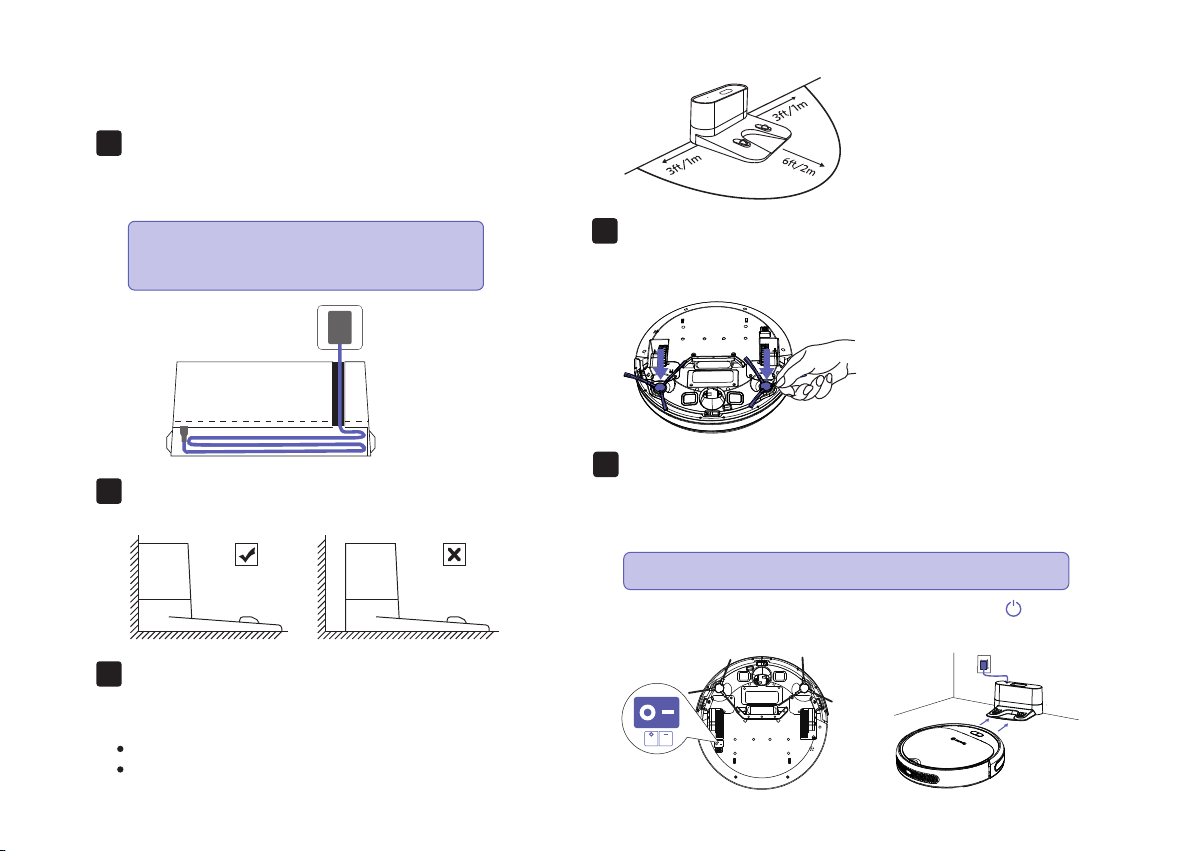

Place the Charging Dock on a hard
level surface and against a wall.
Plug in the Charging Dock and place
the remaining wire into the trunking
at the bottom of the Charging Dock
1.
2.
Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
2 meters (6.5 feet) in the front of the Charging Dock.
1 meter (2.3 feet) on both sides of the Charging Dock.
3.
11
Attach Side Brushes to the bottom of Coredy R300 by pressing
a brush into each slot until it clicks.
Install Side Brushes
4.
Activate the Robot
Place Coredy R300 onto the Charging Dock, making sure the
metal charging contacts on the Charging Dock match up with
those underneath the robot.
If successful, you will hear a series of tones. Once the
Power button illuminates, Coredy R300 is ready for use.
5.
OFF
ON
Note: Failure to place the remaining wire
into the trunking, may cause Robot to
become stuck while charging or cleaning.
Initial Use, Switch on the Power Button on the Bottom.
Note:

If the Charging Dock is inaccessible, Robot will not be able to
recharge, please place the robot manually on Charging Dock for
charging. (Refer Activate the Robot)

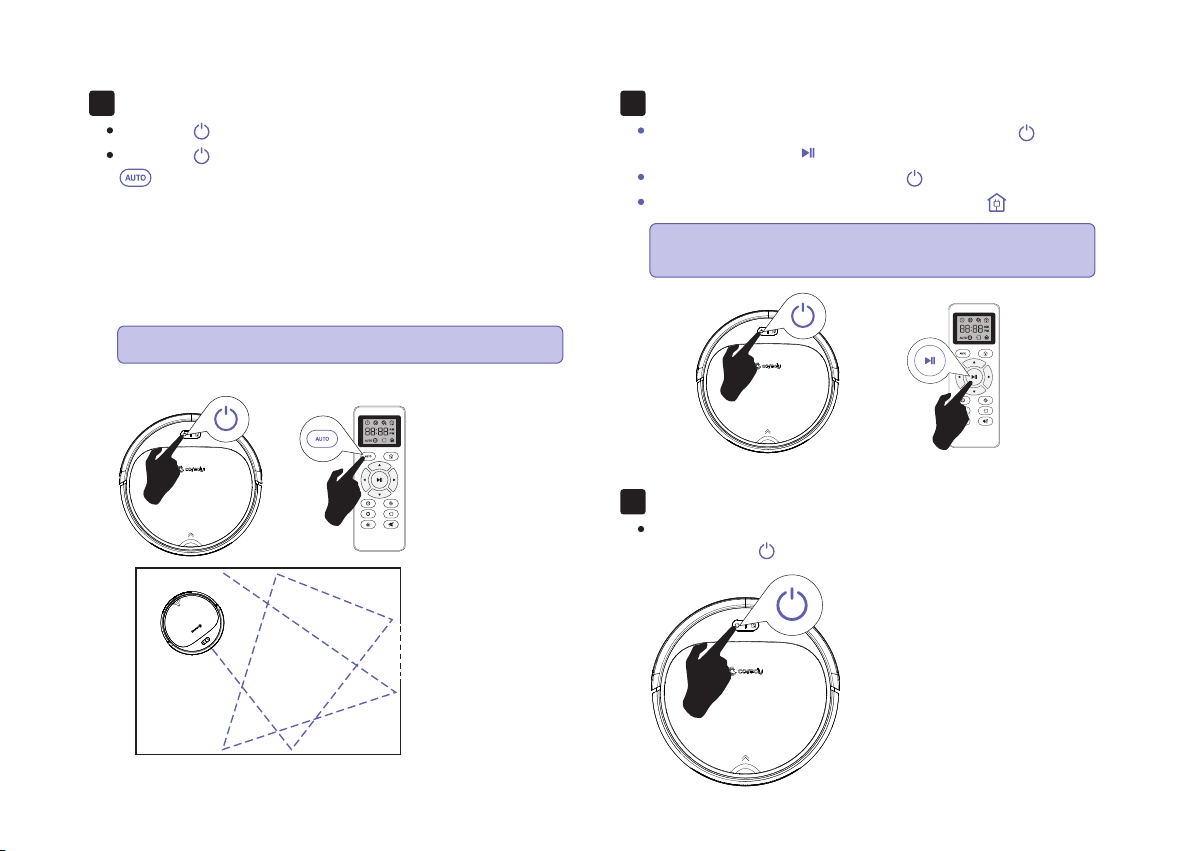

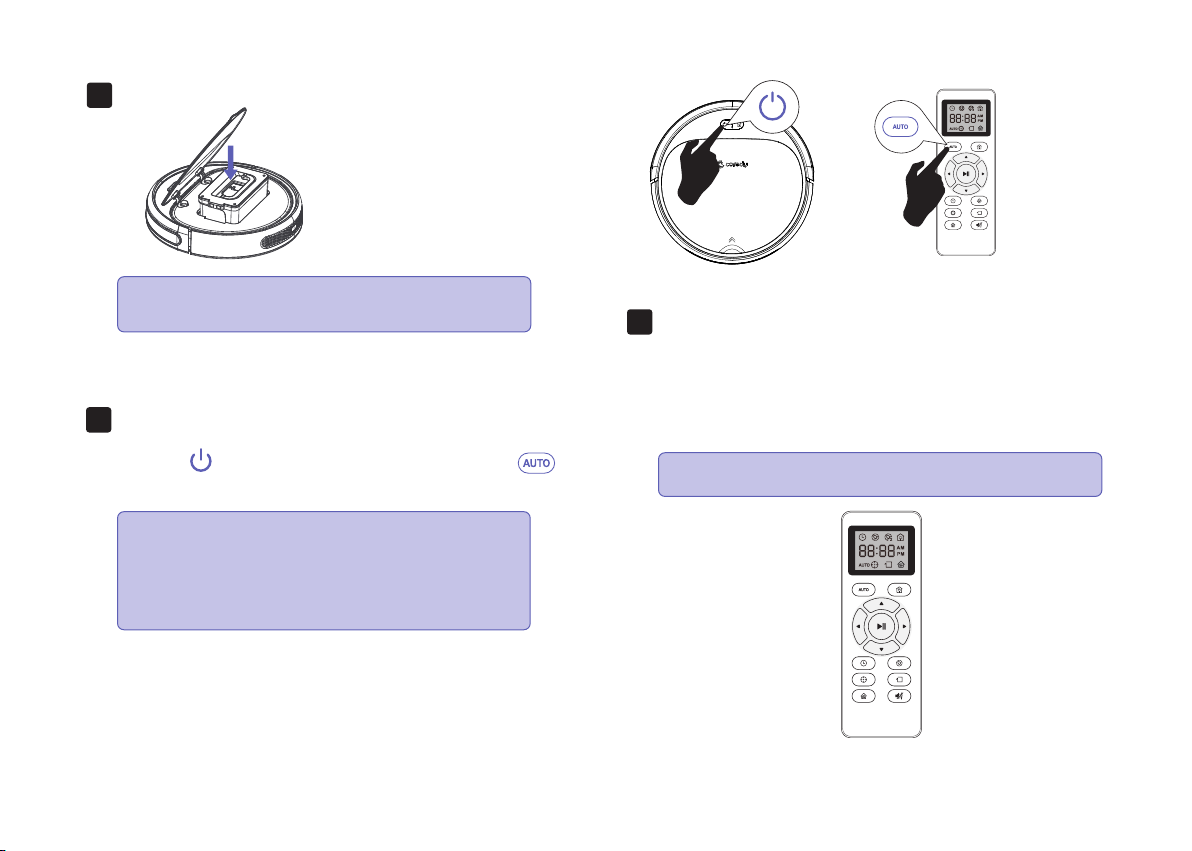

Start Cleaning Cycle
Press the power button once to wake up the robot.
Press the power button again to start a cleaning cycle (or
button on Remote Control).
If its battery gets low before finishing a cleaning cycle, robot
returns to the Charging Dock to recharge.
6. Pause
To pause the robot during a cleaning cycle press the button
on robot or press the button on the Remote Control.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press button.
7.
Power OFF
To end the cleaning cycle and put robot in standby mode,
press and hold button until robot’s indicators turn off.
8.
12
Please refer to section 3.3 for more Cleaning Mode.
Note:
Note: The actions listed above can also be managed from
the Remote Control.

3.3 How Coredy R300 Cleans Your Home Cleaning Preferences
Auto Cleaning
Coredy R300 is designed to intelligently navigate and clean an entire level
of your home. It's a multifunctional Robot with Cleaning-Sweeping,
Vacuuming function.
Working in random pattern for seamlessly and thoroughly clean.
At various times throughout the cleaning cycle, Coredy R300 touches up
around the edges of the room, as well as chair legs and other furniture.
Coredy R300 continues this process until it has cleaned an entire level
of your home. If its battery gets low before finishing a cleaning cycle,
Coredy R300 returns to the Charging Dock to recharge.
Once Coredy R300 finishes its cleaning cycle, Coredy R300 returns to
the Charging Dock to recharge.
1.
Spot Cleaning
When you select Spot Cleaning, robot intensely cleans a localized
area by spiraling outward about 3 feet (1 meter) in diameter and
then spiraling inward to where it started. When Spot Cleaning,
robot boosts its vacuum power to provide the best cleaning
possible where you need it. To use Spot Cleaning, place robot on
top of the localized debris and press (Spot) on the Remote
Control.
2.
Lower Suction Vacuuming Cleaning
Robot reduce its vacuum power to provide a lower suction clean
when press the button on Remote Control.
3.
13
Note: Vacuuming cleaning suction is 1200Pa by default,
change the cleaning suction to reach max vacuuming
1700Pa by pressing button on Remote Control as well.

Edge Cleaning
After robot finishes cleaning the open areas of your floor, it uses
Edge Clean to ensure that it has cleaned along walls and around
furniture legs. If you prefer a quicker edge cleaning, press the
button on Remote Control.
4.
14
Single Room Cleaning
Coredy R300 intensively cleans one single room and stops after 30
minutes. Select this mode only when one specific room needs to be
cleaned. Make sure to confine Coredy R300 to the room by closing
the door.
Press on the remote control to start cleaning in Single Room
Mode.
5.
MAX

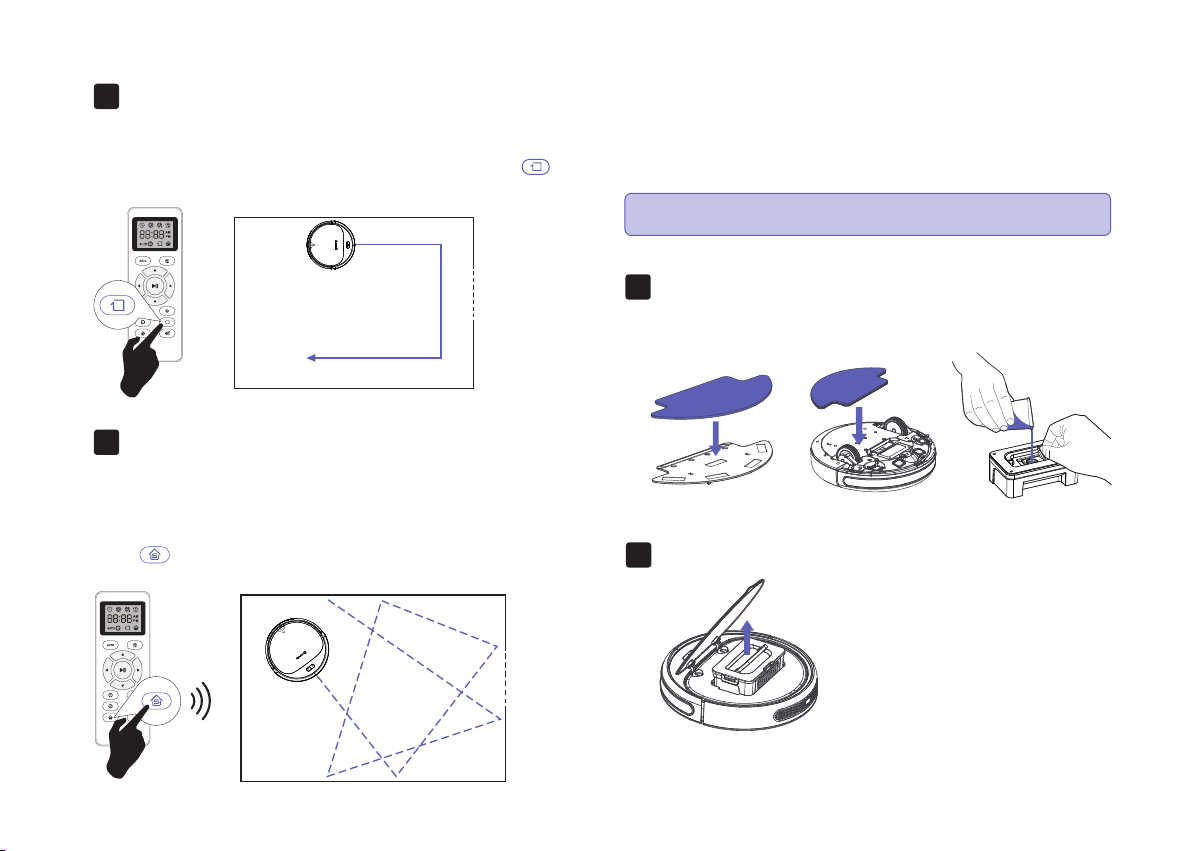

Attach the mop cloth to the holder and fill the
water tank with water.
1.
Remove the dust bin from the robot.
2.
3.4 Floor Mopping Cleaning
Coredy R300 support wet mopping function ( Required a water
tank and mopping cloth, you can shop on http://shop.coredy.com ), the
robot can mop floor for your home.
Note: Water tank and mopping cloth sold separately.

15
Press the power button to start mopping cleaning (or
button on Remote Control).
Note: If you are using a dry sweeping cleaning, skip
to fill water in water tank.
Put back the water tank to robot.3.
Start Mopping Cleaning
4.
* Please remove the water tank after mopping.
* Robot cannot auto detect and avoid the carpet,
please manually carry it down from carpet if the robot
climbs to carpet.
The robot has 4 cleaning modes for your choice under mopping
cleaning function: Auto, Random, Spot and Edge, use remote
control to select the desired cleaning modes to achieve optimal
cleaning for your home.
Select a Cleaning Mode5.
Default cleaning mode: Auto

3.5 Cleaning Schedule
Coredy R300 has cleaning schedule settings which allow you to customize when Robot cleans your home. These settings are available only
through the Remote Control.
Press button on Remote Control, and
then the hour section begins to flash in the
clock display setting window.

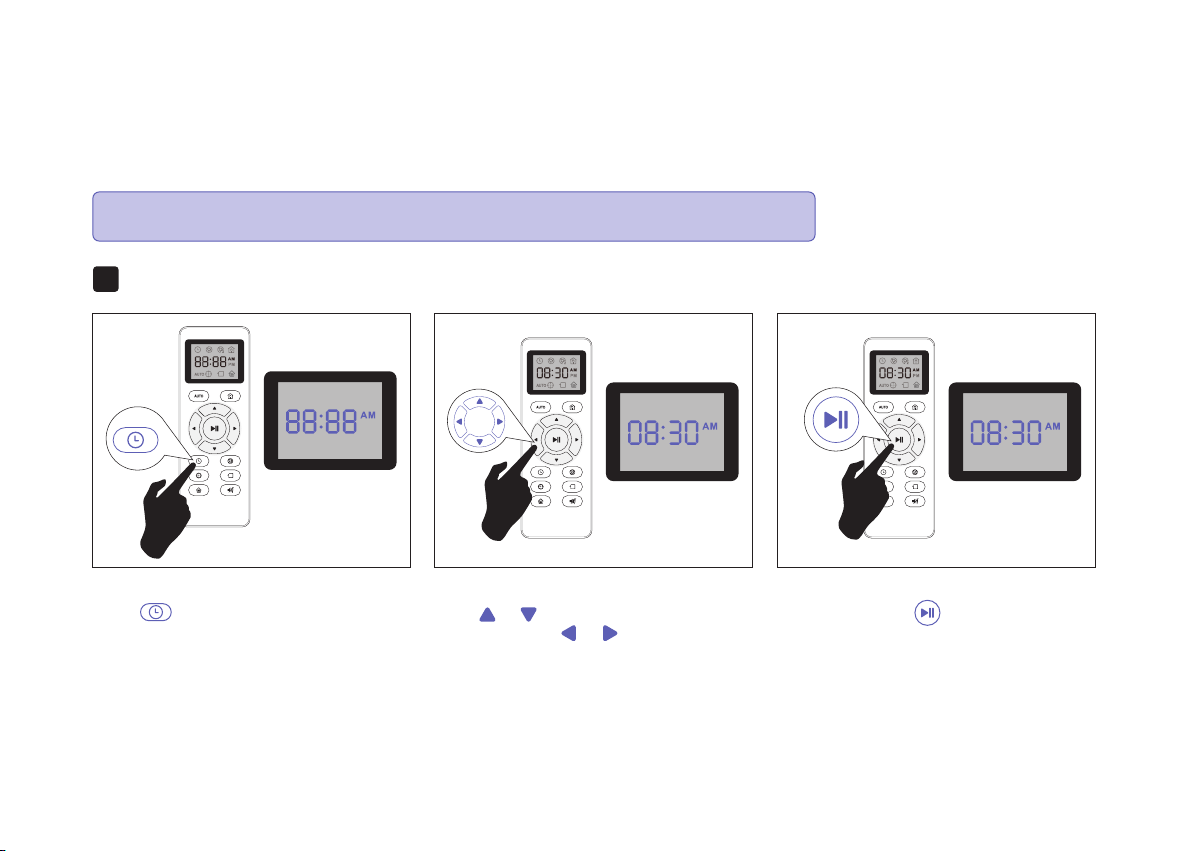

Set the Remote Control’s Clock1.
Press or button to select the desired
figures. Press the or button to select
the minute or hour section.
And then press the button, the Robot will
“BEEP” when the clock setting completed.
16
Note: Please make sure the Remote Control near by the Robot while setting the Clock or Schedule.

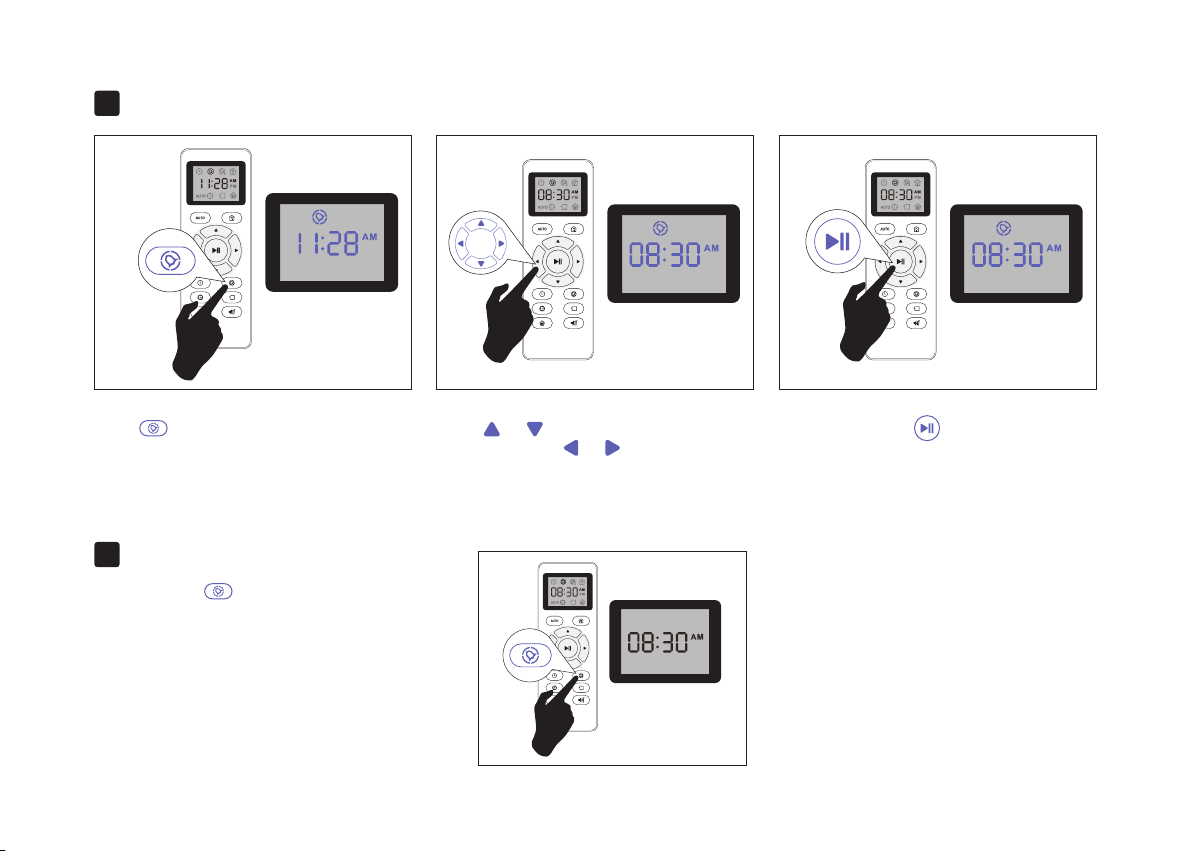

Setting Cleaning Schedule2.
Cancel the Cleaning Schedule
3.
Press button on Remote Control, and
then the hour section begins to flash in the
Cleaning Schedule display setting window.
Press or button to select the desired
figures. Press the or button to select
the minute or hour section.
And then press the button, the Robot will
“BEEP” when the Cleaning Schedule setting
completed.
Press and hold button approximately 4
seconds on Remote Control, the Robot will
“BEEP” when the Cleaning Schedule process
cancel completely.
17

To keep robot running at peak performance, perform the following care procedures. If you notice robot picks up less debris from your floor, then
empty the bin, clean the filter.
4 Regular Robot Care
18
Robot Part Care Frequency Replacement Frequency
Side Brush Once per week (twice per week in homes
with pets) Every 2-3 months (or when visibly worn)
Cliff Sensors
Charging Contacts
Floor Tracking Sensor
Front Driving Wheel
Unversal Wheel
Once per month
Filter Once per week (twice per week in homes
with pets) Every 2-3 Months
Every 12 monthsDust Bin After each use
Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy
Customer Care for more information.
Every 12 months
Water Tank (sold separately) After each use
Every 3-6 months (or when visibly worn)Mopping Cloth (sold separately) After each use
