1.1 Use Restrictions
1 Important Safety Information
This appliance can be used by children aged 8 years old or above, and people lacking knowledge in use if they were super-
vised concerning operation manual and understand what hazard is involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be touched by children without supervision.
The robot must be used in accordance with the directions of this Instruction Manual. Coredy Inc cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environments.
Before use this device, please pick up the objects scattering on the floor, including clothes and important papers so on.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for reference afterwards.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01

1.2 Battery and Charging
Your robot is not a toy, please do not sit or stand on this device. Small children and pets should be under supervision when
your robot is operating.
Store and operate your robot in the environment with room temperature only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony that a physical barrier should be used to separate from the balcony to ensure
safe operation.
This appliance is not intended for use by persons (including children) with lacked physical, sensory or mental capabilities, or
average knowledge, unless they have been instructed concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own, please watch out as walking in the area that the robot is operating.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
To use a standard outlet for charging only, the product may not be used with any type of power converter. Use of other power
converters will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the
manufacturer or the professional.
Please remember to remove the battery from your robot and accessories if not used for the long-term storage or transportation
Charge indoors only.
02

Your robot is not a toy, please do not sit or stand on this device. Small children and pets should be under supervision when
your robot is operating.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock to match standard outlet voltage
The used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environment
regulations.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack were leaking, please don’t hesitate to contact Coredy.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
03

2 Product Diagram
2.1 Robot
Power On / Off
Press to start / stop cleaning
To send R380 Robot back to the Charging Dock, press on
robot or press on Remote Control.
Indicator
Dock Button
Indicator Lights Orange: Low Power
Indicator Blinks Orange: Charging
Indicator Lights Green: Full Charging/ Standby Mode/ Cleaning
Indicator Lights or Blinks Red: Troubleshooting
Indicator Blinks Rapid Green: Wi-Fi Pairing Mode
04

05

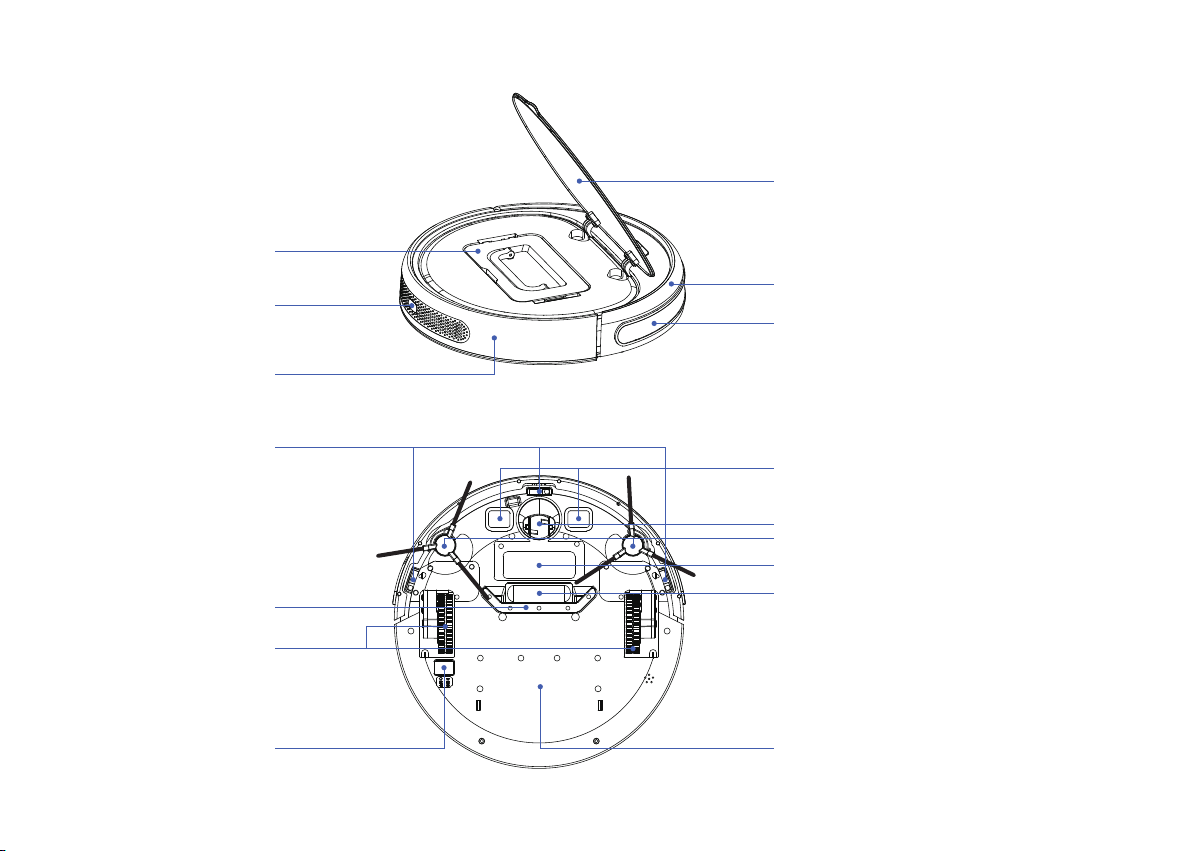

Anti-Collision Sensors
Middle Cover
Bumper
Dust Bin
Remote Control Receiver
Surface Case
Anti-Drop Sensors
Driving Wheels
Dust Scraping
Power Switch
Charging Contacts
Universal Wheel
Side Brushes
Battery Pack
Suction Channel
Bottom Case

2.2 Accessories
1 x Charging Dock 1 x Adapter 1 x Remote Control
(With 2 x AAA Batteries)
1 x Dust Bin 4 x Side Brushes
1 x Cleaning Brush1 x Mop Cloth and Holder (Sold Separately)1 x Water Tank (Sold Separately)
1 x High Efficiency Filter
06

2.3 Charging Dock
07
Charging Indicator
Location for Remote Control
Signal Transmission Area
Charging Contacts

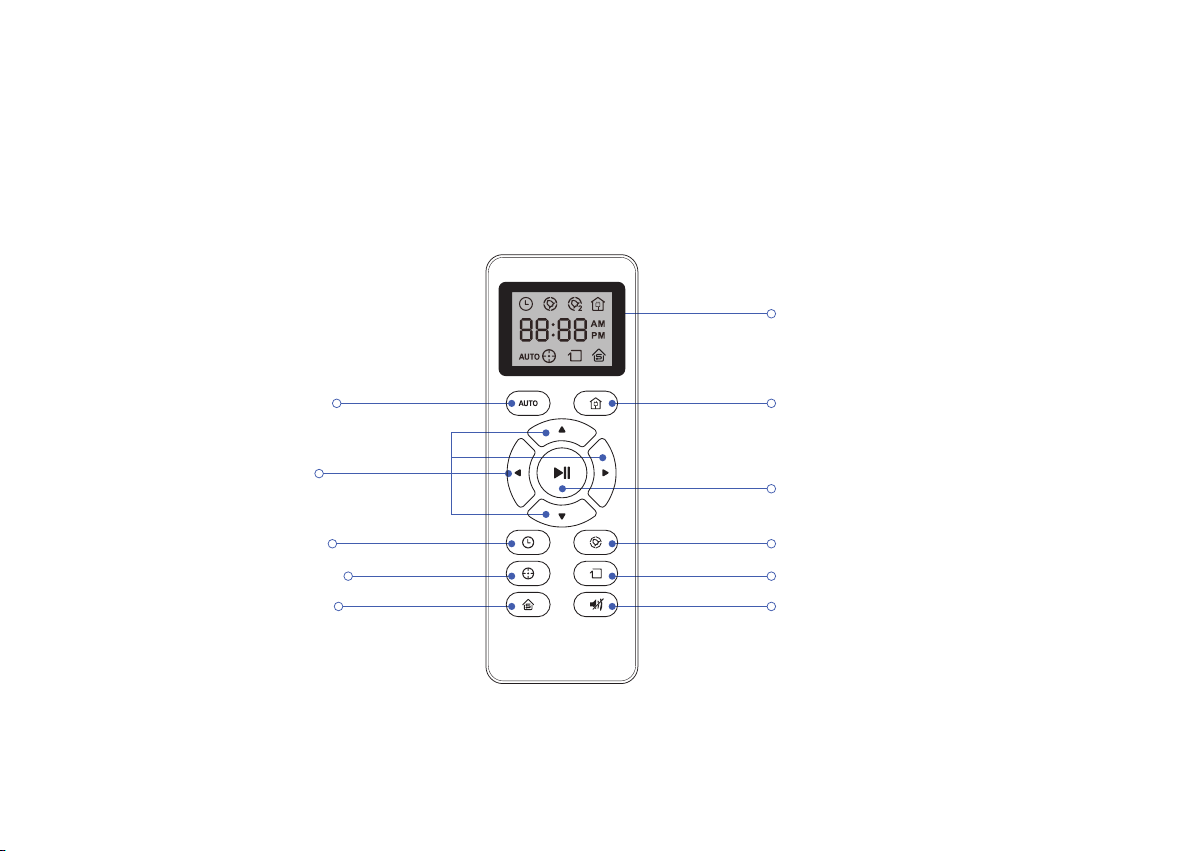

2.4 Remote Control
Display Screen
Automatic Re-charging Button
Automatic Cleaning
Direction Buttons
Clock Setup Button Scheduling Button
Start / Pause Button
Spot Cleaning Button Edge Cleaning Button
Small-space Button Lower Suction Cleaning Button
Three Optional Suction Level
08

2.5 Dust Bin
09
Handle
Dust Bin Cover
Primary Holder
Dust Bin
High Efficient Filter
High Efficient Filter Frame

2.6 LED Indication
You can see the status of Coredy R380 Robot from the LED indicators.
Lights Status Status
Rapidly flashing green Wi-Fi pairing mode (EZ)
Pulsating orange Charging
Low power (less than 5%)
Flashing/Solid red Error indication; Refer to the
"Troubleshooting" section in this manual for solutions.
Solid green Standby / Cleaning / Fully charged / Wi-Fi connected
Slowly flashing green Wi-Fi pairing mode (AP)
Solid orange Low power (less than 12%) and returning to Charging Dock
10
Flashing red

3 Operating and Programming
3.1 Notes Before Cleaning
Before using this device, pick up the objects scattering on the floor, including but not limited clothes and
important papers, curtains, cords.
If the room to be cleaned contains a balcony that a physical barrier should be used to separate from the balcony
and ensure safe operation.
11

3.2 Quick Start
Place the Charging Dock on a hard
level surface and against a wall.
Plug in the Charging Dock and place
the remaining wire into the trunking
at the bottom of the Charging Dock
1.
2.
Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
2 meters (6 feet) in the front of the Charging Dock.
1 meter (3 feet) on both sides of the Charging Dock.
3.
12
Attach Side Brushes to the bottom of Coredy R380 by pressing
a brush into each slot until clicked.
Install Side Brushes
4.
Activate the Robot
Place Coredy R380 onto the Charging Dock, making sure the
metal charging contacts on the Charging Dock match up with
those underneath the robot.
If successful, you will hear a series of tones. Once the
Power button illuminates, Coredy R380 is ready for use.
5.
OFF
ON
Note: Failure to place the remaining wire
into the trunking, may cause Robot to
become stuck while charging or cleaning.
Initial Use, Turn on the Power switch on the bottom.
Note:

If the Charging Dock is inaccessible, Robot will not be able to
recharge, please place the robot manually on Charging Dock for
charging. (Refer Activate the Robot)

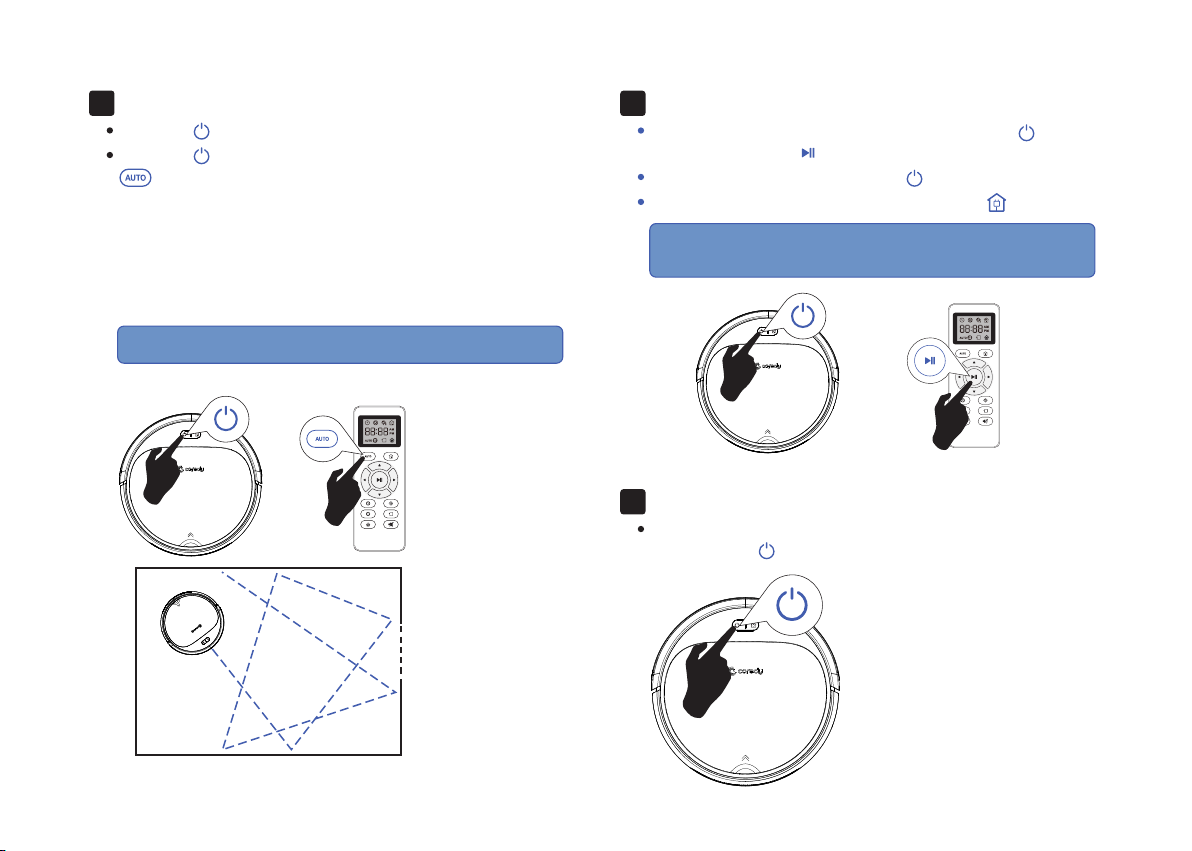

Start Cleaning Cycle
Press the power button once to wake up the robot.
Press the power button again to start a cleaning cycle (or
button on Remote Control).
If its battery gets low before finishing a cleaning cycle, robot
returns to the Charging Dock to recharge.
6. Pause
To pause the robot during a cleaning cycle press the button
on robot or press the button on the Remote Control.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press button.
7.
Power OFF
To end the cleaning cycle and put robot in sleeping mode,
press and hold button until robot’s indicators turn off.
8.
13
Please refer to section 3.4 for more Cleaning Mode.
Note:
Note: The actions listed above, you can also manage to do
in Coredy App.

3.3 Use Your R380 with the “Coredy Robot” APP
Before you start, make sure that：
To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App.
14
Coredy Robot
Coredy Robot
to download the App to start your journey for handsfree chore!
Scan the QR code as below or from the App Store (iOS devices) or Google Play (Android devices).
to download the App to start your journey for handsfree chore!
1. Your smartphone or tablet is connected to a 2.4GHz Wi-Fi network ( Only support 2.4GHz network).
2. Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.4 (or above).

,

15

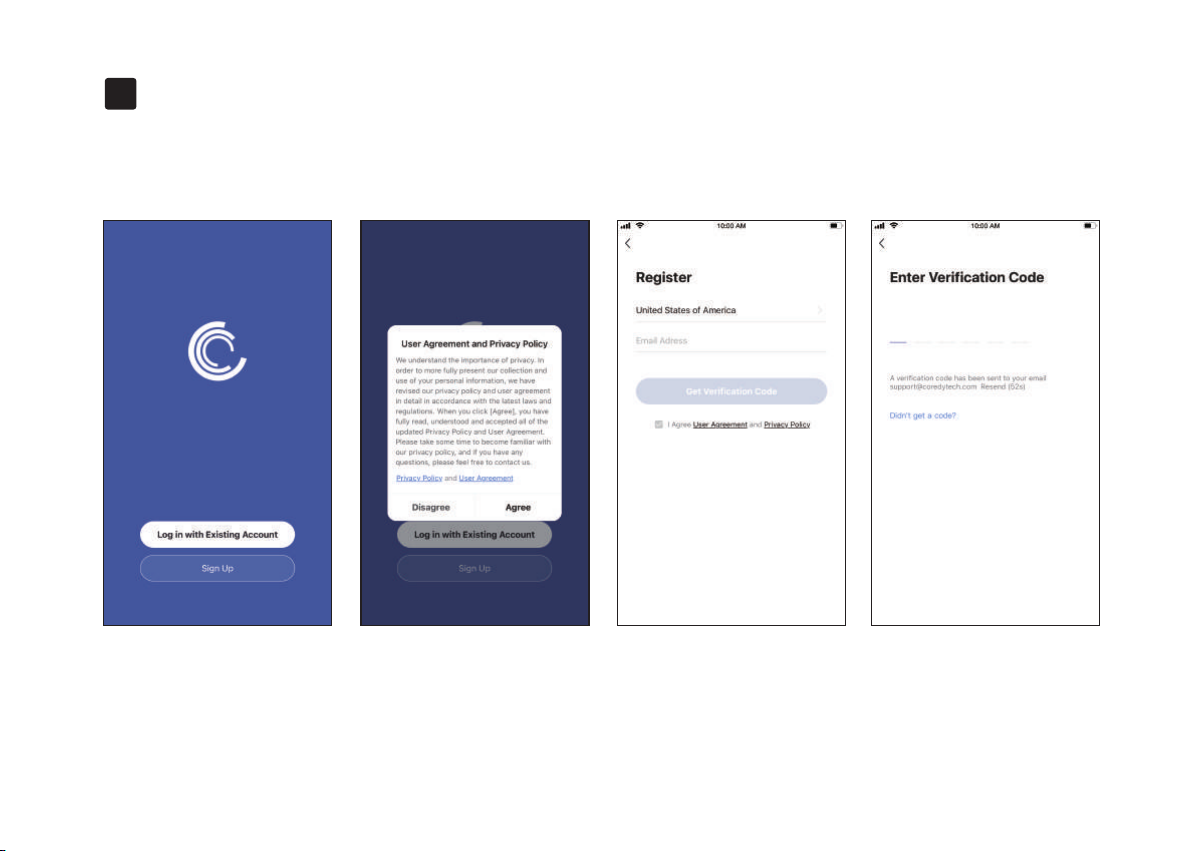

1. Open the App and create
a user account.
2. Agree to the "Privacy Policy". 3. Create your account with the
mobile phone number or E-mail
address.
1.

Create A User Account
1.

16
Add Device
1. Press “Add Device” or “+” on
the upper right corner for next.
2. Add a Coredy R380 Robot
to your Coredy account.
1. Check and set your phone

the same Wi-Fi on Coredy App,
enter Wi-Fi password, press
"Next" to connect.
Wi-Fi Connec�on
5. Set your password with
6-20 characters.
2. 3.

17

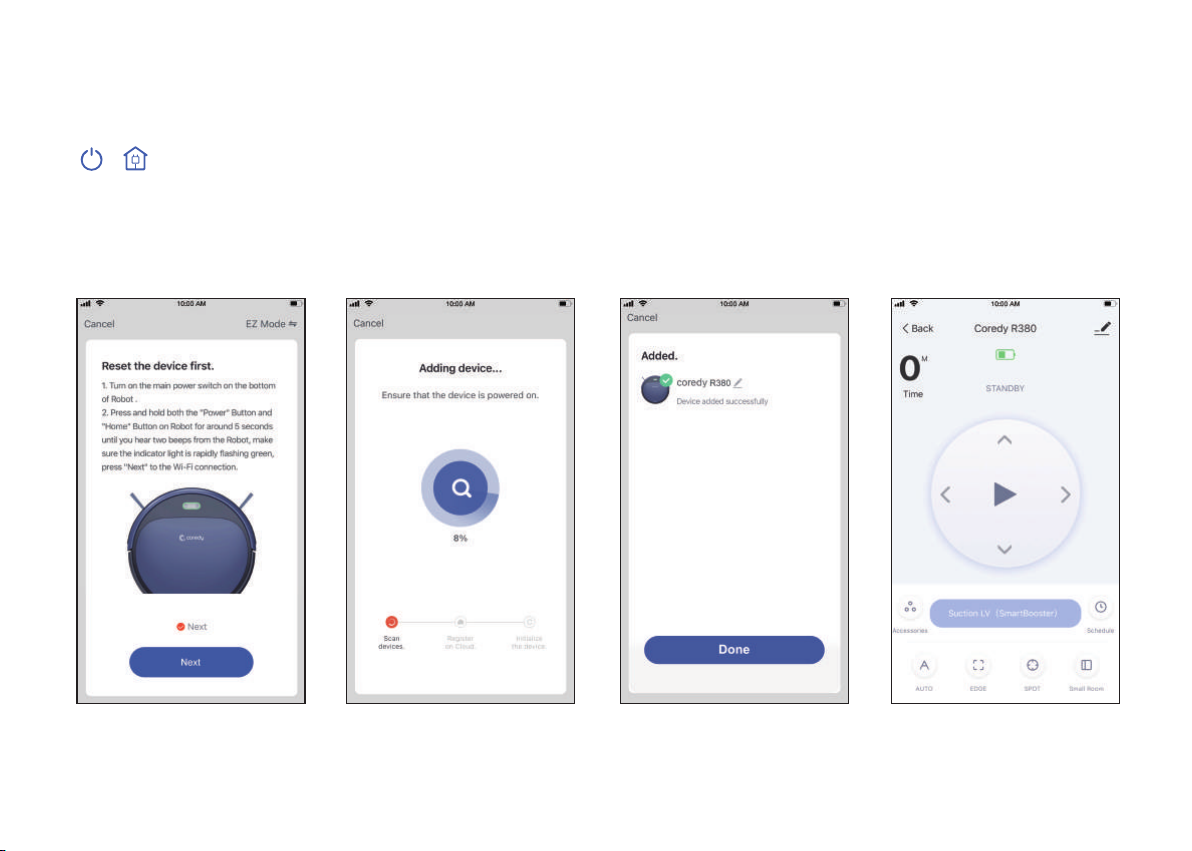

2. Turn on the main power

Robot, then press and hold

the Robot for around 5 seconds



green, press "Next".

progress to reach 100%.
4. Device added successfully,
then press“Done”.
5. Wait 1-2 seconds for the
Robot to go on standby.

18
Coredy APP Control
Note: If you got any problems during the Wi-Fi setup process, you
are welcome to call or email us at [email protected].
If the Robot gets stuck anywhere unseen in your home, tap
"Seek Robot" in the App to find the Robot. This function is
available in the App only.
4.
5.
Using Amazon Alexa
Connect your Coredy device with the Coredy Robot App,
Have an Alexa-enabled device (i.e. Amazon Echo, Echo Dot and
Amazon Tap),
Install Amazon Alexa on your smart-phone device and have created
an account.
To control Coredy device with Amazon Alexa:
1. Open the Alexa App and select “Skills & Game” from the menu.
3. Select your Smart Life skill then press "Enable".
4. Login with your Coredy Robot account so that Alexa can control
your Coredy device.
5. Use “Smart Life” skill (for Robot only):
You do not need to discover your device as you can control the

Alexa only supports two commands currently as following:
Before you start, you need to:
"Alexa, turn on Coredy R380"
"Alexredy R380"
2. Search for “ Smart Life”.
6.





Reset the Wi-Fi Connec�on





5.



6. If you add two or more Robot devices to Coredy Robot App,
you can edit name for each Coredy Robot in either the Coredy App

If named one Coredy Robot “Robot 1”
will be supported as following:
