Coredy L900 User manual

Owner’s Manual
Coredy L900 Robot

1
1.1 Use Restrictions ............................................................................................................
1.2 Battery and Charging ..................................................................................................
Important Safety Information
2.1 Robot ...............................................................................................................................
2.2 Accessories ....................................................................................................................
2.3 Charging Dock ..............................................................................................................
2.4 LED Indication .............................................................................................................
3.1 Important Tips Before Use .........................................................................................
3.2 Map Navigation and Management............................................................................
3.3 Quick Start .....................................................................................................................
3.4 Use Your Coredy L900 Robot with the “Coredy Robot” APP.............................
3.5 How Coredy L900 Robot Clean Your Home .........................................................
3.6 Use Mopping System ..................................................................................................
4.1 Empty Robot's Dust Bin...............................................................................................
4.2 Clean Robot's Filter.......................................................................................................
4.3 Clean Robot's Side Brush...........................................................................................
4.4 Clean Robot's Cliff Sensors and Charging Contacts............................................
4.5 Clean Robot's Floor Tracking Sensor.......................................................................
4.6 Clean Robot's Rolling Brush.......................................................................................
4.7 Battery and Charging Information ............................................................................
01
02
04
06
07
08
09
11
12
14
23
25
28
28
29
29
30
30
31
2Product Diagram
3Operating and Programming
4Regular Robot Care
5Troubleshooting
01
04
09
27
32
6Wi-Fi Connection 37
7Specifications 38
8Customer Service 39
Table of
Contents

1.1 Use Restrictions
1 Important Safety Information
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The robot must be used in accordance with the directions in this Instruction Manual. Coredy Inc. cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environments.
Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any
fragile objects. If the device passes over a power cord and drags it, there is a chance an object could be pulled or a table or
shelf.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for future reference.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01

1.2 Battery and Charging
Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when your robot is
operating.
Store and operate your robot in room temperature environments only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure
safe operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping
on it.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert-
ers will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the manu-
facturer or similarly qualified persons.
Always charge and remove the battery from your robot and accessories before long-term storage or transportation.
Charge indoors only.
02

Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock matches standard outlet voltage.
Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental regula-
tions.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack is leaking, contact Coredy Customer Service for disposal.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
03

2 Product Diagram
2.1 Robot
Press and hold for 3 seconds to
turn on or off (when not in Charging status)
Press to return Coredy L900 Robot to the Charging Dock;
press again to pause
Press to start Auto cleaning
Press to pause the current task when working
04
Press and hold both buttons for 5 seconds to active Wi-Fi
pairing mode or reset Wi-Fi connection
Wi-Fi status light

Dust Bin
Driving Wheels
Anti-Drop Sensors
Charging Contacts
Universal Wheel
Side Brushes
Rolling Brush
Brush Guard
05
Dust Bin Release Button Dust Bin
Infrared Sensor
Reset Button
Bumper
Laser Distance Sensor (LDS)

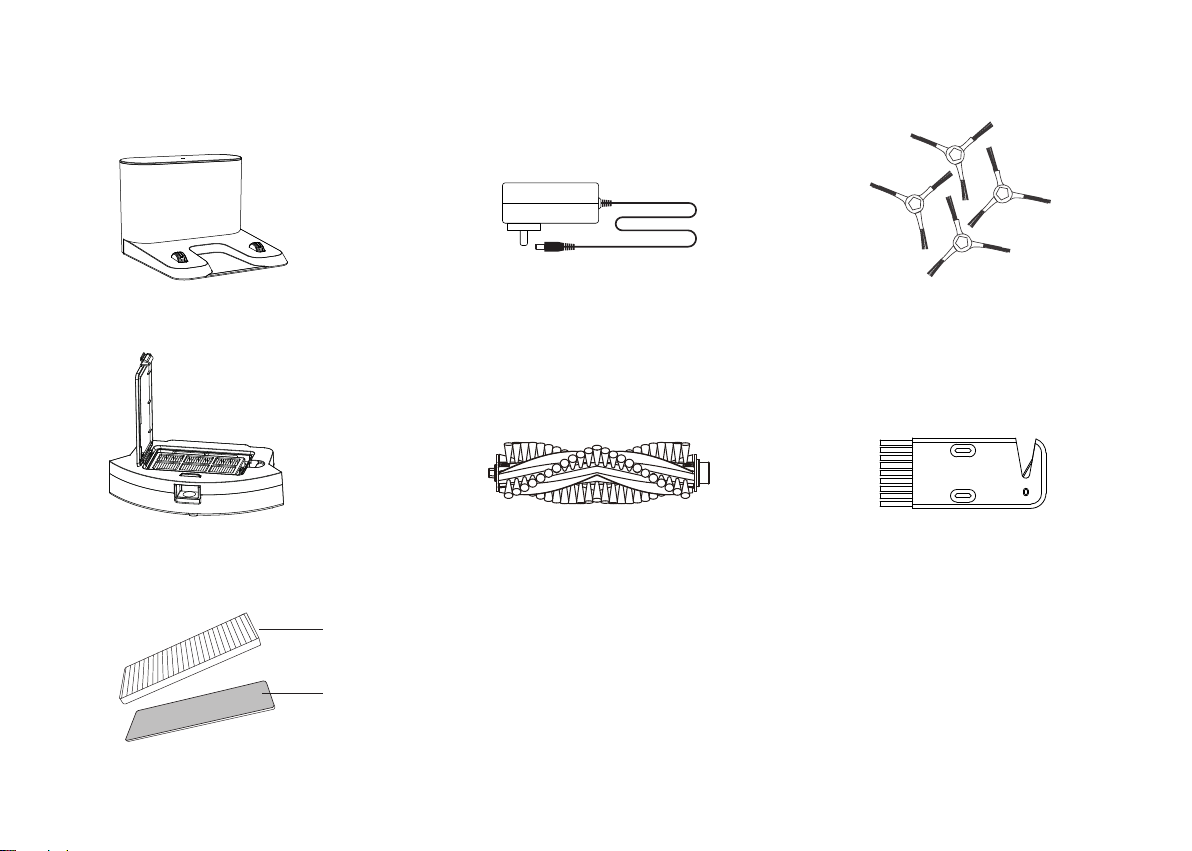

2.2 Accessories
1 x Charging Dock 1 x Adapter 4 x Side Brushes
1 x Cleaning Brush
1 x Rolling Brush
1 x Washable HEPA Filter
High-performance filter
Foam filter
06
1 x Dust Bin

2.3 Charging Dock
07
Charging Indicator
Signal Transmission Area
Charging Contacts

2.4 LED Indication
You can see the status of Coredy L900 Robot from the LED indicators.
(Light Status) Status
Solid purple Returning to Charging Dock
Refer to the "Troubleshooting>Voice Alert" section in this manual for solutions.
Solid blue Standby / Cleaning / Fully charged
Breathing purple Charging
Rapidly flashing red Error indication (along with voice prompts)
&
(Light Status) Status
Slowly flashing purple Device reset successfully, enter Wi-Fi pairing mode
Rapidly flashing blue Wi-Fi connecting
Solid blue Wi-Fi connected
08

3 Operating and Programming

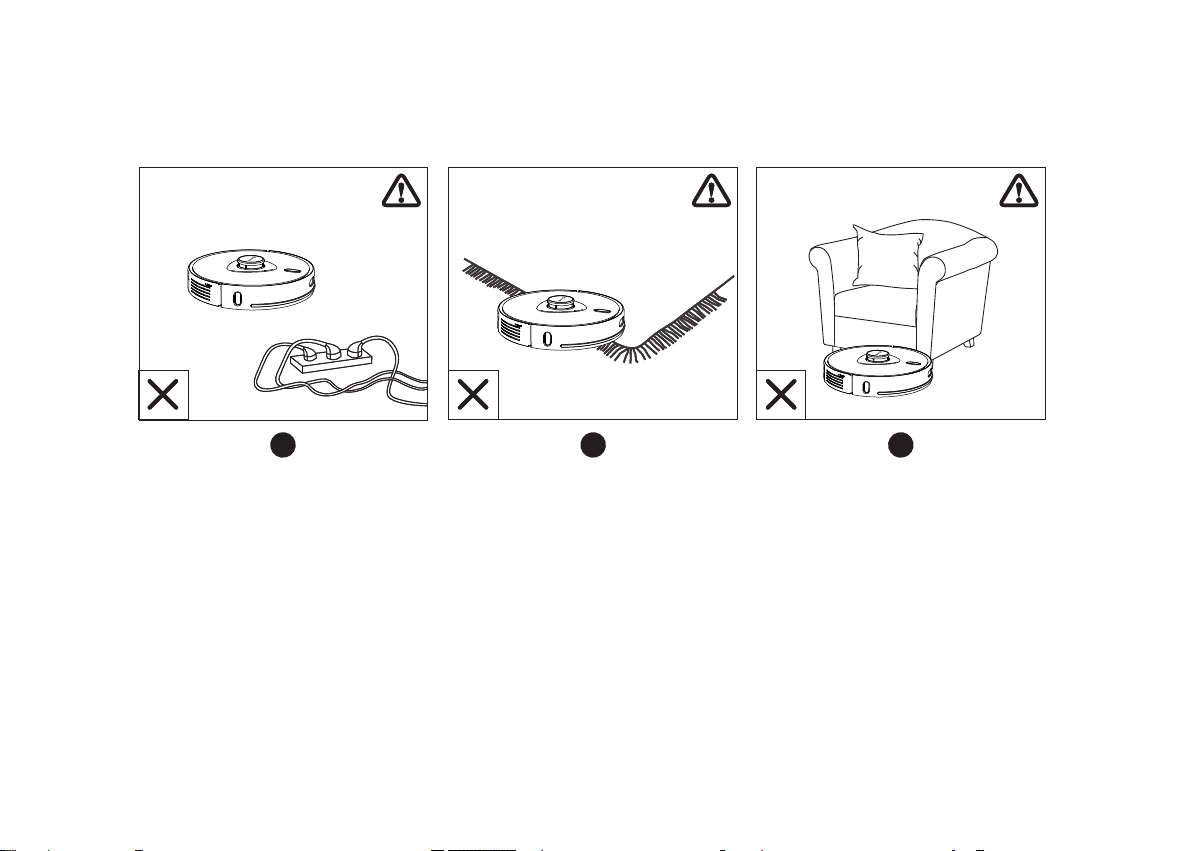

3.1 Important Tips Before Use
a. Remove power cords and small objects from the floor that may entangle Coredy L900 Robot.
b. Fold tasseled edges of area rugs underneath to prevent tangling Coredy L900 Robot. Avoid cleaning very
dark-colored high-pile rugs or rugs thicker than 1.02 in/26 mm as they may cause Coredy L900 Robot to
malfunction.
c. Keep Coredy L900 Robot away from spaces lower than 4.17 in/106 mm to prevent Coredy L900 Robot
from getting stuck. If necessary, place a physical barrier to block off the problem areas.
09
abc abc

Keep Coredy L900 Robot away from wet areas during cleaning.
Coredy L900 Robot may climb on top of objects less than 0.67 in/17 mm in height (the height will be reduced
if the mopping module is installed). Remove these objects if possible.
Anti-drop sensors will prevent Coredy L900 Robot from tumbling down stairs and steep drops in most cases.
Sensors are less effective if dirty or used on carpeted/reflective/very darkcolored floors. It is recommended to
place physical barriers to block off areas where Coredy L900 Robot may fall.
10
def def
d.
e.
f.

3.2 Map Navigation and Management

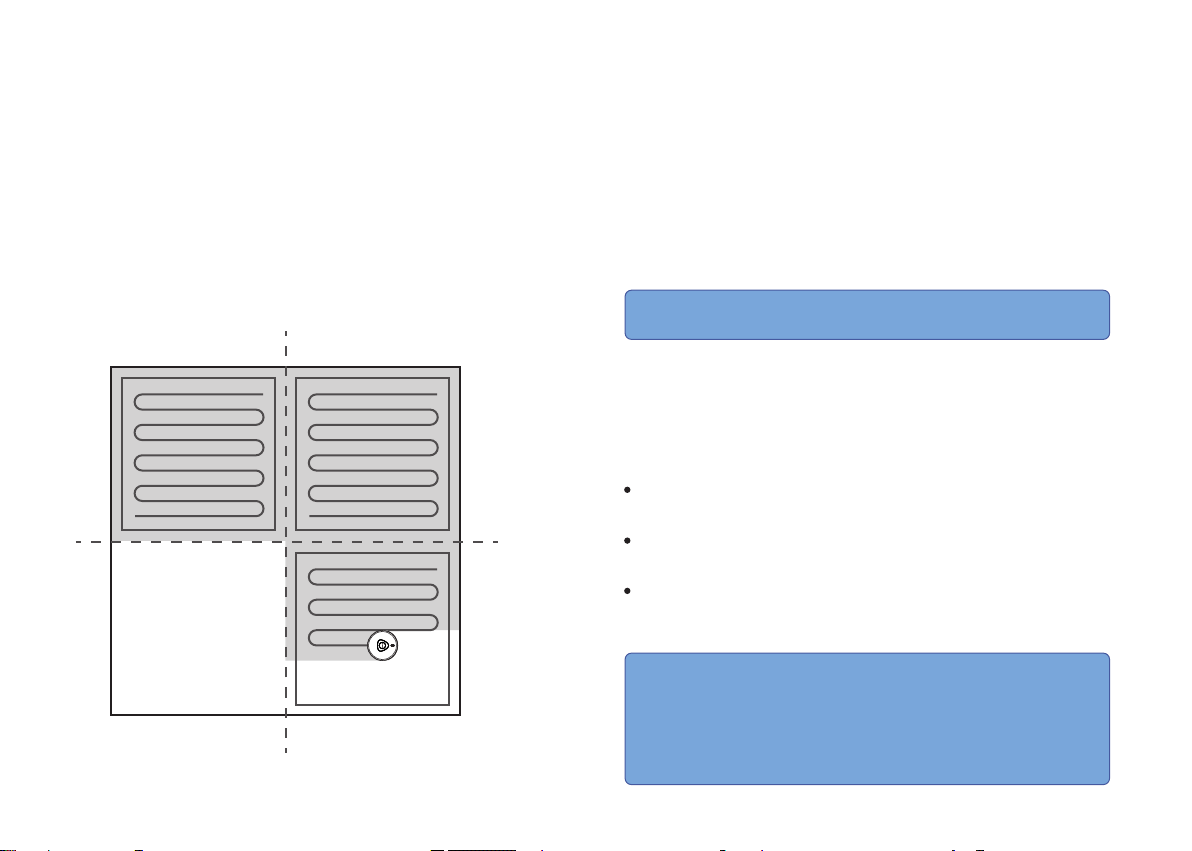

Navigation
Once Auto cleaning starts, Coredy L900 Robot moves from
the Charging Dock, automatically scans to generate maps,
intelligently determines its cleaning route, and divides the
space into zones.
The cleaning paths are planned along the walls, following a
bow-shaped cleaning method to complete the cleaning of
each zone one by one.
Real-time Mapping & Floor Plan
Real-time mapping helps you know the cleaning path and
environment easily. A floor plan will be built after cleaning. The
map will be updated real-time during each cleaning to ensure
normal navigation.
Relocalization & Remapping
If the position of Coredy L900 Robot / Charging Dock is
adjusted or the surroundings are changed significantly, Coredy
L900 Robot will try to relocalize and may remap to match the
surroundings.
Coredy L900 Robot will resume cleaning if the relocalization
is successful.
If the relocalization fails, Coredy L900 Robot will remap to
ensure normal navigation with a new cleaning.
If the original map has the virtual boundary information,
Coredy L900 Robot will not start a new cleaning to avoid
going across the restricted zone.
1. open your doors for Coredy L900 Robot to map each room;
2. remove any objects that may be in the way or get Coredy
L900 Robot stuck.
Note: Do not remove the Charging Dock after a floor plan
is created.
Note:
During cleaning, do not move the device frequently. If
moved, place Coredy L900 Robot back to the original
position.
11
To create a complete floor plan:
Make sure Coredy L900 Robot starts each cleaning from
the Charging Dock.

3.3 Quick Start Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
Place the Charging Dock on a hard
level surface and against a wall
2 meters (6 feet) in the front of the Charging Dock.
1 meter (3 feet) on both sides of the Charging Dock.
Plug in the Charging Dock and place
the remaining wire into the trunking
at the bottom of the Charging Dock
1.
3.
2.
Activate the Robot
Place Coredy L900 Robot onto the Charging Dock, making
sure the metal charging contacts on the Charging Dock
match up with those underneath the robot.
4.
12
Initial Use, Press and hold on the power button
3 seconds on Robot to power on the Robot.
Note:
Note: Failure to place the remaining wire
into the trunking, may cause Robot to
become stuck while charging or cleaning.

If the Charging Dock is inaccessible, Robot will not be
able to recharge, please place the robot manually on
Charging Dock for charging. (Refer Activate the Robot).

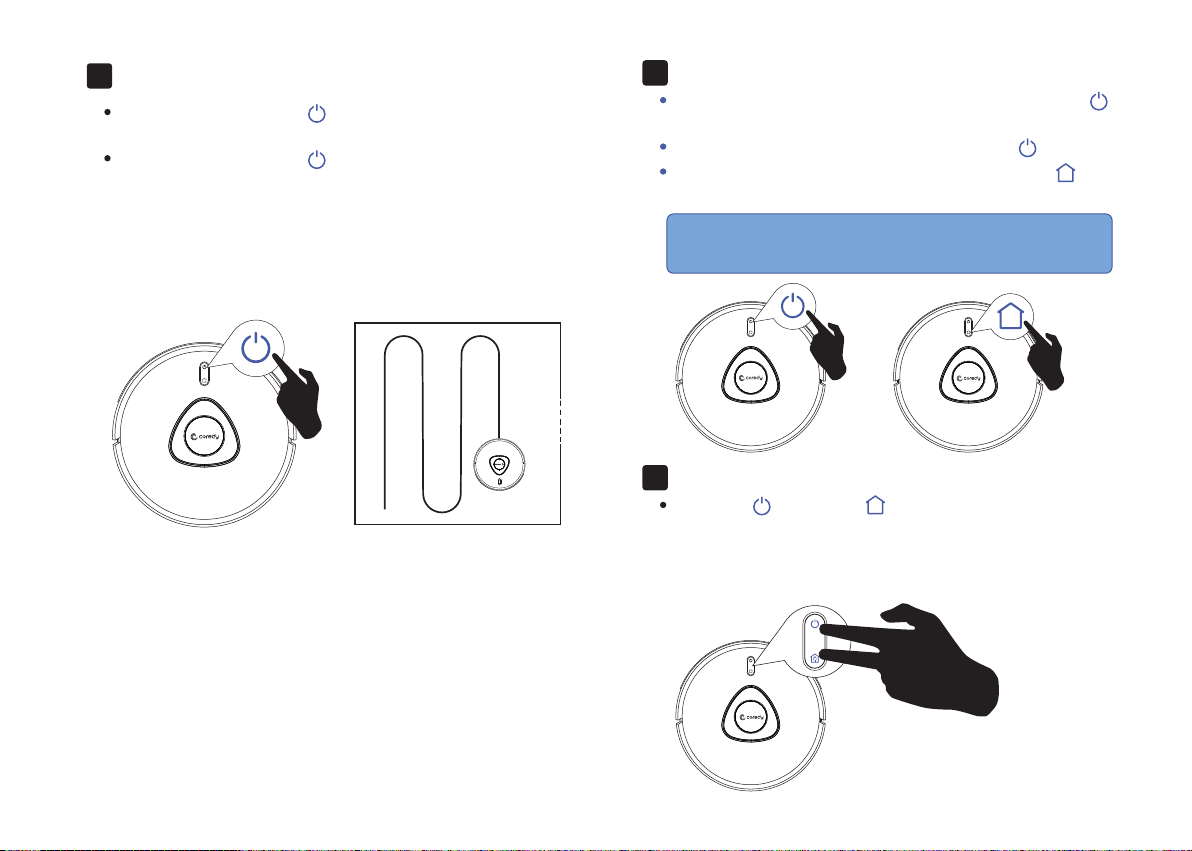

Start Cleaning Cycle
Press the power button and hold on about 3 seconds
to wake up the Coredy L900 Robot.
Press the power button again to start a cleaning cycle.
If its battery gets low before finishing a cleaning cycle,
robot returns to the Charging Dock to recharge.
5. Pause
To pause the robot during a cleaning cycle press the
button on robot.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press
button on Robot.
6.
Wi-Fi Pairing Mode
Press the button and button on Robot
simultaneously and hold on about 5 seconds, when
you hear voice prompts from the Robot and the power
indicator light flashing PURPLE slowly. The Robot is in
Wi-Fi pairing mode.
7.
Note: The actions listed above can also be managed
from the Coredy APP.
13

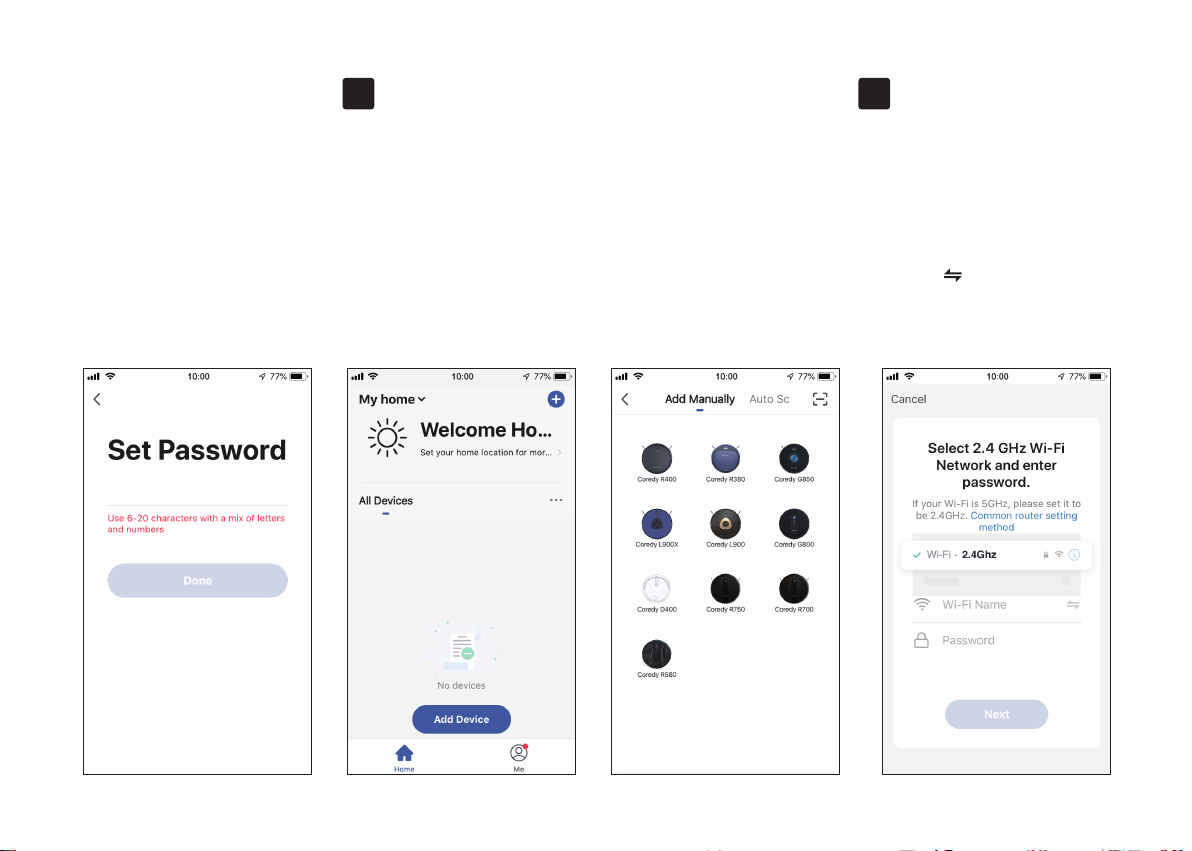

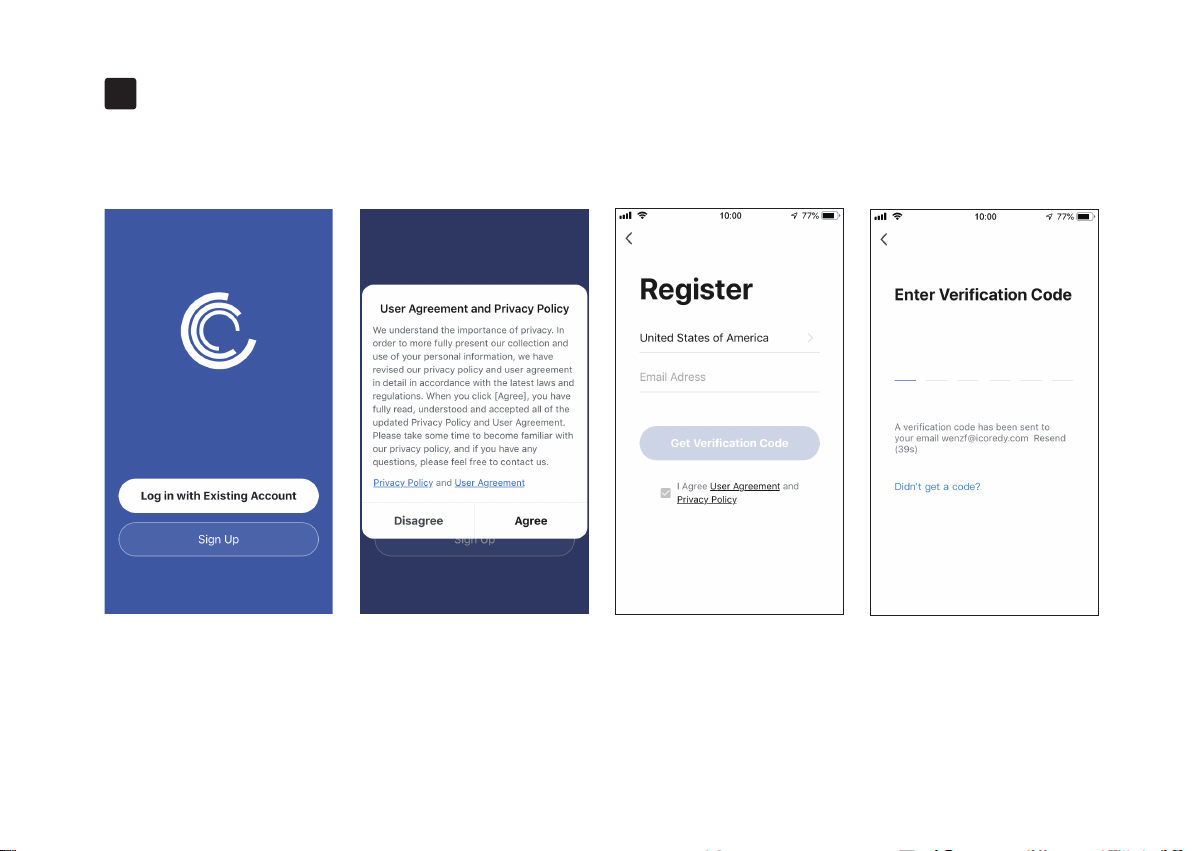

3.4 Use Your Coredy L900 Robot with the “Coredy Robot” APP
Before you start, make sure that:
To enjoy all available features, it is recommended to control your Robot via the Coredy Robot App.
1. Your smartphone or tablet is connected to a 2.4GHz Wi-Fi network (Only support 2.4GHz network).
2. Your smartphone or tablet is running iOS 8.0 (or above) or Android 4.4 (or above).
3. Open the Coredy Robot App and create a user account.
4. Tap the “+” icon to add Coredy L900 Robot to your Coredy App.
5. Follow the instructions in the App to set up the Wi-Fi connection.
14
Coredy Robot
Coredy Robot
Scan the QR code as below to download the latest version of App or download from the App Store
(iOS devices) or Google Play (Android devices).

Create A User Account
15
1. Open the App and create a
user account.
2. Agree the “Privacy Policy”.3. Create your account with
the mobile phone number
or E-mail address.
4. Enter verification code.
1.

16
Add Device
1. Press “Add Device” or tap
the “+” in the top right
corner to add.
2. Add a Coredy L900 Robot
to your Coredy account.
1. Select the network you want
Robot to use. You need to
select an exact Wi-Fi as your
usually using network. If no
Wi-Fi network list for you
choosing, check and set your
phone Wi-Fi setting first, then
press " " to connect and
choose the exact network you
need. Enter Wi-Fi password,
press "Next" to connect.
Wi-Fi Connection
5. Set your password with
6-20 characters.
2. 3.

17
2. Press and hold the power
and recharge both button
on the Robot around 5
seconds, make sure the
power button light on Robot
is slowly flashing purple, then
press the "Confirm" button to
next step.
3. Press "Go to Connect", to
connect the mobile phone
to the device's hotspot.
4. Select the hotspot
"CoredyRobot-XXXX" of
Robot to connect.
5. Wait 1-2 seconds for the
connecting until "100%".

6. Your device added successfully,
press "Done".
18
Reset the Wi-Fi Connection
Press and hold the & button simultaneously for 5
seconds on Coredy L900 Robot to reset the Wi-Fi connection.
You will hear a voice prompt when the Wi-Fi connection has
been reset, and the Wi-Fi status light will slowly flash
purple. Then you can follow the Wi-Fi instructions in the
Coredy Robot App to set up the Wi-Fi connection.
4.
Wi-Fi Status Light
5.
Rapidly flashing blue Wi-Fi connecting
Slowly flashing purple Wi-Fi pairing mode
Solid blue Wi-Fi connected successfully
(Wi-Fi Status Light) Status
