Coredy R550 User manual

Owner’s Manual
Coredy R550 (R500+ )

1
Table of Contents
1.1 Use Restrictions ............................................................................................................
1.2 Battery and Charging ..................................................................................................
Important Safety Information
2.1 Robot ...............................................................................................................................
2.2 Accessories ....................................................................................................................
2.3 Charging Dock ..............................................................................................................
2.4 Remote Control .............................................................................................................
3.1 Notes Before Cleaning ................................................................................................
3.2 Quick Start .....................................................................................................................
3.3 How Coredy R550 Clean Your Home ......................................................................
3.4 Cleaning Schedule .......................................................................................................
4.1 Emptying Robot’s Bin ..................................................................................................
4.2 Cleaning Robot’s Filter ................................................................................................
4.3 Cleaning Robot’s Side Brush ....................................................................................
4.4 Cleaning Robot’s Cliff Sensors and Charging Contacts .....................................
4.5 Cleaning Robot’s Floor Tracking Sensor ................................................................
4.6 Cleaning Robot’s Rolling Brush ................................................................................
4.7 Battery and Charging Information ............................................................................
01
02
04
06
07
08
09
10
12
15
18
18
19
19
20
20
21
2Product Diagram
3Operating and Programming
4Regular Robot Care
5Troubleshooting
01
04
09
17
23
6Specifications 26
7Customer Service 27

1.1 Use Restrictions
1 Important Safety Information
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
The robot must be used in accordance with the directions in this Instruction Manual. Coredy inc cannot be held liable or
responsible for any damages or injuries caused by improper use.
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local
authority for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. Please
contact your local or regional waste authority for more information on collection, reuse and recycling programs.
To reduce the risk of injury or damage, keep these safety precautions in mind when setting up, using and maintaining your
robot:
Your robot is for indoor use only. Do not use the robot outdoor, commercial or industrial environments.
Before using this device, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords, and any
fragile objects. If the device passes over a power cord and drags it, there is a chance an object could be pulled or a table or
shelf.
Read all safety and operating instructions before operating your robot.
Retain the safety and operating instructions for future reference.
Heed all warnings on your robot, battery, charging Dock and in the owner’s manual.
Follow all operating and use instructions.
The symbol on the product or its packaging indicates:
01

1.2 Battery and Charging
Your robot is not a toy. Do not sit or stand on this device. Small children and pets should be supervised when your robot is
operating.
Store and operate your robot in room temperature environments only.
Do not use this device to pick up anything that is burning or smoking.
Do not use this device to pick up spills of bleach, paint, or other chemicals, or anything wet.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony and ensure
safe operation.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the robot. Cleaning and maintenance shall not be performed
by children without supervision.
Do not place anything on top of your robot.
Be aware that the robot moves on its own. Take care when walking in the area that the robot is operating in to avoid stepping
on it.
Do not operate the robot in areas with exposed electrical outlets in the floor.
Use only rechargeable battery packs with the correct specification approved by Coredy.
Charge using a standard outlet only. Product may not be used with any type of power converter. Use of other power convert-
ers will immediately void the warranty.
Do not use a Charging Dock with a damaged cord or plug. If the cord or plug is damaged, it must be serviced by the manu-
facturer or similarly qualified persons.
Always charge and remove the battery from your robot and accessories before long-term storage or transportation.
Charge indoors only.
02

Your robot’s Charging Dock may be protected with a surge protector in the event of severe electrical storms.
Never handle the Charging Dock with wet hands.
Always disconnect your robot from the Charging Dock before cleaning or maintaining it.
Please ensure voltage rating for enclosed Charging Dock matches standard outlet voltage.
Used battery packs should be placed in a sealed plastic bag and disposed of safely according to local environmental regula-
tions.
Before every use, check the battery pack for any sign of damage or leakage. Do not charge damaged or leaking battery
packs.
If the battery pack is leaking, contact Coredy Customer Service for disposal.
The battery pack must be removed from the robot before disposal.
Do not crush or dismantle battery packs. Do not heat or place the battery pack near any heat source.
Do not incinerate the battery pack. Do not short-circuit the battery pack.
Do not immerse the battery pack in any liquid.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
03

2 Product Diagram
2.1 Robot
Power On / Cleaning
Press and Hold On to Power On or Power Off
Press to Start Cleaning
To send R550 (R500+ ) Robot back to the Charging Dock, press on
robot or press the on Remote Control.
Indicator
Dock Button
Indicator Light Pink: Low Power
Indicator Blink Pink: Charging
Indicator Light Blue: Full Charging/ Standby Mode/ Cleaning
Indicator Light or Blink Red: Troubleshooting
04

Dust Bin
Driving Wheels
Power Switch
Anti-Drop Sensors
Charging Contacts
Universal Wheel
Side Brushes
Battery Pack
Main Brush
05
Dust Collector Release Button Dust Collector
Infrared Sensor
Bumper

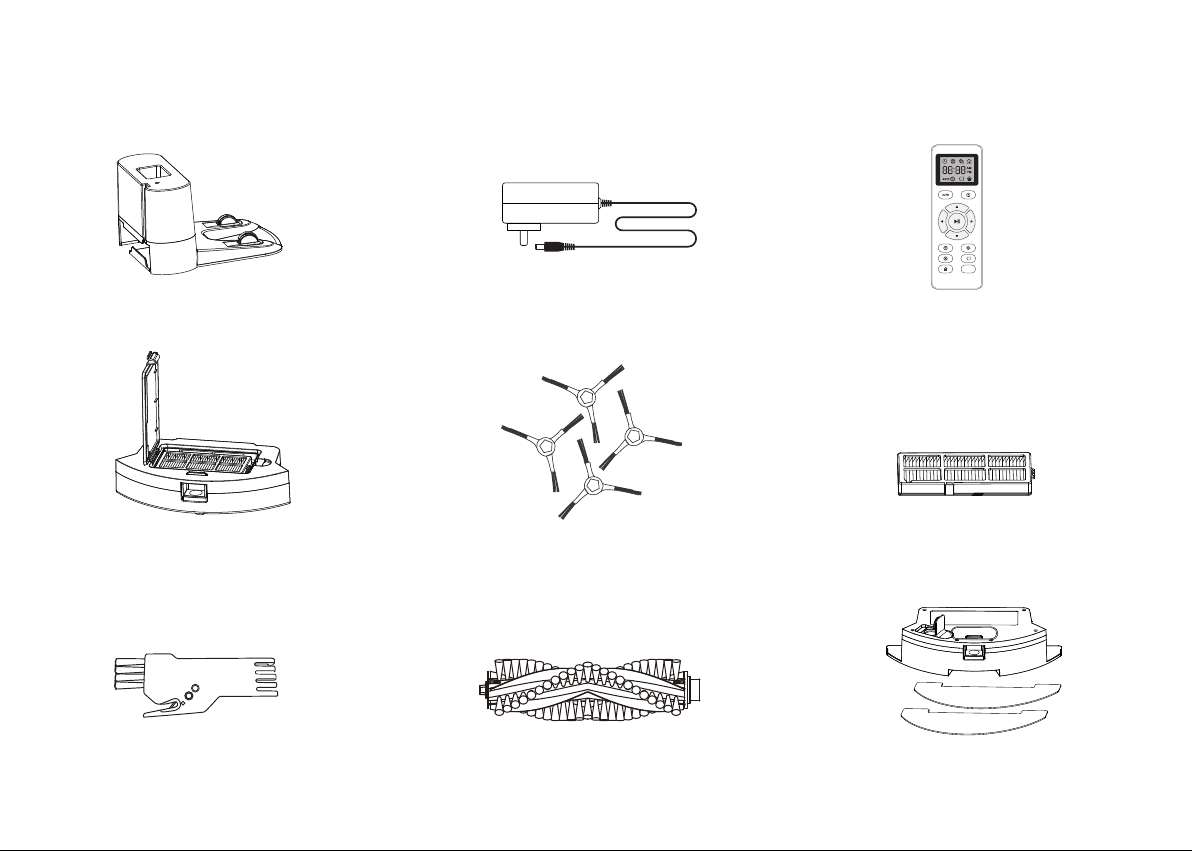

2.2 Accessories
1 x Charging Dock 1 x Adapter 1 x Remote Control
(with 2 x AAA battery)
1 x Dust Bin 4 x Side Brushes
1 x Brush 1 x Main Brush
1 x High Efficiency Filter
Water Tank and Cleaning Cloth
(Sold Separately)
06
MAX

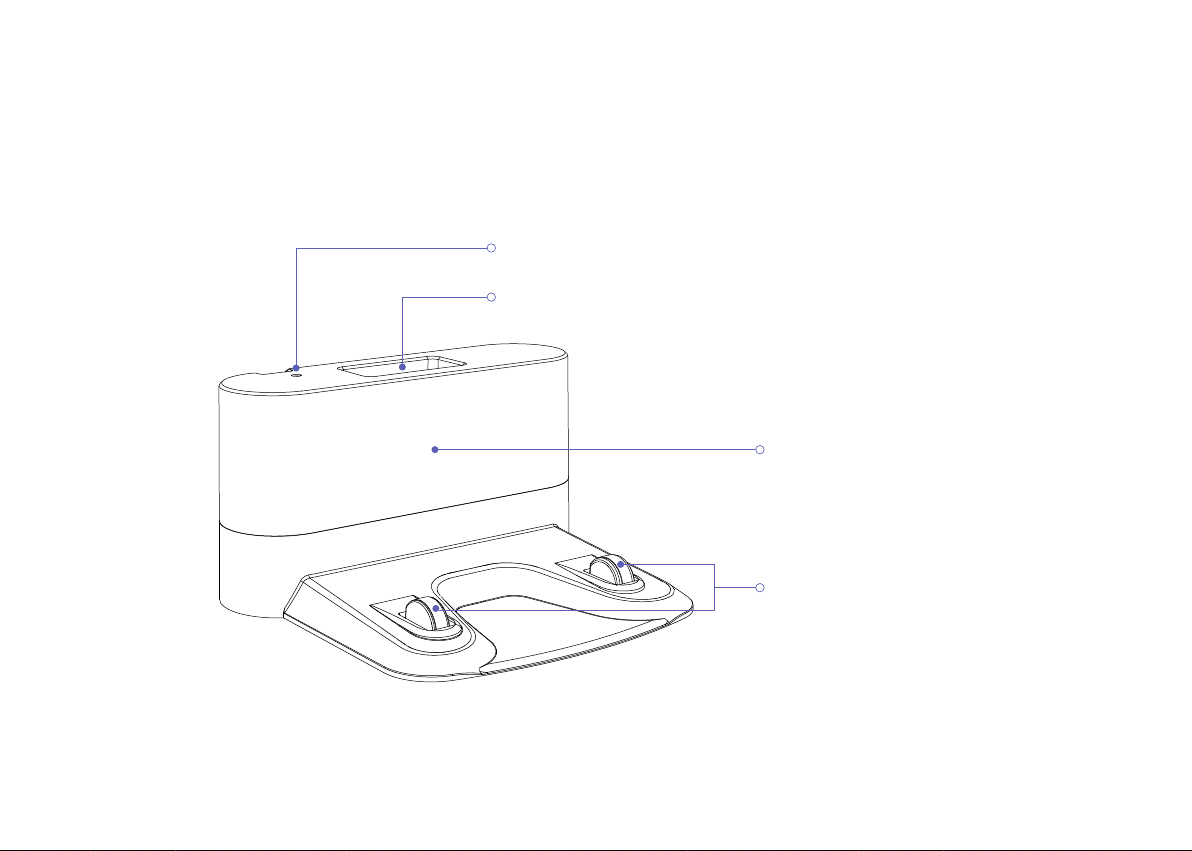

2.3 Charging Dock
07
Charging indicator
Location for remote control
Signal transmission area
Butting charging pole piece

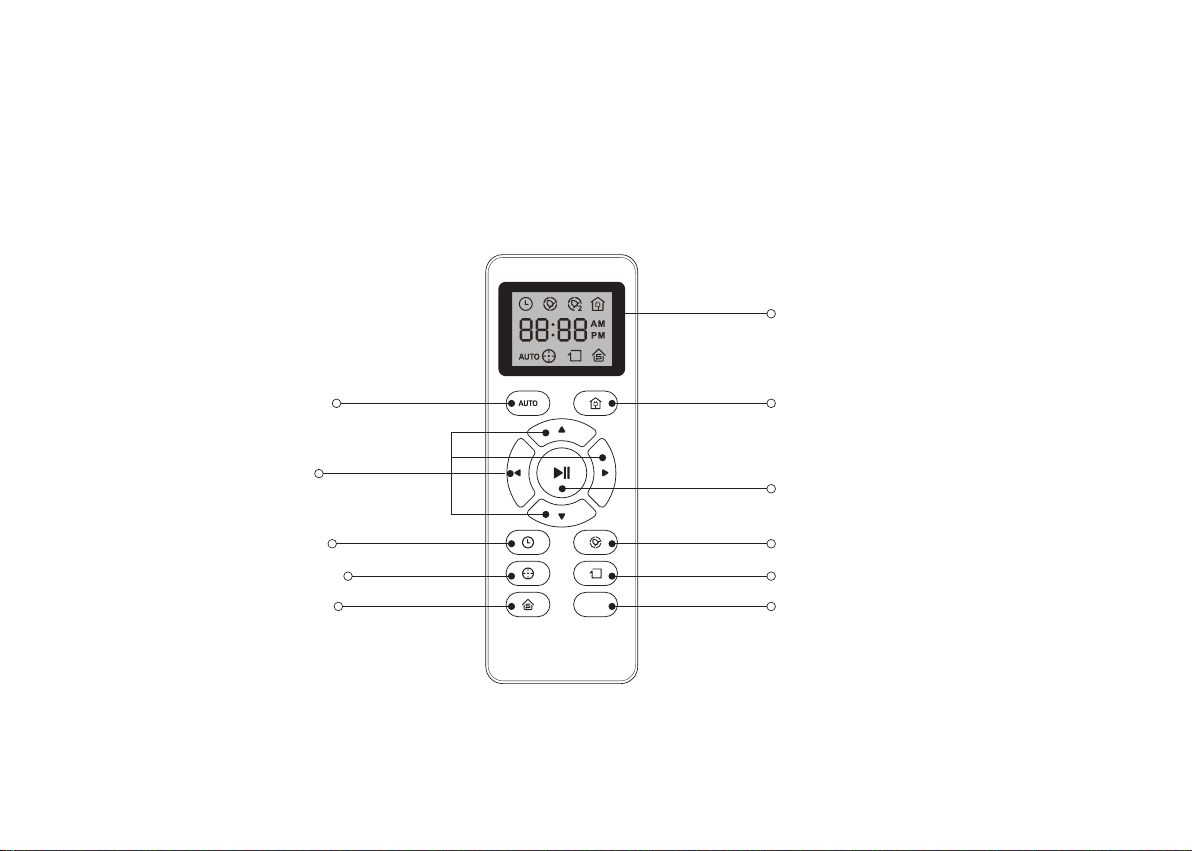

2.4 Remote Control
08
Mode and time display screen
Automatic re-charging button
Automatic cleaning
Direction buttons
Clock setup button Scheduling button
Start / Pause button
Spot cleaning button Edge cleaning button
Small-space button Max vacuuming cleaning button
MAX

3 Operating and Programming
3.1 Notes Before Cleaning
Before using Robot, pick up objects like clothing, loose papers, pull cords for blinds or curtains, power cords,
and any fragile objects. If the Robot passes over a power cord and drags it, there is a chance an object could be
pulled off a table or shelf.
If the room to be cleaned contains a balcony, a physical barrier should be used to prevent access to the balcony
and ensure safe operation.
09

3.2 Quick Start
Charging Dock Position
Place the Charging Dock against the wall and make sure
it is in an open and uncluttered area leaving at least:
Place the Charging Dock on a hard
level surface and against a wall.
2 meters (6 feet) in the front of the Charging Dock.
1 meter (3 feet) on both sides of the Charging Dock.
Attach Side Brushes to the bottom of Coredy R550 (R500+ ) by
pressing a brush into each slot until it clicks.
Plug in the Charging Dock and place
the remaining wire into the trunking
at the bottom of the Charging Dock
1.
3.
2.
Install Side Brushes
4.
Activate the Robot
Place Coredy R550 (R500+ ) onto the Charging Dock, making
sure the metal charging contacts on the Charging Dock match
up with those underneath the robot.
If successful, you will hear a series of tones. Once the Power
button illuminates, Coredy R550 (R500+ ) is ready for use.
5.
10
Initial Use, Switch on the Power Button on the Bottom.
Note:
Note: Failure to place the remaining wire
into the trunking, may cause Robot to
become stuck while charging or cleaning.

If the Charging Dock is inaccessible, Robot will not be able to
recharge, please place the robot manually on Charging Dock for
charging. (Refer Activate the Robot)

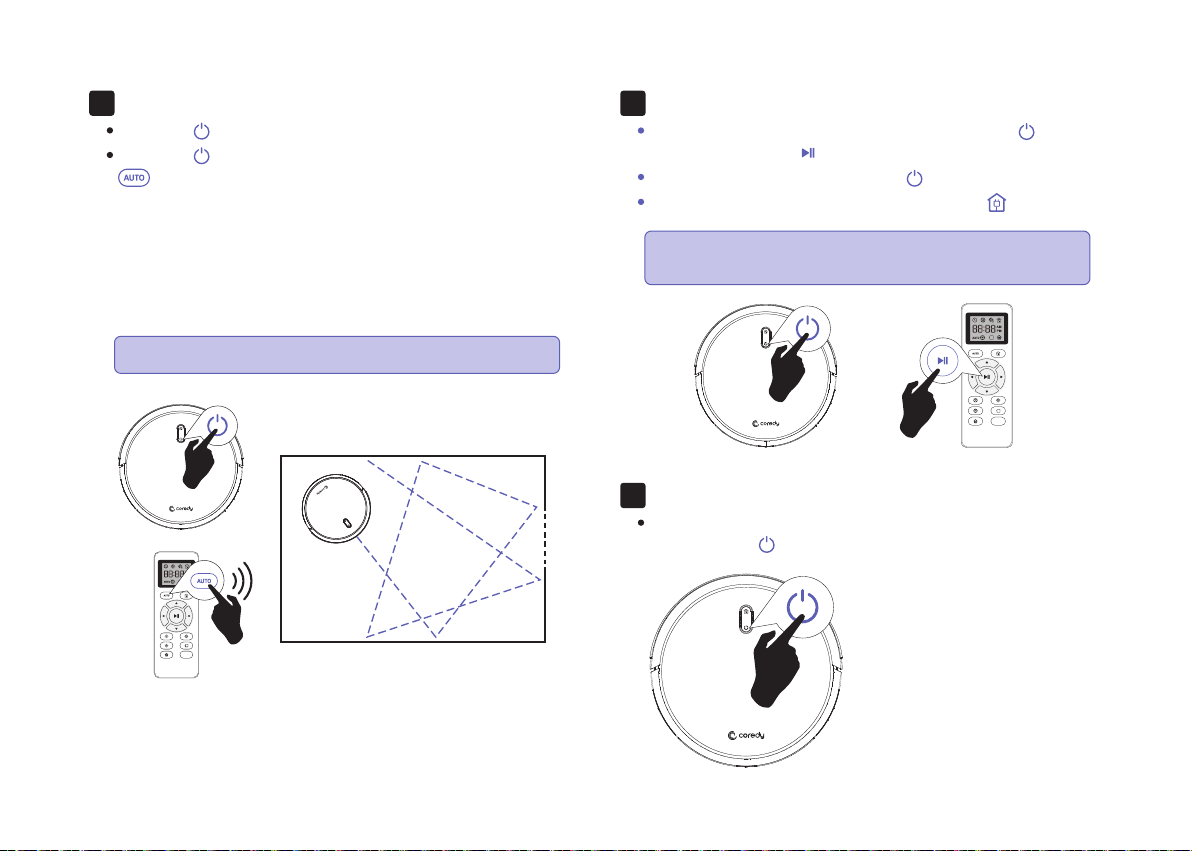

Start Cleaning Cycle
Press the power button once to wake up the robot.
Press the power button again to start a cleaning cycle (or
button on Remote Control).
If its battery gets low before finishing a cleaning cycle, robot
returns to the Charging Dock to recharge.
6. Pause
To pause the robot during a cleaning cycle press the button
on robot or press the button on the Remote Control.
To resume the cleaning cycle, press button again.
To send robot back to the Charging Dock, press button.
7.
Power OFF
To end the cleaning cycle and put robot in standby mode,
press and hold button until robot’s indicators turn off.
8.
11
Please refer to section 3.3 for more Cleaning Mode.
Note:
Note: The actions listed above can also be managed from
the Remote Control.
MAX
MAX

3.3 How Coredy R550 Clean Your Home
Auto Cleaning
Coredy R550 (R500+ ) continues this process until it has cleaned an
entire level of your home. If its battery gets low before finishing a cleaning
cycle, Coredy R550 (R500+ ) returns to the Charging Dock to recharge.
Working in random pattern for seamlessly and thoroughly clean.
At various times throughout the cleaning cycle, Coredy R550 (R500+ )
touches up around the edges of the room, as well as chair legs and
other furniture.
Coredy R550 (R500+ ) continues this process until it has cleaned an
entire level of your home. If its battery gets low before finishing a
cleaning cycle, Coredy R550 (R500+ ) returns to the Charging Dock
to recharge.
Once Coredy R550 (R500+ ) finishes its cleaning cycle, Coredy
R550 (R500+ ) returns to the Charging Dock to recharge.
1.
Floor Mopping Cleaning
Coredy R550 (R500+ ) support wet mopping function ( Required a
water tank,you can shop on http://shop.coredy.com ) the robot can
floor mops cleaning for your home.
1. Attach the cloth and fill the water tank with water.
2. Remove the dust bin
3. Put back the water tank to robot and start the Robot.
2.
12
Note: If you are using a Dry Sweeping Cleaning, skip to fill
water in water tank.
Water Tank and Cleaning Cloth (Sold Separately)
MAX

Cleaning Preferences Edge Cleaning
After robot finishes cleaning the open areas of your floor, it uses
Edge Clean to ensure that it has cleaned along walls and around
furniture legs. If you prefer a quicker edge cleaning, press the
button on Remote Control.
5.
Single Room Cleaning
Coredy R550 (R500+ ) intensively cleans one single room and stops
after 30 minutes. Select this mode only when one specific room
needs to be cleaned. Make sure to confine Coredy R550 (R500+ ) to
the room by closing the door.
Press on the remote control to start cleaning in Single Room
Mode.
6.
Spot Cleaning
When you select Spot Cleaning, robot intensely cleans a localized
area by spiraling outward about 3 feet (1 meter) in diameter and
then spiraling inward to where it started. When Spot Cleaning,
robot boosts its vacuum power to provide the best cleaning
possible where you need it. To use Spot Cleaning, place robot on
top of the localized debris and press (Spot) on the Remote
Control.
3.
Max Vacuuming Cleaning
Robot increases its vacuum power to provide a deeper clean when
press the button on Remote Control, Max Vacuuming
Cleaning is Off by default.
4.
13
MAX
MAX
MAX
MAX
MAX
MAX

Manual Cleaning
You can direct Coredy R550 (R500+ ) to clean a particular area by
using the directional buttons on the remote control.
7.
Use the Boundary Strip (Sold Separately)
With the Boundary Strip, you can keep Coredy R550 (R500+ ) away
from any area or item you do not want Coredy R550 (R500+ ) to
clean. Coredy R550 (R500+ ) will recognize the Boundary Strip and
will not cross into the blocked-off area.
3. Apply adhesive tape to lay the Boundary Strip flat on the floor.
Make sure the strip is placed FLAT on the floor.
1. Identify the area or item you do not want Coredy R550 (R500+ )
to get close to.
2. If necessary, use scissors to cut the Boundary Strip to a shorter
length. Be sure to correctly measure the length before cutting.
8.
14
Note: If the Boundary Strip is rolled up, remove and then
re-apply on the floor with adhesive tape. Otherwise the
Boundary Strip may not work well.
Make sure the Boundary Strip is placed on the same
surface plane Coredy R550 (R500+ ) is used on.
Be careful not to damage the floor when using adhesive
tape. It is not recommended for use on carpets.
Keep the Boundary Strip away from objects that emit
excessive heat.
MAX
Move forward
Move backward
Turn left Turn right

15
3.4 Cleaning Schedule
Coredy R550 (R500+ ) has cleaning schedule settings which allow you to customize when Robot cleans your home. These settings are available
only through the Remote Control.
Press button on Remote Control, and
then the hour section begins to flash in the
clock display setting window.
Set the Remote Control’s Clock
1.
Press or button to select the desired
figures. Press the or button to select
the minute or hour section.
And then press the button, the Robot will
“BEEP” when the clock setting completed.
MAX
MAX MAX
1. Make sure the time is set correctly to your local time before setting a cleaning schedule.
2. Make sure AM/PM is set correctly.
3. Schedule accuracy is every 15 minutes.
4. Make sure the remote control near by the robot while setting the clock or schedule.
Note:

16
Setting Cleaning Schedule2.
Cancel the Cleaning Schedule
3.
Press button on Remote Control, and
then the hour section begins to flash in the
Cleaning Schedule display setting window.
Press or button to select the desired
figures. Press the or button to select
the minute or hour section.
And then press the button, the Robot will
“BEEP” when the Cleaning Schedule setting
completed.
Press and hold button approximately 4
seconds on Remote Control, the Robot will
“BEEP” when the Cleaning Schedule process
cancel completely.
MAX
PM
MAX
MAX
PM
MAX
PM

17
To keep robot running at peak performance, perform the following care procedures. If you notice robot picks up less debris from your floor, then
empty the bin, clean the filter and clean the rolling brush.
4 Regular Robot Care
Robot Part Care Frequency Replacement Frequency
Side Brush Once per week (twice per week in homes
with pets) Every 2-3 months (or when visibly worn)
Every 3-6 months
Cliff Sensors
Charging Contacts
Floor Tracking Sensor
Front Driving Wheel
Unversal Wheel
Once per month
Filter Once per week (twice per week in homes
with pets) Every 2-3 Months
Rolling Brush Once per week (twice per week in homes
with pets)
Every 3-6 months
Brush Guard Once per month
Every 12 months
Dust Bin After each use
Note: Coredy manufactures various replacement parts and assemblies. If you think you need a replacement part, please contact Coredy
Customer Care for more information.

4.1 Emptying Robot’s Bin
Press dust bin release button to remove it.
1.
4.2 Cleaning Robot’s Filter
Remove filter by grasping the white tab.
1.
Shake off debris by tapping the filter against your trash container.
2.
Open dust bin door to empty it.
2.
18
