INSERT FIREPLACE HEATER
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville PL office: Gdańsk
US:[e-mail]
UK:[e-mail]
AU:[email protected]

Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
02 03
1
3
2
4
5
5
6
6
7
8
9
10
11
11
12
13
14
CODR DESRIPTION QTY
1panel
2Panel bar
3Laminate
4
Upper side panel
1
1
1
1
5
Uppertrim panel
2
6
Left lower side panel
2
17
8Right lower side panel1
9Lower left trim panel 1
10 1
11
Lower right trim panel
2
121
Furnace baffle
Baseplate
Cross bar
Front baffle
Backplane
13
14
1
1
CODR DESRIPTION QTY

04 05
A
34X+1X
B
34X+1X
CD
EFGH
12X+1X
18X+1X 6X+1X
Φ8*30mm
6X
ST2.9*12mm
8X +1x
IJ
1X+2X
1X+1X
ΦST3.9*25mm
45*12*1mm ST3.5*16mm
4X
ΦST3.9*32mm
1 2 3
K
13X
Ø15*11mm
Ø6*33mm
PACKAGE CONTENT A
C 4
B2
6
1
1
2
6
666
55
A 4
B 4
Step 2
Step 1

06 07
1
2
5
5
6
6
6
6
5
5
1
3
4
C2
B4
B4
2
Step 6
Step 7
A7
C2
B3
3
3
3
4
A4
Step 3
Step 4
Step 5

2
B4
B4
Step 10
Step 11
D6
9
10
11
8
7
9
10
11
11
11
B6
Step 8 A4
C4
7
8
Step 9 A6
C4
9
10
H4
08 09

D6
B6
Step 12
Step 13 B3
13
13
12
A3
C2
Step 14
Step 15
B4
B4
12
8
7
7
7
9
9
12
13
13
8
10
1
5
3
12
10 11

Step 18
Step 19
1
14
8
B4
B4
J1
G1
J1
1
14
8
12
Step 16
Step 17
E 12
F 6
G7
14
12
1
5
8
7
3
14
8
12
7
3
5
K12
12 13

Step 20
J1
1
7
1
G1
1
I1+1
18” Insert Fireplace Heater
14 15

16 17
When using electrical appliances, basic safety precautions should always be followed including the following:
READ ALL INSTRUCTIONS BEFORE USE
1. Read all instructions before using this
heater.
2. Do not use this heater outdoors.
3. This heater is not intended for use in
bathrooms, laundry areas and similar indoor
locations. Never locate the heater where
it may fall into a bathtub or other water
container.
4. Do not run the power cord under carpeting.
Do not cover the power cord with throw
rugs, runners, or the like. Arrange the power
not be tripped over.
5.
then remove the plug from the outlet.
6. Connect to properly grounded outlet
only. Always plug the heater directly into a
wall outlet/receptacle. Never use with an
extension cord or reloadable power tap
(outlet/power strip).
7.
bed, where openings may become blocked.
8. There is a thermostat limiter inside the
heater. When the inner temperature
overheat or abnormal heating occurs,
9. Use the heater only as described in the
manual. Any other use not recommended by
shock, or injury.
WARNING: There is no user serviceable
the wall immediately and contact Customer
Service.
WARNING: This heater is hot when in use.
To avoid burns, do not let bare skin touch hot
surfaces. If provided, use handles when moving
the heater. Keep combustible material, such
as furniture, pillows, bedding, papers, clothes,
and curtains at least 3ft (0.9m) from the front of
the heater and keep them away from the side or
rear.
WARNING: Extreme caution is necessary
when any heater is used by or near children
or invalids and whenever the heater is left
operating and unattended.
WARNING: Always unplug the heater when
not in use.
WARNING: Do not operate any heater with
a damaged cord or plug or after the heater
malfunctions, has been dropped, or damaged in
any manner. Ask a qualified technician for
examination, electrical or mechanical adjustment
or repair.
WARNING: Do not insert or allow foreign
objects to enter any ventiliation or exhaust
openings as this may cause an electric shock or
WARNING: A heater has hot and arching
or sparking parts inside. Do not use in areas
used or stored.
CAUTION: While the heater is in use, the
touch, and may cause serious injury or burns.
Always supervise small children around the
or otherwise obstruct the heater outlet of the
injury.

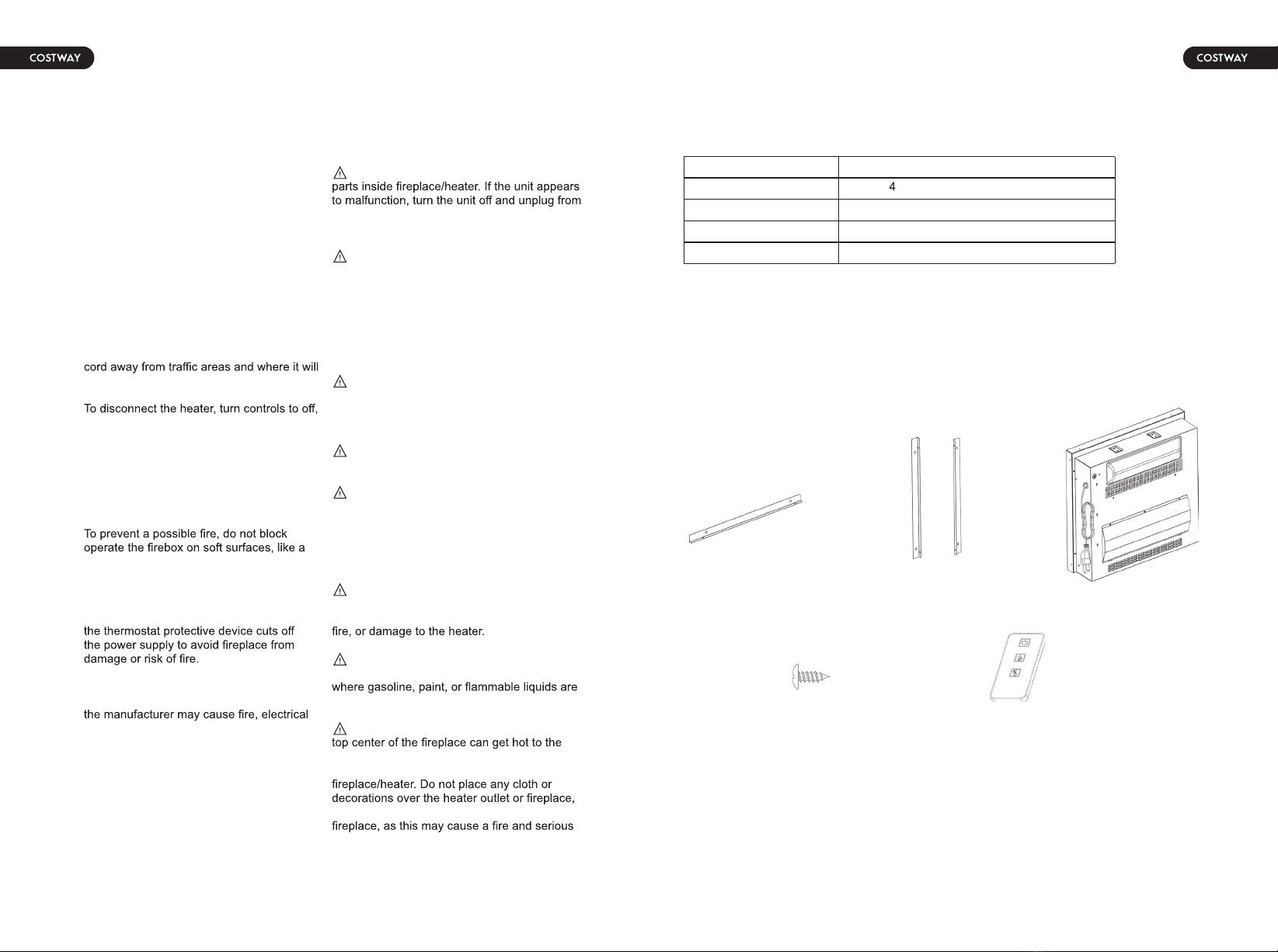

TECHNICAL SPECIFICATION
PACKAGE CONTENT
Screw x18 Remote Control
Fireplace UnitSide Trim (L/R)Top Trim
Model Number
Dimensions (W x D x H) 18” x 5.0
FP10102US,FP10103US,FP10104US,FP10105US
” x 17.1”
Power Rating 1400 W
Voltage 120 V
Frequency 60 Hz

18 19
ASSEMBLY INSTRUCTION
Estimated Time for Assembly
20:00mins
STEP 1
Take out the unit from the box and layout all the spare parts for easy assembly. Make sure all
small items are not left in packaging materials.
STEP 2
Attach the top trim to the top of the unit and secure it by tightening 2 screws. Make sure the
right angle side faces toward the front of the unit.
make sure that the right angle side faces toward the front of the unit.
• This unit has a glass front panel. Use extreme caution when handling glass to
prevent personal injury or damage.
CAUTION
STEP 3
Carefully set the unit from the back of the mantel and center it in the opening.
Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes
on the trim to the mantel.

20 21
USER INSTRUCTION
Grounding
This product must be grounded. If it should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock.
This unit comes standard with a 6ft (1.8m) long, three wired cord. Always plug the unit into a wall
outlet. An extension or relocate tab should never be used.
Before use
Check that the air intake and exhaust is not covered or obstructed in anyway.
Keep combustible objects at least 3ft away from the unit.
Plug the unit to a grounded power socket.
• Improper connection of the equipment grounding conductor can result in a risk of
to whether the product is properly grounded.
• DO NOT modify the plug provided with the product nor using any bypass device
electrician.
CAUTION / WARNING
USER INSTRUCTION (CONTROL PANEL)
Power Button Flame Control Heater Control
Control Panel
The control panel is located on the top right corner of the unit.
Power ON / OFF
NOTE: There is a thermostat limiter inside the unit. When the inner temperature is too hot, the unit
• DO NOT unplug the unit when it is still “ON”
CAUTION / WARNING
Flame Control
follows:
Button Press Flame Level Fireplace Appearance
1st Press
2nd Press
Low
3rd Press
4th Press
High
Medium and High.
Low,
Heater Control
Medium
OFF OFF

22 23
Install / Replace Battery
The remote control is provided with a CR2025
battery. Remove the plastic insulating sheet before
using.
To replace or remove old battery, push in the clip
and pull the battery bracket out simultaneously.
Insert a new battery with the button side into the
seated.
To replace the bracket, simply push it into the
remote control. Make sure the bracket snaps into
position.
NOTE: Remove battery from remote control if not
use for an extended period of time.
• Dispose old / used battery at a suitable recycling point or according to local
regulations.
• DO NOT ingest battery. If accidentally swallowed, seek for medical help immediately.
CAUTION / WARNING
USER INSTRUCTION (REMOTE CONTROL)
Remote Control
The operation of the remote control buttons work the same as the button on the control panel.
Power Button
Flame Control
Heater Control
CARE AND MAINTENANCE
Cleaning the unit:
Allow the unit to cool down completely before performing any maintenance or cleaning.
Use a vacuum cleaner or duster to regularly remove any accumulated dust on the unit
Do not use abrasive cleansers, liquid sprays or any cleaner that could scratch the surface.
TROUBLE SHOOTING
Problem Solution
The unit does not turn on Make sure the unit is plugged into a standard
120V grounded power source. Press the
power button on the control panel.
Open the top and back panel to check if the
motor.
The heater does not blow warm air Make sure the set temperature is higher than
the room temperature.
The heater does not work Turn all switches to OFF and unplug the unit for
5 minutes.
Plug the unit back to power and operate as
normal.
Error Code 88 shown on the indicator Reset the unit by unplug the unit from power
source for 5 minutes and then plug it back.
Remote control does not work Use it closer to the unit / change battery /
remove insulating plastic sheet.
