Covert UM565-3GV User manual

Page1
UM565-3GV Instruction Manual

Page2
Table of Contents
Camera button control diagram: ............................. 4
Understanding main screen info:............................. 5
Installing the batteries: ............................................ 6
Installing the SIM card…………………………..…………...…8
Setup on camera……………………………………………..….14
Setup on a computer (Download Tool)………………..17
Send a test photo: .................................................. 24
Customizing the camera settings:.......................... 25
Setting the camera mode: ..................................... 25
Camera mode settings: .......................................... 26
Video mode settings .............................................. 27
PIR tab: ................................................................... 29
NET tab:.................................................................. 34
SYS tab:................................................................... 36
Formatting the SD card: ......................................... 40
Viewing photos on the color display:..................... 41
Troubleshooting:.................................................... 43
Tricks and tips on field setup: ................................ 46
Covert Scouting Cameras Warranty:...................... 47
Covert International Warranty Policy: ................... 49
Code Black Set Up on a MAC: ................................ 56
Network Carrier Suffix List…………………………………..59
Technical Specifications:………………………………….....68

Page3
Congratulations on your purchase of the 2015
UM565-3GV Scouting Camera! We truly value your
business and will continue to provide you top
quality customer service should you ever need help
with any of our products.
We hope you enjoy hassle free performance from
this quality product for years to come.

Page4
Color LCD
Navigation
arrows
Selector switch
SIM card slot
Aux battery
jack
Camera Button Control Diagram:
Play
Antenna
Select/OK
Menu
Delete
USB
SD card
slot
Figure 1
IMEI
Number

Page5
Understanding main screen info:

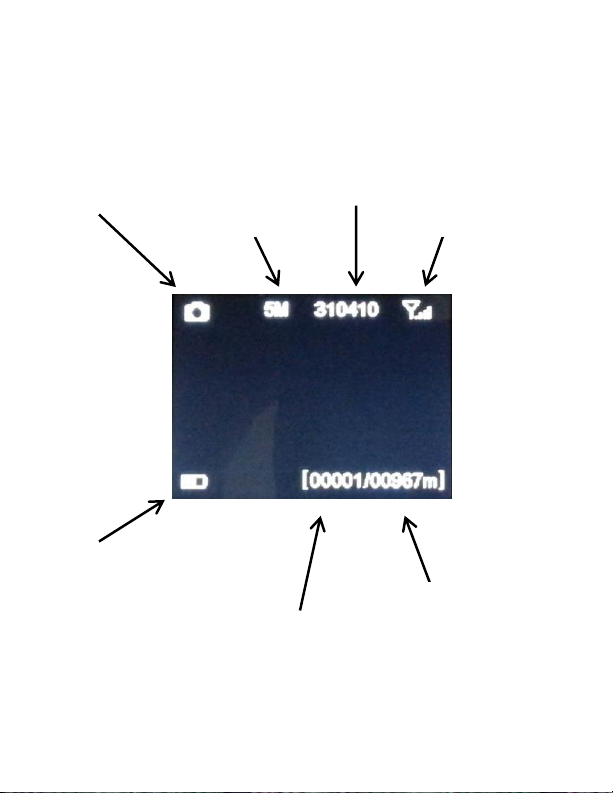

Figure 2
Camera Mode /
Video Mode Icon
# of
megabytes
remaining
on card
Cellular service
indicator
Provider
Name
# of photos
taken
Battery life
indicator
Megapixels
Chosen

Page6
Installing the batteries:
Your Code Black can function short term on 4-AA
batteries. Improved battery life on 8-AA, but we
suggest you use 12-AA batteries to get the most out
of your cameras battery life. Using Covert
rechargeable NiMH, 2300mAh, AA batteries will
extend the battery life significantly.
DISCLAIMER: Do not use external power source
(Example: Solar Panel) with non-rechargeable AA
battery installed in camera. The Covert AA NiMH
battery when used in conjunction with the solar
panel extends the time in the field.
Install batteries by sliding the top battery into the
sleeve, then depressing the spring with the other
battery and snapping down in place. Pay attention
to the (+) or (-) molded into each sleeve to
determine if you insert the positive or negative end
into the sleeve first. Negative battery terminal

Page7
always contacts the spring. (Fig. 3)

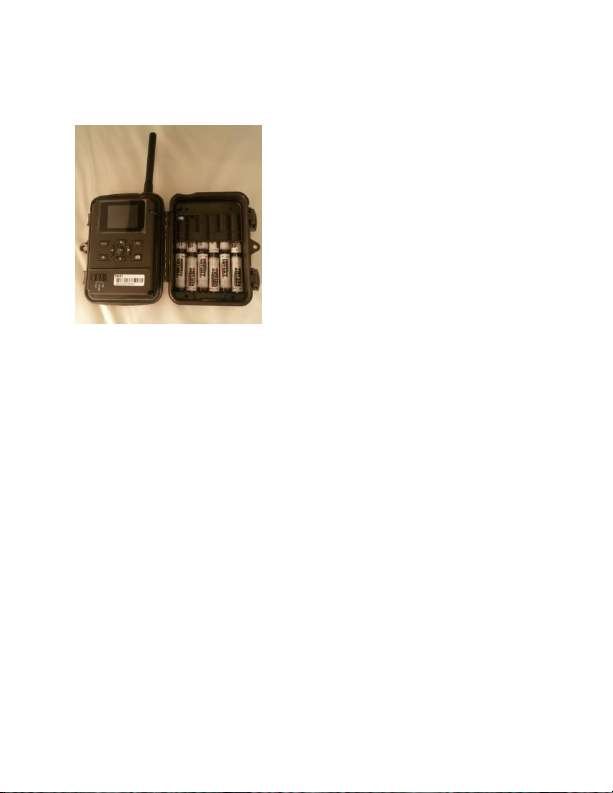

Figure 3

Page8
Figure 4
Installing your SIM card:
Using the SIM card provided in the packaging, open
your camera housing to expose the control panel.
Make sure your camera mode selector switch is in
the OFF position. On the left side of the camera
control panel towards the top is a small card slot.

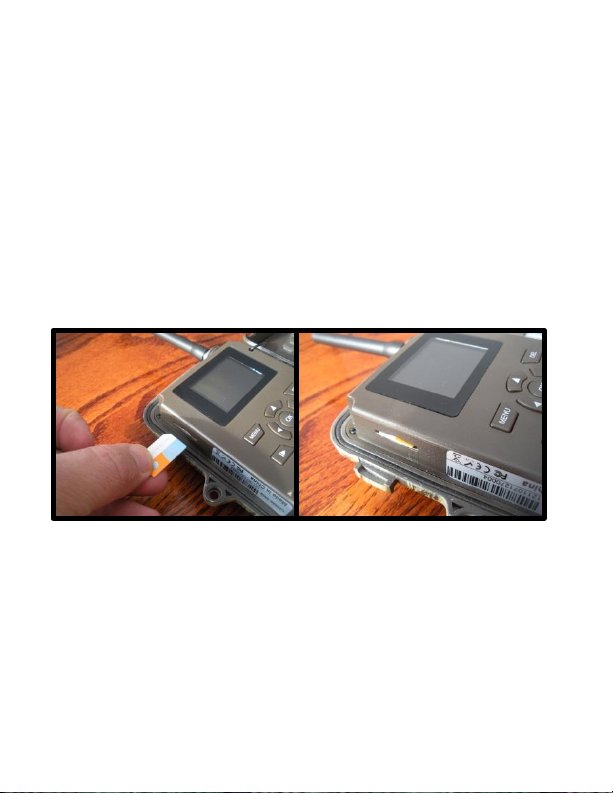

See Figures 4 & 5.
Press the card in securely, until it clicks in place.
To remove the SIM card, simply press in on the card
until it clicks and then release it.
Figure 5

Page9
Installing the SD card:
Now that you have your SIM card and it has been
installed in the camera, you will need to install an
SD card in the bottom of the camera, (Covert SD
card recommended). See Figure 7 for card
orientation. The card installs the same way as the
SIM card did. Push in until it clicks and release. To
remove, repeat that process, the card will pop out
enough to remove. You can use any SD card size up
to 32GB. You must have the SD card in the camera
to be able to turn the camera on and set it up. The
camera will only send the first picture of the 1,2,3
shot burst.
Figure 7
NOTE: Every photo
taken with this
camera will be saved
to the SD card even if
it is sending the
photos wireless. You
will have access to
the high resolution
images on the SD
card.

Page10
Setting up the wireless network:
1) Slide selector switch to the right to the SETUP
position. Press the MENU button You will see
the screen shown below (Figure 8):
2) Press the ►button 2times to highlight the NET
tab in yellow. Press the ▼button to highlight
the Send Mode option. Press the ►button to
toggle the option in the white box to INSTANT.
Press OK to save this setting. You will then be
asked a max number. 0-99. To receive an
Figure 8

Page11
unlimited amount of pictures, enter 0 (zero).
This is the number of pictures the camera can
send you in a 24-hour period. Press the menu
button. This will take you back to the home
screen.
You will need to be patient as the camera does its
initial set-up and looks for cellular service. While
finding the network you will see the word checking,
Then Search Network in red on the screen. Once
you see AT&T at the top right corner, you are ready
to move on. Network Mode: You have the option
to select AUTO, 3G or 2G. We suggest the AUTO
tab so the camera can bounce off all towers in your
area. Note: Anytime you switch Network Modes,
you must allow your camera time to search for
signal again.

Page12
Setup on Camera:
1) Press the Menu button
2) Press the ►button repeatedly until the
NET tab is highlighted in yellow.
3) Press the ▼arrow (3) times to highlight the
Edit Phone and press OK.
4) Press the ▲or ▼buttons to add the first
phone number in the camera. Press OK to
save. Then select your personal cell phone
provider. (Figure 11) If you do not have
SPRINT, AT&T, US CELLULAR, T-MOBILE, or
VERIZON as your personal cell phone
provider, skip to page 17.
5) Under the Carrier Option, select the carrier
of your personal cell phone, or the carrier of
the phone in which you are sending your
pictures.
6) Enter the ten digit phone number you are
sending the pictures to starting with the
area code first.

Page13
Figure 9
*Note: Make sure you do not enter a 1 before
the area code & phone number.

Page14
OPTIONAL Adding Multiple Numbers:
7) Press the ►button to add the Second
Phone number. Press OK to save. Then
select the personal cell phone provider of
phone two.
8) Press the ►button to add the Third
Phone number. Press OK to save. Then
select the personal cell phone provider of
phone three.
9) Press the ►button to add the Fourth
Phone number. Press OK to save. Then
select the personal cell phone provider.
*Note: You only need a minimum of one phone
number. The additional options are for your
convenience to send to multiple phones,
however it is recommended to use a 30 second
delay for each email/phone number. This is the
camera recovery period. *
10) To enter emails into your camera, you must
use a computer (refer to the next page.)

Page15
Setup with a Computer (Download
Tool):
If your personal cellular provider is not one of the
following: SPRINT, AT&T, US CELLULAR, T-MOBILE,
or VERIZON, please follow the steps below.
Next Press the ◄or ►button repeatedly until the
NET tab is highlighted in yellow.
1) Press the ▼arrow to highlight the DOWNLOAD
TOOL and press OK. (Figures 10 & 11).
Figure 10
Figure 11

Page16
2) Turn the camera off by sliding the selector
switch to the OFF position
3) Remove the SD card from your camera and
insert into your personal PC card reader.
4) Locate the SD card under MY COMPUTER and
double click on it to show its contents. (Figure
12).
5) Double click on the GSMSETUP and then double
click on the UOV Setup application.
Figure 12

Page17
6) You will see a warning box like Figure 13 below.
Choose YES and the UOV set-up program will
launch.
7) You will see the following screen for setting up
the NET options for your camera. This is where
you add phone numbers and e-mail addresses
and control the number of wireless photos sent
from the camera each day. (Figure 14).
Figure 13

Page18
Figure 14
*Make sure to save your path by clicking the 3-dot
button to the right of the screen. Selecting your SD
card tells the camera where to save the pictures.
(This is usually “Removable Disk F” or “Removable
Disk H”).

Page19
Helpful Tip: When entering phone number, make
sure you do not enter any spaces or dashes.
11.) Send Mode:
a. INSTANT: If you want the camera to send
you photos the instant it’s taken, you want
to choose this option.
b. Max Num: You can control the number of
photos that are sent to your device or e-
mail every day. If you want to limit this, put
the maximum number of photos you want
the camera to send each day in the box. If
you want it to send unlimited photos, set
this value to 0 (zero). This sends a picture
every time the device is triggered.
c. Daily Report: This option only sends you
the last photo taken each day with a report
of all the other activity during the day.
Choose the time that you want each picture
sent.
d. OFF: choose this option if you do not want
the camera to send out the photos taken.

Page20
This will make the camera perform like a
traditional trail camera.
8) Rename: Customize the name of your camera.
9) Send to:
a. Phone: To have the camera send pictures
to your phone, enter up to 4 different
phone numbers in the phone number field.
You will need to enter the area code only
with no spaces or dashes. Enter the phone
number that corresponds with the suffix of
your personal carrier.
For Full List:
(SEE PERSONAL CARRIER SUFFIX LIST-PAGE 57)
C-Spire Example:
For Example, if your personal carrier is with C Spire
Wireless, then in order to receive text messages to
your phone, you will click send to e-mail and then
enter your personal ten digit phone number
@cspire.com. Do not use a 1 before the phone
number.
Ex: [email protected]
Ex: [email protected]
