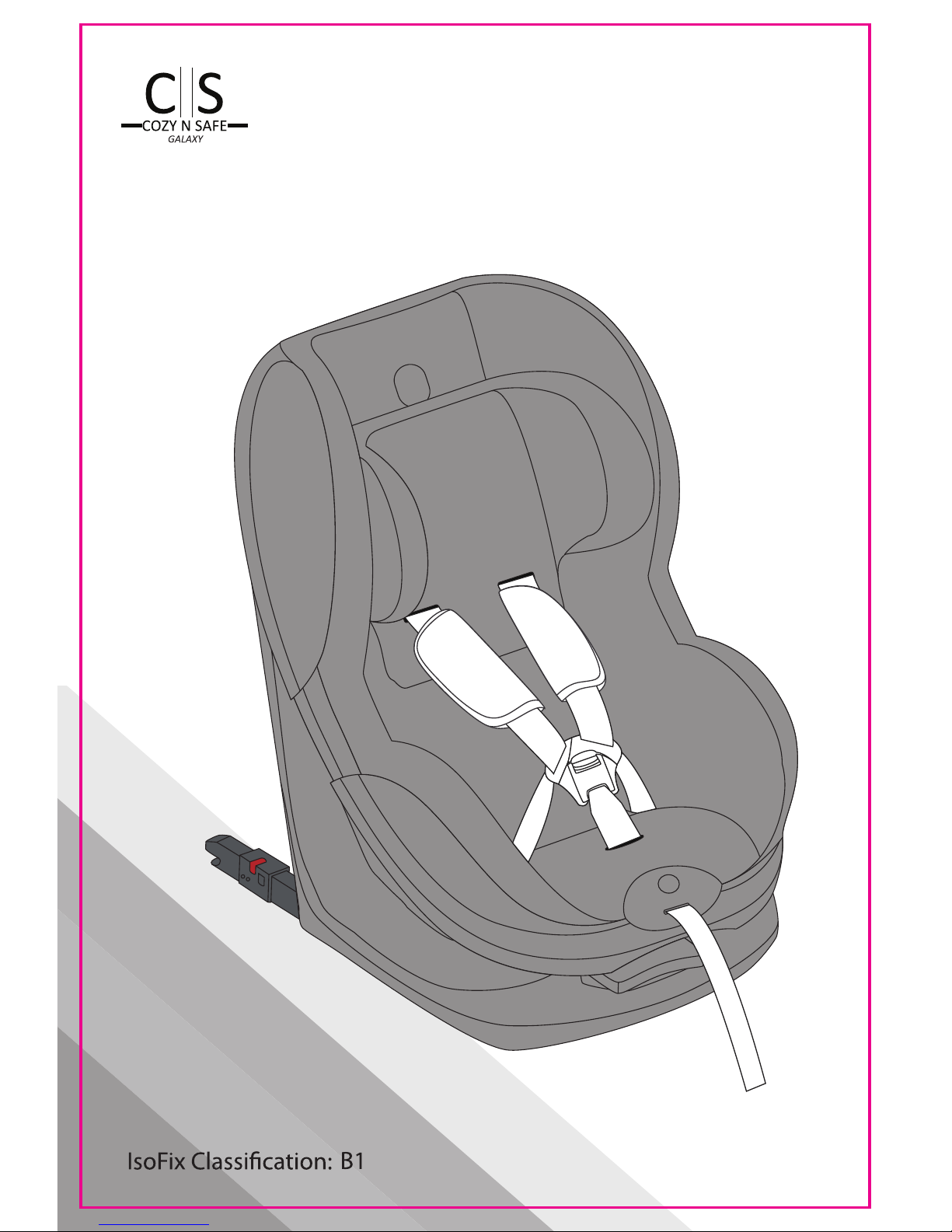

Cozy N Safe GALAXY EST-01 User manual

C S
COZY N SAFE
GALAXY
INSTRUCTION MANUAL
EST-01
ECE R16 No44/04 Group 1
C S
COZY N SAFE
GALAXY
Euro Stock Traders Ltd
Cozy N Safe
Oxford Street, Wolverhampton, West Midlands, WV14 7DP, UK
Tel; [phone]
Fax: [phone]
Email: [e-mail]
Website: www.cozynsafe.com

ECE R16 No44/04 Group 1
Group 1 Car Seat Instruction Manual

C S
COZY N SAFE
GALAXY
1
Group 1 Car Seat
(9kg to 18kg/ approx 9 months to 4years)
Thank you for purchasing thisGroup 1 car seat. If you are not
completely satised withthe car seatoryou wouldlike to change
any accessory orobtain anyhelp aboutthe car seat, you can
contact our customerservicesdepartment.
Please Note: Only suitable for use in vehiclestted with ISOFIX Class B1
attachments approved toECE R16 or equivalent standard.
Storage of the User Guide
Itismost importantthatthese instructionsremain with the carseat at alltimes.
You can store these instructions atthe bottomof seatbase.
Please readthisinstruction manualcarefullybefore use.

2
ConsumerInformation
WARNING!AIRBAGS CAN CAUSE INJURY. DO NOTUSE
THIS CHILD SEATON APASSENGERSEATFITTEDWITH A
FRONTAL AIRBAG.
WARNING!ALWAYSGIVE PREFERENCETOUSINGTHE
REAR SEATSOFYOURVEHICLE EVEN IF YOURHIGHWAY
CODE PERMITSTHE USE ONTHE FRONT SEAT. CHECK
YOURHIGHWAY CODE ASTHIS REGULATION MAYVARY
ACCORDINGTOTHE COUNTRY. CHECKTHE VEHICLE
MANUAL FOR ADVICE ON FITTINGYOURCAR SEAT INTHE
FRONTOFTHE VEHICLE. AIRBAGS CAN CAUSE INJURY. DO
NOTUSETHISCHILD SEATON APASSENGERSEAT FITTED
WITH AFRONTAL AIRBAG.
WARNING!ENSURETHATATALL TIMESWHEN THE CAR
SEATIS INSTALLED USINGTHE ISOFIX SYSTEM THE TOP
TETHERIS CONNECTED TOTHE ANCHOR POINTINTHE
REAR OFTHE VEHICLE.
WARNING!BUCKLE FAILUREWILL CAUSE INJURY. DONOT
OIL ANY PARTOFTHE BUCKLE. ALWAYSCHECK THAT
THERE ISNOFOOD DEBRIS OR OTHERSUCHMATTER INTHE
HARNESS BUCKLE.
WARNING!TOXIC CLEANINGFLUIDS CAN CAUSE ILLNESS.
NEVERUSE BLEACH, DONOTIRON, DO NOT MACHINE
WASH, DO NOTTUMBLE DRY ASTHIS COULD DAMAGE THE
COVERAND REQUIRE REPLACING.
WARNING!ACORRECTLY ADJUSTED HARNESS IS
ESSENTIAL FORYOURCHILD’SPROTECTION. THERE
SHOULD NOTBE MORETHAN AFINGERS WIDTH BETWEEN
THE HARNESSANDYOURCHILD.

C S
COZY N SAFE
GALAXY
3
General SafetyInstructions
Keep these instructions with the car seatin case you need to refer
to themagaininthe future. Failure tofollowthese instructions may
aect your child’ssafety.
Your carseatmustbe positionedand installed so that, under
normal vehicle usage conditions, nopartcan become jammed
under or betweenany moveable seator in the vehicle door.
Alwaysreplace the car seatafterany accident, in case of any
unseendamage.
Donot modify or add toyour carseatinanyway without the
approval of acompetentauthorityorthe manufacturer, asthis will
void anywarranty.
Shade your car seatfrom sunlightto avoid hotitemscausing injury
to yourchild.
Donot leave your child unattendedwhen in the car seat and in the
vehicle.
Make sure there is no loose luggage or otherlarge objects that
are likely to cause injuriesin the eventof an accident.These may
cause injurytoother occupants. Always secure loose items.
Donot use the car seatwithoutthe seat cover. Do not replace the
seatcoverwithanycoverother than the one recommendedbythe
manufacturer, as it directly inuences the safety performance of
the carseat.
Ensure that yourcar seatis securedatalltimes while in the vehicle
using the vehiclesseatbelt or ISOFIX system, even when notin
use. Anunsecuredcar seatcan cause injuriesinthe event of a
collision.
The car seatmay acquire some wearand tear overthe years,
thiswill result in parts requiring replacement, please contact our
customerservicesdepartmentfor replacement parts.
During coldwinterconditions take care thatany change of
clothing has not reducedthe tension and eectivenessof the car
seatharness.

4
Before using yournewcar seatit is important to understand fully
howto installyour car seatproperly, secure your child correctly
and familiarize yourself with the featuresand functionsof the seat.
Please take the time toread and understandthese instructions
fully.This is best done with the seatin front of you.
Please alwaysread the safetywarnings.
Before using the seatinyour vehicle you should prepare the seat
for your child, bysetting the headrest and harness correctly.
Your Group 1 Car SeatFeaturesGuide (2)
ASeat BaseNRecline Lever
BSeat ShellOSOFIX Release Buttons (x2)
CSeat Cover PISOFIXConnectionIndicators
DHeadrestQTop tetherstrap
EHarness ShoulderStrapsRop tether hook
FHarness Pads (x2) SVehicle anchorage point
GHarness Buckle TTension indicator adjuster
H Harness Buckle Pad
IHarness Connectors
JHarness and Headrest
Adjustment Loop
KHarness AdjustmentButton
LCrotch Strap
MHarness AdjustmentStrap

C S
COZY N SAFE
GALAXY
1
2
3
5
S
A
B
C
D
E
F
H
I
J
K
L
M
P
O
R
2
G N
Q
1
T

6
“Click”
5 6
3 4
87

C S
COZY N SAFE
GALAXY
7
9
3
4
5
1
2
12
10
11
1413

8
11
2
“Click”
15 16

C S
COZY N SAFE
GALAXY
9
WARNING!ALWAYSGIVE PREFERENCE TO USINGTHE
REAR SEATSOFYOURVEHICLE EVEN IF YOURHIGHWAY
CODE PERMITSTHE USE ONTHE FRONTSEAT. CHECK
YOURHIGHWAY CODE ASTHIS REGULATION MAYVARY
ACCORDINGTOTHE COUNTRY. CHECKTHE VEHICLE
MANUAL FOR ADVICE ON FITTINGYOURCAR SEAT INTHE
FRONTOFTHE VEHICLE. AIRBAGS CAN CAUSE INJURY. DO
NOTUSETHISCHILD SEATON APASSENGERSEAT FITTED
WITH AFRONTAL AIRBAG.
ForwardFacing Group 1
(9kg to 18kg / approx 9 months to 4years)
Firstly, you will needto make sure the ISOFIXlatches are pull out and ready for
use(2), thenplace the car seatontothe vehicle seatfacing inthe direction of
travel.
Align the ISOFIX attachmentpoints with the ISOFIX latchesin the vehicle seat
(3), and push the ISOFIXpointsinto the ISOFIXlatchesuntil you hear a“click”.
When the ISOFIX points are correctlyattached, the ISOFIX connection indicators
(P)willturngreen (4)if the indicatorsremain redyoumust release and re-
connect the ISOFIX points, todothis see section“Removing the Car Seat from
ISOFIX”.
IMPORTANT!Alwaysuse the top tetherwhenthe carseat base is ttedintothe
vehicle using the ISOFIX points.Your vehicle is equipped with one of the three
TopTethermetalanchor points, they willbe:
on the rear shelf
on the oor in the rear of the vehicle
on the back of the vehicle seat
Please observe the recommendations of your vehicle manual. Do not modify
your vehicle bydrilling or bolting something in. Never fasten the top tether to
alocation which hasnot beenrecommendedby the vehicle manufacturer. If
the top tethercomes loose in acrash, there is adanger of injury to the vehicle
passengers.
1
2
3

10
WARNING!ENSURETHATATALLTIMESWHEN THE CAR
SEATIS INSTALLED USINGTHE ISOFIX SYSTEM THE TOP
TETHERIS CONNECTEDTOTHE ANCHOR POINTIN THE
REAR OFTHE VEHICLE.
Pass the top tetherstrap overthe top of the vehicle seat, making sure thatit
passesunderthe headrest (5).
Attach the tetherhook (R)ontothe vehicle anchor point, thenpull the tether
strap tight(6),untill tensionindicator adjuster turngreen.
Toremove the car seatfrom the vehicle simply reverse the steps above.
The car seatcan be setin anyof its ve recline positions, to recline the car seat
see section“Reclining your Car Seat”.
Checklist
Toensure the optimum safetyof your child, check the following after
installation:
•Check thatthe ISOFIX points are securely attachedtothe vehicle by checking
that the indicators on the ISOFIXpoints are green (4).
•Check thatthe top tetheris attachedand secure(5) (6).
•Check thatthe car seatbase is installedsecurelyand rmly in the vehicle by
trying to move it.
Removing the Car Seatfrom ISOFIX
Release the ISOFIX points bypulling the twoISOFIX release buttons (P)located
ontop of the ISOFIX points, behind the car seat(7).Then pull the base towards
the frontof the vehicle seattorelease fromthe vehicle(8).
Reclining your Car Seat
Your child car seatcanbe reclinedin achoice of ve positions to make it
comfortable for your child (9).
The recline lever(N)is locatedunder the frontedge of the seatshell. Squeeze
and liftthe lever torelease the lock and thenpull forward or push back to the
preferred recline position (10).
Headrest andSafety Harness Adjustment
WARNING!ACORRECTLY ADJUSTED HARNESS IS
ESSENTIAL FORYOURCHILD’SPROTECTION.THERE
SHOULD NOTBE MORETHAN AFINGERS WIDTH BETWEEN
THE HARNESSANDYOURCHILD.

C S
COZY N SAFE
GALAXY
11
Your carseatisttedwith amovable headrest which also adjusts the heightof
the harness.
The child’shead should sit directly in the middle of the headrest and the sides
of the headrestshouldsit just above the child’s shoulders.The shoulderstraps
shouldbe levelwith or above yourchild’s shoulders(11).
Toadjustthe height of the headrest rstly open the harness buckle bypressing
the redbutton in the centre of the buckle(12). Locate the harnessadjustment
loop(J)whichis locatedatthe top of the headrest. Pull the loop upwards and
move the headrest up or down to the appropriate height and release(13).
Trytomove the headrest tocheck it is lockedin position.
HarnessTensionand Adjustment
Loosenthe Harness: Press on the Harness Adjustment Button (K)
positioned near the frontof the car seat, andpull on the two shoulderstraps
simultaneously (14).
Tighten the Harness: Pull rmly onthe Harness Adjustment Strap(M)at the
frontof the car seat; it isnot necessarytopress on the Adjustment Button(15).
Installing your Child in the Car Seat
Firstly openthe buckle bypressing the redbutton in the centre of the buckle
(12).Thensit your childin the car seat, passing their arms throughthe shoulder
straps.
Bring the harness connectors togetherand insert into the buckle until you hear
a“click”(16).
Tighten the harnessbypulling on the harnessadjustment strap(15), once tight
make sure thatthere is no more than a ngerswidth between the harness and
your child.
The child’shead should sit directly in the middle of the headrest and the sides
of the headrestshouldsit just above the child’s shoulders.The shoulderstraps
shouldbe levelwith or above yourchild’s shoulders(11), if thisis not the case
.’tnemtsujdAssenraHytefaSdnatserdaeH‘noitcesotreferesaelp
Checklist
WARNING!ACORRECTLY ADJUSTED HARNESS IS
ESSENTIAL FORYOURCHILD’S PROTECTION. THERE
SHOULD NOTBE MORETHAN AFINGERS WIDTH BETWEEN
THE HARNESSAND YOURCHILD.
Howeversafe achild seatis, however well built it is, your child’s safetydepends

12
onyou carrying out the following checksbefore every journey.
•Have you setthe harness correctly and tothe correctshoulderheight(11)
(12) (13).
•Ensure the harness strapsare nottwisted.
•Check the harnessis setfor the clothing andnot loose.
•Check the harnessis secure with the buckle andshoulder strap connectors
latchedtogether and harness tension is correct(15)(16).
•Check the car seatisfacing forwardsinthe vehicle inthe direction of travel
(3).
Maintenance Advice
CoverRemoving and Cleaning
WARNING!TOXIC CLEANINGFLUIDS CAN CAUSE ILLNESS.
NEVERUSE BLEACH, DONOTIRON, DO NOT MACHINE
WASH, DO NOTTUMBLE DRY ASTHIS COULD DAMAGE THE
COVERAND REQUIRE REPLACING.
The car seatcover is removable and washable. In case of light staining, clean
using a damp cloth or soapywater.The covercan be removed completely and
hand washedup to30°c.
Toremove the cover
1.Openthe harness buckle(press the redbutton) and loosen the hamess straps
asfar as possible.
2.Openthe Velcro fasteners on the headrest the place where shoulder straps go
through.
3.Remove the coverof the headrest.
4.Unhookthe elastic hoopsatthe sidesedge of the shell.
5.Openthe Velcro fasteners on the place where lap strapsgo through.
6.Pullthe coverup and ontothe seatsurface.
7.Feed outthe harness buckle and the endof the strap from the cover.
8.Pullthe coverupwards alittle and thenput it with the cutout over the
headrest.
Toret the cover, simply reverse the process, however ensure the harness and
buckle are the correctwayround and not twisted.

C S
COZY N SAFE
GALAXY
13
Buckle Cleaning
WARNING!BUCKLE FAILURE WILL CAUSE INJURY. DO NOT
OIL ANY PARTOFTHE BUCKLE. ALWAYS CHECKTHAT
THERE IS NOFOOD DEBRIS OR OTHERSUCHMATTER INTHE
HARNESS BUCKLE.
Rinse the buckle thoroughly withwarmwater. Allow the buckle to dry
thoroughly.
partsredluohsehtotelkcubehtnetsafuoynehw,’kcilc‘araehuoyfikcehC
connectors. If there is no‘click’repeatthe process. Leave the buckle to dry before
re-assembling on the seat.
AdditionalInformation
Donot use this carseaton ashopping trolley.
This car seatisnot approvedforuse on aircraft. For more information contact
the airline.
Todispose of your car seatsafely always remove the harness andrenderthe
seatunusable.
NOTICE
This car seatisa“Universal”child restraintsystem. It has been approved
in accordance with regulation No44/04, and is suitable for general use in
vehicles and iscompatible with the majority of vehicle seats.
•This child restraint is likelytot if the vehicle manufacturer
statesthatthe approval speciessuitabilityfor“Universal”
child restraint systems.
•This restraintsystem isclassiedas“Universal”in
accordance withthe strictest approval criteria, whereas
earliermodels do notcorrespond to these new provisions.
•Itcan onlybe installed invehicleswith ISOFIXthat has been approved
compliant with the UN/ECE No16 or otherequivalent standards.
If in doubt, contact the manufactureror retailer of the restraint
system.
