Morgan i-Size

Cozy N Safe
Oxford Street, Wolverhampton, West Midlands, WV14 7DP, U.K.
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.cozynsafe.com
Without Compromise...
Notice
Notice
This is an i-Size Enhanced Child Restraint System. It is approved
according to UN Regulation No. 129, for use in, i-Size compatible vehicle
seating positions as indicated by vehicle manufacturers in the vehicle
user's manual.
If in doubt, consult either the Enhanced Child Restraint System
manufacturer or the retailer.
Notice
This is an i-Size booster seat Enhanced Child Restraint System. It is
approved according to UN Regulation No. 129, for use primarily in “i- Size seating
positions as indicated by vehicle manufacturers in the vehicle user's manual.
If in doubt, consult either the Enhanced Child Restraint System manufacturer
or the retailer.
Only suitable if the approved vehicles are fitted with 3 point safety-belts,
approved to UN/ECE Regulation No. 16 or other equivalent standards.

1
Contents
1.
2.
3.
4.
5.
6.
7.
8.
9.
Important notice
Features
Use in the vehicle
Installing and removing the car seat
4.1 ISOFIX ATTACHMENT installation
4.2 Top tether installation
4.3 40-87CM
4.4 76-105CM
4.5 100-125CM
4.6 ISOFIX ATTACHMENT removal
Seat adjustment
5.1 Opening and closing side impact protection
5.2 Recline position adjustment
5.3 Forward and rearward rotation adjustment
5.4 Shoulder strap adjustment
5.5 Headrest height adjustment
5.6 Top tether adjustment
Installing and removing fabric cover
6.1 Removing fabric cover
6.2 Installing fabric cover
Cleaning and maintenance
Steps to take after an accident
Warranty
2
5
8
13
15
16
19
22
27
28
29
29
30
31
33
34
36
38
39
39

2
1. Important notice
This child car seat is suitable for children who's stature is 40-105cm (≤18kg) and 100-125cm.
Please remove the instruction manual from the car seat and read carefully.
Please read carefully before installation, serious injury will occur if installed incorrectly. The manufacturer will
not take any responsibility in this case.
Never use the child car seat without the cover. Never use any cover which is not recommended by the
manufacturer to replace the old cover, as the cover constitutes an integral part of the child car seat
performance.
When the child car seat is not provided with a textile cover, the chair should be kept away from sunlight,
otherwise it may be too hot for the child's skin.
The customer is advised not to install the child car seats in seating positions where there is an active frontal
airbag installed.
The child car seat should be replaced when it has been subject to violent stresses in an accident.
Please ensure all passengers in the car use their safety belts and that all loose goods are secured, otherwise
the passengers and loose goods may cause injury to the child in the event of a collision or sudden braking.
Always confirm the child seat buckle is locked before use, in case of an emergency the child can be taken out
quickly.
Do not make any changes or additions to the child car seat harness system as this could seriously affect it's
security and functionality.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

3
11.
12.
14.
13.
15.
16.
17.
18.
19.
20.
The user should not make any alterations or additions to the child car seat without the approval of the
manufacturer. It is dangerous to not follow the instruction manual provided by the manufacturer.
Ensure that the child is not left in the car seat unattended.
Ensure that the child car seat is kept away from corrosive substances.
Always keep the child car seat secured in the vehicle even when it is unoccupied, children are not to be left in
their child car seat unattended.
Do not use a second-hand child car seat.
It is important to ensure that the lap strap is worn low down, and that any impact shield is installed properly,
so that the pelvis is firmly engaged.
Any straps holding the child car seat to the vehicle should be tight, any straps restraining the child to the seat
should be adjusted so they are suitable for the child's body and all straps should be checked so that they are
not twisted.
Do not use any load bearing contact points other than those described in the instructions and marked on the
child car seat.
Do not use the child car seat in the forward facing position when the child's stature is less than 76cm.
The instruction manual should be retained in the pocket on the child car seat for it's lifetime. Please look after
and keep the instruction manual safe.
The rigid items and plastic parts of the child car seat must be located and installed so that they are not likely,
during everyday use of the vehicle to become trapped in the vehicle seat or door.
The child car seat should only be used in Forward or Rearward facing modes when in use.
Any luggage or other objects likely to cause injuries in the event of a collision should be properly secured.
21.
22.
23.

4
24.
25.
26.
27.
If you have any questions about using and installing the child car seat, please contact the manufacturer.
Ensure that the buckle and child car seat fitting is checked prior to every journey.
The vehicle handbook should also be consulted when fitting this child car seat.
Ensure that food and drink are not consumed whilst the child is in the car seat as crumbs and liquid could
spill and compromise the safety function of this car seat.
IMPORTANT - DO NOT USE FORWARD FACING BEFORE
THE CHILD'S AGE EXCEEDS 15 months.

5
2. Features-front
1
2
3
4
5
6
7
8
9
10
11
12
Headrest adjustment handle
Headrest
Shoulder straps
Shoulder pad
Harness buckle
Buckle pad
Cushion (Stature 40-87 cm)
Harness adjuster
Harness adjustment strap
Recline adjustment dial
Seat rotation lever
Shoulder strap guide hook
11
8
10
12
1
2
35
6
4
7
9
12

6
21
2. Features-back
13
14
15
16
17
18
19
20
21
22
23
24
Side Impact Protection
Side Impact Protection button
Top Tether
Top Tether fixing hook
Top Tether guide slot
Belt guide slot
ISOFIX second
lock button
ISOFIX
ISOFIX release button
ISOFIX guide
Fabric cover plug
Instruction Manual
Compartment
19
13 14
17 15
16
18
20
22 23
24

7
Seat parts
* Before use, please check all the accessories.
Accessories and instructions
Accessories placed on the seat
Accessories for seats
ISOFIX guides Instruction Manual Fabric cover plug
Buckle pad Cushion
Use this to put the cover back onto
the seat when it has been removed
to be cleaned.
Shoulder pads
These guides the ISOFIX bars
on the car seat onto the
vehicle anchor points for an
easier installation.
The instruction manual is a detailed
guide on how to use the car seat, it
is kept in a compartment at the base
of the seat.

8
In order to properly protect your child, please read the instruction manual and vehicle handbook
carefully prior to installation of the car seat.
Do not use on a passenger seat with an active airbag. If hit by the airbag, death
or serious injury may occur.
WARNING
DO NOT use on a passenger seat with an
enabled airbag.
3. Use in the vehicle
Not installable Installable

9
Before using the ISOFIX and top tether belts, please check if the
ISOFIX anchor point Ais matched with the ISOFIX size category
on the car seat.
Car seat ISOFIX anchor point
Top tether
Seat anchor point
A
Check the top tether belt hook and the anchor points are installed
on the vehicle. There are generally 3 possible locations, please
check your vehicle handbook for assistance locating these.
Caution
ISOFIX
Seat anchor point
ISOFIX size
Category corresponding table
F2X76-105cm
40-87cm
105-125cm B2
R2

10
Danger Incorrect installation may result in death or serious injury. Parents
should check the car seat installation on every journey to eliminate any
risks.
Car seat installation warning
The car seat should not be
installed in the vehicle middle
seat.
The top tether belt hook and ISOFIX
should be suitable with the anchor
points in the vehicle, otherwise it is
very dangerous.
DO NOT install the car seat on a
passenger seat with an active
airbag.

11
DO NOT remove the harness when the
vehicle is in motion as this may cause
injury.

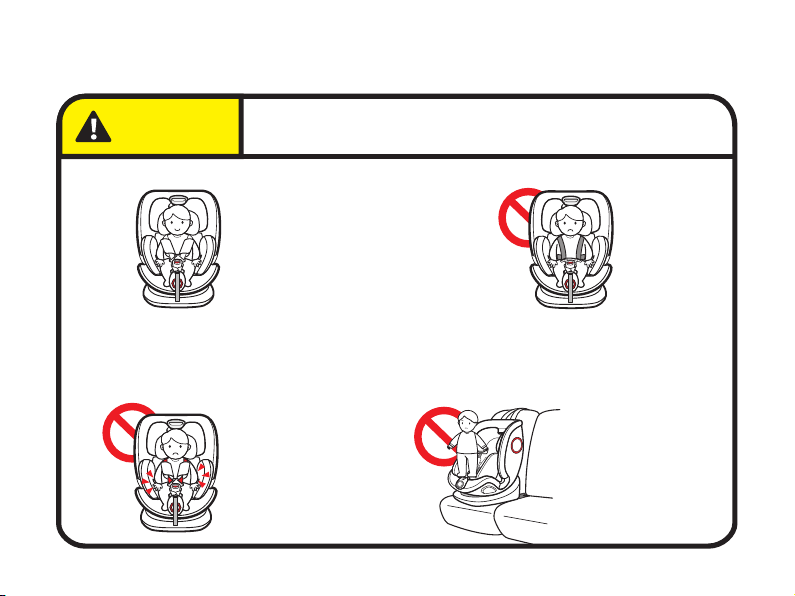

This is the correct position for the child. Ensure
that the chest pads go over the shoulders and
connect into the buckle and the child's feet are
either side of the harness adjuster.
DO NOT allow the
child to stand on
the car seat.
DO NOT twist the belt
harness.
Child’s sitting position
Danger Incorrect installation may result in death or serious injury. Parents
should check the car seat installation on every journey to eliminate any
risks.

12
4. Installing and removing the car seat
Installation
Always ensure that the child car seat is secured in the vehicle, even when it is not in use.

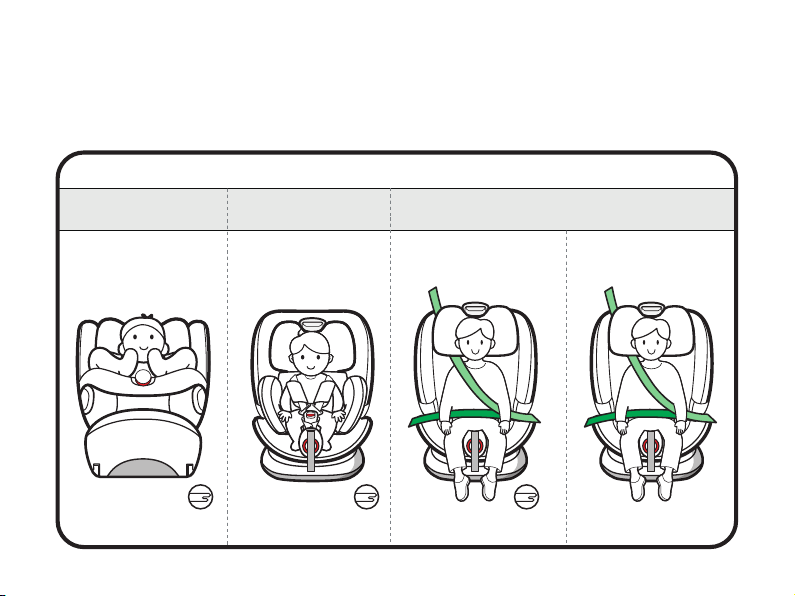

Installation modes
EzFix +
Vehicle 3-point Belt
Vehicle 3-point Belt ISOFIX+Top Tether
+harness
ISOFIX+Top Tether
+harness
Suitable for: ≤13KG Suitable for: ≤18KG Approximate for: ≤25KG Suitable for: ≤25KG
40-87cm
(rearward facing)
76-105cm
(forward facing)
100-125cm
(forward facing)

13
Step 1
Press and hold the ISOFIX second lock button 19 , and ISOFIX
release button
21 at the same time, and pull ISOFIX 20 away from
the seat.
4.1 ISOFIX ATTACHMENT installation in vehicle
22
21
19
20
Step 2
If your vehicle is not equipped with ISOFIX guides 22 , please use the
ones provided with this seat. The ISOFIX guides are clamped onto the
ISOFIX anchor points, with the incision part facing upwards
(
see illustration )
Step 1
The ISOFIX anchor point is located between the seat
surface and the backrest.
Caution

14

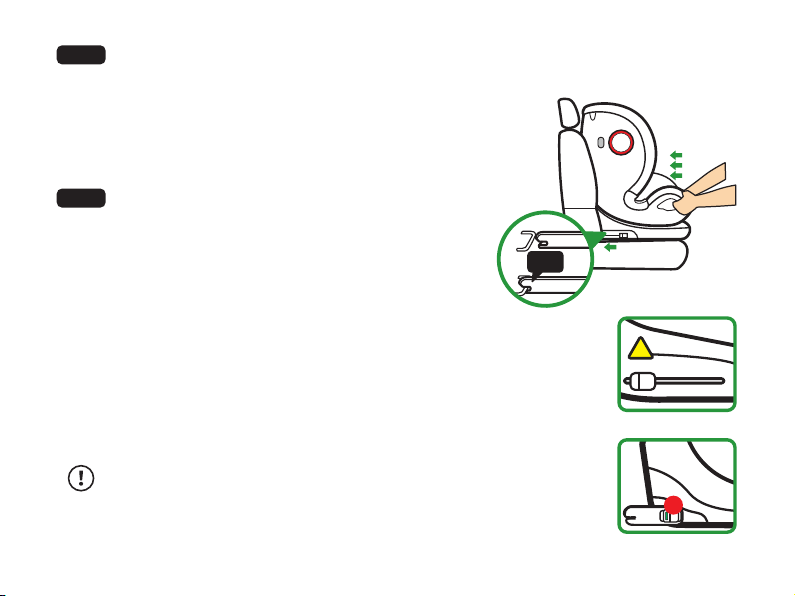

Push the child seat base with both hands to insert into the guide
sleeves, and push the child seat toward the backrest until the ISOFIX
20 has become attached to the anchor points on both sides. When you
hear a "Click" sound and the ISOFIX adjustment button has turned
green, the ISOFIX is locked in.
Shake the child seat, and check whether all the locks are green, to
ensure that the ISOFIX is firmly secured.
Step 3
Tip!
The child seat must be as close as possible to the vehicle backrest.
Tip!
The left and right ISOFIX positions should be consistent. For your
convenience you can first fit the ISOFIX on one side and then the
other side if this is easier.
Click
Step 3
Step 4
Only when the two ISOFIX 20 indicators turn green, is the
ISOFIX properly engaged.
Caution
20
1 2 4 5 6 7 8 9 10 11
!

15
Tip!
Make sure that the top tether fixing hook and the anchor point are
fastened.
There are 3 possible positions
for the top tether
anchor point.
Do not use the luggage hook as a substitute for the top tether
anchor point.
Attach the top tether hook 16 to the car seat anchor point as described
in the vehicle handbook and tighten the top tether 15 (when the top
tether is fully tightened the hook indicator will turn green)
Top tether
YES
NO
Step 1
4.2 Top tether installation
Caution

16
Install the child seat into the vehicle seat (see 4.1 for how to
install the seat)
Pull the seat rotation lever 11 upwards, and rotate the seat by
90° to the side (see illustration)
Rotate the recline adjustment dial 10 to the required angle. (For
rearward facing installation, the seat must be adjusted to the
maximum reclining angle.)
Seat installation
Placing the child in the seat
11
Step 1
Hold down the harness adjuster 8 with one hand, and pull the
two shoulder straps outward with the other hand to loosen the
straps.
Step 2
Step 2
Step 1
4.3 40-87CM
R2
10
8

17
Open harness buckle 5
Put the child in the seat and place their legs on either side
of the buckle pad 6.
Pull the headrest adjustment handle 1above the headrest of the
seat, and adjust the headrest to the proper height for your child (see
5.5 for headrest adjustment).
Tighten or loosen the shoulder straps, and adjust them a proper
length suitable for the child. (See 5.4 for how to adjust the shoulder
straps, do not cross and twist the straps)
6
1
Move the shoulder straps over the child's shoulders, and then insert
the two buckle latches into the harness buckle 5. When you hear a
“click”, the straps are firmly fastened.
5
Click
Step 3
Step 4
Step 5
Step 6
Step 7

18
Fit the Top Tether
Pull the top tether around the side of the seat and insert it into the top
tether guide slot 17.
Open the side impact protection nearest to the door (see 5.1 for how to
open and close it).
Fitting the top tether (see 4.2 for how to install the top tether).
Rotate the seat by 90° to the rearward facing position (so that the child
faces the rear windshield) until there is a “click” noise and the indicator
next to the rotating adjustment handle turns green.
Grasp both shoulder straps with one hand, and pull the
adjustment strap 9forwards with the other hand slowly.
When the hand with shoulder strap touches child body, stop
pulling the adjustment strap. The shoulder straps should be close
against the child's chest. (You should be able to fit 2 adult fingers
between the child’s strap and their chest.)
Click
9
Step 1
Step 8
Step 9
Step 10
Caution
17
