Cradlepoint COR Series User manual

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 1
User Manual /IBR1100/IBR1150 6/27/16

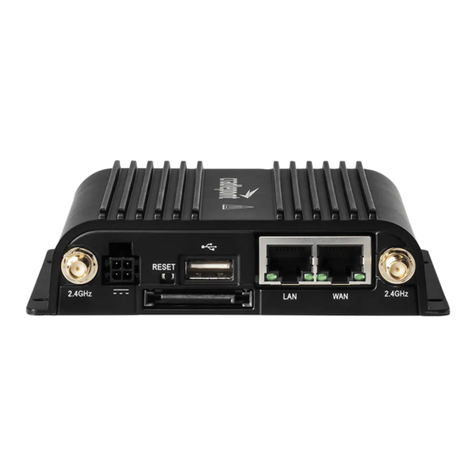

COR Series
Router
IBR1100 / IBR1150
User Manual

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 2
User Manual /IBR1100/IBR1150 6/27/16
TABLE OF CONTENTS
INTRODUCTION 4
WHAT’S IN THE BOX 4
KEY FEATURES 4
WAN 4
LAN 4
WIFI1 4
MANAGEMENT 4
VPN AND ROUTING 5
SECURITY 5
CLOUD OPTIMIZED IP COMMUNICATIONS 5
SPECIFICATIONS 6
ACCESSORIES 7
BUSINESS-GRADE MODEM SPECIFICATIONS 8
HARDWARE 10
POWER/GPIO CONNECTOR 11
RS-232 (SERIAL PORT) 11
DUAL MODEM DOCK INSTALLATION INSTRUCTIONS 12
DUAL MODEM DOCK HARDWARE AND DIMENSIONS 14
LEDS 15
SUPPORT AND WARRANTY 15
QUICK START 16
BASIC SETUP 16
ACCESSING THE ADMINISTRATION PAGES 17
FIRST TIME SETUP WIZARD 17
USING ENTERPRISE CLOUD MANAGER 18
ADMINISTRATION PAGES 19
QUICK LINKS 19
DASHBOARD 19
CONNECTION MANAGER 20
WAN INTERFACE PROFILES & PRIORITY 20

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 3
User Manual /IBR1100/IBR1150 6/27/16
STATUS 24
INTERNET 24
CLIENT LIST 29
TUNNELS 29
FIREWALL 30
ROUTING 31
ETHERNET 31
GPS 31
SYSTEM LOGS 31
NETWORKING 32
LOCAL NETWORKS 32
VLAN INTERFACES 43
TUNNELS 43
ROUTING 56
QOS 66
DNS SERVERS 69
WIFI AS WAN 71
WAN AFFINITY 73
CLIENT DATA USAGE 74
NHRP 75
SECURITY 77
IDENTITIES 77
ZONE FIREWALL 78
CONTENT FILTERING 83
CERTIFICATE MANAGEMENT 86
SYSTEM 89
ADMINISTRATION 89
ENTERPRISE CLOUD MANAGER 98
DEVICE ALERTS 99
SERIAL REDIRECTOR 100
GPIO CONFIGURATION 100
SNMP CONFIGURATION 101
SYSTEM CONTROL 103
DIAGNOSTICS 105
SETUP WIZARDS 106
APPENDIX 109
SAFETY, REGULATORY, AND WARRANTY GUIDE 109
ROUTER COMMUNICATION/DATA USAGE 111

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 4
User Manual /IBR1100/IBR1150 6/27/16
INTRODUCTION
WHAT’S IN THE BOX
KEY FEATURES
• Ruggedized router with integrated business-class 3G/4G modem; includes integrated mounting plate
• Two meter locking power and GPIO cable (direct wire)
• Quick Start Guide with warranty information
NOTE: Due to the diverse needs of customers, the COR IBR1100/IBR1150 package does not include a power adapter or
antennas. See the Accessories section below for several power and antenna options.
WAN
• Dual-modem capable with optional IBR1100/IBR1150 Dual-Modem Dock
• LP6: LTE Advanced LTE/HSPA+ (SIM-based Auto-Carrier Selection for all North American carriers)
• LPE: 4G LTE/HSPA+/EVDO (multi-carrier)
• LP3: 4G LTE/HSPA+ (Europe, EMEA, and Australia/New Zealand)
• WiFi as WAN¹, with WPA2 Enterprise Authentication for WiFi-as-WAN³
• Failover/Failback
• Load Balancing
• Advanced Modem Failure Check
• WAN Port Speed Control
• WAN/LAN Anity
• IP Passthrough
• Standby
LAN
• VLAN 802.1Q
• DHCP Server, Client, Relay
• DNS and DNS Proxy
• DynDNS
• UPnP
• DMZ
• Multicast/Multicast Proxy
• QoS (DSCP and Priority Queuing)
• MAC Address Filtering
WIFI1
• Dual-Band Dual-Concurrent
• 802.11 a/b/g/n/ac
• Up to 128 connected devices (64 per radio – 2.4 GHz and 5 GHz)
• Multiple SSIDs: 2 per radio (4 total)
• WPA2 Enterprise (WiFi)
• Hotspot/Captive Portal
• SSID-based Priority
• Client Mode (5 GHz only) for faster data ooad
MANAGEMENT

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 5
User Manual /IBR1100/IBR1150 6/27/16
• Cradlepoint Enterprise Cloud Manager²
• Web UI, API, CLI
• Active GPS support on all models
• Data Usage Alerts (router and per client)
• Advanced Troubleshooting (support)
• Device Alerts
• SNMP
• SMS control
• Serial Redirector
• Auto APN Recovery
VPN AND ROUTING
• IPsec Tunnel – up to ve concurrent sessions
• L2TP³
• GRE Tunnel
• OSPF/BGP/RIP³
• Route Filters (Access Control Lists, Prex Filters, Route Maps, Communities for BGP)
• Per-Interface Routing
• Routing Rules
• Policy-based Routing
• NAT-less Routing
• Virtual Server/Port Forwarding
• NEMO/DMNR³
• IPv6
• VRRP³
• STP³
• NHRP³
• VTI Tunnel support
• OpenVPN support
• CP Secure VPN compatible
• Serial PAD Mode
SECURITY
• RADIUS and TACACS+ support*
• 802.1x authentication for Ethernet
• Zscaler integration³
• Certicate support
• ALGs
• MAC Address Filtering
• Advanced Security Mode (local user management only)
• Per-Client Web Filtering
• IP Filtering
• Content Filtering (basic)
• Website Filtering
• Zone-Based Object Firewall with host address (IP or FQDN), port, and mac address
*-Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
CLOUD OPTIMIZED IP COMMUNICATIONS
• Automated WAN Failover/Failback support
• WAN Anity and QoS allow prioritization of VoIP services

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 6
User Manual /IBR1100/IBR1150 6/27/16
SPECIFICATIONS
WAN:
• Dual-modem capable with optional IBR1100/IBR1150 Dual-Modem Dock
• Integrated LP6 Category 6 LTE Advanced LTE modem (with DC-HSPA+ failover) or LPE 4G LTE modem (with HSPA+/
EVDO/3G and 2G failover) or LP3 4G LTE modem (with HSPA+ and 2G failover)
• Three LAN/WAN switchable 10/100 Ethernet ports – one default WAN (cable/DSL/T1/satellite/Metro Ethernet)
• WiFi as WAN, Metro WiFi; 2x2 MIMO “N” 2.4 GHz or 5 GHz; 802.11 a/b/g/n/ac (IBR1100 only)
LAN:
• Dual-band dual-concurrent WiFi; 802.11 a/b/g/n/ac (IBR1100 only)
• Three LAN/WAN switchable 10/100 Ethernet ports – two default LAN
• Serial console support for out-of-band management of a connected device
PORTS:
• Power
• 2-wire GPIO
• Add three more GPIO ports with optional Serial-to-GPIO cable (see Accessories section below)
• USB 2.0
• Three Ethernet LAN/WAN
• Two cellular antenna connectors (SMA)
• One active GPS antenna connector (SMA)
• Two WiFi antenna connectors (R-SMA)
• Serial DE-9 (commonly called “DB-9”) connector – RS-232 (out-of-band management of an external device
requires a null modem adapter/cable)
TEMPERATURE:
• LP6 models: −30 °C to 60 °C (−22 °F to +140 °F) operating
• LPE models: −30 °C to 70 °C (−22 °F to +158 °F) operating
• All models: −40 °C to 85 °C (−40 °F to +185 °F) storage
• Includes temperature sensor with options for alerts and automatic shuto
HUMIDITY (non-condensing):
• 5% to 95% operating
• 5% to 95% storage
POWER:
• DC input steady state voltage range: 9–36 VDC (requires inline fuse for vehicle installations)
• For 9–24 VDC installations, use a 3 A fuse
• For > 24 VDC installations, use a 2.5 A fuse
• Reverse polarity and transient voltage protection per ISO 7637-2
• Advanced VPN connectivity options to HQ
• SIP ALG and NAT to allow VoIP and UC communications to traverse rewall
• MAC Address Filtering
• 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
• Private Network support (wired and 4G WAN)
• Cloud-based management²
1 – WiFi-related functions are only supported on IBR1100 models
2 – Enterprise Cloud Manager requires a subscription
3 – Requires an Extended Enterprise License

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 7
User Manual /IBR1100/IBR1150 6/27/16
• Ignition sensing (automatic ON and time-delay OFF)
• Power consumption:
• Idle: typical=400mA@12VDC (4.8W); worst case=800mA@12VDC (9.6W)
• Tx/Rx: typical=650mA@12VDC (7.8W); worst case=1300mA@12VDC (15.6W)
• 12VDC 2A adapter recommended
WIFI POWER:
• 2.4 GHz band: 17 dBm conducted
• 5 GHz band: 15 dBm conducted
SIZE: 5.3 x 4.4 x 1.4 in (134 x 112 x 35 mm)
WEIGHT: 16.1 oz (457 g)
CERTIFICATIONS:
• FCC, CE, IC
• WiFi Alliance (IBR1100 only) – 802.11a/b/g/n certied, 802.11ac supported
• Safety: UL/CUL, CB Scheme, EN60950-1
• Hazardous Locations: Class I, Div. 2
• Shock/Vibration/Humidity: compliant with MIL STD 810G and SAEJ1455
• Ingress Protection: compliant with IP64 (includes protection from dust and splashing water)
• Materials: WEEE, RoHS, RoHS-2, California Prop 65
• Vehicle: E-Mark, compliant with ISO 7637-2
• Telecom: PTCRB/CTIA, GCF-CC
GPS
• GPS Protocols: TAIP and NMEA 0183 V3.0
• Satellite channels: Maximum 30 channels (16 GPS, 14 GLONASS), simultaneous tracking
• Concurrent standalone GPS, GLONASS, BeiDou and Galileo (LP6 models only)
• 1 Hz refresh rate
• Accuracy:
• < 2m: 50%
• < 5m: 90%
• Horizontal: < 2m (50%); < 5m (90%)
• Altitude: < 4m (50%); < 8m (90%)
• Velocity: < 0.2 m/s
• Acquisition (measured with signal strength = -135dBm):
• Hot start: 1 second
• Warm start: 29 seconds
• Cold start: 32 seconds
• Sensitivity
• Tracking: −160 dBm (tracking sensitivity is the lowest GNSS signal level for which the device can still detect
an in-view satellite 50% of the time when in sequential tracking mode)
• Acquisition (standalone): −145 dBm (acquisition sensitivity is the lowest GNSS signal level for which the
device can still detect an in-view satellite 50% of the time)
• Operational limits: altitude < 6000 m or velocity < 100 m/s (either limit may be exceeded, but not both)
ACCESSORIES
Because of the diversity of customer needs, the COR IBR1100/IBR1150 does NOT include a power adapter or antennas
in the box (it does include a direct wire power/GPIO cable for vehicle installation). Cradlepoint oers several accessory
options for dual-modem capability, power and antennas:

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 8
User Manual /IBR1100/IBR1150 6/27/16
DUAL-MODEM DOCK
IBR1100/IBR1150 Dual-Modem Dock (Part # 170675-000), FirstNet/Band 14 ready
integrated 4G LTE modem:
• MC400LP6 (North America)
• MC400LPE-VZ (Verizon)
• MC400LPE-AT (AT&T)
• MC400LPE-SP (Sprint)
• MC400LPE-GN (generic – for use on T-Mobile in the U.S. and Rogers, Bell, & TELUS in Canada)
• MC400LP3-EU (Europe)
POWER
Wall options
• COR IBR1100/IBR1150 extended temperature (−30 °C to 70 °C) 12VDC 2A locking power adapter – requires separate
line cord (Part # 170648-000)
• Line cord for North America (Part # 170623-001)
• Line cord for EU (Part # 170623-002)
• Line cord for UK (Part # 170623-003)
• COR 12VDC 2A locking power adapter with 0 °C to 40 °C temperature range – includes US, EU, and UK plugs (Part #
170584-002)
NOTE: Cradlepoint primarily recommends the extended temperature adapter because it covers the COR IBR1100/
IBR1150 full temperature range of −30 °C to 70 °C. Cost-sensitive customers that intend to use the IBR1100/IBR1150 in
temperature-controlled office environments can order the 170584-002 adapter, but it limits the operating temperature
range to 0 °C to 40 °C.
Vehicle options
• Vehicle locking power adapter for COR (Part # 170635-000)
• Two meter locking power and GPIO cable (direct wire) for replacement – included by default (Part # 170585-000)
Adapters
• Barrel to 4-pin power adapter (Part # 170665-000)
• Serial-to-GPIO cable (Part # 170676-000)
ANTENNAS – 3G/4G Modem, WiFi, & GPS
• 700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log- Periodic) Part #: 170588-000
• 12” Mag-Mount Antenna with SMA Male Connector Part #: 170605-000
• 4” Mini Mag-Mount Antenna with SMA Male Connector Part #: 170606-000
• 2.4/5 GHz Dual-band Dual-concurrent WiFi Antenna Part #: 170628-000 (WiFi models only)
• Universal 3G/4G/LTE Modem Antenna Part #: 170649-000
• GPS Screw-Mount Antenna Part #: 170651-000
• GPS Mag-Mount Antenna Part #: 170652-000
• Multi-Band Omni-Directional Antenna Part #: 170668-000
• Indoor/Outdoor Panel Patch Part #: 170669-000
Vehicle Antennas
• 3-in-1 GPS & Modem Screw-Mount Part #: 170653-000
• 3-in-1 Adhesive-Mount Antenna Part #: 170653-001
• 5-in-1 GPS, Modem & WiFi Screw-mount Part #: 170654-000
• Low Prole 5-in-1 MIMO LTE, MIMO WiFi (2.4/5Ghz), & GPS Screw Mount Antenna with 5M Cables Part #: 170654-
001
See the Cradlepoint antenna accessories page for more information about antennas. Also see the Antenna Ordering
and Installation Guide, available as a PDF in the Resources section of antenna and router product pages.

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 9
User Manual /IBR1100/IBR1150 6/27/16
BUSINESS-GRADE MODEM SPECIFICATIONS
COR IBR1100/IBR1150 LP6 models include an integrated LTE Advanced Category 6 4G LTE modem. The LP6 modems
support SIM-Based Auto-Carrier selection so there is only one model for all of North America. Simply insert the SIM
and wait for the router to automatically detect the SIM and establish a connection.
The LTE bands certied for each carrier are listed below.
COR IBR1100LP6-NA, COR IBR1150LP6-NA
• Technology: LTE Advanced, HSPA+
• Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
• Frequency Bands:
• LTE Bands 1-5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41
• Verizon: 2, 4, 5, 13 (XLTE support w/carrier aggregation)
• AT&T: 2, 4, 5, 12/17, 29, 30
• Sprint: 25, 26, 41 (LTE Plus Support)
• T-Mobile: 2, 4, 12 (T-Mobile Wideband LTE Support)
• Carrier Aggregation:
• 1+ 8
• 2+ 2/5/12 (17 w/MFBI)/13/29
• 3+ 7/20
• 4+ 4/5/12 (17 w/MFBI)/13/29
• 5+ 2/4/30
• 7+ 3/7/20
• 8+ 1
• 12 (17 w/MFBI) + 2/4/30
• 13+ 2/4
• 20+ 3/7
• 30+ 5/12 (17 w/MFBI)
• 41+ 41
• Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 2, 3, 4, 5, 8
• Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1
• Antennas: two SMA male (plug), nger tighten only (maximum torque spec is 7 kgfcm)
• GPS: active GPS support
• SMS: SMS support
• Industry Standards & Certs: CE, FCC, GCF-CC, IC, PTCRB, AT&T, Sprint (pending certication), Verizon
COR IBR1100/IBR1150 LPE models include an integrated 4G LTE modem – specic model names include a specic
modem (e.g., the COR IBR1100LPE-VZ includes a Verizon LTE modem).
Please note that LPE models are exible and support bands for multiple cellular providers; however, only the
frequency bands in bold below are supported by the listed provider.
COR IBR1100LPE-VZ, COR IBR1150LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon
• Technology: LTE, HSPA+, EVDO Rev A
• Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
• Frequency Bands:
• LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700
MHz), Band 25 (1900 MHz)
• HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
• GSM/GPRS/EDGE (850/900/1800/1900 MHz)
• CDMA EVDO Rev A/1xRTT (800/1900 MHz)
• Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 10
User Manual /IBR1100/IBR1150 6/27/16
• Antennas: two SMA male (plug), nger tighten only (maximum torque spec is 7 kgfcm)
• GPS: active GPS support
• Industry Standards & Certs: FCC, Verizon
COR IBR1100LPE-AT, COR IBR1150LPE-AT – 4G LTE/HSPA+/EVDO for AT&T
• Technology: LTE, HSPA+, EVDO Rev A
• Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
• Frequency Bands:
• LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700
MHz), Band 25 (1900 MHz)
• HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
• GSM/GPRS/EDGE (850/900/1800/1900 MHz)
• CDMA EVDO Rev A/1xRTT (800/1900 MHz)
• Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
• Antennas: two SMA male (plug), nger tighten only (maximum torque spec is 7 kgfcm)
• GPS: active GPS support
• Industry Standards & Certs: PTCRB, FCC, IC, AT&T
COR IBR1100LPE-SP, COR IBR1150LPE-SP – 4G LTE/HSPA+/EVDO for Sprint
• Technology: LTE, HSPA+, EVDO Rev A
• Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
• Frequency Bands:
• LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700
MHz), Band 25 (1900 MHz)
• HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
• GSM/GPRS/EDGE (850/900/1800/1900 MHz)
• CDMA EVDO Rev A/1xRTT (800/1900 MHz)
• Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
• Antennas: two SMA male (plug), nger tighten only (maximum torque spec is 7 kgfcm)
• GPS: active GPS support
• Industry Standards & Certs: FCC, Sprint
COR IBR1100LP3-EU, COR IBR1150LP3-EU – 4G LTE/HSPA+ for Europe
• Technology: LTE, HSPA+
• Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps (theoretical)
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical)
• Frequency Bands:
• LTE Band 1 (2100 MHz), Band 3 (1800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 20 (800 MHz)
• HSPA+/UMTS (800/850/900/1900/2100 MHz)
• GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
• Power: LTE Band 1/3/8/20 – 23 dBm +/− 1; LTE Band 7 – 22 dBm +/− 1, HSPA+ 23 dBm +/− 1 (typical conducted)
• Antennas: two SMA male (plug), nger tighten only (maximum torque spec is 7 kgfcm)
• GPS: active GPS support
• Industry Standards & Certs: CE, GCF-CC
COR IBR1100LPE-GN, COR IBR1150LPE-GN – 4G LTE/HSPA+/EVDO (generic – for use on T-Mobile and U.S. Cellular in
the U.S. and Rogers, Bell, & TELUS in Canada)
• Technology: LTE, HSPA+, EVDO Rev A
• Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
• Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
• Frequency Bands:
• LTE Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25
(1900 MHz)

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 11
User Manual /IBR1100/IBR1150 6/27/16
HARDWARE
3G/4G Antenna
Connector (SMA)
3G/4G Antenna Connector
(SMA)
WiFi Antenna Connector*
(Reverse SMA)
USB 2.0
Port
RS-232 Port
(female)
10/100 Ethernet Port (Congurable:
LAN or WAN Default: WAN
10/100 Ethernet Ports
(Congurable: LAN or WAN
Default: LAN)
Power Port
Reset
Button
WiFi Antenna Connector*
(Reverse SMA)
* - only on IBR1100
• HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
• GSM/GPRS/EDGE (850/900/1800/1900 MHz)
• CDMA EVDO Rev A/1xRTT (800/1900 MHz)
• Power: LTE 23 dBm +/− 1, HSPA+ 23 dBm +/− 1, EVDO 24 dBm +0.5/−1 (typical conducted)
• Antennas: two SMA male (plug), nger tighten only (maximum torque spec is 7 kgfcm)
• GPS: active GPS support
• Industry Standards & Certs: PTCRB, FCC, IC
GPS Connector (SMA)

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 12
User Manual /IBR1100/IBR1150 6/27/16
POWER/GPIO CONNECTOR
This connector has four pin slots: power, ground, input, and output.
Connector pinout – view into router (rear view of cable connector):
Pin Denition Details Wire Color
1 Ground - Black
2Power 9-36V DC Red
3 Input 3V input high threshold (36V tolerant) Orange
4 Output capable of sinking 250 mA Blue
RS-232 (SERIAL PORT)
This is a serial DE-9 (commonly called “DB-9”), 9-pin female connector of a modem or DCE form. Normally, you use a
M-to-F straight through cable to a male DTE port, such as those commonly found on a computer or network device.
The pins are numbered from the top right as shown here:
Pin Name Direction (relative to IBR1100/IBR1150)
1 DCD out
2 TX out
3 RX in
4 DSR in
5 GND N/A
6DTR out
7 CTS in
8RTS out
9 RI out

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 13
User Manual /IBR1100/IBR1150 6/27/16
1. Remove modem door (D) from dock (A).
2. Insert activated SIM(s) into MC400 modem (B).
3. (Optional - for moisture/dust resistance) Place one o-ring (C) onto each antenna connector.
4. Slide MC400 modem (B) into modem dock (A).
5. Attach modem door (D) using M3 screws (E).
6. With USB port of the IBR1100 facing the USB connector of the IBR1100 dock, slide the mounting ange(s)
of the router (F) into the guide rails(s) of the dock (A).
DUAL MODEM DOCK INSTALLATION INSTRUCTIONS
Router mounting flange
Dock guide rail

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 14
User Manual /IBR1100/IBR1150 6/27/16
7. Fully seat USB connectors and align router/dock holes.
8. For new installations: Secure router to dock using four M5x8 screws (G), then secure dock to mounting
surface using four mounting screws (H) (not supplied). Skip to step 10. For high-vibration environments,
Cradlepoint recommends using thread locker.
9. For existing installations: Secure router to dock and mounting surface using four M5x40 screws (I). For
high-vibration environments, Cradlepoint recommends using thread locker or nylon lock nut.
10. Attach included or accessory antennas.
NOTE: Do not place IBR1100/IBR1150 antennas and MC400 antennas immediately adjacent. Cradlepoint recommends
remotely attaching one or both sets of antennas.

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 15
User Manual /IBR1100/IBR1150 6/27/16
DUAL MODEM DOCK HARDWARE AND DIMENSIONS
Top view Bottom view
Rear view
Front view

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 16
User Manual /IBR1100/IBR1150 6/27/16
CradleCare Support available in the US and Canada with technical support, software upgrades, and advanced hardware
exchange – 1-, 3-, and 5-year options.
Three-year limited hardware warranty available world-wide on IBR1100/IBR1150 series products when purchased from
an approved Cradlepoint Partner or Distributor – extend warranty to 5 years.
SUPPORT AND WARRANTY
LEDS
SIGNAL STRENGTH Blue LED bars indicate the active modem’s signal strength.
• 4 Solid Bars = Strongest signal.
• 1 Blinking Bar = Weakest signal. (A blinking bar indicates half of a bar.)
POWER The Cradlepoint IBR1100/IBR1150 must be powered using an approved 9-36 VDC power
source.
• Blue = Powered ON.
• No Light = Not receiving power. Check the power switch and the power source connection.
• Flashing Amber = Attention. Open the administration pages and check the router status.
WiFi BROADCAST These two LEDs indicate activity on the WiFi broadcast for both the 2.4
GHz and 5 GHz bands.
• 2.4GHz (green) = 2.4 GHz WiFi is on and operating normally.
• 5GHz (blue) = 5 GHz WiFi is on and operating normally.
EXTERNAL USB MODEM Indicates the status of external USB modem.
Both internal and external USB modems have the following LED indicators:
• Green = Modem has established an active connection.
• Blinking Green = Modem is connecting.
• Amber = Modem is not active.
• Blinking Amber = Data connection error. No modem connection possible.
• Blinking Red = Modem is in the process of resetting.
ADDITIONAL LED INDICATIONS
• Several dierent LEDs ash when the factory reset button is detected.
• Two of the modem LEDs blink red in unison for 10 seconds when there is an error during rmware
upgrade.
EC
2.4GHz
5GHz
INTEGRATED MODEM Indicates information about the integrated modem.
• Green = Connected to integrated modem.

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 17
User Manual /IBR1100/IBR1150 6/27/16
QUICK START
BASIC SETUP
1. Insert an activated SIM
A wireless broadband data plan must be added to your Cradlepoint IBR1100. Wireless broadband data plans are
available from wireless carriers such as Verizon, AT&T, Sprint, EE, and Vodafone. The SIM must be provisioned
with the carrier. Contact your carrier for details about selecting a data plan and about the process for
provisioning your SIM.
Once you have an activated SIM, insert it into the integrated modem. Insert the SIM card into the slot marked
SIM 1 (use the other slot, SIM 2, for a secondary/backup SIM).
To insert or remove SIM card:
1. Remove bottom SIM cover.
2. Slide metal latch down to unlock.
3. Pull cartridge upward, so it is standing at a 90° angle.
4. Insert SIM card with metal contacts down and notch out.
5. Press cartridge back into place.
6. Return metal latch to start (lock) position.
7. Replace bottom SIM cover.
Note: Device will not power on without cover in place.
2. Attach the WiFi and modem antennas
Attach the three WiFi antennas (included) and two modem antennas to the connectors. Antennas are jointed,
which enables you to position them for optimal signal. To attach, hold the antenna straight and twist the base
of the antenna to connect, folding the joint if needed. NOTE: Ensure that the router antennas are not near metal
or other RF reflective surfaces.
3. Connect to power source
Wire power cable to 9-36v power source. (AC power supply sold separately.)

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 18
User Manual /IBR1100/IBR1150 6/27/16
ACCESSING THE ADMINISTRATION PAGES
Once you are connected, open the Cradlepoint IBR1100’s GUI-based administration pages to make conguration
changes to your router.
1. Open a browser window and type “cp/” or “192.168.0.1” in the address bar. Press ENTER/RETURN.
2. When prompted for your password, type the eight character DEFAULT PASSWORD found on the product
label.
NOTE: The product label below is an example only: your DEFAULT PASSWORD and SSID will be unique.
It’s possible – and more ecient – to do all your conguration changes through Cradlepoint Enterprise Cloud
Manager (ECM) without logging into the local administration pages. Set up a group of routers and set the
conguration for all of them at once. See below for more information about ECM.
FIRST TIME SETUP WIZARD
When you log in for the rst time, you will be automatically directed to the FIRST TIME SETUP WIZARD, which
will walk you through the steps to customize your Cradlepoint AER3100. You have the ability to congure any of
the following:
• Administrator Password
• Time Zone
• WiFi Network Name
• Security Mode
• Access Point Name (APN) for SIM-based modems
• Modem Authentication
• Failure Check
If you are currently using the router’s WiFi network, you will need to reconnect your devices to the network
using the newly established wireless network name and password.
NOTE: To return to the First Time Setup Wizard after your initial login, select SYSTEM from the navigation bar,
expand Setup Wizard,and select First Time Setup.

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 19
User Manual /IBR1100/IBR1150 6/27/16
USING ENTERPRISE CLOUD MANAGER
Rapidly deploy and dynamically manage networks at geographically distributed stores and branch locations with
Enterprise Cloud Manager, Cradlepoint’s next generation management and application platform. Enterprise Cloud
Manager (ECM) integrates cloud management with your Cradlepoint devices to improve productivity, increase
reliability, reduce costs, and enhance the intelligence of your network and business operations.
Click here to sign up for a free 30-day ECM trial.
Depending on your ordering process, your devices may have already been bulk-loaded into ECM. If so, simply
log in at cradlepointecm.com using your ECM credentials and begin managing your devices seamlessly from the
cloud.
If your device has not yet been loaded into your ECM account, you need to register. Log into the device
administration pages and select Enterprise Cloud Manager from the SYSTEM menu. Enter your ECM username
and password, and click on “Register”.
Once you have registered your device, go to cradlepointecm.com and log in using your ECM credentials.
For more information about how to use Cradlepoint Enterprise Cloud Manager, see the following:
• Getting Started
• ECM on the Knowledge Base

©2016 Cradlepoint. All Rights Reserved. |+1.855.813.3385 |cradlepoint.com 20
User Manual /IBR1100/IBR1150 6/27/16
ADMINISTRATION PAGES
Quick Links
Dashboard
Connection Manager
Status
Networking
Security
System
QUICK LINKS
DASHBOARD
The Dashboard is a centralized location
for basic information about the status of
your router. The areas include:
• Device Information
• Ethernet WAN*
• Modems*
• WWAN*
• Ethernet LAN*
• WiFi LAN*
*-To quickly edit settings for any of
these areas, click on the pencil icon ( ) in
the top-right of the desired dialog box.
You may return to the Dashboard at
any time by clicking on DASHBOARD
from the left menu or by clicking on the
Cradlepoint logo at the top-left of the
screen.
Quick Links allows you to bookmark your most commonly-used settings. Simply click on the bookmark icon ( )
to add an item to your Quick Links menu. To remove an item from your Quick Links menu, select the item and
click on the remove bookmark icon ( ).
Quick Links Menu Add Quick Link Delete Quick Link
