Cres Cor CO151H189B-Q1 User manual

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
INSTALLATION, OPERATION and MAINTENANCE MANUAL
for Cres Cor
CONVECTION and RETHERM OVENS
with MICROPROCESSOR CONTROLS
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 1 of 13

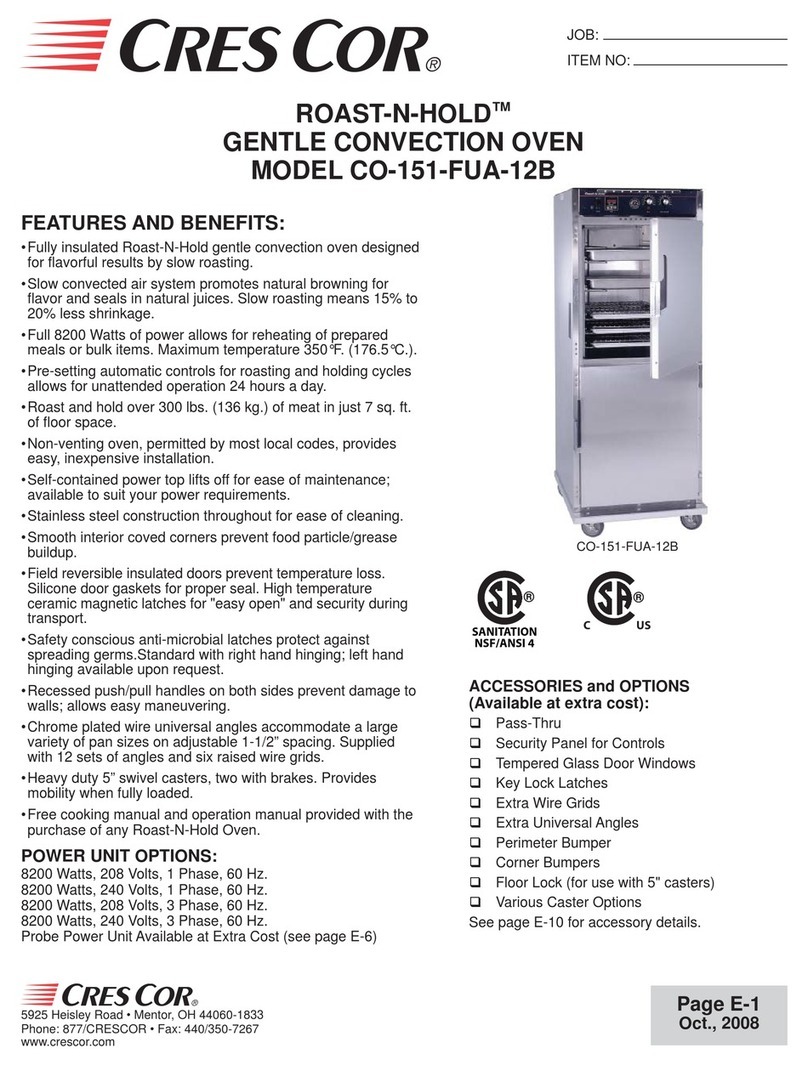

CO151FUA12B-Q1
CO151FPUA12B-Q1
CO151F1818B-Q1
RO151FUA18B-Q1
RO151F1332B-Q1

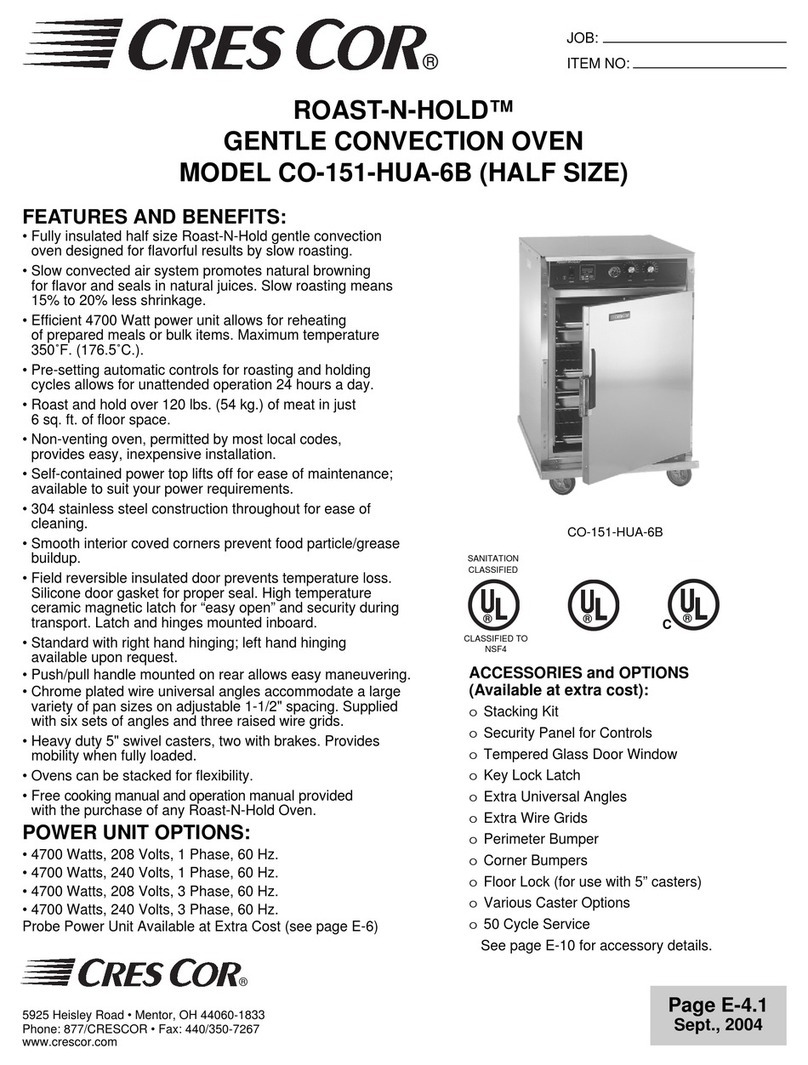

CO151HUA6B-Q1
CO151H189B-Q1
CO151XUA5B-Q1
CO151X185B-Q1
®®
C

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 2 of 13
SUBJECT PAGE
INSTALLATIONINSTRUCTIONS...............................................................................3, 4
OPERATINGINSTRUCTIONS.....................................................................................4, 5, 6
Illustration, Figure 1..............................................................................................4
MAINTENANCE INSTRUCTIONS
How to Clean the Unit...........................................................................................6
Trouble Shooting Guide........................................................................................6, 7
Replacement Parts.................................................................................................8, 9
Illustrations; Hot Unit........................................................................................... 10, 11
Wiring Diagrams...................................................................................................12
OPTIONAL PRODUCT KEYS.....................................................................................13
STACKING INSTRUCTIONS.......................................................................................FL-2211
SERVICE POLICY and AGENCY LIST....................................................................... FL-1400
TABLE OF CONTENTS

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 3 of 13
UNIT SPECIFICATIONS: All units use three (3) elements (2670 watts each).
All units are rated 8200 watts. Water units have one (1) immersion element (1850 watts).
CMP MODEL NOS. ELECTRICAL SPECS
(AC SERVICE) ELEC. LOAD POWER SUPPLY REQUIREMENT
CONVECTION OVENS Volts Ph Hz. Amps Volts Amps Ph Wire Volts NEMA
CO151FUA12B2081Q1
CO151FUA12B2401Q1 208 240 1 160 60 39 34 208 240 50 50 1 13 3208 240 6-50P 6-50P
CO151FUA12B2083Q1
CO151FUA12B2403Q1 208 240 3 360 60 23 20 208 240 30 30 3 34 4208 240 L15-30P L15-30P
CO151FPUA12B2081Q1
CO151FPUA12B2401Q1 208 240 1 160 60 39 34 208 240 50 50 1 13 3208 240 6-50P 6-50P
CO151FPUA122083Q1
CO151FPUA122403Q1 208 240 3 360 60 23 20 208 240 30 30 3 34 4208 240 L15-30P L15-30P
CO151F1818B2081Q1
CO151F1818B2401Q1 208 240 1 160 60 39 34 208 240 50
50 1 13 3208 240 6-50P 6-50P
CO151F1818B2083Q1
CO151F1818B2403Q1 208 240 3 360 60 23 20 208 240 30 30 3 34 4208 240 L15-30P L15-30P
RETHERM OVENS
RO151FUA18B2081Q1
RO151FUA18B2401Q1 208 240 1 160 60 39 34 208 240 50 50 1 13 3208 240 6-50P 6-50P
RO151FUA18B2083Q1
RO151FUA18B2403Q1 208 240 3 360 60 23 20 208 240 30 30 3 34 4208 240 L15-30P L15-30P
RO151F1332B2081Q1
RO151F1332B2401Q1 208 240 1 160 60 39 34 208 240 50 50 1 13 3208 240 6-50P 6-50P
RO151F1332B2083Q1
RO151F1332B2403Q1 208 240 3 360 60 23 20 208 240 30 30 3 34 4208 240 L15-30P L15-30P
HALF-SIZE OVENSAre rated at 4700 watts (three [3] heaters at 1470 watts each)
CO151HUA6B2081Q1
CO151HUA6B2401Q1 208 240 1 160 60 24 21 208 240 30 30 1 13 3208 240 6-30P 6-30P
CO151HUA6B2083Q1
CO151HUA6B2403Q1 208 240 3 360 60 15 13 208 240 20 20 3 34 4208 240 L15-20P L15-20P
CO151H189B2081Q1
CO151H189B2401Q1 208 240 1 160 60 24 21 208 240 30 30 1 13 3208 240 6-30P 6-30P
CO151H189B2083Q1
CO151H189B2403Q1 208 240 3 360 60 15 13 208 240 20 20 3 34 4208 240 L15-20P L15-20P
CO151XUA5B2081Q1
CO151XUA5B2401Q1 208 240 1 160 60 24 21 208 240 30
30 1 13 3208 240 6-30P 6-30P
CO151XUA5B2083Q1
CO151XUA5B2403Q1 208 240 3 360 60 15 13 208 240 20 20 3 34 4208 240 L15-20P L15-20P
CO151X185B2081Q1
CO151X185B2401Q1 208 240 1 160 60 24 21 208 240 30 30 1 13 3208 240 6-30P 6-30P
CO151X185B2083Q1
CO151X185B2403Q1 208 240 3 360 60 15 13 208 240 20 20 3 34 4208 240 L15-20P L15-20P
All models are designed for AC Service. Model numbers may have the letters: P, L, M, T, Q5, Q10 or S.
INSTALLATION INSTRUCTIONS
VENTING YOUR OVEN:
The purpose of ventilating hoods is to direct and capture
smoke, grease-laden vapors, heat, odors, or fumes.
Low temperature equipment (maximum temperature
250°F/121°C) does not produce heat, odors, fumes, grease-
laden vapors or smoke and is not required to be vented.
1.
2.
Most jurisdictions consider our low-temperature ovens
(maximum temperature is 350°F/177°C) as low-heat
appliances not requiring vent hoods.
Installation must conform with local codes. The authority
having jurisdiction of enforcement of the codes will have the
responsibility for making interpretations of the rules.
3.
4.

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 4 of 13
OPERATING INSTRUCTIONS
HOW TO START UNIT:
(for first-time operation only)
A new oven needs to “burn off” factory oils and glue before
it’s first use. Do NOT load food into oven until this has
been done!
Push power switch to “ON”.
Press the SELECT button; choose the TIMED mode.
Press the COOK button and set the temperature to
350°F/177°C.
Press the HOLD button and set the temperature to
150°F/66°C.
Press the PROBE/TEMP button and set the timer to
one (1) hour.
Allow oven to run automatically for one (1) hour of
COOK/RETHERM cycle and 30 minutes of HOLD
cycle.
HOW TO SET THE CONTROL
FOR TIMED COOK OPERATION:
Press the SELECT button to choose the TIMED mode.
COOKING TIME:
Press the PROBE/TIME button. The display will show
the cook/retherm time.
Use the UP and DOWN arrows to set the desired time.
Press the SET button to enter the time into the control.
1.
2.
3.
4.
5.
6.
1.
2.
3.
COOKING TEMPERATURE:
Press the COOK button and the display will show the
cook/retherm temperature.
Use the UP and DOWN arrows to set the desired
temperature.
Press the SET button to enter the temperature into the
control.
NOTE: Press the OVEN TEMP button at any time to view
the actual oven temperature.
HOLDING TEMPERATURE:
For HOLD mode, preheat unit to 180°F/82°C for 60 minutes.
Press the HOLD button; the display will show the
holding temperature.
Use the UP and DOWN arrows to set the desired
temperature.
NOTE: Proper food holding temperature is 140°F/60°C or
higher.
3.Press the SET button to enter the temperature into the
control.
4.Press the START button and the display shows the
remaining time in the cook/retherm cycle.
NOTES: The control will beep after it times down to zero;
it will then automatically switch to the HOLD mode. The
display will then show the hold setpoint temperature.
1.
2.
3.
1.
2.
Figure 1: Control Panel
HOW TO INSTALL CABINETS:
Remove all packing material from inside and outside of
cabinet.
Position cabinet on level floor; install the cabinet
interior (pan slides) if not already installed.
Plug power cord into proper wall receptacle.
1.
2.
3.
Notes: Cold food is NOT to be added when unit is
operating in HOLD mode.
For HOLD mode, preheat unit to 180°F/82°C for 60 minutes.
INSTALLATION INSTRUCTIONS (continued)
To install stacking units, refer
to instruction sheet FL-2211,
Stacking Installation.

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 5 of 13
HOW TO SET THE CONTROL, continued
FOR PROBE COOK OPERATION:
Press the SELECT button to choose the probe mode.
PROBE TEMPERATURE:
Press the PROBE/TIME button. The display will show
the probe setpoint temperature.
Use the UP and DOWN arrows to set the desired
temperature.
Press the SET button to enter the temperature into the
control.
NOTE: Press the OVEN TEMP button at any time to view
the actual oven temperature. Press the START
button and the display will show the actual probe
temperature.
NOTE: The control will beep when the probe setpoint
temperature has been reached and then will
automatically switch to HOLD mode. The display
will then show the hold setpoint temperature.
To manually end the COOK/RETHERM, PROBE, or
HOLD mode:
Press the STOP button during any of the above modes and
the control will end that mode. If in the Cook/Retherm or
Probe mode, the control will automatically switch into the
HOLD mode.
HOW TO OPERATE WITH FOOD:
Manual (Timed mode) Operation
See “HOW TO SET CONTROL” (on page 4) for
programming instructions.
Push power switch to “ON”.
Press the SELECT button and choose the TIMED
mode.
Press the COOK button and set to desired temperature.
Press the PROBE/TIME button and set to the desired
time.
Press the HOLD button; set desired temperature.
Place the food into oven. Close door and double check
cooking time and temperatures. Then press the START
button to start the cooking/retherm cycle and the Cook
LED will light up.
1.
2.
3.
1.
2.
3.
4.
5.
6.
The oven will beep and automatically switch to the
HOLD mode at the end of the cooking cycle. The Cook
lamp will go out and the Hold lamp will light up.
Probe Cooking
See “HOW TO SET CONTROL” (on page 4) for
programming instructions.
Push power switch to “ON”.
Press the SELECT button and choose the Probe mode.
Insert the probe jack into the receptacle located inside
the oven top, near the fans. The probe temperature
display will show the digital temperature of the probe.
Put sanitized probe into center of food product. Make
sure food is in the center of the pan and the pan is
centered in the oven.
Press the start button. The cook lamp will light up and
the display will show the internal temperature of the
food being cooked.
NOTE: Do NOT change the mode of the controls (probe or
timed) while oven is operating in a Cook/Retherm
cycle. Oven must be in the HOLD cycle to change
the timer or probe operation.
HOW TO SET HOLD-ONLY MODE:
Push power switch to “ON”.
Press the STOP button and oven will switch to HOLD
cycle.
Press the HOLD button and set the desired hold
temperature.
NOTES: Cold food is NOT to be added when unit is
operating in HOLD mode.
For HOLD mode, preheat unit to 180°F/82°C for
60 minutes.
HOW TO SHUT DOWN OVEN:
Push switch to “OFF”.
7.
1.
2.
3.
4.
5.
1.
2.
3.
OPERATING INSTRUCTIONS (continued)
Ventilating fans will continue to run until the cabinet is
cool. Do NOT disconnect the power supply to the cabinet
while the ventilating fan is still operating.

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 6 of 13
OPERATING INSTRUCTIONS (continued)
BEFORE CLEANING CABINET:
1. Unplug cord from wall. Allow cabinet to
cool.
2. Do NOT hose cabinet with water.
3. Do NOT get water on controls.
4. Do NOT use abrasives or harsh chemicals.
Hints:
Use the mildest cleaning procedure that will do the job.
Always rub in the direction of the polish lines to avoid
scratching the surface.
Use only a soft cloth, sponge, fibrous brushes, plastic
or stainless steel pad for cleaning and scouring.
Rinse thoroughly with fresh water after every cleaning
operation.
Always wipe dry to avoid water marks.
1.
2.
3.
4.
5.
HOW TO CLEAN THE UNIT:
SOIL CLEANER METHOD
CABINET
Inside and Outside
(Stainless Steel)
ROUTINE CLEANING Soap, ammonia or mild
detergent* and water. 1. Sponge on with cloth 2. Rinse
STUBBORN SPOTS,
STAINS Mild abrasive made for Stainless Steel. 1. Apply with damp sponge or cloth. 2. Rub lightly.
BURNT ON FOODS OR
GREASE Chemical oven cleaner made for Stainless Steel. Follow oven cleaner manufacturer’s directions.
HARD WATER SPOTS &
SCALE Vinegar 1. Swab or wipe with cloth. 2. Rinse and dry.
* Mild detergents include soaps and non-abrasive cleaners
 Wipe up spills as soon as possible.
 Clean regularly to avoid heavy dirt build-up.
MAINTENANCE INSTRUCTIONS
TROUBLE-SHOOTING GUIDE
IF UNIT GETS TOO HOT OR WON’T SHUT OFF, DISCONNECT
POWER AT BRANCH PANEL. DO NOT UNPLUG CORD!
1. Cord is unplugged from wall outlet.
2. Circuit breaker/fuse to wall outlet is blown.
3. Switch is turned off.
4. Thermostat is turned off, or is set too low.
If hot unit is NOT working, first check the following causes:

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 7 of 13
PROBLEM POSSIBLE CAUSE SOLUTION
Cabinet does not heat, or doesn’t heat
properly
1. Fuse
2. Control
3. Sensor
4. Heater contactor
5. Loose wiring at heater contactor
6. On/Off Switch
1. Replace
2. Replace
3. Replace
4. Replace
5. Replace
6. Replace
Blowers do not operate
1. On/Off Switch
2. Fuse
3. Blower
4. Control
1. Replace
2. Replace
3. Replace
4. Replace
Heater will not shut off 1. Control defective 1. Replace
Vent fans do not shut off 1. Vent fan switch defective
2. Control compartment is still hot.
1. Replace
2. Wait until it cools
Check “Heaters will not shutoff”
Vent fans do not operate (See Note) 1. Fuse 2. Vent fan switch defective
3. Vent fan defective
1. Replace
2. Replace
3. Replace
Control will not switch from “COOK” to
“HOLD” (timer mode) 1. Oven is in “PROBE” mode. 2. Control defective 1. Switch to “TIMED” mode 2. Replace
Control will not switch from “COOK” to
“HOLD” (probe mode)
1. Oven is in the “TIMED” mode
2. Probe not plugged in
3. Control defective
1. Switch to “PROBE” mode
2. Plug in probe
3. Replace
Control will not switch to “COOK” (probe
mode)
1. Oven in “TIMED” mode
2. Probe temperature setting lower than
probe temperature
3. Probe not plugged in
4. Control defective
1. Switch to “PROBE” mode
2. Set probe temperature to desired
temperature
3. Plug in probe
4. Replace
MAINTENANCE INSTRUCTIONS
TROUBLE-SHOOTING GUIDE (continued)
NOTE: Vent fans will not operate until the control compartment requires ventilation to limit temperatures. Replacement
of electrical components must be done by a qualified electrician.
Refer to our Service Agency list, FL-1400 (found in the back of this manual), of authorized service centers.
Instructions for replacing parts are included in replacement parts list.

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 8 of 13
FIGURE 2: CONTROL PANEL
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION CMP Part No.
1. Switch (On/Off) 0808-113-01
2. Microprocessor Control 0848-070-02
3. Vent Fan 0769-174
4. Fan Guard 0769-167
5. Fuse 0807-058
Fuse Holder 0807-048
6. Blower Kit 0769-006-K
7. Contactor 0857-026
8. Terminal Block, front 0852-096
9. Terminal Block, rear 0852-093
10. Switch, Fan 0848-034
11. Hi Limit Switch 0848-079
12. Sensor 0848-073-01
13. Sensor Bushing 0818-014
14. Connector, probe 0848-059-01
Probe 1.5” long 0848-059-02
Probe 6” long 0848-059-04
Hot Unit Replacement Parts
ITEM DESCRIPTION CMP Part No.
PARTS for 8200W, 1-PH UNITS
21. Power Cord 0810-124
Power Cord (Pass-thru) 0810-161
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-061
PARTS for 8200W, 3-PH UNITS
21. Power Cord 0810-132
Power Cord (Pass-thru) 0810-162
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-050
PARTS for 4700W, 1-PH UNITS
21. Power Cord 0810-163
22. Heater Kit, 208V 0811-020
Heater Kit, 240V 0811-020-01
23. Strain Relief 0818-050
PARTS for 4700W, 3-PH UNITS
21. Power Cord 0810-164
22. Heater Kit, 208V 0811-020
Heater Kit, 240V 0811-020-01
23. Strain Relief 0818-050

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 9 of 13
FULL SIZE CABINET REPLACEMENT PARTS:
MODEL PREFIX CO-151, RO-151 (“Q” Series)
DESCRIPTION -F1332 -FUA (12), (18) -FPUA (12), (18) -F1818
Hot Unit, 208V, 1PH HU675058Q1 HU675017Q1 HU675062Q1 HU675021Q1
Hot Unit, 208V, 3PH HU675060Q1 HU675018Q1 HU675064Q1 HU675022Q1
Hot Unit, 240V, 1PH HU675059Q1 HU675019Q1 HU675063Q1 HU675023Q1
Hot Unit, 240V, 3PH HU675061Q1 HU675020Q1 HU675065Q1 HU675024Q1
Door Latch Kit 1006-120-01 1006-120-01 1006-120-01 1006-120-01
Door Strike Kit 1006-120-02 1006-120-02 1006-120-02 1006-120-02
Door Hinge 0519-074 0519-074 0519-074 0519-074
Door Assembly 1221-543 1221-525 1221-525 1221-541
Door Gasket 0861-184 0861-185 0861-185 0861-197
Angles/Racks 1104-108 0621-281 0621-281 1104-106
REPLACEMENT PARTS (continued)
HALF SIZE CABINET REPLACEMENT PARTS:
MODEL PREFIX CO-151, RO-151 (“Q” Series)
DESCRIPTION -HUA6 -H189 -X185 -XUA5
Hot Unit, 208V, 1PH HU675033Q1 HU675041Q1 HU675033Q1 HU675041Q1
Hot Unit, 208V, 3PH HU675034Q1 HU675042Q1 HU675034Q1 HU675042Q1
Hot Unit, 240V, 1PH HU675035Q1 HU675043Q1 HU675035Q1 HU675043Q1
Hot Unit, 240V, 3PH HU675036Q1 HU675044Q1 HU675036Q1 HU675044Q1
Door Latch Kit 1006-120-01 1006-120-01 1006-120-01 1006-120-01
Door Strike Kit 1006-120-02 1006-120-02 1006-120-02 1006-120-02
Door Hinge 0519-074 0519-074 0519-074 0519-074
Door Assembly 1221-525 1221-541 1221-546 1221-545
Door Gasket 0861-185 0861-197 0861-251 0861-250
Angles/Racks 0621-281 1104-106 1104-107 0621-281

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 10 of 13
REPLACEMENT PARTS
for OVENS CO or RO151F SERIES
Include all information on nameplate when ordering parts
FIGURE 3;
Hot Unit w/o Top cover
(For parts description, refer to page 8.)
FIGURE 4;
Bottom of Hot Unit, Cover Removed
(For parts description, refer to page 8.)

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 11 of 13
REPLACEMENT PARTS
for “PASS-THRU” OVENS CO or RO151FPUA SERIES
Include all information on nameplate when ordering parts
FIGURE 3; Hot Unit w/o Top cover
(For parts description, refer to page 8.)
FIGURE 4; Bottom of Hot Unit, Cover Removed
(For parts description, refer to page 8.)

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 12 of 13
WIRING DIAGRAM
SINGLE PHASE
THREE PHASE

5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: [phone] • www.crescor.com
Ovens with
Microprocessor controls FL-2269
Rev. 8 (10/06) Page 13 of 13
The Product Keys provide automatic menu selections
(arranged in banks of 5 keys, max. 10 keys). Each Product
Key can be user programmed for desired mode (PROBE or
TIMED) and the required COOK, HOLD, and PROBE or
TIME setpoints.
Each Product Key Lights up when pressed “ON”.
The Product Key Light will go “OFF” when pressed a
second time or when changing any setpoint value. This
returns the control to manual operation.
Product Key Programming
Press the desired Product Key.
Press and hold the SET key until the Product Key light
begins to flash.
Enter the desired Mode, Cook, Hold and Probe/Time
values.
NOTE: Press the SET key after each value is changed or
added to accept and store a new setpoint.
4. To exit; Press the SET key for a few seconds until the
Product Key light is extinguished.
Extra Replacement Parts:
Product Key (5 Keys) 0848-072
For Hot Unit Replacement, See Page 9:
The Hot Unit suffix number will be Q5 (5 Keys)
or Q10 (10 Keys) instead of Q1
1.
2.
3.
OPERATING INSTRUCTIONS
FOR OVENS WITH OPTIONAL PRODUCT KEYS
CONTROL PANEL
