Crestron CNXIO-16 User manual

CRESTRON
Operations Guide - DOC. 8125 Contents •• i
Contents
CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 0
Description 0
Functional Description 0
Physical Description 0
Leading Specifications 0
Installation 0
Programming with SIMPL™Windows®0
How the Program Works 0
How to Create the Program 0
Problem Solving 0
Troubleshooting 0
Further Inquiries 0
Return and Warranty Policies 0
Merchandise Returns / Repair Service 0
CRESTRON Limited Warranty 0

CRESTRON
Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 1
CNX Analog/Digital Input/Output
Expansion Card: CNXIO-16
Description
Functional Description
The CNXIO-16 Analog/Digital Input/Output Expansion Card provides 16 analog
inputs or digital input/output connections. All pins pull up to +5V. The digital
output is rated for 250 mA sync from maximum 24 VDC with catch diodes for use
with ‘real world’ loads. The digital input is rated for 0 to 24 VDC. There is a 20K
Ohm input impedance; programmable 2K Ohm pullup resistor (per pin, software
reference to ground or closure to ground). To enable a 0K pull-up resistor, assign a
logic “1” to the corresponding “pu#” pin in the software. The input logic threshold
is 1.25 VDC. Analog input is rated for 0 to 10 VDC, protected to 24 VDC,
maximum.
Physical Description
The CNXIO-16, shown below, is a circuit board fastened to an aluminum faceplate.
The card is manufactured to easily fit into an unoccupied slot in a Crestron CNX
Generation Control System.

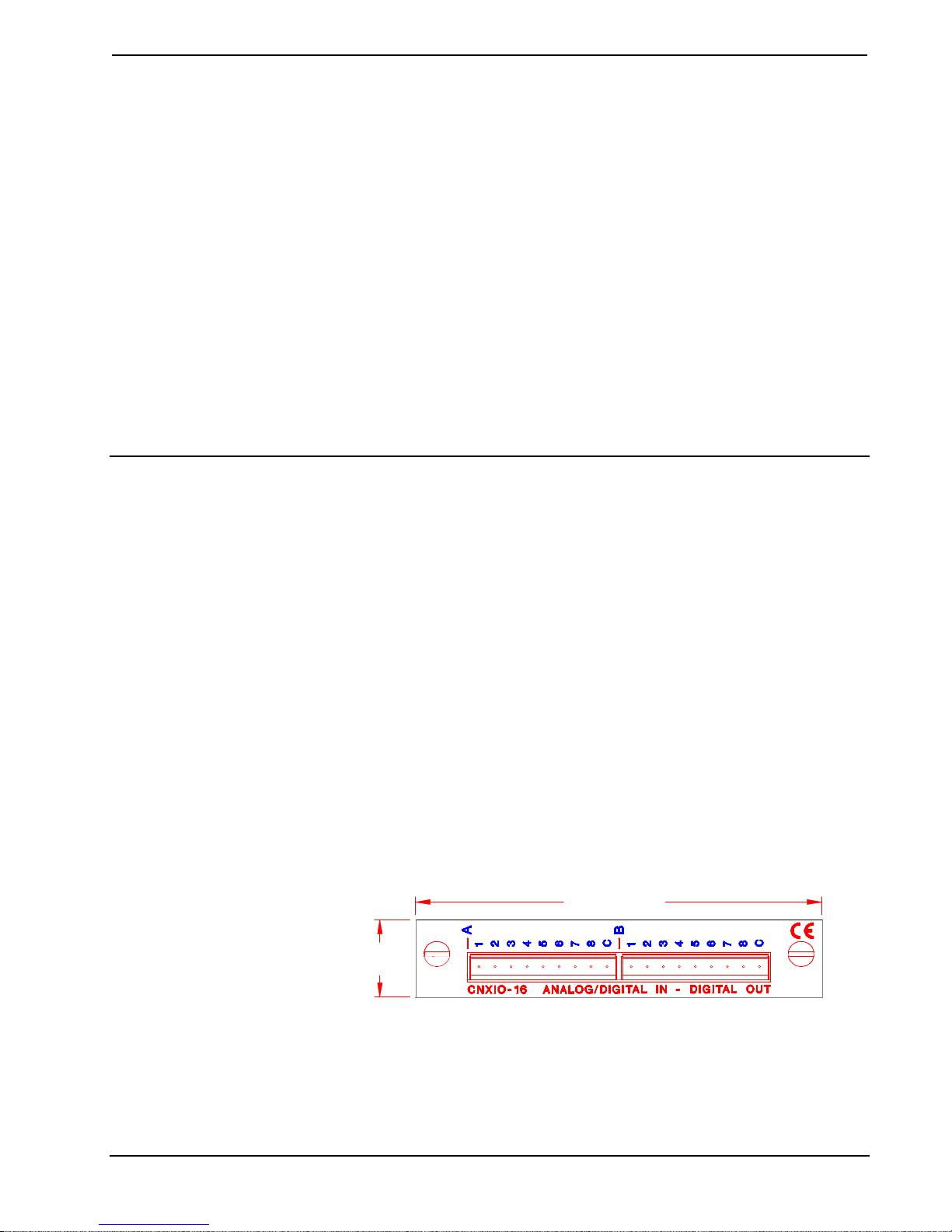

CNXIO-16 Faceplate
5.000 in
(127.00 mm)
0.980 in
(24.89 mm)
The faceplate contains two identical male, 9-pin connectors. There are eight
analog/digital input/output pins and one common ground pin per connector. Silk
screening is applied to the faceplate; pins are labeled A1 through A8 and B1
through B8. Common ground pins are labeled with a C. Two supplied 9-position
connectors can be wired and attached to connectors A and/or B.

CRESTRON
2•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125
Leading Specifications
The table below provides a summary of leading specifications for the CNXIO-16.
Dimensions and weight are approximations rounded to the nearest hundredth unit.
Leading Specifications of the CNXIO-16
DETAILS
Connectors (2) 9-pin terminal block
Power Requirements 24VDC, network power; 2 Watts
Ratings:
Digital Output 250mA sync from maximum 24VDC
Digital Input 0-24VDC
Input Impedance 20K Ohm
Input Logic Threshold 1.25VDC
Analog Input 0-10VDC, protected to 24VDC maximum
SIMPL™ Windows® Version 1.20.04 or later
CNX Operating System Version 5.01.21X or later
CNX Monitor Version 2.05X or later
Dimensions:
Height 0.98 in (2.49 cm)
Width 5.00 in (12.70 cm)
SPECIFICATIONS
As of the date of manufacture, the unit has been tested and found to comply with
specifications for CE marking.
Installation
Items required to install the CNXIO-16 are already attached to the unit. The only
tools required are a Phillips tip screwdriver and a grounding strap. Follow the
assembly procedure below.
CAUTION: The CNXIO-16 contains electrostatic sensitive devices (ESD); observe
precautions for handling ESDs to avoid damaging the card.
NOTE: If installing the CNXIO-16 into a CNMSX-AV, it is assumed that the
CNXCAGE has been installed.
1. Disconnect power from the CNMSX.
2. Use the Phillips tip screwdriver and remove two screws and blank
faceplate from the control system.
3. Align the CNXIO-16 with the card guides in the open slot and slide
the expansion card into position.
4. Firmly press both ends of the CNXIO-16 faceplate to seat the
expansion card into the control system connector.
5. Tighten the thumb screws to secure the CNXIO-16 to the control
system.
6. Reapply power to the CNMSX.

CRESTRON
Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 3
Programming with SIMPL™Windows®
SIMPL (Symbol Intensive Master Programming Language) is an easy-to-use
programming language that is completely integrated and compatible with all
Crestron system hardware. The objects that are used in SIMPL are called symbols.
SIMPL Windows offers drag and drop functionality in a familiar Windows®
environment.
SIMPL Windows is Crestron Electronics' software for programming Crestron
control systems. It provides a well-designed graphical environment with a number
of workspaces (i.e., windows) in which a programmer can select, configure,
program, test, and monitor a Crestron control system.
The next two subsections describe a sample SIMPL Windows program that utilizes
the CNXIO-16. The first subsection details how the sample program works with a
textual description and block diagram. The second subsection provides a broad
description of how to actually create the SIMPL Windows program.
NOTE: The following description assumes that the reader is familiar with SIMPL
Windows. If not, please refer to the extensive help information provided with the
software.
NOTE: There is no need to recreate the sample SIMPL Windows program. A copy
of this program is available from Crestron’s ControlCD (Version 5.1 or later).
Search for the CNXIO-16.SMW project in the SIMPL Windows Example Base.
How the Program Works

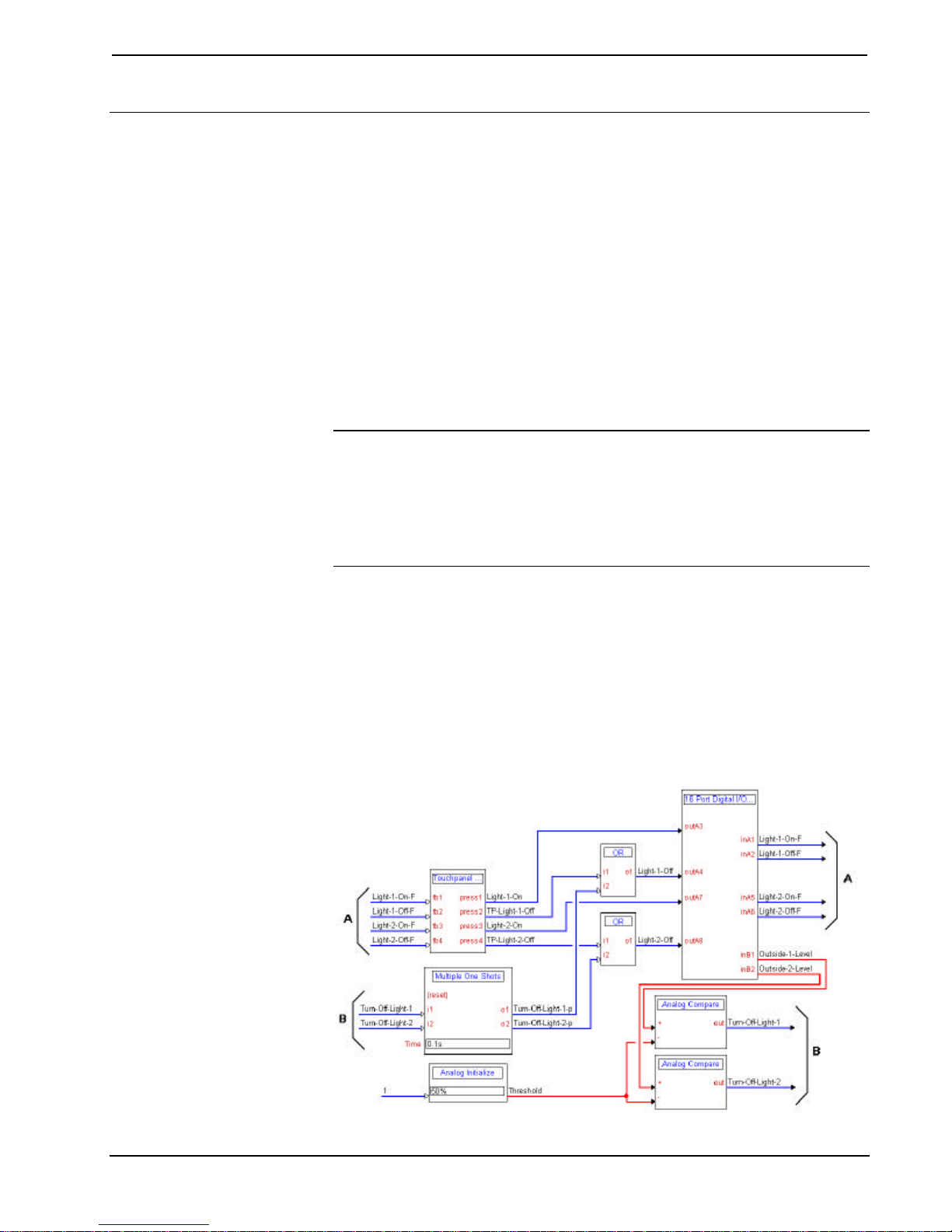

A basic CNXMIDI SIMPL program is shown in block diagram form below. For this
example, the CNXIO-16 occupies slot#1 of a CNMSX-PRO. Assume that the
touchpanel is used to control the state of lights1 and lights2 in a typical application.
Input/outputs on the CNXIO-16 (inA1,outA1 through inA8,outA8) in SIMPL
Windows correspond to the CNXIO-16 physical pins A1 through A8. Similarly,
inB1,outB1 through inB8,outB8 corresponds to pins B1 through B8.
Block Diagram of CNXIO-16

CRESTRON
4•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125
How to Create the Program
Configuration Manager
Use the Configuration Manager workspace in SIMPL Windows to select and
configure all the devices that need to be included into the system. For this example,
add a CNXIO-16 to slot #1 of the control system, shown below.
NOTE: SIMPL Windows v1.20.04 or later is required to program the CNMSX-
PRO with a CNXIO-16 card. If using an earlier version of SIMPL Windows,
Crestron recommends a SIMPL Windows and operating system upgrade. The latest
version can be obtained from the Software Downloads page of Crestron’s website
(www.crestron.com). New users are required to register in order to obtain access to
the FTP site.

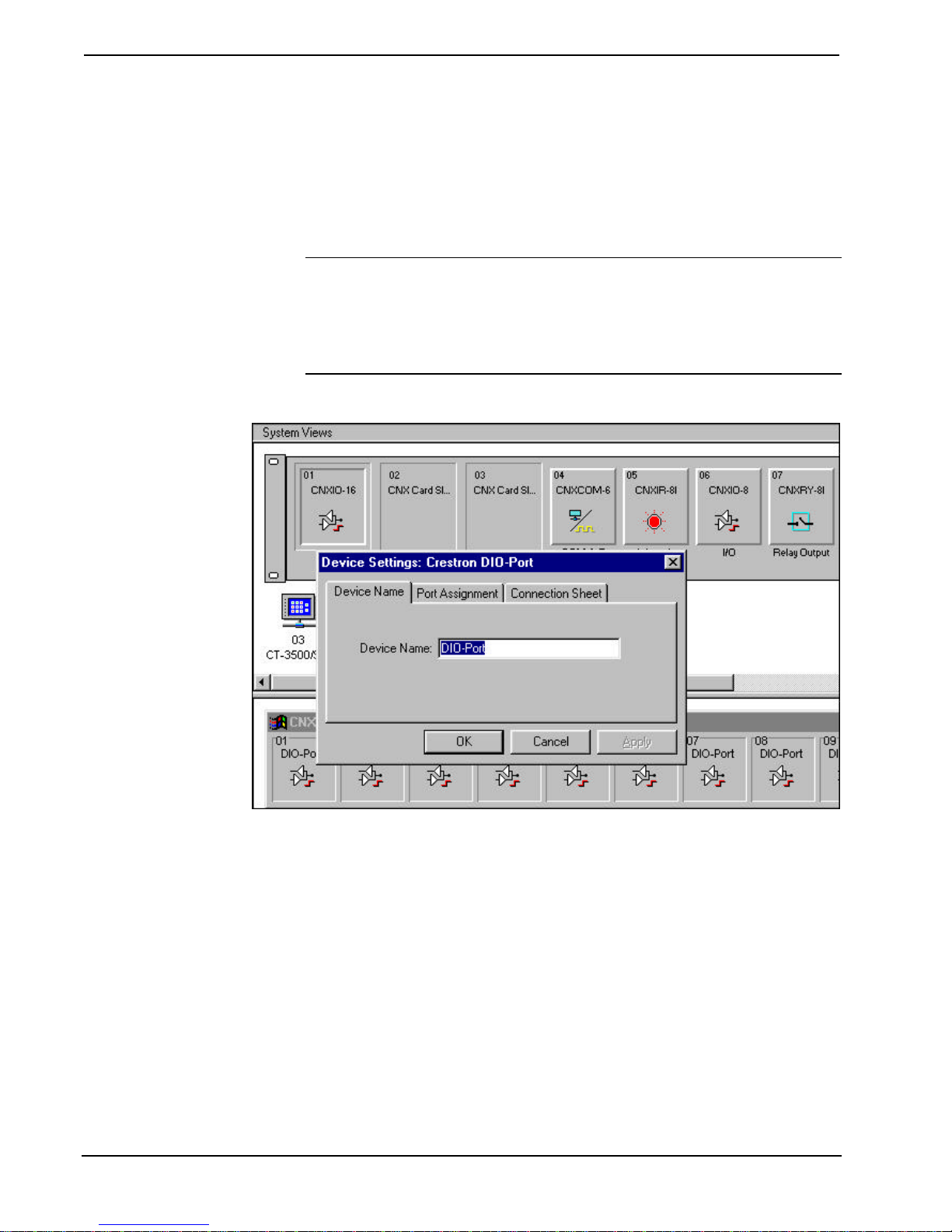

Graphical System View of CNXIO-16 in SIMPL Windows’ Configuration Manager
Programming Manager
Use the Programming Manager workspace in SIMPL Windows to select symbols
and assign their respective signals. For this example, a touchpanel and CNXIO-16
symbols were added automatically when the devices were added to the system in the
Configuration Manager workspace. Expand the Network Module folder and double
click on the touchpanel for a detail view (alternatively CTRL+D or drag and drop
into Detail View). Assign the signals as shown on the next page.

CRESTRON
Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 5

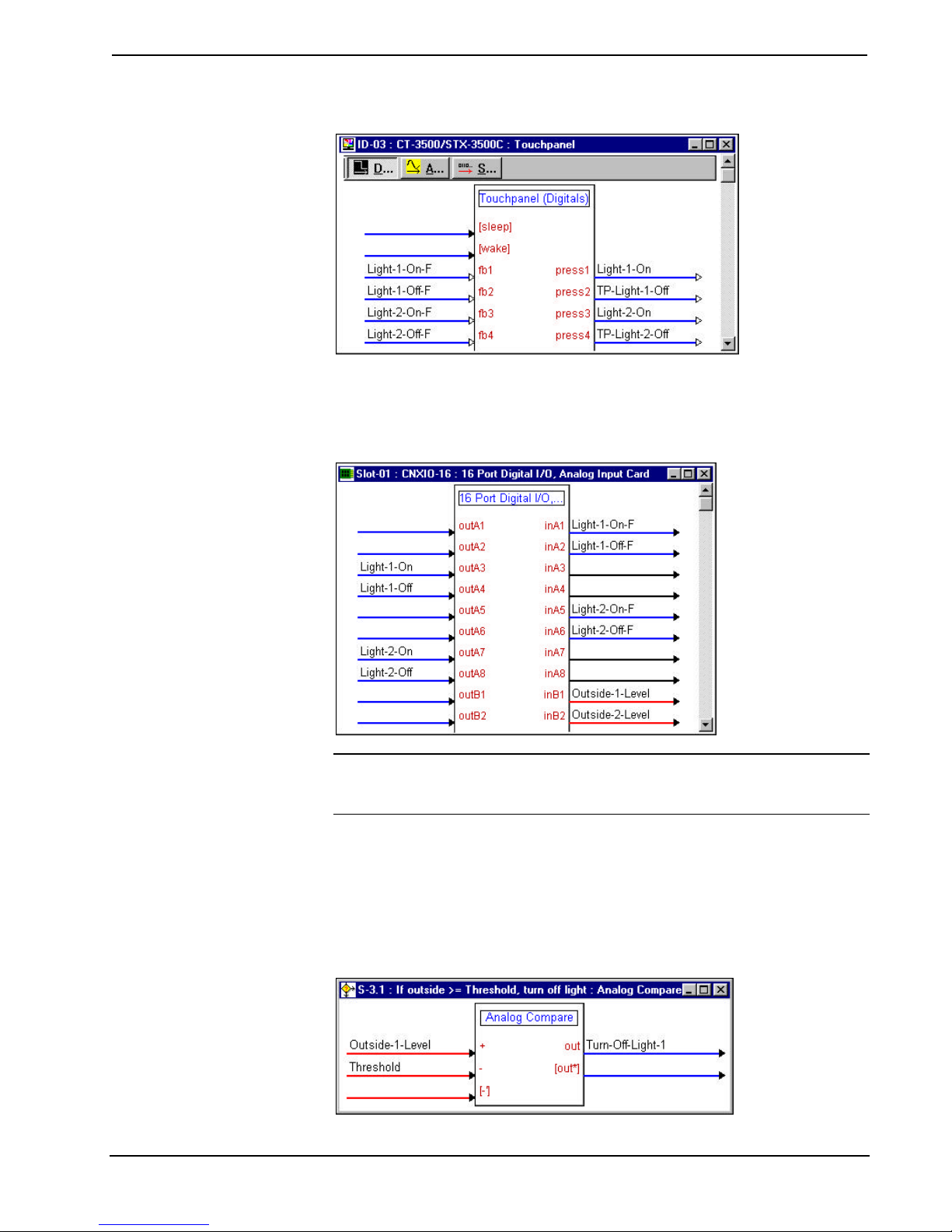

Graphical Detail View of Touchpanel in SIMPL Windows’ Programming Manager
Expand the Central Control Modules folder. Double click on Port 1 to display the
CNXIO-16 in Detail View (alternatively CTRL+D or drag and drop into Detail
View). Assign the signals as shown below.
Graphical Detail View of CNXIO-16 in SIMPL Windows’ Programming Manager
NOTE: Each port on the CNXIO-16 can be assigned as either an input or output,
but not both. For example, although the software permits the user to assign two
independent signals to i1 and o1, it is improper.
Expand the Logic folder to display the logic symbols used in this program. They
include Analog Compare, Analog Initialize, Multiple One Shots, and OR symbols.
View the symbol in detail view (alternatively CTRL+D or drag and drop into Detail
View). Some logic symbols are shown in optional sub system folders. Assign the
signals as shown below.
Graphical Detail View of Analog Compare Symbols in SIMPL Windows’ Programming
Manager

CRESTRON
6•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125
Graphical Detail View of Analog Compare Symbols in SIMPL Windows’ Programming
Manager (Continued)
Graphical Detail View of Analog Initialize in SIMPL Windows’ Programming Manager
Graphical Detail View of Multiple One Shots symbol in SIMPL Windows’ Programming
Manager
Graphical Detail View of Multiple OR symbols in SIMPL Windows’ Programming Manager

CRESTRON
Operations Guide - DOC. 8125 CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 •• 7
Problem Solving
Troubleshooting
The table below provides corrective action for possible trouble situations. If further
assistance is required, please contact a Crestron technical support representative.
CNXIO-16 Troubleshooting
TROUBLE POSSIBLE
CAUSE(S)
CORRECTIVE ACTION
CNXIO-16
does not CNX Control System is not receiving power. Verify power to CNX Control System.
function. Circuit card is not
properly seated in slot. Verify CNXIO-16 is properly inserted into CNX Control System slot per procedures in
this Operations Guide.
Cable from CNXIO-16
to controlled equipment
is incorrect.
Verify wiring. Connect only the required pins
for each communication type.
Programming error. Check SIMPL Windows program.
Further Inquiries
If after reviewing this Operations Guide, you cannot locate specific information or
have questions, please take advantage of Crestron's award winning technical
support team by calling:
•In the US and Canada, call Crestron’s corporate headquarters at
1-888-CRESTRON [1.888.273.7876] or 1.201.767.3400.
•In Europe, call Crestron International at [phone].
•In Asia, call Crestron Asia at [phone].
•In Latin America, call Crestron Latin America at [phone].
For local support from exclusive Crestron factory-trained personnel call:
•In Australia, call Soundcorp at [phone].
•In New Zealand, call Amber Technologies at [phone].

CRESTRON
8•• CNX Analog/Digital Input/Output Expansion Card: CNXIO-16 Operations Guide - DOC. 8125
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or service without
prior authorization from CRESTRON. To obtain warranty service for
CRESTRON products, contact the factory and request an RMA (Return
Merchandise Authorization) number. Enclose a note specifying the nature of
the problem, name and phone number of contact person, RMA number, and
return address.
2. Products may be returned for credit, exchange, or service with a CRESTRON
Return Merchandise Authorization (RMA) number. Authorized returns must
be shipped freight prepaid to CRESTRON, Cresskill, N.J., or its authorized
subsidiaries, with RMA number clearly marked on the outside of all cartons.
Shipments arriving freight collect or without an RMA number shall be
subject to refusal. CRESTRON reserves the right in its sole and absolute
discretion to charge a 15% restocking fee, plus shipping costs, on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid
by CRESTRON, shipping by standard ground carrier. In the event repairs are
found to be non-warranty, return freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its Cresnet products, denoted by a
"CN" prefix model number, to be free from manufacturing defects in materials and
workmanship for a period of three (3) years from the date of shipment to purchaser.
Disk drives and any other moving or rotating mechanical parts are covered for a
period of one (1) year. CRESTRON warrants all its other products for a period of
one year from the defects mentioned above, excluding touchscreen display
components which are covered for 90 days. Incandescent lamps are completely
excluded from Crestron's Limited Warranty. CRESTRON shall, at its option, repair
or replace any product found defective without charge for parts or labor. Repaired or
replaced equipment and parts supplied under this warranty shall be covered only by
the unexpired portion of the warranty.
CRESTRON shall not be liable to honor warranty terms if the product has been
used in any application other than that for which it was intended, or if it has been
subjected to misuse, accidental damage, modification, or improper installation
procedures. Furthermore, this warranty does not cover any product that has had the
serial number altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the purchaser. In no event
shall CRESTRON be liable for incidental or consequential damages of any kind
(property or economic damages inclusive) arising from the sale or use of this
equipment. CRESTRON makes no other warranties nor authorizes any other party
to offer any warranty, expressed or implied, including warranties of merchantability
for this product. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names, and trademarks are the sole property of their
respective owners. Windows is a registered trademark of Microsoft Corporation.
Windows95, Windows98 and WindowsNT are trademarks of Microsoft Corporation
