Crestron HD-XSPA User manual

The Crestron® HD-XSPAand HDI-XSPA provide a professional-grade 7.1
surround sound processor, high-efficiency eight-channel power amplifier,
4K video switcher, 4K DigitalMedia™ receiver, and Crestron control
interface in a compact 2-space package.
The HD-XSPA and HDI-XSPA are functionally identical. For simplicity
within this guide, the term “HD-XSPA” is used except where noted.
In the Box
1 HD(I)-XSPA, 4K Ultra High-Definition 7.1 Surround Sound AV
Receiver
Additional Items
2 Bracket, Rack Ear, 2U (P/N 2034434)
8 Connector, 2-Pin (P/N 2012361)
1 Connector, 4-Pin (P/N 2003576)
3 Connector, 5-Pin (P/N 2003577)
1 Connector, 8-Pin (P/N 2003580)
HD-XSPA Only
1 Power Cord, 6 ft 7 in. (2 m) (P/N 4512528)
1 Fuse, 10.0 A, Time Lag, 1.25 in. x 0.25 in., Ceramic Cartridge,
250 V (P/N 2017577)
HDI-XSPA Only
1 Power Cord (P/NVaries by country)
1 Fuse, 5.0 A, Time Lag, 5 x 20 mm, Ceramic Cartridge, 250 V
(P/N 2017578)
Install
Refer to the Safety Instructions (Doc. 6607) prior to installation.
The HD-XSPA can be installed in a rack or placed on a table.

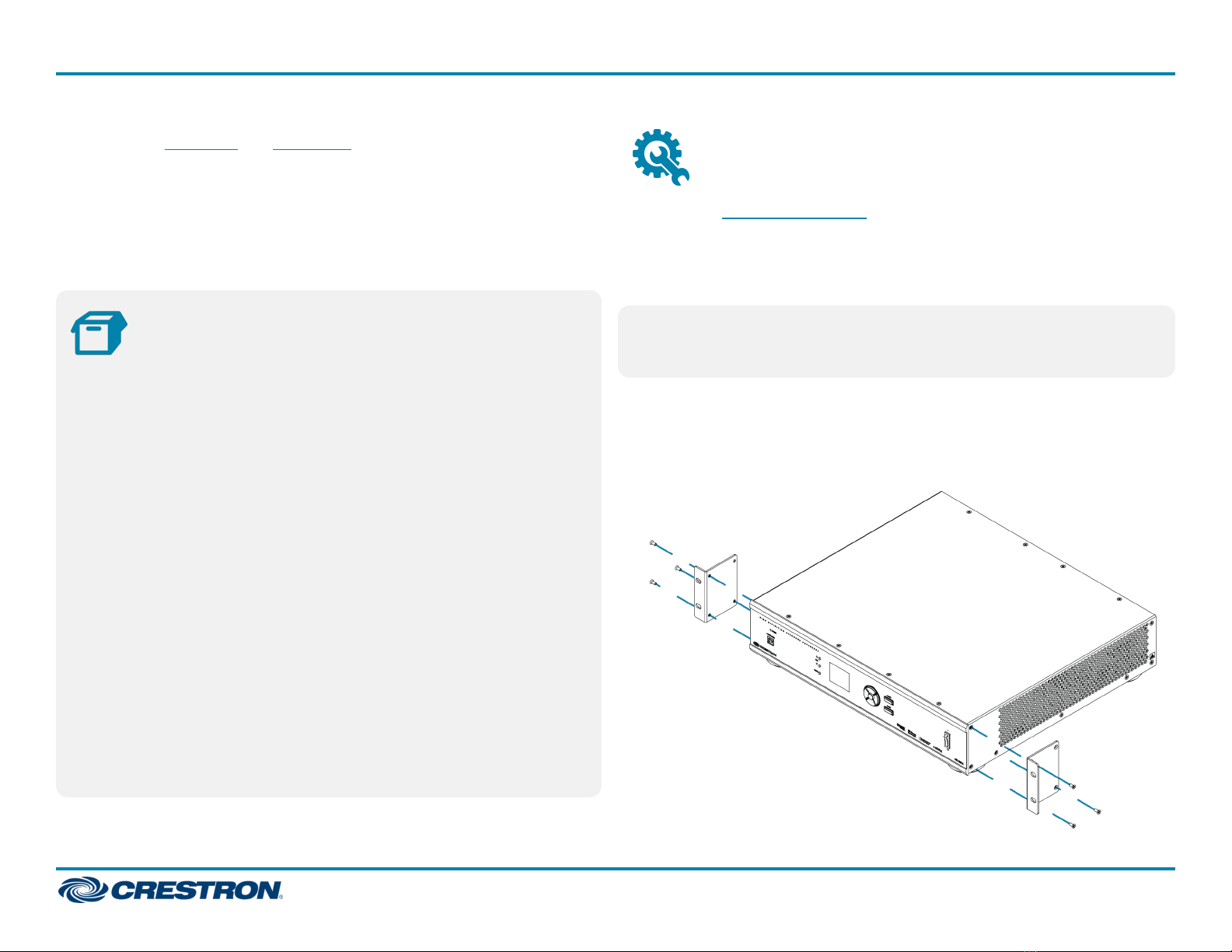

Rack Installation
NOTE:Four feet are preinstalled for tabletop mounting or stacking. If
the unit is to be rack mounted, the feet are not required and can be
removed with a #1 Phillips screwdriver.
The HD-XSPA occupies 2Uof rack space. Use the three screws from the
front part of each side panel, and a # 1 Phillips screwdriver to attach the
two included rack ears to the device, as shown in the following illustration.
Then mount the device into the rack using four rack mounting screws (not
included).
1
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Rack Mounting Safety Precautions
Elevated Operating Ambient Temperature: If installed in a closed or multi-
unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient temperature. Therefore,
consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
Reduced Airflow: Installation of the equipment in a rack should be such
that the amount of airflow required for safe operation of the equipment
is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Circuit Overloading: Consideration should be given to the connection of
the equipment to the supply circuit and the effect that overloading of the
circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be
used when addressing this concern.
Reliable Earthing: Reliable earthing of rack-mounted equipment should be
maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (e.g., use of power
strips).
Place on a Table
Four feet are preinstalled for placing the device on a flat surface or
stacking on top of another device.
Connect
Connect the device as called out in the following illustrations. Connect
power last.
CAUTION:
lKeep the device unplugged until all of the input, network, and speaker
wiring is complete.
lCheck the speaker wires for shorts and frayed wiring around the
SPEAKER OUTPUTS connectors.
NOTES:
lThe DM® and LAN ports are for intra-building use only and should not
be connected to lines that run outside of the building in which the unit
is located.
lIf the DMport is connected to a DM switch, the LANport should not
be connected to the local area network.
Additionally, the DM switch can be used to configure the network
settings. Refer to the DigitalMedia™ Design Guide (Doc. 4546)
lEnsure the unit is properly grounded by connecting the chassis
ground lug to an earth ground (building steel).
2
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

HD-XSPA, rear panel
3
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

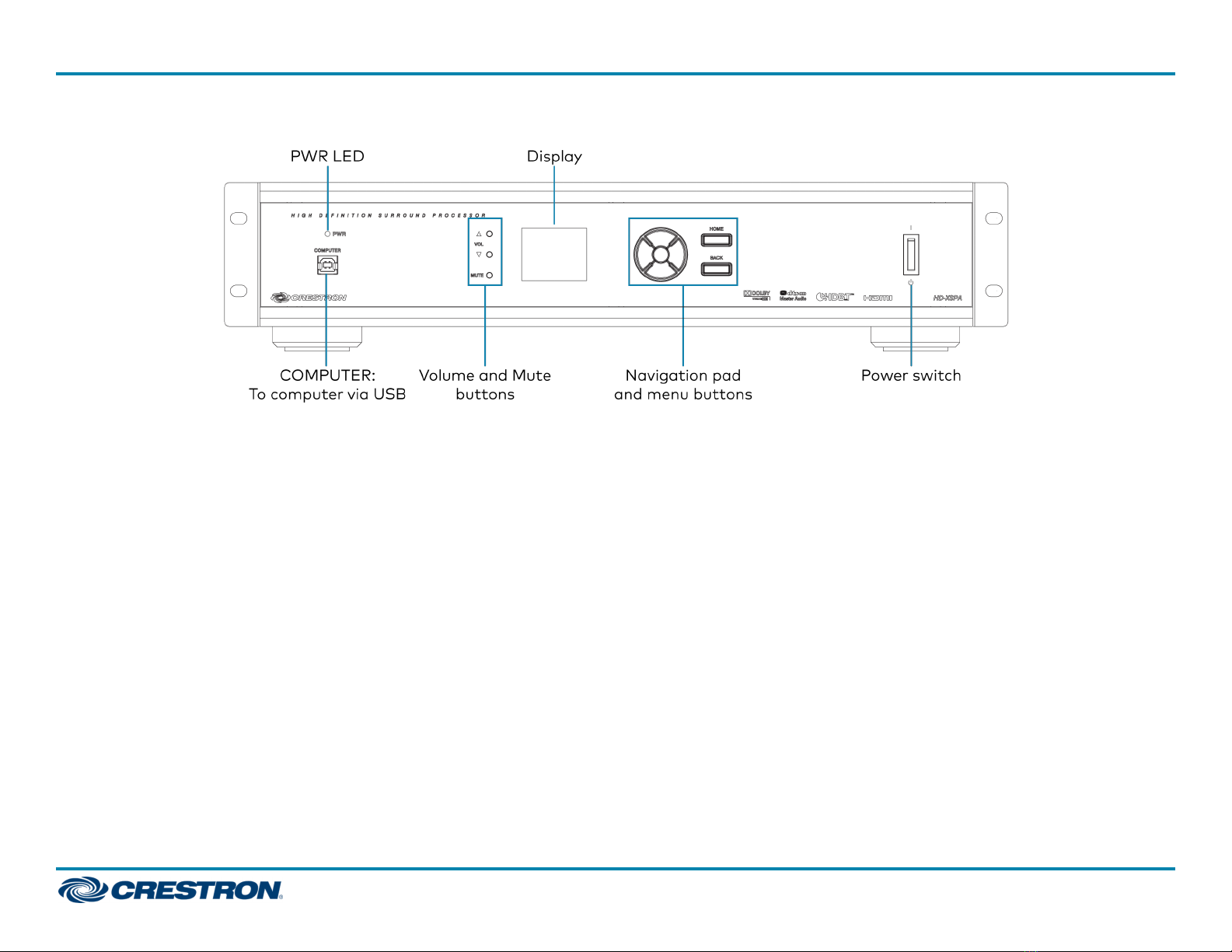

HD-XSPA, front panel
4
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Connect Audio Sources
The HD-XSPA can receive audio from up to 11 sources.
DigitalMedia Input
Audio from a DigitialMedia source is sent to the HD-XSPAover the DM 1
port.
HDMI Inputs
The HD-XSPAbreaks out the audio from HDMIinputs 2-5.
Digital Audio Inputs
The HD-XSPA receives digital S/PDIF audio from inputs 6 through 8.
Input 6 uses a JIS F05 female (TOSLINK) optical fiber connector while
inputs 7 and 8 use a coaxial RCA connector.
Analog Audio Inputs
The HD-XSPA receives unbalanced analog audio through RCA connectors
on inputs 9 and 10. The HD-XSPA can also receive balanced or unbalanced
audio through a 5-pin terminal block connector on input 11.
Connect Devices
The HD-XSPA can connect to a Crestron control system over
Ethernet.The HD-XSPA also has several device control ports to allow for
programmable control of local AVcomponents and other room devices.
LANPort
Connect the LAN port to a LAN to communicate with a Crestron control
system over Ethernet.
Device Control Ports
RS-232 (COM), infrared (IR), and low-voltage relay (RELAY) ports provide
for control of the display device and AV sources, and may also be used to
control a motorized screen or lift, window treatments, lighting, and other
equipment in the room. Four sensor inputs (SENS) accommodate power
sensors, motion detectors, and other contact closure devices.
Connect Outputs
The HD-XSPA has output connections for a display and speakers, as well
as preamp outputs for a subwoofer and a stereo or mono downmix of
the selected input signal.
HDMI Output
The HD-XSPA has an HDMIoutput for connection to a display.
Speaker Outputs
The SPEAKER OUTPUTS support a variety of speaker configurations up
to 7.1 surround audio.
5
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Subwoofer Output
The HD-XSPA has speaker level and line-level subwoofer outputs. The
speaker level output (SPEAKEROUTPUTS) can be used with a passive
subwoofer while the line-level output (PREAMPOUT SUB) can be used
with an active subwoofer or a separate subwoofer amplifier.
Preamp Out Downmix
The PREAMP OUT DOWNMIX output can be configured to provide an
unbalanced stereo or mono downmix of the selected input signal to feed a
second listening zone or headphone amp through the left and right
preamp outputs.
When configured for stereo operation, the input signal is downmixed to a
stereo signal with left and right channel separation that is available on the
left and right preamp outputs.
When configured for mono operation, the input signal is downmixed to a
mono signal that is available on both the left and right preamp outputs.
Configure
While the HD(I)-XSPA can be used right out of the box, the device can be
further customized with Crestron Toolbox software or the front panel
controls. For details on using Crestron Toolbox software, refer to the
Crestron Toolbox help file. For details on using the front panel controls,
refer to the HD(I)-XSPA Supplemental Guide (Doc. 7448).
6
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Operate
Controls
The HD-XSPA can be controlled from the front panel.
The front panel has a Navigation pad and menu buttons to view and
select the content shown on the display. VOL ▲, VOL ▼, and MUTE
buttons control the speaker outputs.
Power Switch
The POWERswitch controls power to the speaker outputs.
lMove the POWER switch to┃to turn on the speaker outputs.
lMove the POWER switch to ;to turn off the speaker outputs.
NOTE: When the POWER switch is set to ;, the speaker outputs
turn off and the HD-XSPA reboots. The front panel controls remain
on to control the device. Output signals are still sent to the HDMIand
PREAMPOUT outputs.
Navigation Pad
The Navigation Pad is used to view and select options shown on the
display.
lPress up on the Navigation Pad to scroll up through the available
selections.
lPress down on the Navigation Pad to scroll down through the available
selections.
lPress right on the Navigation Pad to move the cursor right.
lPress left on the Navigation Pad to move the cursor left.
lPress the center of the Navigation Pad to select a highlighted item.
Menu Buttons
The HOMEand BACKbuttons are used to navigate through the screens
shown on the display.
HOMEButton
Press HOME to display the home screen.
BACKButton
Press BACK to return to the previous screen.
Volume and Mute
lPress VOL ▲ or VOL ▼ to adjust the level of the speaker outputs.
NOTE: The DOWNMIX output's volume level is not controlled by the
VOL ▲ or VOL ▼ buttons. It is adjusted independently via control
system programming.
7
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

lPress MUTE to mute the speaker outputs.
NOTE:The DOWNMIX output's mute function is not controlled by
the MUTE button. It is controlled from Downmix menu. For details,
refer to the HD(I)-XSPA Supplemental Guide (Doc. 7448).

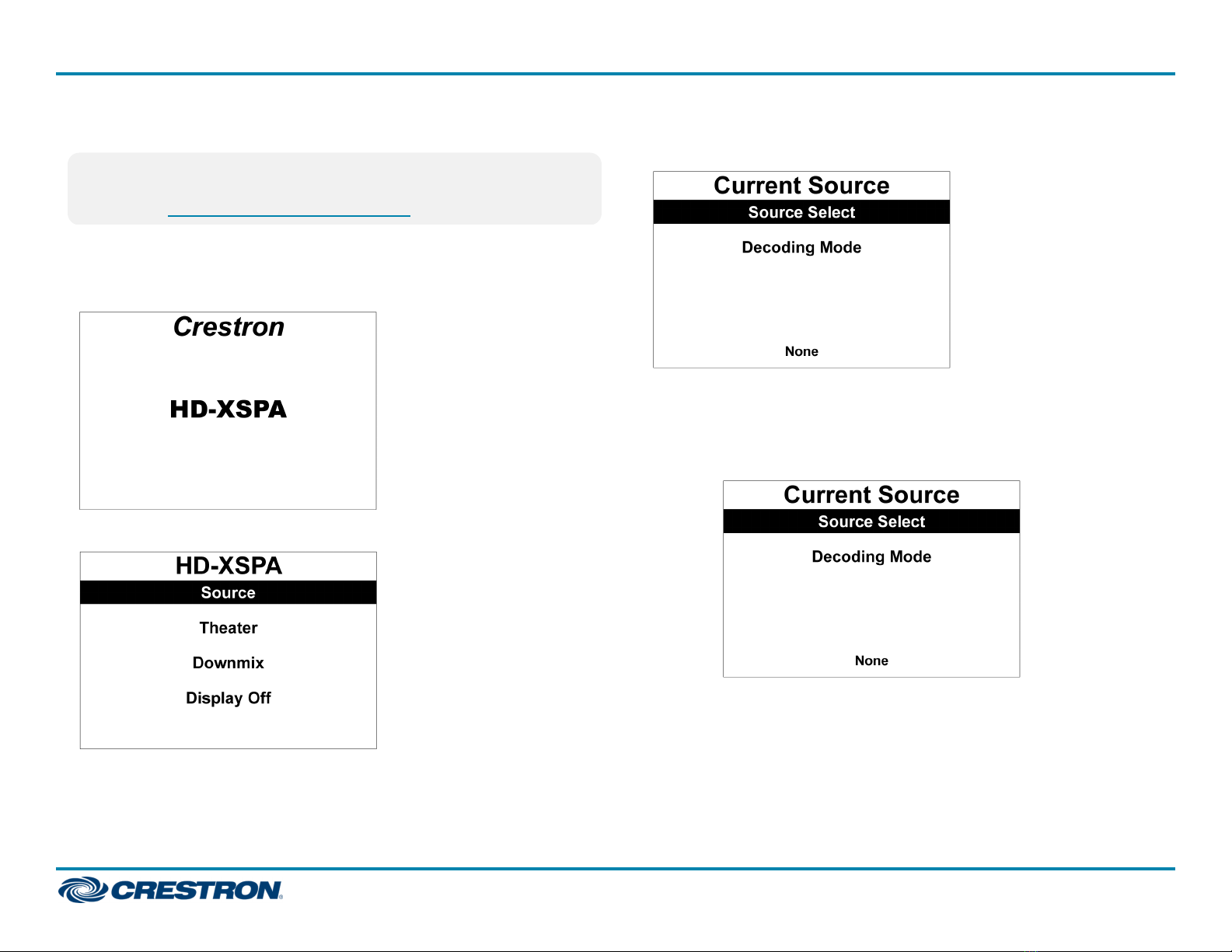

Select a Source or Decoding Mode
1. Press HOME to display the home screen.
2. Press the center of the Navigation Pad.
3. Press up or down on the Navigation Pad to highlight Source and press
the center of the Navigation Pad.
4. Select a source or a decoding mode.
lSelect a source:
a. Press up or down on the Navigation Pad to highlight Source
Select.
8
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

b. Press the center of the Navigation Pad.
c. Press up or down on the Navigation Pad to highlight the
desired source and press the center of the Navigation Pad.
lSelect a decoding mode:
a. Press up or down on the Navigation Pad to highlight
Decoding Mode.
b. Press the center of the Navigation Pad.
c. Press up or down on the Navigation Pad to highlight the
desired decoding mode and press the center of the
Navigation Pad.
Other Functions
Other functions are available using the front panel controls. For details,
refer to the HD(I)-XSPA Supplemental Guide (Doc. 7448).
9
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver

Visit the Product Page
Scan the QR code to visit the product page.
HD-XSPA
www.crestron.com/model/6505883
HDI-XSPA
www.crestron.com/model/6506418
Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software is
licensed to Crestron dealers, CSPs, and end-users under a separate End-User License
Agreement. Both of these Agreements can be found on the Crestron website at
www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Crestron Toolbox, DigitalMedia, and DMare either
trademarks or registered trademarks of Crestron Electronics, Inc. in the United States
and/or other countries. Dolby, Dolby Digital, and the double-D symbol are either
trademarks or registered trademarks of Dolby Laboratories in the United States and/or
other countries. DTS, DTS HD, and the DTS logo are either trademarks or registered
trademarks of DTS, Inc. in the United States and/or other countries. The HDBaseT
Alliance logo is either a trademark or registered trademark of the HDBaseT Alliance in
the United States and/or other countries. HDMI and the HDMI Logo are either
trademarks or registered trademarks of HDMI Licensing LLC in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may
be used in this document to refer to either the entities claiming the marks and names or
their products. Crestron disclaims any proprietary interest in the marks and names of
others. Crestron is not responsible for errors in typography or photography.
©2020 Crestron Electronics, Inc.
Doc. 7730C
06/02/20
10
HD(I)-XSPA QuickStart
4K Ultra High-Definition 7.1 Surround Sound AV Receiver
