Crestron DigitalMedia 8G+ DM-RMC-4KZ-100-C Owner's manual

DM-RMC-4KZ-100-C:
DigitalMedia 8G+® 4K60 4:4:4 HDR
Receiver and Room Controller
Supplemental Guide
Crestron Electronics, Inc.

The product warranty can be found at www.crestron.com/legal/sales-terms-conditions-warranties.
The specific patents that cover Crestron products are listed at www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information, visit
www.crestron.com/legal/open-source-software.
Crestron, the Crestron logo, .AV Framework, Crestron Pyng, Crestron Studio, Crestron Toolbox, Crestron XiO Cloud,
DigitalMedia, DigitalMedia 8G+, DM, and DM 8G+ are either trademarks or registered trademarks of Crestron Electronics,
Inc. in the United States and/or other countries. Dolby, Dolby Digital, and Dolby Atmos are either trademarks or registered
trademarks of Dolby Laboratories in the United States and/or other countries. DTS, DTS HD, DTS HD Master Audio, and
DTS X are either trademarks or registered trademarks of DTS, Inc. in the United States and/or other countries. HDBaseT and
the HDBaseT Alliance logo are either trademarks or registered trademarks of the HDBaseT Alliance in the United States
and/or other countries. HDMI and the HDMI logo are either trademarks or registered trademarks of HDMI Licensing LLC in
the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary
interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2018 Crestron Electronics, Inc.

Supplemental Guide – DOC. 8376A Contents •i
Contents
Introduction...................................................................................................................................1
Model Comparison ...................................................................................................................... 2
Physical Description.................................................................................................................... 5
Connection to a Third-Party HDBaseT Transmitter ............................................................ 7
HDCP 2.2 Compliance................................................................................................................. 8
Troubleshooting........................................................................................................................... 9

Supplemental Guide – DOC. 8376A DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver •1
DM-RMC-4KZ-100-C:
DigitalMedia 8G+® 4K60 4:4:4 HDR
Receiver and Room Controller
Introduction
The Crestron® DM-RMC-4KZ-100-C is a DigitalMedia 8G+® receiver and room controller
that supports full 4K60 4:4:4 and high dynamic range (HDR) video signals. Via a CATx
cable, the DM-RMC-4KZ-100-C connects to a DigitalMedia™ switcher or transmitter or
to an HDBaseT® source. Connection to a display device is provided by a single HDMI®
output. In addition, built-in RS-232, IR, and Ethernet control ports enable programmable
control of the display device via a control system.
This guide provides information about the following:
•Model comparison
•Physical description of the DM-RMC-4KZ-100-C
•Connection to a third-party HDBaseT transmitter
•HDCP 2.2. compliance
•Troubleshooting
For installation information, refer to the DM-RMC-4KZ-100-C DO Guide (Doc. 7939) at
www.crestron.com/manuals.

2•DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver Supplemental Guide – DOC. 8376A
Model Comparison
The following table provides a comparison between the DM-RMC-4KZ-100-C and other 4K DigitalMedia 8G+ receivers and
room controllers.
4K DigitalMedia 8G+ Receivers and Room Controllers
FEATURE DM-RMC-4KZ-100-C DM-RMC-4K-100-C-1G-B-T/W-T DM-RMC-4K-SCALER-C DM-RMC-4K-SCALER-C-DSP
Form Factor Surface-Mount Box U.S. 1-Gang Surface-Mount Box Surface-Mount Box
Input DM 8G+® and HDBaseT® DM 8G+ and HDBaseT DM 8G+ and HDBaseT DM 8G+ and HDBaseT
Output HDMI® (DVI compatible)1HDMI (DVI compatible)1HDMI (DVI compatible)1HDMI (DVI compatible)1
Video
Scaler — — 4K video scaler, motion-adaptive
deinterlacer, intelligent frame rate
conversion, Deep Color support,
content-adaptive noise reduction,
widescreen format selection (zoom,
stretch, maintain aspect ratio,
or 1:1)
4K video scaler, motion-adaptive
deinterlacer, intelligent frame rate
conversion, Deep Color support,
content-adaptive noise reduction,
widescreen format selection zoom,
stretch, maintain aspect ratio,
or 1:1)
Video Wall
Processing
— — Up to 8 x 8 Up to 8 x 8
Input/Output
Signal Types
HDR10, Deep Color, 3D, and
4K60 4:4:4
Deep Color, 3D, and 4K60 4:2:0 Deep Color, 3D, and 4K60 4:2:0 Deep Color, 3D, and 4K60 4:2:0
Maximum
Input/Output
Resolutions
4096 x 2160 DCI and
3840 x 2160 60 Hz @ 4:4:4
4096 x 2160 DCI and
3840 x 2160 60 Hz @ 4:2:0
4096 x 2160 DCI and
3840 x 2160 60 Hz @ 4:2:0
4096 x 2160 DCI and
3840 x 2160 60 Hz @ 4:2:0
Custom
Resolutions
Supported at pixel clock
rates up to 600 MHz
Supported at pixel clock rates up
to 300 MHz
Supported at pixel clock rates up to
300 MHz
Supported at pixel clock rates up
to 300 MHz
HDR/HDR10 Yes No No No
4K60 @ 4:4:4 Yes No No No
Copy Protection HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2
(Continued on following page)

Supplemental Guide – DOC. 8376A DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver •3
4K DigitalMedia 8G+ Receivers and Room Controllers (Continued)
FEATURE DM-RMC-4KZ-100-C DM-RMC-4K-100-C-1G-B-T/W-T DM-RMC-4K-SCALER-C DM-RMC-4K-SCALER-C-DSP
Audio
Input Signal
Types
DM 8G+ and HDBaseT DM 8G+ and HDBaseT DM 8G+ and HDBaseT DM 8G+ and HDBaseT
Output Signal
Types
HDMI HDMI HDMI,
Analog Stereo (Phoenix connector)
HDMI,
Analog Stereo (Phoenix connector)
Digital Input/
Output Audio
Formats
Dolby Digital®, Dolby Digital
EX, Dolby Digital Plus,
Dolby® TrueHD, Dolby
Atmos®, DTS®, DTS ES, DTS
96/24, DTS HD® High Res,
DTS HD Master Audio™,
DTS X®, LPCM up to 8
channels
Dolby Digital, Dolby Digital EX,
Dolby Digital Plus, Dolby TrueHD,
Dolby Atmos, DTS, DTS ES, DTS
96/24, DTS HD High Res, DTS HD
Master Audio, LPCM up to 8
channels
Dolby Digital, Dolby Digital EX,
Dolby Digital Plus, Dolby TrueHD,
Dolby Atmos, DTS, DTS ES, DTS
96/24, DTS HD High Res, DTS HD
Master Audio, LPCM up to 8
channels
Dolby Digital, Dolby Digital EX,
Dolby Digital Plus, Dolby TrueHD,
Dolby Atmos, DTS, DTS ES, DTS
96/24, DTS HD High Res, DTS HD
Master Audio, LPCM up to 8
channels
Analog Output
Audio Formats
— — Stereo 2-channel Stereo 2-channel
Audio
De-Embedding
Yes Yes Yes Yes
DSP/Downmixing No No No Yes
Communications
Ethernet 10/100 Mbps, auto-
switching, auto-negotiating,
auto-discovery, full/half
duplex, DHCP
— 10/100 Mbps, auto-switching,
auto-negotiating, auto-discovery,
full/half duplex, DHCP
10/100 Mbps, auto-switching, auto-
negotiating, auto-discovery,
full/half duplex, DHCP
RS-232 2-way device control and
monitoring up to 115.2k
baud with hardware and
software handshaking via
control system
2-way device control and
monitoring up to 115.2k baud with
software handshaking via control
system
2-way device control and
monitoring up to 115.2k baud with
hardware and software
handshaking via control system
2-way device control and
monitoring up to 115.2k baud with
hardware and software
handshaking via control system
IR/Serial 1-way device control via
infrared up to 1.1 MHz or
serial TTL/RS-232 (0-5
volts) up to 19.2k baud via
control system
1-way device control via infrared
up to 1.1 MHz or serial TTL/
RS-232 (0-5 volts) up to 19.2k
baud via control system
1-way device control via infrared up
to 1.1 MHz or serial TTL/RS-232
(0-5 volts) up to 19.2k baud via
control system
1-way device control via infrared up
to 1.1 MHz or serial TTL/RS-232 (0-5
volts) up to 19.2k baud via control
system
EDID
Management
Yes Yes Yes Yes
(Continued on following page)

4•DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver Supplemental Guide – DOC. 8376A
4K DigitalMedia 8G+ Receivers and Room Controllers (Continued)
FEATURE DM-RMC-4KZ-100-C DM-RMC-4K-100-C-1G-B-T/W-T DM-RMC-4K-SCALER-C DM-RMC-4K-SCALER-C-DSP
Communications (Continued)
CEC2Yes Yes Yes Yes
Power PoDM (Power over DM),
Power Pack
PoDM,
Power Pack
PoDM+ (Power over DM Plus),
Power Pack
PoDM+,
Power Pack
Crestron Software Support3
Crestron XiO
Cloud™ Service
Yes Yes Yes Yes
SIMPL Windows
Software
Yes Yes Yes Yes
Crestron Pyng®
OS 2
Yes Yes Yes Yes
SIMPL #
Software
Yes Yes Yes Yes
Crestron
Toolbox™
Software
(DMTool)
Yes Yes Yes Yes
Crestron Studio®
Software
Yes Yes Yes Yes
.AV Framework™
Software
No No No No
1. DVI is supported via the HDMI output using a suitable adapter or interface cable.
2. CEC management between connected HDBaseT and HDMI devices is available via a control system.
3. Software support is available via the DM-MD8X8, DM-MD16X16, and DM-MD32X32 chassis. The Crestron XiO Cloud service is only available on a chassis that uses
the DMC-CPU3 card.

Supplemental Guide – DOC. 8376A DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver •5
Physical Description

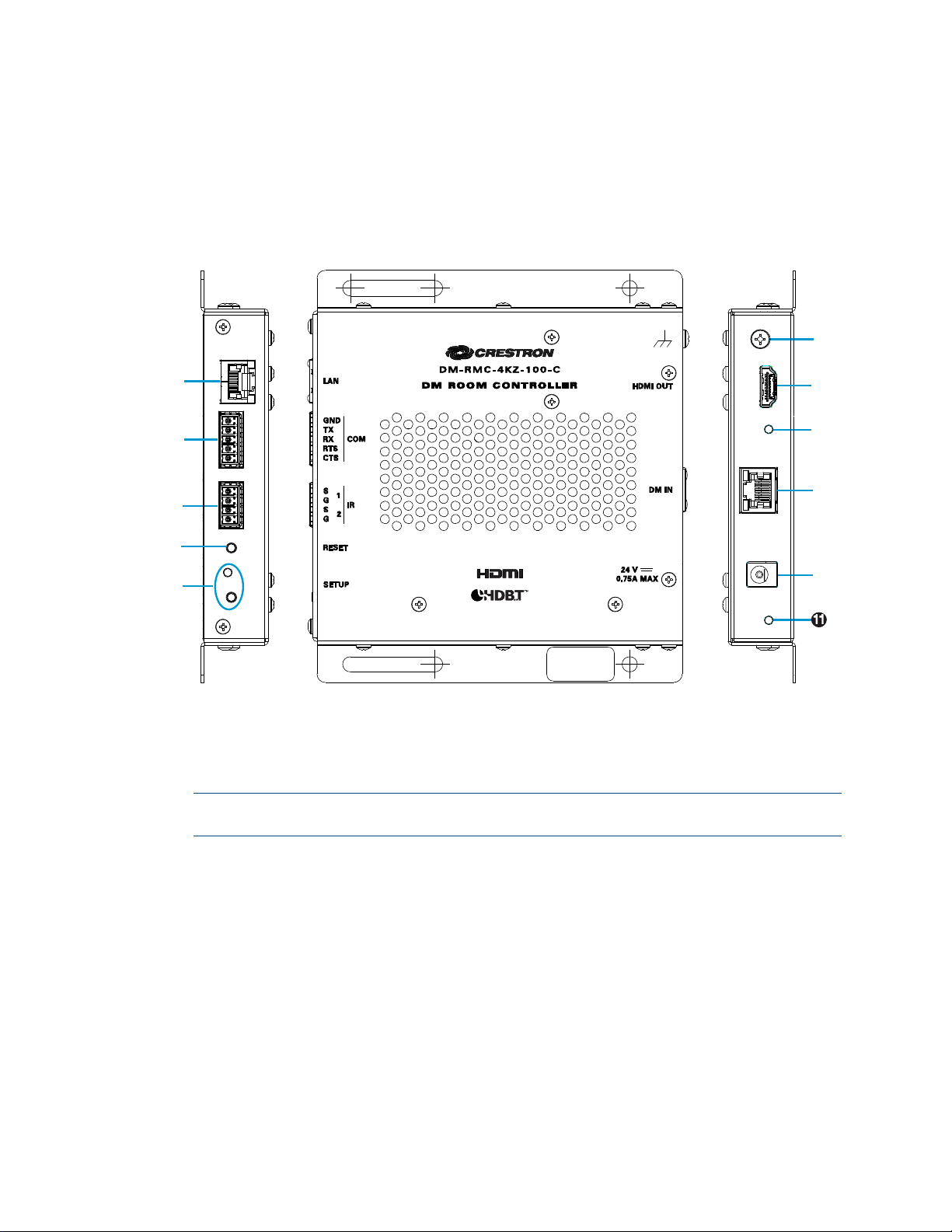

The following illustration shows the connectors, controls, and indicators on
the DM-RMC-4KZ-100-C.
Connectors, Controls, and Indicators
LAN: 8-pin RJ-45 female, shielded;
10BASE-T/100BASE-TX Ethernet port;
Green LED indicates Ethernet link status;
Amber LED indicates Ethernet activity
NOTE: The LAN port can connect to an Ethernet switch only when the DM IN port is
not connected to a DigitalMedia switcher.
COM: 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
IR 1-2: 4-pin 3.5 mm detachable terminal block;
Comprised 2 IR/serial ports;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 volts) up to 19200 baud
RESET: Recessed push button for reboot of the device











6•DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver Supplemental Guide – DOC. 8376A
SETUP: (Applicable only to a configuration in which a DigitalMedia switcher is not
used) Red LED indicates that the SETUP button is pressed and times out
automatically;
Recessed push button for Ethernet setup
NOTE: The default static IP address of the DM-RMC-4KZ-100-C is 192.168.1.250.
Ground ( ): 6-32 screw, chassis ground lug
HDMI OUT: HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible)
NOTES:
•The HDMI OUT port requires an appropriate adapter or interface cable to
accommodate a DVI signal. CBL-HD-DVI interface cables are available
separately.
•4K60 4:4:4 performance and HDR support require the use of HDMI cables and
couplers with a minimum TMDS bandwidth of 18 Gbps. If 4K60 4:2:0 or 4K30
4:4:4 performance is acceptable, cables and couplers with a minimum bandwidth
of 10.2 Gbps may be used. Performance may be reduced when inserting multiple
cables and couplers inline.
HDMI OUT LED: Green LED, indicates that an HDMI signal is detected at the
HDMI output
DM IN: 8-pin RJ-45 female, shielded;
DM 8G+® input, HDBaseT standard compliant;
PoDM PD (powered device) port (HDBaseT PoE compatible);
Connects to the DM 8G+ output of a DM® switcher, transmitter, or other DM® device,
or to an HDBaseT device via CAT5e, Crestron DM-CBL-8G, or Crestron
DM-CBL-ULTRA cable;
Green LED indicates that a DM or HDBaseT link is established;
Solid amber LED indicates that HDCP video is detected;
Flashing amber LED indicates that non-HDCP video is detected.
NOTE: In order to receive PoDM, the DM IN port requires connection to a
DigitalMedia switcher or other DM equipment that has a PoDM PSE (power sourcing
equipment) port. In order to receive HDBaseT PoE, the DM IN port requires
connection to equipment that has an HDBaseT PoE PSE port. Wiring that connects
to a PoDM or HDBaseT PoE PSE port is for intrabuilding use only.
24 VDC 0.75A MAX: 2.1 x 5.5 mm DC power connector;
24 VDC power input;
Power pack included
Power LED: Green LED, indicates that power is being applied via PoDM, HDBaseT
PoE, or the included power pack

Supplemental Guide – DOC. 8376A DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver •7
Connection to a Third-Party HDBaseT
Transmitter

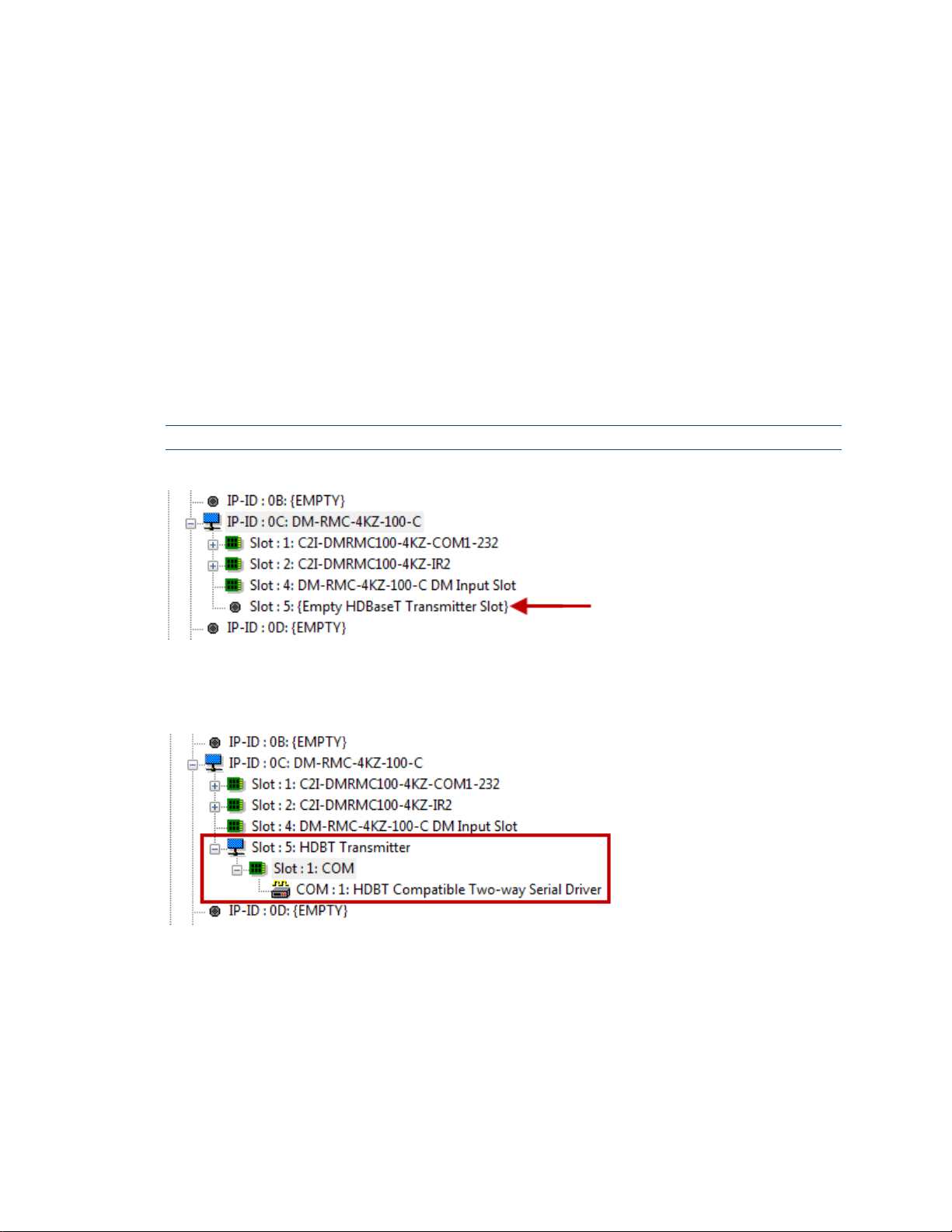

The DM-RMC-4KZ-100-C is compliant with the HDBaseT standard, enabling direct
connection to other HDBaseT certified equipment. Via the DM 8G+ input, the
DM-RMC-4KZ-100-C can be connected directly to a third-party HDBaseT compliant
source without requiring a DigitalMedia transmitter.
SIMPL Windows allows an HDBaseT transmitter to be added to the
DM-RMC-4KZ-100-C. The HDBaseT transmitter adds a COM port to the
DM-RMC-4KZ-100-C and enables two-way serial communication.
To add a third-party HDBaseT transmitter to the DM-RMC-4KZ-100-C, use SIMPL
Windows. An overview of the necessary steps follows.
NOTE: For detailed information, refer to the SIMPL Windows help file.
HDBaseT Transmitter Slot (Slot 5)
When the third-party HDBaseT transmitter is added to slot 5, the HDBaseT Transmitter
symbol adds a COM port to the device and enables two-way serial communication.
Addition of HDBaseT Transmitter to Slot 5 and COM Port in Slot 1

8•DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver Supplemental Guide – DOC. 8376A
HDCP 2.2 Compliance
The DM-RMC-4KZ-100-C is compliant with HDCP 2.2. HDCP 2.2, commonly referred to
as HDCP 2, is the next generation of HDCP (High-Definition Content Protection). Note
the following about HDCP 2:
•Compared to HDCP 1, HDCP 2 brings a higher level of cryptographic protection
to HDMI technology.
•HDCP 2 is not HDMI 2. It is possible to have a system built on HDCP 1 and
HDMI 2, HDCP 2 and HDMI 1, or HDCP 2 and HDMI 2.
•Although not all 4K content requires HDCP 2, most 4K consumer video content
requires HDCP 2.
•Any product that supports HDCP 2 also supports HDCP 1.
•HDCP is needed only when the source demands HDCP. If the source demands
HDCP 2, then every device in the signal path must support HDCP 2.
•There are no issues related to HDCP 2 and cabling—all cables are compatible
with HDCP 2.

Supplemental Guide – DOC. 8376A DM-RMC-4KZ-100-C: 4K DigitalMedia 8G+ Receiver •9
Troubleshooting
The following table provides troubleshooting information. If further assistance is
required, contact a Crestron customer service representative.
DM-RMC-4KZ-100-C Troubleshooting
PROBLEM POSSIBLE CAUSE(S) CORRECTIVE ACTION(S)
Video is not displayed, but
audio may be heard.
The HDCP settings of one or more
DigitalMedia devices in the signal path
do not support the HDCP level of the
source.
Ensure that the HDCP settings of
all DigitalMedia devices in the
signal path support the HDCP level
of the source.
The display does not support the HDCP
level of the source.
Ensure that the display supports
the HDCP level of the source.
The video is intermittent. The HDMI cable connections are faulty. Verify that each end of the cable is
connected properly.
The LAN connection is
unresponsive.
The receiver and another DigitalMedia
endpoint are both connected to a
DigitalMedia switcher. The LAN port of
the other endpoint is also connected to
an Ethernet switch.
When a DigitalMedia endpoint is
connected to a DigitalMedia
switcher, the LAN port of the
endpoint cannot be connected to
an Ethernet switch. Disconnect the
LAN port from the Ethernet
switch.
The receiver cannot
establish a link to the device
that is connected to the DM
IN port. The DM IN ink
status LED is off.
The cable connections are faulty. Verify that each end of the cable is
properly connected. If necessary,
check the cable terminations.
The receiver does not
remain powered on.
When the receiver is not powered by
the included power pack, the DM IN
port is not connected to a PoDM or
HDBaseT PoE PSE port.
Ensure that the DM IN port is
connected to an appropriate PSE
port when not being powered by
the included power pack.
The SIMPL Windows
program is not operational.
In a configuration in which a
DigitalMedia switcher is not used, the
IP table is not set properly.
Verify that the IP table is set
properly in System Info in the
Crestron Toolbox software.
If the receiver connects to a
DigitalMedia switcher, the receiver
does not connect to the correct DM
output port of the switcher.
Ensure that the receiver connects
to the correct DM output port of
the switcher.
The video flickers or drops
when the receiver is
touched or when metal in
the vicinity of the device is
touched.
The receiver is not grounded properly. Ensure that the receiver is
grounded properly.
NOTE: If, for any reason, the factory default setting of the DM-RMC-4KZ-100-C must
be restored, do the following: From the Tools menu in the Crestron Toolbox software,
select Text Console and enter the following command:
restore y

Crestron Electronics, Inc. Supplemental Guide – DOC. 8376A
15 Volvo Drive, Rockleigh, NJ 07647 (2052636)
Tel: 888.CRESTRON 10.18
Fax: [phone] Specifications subject to
www.crestron.com change without notice.
