Crestron Sonnex SWAMP(I)-24X8 User manual

Crestron SWAMP(I)-24X8
Sonnex™ Multiroom Audio System
Operations Guide

This document was prepared and written by the Technical Documentation department at:
Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Disconnect power prior to connecting or disconnecting
equipment.
Do not install in direct sunlight.
The apparatus must be installed in a way that the power cord
can be removed either from the wall outlet or from the device
itself in order to disconnect the mains power.
Prevent foreign objects from entering the device.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE. THE APPARATUS SHALL NOT BE
EXPOSED TO DRIPPING OR SPLASHING. OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD
NOT BE PLACED ON THE APPARATUS.
WARNING:
TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE
COVER. THERE ARE NO USER SERVICEABLE PARTS
INSIDE. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD PERFORM SERVICE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
WARNING:
THIS IS AN APPARATUS WITH CLASS I
CONSTRUCTION. IT SHALL BE CONNECTED TO AN
ELECTRICAL OUTLET WITH AN EARTHING GROUND
TERMINAL.
IMPORTANT:
The SWAMP-24X8 and SWAMPI-24X8 can be used with
Class 2 output wiring.

Regulatory Compliance
Federal Communications Commission (FCC) Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Industry Canada (IC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
As of the date of manufacture, the SWAMP-24X8 and SWAMPI-24X8 have been tested and found to comply
with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.
The specific patents that cover Crestron products are listed at patents.crestron.com.
Crestron, the Crestron logo, ADMS Intermedia Delivery System, AIR, Cresnet, Crestron e-Control, Crestron Home, Crestron RoomView,
Crestron Toolbox, Excite, Sonnex, Sonnex Speaker Protect, SSP, and SystemBuilder are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. iPod is either a trademark or registered trademark of Apple, Inc. in
the United States and/or other countries. Windows is either a trademark or registered trademark of Microsoft Corporation in the United
States and/or other countries. Other trademarks, registered trademarks and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.
©2012 Crestron Electronics, Inc.

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
Operations Guide – DOC. 7049C Contents i
Contents
Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................1
Applications.................................................................................................................6
Specifications ..............................................................................................................7
Physical Description..................................................................................................10
Setup ........................................................................................................................................16
Network Wiring.........................................................................................................16
Sonnex Link Wiring ..................................................................................................16
Identity Code .............................................................................................................16
Installation.................................................................................................................17
Hardware Hookup ..................................................................................................... 19
Configuration........................................................................................................................... 25
Source Setup..............................................................................................................26
Zone Setup................................................................................................................. 26
Expander Status.........................................................................................................35
Amplifier Status ........................................................................................................ 35
Network Setup........................................................................................................... 35
Control Setup............................................................................................................. 38
About.........................................................................................................................40
Programming Software............................................................................................................41
Software Requirements for the PC ............................................................................41
Programming with SystemBuilder ............................................................................41
Programming with SIMPL Windows ........................................................................ 41
Uploading and Upgrading........................................................................................................ 44
Establishing Communication..................................................................................... 44
Programs and Firmware ............................................................................................ 45
Program Checks ........................................................................................................ 46
Operation .................................................................................................................................47
Power.........................................................................................................................47
Operating Modes .......................................................................................................47
Volume Control.........................................................................................................48
Problem Solving ......................................................................................................................49
Troubleshooting......................................................................................................... 49
Check Network Wiring..............................................................................................49
Reference Documents................................................................................................50
Further Inquiries ........................................................................................................ 50
Future Updates .......................................................................................................... 51
Return and Warranty Policies ..................................................................................................52
Merchandise Returns / Repair Service ...................................................................... 52
Crestron Limited Warranty........................................................................................52

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
Sonnex™ Multiroom Audio
System: SWAMP(I)-24X8
Introduction
The SWAMP-24X8 is the centerpiece of a fully-scalable audio distribution system
that delivers high-output audiophile sound quality to every room with significantly
reduced cabling, low power consumption, advanced DSP, and integrator-friendly
setup. The Sonnex™ Multiroom Audio System facilitates massive systems with up
to 74 zones and over 30,000 Watts of power.
The SWAMP-24X8 and SWAMPI-24X8 are functionally identical. For simplicity
within this guide, the term “SWAMP-24X8” is used except where noted.
Features and Functions
Advanced multiroom audio distribution for homes and offices
High-efficiency audiophile grade amplification built in
140 Watts/Ch. @ 8 Ω, 400 Watts/Ch. bridged
Eight amplified stereo zone outputs and two S/PDIF zone outputs
Output Bussing—enables linked operation of multiple zones
Bridgeable outputs—extra power for pools and other large areas
Sonnex Link—provides one-wire, plug-and-play interface to eight
Sonnex Link devices up to 200 feet (61 meters) away1, 2
12 unbalanced, four balanced/unbalanced, and eight S/PDIF inputs
Supports direct audio connection of the Crestron®Interface for iPod®
(sold separately) and other “CH” CAT5 sources
User adjustable volume, bass, treble, loudness, and selectable “tone
profiles”
Installer adjustable 5-band graphic or parametric EQ per zone
(Continued on following page)
1. For connection of the Sonnex Link between the SWAMP-24X8 and each SWAMPE-8, use Crestron
DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable with DM-8G-CONN connectors.
The maximum cable length is 200 feet (61 meters) per run.
2. If using Cresnet as the control system interface, system expansion is limited to one SWAMPE
expander. Support for more than one expander requires Ethernet as the control system interface.
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 1

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
Features and Functions
(Continued)
Dynamic Range Control—maintains even listening levels in both quiet
and loud ambient environments
Speaker Profiles—allows upload of custom preset speaker settings
Sonnex Speaker Protect™—affords extra headroom while preventing
component damage
Individual zone power control and global standby
Setup and adjustment via front panel or Sonnex Tools software
Remote fault monitoring
Seamless Crestron system integration
Heavy duty detachable terminal blocks ease speaker wire termination
Low power consumption, cool-running operation
Four-space 19” rack-mountable

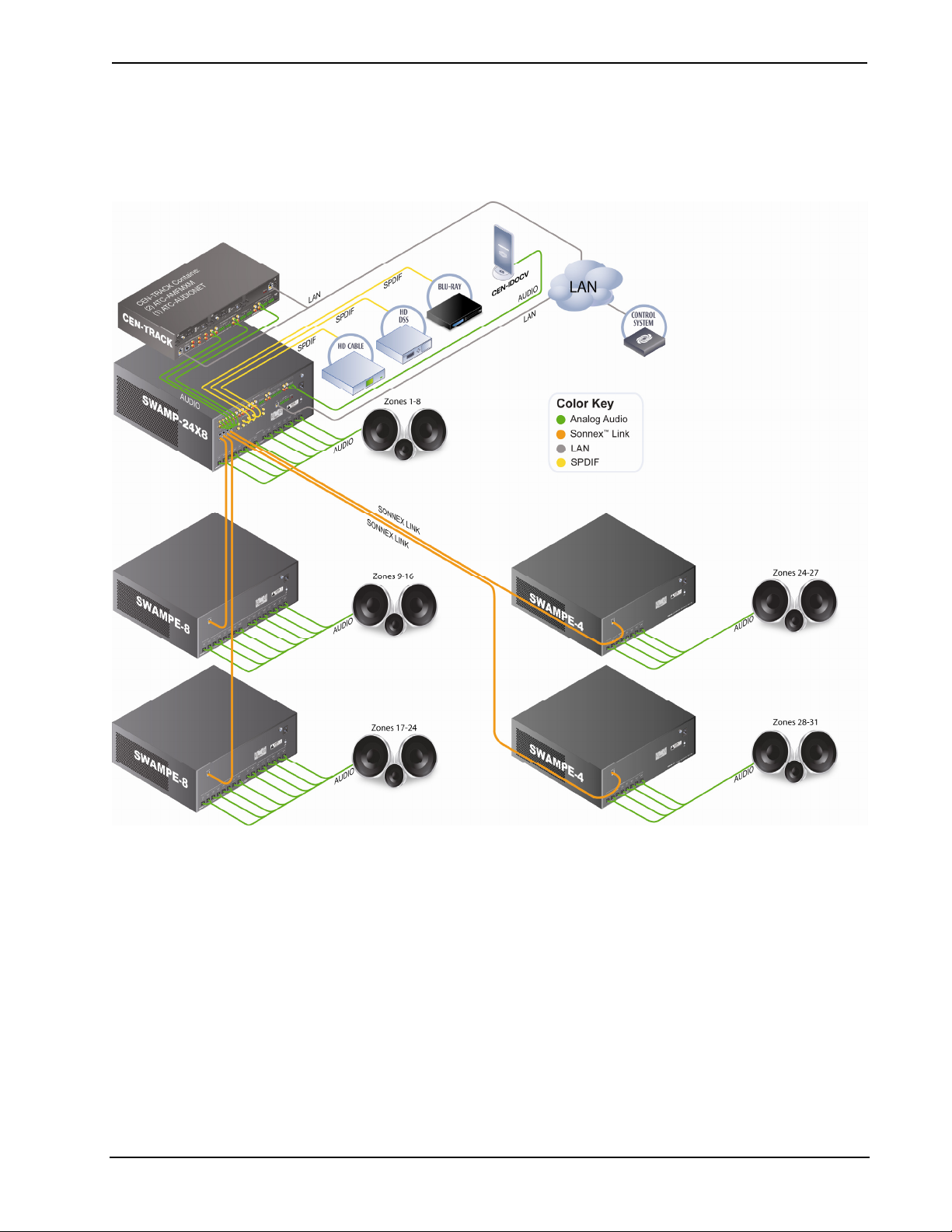

The Sonnex system topology minimizes speaker wiring distances by allowing
Sonnex Link devices to be placed central to the rooms they serve, routing 24 stereo
channels of uncompressed digital audio and control to each expander over a single
inexpensive shielded CAT5e cable.*Contained in a compact 4-space rack, the
Sonnex system also integrates eight zones of high-performance power amplification
and signal processing, while input switching for 24 analog and digital sources.
Integrated Audiophile Amplifier
The amplifiers in the SWAMP-24X8 use a custom hybrid design that achieves the
warmth and neutrality of a fine Class AB amplifier with all of the efficiency benefits
of modern Class D.
Each of the SWAMP-24X8’s 16 channels (configured as eight zones) delivers 140
Watts into 8 Ω, or 240 Watts into 4 Ω. For large, noisy areas, any two adjacent zones
can be bridged (Zone 1 + Zone 2, Zone 3 + Zone 4, Zone 5 + Zone 6, Zone 7 + Zone
8) to produce 400 Watts per channel at 8 Ω. The SWAMP-24X8 uses only four rack
spaces while maintaining effective cooling with no need for extra clearance above or
below. Each zone is individually controllable, saving further energy by turning off
any unused channels.
24x8 Matrix Switcher
Designed with flexibility and expansion in mind, the Sonnex Multiroom Audio
System provides numerous inputs to manage a variety of stereo audio sources, both
analog and digital. Sonnex handles the multi-zone outputs from a Crestron ADMS
Intermedia Delivery System™ or CEN-TRACK TunerRack Modular Multi-Tuner
(both sold separately), plus outputs from digital television receivers and other
devices. Sonnex even accepts a direct input from the CEN-IDOCV Interface for
iPod®(sold separately) and other Crestron Home®CAT5 Balanced sources without
requiring a separate converter.
* For connection of the Sonnex Link between the SWAMP-24X8 and each SWAMPE-8, use Crestron
DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable with DM-8G-CONN connectors.
The maximum cable length is 200 feet (61 meters) per run.
2 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
A total of 24 discrete inputs are spread across an array of connectors, including
unbalanced RCA, balanced terminal blocks, and S/PDIF coaxial. For ease of use,
descriptive names can be entered for display on the front panel LCD and push
buttons for every source input and zone output. Via the front panel controls or from a
Crestron®touch screen or remote, any input can be selected for listening in any zone
or group. Additional features include mono summing for distribution to non-stereo
zones, scaling factor settings for defining minimum and maximum volume levels,
source signal detection, and source gain compensation to assure a consistent level
when switching between disparate sources.
Bonus Zones
Sonnex leaves no zone behind, providing two additional S/PDIF digital outputs for
sharing stereo sources with centralized audio processors and AV receivers.
Sonnex Digital Audio Transport
Among the many features that set Sonnex apart from all other multiroom systems is
the Sonnex Audio Transport. On the rear of the SWAMP-24X8 are eight Sonnex
Link ports, enabling the connection of up to eight Sonnex Link devices1. Each link
transports professional-quality 24-bit, 48 kHz digital audio from all 24 inputs
simultaneously to each expander, supporting wiring distances up to 200 feet (61
meters) over a single CAT5e shielded twisted-pair (STP) cable.2, 3
While the Sonnex Link devices can be installed centrally with the SWAMP-24X8,
the ease of running just one tiny wire instead of 16 heavy speaker cables clearly
affords a much better decentralized system approach. Installing each Sonnex Link
device local to the rooms it serves, whether on a different floor, another wing, or a
completely separate building, significantly reduces the amount of speaker wiring
needed to install. The benefits of reducing speaker wiring include faster, easier and
less expensive installation, as well as overall higher performance and efficiency by
minimizing the signal loss inherent in long speaker runs.
Plug and Play Expansion
Control for each Sonnex Link device is also embedded in the Sonnex Link,
dramatically simplifying installation and setup through a true one-wire interface.
There is no need to set addresses or write any special programming. Simply connect
each Sonnex Link device to the SWAMP-24X8 and instantly control the complete
system from the SWAMP-24X8’s front panel or Sonnex Tools software.1
Advanced DSP
To truly deliver an ultimate listening experience in every room, Sonnex includes
built-in digital signal processing, providing a virtual arsenal of controls and
adjustments, intelligently deployed to streamline both the installer setup procedure
and day-to-day user operation. Key setup functions are accessible via the front panel,
while more advanced settings are provided via Sonnex Tools software. Naturally, the
essential user controls can be made available on any Crestron touch screen, keypad,
handheld remote, or mobile device as part of a complete Crestron system.
1. If using Cresnet®as the control system interface, system expansion is limited to one Sonnex Link
device. Support for more than one expander requires Ethernet as the control system interface.
2. For connection of the Sonnex Link between the SWAMP-24X8 and each Sonnex Link device, use
Crestron DM-CBL-8G or high-quality CAT5e shielded twisted-pair cable with DM-8G-CONN
connectors. The maximum cable length is 200 feet (61 meters) per run.
3. The length of Sonnex link can be extended to 2000 ft (610 m) over one multimode fiber strand with
the use of the S-EXT1-S (sold separately).
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 3

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
Sonnex DSP features include:
User Controls — From a Crestron touch screen or other user interface,
Sonnex provides the essential controls for day-to-day listening. Controls
include room volume, bass, treble, balance, loudness, mute, zone on/off,
and five selectable tone profiles. Through the control system program,
many advanced user functions are possible including priority modes (who
can control which sources), zone grouping (source sharing), paging,
do-not-disturb, alarm clock, sleep timer, and much more.
Tone Profiles — With one touch, users can select from five preset EQ
curves including Classical, Jazz, Pop, Rock, or Spoken Word, each tailored
for a different type of material or listening preference.
Dynamic Range Control (DRC) — Sonnex provides user-selectable DRC to
help keep everything at a consistent level, whether in a quiet bedroom, a
loud swimming pool, or an outdoor patio, facilitating a more cohesive
listening experience.
Sonnex Speaker Protect™ (SSP) — SSP™ output limiting assures
maximum headroom while preventing damage*to the amplifier or speakers.
SSP lets the installer set the protection to match the speakers’ power
handling capability, achieving a transparent effect right up to the limits of
the speaker device.
CAUTION: As speaker ratings vary greatly across manufacturers, there is
no guarantee that Sonnex Speaker Protect protects against speaker damage
in all situations.
5-Band Equalizer — Sonnex provides the choice of graphic or parametric
5-band EQ. Using Sonnex Tools software and a wireless laptop, the installer
can easily move from room to room, sculpting the sound for optimal audio
clarity and impact.
Speaker Profiles
AV system integrators typically rely on just a few select speaker models for the
majority of installs, and subsequently find themselves repeating many of the same
adjustments at each project. The Speaker Profiles feature in Sonnex Tools alleviates
the repetition, allowing installers to save a complete set of EQ and SSP settings for
every type of speaker, room, and customer listening preference. So, tuning the next
room or project can be as simple as loading the appropriate Speaker Profile for each
zone. Using Speaker Profiles, a complete Sonnex system can be effectively
“pre-tuned” before a single note of music or test signal is even played.
Output Bussing
The spacious, open floor plans typical of today’s homes and offices commonly
present multiple adjacent listening zones with no sonic boundary between them —
e.g., a kitchen and dinette, a living room and dining room, or an outdoor pool and
terrace. One click in Sonnex Tools instantly busses adjacent zones together to
function as one group while preserving the individual speaker profile settings for
each. Volume Offset adjustments easily allow for balancing the levels of each bussed
zone for smooth, even coverage of the complete space.
* Excessive audio volume may damage hearing. Crestron advocates enjoying music at a safe listening
level.
4 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
Passive Subwoofer Support
Sonnex provides extended low frequency performance in any room, providing high-
performance biamplification capability to support any passive in-wall, in-floor, or
freestanding subwoofer. Configuring Sonnex to handle a 2.1 speaker system is both
simple and powerful using its parametric equalizers, offering the choice of 2nd or 4th
order active crossover filters for each sub and satellite output, plus up to four
additional filters for further room correction and enhancement. With 400 Watts
available in bridged mode, there is plenty of power on hand to fill any room with
deep, gratifying bass.1
Intelligent Monitoring and Protection
To help ensure the most seamless user experience and long-lived operation, Sonnex
includes several ways to keep tabs on its operating status and health. On its own,
Sonnex possesses the intelligence to protect itself from many types of faults
including over temperature, over current, over voltage, under voltage, and DC offset
on any channel. In the event of a fault, the front panel LCD provides clear fault
indication to speed the troubleshooting of incorrect wiring, poor rack ventilation, and
other unforeseen issues. Fault alerts may also be broadcast to a system touch screen
or mobile device, and integrators can even monitor and track the data remotely
through Crestron RoomView®software to ensure a rapid service response.
Ultimate Integration
Without question, Sonnex delivers unprecedented intelligence from source to
speaker. Via Cresnet®2 or high-speed Ethernet, Sonnex affords incredible integration
potential as part of a complete Crestron system, enabling seamless control of every
room and source through a wide selection of touch screens, keypads, wireless
remotes, computers and mobile devices. Complete setup is afforded via USB or
Ethernet using Sonnex Tools software, part of the Crestron Toolbox™ installer
toolkit.
1. Passive subwoofer support requires one zone output to drive the main left and right (i.e., satellite)
speakers, plus one additional zone output to drive a subwoofer with 140W @ 8 Ω, or two additional
zone outputs bridged to drive a subwoofer with 400W @ 8 Ω.
2. If using Cresnet as the control system interface, system expansion is limited to one Sonnex Link
device. Support for more than one expander requires Ethernet as the control system interface.
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 5

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
Applications
The following diagram shows a SWAMP-24X8 in a multi-zone application.
SWAMP-24X8 in a Multi-Zone Application
6 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
Specifications
Specifications for the SWAMP(I)-24X8 are listed in the following table.
SWAMP(I)-24X8 Specifications
SPECIFICATION DETAILS
Audio
Features 24x10 stereo matrix switcher, 8-channel
stereo DSP, 8-channel stereo power
amplifier, Sonnex Digital Audio Transport,
speaker profiles, Sonnex Speaker Protect,
5-band graphic or parametric EQ, Dynamic
Range Control (DRC), tone profiles, source
gain compensation, amp bridging, output
bussing, individual zone power control,
global standby, source signal detection,
amplifier temperature and fault monitoring,
priority modes1, paging1, do-not-disturb1,
alarm clock and sleep timer1
Input Signal Types Stereo analog line (unbalanced and
balanced), S/PDIF coaxial (2-channel PCM
only)
Output Signal Types Stereo speaker level, S/PDIF coaxial
(2-channel PCM only), Sonnex Link
Analog-to-Digital Conversion224-bit 48 kHz
Source Compensation2±10.0 dB per input
Input Monitoring Source Signal Detect
Digital-to-Analog Conversion324-bit 48 kHz
Output Power3140 Watts per channel at 8 Ω
240 Watts per channel at 4 Ω
400 Watts per channel at 8 Ωbridged
Damping Factor3> 200 @ 20 Hz
Amplifier Monitoring3Over Current, Over/Under Voltage, Over
Temperature, DC Offset, Clipping
Frequency Response320 Hz to 20 kHz, ±0.5 dB
Total Harmonic Distortion
(THD)3
0.02%
S/N Radio3>105 dB S/PDIF in, >100 dB balanced or
unbalanced analog in, A-weighted
Stereo Separation3> 90 dB
Zone Separation3> 95 dB
Zone Volume Level Control3-80.0 to +20.0 dB, adjustable from 0% to
100% plus mute
Bass Control3±12.0 dB
Treble Control3±12.0 dB
Loudness Compensation3On/Off
Dynamic Range Control3On/Off
(Continued on following page)
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 7

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
SWAMP(I)-24X8 Specifications (Continued)
SPECIFICATION DETAILS
Audio (continued)
Balance Control3Left/right adjustable
Mono Summing3Selectable
Power Limiting3Sonnex Speaker Protect (SSP) output
limiting;
Configurable 40 to 140 Watts @ 8 Ω
40 to 240 Watts @ 4 Ω
40 to 400 Watts @ 8 Ωbridged
Tone Profiles3Flat, Classical, Jazz, Pop, Rock, Spoken
Word
EQ Modes35-band graphic or 5-band parametric EQ
GEQ Center Frequencies363, 250, 1k, 4k, 16 kHz
GEQ Gain3±12.0 dB per band
PEQ Filter Types3EQ, High Pass, Low Pass, Treble Shelf,
Bass Shelf, Notch
PEQ Center Frequency310 to 20,000 Hz per band
PEQ Gain3±12.0 dB per band
PEQ Bandwidth30.1 to 3.5 octaves per band
Speaker Profiles3Comprises 5-band GEQ and SSP settings
Bus Volume Offset3±12.0 dB per zone for output bussing
Resolution/Bitrate424-bit 48 kHz
Communications
Ethernet For control and console, 10BASE-T /
100BASE-TX, auto-switching,
auto-negotiating, auto-discovery, full/half
duplex, TCP/IP, UDP/IP, CIP, DHCP
Cresnet For control and console Cresnet slave5
Sonnex Link 64-channel (48 utilized) digital audio
w/embedded control, auto-discovery,
auto-negotiating
Power Requirements
Main Power
SWAMP-24X8 12 Amps @ 120 Volts AC, 50/60 Hz
SWAMPI-24X8 6 Amps @ 220-240 Volts AC, 50/60 Hz
Cresnet Power Usage None
Environmental
Temperature 41º to 104º F (5º to 40º C)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 475 BTU/Hr (140 W @ 8Ω)
819 BTU/Hr (240 W @ 4Ω)
(Continued on following page)
8 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
SWAMP(I)-24X8 Specifications (Continued)
SPECIFICATION DETAILS
Enclosure
Chassis Metal with black finish, vented sides,
variable-speed fan-cooled
Front Panel Extruded aluminum, black finish with
polycarbonate label overlay
Mounting Freestanding or 4U 19-inch rack-mountable
(feet and rack ears included)
Dimensions
Height 7.51 in (191 mm) with feet
6.97 in (178 mm) without feet
Width 19.00 in (483 mm) with ears
17.29 in (439 mm) without ears
Depth 18.47 in (470 mm)
Weight 60.0 lbs (27.3 kg)
Available Accessories
AIR-SR AIR™ Outdoor Surface Mount Speakers
CBL-RCA Crestron Certified RCA S/PDIF Audio
Interface Cable
CBL-RCA2 Crestron Certified RCA Stereo Audio
Interface Cable
DM-CBL-8G High Performance Shielded Twisted Pair
Cable
DM-8G-CONN-100 Cable Connector for DM-CBL-8G, 100-
Pack
DM-8G-CRIMP Crimping Tool for DM-8G-CONN
EXCITE-IC Excite™ In-Ceiling Speakers
EXCITE-IW Excite In-Wall Speakers
S-EXT1-S Sonnex Link Over Fiber Extender
SAT-70V/100V-2 Sonnex Output Transformer, 2 Channels
SAT-70V/100V-4 Sonnex Output Transformer, 4 Channels
SWAMPE-4 Sonnex Multiroom Audio Expander, 4-Zone
SWAMPE-8 Sonnex Multiroom Audio Expander, 8-Zone
SWE-8 Sonnex Multiroom Audio Expansion
Switcher, 8-Zone
1. Feature enabled via control system program.
2. Typical of 24 Stereo inputs.
3. Typical of up to eight amplified stereo zone outputs.
4. Typical of up to two digital stereo zone outputs.
5. If using Cresnet as the control system interface, system expansion is limited to one Sonnex Link
device. Support for more than one expander requires Ethernet as the control system interface.
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 9

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
Physical Description
This section provides information on the connections, controls and indicators
available on the SWAMP-24X8.
SWAMP-24X8 Physical View (Front)
SWAMP-24X8 Physical View (Rear)
10 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System
SWAMP-24X8 Overall Dimensions (Top)
18.47 in
(470 mm)
17.29 in
(439 mm) 19.00 in
(483 mm)
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 11

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
SWAMP-24X8 Overall Dimensions (Front & Back)
7.51 in
(191 mm)
6.97 in
(178 mm)
1
21
14
2 5 6
7 98 10
15
16
1219
18
17
20
11 13
3 4
Connectors, Controls & Indicators
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
1 LCD Display and
BUTTONS
Green LCD alphanumeric, adjustable
backlight, 2 lines x 20 characters per line;
Displays source & zone setup, amplifier and
expander status, network & control
configuration, volume levels, and other
parameters;
(4) Push buttons for execution of LCD driven
functions
2 MENU (1) Push button, steps menu back one level
(Continued on following page)
12 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C

Crestron SWAMP(I)-24X8 Sonnex™ Multiroom Audio System

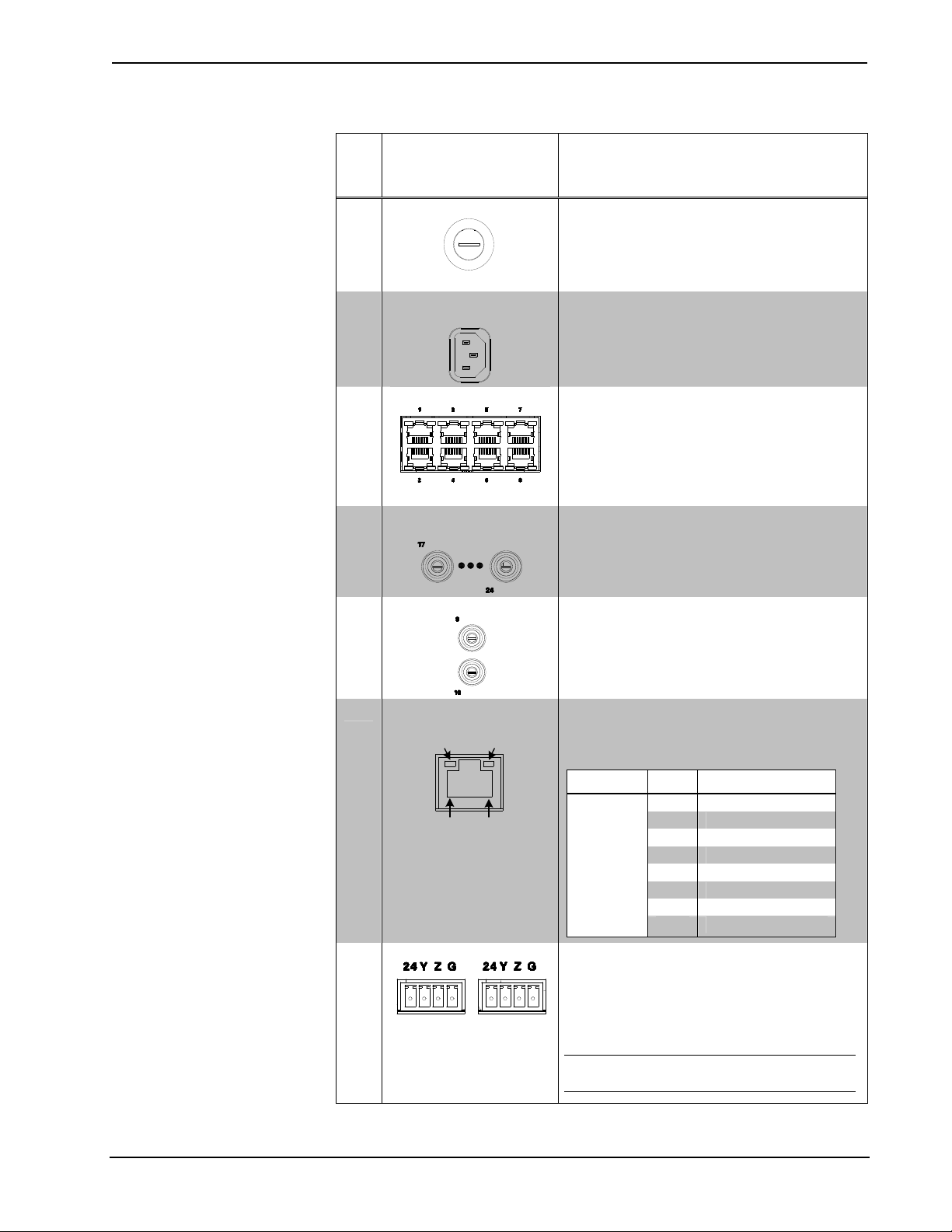

Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
3 (Up, Down)
(2) Push buttons, scroll up or down through
menu and adjust menu parameters
4 ENTER
(1) Push button, executes highlighted menu
item or value
5 On/Off
(1) Rocker switch, turns power amplifier on
and off and resets the unit
6 SOURCE (1-24)
Buttons and LEDs
124
(24) Push buttons and green LEDs, select
input source for routing and adjustment
7 COMPUTER
Pin 3 Pin 4
Pin 2 Pin 1
USB Type B female, USB 1.1 computer
console port (6 ft cable included)
PIN DESCRIPTION
1 +5 VDC
2 Data -
3 Data +
4 Ground
8 VOLUME
(1) Continuous turn rotary encoder, adjusts
audio volume
9 ZONE (1-10)
Buttons and LEDs
10
1
(10) Push buttons and green LEDs, select
output zone for routing and adjustment
10 ANALOG SOURCES
L/R (1–16)
16 Stereo Analog Inputs, (32) RCA female
comprising (16) unbalanced stereo line level
audio inputs;
Input Impedance: 10k Ω;
Maximum Input Level: 2 Vrms
11 ANALOG SOURCES
BALANCED (13-16)
L
R
(4) 5-pin 3.5 mm detachable terminal blocks
Balanced stereo line level audio inputs
(mutually exclusive of corresponding
unbalanced inputs);
Input Impedance: 20k Ω;
Maximum Input Level: 4 Vrms
(Continued on following page)
Operations Guide – DOC. 7049C Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 13

Sonnex™ Multiroom Audio System Crestron SWAMP(I)-24X8
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
12 FUSE
US/North America: T15AH (1/4” x 1-1/4”,
250V, 15A, time-lag, high-rupture rated) fuse2;
International: T8AH (5 mm x 20 mm, 250V,
8A, time-lag, high-rupture rated) fuse 2
13 120V~50/60Hz MAX
12A3
(1) IEC C14 male chassis plug, main power
input;
Mates with removable power cord
(included)
14 DIGITAL OUT (1-8)
(8) 8-wire RJ-45 female (8P8C modular jack);
Green LED indicates link status;
Amber LED indicates data communication on
the corresponding output;
Sonnex expansion link outputs;
Connect to Sonnex Link devices4,5
(sold separately)
15 S/PDIF SOURCES
(17-24)
(8) RCA female;
S/PDIF coaxial digital audio inputs;
Input Impedance: 75 Ω
16 S/PDIF OUT (9-10)
(2) RCA female;
S/PDIF coaxial digital audio outputs;
Output Impedance: 75 Ω
17 LAN
Green
LED
Yellow
LED
Pin 8 Pin 1
(1) 8-wire RJ-45 female (8P8C modular jack);
10BASE-T/100BASE-TX Ethernet port;
Green LED indicates link status;
Yellow LED indicates Ethernet activity
TYPE PIN SIGNALS
1 TX +
2 TX -
3 RX +
4 Connected to pin 5
5 Connected to pin 4
6 RX -
7 Connected to pin 8
8-Position
RJ-45
8 Connected to pin 7
18 NET
(2) 4-pin 3.5mm detachable terminal blocks
Cresnet slave ports, paralleled
24: Power (24 Volts DC)
Y: Data
Z: Data
G: Ground
NOTE: The NET port does not supply or
consume power.
(Continued on following page)
14 Sonnex™ Multiroom Audio System: SWAMP(I)-24X8 Operations Guide– DOC. 7049C
