Crime Guard CG 745i User manual

Page Page
L I M I T E D L I F E T I M E W A R R A N T Y
Products manufactured and sold by OMEGA RESEARCH & DEVELOPMENT, INC. (the
"Company"), are warranted to be free from defects in materials and workmanship under normal
use. If a product sold by the Company proves to be defective, the Company will repair or replace
it free of charge within the first year and thereafter all parts to be repaired will be free with only
a nominal charge for Omega Research and Development, Inc.'s labor and return shipping, to the
original owner during the lifetime of the car in which it was originally installed.
All products for warranty repair must be sent postage prepaid to Omega Research &
Development,Inc.,P.O.Box508,Douglasville,Georgia30133,orsendviaUPSto: 981N.Burnt
Hickory Rd., Douglasville, Georgia 30134, with bill of sale or other dated proof of purchase. This
warranty is nontransferable and does not apply to any product damaged by accident, physical or
electrical misuse or abuse, improper installation, alteration, any use contrary to its intended
function, unauthorized service, fire, flood, lightning, or other acts of God.
This warranty limits the Company's liability to the repair or replacement of the product. The
Company shall not be responsible for removal and/or reinstallation charges, damage to or theft
of the vehicle or its contents, or any incidental or consequential damages caused by any failure
or alleged failure of the product to function properly. UNDER NO CIRCUMSTANCES
SHOULDTHISWARRANTY,ORTHEPRODUCTCOVEREDBYIT,BECONSTRUED
AS A GUARANTEE OR INSURANCE POLICY AGAINST LOSS. The Company neither
assumes nor authorizes any person or organization to make any warranties or assume any liability
in connection with the sale, installation, or use of this product.
COPYRIGHT 1996: OMEGA RESEARCH & DEVELOPMENT, INC.
OWNER'S MANUAL
MODEL: CG 745i
ThisdevicecomplieswithF.C.CRulespart15.Operationissubjecttothefollowing
two conditions: (1) This device may not cause harmful interference and, (2) This
devicemustacceptanyinterferencethatmaybereceived,includinginterferencethat
may cause undesired operation. MO_745iREV1

Page Page
- 2
Table Of Contents
Note: This manual is written under the assumption that an optional door lock interface and
an auxiliary sensor are installed with your Crime Guard vehicle security system.
Transmitter Features .................................................................................................................. 4
Transmitter Operations .............................................................................................................. 6
Arming The System Using The Transmitter ............................................................................. 7
Passive System Arming By "Last Door Arming ........................................................................ 8
Security System Armed And Triggered ..................................................................................... 9
Disarming The System Using The Transmitter....................................................................... 10
Remote Panic Feature .............................................................................................................. 12
Optional Trunk Release And 3rd Channel Output.................................................................. 13
Using The Easy Valet Switch .................................................................................................. 14
Red LED Status Indicator ........................................................................................................15
Electronic Siren And Flashing Lights...................................................................................... 18
Backup Battery ......................................................................................................................... 20
Impact And Glass Sensor With Prewarn Feature .................................................................... 21
Programmable Features ...........................................................................................................23
Programming Transmitters ...................................................................................................... 28
Tips To Help Avoid Becoming A Victim Of Crime................................................................ 30
Limited Lifetime Warranty ....................................................................................... Back Cover
-31
illuminatin, take advantage of this feature to look in and around your vehicle
5) While in parking garage structures, always attempt to back-in to your parking
space. This will provide a less visually encumbered and quicker way to exit your
parking space if you are being pursued. This will also allow you to better see the
flashingexteriorlightconfirmation.
6) While driving or stopped at an intersection, if your vehicle is bumped in the rear
by another vehicle or the vehicle behind you is flashing its headlights, consider the
occupants of the vehicle hostile and immediately drive to the nearest police or fire
station."Bump and run" thievesandcarjackers are becominganincreasinglysevere
problem.
7)Whileparkedandsittinginyourvehicle,alwayskeepyourdoorslocked,windows
rolledupandengineidlingifpossible.Ifyouareapproachedbyapotentialcarjacker,
use your Crime Guard transmitter to Panic the system to scare the attacker away.
8) Control access of your keys. Never leave your house and other keys with a valet
parking attendant or mechanic.
9) After someone else has had access to your vehicle, always verify that your
transmittersstilloperateyoursystem,andusetheTransmitterVerificationfeatureto
ensure that no additional transmitters have been added.

Page Page- 5
a growing problem. Now when you leave your vehicle and keys with any individual
foranyreason,youwillhavethepeaceofmindofknowingthatonlyyourtransmitters
will operate the alarm and that no other person has coded extra transmitters to steal
your vehicle. For a period of 10 seconds after the vehicle is turned "on", the LED
Status Indicator will flash to indicate the number of transmitters programmed to
operateyoursecuritysystem.Forexample:twoflashesandapauseindicatethatonly
twotransmittersarecodedtooperateyoursystem.Note:Westronglyencourageyou
not to leave your Crime Guard transmitter with any unauthorized person.
Transmitter Code JumpingTM:Each time you transmit a code to the security
system,thetransmitterandsecuritysystemwilladvancetoanothercodetouseforthe
transmission.TheRandomCodeEncryption Transmitterpreventsathieffromusing
a "code grabber" device to record and play back a transmission for the purpose of
disarming your security system. Please note that pressing the transmitter's arm /
disarmbutton many times while it is out of rangeof the security system canadvance
itscodesbeyondtherangeofrecognition.Ifthisoccurs,simplypressthearm/disarm
button a few times to synchronize the Random Code Encryption between the
transmitter and the security system.
OperatingTwoVehiclesFromOneTransmitter:YourCrimeGuardtransmitter
is capable of operating multiple vehicles. See your Crime Guard dealer for details.
Prewarn Feature and the Code Learning Programmable Features chirps will still
operate.
9) Remote Temporary Chirp Bypass:
Feature Turned On: This feature will not work.
Feature Turned Off: Upon arming and disarming the security system, if the small
transmitterbuttonispressedandreleased,thenthelargetransmitterbuttonispressed
and released within 2 seconds, the security system will not have siren chirps for the
arminganddisarmingconfirmation.Thesirenchirpswillbedeletedforonlythatone
arm or disarm operation.
Programming Transmitters
Whenaddingordeletingtransmittercodestooperatethesecuritysystem,follow
thisprocess:
1) Turn"on" the ignition.
2) Within5secondsofturning"on"theignition,presstheEasyValetTM switch5times.
The siren will chirp, confirming that for the next 10 seconds the system is ready
to learn a transmitter code. When the first transmitter code is learned all other
be present. If a code is not received within 10 seconds, the learning process will
automaticallyterminate. -28 Continued Next Page

Page Page Continued Next Page
-26
3)TheExterior LightsStayOn30SecondsOr 60 SecondsAfterDisarming:
FeatureTurnedOn:Upondisarming,theexteriorlightswillstayonfor60seconds,
illuminating the way to your vehicle.
FeatureTurnedOff:Theexteriorlightswillstayonfor30secondswhenthesystem
isdisarmed.
4) The Security System Will Automatically Rearm Ninety Seconds After
Disarming:
Feature Turned On: When the transmitter has disarmed the security system, this
feature will rearm the system and lock the doors 90 seconds later, or until a vehicle
doorisopenedortheignitionisturnedon.Thisfeaturepreventsthesystemfrombeing
accidentally disarmed if a transmitter button is unknowingly pressed by an object
whileinapocketorpurse,orfromchildrenplayingwiththetransmitter.Note:When
Automatic Last Door Arming is utilized this feature will work automatically.
5) The Security System Will Also Disarm Upon Trunk Release:
FeatureTurned On:Whenthetrunk release feature isutilized,the security system
will also disarm at the same time, chirping the siren twice, unlocking the doors and
turning the exterior lights on for thirty or sixty seconds. Most other vehicle alarms
force you to disarm first and then release the trunk to avoid triggering the alarm.
Arming The System Using The Transmitter
ArmingTheSecuritySystemUsingTheTransmitter:Thesecuritysystemcan
alwaysbearmedfromthetransmitterprovidedtheignitionkeyis“off”,andthesystem
is disarmed and not in the Valet Mode. To arm the system, after you exit the vehicle
and close all of the doors, simply pressandreleasethe large transmitter button once,
Instantly the exterior and interior lights will flash once, the siren will chirp once and
the LED Status Indicator will begin to flash confirming that the system is armed.
Further,the doors willlockand the starter interruptrelaywill prevent anyattemptto
start the vehicle. Your security system is now fully armed, and is ready to respond if
an intrusion attempt is detected.
Arming By-Pass: Upon arming, if any sensor circuit is inoperable, that circuit
will be bypassed. For example, if the trunk is left open, you can still arm the system
normally from the transmitter. The bypassed circuit will automatically be reinstated
forprotection5secondsafterthatcircuitbecomesoperative,i.e.,the trunk is closed.
When a triggered circuit is in a bypassed state, all other operating circuits will be
protectednormally.
Sensor By-Pass: Your Crime Guard system provides you with the convenient
optionoftemporarilydeactivatingtheauxiliarysensor(seepage21)withoutaffecting
anyothertriggercircuit. To deactivate the auxiliary sensor, simply press andrelease
the small left transmitter button within 3 seconds after pressing the large transmitter
-7

Page Page
transmitter, because all protected entries must be closed prior to the Automatic Last
Door Arming sequence to start. Note: To prevent the system from automatically
arming while the vehicle is being refueled you should put the system in Valet Mode
(page 14), keep your door open or turn on your dome light switch so that the system
thinksyourdoorisstillopen.Wedonotrecommendleavingyourignitionkeyturned
"on". Note: Passive last door arming does not effect the operation of active arming.
-9 Continued Next Page
Security System Armed And Triggered
While the security system is armed, the LED Status Indicator will be flashing.
Should any intrusion attempt occur, your system will instantly "trigger". Once
triggered, the security system will respond by:
1) The electronic siren will be activated. Once activated, it will change siren
sounds every 5 seconds to attract more attention to the vehicle.
2) The exterior and interior lights will flash.
3) Thedoorswill relock.This featureis sounique thatthe securitysystem even
knowswhenadoorisopenand,ifso,thesystemwaitsuntilthedoorisclosed,
atwhichtimeitrelocksthedoors,sothatthethiefcannoteasilyregainentry.
The siren and lights will stay activated for 60 seconds, unless you disarm your
systemwiththetransmitterorplacethesysteminValetMode.Ifallprotectedentries
are secure at the end of 60 seconds, the system will rearm automatically to protect
against another entry attempt. However, if there is a protected entry still open or a
2) Automatic Last Door Arming.
Feature Turned On: The security system will arm itself automatically when the
vehicle'slastdoorisclosed.Atthemomentthelastdoorisclosedthesirenwillchirp,
the exterior lights will flash once, and the Status LED will flash fast. Thirty seconds
laterthesirenwillchirponceagain,thelightswillflash, andtheStatusLEDwillflash
slow, indicating that the security system is fully armed. If feature #3 is
selected,thedoorswillalsolockatthistime.Ifthenegativeinstanttriggerisgrounded
at any time during the thirty second countdown (Example: opening the trunk), the
Automatic Last Door Arming feature will be interrupted. When the negative instant
trigger becomes ungrounded, the security system will become fully armed thirty
seconds later. Note: All of the doors and the trunk must have the proper connection
ofthecontrolmodule'swiring.Thisfeatureallowsunhurriedpassengerexitandtrunk
access, as the Last Door Arming process does not start until the last door or trunk is
closed,andopeninganydoor or the trunk will interrupt the process. You can still, of
course, actively arm the security system with the transmitter at any time.
3) Doors Will Also Lock With Last Door Arming:
Feature Turned On: When the security system passively arms from the Last Door
Armingfeature, thedoorswill also lockifan optionaldoorlockinterface wasadded.
Thiswilloccurwhenthesystembecomesfullyarmed30secondsafterclosingthelast
door.
-24

Page Page
instanttriggersbypassed(PortA)orjusttheprewarntriggerbypassed(PortB).When
usingtwosensors,themostsensitiveofthetwosensorswillgenerallybepluggedinto
PortA.An exampleofthisflexibilitywouldbea sensitiveshocksensorpluggedinto
PortAandaradarsensorpluggedintoPortB.Whentheremotesensorbypassfeature
isused,theshocksensorwillbecompletelybypassedandtheexteriorzoneoftheradar
sensor will also be bypassed. This leaves only the interior zone of the radar sensor
intact, reducing a possible false alarm caused by parking in an area of heavy traffic
orothervibrations,whileleavingtheradarsensor'sinteriorzoneaspartofthesecurity
systems protection. The dual auxiliary ports' operation allow extreme flexibility in
designing a custom security system.
If the system is triggered by the sensor plugged into Port A the Zone Violation
feature will flash the LED Status Light four times between pauses. If the system is
triggeredbyasensorpluggedintoPortBtheZoneViolationfeaturewillflashtheLED
Status Light twice between pauses.
PrewarningShock DetectionCircuit:This circuitrequiresconnection to an
auxiliary detection sensor device. When the sensor is triggered by a light impact or
shocktothevehicle,thesecuritysystemwillrespondbychirpingthesiren3timesand
locking all of the doors. After this circuit has been triggered 5 times it will
automaticallyshutdownuntilthealarmsystemisrearmedagain.Thiswillpreventthe
security system from being a nuisance to the general public.
-22
turningonfor30seconds,exceptunderthefollowingconditions:1)thelightswillturn
off 10 seconds after a door has been opened, or 2) the lights will turn off instantly if
the ignition switch is turned "on". Note: If the system was triggered and reset while
you are away, the disarm confirmation will change to 4 siren chirps, 4 light flashes,
andthen the lights will stay on for 30 seconds,to illuminate the way toyour vehicle.
Thesecurity system will havethisresponseupon disarming untiltheignitionswitch
is turned "on", which clears the unit's memory. Note: Anytime the security system
triggers, the LED Status Light will indicate which zone triggered the system by
flashingonetofourtimes,pausingbetweenflashes.Thiscodewillcontinuetoflash,
evenafterdisarming.Thesystemcanholdtwodifferentviolationcodesinit'smemory,
which is cleared by turning the ignition switch "on".
Your CG 745i vehicle security system offers a very high level of personal safety
and convenience with the advanced features utilized upon disarming. The ability to
unlockthedriver'sdooronlypreventsapotentialattackerfromgainingentryintoyour
vehiclefromtheotherdoors,you'llknowinstantlyifyoursystemwastriggeredwhile
you were away, and the exterior and interior light illumination allows you a lighted
approach to your vehicle with the ability to examine the interior before entry. If you
wish,yourdealercanprogramthesystemtoturnontheexteriorandinteriorlightsfor
sixty instead of thirty seconds upon disarming.
AutomaticRearmingFeature:Shouldyouunknowinglyactivateyourtransmitter,
whichresultsinyoursystemdisarming,yourCrimeGuardsystemwillautomatically
-11 Continued Next Page

Page Page
-20 Continued Next Page
Backup Battery
This security system includes a 9 volt alkaline battery and a slide bracket holder
which attaches to the security system control module. The 9 volt battery is all that is
required to provide alternative power to operate the system if the vehicle's battery is
disconnected.Abuilt-inprotectioncircuitwillnotallowthe9voltbatterytobackfeed
voltageinto the vehicle's electricalsystem.
Whileonbackupbatterypower,toconservethebackupbattery,thesystemwillnot
havesomefunctions-flashingexteriorlightsandtheLEDStatusIndicator.Thesiren
will still have full sound output, and all trigger circuits will be active except current
sensingandanyoptionalsensors.TheStarterInterrupt,however,willworkatalltimes
from battery backup. Replacement 9 volt alkaline batteries can be purchased
anywhere batteries are sold. We recommend the battery be replaced with another
alkalinebattery every 18 months or after the 9 voltbattery has operated the alarmon
its own for any length of time. Under the following conditions, a new 9 volt alkaline
battery's life is anticipated to be approximately:
1. 2 days as the only power source to the system while in the armed condition.
2. 25 triggered cycles. A triggered cycle is the 60 second period after thesecurity
system is triggered, in which the siren is sounding. The cycle ends when the
system automatically resets to the armed state.
3. 50 separate transmitter arm and disarm activations.
4. 18 months if the 9 volt battery circuit has not been activated. -13
Optional Trunk Release And 3rd Channel Output
OptionalTrunkRelease:Ifyourvehicleisequippedwithelectrictrunkrelease,
yourauthorized CrimeGuarddealer canconfigure yoursystemtoaccomplishtrunk
releasefromyourtransmitter.Tooperatethisoptionwhenequipped,simplypressand
holdthesmalltransmitterbuttonontherightfor3seconds.Yourvehiclewillrespond
byreleasing the trunk lid,chirpingthesiren twice, disarmingthesystemand turning
onyourexteriorandinteriorlightsfor30seconds.Note:Thetrunkreleaseoutputwill
not operate with the ignition switch "on" unless the vehicle's door is open.
If desired, your Crime Guard dealer can program the security system to remain
armed when this feature is used.
Optional 3rd Channel Output: This output's operation is the same as the trunk
releaseoutputexceptforthefollowingitems:Pressthesmalltransmitterbuttononthe
left for 3 seconds to activate the 3rd channel output. The 3rd channel output will not
operate while the ignition switch is "on", and there is no chirp confirmation. This
output can be used to operate optional equipment such as remote car starters or
windowroll-upmodules.
will respond by activating the siren, locking the doors and flashing the exterior and
interiorlightsfor60seconds.ShouldwishtoenteryourvehicleordisengageRemote
Panic, simply press and release the large transmitter button.

Page Page Continued Next Page
-15
feature, the doorlocks, and trunk release; the doors will also lock when the ignition
switch is turned "on" and unlock when it is turned "off"'. Note: While the security
system is in the Valet Mode, every time the ignition switch is turned "off", the siren
will chirp once as a reminder.
ToTurnOffTheEasyValet:Simplypress theEasy ValetSwitch, andinstantly
the security system will exit out of Valet Mode. To confirm that the Valet Mode is
turned off, the LED Status Indicator will turn off.
Disarming The Security System If The Transmitter Is Lost: In the event the
transmitterislost,damaged,oritsbatteriesbecomeexhausted,the EasyValetSwitch
and your ignition key can be used to disarm the system:
STEP 1. Withthesysteminthearmedcondition,enterviathedriver'sdoor(beaware
that the security system will trigger the instant the door is opened).
STEP 2. Use the ignition key to turn "on" the ignition switch.
STEP 3. Within 5 seconds, press the Easy Valet Switch. The security system will
instantlydisarm.
Red LED Status Indicator
The LED Status Indicator feature is a visual indicator of what state the security
system is in at any given time. It is normally positioned in a location that is easily
-18 Continued Next Page
Electronic Siren And Flashing Lights
The electronic siren and the vehicle's exterior lights primary function is to attract
attentionto your vehicle if the security systemis triggered. In addition,they are also
usedtocommunicatewith you,as awayofconfirmingactionsthathave takenplace,
or, that may be in process of automatically taking place. A chirp is the short, sharp
sound the siren makes as part of this communication. The exterior lights referred to
are the vehicle's parking lights. We do not recommend flashing the headlights. The
halogenheadlightsfoundinmodernvehiclesarenotdesigned toberapidlyturnedon
and off. If connected to the security system, a reduction of their useful life may be
noticed.
SirenChirpWithLightFlashConfirmationForArming,Disarming&Valet
Activation:Thefollowingsirenchirpsandflashingexteriorlightactionsinformyou
of these conditions of the security system:
1) One siren chirp and one light flash: The system has armed.
14) Flash-2x & Pause = The security system has detected a trigger from the hood,
trunk circuit or the Port B optional auxiliary sensor input.
15) Flash-3x & Pause = The security system has detected a trigger from the door
circuit.
16) Flash-4x & Pause =The security system has detected a trigger from thePort A
auxiliary sensor input.

Page Page
observedby the driver.Thereare 16possibleconditions that thesecuritysystem can
be in, and are reflected by the LED Status Indicator:
1) Off = The security system is disarmed and not performing any
automatic functions.
2) On Constant = The security system is in the Valet Mode.
3) Flashing Slow = The security system is Fully Armed.
4) Flashing Fast = The 30 second Last Door Arming feature or 90 second
Automatic Rearming feature is in progress.
TransmitterVerificationTM(PatentPending):Aftertheignitionisturned"on",
theLEDStatusIndicatorwillflashtoindicatethenumberoftransmittersprogrammed
to operate your security system. For example: two flashes and pause indicates that
only two transmitters are coded to operate your system. Whenever you leave your
vehicleandkeyswithsomeone,youwillnowhavethepeaceofmindofknowingthat
only your transmitters will operate the security system and that no additional trans-
mittershavebeencodedintoyoursystemforthepurposeofstealingyourvehicle.This
feature works for 10 seconds every time the ignition switch is turned "on".
5) Flash-1x & Pause = 1 transmitter code is stored in the system's memory.
6) Flash-2x & Pause = 2 transmitter codes are stored in the system's memory.
7) Flash-3x & Pause = 3 transmitter codes are stored in the system's memory.
8) Flash-4x & Pause = 4 transmitter codes are stored in the system's memory.
Zone Violation: If the system is triggered, the LED Status Indicator will start to
flash and pause the #9 through #12 sequences to indicate which protected circuit
triggeredthesystem.Thisisseenwhilethesystemisarmed,andafterdisarming,until
theignitionswitch is turned "on", which will cleartheZoneViolationcode from the
securitysystem'smemory.Theunit'memorycanstoretwodifferentviolationcodes.
9) Flash-1x & Pause = The security system was triggered from the current
sensing circuit.
10) Flash-2x & Pause =Thesecurity systemwastriggeredfromthehoodor trunk
circuit.
11) Flash-3x & Pause = The security system was triggered from the door circuit .
12) Flash-4x & Pause = The security system was triggered from the optional
auxiliary sensor input.
ZoneTesting:Everytimetheignitionkeyisturned"off",theLEDStatusIndicator
will flash and pause the #9 through #12 code to indicate what protected circuit is in
a triggered state. Example: Open a door and the LED Status Indicator will start
flashing3timesandpauseuntilthedoorisclosed,or,ifanotherprotectedentrypoint
istriggeredwhilethedoorisstillopen,thentheLEDStatusIndicatorwillindicatethe
most recent zone triggered. Current sensing can only detect a "spike", so the LED
Status Indicator will flash once only during a current spike.
13) Flash-1x & Pause = The security system is detecting a trigger from the current
sensing circuit.
-16 -17
Continued Next Page Continued Next Page

Page Page
-30 Continued Next Page
Tips To Help Avoid Becoming A Victim Of Crime
This section contains useful tips on your personal safety. Your decision to
purchasea CrimeGuardvehiclesecuritysystemshouldbepart ofanoverall attitude
ofavoidingthreateningsituationsandtheprotectionofyourself,yourfamilyandyour
possessions. A vehicle security system does not guarantee that a vehicle will never
suffer theft or vandalism. No product or service can offer that. A vehicle security
system is a deterrent- by "hardening the target" you are making it more difficult for
athieforvandaltovictimizeyou.Themainfactorinstayingsafeandsecure,istouse
commonsense. Pleasereviewthese hints:
1)Neverleaveanythingofvalueinsideyourvehicleinplainsight."Smashandgrab"
theft is on the increase.
2) Always be aware of your surroundings. An alert and aware person is less likely
to become a crime victim than someone who is preoccupied and easily approached.
3) While driving in high crime areas, always keep your doors locked and your
windows up. Your Crime Guardsecurity system can automatically lock your doors
when the ignition switch is turned "on".
4) Always attempt to park your vehicle in a well lit and visible location with your
systemactivatedanddoors locked. Since your system has interior and exterior light -3
Introduction
CongratulationsonyourpurchaseofyournewCrimeGuardsecuritysystem and
onjoining over8million peopleworldwidewho havetrustedtheir vehicle'ssecurity
tothedesignersofOmega Research&Development,Inc.Inlearninghowtooperate
your security system, please become familiar with the following three principal
components: the Remote Transmitter, the Red LED Status Indicator and the Easy
ValetSwitch.
The Remote Transmitter: Each security system comes with two pre-learned
transmitters, but can learn up to 4 different transmitters. The transmitter has three
buttons: one large button in the middle and two smaller buttons. This system is pre-
programmed,throughabuilt-inlearningroutine,tohavethetransmitterbuttonswork
inthefollowingconfiguration:
The large button is used to arm, disarm and panic the security system.
Thesmallleftbuttonisused,inconjunctionwiththelargebutton,tooperateremote
sensorbypass, remote chirp elimination and remote valet. Used aloneit operates
the channel #3 output.
The small right button can be used to operate the trunk release feature.
The Red LED Status Indicator: Informs you of 16 possible conditions the
security system can be in and also serves as a visual deterrent to break-ins and theft.

Page Page
-4
The EasyValet Switch: This switch prevents the security system from arming
during extended stopovers at service stations, valet parking, car washes, etc. The
ValetSwitch isalsoused to temporarilyoverrideand disarmyoursecurity systemin
theeventyouloseyourtransmitterandtoinitiatethetransmittercodelearningprocess.
Pleasespendtimereviewingthisguidetobecomefamiliarwithyour CrimeGuard
vehicle security system. We have also included a section with tips on how to avoid
becomingavictimofcrime.YouwillfindthatyournewCrimeGuardvehiclesecurity
system will give you years of trouble-free convenience and protection.
Continued Next Page
Transmitter Features
ExtendedTransmitterRangeTechnology:Advancedtransmitterdesignoffers
almosttwiceasmuchrangeasconventionalsystems.Thishelpsovercomeproblems
encountered in urban areas due to excessive amounts of interference.
TransmitterCodeVerificationTM (PatentPending):IntheeventtheLEDStatus
Indicatorflashesatotaldifferentfromthenumberoftransmittersyouhaveprogrammed
tooperateyoursystemyoucannoweraseallcodesandimmediatelyreprogramyour
transmitters at that time. The patent-pending Code VerificationTM feature, which is
standard in Crime Guard vehicle security systems, is the industry's first response to
3) To learn the first transmitter button codes:
Step A Within 10 seconds of step #2, press the transmitter button that is wanted
to arm/disarm/panic the system (Factory coded as the large transmitter
button) until one siren chirp is heard to confirm that the code was learned
and that the system is ready to learn the trunk release code.
StepB Within10secondsofstepA,pressthetransmitterbuttondesiredfortrunk
release (Factory coded as both the small transmitter button on the right)
until two siren chirps are heard to confirm that the code was learned and
that the system is ready to learn the remote valet, optional sensor bypass
and remote chirp deletecode.
StepCWithin10secondsofstepB,press thetransmitterbuttonthatis wantedfor
remote valet, optional sensor bypass and remote chirp delete code
(Factorycodedas the small transmitter button on theleft)untilthreesiren
chirps are heard to confirm that the code was learned and that the system
isreadytolearnthe 2nd, 3rd or 4th transmitter codes, the process for each
restarting at step A.
4) To program the second, third or fourth transmitter codes, repeat steps A, B, & C.
5) Turningofftheignition,or10secondsofnoactivity,willautomaticallyturnoffthe
transmitter learning code program, which is confirmed by one siren burst. Since
prior codes will be erased, all transmitters desired to operate the system must be
present and relearned. -29

Page Page
-6
Transmitter Operations

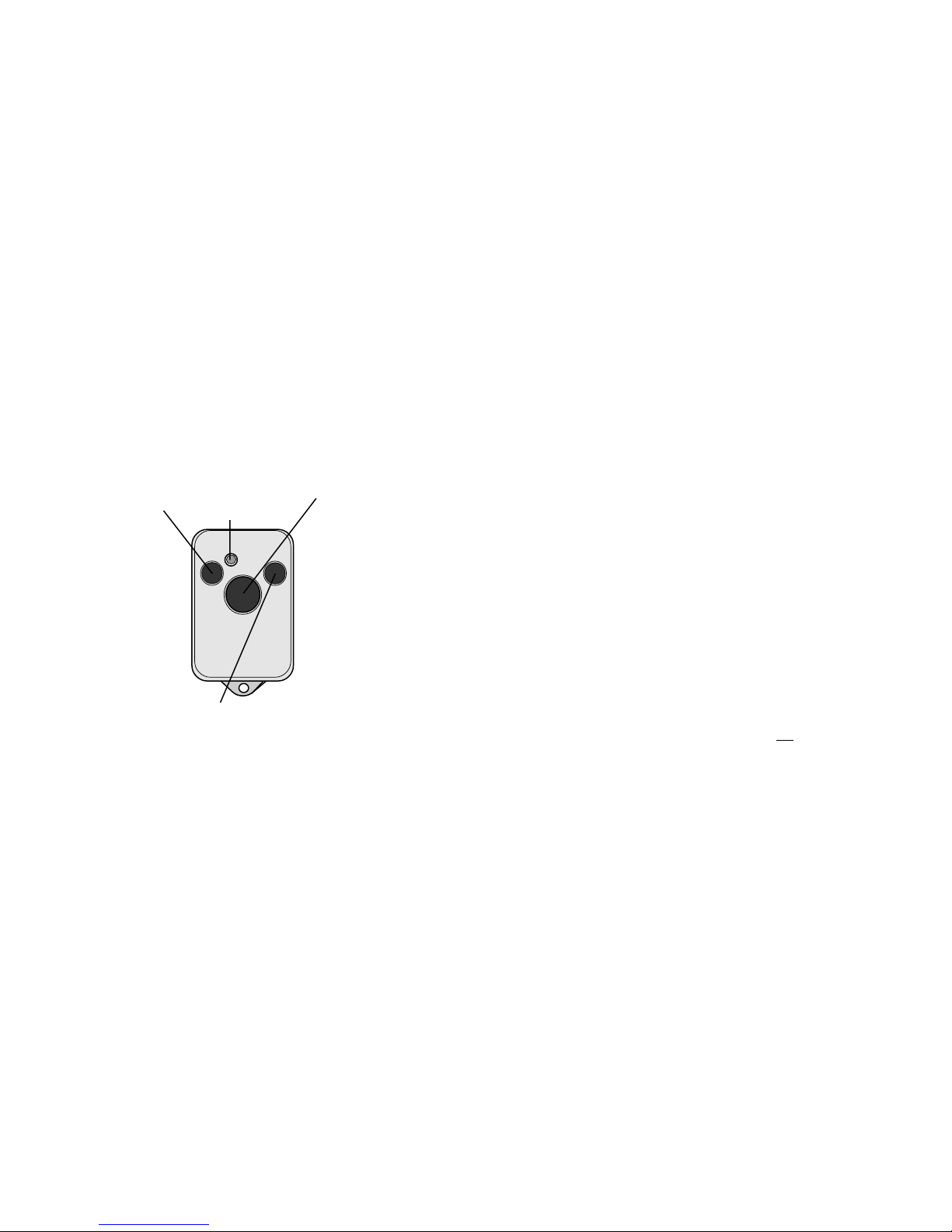

CRIME GUARD
Small Right Transmitter
Button- If this button is
pressed and held for 3 sec-
onds, the security system
willactivatethetrunkrelease
function.
GreenLEDLight-Illu-
minates and confirms
transmissionwhenevera
button is pressed.
Small Left Transmitter
Button- If this button is
pressed and then the large
button is pressed within 3
seconds, the security system
will arm or disarm without
siren confirmation chirps. If
this button is pressed within
3 seconds after arming the
system, Auxiliary sensor A
will be turned off and Auxil-
iary sensor B will only have
an instant trigger. Pressing
the small left transmitter but-
ton may be used to activate
other optional modules
through the 3rd channel out-
put (Example: car starting
equipment or power window
roll up units).
NOTE:Yourtransmitterusesan
industry standard 12 volt bat-
tery,whichisavailablefromyour
Crime Guard dealer.
LargeTransmitterButton-
Pressing and releasing this
button will arm and disarm
the security system. If the
optional doorlock interface
is installed, the doors will
lock upon arming, and un-
lockupondisarming.If you
have the optional unlock
driver's door feature, then
upon disarming only the
driver'sdoorwillunlock,and
ifthelarge buttonispressed
againwithin5seconds,allof
thedoorswillunlock.Press-
ing and holding this button
for 3 seconds will "Panic"
thesystem-whichwillsound
the siren, flash the exterior
and interior lights and also
lock the doors.
-27 Continued Next Page
6) .8 Or 3 Second Door Lock Pulse Time:
Feature Turned On: The doorlock outputs have a .8 second negative pulse to an
optional doorlock interface to operate the vehicle's power doorlocking system.
Feature Turned Off: The doorlock outputs have a 3 second negative pulse to an
optional doorlock interface to operate the vehicle's vacuum doorlocking system.
7) 3 Or 45 Second Fully Armed Delay After Arming Chirp Confirmation:
Feature Turned On: The security system will be become fully armed 3 seconds
after the arming siren chirp confirmation.
Feature Turned Off: The security system will be become fully armed 45
seconds after the arming siren chirp confirmation.
Note: During the arming delay if any protected circuit should go into a triggered
state, the system will arm, but that circuit will be unprotected until it reverts back
to an untriggered state.
8) Confirmation Chirp On Or Off:
Feature Turned On: The security system will chirp the siren for confirmation that
the system armed and disarmed.
With Feature "Off": The security system will not have siren chirps for the
arminganddisarmingconfirmation.Note:Turningthisfeatureoffwillalsoeliminate
thethreechirpsuponarmingifthenegativeinstanttriggercircuitisgrounded,andthe
four chirps upon disarming if the system was triggered and reset. However, the

Page Page
4)CurrentSensing.
FeatureTurnedOn:When thesecuritysystemisarmed, currentsensingcan detect
a positive current draw from the vehicle's battery. (Example: the dome light comes
on when a door is opened or the brake lights come on when the brake pedal is
pressed). With this feature on, the security system will trigger if a current draw is
detected.
Nine Features Programmed By Easy ValetTM Switch And The Transmitter:
1) The Doors Will Lock At Ignition "On", Unlock At Ignition "Off".
FeatureTurnedOn:Thesecuritysystemwillautomaticallylockthevehicle'sdoors
onesecondaftertheignitionswitchisturned"on",andunlockthedoorstheinstantthe
ignitionswitchisturnedoff.Thisfeatureaddsconsiderablepersonalsecuritytoyou
and your family.
2) Adding Open Door Bypass To Feature 1:
Feature Turned On: When the security system locks and unlocks the doors from
Feature 1, if a door is open the doors will not automatically lock when the ignition
switch turns "on", or automatically unlock when the ignition switch is turned "off".
Thispreventsaccidentallylockingyourselfoutofthevehiclebyturningthedomelight
on if leaving it momentarily. This feature also prevents children from exiting the
vehicle by opening your door before turning the ignition switch "off" (most modern
cars allow you to open the door by using the inside handle).
-25 Continued Next Page
button when arming the system. You will hear a second siren chirp, confirming the
securitysystemhasarmedwithoutthesensorcircuitprotectingthevehicle.Thenext
time you arm the security system, the system will reset to its normal condition, and
the optional sensor will again be part of your protection.
You can also pre-select your security system to automatically arm and lock the
doors.Thisinformationisdescribedinthefollowingsection.
-8 Continued Next Page
Passive System Arming By "Last Door Arming"
Your security system can be programmed to arm automatically when the
vehicle'slastdoorisclosed.Themomentthelastdoorcloses,thesirenwillchirponce,
theparking lights and dome lights will flash once and the LED Status Indicatorwill
begintoflashrapidly.Thirtysecondslaterthesirenwillchirpagain,thedoorswilllock
(IfthePassiveLockfeaturehasbeenchosen)andtheLEDStatusIndicatorwillslow
to a steady flash, confirming that the security system is fully armed. However, if a
point of entry is reopened before the single chirp at 30 seconds, the passive arming
process stops, and will reset to start over again when that point of entry is reclosed.
"Automatic Last Door Arming" offers a high level of security, since it does not
requireyoutoremembertoactivatethesecuritysystemwhenyouleaveyourvehicle.
Additionally,AutomaticLastDoorArmingmayentitleyoutoaninsurancediscount.
Note: Arming By-Pass (page 7) does not operate with the Automatic Last Door
Armingfeature.Thisbypass featureis designedtoworkonlywhenarmingfrom the

Page Page-23
Programmable Features
Your Crime Guardvehicle security system has 13 programmable features that
allowyoursystemtobecustomized tofit yourpersonal needs.Four ofthesefeatures
are selectable by the DIP Switches inside the security system control module. The
otherninefeaturesareprogrammedbyusingacombinationoftheignitionswitch,the
Easy ValetTM switch and the transmitter. Please see your Crime Guard dealer or
installer for more details, as we recommend that the installer change any of the
followingfeatures.
Four Features Programmed By DIP Switches Inside The Control Unit:
1) Anti-Carjacking Protection.
FeatureTurnedOn:Afterturningthe ignitionswitch "on"andstartingthevehicle,
you must press the Easy ValetTM switch within 60 seconds. If the valet switch is not
pressed the security system will begin chirping 53 seconds after the ignition was
turned"on".Thesechirpsare toremindyouthattheAnti-Carjackisaboutto engage;
pressing the valet switch during the chirps will stop the Anti-Carjack feature. The
chirps will last for 7 seconds, after which time the siren will fully engage and the
parking lights will begin flashing to attract attention to the vehicle. 30 seconds after
thesirenandparkinglightsengage,or,anytimetheignitionisturned"off"thestarter
interrupt will engage. Once the Anti-Carjack is engaged, the only way to disengage
itistoturntheignition"off",thenback"on"again,andthenpressthevaletswitchwithin
5 seconds. Continued Next Page
-10
sensor still in a triggered state at the end of the 60 seconds, the system will retrigger
fortwo more 60 second cycles. Should thisoccur the system willstop after a totalof
3minutes,whileignoringonlytheopenentryortriggeredcircuit.Shouldtheentrybe
closed,protection will begininstantlyfor thatcircuit.
After the security system has been triggered, after it resets the disarm
confirmationwillnolongerbe2chirps andthe exteriorand interiorlights comingon
immediately and staying on for 30 seconds. Instead, the system will respond by
producing4sirenchirpsandflashingthelights4timesbeforethelightsstayonfor30
seconds. Also, the LED Status Indicator will indicate which zone activated the
system. This is accomplished by the status indicator flashing one to four times
between pauses, as defined on page 16, until the ignition key is turned "on".
Disarming The System Using The Transmitter
Disarming The System From The Transmitter: While the security system is
in the armed state, pressing and releasing the large transmitter button once will
instantly disarm the system and unlock the doors. If you have the optional unlock
driver'sdoorfeature,thenupondisarmingonlythedriver'sdoorwillunlock,andifthe
large trans-
mitter button is pressed again within 5 seconds, all of the doors will unlock.
Disarming is confirmed by two siren chirps and the exterior and interior lights

Page Page
-12
rearm itself after 90 seconds and once again lock the doors. This feature is
programmable and may be turned off. See your Crime Guard dealer or installer for
details.Note:Automatic Rearmingcanbepausedbyopeningthedoororstoppedby
turning "on" the ignition key. Note: Automatic Rearming is confirmed by a fast
flashing LED Status Indicator after disarming, unless the system was triggered and
reset, in which case a Zone Violation code will flash instead.
Remote Valet Activation: Remote Valet allows you to prevent your Crime
Guard system from automatically rearming by utilizing your transmitter. Within 3
seconds of hearing the disarm siren chirps, press and release the small transmitter
buttonontheleft,whichwillactivatetheRemoteValet.Oncethesystemhasentered
RemoteValetmode,theexteriorlightswillflashevery2secondsduringthe30second
periodinsteadofthelightsstayingon.ThesystemwillstayinRemoteValetmodeuntil
armedagainfromthetransmitter or, if Automatic Last Door arming is utilized, until
a door is opened and closed.
Remote Panic Feature
RemotePanic Activation From TheTransmitter:Should you feel threatened
or the need to attract attention at any time you can activate your Crime Guard's
RemotePanicfeature by depressing the large transmitter buttonfor3seconds.Your
system Continued Next Page -21
You may want to ask the installing dealer if this is a service that they provide, and if
there will be any charge for this service. If you plan on replacing the 9 volt battery
yourself, be sure to have the installer show you how to access the security system's
control unit.
Impact And Glass Sensor With Prewarn Feature
Your Crime Guard security system features two ports which allows an auxiliary
sensor to easily be added to increase the effectiveness of your system. Your system
includes a Dual Zone Infrasonic Impact and Glass Resonance sensor, which will
detect shock or impact to your vehicle. A light shock or impact to the vehicle will
initiate the Prewarn feature, while heavier shock or impact will trigger the security
system. Other sensors are available which include those that monitor shock to the
vehicle,detectchangesinatmosphericpressurewithinthevehicle,andradarsensors
thatcandetectmotioninsideandoutsidethevehicle.Thesensormaybetemporarily
bypassed using the transmitter, which is described on page 7.
The following differences in operation of the two auxiliary sensor ports
concerningthe sensor bypassfeatureshould benoted:Port A, whichison the corner
ofthesecurity systemcontrolmodule,willhaveboththenegativeinstanttriggerand
theprewarntriggerbypassedwhenthisfeatureisutilized.PortB,justinboardofPort
A, will have only the prewarn trigger and not the negative instant trigger bypassed.
This allows the option, when installing a single sensor, of having both prewarn and

Page Page
Continued Next Page
Using The Easy ValetTM Switch
TheprimaryfunctionoftheEasyValetSwitchistoenteryoursecuritysysteminto
ValetMode, whichpreventsthe system fromarming.You willfindthis usefulwhen
stoppingatservicestations,havingyourvehicleserviced,havingyourcarvaletparked
or while having your car washed. The Easy Valet Switch, in conjunction with
the ignition key, can be used to disarm the system should your transmitter be lost or
becomeinoperable.TheEasyValetSwitchisnormallymountedinahiddenlocation
thatisaccessibletothedriver.BesureyourCrimeGuarddealerindicatesthelocation
of the Easy Valet Switch to you to avoid potential inconvenience otherwise.
To Turn On The Easy Valet: This unique feature can be activated anytime the
systemis disarmed. This patent-pending feature allows youto enter the ValetMode
by simply depressing the Easy Valet switch, provided the system is not armed.
However, if the system is armed or in the triggered state, the ignition needs to be
turned "on" and then the Easy Valet Switch pressed within 5 seconds to disarm the
system by entering Valet Mode.
Simply press and hold the Easy ValetSwitch for 2 seconds to activate the Valet
Mode.ThesystemwillconfirmthatitisintheValetModebychirpingthesirentwice,
andthe LED Status Indicatorwillilluminate. The securitysystemwillhold memory
oftheValetModewhentheignitionswitchis"on"or"off".WhileintheValetMode,
althoughthesystemwillnotarm,thetransmitterswillstilloperatetheRemotePanic
-14 -19 Continued Next Page
2) One siren chirp after the arming chirp above: The optional sensor circuit is
bypassed.
3) Two siren chirps (and no lights): Trunk release has been activated while the
security system is in Valet Mode.
4) Two siren chirps and lights stay on for 30 seconds: The system has just disarmed.
Note: Activating the Trunk Release feature will also disarm the security
system.
5) Two siren chirps & two light flashes: The system is entering the Valet Mode.
6) Three siren chirps and three light flashes: The system is arming with a protected
circuit still open or an optional sensor in a triggered state, and these circuits
will be bypassed.
7) Foursirenchirps &four lightflashes,thenthelightsstayon30or60seconds: The
security system has just disarmed and was triggered and reset while you were
away.
8) Lightsstartflashingevery2secondsduringthe60seconddisarmingconfirmation:
The system has entered the Remote Valet condition.
9) Siren sounding, changing sounds every 5 seconds, and lights flashing on and off:
The system is in a triggered state.
10) One siren chirp (and no lights) when the ignition switch is turned "off": The
security system is in Valet Mode.
11) Three siren chirps (and no lights) while the security system is armed: The
Prewarn feature has been activated.
