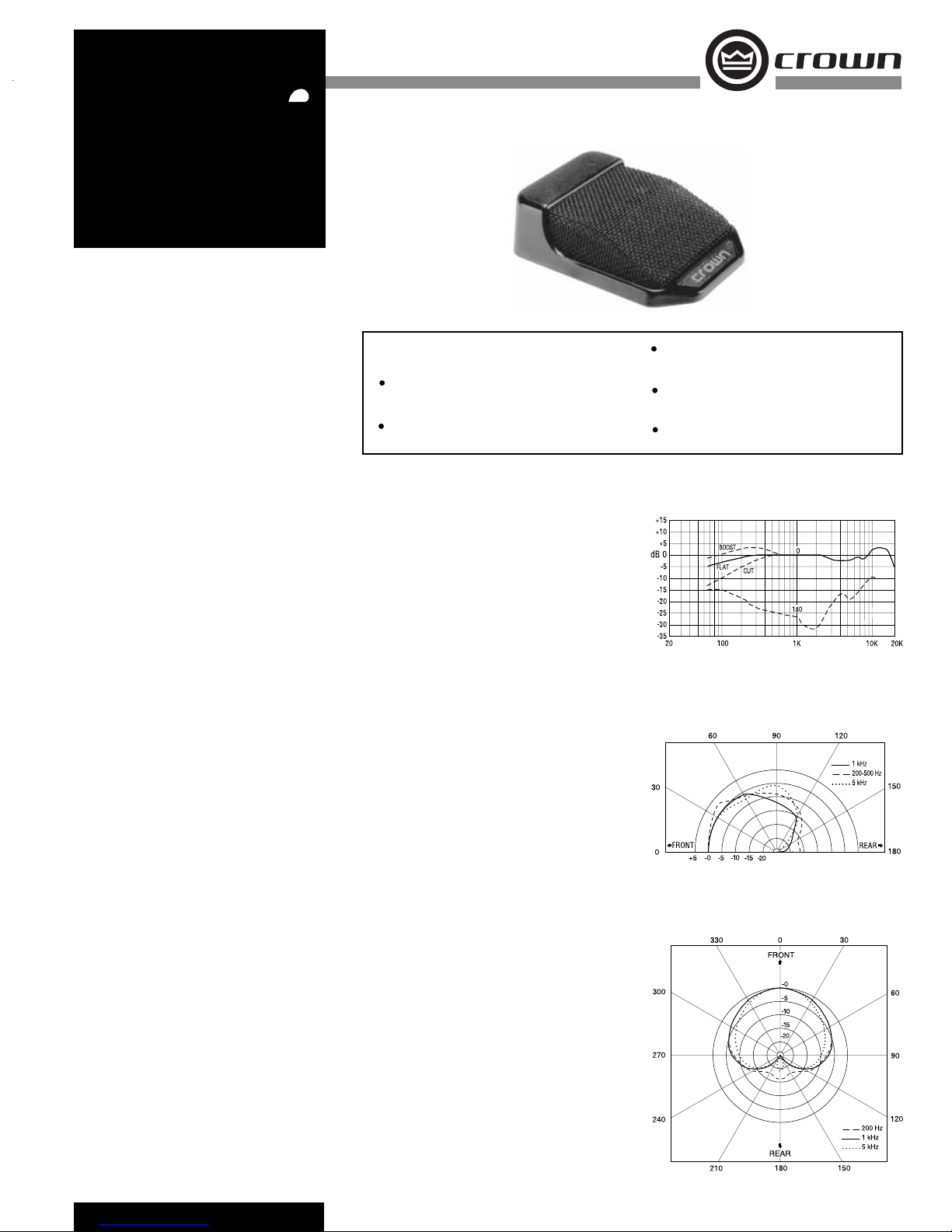

Crown PCC-130 User manual

POLAR
PATTERN
PCC®-130
The Crown®PCC®-130 is a surface-
mounted small cardioid microphone
of professional quality. This handsomely
styled unit is appropriate for use on the most
elegant boardroom table or lectern. Other ap-
plications include churches, courtrooms and
teleconferencing.
With its small size, the PCC-130 is less con-
spicuous on a conference table than comparable
mics. Because of its highly directional pickup
pattern, the PCC-130 minimizes background
noise and feedback.
The microphone uses the principle of phase co-
herency achieved by mounting a small-diameter
mic capsule very near a boundary. Direct and re-
flected sound waves arrive at the mic in-phase,
and add coherently. This enhances sensitivity,
clarity and reach.
Self-contained electronics eliminate the need for
an in-line power module. Powered by 12-48V
phantom power, the PCC-130 has a low-imped-
ance balanced output which permits long cable
runs without hum pickup or high-frequency
loss. Included with each PCC-130 is a 15-foot
(4.6-m), two-conductor shielded microphone
cable with a TA3F connector (mic end) and 3-pin
male XLR-type connector (output). Although
the standard connector on the microphone is
a Switchcraft TB3M, the microphone can be
special-ordered with a ¼-inch stereo phone plug
on the bottom of the base plate as the PCC-
130SPP.
Capable of withstanding up to 120 dB SPL with-
out distortion, the PCC-130 will never overload
in practical use. Its electret-condenser capsule
provides a wide, smooth frequency response
from 50 Hz to 20 kHz. RFI suppression is in-
cluded. Self-noise is low and sensitivity is very
high. A bass-tilt switch allows the user to tailor
the low-end response for particular applications.
Permanent mounting is enabled by screw holes
in the base. Engineering attention-to-detail has
assured years of reliable use from this trouble-
free microphone.
Specifications
Type: Phase Coherent Cardioid®.
Element: Electret condenser.
Frequency response (typical): 50 Hz to 20,000 Hz at
30 degrees incidence to surface (see Fig. 1).
Polar pattern: Half-cardioid (cardioid in the hemi-
sphere above the mounting surface). See Figs. 2
and 3.
Impedance: 150 ohms nominal (85 ohms actual),
balanced, (recommended load impedance 1000
ohms or greater).
Open circuit sensitivity (typical): 22 mV/Pa* (–33
dB re 1 volt/Pa).
Power sensitivity: –30.5 dB re 1 mW/Pa*. EIA rating
–125 dBm.
Equivalent noise level (self-noise): 22 dB SPL typi-
cal (0 dB = .0002 dyne/cm2), A-weighted.
S/N ratio: 72 dB at 94 dB SPL.
Maximum SPL: 120 dB SPL produces 3% THD.
Polarity: Positive pressure on the diaphragm
produces positive voltage on pin 2 with respect
to pin 3.
Operating voltage: Phantom power, 12 to 48 volts
DC on pins 2 and 3 with respect to pin 1.
Current drain: 4 mA nominal.
Safe operating temperature range: –10° to +50° C,
or +14° to +122° F.
Connector: Switchcraft TB3M in model PCC-130.
Bottom-mounted ¼-inch stereo phone plug in
model PCC-130SPP. See Fig. 4.
Cable: 15-foot, black, two-conductor shielded cable
with Switchcraft TA3F and A3M connectors. No
cable supplied with SPP option.
Switch: Slide switch for bass cut, bass boost, or flat.
Materials: High-impact molded plastic and steel
mesh grille.
Finish: Satin black.
Net weight: 3.5 oz. (99 g). Mic and cable: 9.5 oz.
(269 g).
Dimensions: See Fig. 5.
Optional accessories: Crown PH-1A phantom
power supply (single channel, battery or AC
adapter powered).
*1 pascal = 10 dynes/cm2= 10 microbars = 94 dB SPL.
Fig. 3
Horizontal-Plane Polar Response
Fig. 1
Fig. 2 Vertical-Plane Polar Response
Frequency in Hz
The bottom of the microphone features a three-
position BASS-TILT switch: FLAT, CUT, and
BOOST. Low-frequency response is adjustable
as shown in Fig. 1.
Installation
Typical placement for each microphone is at
arm’s length from the user. Either place one
microphone in front of each person or one be-
tween every two people. The front of the micro-
phone is indicated by an arrow on the bottom of
the base plate.
Frequency Response
Ideal for boardroom tables, lecterns, churches,
courtrooms and teleconferencing
Cardioid pattern reduces background noise and
feedback
PHASE COHERENT
CARDIOID MICROPHONE
Small and inconspicuous
Prevents phase interference due to table sound
reflections
Three-position bass-tilt switch
Features

Crown International, Inc.
1718 W. Mishawaka Rd.
Elkhart, IN 46517-9439
TEL: [phone]
FAX: [phone]FAX
www.crownaudio.com
© 2008 Crown Audio®, Inc. Specifications subject
to change without prior notice. Latest information
available at www.crownaudio.com. Crown, Crown
Audio, PCC and Phase Coherent Cardioid are registered
trademarks of Crown International, Inc.
Fig. 4
0.33 in.
(8.2 mm)
0.75 in.
(19 mm)
0.975 in.
(24.8 mm) Shield
Audio Return
Audio Hot
Fig. 5
PCC-130SPP
Fig. 6
1.6 in.
(4 cm)
If the microphone is used on a lectern, place it
on an open surface, not in a cavity. Otherwise
the frequency response and polar pattern will
be degraded. Set BASS-TILT to BOOST.
The PCC includes two keyhole slots in its base
to accept mounting screws for permanent
mounting. To screw the PCC to a table top, fol-
low this procedure:
1. Punch out the keyholes marked on the label
underneath the base plate (use a razor blade,
small screwdriver, etc.).
2. Using the template below (Fig. 6), mark the
location of two holes in the table where you
want to mount the mic. These holes are 1.6
inch (4 cm) apart, center-to-center. They are
1.56 inches (3.96 cm) from the rear of the mic.
3. Screw two #8 woodscrews (0.27-in. or
7-mm diameter head) into the table at the
locations you marked.
Architects’ and Engineers’ Specifications
The microphone shall be the Crown Model
PCC-130. The microphone shall be a half-cardi-
oid electret condenser type, utilizing a submin-
iature transducer of rugged construction.
The microphone shall employ the principle
of phase coherency achieved by mounting a
small-diameter element very near a boundary,
thus eliminating comb filtering in the audible
spectrum. The microphone will exhibit excellent
off-axis response and gain-before-feedback.
A 15-foot (4.6-m), two-conductor shielded
cable with TA3F and A3M connectors shall be
supplied with the microphone. As an option,
the microphone may be obtained with a bot-
tom-mounted stereo phone plug (model PCC-
130SPP, no cable provided).
Nominal sensitivity shall be 22 mV/Pa. Maxi-
mum SPL shall be 120 dB SPL for 3% THD.
Equivalent noise shall be 22 dBA nominal.
Frequency response shall be 50 Hz to 20,000
Hz with a uniform off-axis response, over 20 dB
down at the rear null.
The Crown PCC-130 is specified.
Warranty
Crown professional microphones are guaran-
teed against malfunction for a period of three
years from date of original purchase. See
enclosed warranty sheet for additional informa-
tion.
Service
If the microphone does not function properly,
check that it is aimed correctly and is config-
ured and connected as described in this data
sheet. If there is hum or no signal, first repair
or replace the cable. If the microphone capsule
is defective, order a replacement PCC-130 mic
capsule from Crown (part no. M43197-9) or
return the microphone in its original packaging
to: Crown Factory Service, 1718 West Misha-
waka Road, Elkhart, IN 46517-9439. A Service
Return Authorization (SRA) is required for
product being sent to the factory for service.
An SRA can be completed on line at www.
crownaudio.com/support/factserv.htm.For
further assistance or technical support call 800-
342-6939.
4/08 126627-8
PCC-130
