Croydex MM720400E User manual

Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to ensure that
your product is fitted safely and that it retains its high quality finish. Please retain this leaflet for future
reference.
This instruction leaflet applies to the following products:
MM720500E INPUT: 220-240V ~ 190mA 40W IP 44
MM720400E INPUT: 220-240V ~ 120mA 25W IP 44
MM720700E INPUT: 220-240V ~ 160mA 35W IP 44
MM720200E INPUT: 220-240V ~ 160mA 35W IP 44
MM720600E INPUT: 220-240V ~ 120mA 25W IP 44
MM720300E INPUT: 220-240V ~ 140mA 30W IP 44
IMPORTANT INSTALLATION INFORMATION
THIS IS A CLASS 1 APPLIANCE AND MUST BE CONNECTED TO EARTH
HAZARDOUS VOLTAGES INSIDE – DO NOT OPEN SEALED UNITS
THERE ARE NO USER REPLACEABLE PARTS IN THE MIRROR
In accordance with Statutory Instrument 2004 No. 3210 - The Building (Amendment) (No.3) Regulations
2004, any work, other than repair/replacements, in a room where there is water (e.g. kitchen, bathroom,
etc.) must be either:
• carried out by an electrician who is a member of a competent person self-certification scheme who
will certify the work complies with the Building Regulations and you do not need to notify your local authority,
or,
• carried out after prior notification to the Local Authority Building Control Department, which has
responsibility for ensuring that the work is inspected and tested.
IMPORTANT WARRANTY INFORMATION
In accordance with Statutory Instrument 2004 No. 3210 - The Building (Amendment) (No.3) Regulations
2004, the installer must give the occupier of the premises in which this product has been installed a
certificate to confirm that the requirements of regulations 4 and 7 have been satisfied, or the installation of
this product must be inspected and tested by the Local Authority Building Control Department who will issue
a compliance certificate.
A copy of this certificate may be required for certain warranty claims. Failure to provide a copy of the
certificate may invalidate the warranty.
This does not affect your statutory rights
We recommend that you make yourself aware of the Regulations before you undertake any work and if you
require clarification you should contact your Local Authority Building Control Department.
MIR 031 R04
•
Croydex

MIR 031 R04
1
Images for reference only.

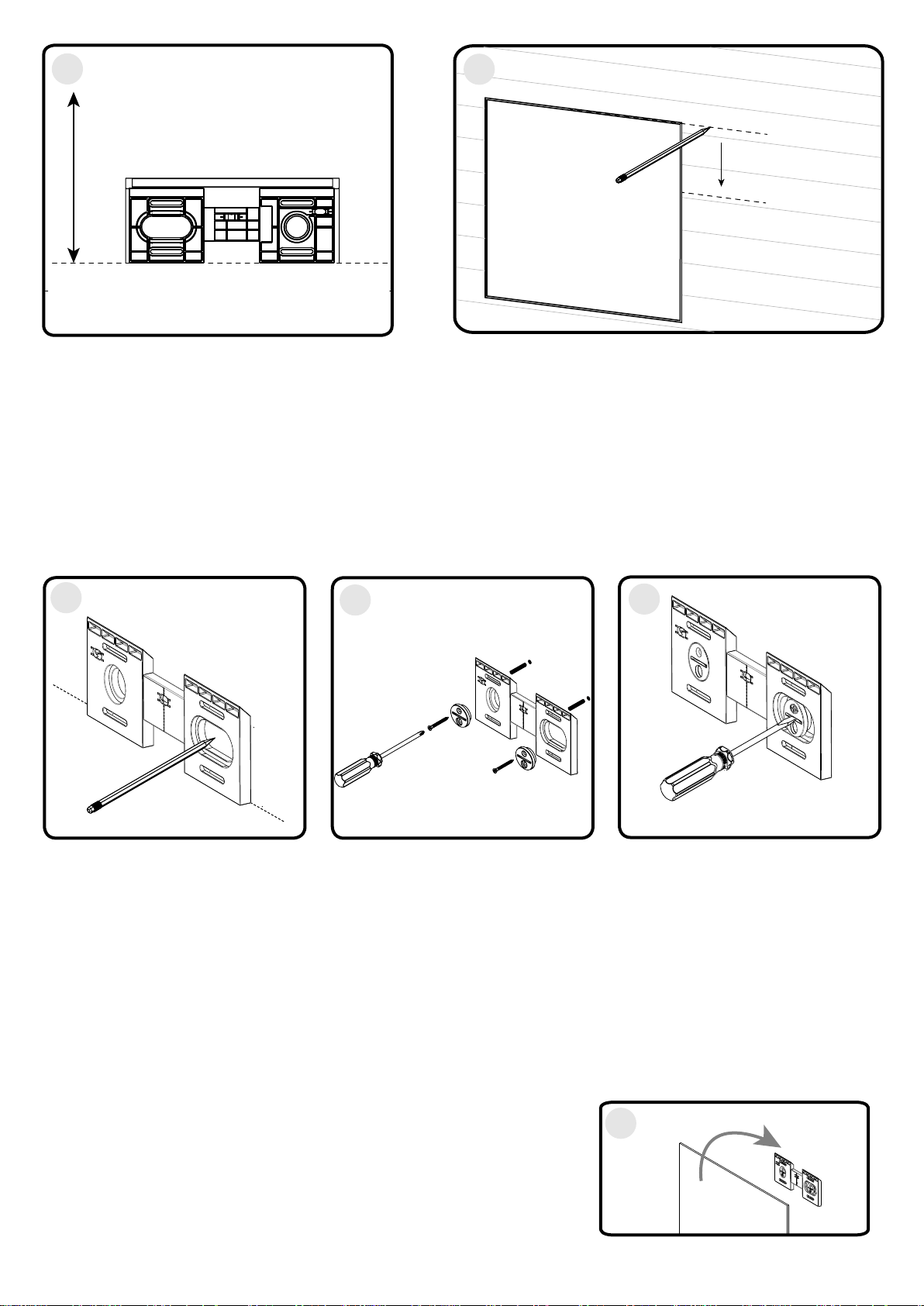

1. Assemble the Hang ‘N’ Lock bracket sections making sure all parts
are slotted tightly together.
2. Place the assembled Hang ‘N’ Lock bracket onto the support slot
on the back of the mirror and hold in place. Measure the distance
from the bottom bracket to the top edge of the mirror glass. Make a
note of the ‘Bracket Distance’ as it will help you when mounting your
mirror.
Carefully hold your mirror in the desired location on the wall and
using a pencil make a reference line along the top edge of the mirror.
Use the Bracket Distance you measured earlier to create a reference
line where the bottom of your Hang ‘N’ Lock bracket will be located.
Mounting using Hang ‘N’ Lock
Fig 1
Fixing Pack Contents
Hang’N’Lock Wall Mounting Bracket Kit x1, Velcro Adhesive Pad x2.
(For Landscape Mounting - Screw x2, Wall Plug x2)
Tools Required
Drill; 8mm masonry drill bit (8mm ceramic drill bit optional); Cross head screwdriver; Pencil; Spirit level
(For Landscape Mounting - 6mm masonry drill bit, 6mm ceramic drill bit optional)
KEEP DIY TOOLS OUT OF THE REACH OF CHILDREN
Home Safety Advice
It is recommended that two people fit the mirror to ensure that it is fitted safely.
Always take care when using an electric drill, particularly in the bathroom. Always check for hidden
cables and pipe work before drilling and take extreme care if there is any water in the working area.
It is advisable to use a residual current circuit breaker (RCCB).
Always wear suitable eye protection when drilling.
If the mirror is to be fitted on a ceramic tiled wall, a ceramic drill bit should be used. Always ensure
that the drill hole passes through the central tiled area rather than through the grouted area. To
prevent unnecessary damage to the tile, mask the area around the hole with tape before drilling.
Do not strike the mirror with hard or sharp
objects.
Fixing Instructions
Positioning the Mirror
1. The mirror is rated IP44 and must only be
installed with the connection to the domestic
mains electrical supply in the Outside Zones, as
shown in Figure 1.
2. Ensure that the access to the domestic mains
electrical supply is located behind the intended
mounting position for the mirror.
ZONE
1
OUTSIDE
ZONES

MIR 031 R04
2
Bottom edge of Hang ‘N’ Lock bracket
Bracket distance.
Top edge of mirror glass
3. Place the bottom edge of the Hang ’N’ Lock bracket onto the lower reference line and mark a screw hole
position in each cam hole recess. Remove the bracket from the wall.
4. Drill holes to a depth of 45mm and insert the wall plugs level with the surface of the wall. (Note: if you are fitting
the product to a tiled surface, insert the wall plugs below the surface of the tile to avoid cracking the tiles). Insert
the countersink screws through the Hang ‘N’ Lock cams and loosely secure the Hang ‘N’ Lock bracket to the wall.
The wall plugs supplied are for use on solid walls only. For cavity walls or plasterboard use specialist
fixings that are available from all good DIY stores.
5. With the Hang ’N’ Lock bracket loosely attached to the wall, adjust for height and level by rotating the cams with
a flat head screwdriver, then use a Philips screwdriver to fully tighten the mounting screws, to securely fix the
bracket into position.
Bracket Distance
2
6. Connecting the Electrical Supply
Ensure that the domestic electrical mains supply to which the cabinet is to be connected
is turned off.
Connect the flexible mains supply cable on the mirror to the domestic electrical mains supply ensuring that:
• The Live (Brown) conductor is connected to the Live on the domestic electrical mains supply.
• The Neutral (Blue) conductor is connected to the Neutral on the domestic electrical mains supply.
• The Earth (Green/Yellow) conductor is connected to the Earth/Ground on the domestic electrical mains supply.
Note: Connection of the product to the domestic electrical mains supply must only be carried out by a Building
Regulations Part P certified electrician or must be checked by your Local Authority Building Control Department.
7
7. Once Step 6 has been completed safely. Hang the mirror onto the
Hang ‘N’ Lock bracket. Ensure the mirror has securely located onto the
bracket before letting go.
Proceed to Step 9 and 10.
Image for reference only.
345
Image for reference only. Image for reference only. Image for reference only.

For details of the other items in the Croydex range please visit our website: www.croydex.com
Croydex, Central Way, Andover, Hampshire,
SP10 5AW, UK
Tel: [phone] Fax: [phone]
E-mail: [email protected]
MIR 031 R04
x 2
5mm
8. Landscape Mounting
8. Mounting in Landscape Orientation
The mirrors that can be mounted in landscape orientation are;
MM720200E - Chilcombe Illuminated Mirror
MM720700E - Rookley Illuminated Mirror
MM720400E - Chawston Illuminated Mirror
MM720300E - Henbury Illuminated Mirror
To do this, measure the distance between the keyhole slot centres
and use a spirit level to mark two points on the wall. Drill the
mounting holes in the marked positions using a 6mm drill bit and
insert the screws, ensuring that the screw head extends out of the
wall by approximately 5mm. Adjust screw depth for a secure fit.
Follow Step 6 for connecting to the electrical supply, then simply
hook the mirror onto the two screws.
Operating Instructions
To turn the LED lights on or off, operate the touch switch on the front of the mirror glass.
Product Care
To retain the best quality finish, clean product regularly with a soft cloth and mild detergents. Do not
use abrasive or chemical cleaners, as these will damage the product.
Do not position glass components in close contact with a heat source.
This product complies with the requirements of
• European Parliament/Council Directive 2014/35/EU on the harmonisation of the laws of the
Member States relating to the making available on the market of electrical equipment designed for
use within certain voltage limits (LVD) Directive (recast).
• European Parliament/Council Directive 2014/30/EU on the harmonisation of the laws of the
Member States relating to electromagnetic compatibility (EMC) Directive (recast).
• European Parliament/Council Directive 2011/65/EU on the restriction of the use of certain
hazardous substances in electrical and electronic equipment (RoHS) Directive (recast).
Applicable Standards with amendments:
• BS EN 55015:2013
• BS EN 61547:2009
• BS EN 60335-1:2012+A11:2014
• BS EN 60335-2-30:2009+A11:2012
• BS EN 62493:2015
• BS EN 62471:2008
9. Peel off the protective cover strip from the back of the hook
and loop fasteners and place on the back of the mirror frame.
(The adhesive tape is ideal for use on tiled and laminate
surfaces but may cause damage to painted and papered
walls.)
10. Carefully lower the mirror to a vertical position and press
the adhesive pads against the wall to secure the bottom of the mirror.
The mirror can be removed by separating the hook and loop
fastener between the mirror and wall.
910
9
If mounting vertically apply round buffers to top of mirror.

EU DECLARATION OF CONFORMITY
To the Low Voltage Directive (LVD) 2014/35/EU and
Electromagnetic Compatibility (EMC) Directive 2014/30/EU
1. Description of products:-
Name: LED Illuminated Mirror with Demister Pad
Part No. MM720500E, MM720400E, MM720700E, MM720200E, MM720600E,
MM720300E
2. Directives complied with:-
European Parliament/Council Directive 2014/35/EU on the harmonisation of the laws
of the Member States relating to the making available on the market of electrical
equipment designed for use within certain voltage limits (LVD) Directive (recast).
European Parliament/Council Directive 2014/30/EU on the harmonisation of the laws
of the Member States relating to electromagnetic compatibility (EMC) Directive
(recast).
3. Declaration
The products listed above in section 1 conform to the following harmonised
standards:
LVD
BS EN 60335-1:2012+A11:2014
BS EN 60335-2-30:2009+A11:2012
BS EN 62493:2015
BS EN 62471:2008
EMC
Emissions: BS EN 55015:2013
Immunity: BS EN 61547:2009
For and on behalf of CROYDEX
P. Pegden
Product and Procurement Director
Date: 04-01-2016
(€
----
N
croydex
Think bathrooms
Croydex, Central
Way,
Andover, Hampshire SPl0
SAW.
United Kingdom
1:
+44
1011264
365881 F: +44 [011264 356437
www
.croydex.com
Croydex is a division
of
Norcros Group (Holdings] Limited, Registered
in
England & Wales under, Registration Number: 00566694
Registered Office: Ladyfield House, Station Road, Wilmslow, Cheshire
SK9
lBU, United Kingdom

EU DECLARATION OF CONFORMITY
To the Restriction of Hazardous Substances (RoHS)
Directive 2011/65/EU
1. Description of products:-
Name: LED Illuminated Mirror with Demister Pad
Part No. MM720500E, MM720400E, MM720700E, MM720200E, MM720600E,
MM720300E
2. Directives complied with:-
European Council Directive 2011/65/EU of 8 June 2011 on the restriction of the use
of certain hazardous substances in electrical and electronic equipment (recast).
3. Declaration
It is hereby certified that the concentration by weight of the restricted substances in
the homogenous materials in the products described above at section 1 do not
exceed the maximum allowed concentrations listed in European Council Directive
2011/65/EU Annex II Restricted substances referred to in Article 4(1) and maximum
concentration values tolerated by weight in homogeneous materials, as detailed
below:
Substance
Concentration
Lead
0.1%
Mercury
0.1%
Cadmium
0.01%
Hexavalent Chromium
0.1%
PBB (Polybrominated Biphenyls)
0.1%
PBDE ( Polybrominated Diphenyl Ethers)
0.1%
For and on behalf of CROYDEX
P. Pegden
Product and Procurement Director
Date: 04-01-2016
CE:
Croydex, Cenlral Woy, Andover, Hampshire S Pl O SAW, Uniled Ki ngdom
T: +44
IOI 1264 365881 F: [phone] www .croydex. co m
6)
croydex
Think bathrooms
Croydex is a division of Norcr os Group !Hol di n gs) Li miled, Registered in En gland & Wa l es under, Regist ra li on Number: 00566694
Regis ter ed Office: Ladyfield House, Station Road, Wi lmslow. Ch es hire SK9 lBU, Un ited Ki ngdom

Check out our full range of Bathroom Accessories
Bathroom Accessory Sets
Heated Towel Rails
Bathroom Extractor Fans
Bathroom Lighting
Shower Seats
Grab Rails
Shower Curtains
Toilet Brushes
Bathroom Cleaning Products
Wall Mounted Bathroom Accessories
Robe Hooks
Bathroom Tumblers
Toilet Roll Holders
Soap Dishes
Towel Rings
Shower Caddies
Bathroom Mirrors
Standard Bathroom Mirrors
LED Bathroom Mirrors
Shaving Mirrors
