Crystal Vision Introduction
3
1 Introduction
The ARC102 is a digital aspect ratio converter for 625/525 SDI video.
Two main operational modes are available: preset mode and user mode. In preset mode, 7
factory presets are available. Three presets convert from a 16:9 input video aspect ratio to
a 4:3 output aspect ratio and three presets convert from a 4:3 input video aspect ratio to a
16:9 output aspect ratio. The six factory presets provide a balance between picture loss
and black bars whilst preserving picture geometry. The remaining preset passes the
incoming video unconverted.
The output picture can be cropped in both user and fixed modes. In user mode, the aspect
ratio and the image position is continuously variable. Up to eight user set-ups can be
stored and recalled.
The ARC102 is controllable from board edge, Statesman or from local or remote panels.
GPI selection of both factory and user presets is also provided.
ARC102 Aspect Ratio Converter
The main features are as follows:
•8 bit digital aspect ratio converter
•100mm x 266mm module allows 12 ARC102s in 2U
•6 factory presets and 8 user defined presets
•Continuous horizontal and vertical compression and expansion
•Horizontal and vertical offsets of picture
•Vertical and horizontal cropping
•EDH generation
•GPI selection of presets
•Passes 10 bit embedded audio or data with same delay as picture
•Card edge, active/remote panel and Statesman control options

Crystal Vision Introduction
4
Horizontal and vertical offsets of the picture allow, for example, the easy addition of
subtitles, whilst unlimited vertical and up to 255 horizontal luminance pixel cropping is
provided for cleaning up the edges of the picture and removing unwanted material.
There is automatic 625/525 line standard detection and EDH can be added to the output.
Embedded digital audio and 10-bit ancillary data is passed through unprocessed. There is
a fixed propagation delay of one field between input data and output data.
ARC102 Factory Presets 1-6
The ARC102 is a 100mm x 266mm module, which fits in the three standard frames and
can be integrated with any boards from the company’s full product range. It uses the
RM01 single height rear connector and the RM02 triple height rear connector when used
in a FR2AV or 2U Indigo frame.

Crystal Vision Installing Statesman
5
2Installing Statesman
The Crystal Vision Statesman PC control software is designed to control a range of
Crystal Vision modules via serial control from a PC. Statesman provides a user friendly
means of configuring and operating the ARC102 with the benefit of see-at-a-glance status
monitoring. Most functions can be accessed from Statesman menus.
The main Statesman application communicates with each module in a frame through an
active control panel. An active panel must be fitted to allow for Statesman control.
Minimum pre-requisites:
•A PC running Windows 98, NT4 with SP 5 or higher Windows 2000 or
Windows XP
•A parallel port dongle supplied with the Statesman software package
•An RS422 serial connection from the host PC to the Remote 2 connector on an
FR1AV or FR2AV Crystal Vision frame with at least one ARC102 module
and/or other Statesman compatible module
•An active control panel MUST be fitted to the frame with version 1.50 or above
firmware
•An optional RS422 to RS232 converter if the PC has no RS422 ports
Installing Statesman
•Refer to the readme and/or help file on the CD before proceeding
•To view all application windows, set graphics resolution to at least 1024 x 768
•Remove any previous version of the Statesman software using the Add/Remove
Programs application in the Windows Control Panel
•Ensure that the Statesman dongle is fitted to the parallel port of the host PC
•Insert the Statesman CD and the installation should start immediately – if it
does not, run the setup.exe file on the CD
•Obey any installation program prompts and restart the PC when prompted
Running Statesman for the first time
The Statesman PC Control System may be run from the Crystal Vision programs folder
via the Start menu or by double-clicking on the Crystal Vision.exe file in the installed
program directory.
When the program runs it will require licence information and an administrator name and
password. It will also need to know which computer port is being used to connect to a
Crystal Vision frame(s).
Note: For further details of Statesman configuration please refer to the Statesman manual.

Crystal Vision Statesman operation
6
3 Statesman operation
Once Statesman is configured it should automatically detect any statesman compatible
modules in the connected frame or frames and display them in the main application left
hand explorer-style window.
Open any frame by clicking on the ‘+’ sign or by double clicking on a frame. Installed
modules should be shown with module icons. Frame and module icons can be named as
desired by right-clicking or using the edit menu and choosing rename.
To aid user recognition of module and frame status quickly, the following colour and size
coding is used:
•A module is shown present by full colour and absent by greyed colour
•A module is shown open by large icon size and closed by small icon
•A module is the source of an active alarm if red and not alarmed if green
Double-clicking on a module will enable the display of the main application menus.

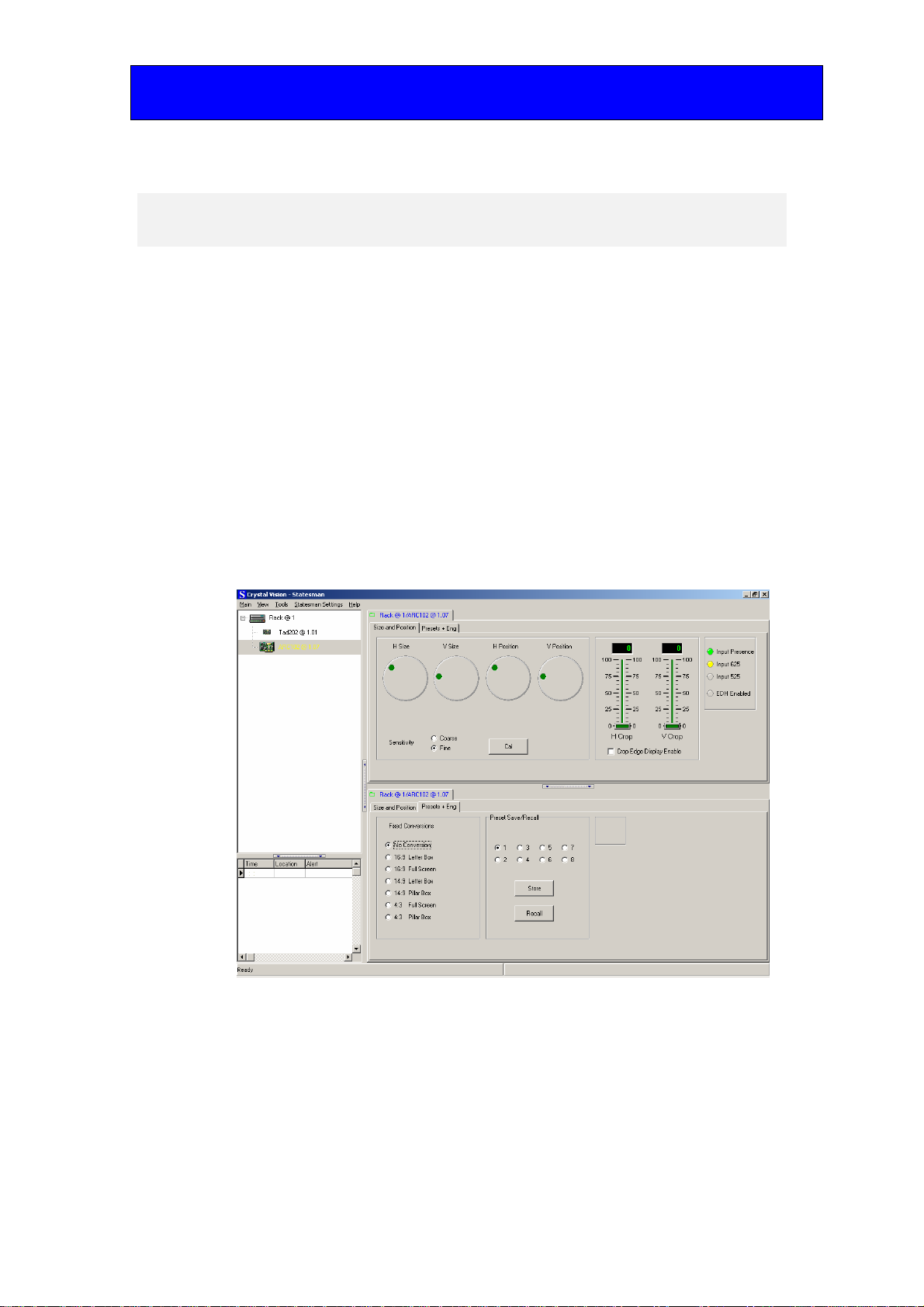

Statesman main application window
The two large control panes shown in the upper and lower halves of the window may
display different menus for the same card, or controls for different cards. Click on the
horizontal button-bar between the two panes to close the lower plane or drag the button to
vary the size of the panes.
Note: For further details of Statesman configuration and operation please refer to the Statesman
manual.

Crystal Vision Statesman operation
7
3.1 Controlling image size and cropping
The size and position tab provides access to the following user controls
•Variable horizontal and vertical size and position
•Variable vertical and horizontal picture cropping
Size, position and cropping controls
Size
Click with the mouse in the horizontal size trackball to vary horizontal size by –50% to +
200% giving a possible horizontal expansion of between half and twice original size.
Horizontal size is varied with respect to the left picture edge, only the right edge moves
Click with the mouse in the vertical size trackball to vary vertical size between - 50% and
+ 200% giving a possible vertical expansion of between half and twice original size.
Vertical size is varied with respect to the top picture edge, only the bottom edge moves.
Use the coarse or fine check boxes to vary the control sensitivity. Press the CAL button to
calibrate the horizontal and vertical size and position to 100% with no cropping.
Position
Click with the mouse in the horizontal position trackball to vary horizontal position and
click with the mouse in the vertical position trackball to vary vertical position.
Use the coarse or fine check boxes to vary the control sensitivity. Press the CAL button to
calibrate the horizontal and vertical size and position to 100% with no cropping.
The picture width and height adjustments range from 50% to 200%. The horizontal and
vertical offsets range from –100% to 100%. When the image width and/or height image
size is greater than 100% and the offset is negative, the operator can scan over the input
image. When the image width and height is less than 100% and the offset is positive, the
operator can pan over the input image.
Tip: The position controls are interactive with the size controls and some values are not
permissible. If the position or size controls do not work as expected, try recalling a no
conversion fixed preset as a starting point.
Values may be different in remote mode and local mode and are retained through power
down, and restored when the unit is powered up.

Crystal Vision Statesman operation
8
Picture cropping
Horizontal and vertical crop can be added to the displayed image by using the crop
sliders.
The amount of horizontal and vertical cropping is shown in green if the 'Crop Edge
Display Enable' box is checked. This helps to show the amount of crop that will be used.
Crop settings are stored automatically and remain static during user picture size
adjustment.
To set crop values to the default value of zero right click on a slider and choose calibrate.
Status
The Size and Position tab provides access to the following status information
•Input presence/standard
•EDH status
Size, position and cropping control
The following table summarises the status indicators and the colours used:
Indicator Colour and status
Input presence Green: input present
Red: input absent
Input 625 Yellow: 625 input detected
Grey: 625 not detected
Input 525 Yellow: 525 input detected
Grey: 525 not detected
EDH enabled Yellow: enabled
Grey: disabled
Note: EDH refers to the addition of EDH to the output and can only be enabled at the card edge.

Crystal Vision Statesman operation
9
3.2 Fixed conversions and presets

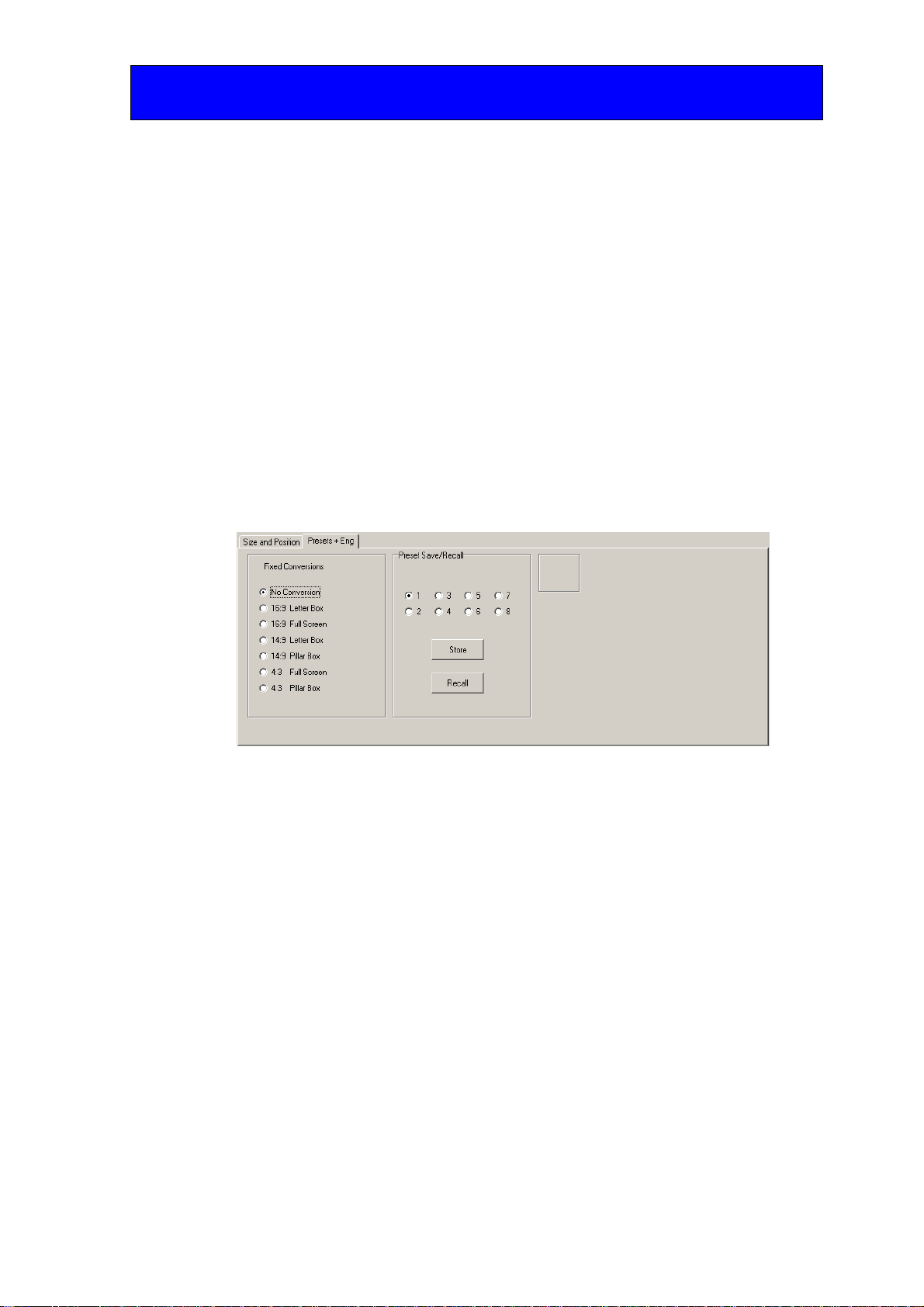

The Presets and Eng tab provides access to fixed conversions.
Fixed Conversion (left pane)
Fixed aspect ratio presets
The No Conversion preset passes the source signal without any conversion.
Letter Box and 16:9 Full Screen presets convert a signal generated by a 16:9 source so
that it can be viewed on a 4:3 monitor with the geometry preserved.
Pillar Box and 4:3 Full Screen presets convert a signal generated by a 4:3 source so that it
can be viewed on a 16:9 monitor with the geometry preserved.
Preset Input Aspect Output Aspect Aspect Size
No Conversion 16:9/4:3 4:3/16:9 1.000 1.000
16:9 Letter Box 16:9 4:3 1.333 0.750
16:9 Full Screen 16:9 4:3 1.333 1.000
14:9 Letter Box 16:9 4:3 1.333 0.857
14:9 Pillar Box 4:3 16:9 0.750 1.167
4:3 Full Screen 4:3 16:9 0.750 1.333
4:3 Pillar Box 4:3 16:9 0.750 1.000
16:9 Letter Box converts the 16:9 source so the full source width is mapped to the 4:3
monitor width. The full source height is compressed to 75% of the output monitor height
to preserve the picture geometry. Horizontal black bands are added to the top and bottom
of the output picture.
16:9 Full Screen converts the 16:9 source so that the central 75% of the source width is
stretched to fit the full 4:3 monitor width. The source height does not need to be
compressed to preserve the picture geometry and no horizontal black bands are added to
the output picture.
14:9 Letter Box converts the 16:9 source so that the central 87.5% of the source width is
stretched to fit the full 4:3 monitor width. The full source height is compressed to 87.5%
of the output monitor height to preserve the picture geometry. Horizontal black bands
added to the top and bottom of the output picture.

Crystal Vision Statesman operation
10
14:9 Pillar Box coverts the 4:3 source so that the full source width is compressed to the
central 87.5% 16:9 monitor width and corresponding vertical black bands are added to the
left and right of the output picture. The central 87.5% of the source height is taken and
stretched to the full monitor height to preserve the picture geometry.
4:3 Full Screen converts the 4:3 source so that the full source width is mapped to the 16:9
monitor width and no vertical black bands are added to the output picture. The central
75% of the source height is taken and stretched to the full monitor height to preserve the
picture geometry.
4:3 Pillar Box converts the 4:3 source so that the full source width is compressed to the
central 75% 16:9 monitor width and corresponding vertical black bands are added to the
left and right of the output picture. The full source height is taken and mapped to the full
monitor height to preserve the picture geometry.
3.3 Saving and recalling presets
The Presets and Eng tab provides access to presets.
Preset Save/Recall (middle pane)
To save the currently displayed picture parameters select a preset and click save.
To restore a saved preset, select the preset and click restore.
The card-edge WRITE LED will briefly illuminate to confirm the save action.

Crystal Vision Using the active control panel
11
4Using the active control panel
This operational guide assumes that the panel has been setup according to the Panel setup
procedure described in the Crystal Vision Controls Panel manual.
Note: It is ESSENTIAL that the Panel setup procedure is followed and any old or unknown
passwords cleared prior to using the panel for the first time.
At power up, the two line 20-character screen will display ‘Crystal Vision’ followed by
the firmware version number for the control panel. All eight control panel key LEDs will
illuminate.
The Crystal Vision control panel start up display
'Control Panel' then briefly replaces the version number display.
If the control panel firmware has been updated for Statesman control (version 1.5.0 or
higher), Statesman Mode will be entered and the message, ‘Press CAL to Exit’ will be
displayed and the CAL LED will light.
Statesman mode is entered by default

Crystal Vision Using the active control panel
12
To continue with control panel operation or configuration, press the ‘CAL’ key once. A
second press of the ‘CAL’ key will return to Statesman control.
The control panel will display the name of the card that first responds to the polling
request together with its location number.
The location number consists of the frame number plus the card position in the frame.
Selecting the ARC102
To select a particular card in a frame, press the DEVICE key to go to the Device menu.
The top line of the display will show ‘Available Cards X’, where X is the number of
cards that have responded so far to the polling request.
Device menu showing available cards
Rotate the shaft encoder and the bottom row will display the successfully polled cards by
name and location or slot number.
In the example above, the card displayed is located in the first frame in slot number 12.
When the desired card is selected press the ENTER key to access that card’s HOME
menu.
If remote control has been enabled, the control panel will then enter card mode and
communicate with the ARC102 at the node number last displayed in the available cards
list. If the card is in local mode, 'Remote Ctrl Disabled' will be displayed.
The ARC102 home menu
Note: The ARC102 will need to have the card edge local/remote switch (lever 8) in the
DOWN position to enable active or remote control panel operation. Refer to the Card
edge operation chapter or Installation chapter for more information.

Crystal Vision Using the active control panel
13
Navigating the display
The functions assigned to control panel keys are dependent on the card selected for
control, and the panel mode. The following list illustrates the functions when controlling
an ARC102.
•DEVICE – enters Device menu to select a card or card to control / enter Panel
setup when held down during power up / shows frame status when pressed from
Statesman mode
•CAL – Enter or leave Statesman mode / enter panel diagnostics mode when held
down during power up
•Asterisk – enters board rename menu from the Device menu
•F1 to F4 – soft keys, function assigned within each menu
•HOME – moves the display to the home menu
•ENTER – accept current selection
•Upward arrow – used to move up the menu structure / enter lock panel menu
from the Device menu
•Rotary control – shaft encoder used to select options or variable data
Note: Please refer to the Crystal Vision Control Panel manual for details of the Panel Setup,
Lock Panel and Diagnostic menus.
Using the shaft encoder
The shaft encoder function is dependent on the menu currently active. In general in top
level menus the shaft encoder is used to cycle through settings or functions to adjust.
Once the desired gain or alarm setting is displayed, pressing the Enter key will allow the
shaft encoder to change the assigned value for that setting or function.
The Enter key must be pressed again to leave the data assignment mode and to continue
navigating the menu.

Crystal Vision Using the active control panel
14
4.1 The ARC102 active panel menu structure
The main top-level menus for the ARC102 module are obtained by pressing the F1, F2,
F3 and F4 keys from that module’s HOME menu. Menu keys are illuminated when active
and when further menus are available. The four top-level menus are:
•Fixed aspect ratio conversions – press F1
•Variable aspect ratio conversion – press F2
•Picture cropping – press F3
•Misc – User memories, and status - press F4
The following chart shows the available menus.
The ARC102 menu tree
Note: Function keys and shaft encoder LEDs are illuminated when active.
Menus associated with the shaft encoder for changing assigned values are shown with a
black circle.
Shorthand codes
The following shorthand codes are used in active control panel menus:
Menu code Function description
EDH Error Detection and Handling
SDI Serial Digital Interface
GPI General Purpose Interface (also General Purpose Input)
GPO General Purpose Output

Crystal Vision Using the active control panel
15
4.2 Selecting fixed aspect ratios
Pressing F1 from the home menu will display the Fixed ratio menu.
Fixed aspect ratio menu Description
Rotate the shaft encoder to select a fixed ratio
conversion from the seven available:
16:9 Letterbox
14:9 Letterbox
16:9 Full Screen
No conversion
4:3 Full Screen
14:9 Pillarbox
4:3 Pillarbox
The selected ratio is effective the moment it is
displayed.
Note: The effective aspect ratio may be different in remote mode and local mode and are
retained through power down, and restored when the unit is powered up.
Fixed aspect ratio presets
Letter Box and 16:9 Full Screen presets convert a signal generated by a 16:9 source so
that it can be viewed on a 4:3 monitor with the geometry preserved.
The No Conversion preset passes the source signal without any conversion.
Pillar Box and 4:3 Full Screen presets convert a signal generated by a 4:3 source so that it
can be viewed on a 16:9 monitor with the geometry preserved.
Preset Input Aspect Output Aspect Aspect Size
16:9 Letter Box 16:9 4:3 1.333 0.750
14:9 Letter Box 16:9 4:3 1.333 0.857
16:9 Full Screen 16:9 4:3 1.333 1.000
No Conversion 16:9/4:3 4:3/16:9 1.000 1.000
4:3 Full Screen 4:3 16:9 0.750 1.333
14:9 Pillar Box 4:3 16:9 0.750 1.167
4:3 Pillar Box 4:3 16:9 0.750 1.000
16:9 Letter Box converts the 16:9 source so the full source width is mapped to the 4:3
monitor width. The full source height is compressed to 75% of the output monitor height
to preserve the picture geometry. Horizontal black bands are added to the top and bottom
of the output picture.
14:9 Letter Box converts the 16:9 source so that the central 87.5% of the source width is
stretched to fit the full 4:3 monitor width. The full source height is compressed to 87.5%
of the output monitor height to preserve the picture geometry. Horizontal black bands
added to the top and bottom of the output picture.

Crystal Vision Using the active control panel
16
16:9 Full Screen converts the 16:9 source so that the central 75% of the source width is
stretched to fit the full 4:3 monitor width. The source height does not need to be
compressed to preserve the picture geometry and no horizontal black bands are added to
the output picture.
4:3 Full Screen converts the 4:3 source so that the full source width is mapped to the 16:9
monitor width and no vertical black bands are added to the output picture. The central
75% of the source height is taken and stretched to the full monitor height to preserve the
picture geometry.
14:9 Pillar Box coverts the 4:3 source so that the full source width is compressed to the
central 87.5% 16:9 monitor width and corresponding vertical black bands are added to the
left and right of the output picture. The central 87.5% of the source height is taken and
stretched to the full monitor height to preserve the picture geometry.
4:3 Pillar Box converts the 4:3 source so that the full source width is compressed to the
central 75% 16:9 monitor width and corresponding vertical black bands are added to the
left and right of the output picture. The full source height is taken and mapped to the full
monitor height to preserve the picture geometry.

Crystal Vision Using the active control panel
17
4.3 Creating user ratios
Pressing F2 from the home menu will display the variable aspect ratio menu.
The following settings can be adjusted:
•Horizontal size
•Vertical size
•Horizontal position
•Vertical position
Creating user ratio menu Description
Rotate the shaft encoder to select a variable to change
from the four available:
H Size, V Size, H Position and V Position
Press the Enter key to enter data change mode for the
selected variable, then rotate the shaft encoder to
change the assigned value 'xx'
Press the Enter key to leave data change mode and
return to menu navigation
The picture width and height adjustments range from 50% to 200%. The horizontal and
vertical offsets range from –100% to 100%. When the image width and/or height image
size is greater than 100% and the offset is negative, the operator can scan over the input
image. When the image width and height is less than 100% and the offset is positive, the
operator can pan over the input image.
Note: The position controls are interactive with the size controls and some values are not
permissible. If the position or size controls do not work as expected, try recalling a no
conversion fixed preset as a starting point.
Values may be different in remote mode and local mode and are retained through power
down, and restored when the unit is powered up.

Crystal Vision Using the active control panel
18
4.4 Cropping the output picture
Pressing F3 from the home menu will display the crop menu.
The following settings can be adjusted:
•Horizontal crop
•Vertical crop
Crop menu Description
Rotate the shaft encoder to select a variable to change
from the two available:
H Crop, V Crop
Press the Enter key to enter data change mode for the
selected variable, then rotate the shaft encoder to
change the assigned value 'xx'.
Press the Enter key to leave data change mode and
return to menu navigation
The picture area cropped by the crop adjustment is highlighted in green whilst the crop
menu is active. To save the crop setting and turn off the crop highlight leave the menu by
pressing Enter.
Note: Values ranges are:
H Crop: 0% to 100%
V Crop: 0% to 100%
These values may be different in remote mode and local mode and are retained through
power down, and restored when the unit is powered up.

Crystal Vision Using the active control panel
19
4.5 User memories and status
Pressing F4 from the home menu will display the miscellaneous menu.
The following can be accessed:
•User memories
•SDI status
•EDH status and module serial number
Miscellaneous menu Description
Select user memory from 1 to 8
Press the ENTER key when the desired user memory is
displayed to enter data-entry mode.
Press F1 to save the current aspect ratio/crop values or F3
to recall previously saved settings.
Press ENTER again to leave the data-entry mode and
continue navigating the available menus.
Show current status - e.g. SDI Present/Missing
It is not necessary to press ENTER
EDH status
Module serial number
Note: EDH transmission can only be disabled or enabled at the card edge.
Saving and recalling presets
To save the currently displayed picture parameters select a preset and click save.
To restore a saved preset, select the preset and click recall.
The card-edge WRITE LED will briefly illuminate to confirm the save action.
