1 Introduction
ADDEC-200 is a broadcast decoder. It brings together onto one PCB both the functions
of a 12-bit decoder and synchroniser/delay module.
The ADDEC-200 will convert PAL/NTSC composite, Y/C or YUV component video to
SDI using a high quality 12-bit decoder which can deal with any source from broadcast
quality to VHS, and will accept damaged or jittery signals. The data is sampled at 54 Mbit
per second (four times oversampled) allowing the highest quality digital filtering. It also
offers the latest in comb technology, with a five-line comb resulting in exceptional
decoding. Timing, gains and levels are also adjustable.
The on-board video frame synchroniser allows untimed inputs to be timed to the local
syncs. It will sort out any incorrect frame rates plus any delays by taking its timing from
the external analogue reference and will automatically synchronise sources between 0 and
2 fields.
An audio follow pulse is also produced which allows ADDEC-200 to be used with an
external audio delay such as the TAD202.
The ADDEC-200 will fully integrate with any other interface or keying product from the
Crystal Vision range. Further flexibility is afforded by the large choice of control options.
Control options include board edge control, local or remote active control panel and the
Statesman PC Control System.
•12-bit digital decoder
•Suitable for all sources, from broadcast quality to VHS
•High quality digital filtering and 5-line comb
•Frame or line synchroniser or used as a fixed delay times input to local reference
syncs
•Flexible control, including PC software.
•Up to four Serial digital outputs
•Internal proc amp
•Audio follow pulse
•Compact design for high packing density
•Full range of inter-changeable rear connector modules

Crystal Vision Introduction
426/01/06
ADDEC-200 12-bit Synchronising Decoder
ADDEC-200 is a 100mm x 266mm module that fits in Crystal Vision four standard frame
sizes. 24 modules fit in 4U, 12 modules fit in 2U, six in 1U or two in a desktop box. There
are a range of rear connector modules available for the ADDEC which allow the system
builder great flexibility in frame configuration.
1.1 Operating modes
Synchroniser and Delay Modes
ADDEC-200 has two modes of operation, Synchronisation and Delay.
In Synchronisation Mode the unit takes its timing from the analogue external reference
and will automatically synchronise sources with or without embedded audio between zero
and two fields. Synchronisation Mode is ideal for external sources that are not timed to
station references such as satellite or remote contribution feeds.
In Delay Mode, timing is derived only from the analogue input. Typical applications are
where a source passes through a processor such as a DVE, Chroma keyer or standards
converter where the delay can be a few microseconds, multiple lines or up to two fields.
The video delay remains fully adjustable over two complete fields. This allows the output
of the ADDEC-200 in synchronisation mode to be timed into any edit suite irrespective of
the timing of the black and burst reference used.

Crystal Vision Introduction
526/01/06
Audio follow pulse
There is also a positive going external TTL level audio follow video (AFV) pulse output,
the duration of which reflects the current video delay. The AFV output can be used with
external audio delay processors such as the TAD202 if required.
Analogue video formats
The composite video input may be selected to be composite or YC PAL/NTSC or
525/625-line component YUV. Input standard selection is automatic and will follow the
input video. Data in the VBI (vertical blanking interval) of the analogue composite input
can be blanked or passed. NTSC- J and NTSC-M with or without 7.5% IRE setup is also
selectable when receiving an NTSC format video input. Betacam input levels are also
accepted.
Freezing the picture
The default picture freeze is Field 1. An active front panel or Statesman PC control
system will allow Frame, Field 1 or Field 2 to be selected. This is useful if there is
movement between both fields as a frame freeze may show movement judder. Field
freeze will remove judder by repeating the same field to produce a synthetic frame of
video, without movement judder. However a field freeze is more likely to show jagged
edges on near horizontal lines.
Video Input loss behaviour
The ADDEC-200 output will cut to blue immediately on loss of input video.
Status and control
Status and control of the ADDEC-200 is available using the board edge menu selection
switches and LEDs. Full function control and status reporting is also available from either
an active frame front or remote active control panel. PC control is also available using
Crystal Visions Statesman PC controller package.
Note. When the ADDEC-200 is set to remote control mode the position of the board edge
switches may not reflect the actual configuration of the card. Returning the card to local
control will reinsert the board edge configuration

Crystal Vision Hardware installation
626/01/06
2 Hardware installation
The ADDEC single height module uses the RM01, RM23, RM24, RM25 and RM27 rear
connector. The RM25 quad height module will only fit into the 2U and 4U frames,
although the rest will fit into all Crystal Vision rack frames. All modules can be plugged
in and removed while the frame is powered without damage.
2.1 Rear modules and signal I/O
The Indigo 4 4U frame will house up to 24 single height modules with up to three power
supplies. The FR2AV and Indigo 2 2U frames will house up to 12 single height modules
and dual power supplies. The FR1AV and Indigo 1 1U frames will house six single height
modules and a single power supply. The DTBAV and Indigo desk top boxes both have a
built-in power supply and will house up to two single height modules.
Note: For details of fitting rear connectors please refer to the appropriate frame manual

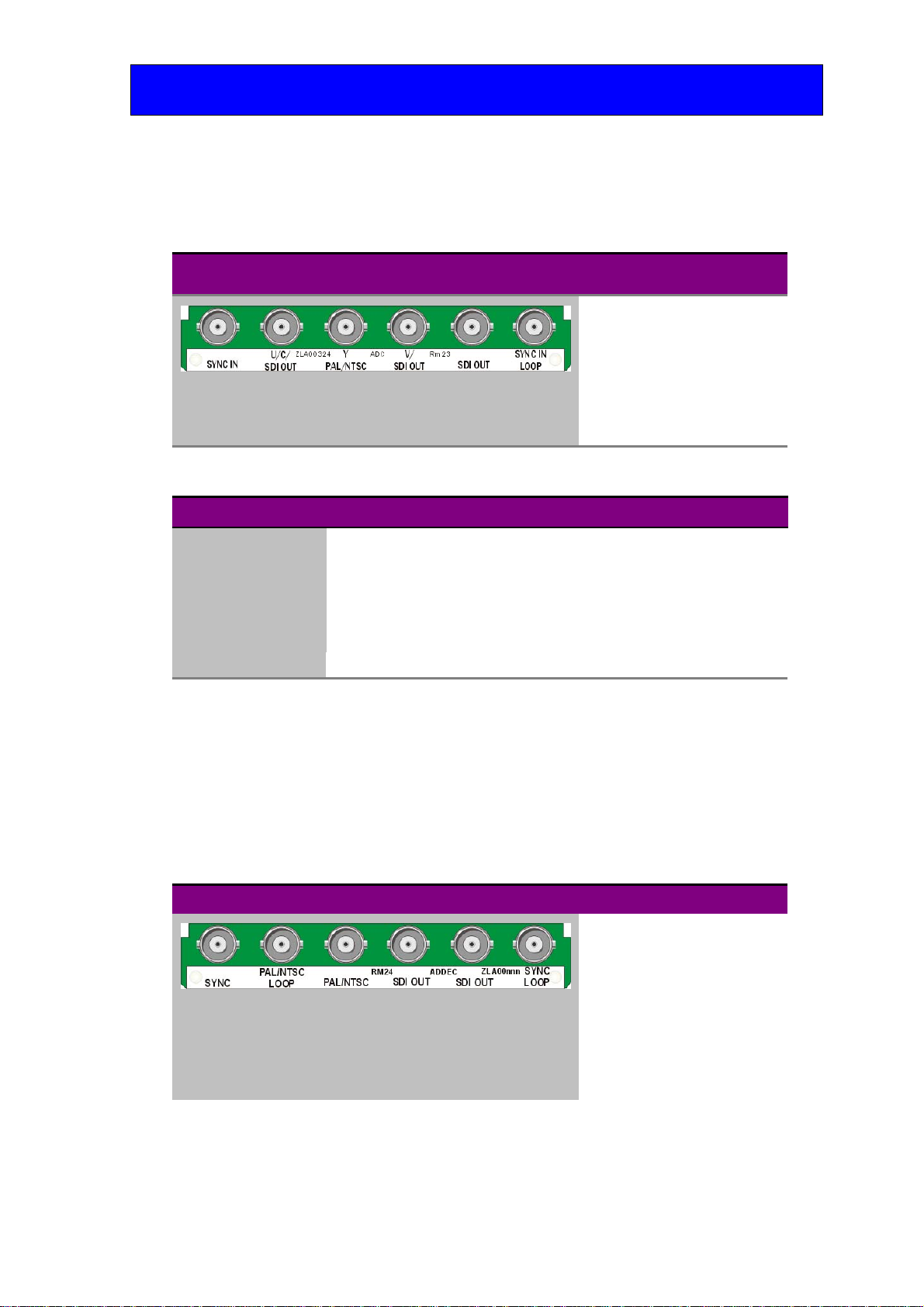

Rear module connections with RM01
The RM01being a single height module will allow maximum packing density with the
maximum number of outputs available.
RM01 rear module connector Description
RM01
•24 ADDEC-200 modules
per Indigo 4 frame
•12 per FR2AV or Indigo
2 frame
•Six per FR1AV or Indigo
1 frame
•2 per Indigo DT
•All frame slots can be
used
BNC I/O assignment
SDI OUT Serial digital output
SDI OUT Serial digital output
V/SDI OUT Component V / SDI OUT (link selectable)
Y/ PAL/NTSC Component Y, YC-Y / PAL/NTSC IN
U/C IN SDI OUT Component U / YC-C / Serial digital output (link selectable)
SYNC IN Composite sync (B & B) input

Crystal Vision Hardware installation
726/01/06
Rear module connections with RM23
The RM23 single height rear module also allows maximum packing density but
substitutes one of the outputs for a loop-through for the external reference input.
RM23 modular rear connector Description
•RM23
•24 ADDEC-200 modules
per Indigo 4 frame
•12 per FR2AV or Indigo
2 frame
•Six per FR1AV or Indigo
1 frame
All frame slots can be used
BNC Function
SYNC LOOP Composite sync (B & B) input loop-through
SDI OUT Serial digital output
V IN/SDI OUT Component V Input / SDI OUT (link selectable)
Y/ PAL/NTSC IN Component Y, YC-Y / PAL/NTSC Input
U/C/SDI OUT Component U / YC-C Input / Serial digital output (link selectable)
SYNC IN Composite sync (B & B) input
Rear module connections with RM24
The RM24 is a single height rear module, which although has fewer outputs give the user
the benefit of a sync and Composite input loop-through.
RM24 rear module connector Description
RM24
•24 ADDEC-200 modules
per Indigo 4 frame
•Six per FR2AV or Indigo
2 frame
•Three per FR1AV or
Indigo 1 frame
•1 per Indigo DT
•Every other slot can be
used

Crystal Vision Hardware installation
826/01/06
Channel A I/O assignment
SYNC IN LOOP Composite sync (B & B) input Loop-through
SDI OUT Serial Digital Output
SDI OUT Serial Digital Output
PAL/NTSC Composite PAL/NTSC Input
PAL/NTSC LOOP Composite PAL/NTSC Input Loop-through
SYNC IN Composite sync (B & B) input

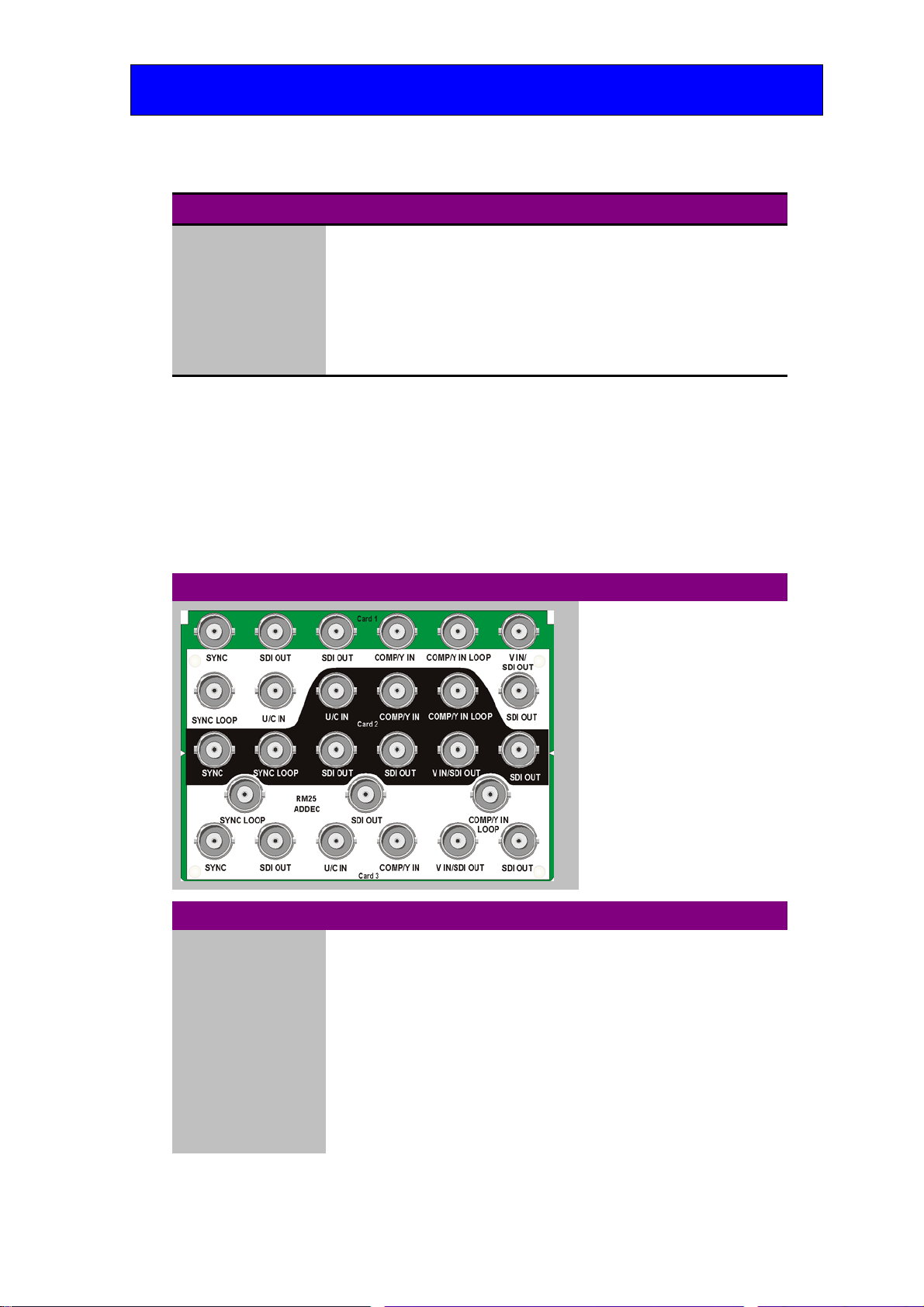

Rear module connections with RM25
The RM25 quad height module will only fit the 2U and 4U. With this rear module cards
can be inserted in the top two and bottom slot.
RM25 rear module connector Description
RM25
•18 ADDEC-200 modules
per Indigo 4 frame
•9 per FR2AV or Indigo 2
frame
•Slots 1,2 &4 of each bay
can be used.
BNC I/O assignment
SDI OUT Serial digital output
V IN/SDI OUT Component V / SDI OUT (link selectable)
COMP/Y IN LOOP Component Y, YC-Y / PAL/NTSC IN loop-through
COMP/Y IN Component Y, YC-Y / PAL/NTSC IN
SDI OUT Serial digital output
SDI OUT Serial digital output
U/C IN Component U / YC-C Input
SYNC IN LOOP Composite sync (B & B) input loop-through
SYNC IN Composite sync (B & B) input

Crystal Vision Hardware installation
926/01/06
Rear module connections with RM27
The RM27 is a dual height rear module. This module also has the benefit of a BNC
connection for the Audio follow pulse.
RM27 rear module connector Description
RM27
•12 ADDEC-200 modules
per Indigo 4 frame
•Six per FR2AV or Indigo
2 frame
•Three per FR1AV or
Indigo 1 frame
•1 per Indigo DT
•Every other slot can be
used
Channel A I/O assignment
TP TTL level positive going Audio follow pulse.
SDI OUT Serial Digital Output
V IN/SDI OUT Component V / SDI OUT (link selectable)
N/C No user connection
SYNC IN Composite sync (B & B) input
SYNC IN LOOP Composite sync (B & B) input Loop-through
N/C No user connection
COMP/Y IN Component Y, YC-Y / PAL/NTSC IN
COMP/Y IN LOOP Component Y, YC-Y / PAL/NTSC IN loop-through
SDI OUT Serial Digital Output
U/C IN Component U / YC-C Input
SDI OUT Serial Digital Output

Crystal Vision Hardware installation
10 26/01/06
Module configuration
The ADDEC-200 has five user selectable jumper links, which configure the Component
U / YC-C / Serial digital output, the Component V / SDI OUT and the Sync input
termination impedance.
V / SDI OUT port configuration
The Component V / SDI OUT port can be configured by setting the position of links PL2
& PL5 (to be found just above the middle right hand edge of the module). When a
Component V input is required set jumper link PL2 & PL5 to their upper position. Set
jumper PL2 & PL5 to their lower position when a further SDI output is required.
Note links PL2 & PL5 must be moved together as a pair.
Link Position Function
PL2 &
PL5
Above centre right hand
edge
Links in their upper position – Set for V IN
Link in their lower position – Set for SDI OUT
U / YC-C / SDI OUT port configuration
The Component U / YC-C / SDI OUT port can be configured by setting the position of
links PL3 & PL6 (to be found approximately in the middle right hand edge of the
module). When a Component U or C input is required set jumper link PL3 & PL6 to their
upper position. Set jumper PL3 & PL6 to their lower position when a further SDI output
is required.
Note links PL3 & PL6 must be moved together as a pair.
Link Position Function
PL3 &
PL6
Centre right hand edge Links in their upper position – Set for U / C IN
Link in their lower position – Set for SDI OUT
Loop or terminate the external reference
The external analogue reference may be terminated with 75Ωor left un-terminated for
when using the loop through output. Set jumper link PL3 (to be found at the middle right
hand edge of the module) to its left –hand position (away from the board connector) to
terminate the external reference. Set jumper PL3 to its right-hand position (towards the
board connector) to un-terminate the reference input.
Link Position Function
PL4 Lower right hand edge Link in its upper position – ext syncs Hi-Z
Link in its lower position – ext syncs terminated on board

Crystal Vision Hardware installation
11 26/01/06
2.2 General Purpose Interface (GPI)
Each frame slot has up to six connections ‘a-f ‘for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D type Remote
connectors.
GPI Low (<1V) High (+5V)
0‘a’ Recall preset bit 1 No user connection at present
1‘b’ Recall preset bit 2 No user connection at present
2‘c’ Recall preset bit4 No user connection at present
3‘d’ Recall preset bit 8 No user connection at present
4‘e’ Audio follow pulse Pulse width equal to audio delay
5‘f’ loss of
input/ref/frozen
No user connection at present
As supplied, each GPI output has a 220Ωresistor in series with its output. This allows for
an external LED to be driven, connected to a DC voltage of +5V.
The 16 user preset configurations can be recalled using binary notation.
GPI Bit 4 Bit 3 Bit 2 Bit 1
Preset
00000
10001
20010
30011
40100
50101
60110
70111
81000
91001
10 1010
11 1011
12 1100
13 1101
14 1110
15 1111

Crystal Vision Hardware installation
12 26/01/06
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of eight rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
38 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
47 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
55 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
64 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
75 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
84 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
93 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)
27 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)
38 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)
47 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)
55 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)
64 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)
75 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)
84 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)
93 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)
10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)
11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)
12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)
Table shows pin number (Remote number)
Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26 way high-density D-Type female
sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2, Remote 4, Remote 6 and Remote 8 are 26 way high-density D-Type male plugs
and frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2 and
Remote 6.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A. Remotes 5-8 are similarly
protected.
UpperLower

Crystal Vision Hardware installation
13 26/01/06
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of four rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
38 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
47 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
55 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
64 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
75 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
84 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
93 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Table shows pin number (remote number)
Note: Remote 1 and Remote 3 are 26 way high-density D-Type female sockets. Frame ground is
pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26 way high-density D-Type male plugs and frame ground is
pin 6 in each case and +5V @500mA is pin 15 on Remote 2.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A.
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to one of two rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
35 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
44 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
53 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
610 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
Table shows pin number (remote number)
Note: Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.

Crystal Vision Hardware installation
14 26/01/06
DTB-AV desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1123456
291011121314
Note: Remote connector is 15 way normal density D-Type socket. Frame ground is pin 15.
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to the rear remote connector as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
18 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
27 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
Table shows pin number (remote number)
Note: Remote 1: 26 way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26 way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.

Crystal Vision Card-edge control
15 26/01/06
3 Card edge operation
The hinged front panel of the case reveals the card user controls, LED indication of card
status and controls.
ADDEC-200 front view showing controls and LEDs
3.1 Card edge switch settings
The 8 way piano switch allows the operating modes and status options to be selected.
Lever Function Normal state Up, Action Down
1Input format DOWN Y/C
2Input format DOWN YUV Both UP or DOWN Composite
3Not assigned Normally UP, No customer functions
4YUV Betacam format UP normal, DOWN Betacam format
5Pedestal UP pedestal setup is suppressed. DOWN pedestal setup un-suppressed
6VBI UP Information in the vertical interval is passed. DOWN blanked
7Mode UP Synchroniser mode. DOWN Delay Mode
8Control UP Controlled from the board-edge. DOWN Statesman or Active front
panel control.
8 way DIL switch functions
3.2 Card edge rotary controls
Control Function
Delay Clockwise rotation increases delay. Anti-clockwise decreases delay.
Range 0-2 fields.
Rotary control functions

Crystal Vision Card-edge control
16 26/01/06
3.3 Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any connected
remote status panel display or from Statesman if available.
Refer also to the trouble-shooting chapter for more help with solving problems and
monitoring status information.
The following table summarises the card edge LED functions and colours:
Name Led
Colour
Function when ON
Freeze Red Illuminates if picture freeze is selected
PSU Green Good power supply (PSU) rails. (Bottom LED)
Ref Green External reference present
Input Green Video input present
3.4 Card edge configuration
Input Video format
Selecting the Input video format
The ADDEC-200 can be configured to accept three analogue video input formats,
PAL/NTSC composite or YC and Component YUV.
DIP Switch Composite Y/C YUV Composite
1UP DOWN UP DOWN
2UP UP DOWN DOWN
Betacam format
The ADDEC-200 is able to accept Betacam YprPb format input where the PrPb
component has been boosted in amplitude by 1.333.
DIL 4 Function
UP Normal
DOWN βSets YUV gains to accept Betacam video Chroma amplitudes

Crystal Vision Card-edge control
17 26/01/06
Removing NTSC setup (pedestal)
Before conversion to a SDI signal the 7.5% IRE setup (pedestal) applied to NTSC-M
waveform can be removed.
DIL 5 Function
UP M +7.5% IRE setup removed
DOWN J No setup removal
Vertical Blanking interval information
The information in the vertical blanking period of the analogue input video picture may
be blanked or passed unaltered. DIL switch 6 sets whether the VBI signal is passed or
blanked.
DIL 6 Function
UP vbi Sets analogue video picture VBI content to be blanked
DOWN bln Sets analogue video picture VBI content to be passed to the output
Selecting the operating Mode
There are two modes of operation, synchronisation and delay line. In Synchronisation
Mode the unit takes its timing from the analogue external reference. In Delay Mode,
timing is derived only from the analogue input video.
DIL 7 Function
UP syc Synchronisation mode
DOWN del Delay mode

Crystal Vision Card-edge control
18 26/01/06
Control
Control can be from card-edge or remotely from an active control panel or Statesman PC
control package.
DIL 8 Function
UP loc Local, board-edge control available
DOWN rem Remote control selected. Board edge control are non-functional
Adjusting the video delay or offset
Adjustment is made by rotating the card edge ‘Delay’ shaft control. The range of this
control is from 0 (minimum delay through the board) and 2 fields. The delay is
incremented in single samples when the shaft is rotated very slowly; a quicker rotation
will result in a coarse adjustment.
This sets the number of lines or pixels to be delayed in Delay Mode, or the vertical timing
offset with respect to the reference input in Synchronisation Mode.

Crystal Vision Active Control Panel
19 26/01/06
4 Using the active front panel
4.1 Module selected
This operational guide assumes that the panel has been setup according to the Panel setup
procedure described in the Crystal Vision Control Panel manual.
Note: It is ESSENTIAL that the Panel setup procedure is followed and any old or unknown
passwords cleared prior to using the panel for the first time.
At power up, the two line 20-character screen will display ‘Crystal Vision’ followed by
the firmware version number for the control panel. All eight control panel keys LEDs will
illuminate.
The Crystal Vision control panel start up display
'Control Panel' then briefly replaces the version number display.
If the control panel firmware has been updated for Statesman control (version 1.5.0 or
higher), Statesman Mode will be entered and the message, ‘Press CAL to Exit’ will be
displayed and the CAL LED will light.
Statesman mode is entered by default
