Kramer VM-100CA User manual

Kramer Electronics, Ltd.
USER MANUAL
Model:
VM-100CA
1:10 Video Component / Audio Distributor

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 1
4 Your VM-100CA 2
5 Installing on a Rack 6
6 Connecting the VM-100CA 7
6.1 Connecting a Single VM-100CA Unit 7
6.2 Connecting Several VM-100CA Units 9
7 Technical Specifications 10
Figures
Figure 1: VM-100CA 1:10 Video Component / Audio Distributor Front Panel 3
Figure 2: VM-100CA 1:10 Video Component / Audio Distributor Rear Panel 3
Figure 3: VM-100CA Underside 5
Figure 4: Connecting a VM-100CA Unit 8
Figure 5: Connecting Several VM-100CA Units 9
Tables
Table 1: Front Panel VM-100CA 1:10 Video Component / Audio Distributor Features 4
Table 2: Rear Panel VM-100CA 1:10 Video Component / Audio Distributor Features 4
Table 3: VM-100CA Underside Features 5
Table 4: Technical Specifications of the VM-100CA 10

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
350-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your VM-100CA 1:10 Video Component /
Audio Distributor, which is ideal for the following typical applications:
 Live broadcasting and editing
 Duplication studios, delivering undiminished quality duplicates
The package includes the following items:
 VM-100CA 1:10 Video Component / Audio Distributor
 Power cord
 This user manual
2
2 Getting Started
We recommend that you:
 Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
 Review the contents of this user manual
 Use Kramer high performance high resolution cables
3
3 Overview
The Kramer VM-100CA is a high quality 1:10 distributor for component
video signals (HDTV compatible), digital audio (S/PDIF) signals, and
unbalanced stereo audio signals. In particular, the VM-100CA:
 Accepts one component video input and distributes the signal to 10
identical outputs using RCA connectors
 Has a video bandwidth of 450MHz that ensures transparent operation at
the highest resolutions
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-100CA
2
 Has looping connectors that can be used to connect to a local monitor (or
some other component video acceptor), or to create larger systems
1
 Features trimmers located on the underside that can be used to adjust the
component video Level and EQ. settings
In addition, the VM-100CA:
 Accepts a digital audio (S/PDIF) input, loops it and distributes it to 10
digital audio (S/PDIF) outputs using RCA connectors
 Accepts an unbalanced stereo audio input, loops it and distributes it to 10
unbalanced stereo audio outputs using RCA connectors
 Features audio level control for the unbalanced stereo audio output
 Is housed in a 19" 2U rack mountable enclosure, and is fed from a
100-264 VAC, 50/60 Hz, 18 VA power supply
To achieve the best performance:
 Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise levels
(often associated with low quality cables)
 Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VM-100CA away
from moisture, excessive sunlight and dust
4 Your VM-100CA
Figure 1, Table 1, and Table 2 define the front and rear panels of the
VM-100CA 1:10 Video Component / Audio Distributor:
1 For example, you can connect two VM-100CA units to make a 1:20 video component / audio distributor (see section 6.2)

Your VM-100CA
3
Figure 1: VM-100CA 1:10 Video Component / Audio Distributor Front Panel
Figure 2: VM-100CA 1:10 Video Component / Audio Distributor Rear Panel

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VM-100CA
4
Table 1: Front Panel VM-100CA 1:10 Video Component / Audio Distributor Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
Table 2: Rear Panel VM-100CA 1:10 Video Component / Audio Distributor Features
# Feature Function
2 INPUT TERM Button Pushing in selects 75; releasing selects Hi-Z
1
3 INPUT RCA Connector Connects to the digital audio source
4 LOOP RCA Connector For looping the input (if required)
5
S/PDIF
OUT RCA Connector Connects to the digital audio acceptor (from 1 to 10)
6 L-INPUT RCA Connector Connects to the stereo audio (left) source
7 R-INPUT RCA Connector Connects to the stereo audio (right) source
8 L-LOOP RCA Connector
9 R-LOOP RCA Connector
For looping the input (if required)
10
R-LEVEL Trimmer Adjusts
2
the right audio output level
11
L-LEVEL Trimmer Adjusts
2
the left audio output level
12
LEFT OUTPUT RCA Connector Connect to the stereo audio (left) acceptors (from 1 to 10)
13
ANALOG AUDIO
RIGHT OUTPUT RCA Connector Connect to the stereo audio (right) acceptors (from 1 to 10)
14
INPUT TERM Button Pushing in selects 75; releasing selects Hi-Z
1
15
Y RCA Connector
16
R-Y RCA Connector For looping the inputs (if required)
17
LOOP
B-Y RCA Connector
18
Y RCA Connector
19
B-Y RCA Connector Connect to the component source
20
INPUT
R-Y RCA Connector
21
Y RCA Connector
22
R-Y RCA Connector Connect to the component acceptors (from 1 to 10)
23
COMPONENT VIDEO
OUTPUT
B-Y RCA Connector
24
Power Connector with Fuse AC connector enabling power supply to the unit
1 For looping select Hi-Z
2 Insert a screwdriver into the small hole and carefully rotate it, trimming the level

Your VM-100CA
5

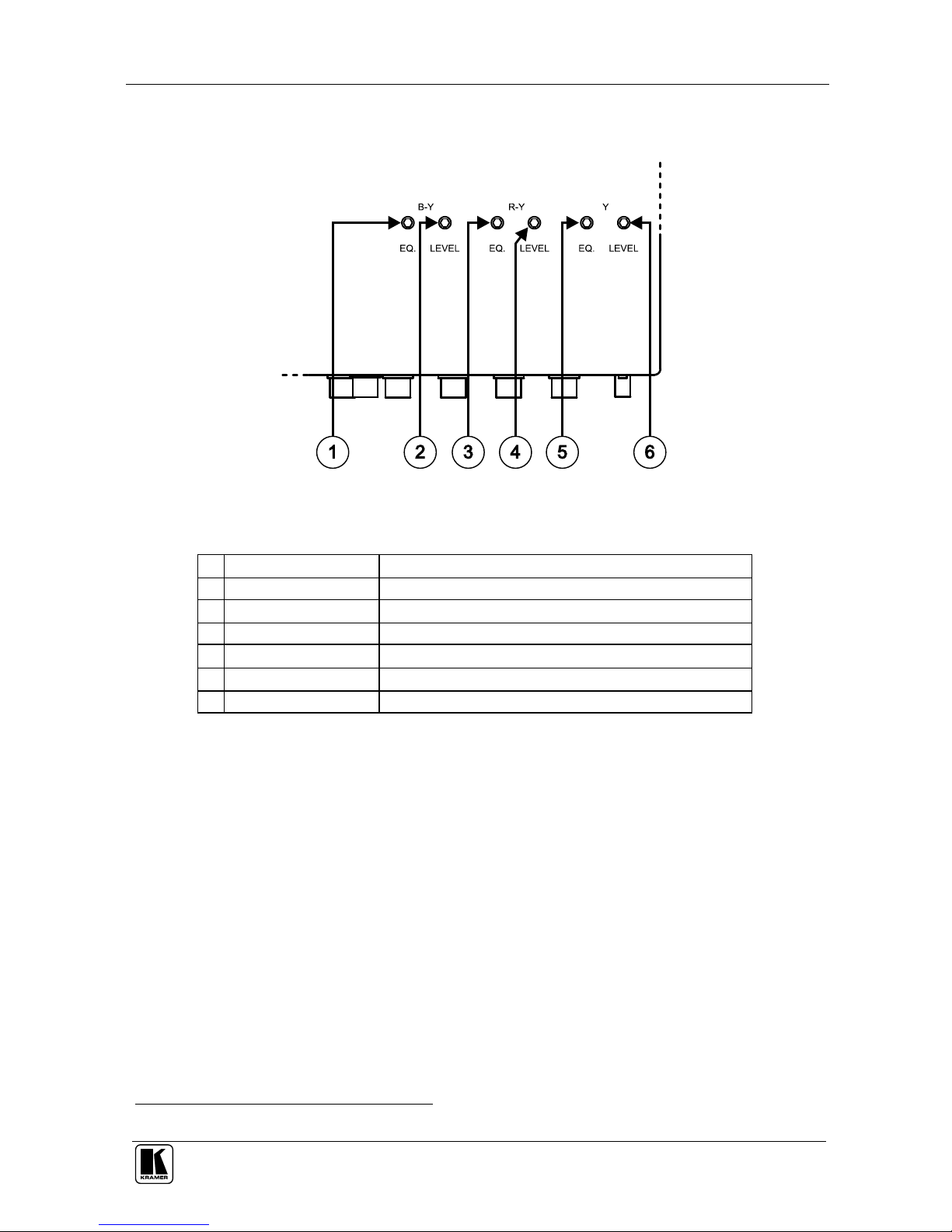

Figure 3 and Table 3 define the level trimmers and the EQ. trimmers for Y,
B-Y, and R-Y on the underside of the VM-100CA:
Figure 3: VM-100CA Underside
Table 3: VM-100CA Underside Features
# Feature Function
1 B-Y EQ. Trimmer Adjusts
1
the B-Y cable compensation equalization level
2 B-Y LEVEL Trimmer Adjusts
1
the B-Y output signal level
3 R-Y EQ. Trimmer Adjusts
1
the R-Y cable compensation equalization level
4 R-Y LEVEL Trimmer Adjusts
1
the R-Y output signal level
5 Y EQ. Trimmer Adjusts
1
the Y cable compensation equalization level
6 Y LEVEL Trimmer Adjusts
1
the Y output signal level
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level or EQ level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Installing on a Rack
6
5 Installing on a Rack
This section describes what to do before installing on a rack and how to rack
mount.
Before Installing on a Rack
Before installing on a rack, be sure that the environment is
within the recommended range:
Operating temperature range +5 to +45 Deg. Centigrade
Operating humidity range 5 to 65 % RHL, non-condensing
Storage temperature range -20 to +70 Deg. Centigrade
Storage humidity range 5 to 95% RHL, non-condensing
CAUTION!!
When installing on a 19" rack, avoid hazards by taking
care that:
1 It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the room
ambient temperature.
2 Once rack mounted, enough air will still flow around the
machine.
3 The machine is placed straight in the correct horizontal
position.
4 You do not overload the circuit(s). When connecting the
machine to the supply circuit, overloading the circuits
might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for fuse
replacement, see the value printed on the product label.
5 The machine is earthed (grounded) in a reliable way and
is connected only to an electricity socket with grounding.
Pay particular attention to supply connections other than
direct connections to the branch circuit (for example, the
use of power strips), and that you use only the power cord
that is supplied with the machine.
How to Rack Mount
To rack-mount the machine:
1 Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the
machine (3 on each side), and
replace those screws through
the ear brackets.
2 Place the ears of the machine
against the rack rails, and insert
the proper screws (not provided)
through each of the four holes in
the rack ears.
Note that:
In some models, the front panel
may feature built-in rack ears
Detachable rack ears can be
removed for desktop use
Always mount the machine in the
rack before you attach any cables or
connect the machine to the power
If you are using a Kramer rack
adapter kit (for a machine that is not
19"), see the Rack Adapters user
manual for installation instructions
(you can download it at:
http://www.kramerelectronics.com)

Connecting the VM-100CA
7
6 Connecting the VM-100CA
This section defines how to connect the VM-100CA. In particular, how to
connect:
 A single unit (1:10 Video Component / Audio Distributor), see section 6.1

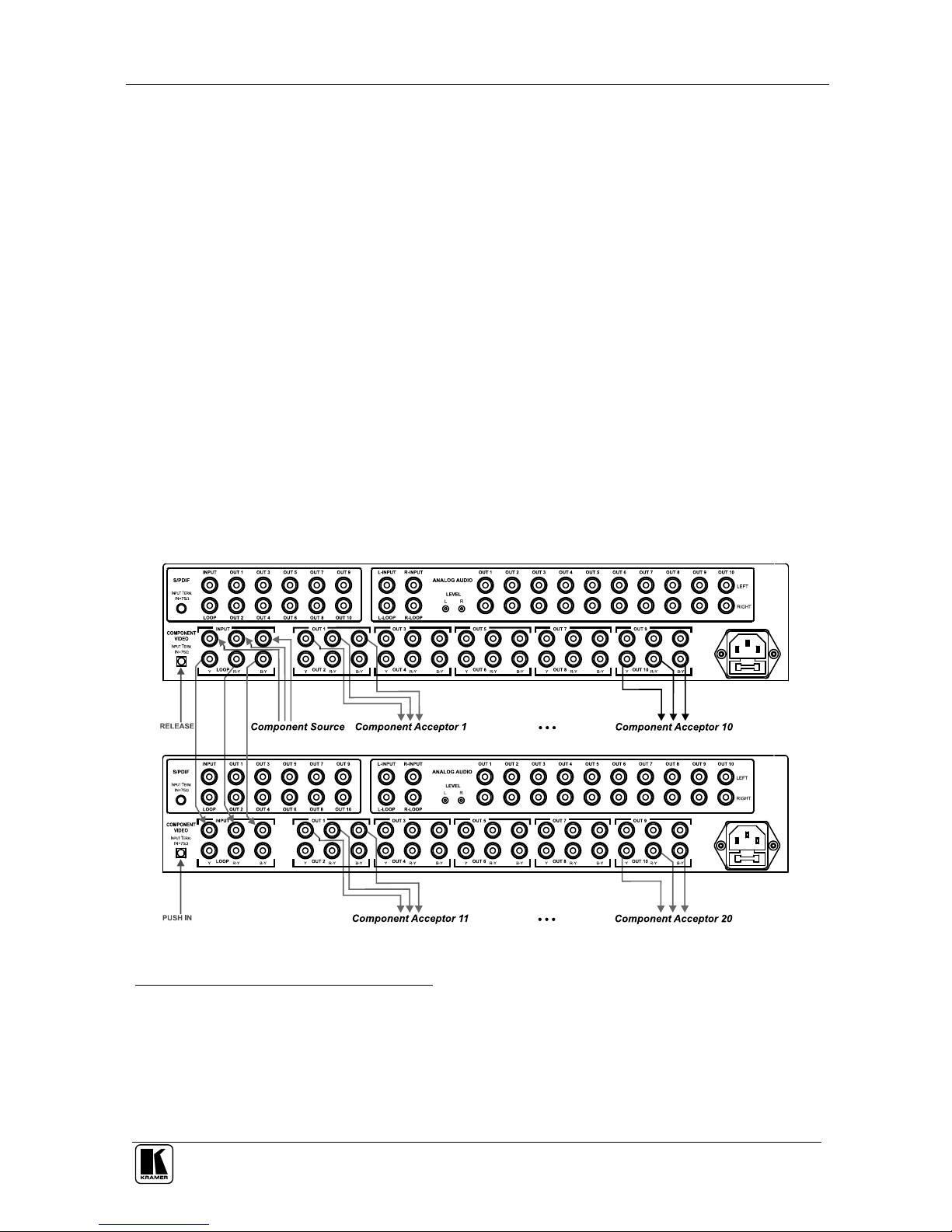

 Several units, see section 6.2
6.1 Connecting a Single VM-100CA Unit
To connect a single VM-100CA unit (1:10 Video Component / Audio
Distributor) as the example in Figure 4 illustrates, do the following
1
:
1. Connect a component video source (for example, an HDTV satellite
receiver) to the COMPONENT VIDEO INPUT RCA connectors, and to
the S/PDIF INPUT RCA connector.
2. Connect
2
the:
 COMPONENT VIDEO OUT 1 RCA connectors to a plasma display, and
the S/PDIF OUT 1 RCA connector to an AV-Receiver
 COMPONENT VIDEO OUT 10 RCA connectors, and the S/PDIF OUT
10 RCA connector to a home theater system
3. Leave the LOOP RCA connectors unconnected, and push in the Input
Term buttons to 75.
Note: if a loop connection is required, for example, to a local monitor,
plug it into the COMPONENT VIDEO LOOP RCA connectors and
release the Input Term button to Hi-Z.
4. Connect the power cord (not illustrated in Figure 4).
5. If required, adjust
3
the Y, B-Y, and R-Y output signal level and/or the Y,
B-Y, and R-Y cable compensation equalization level.
1 Switch OFF the power on each device before connecting it to your VM-100CA After connecting your VM-100CA, switch
on its power and then switch on the power on each device
2 You can connect up to 10 component video output connectors to up to 10 component video acceptors. When less than 10
outputs are required, connect only those outputs of the VM-100CA that are required, and leave the other outputs unconnected
3 Insert a screwdriver into the small hole and carefully rotate it, trimming the OUTPUT level or EQ level

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VM-100CA
8

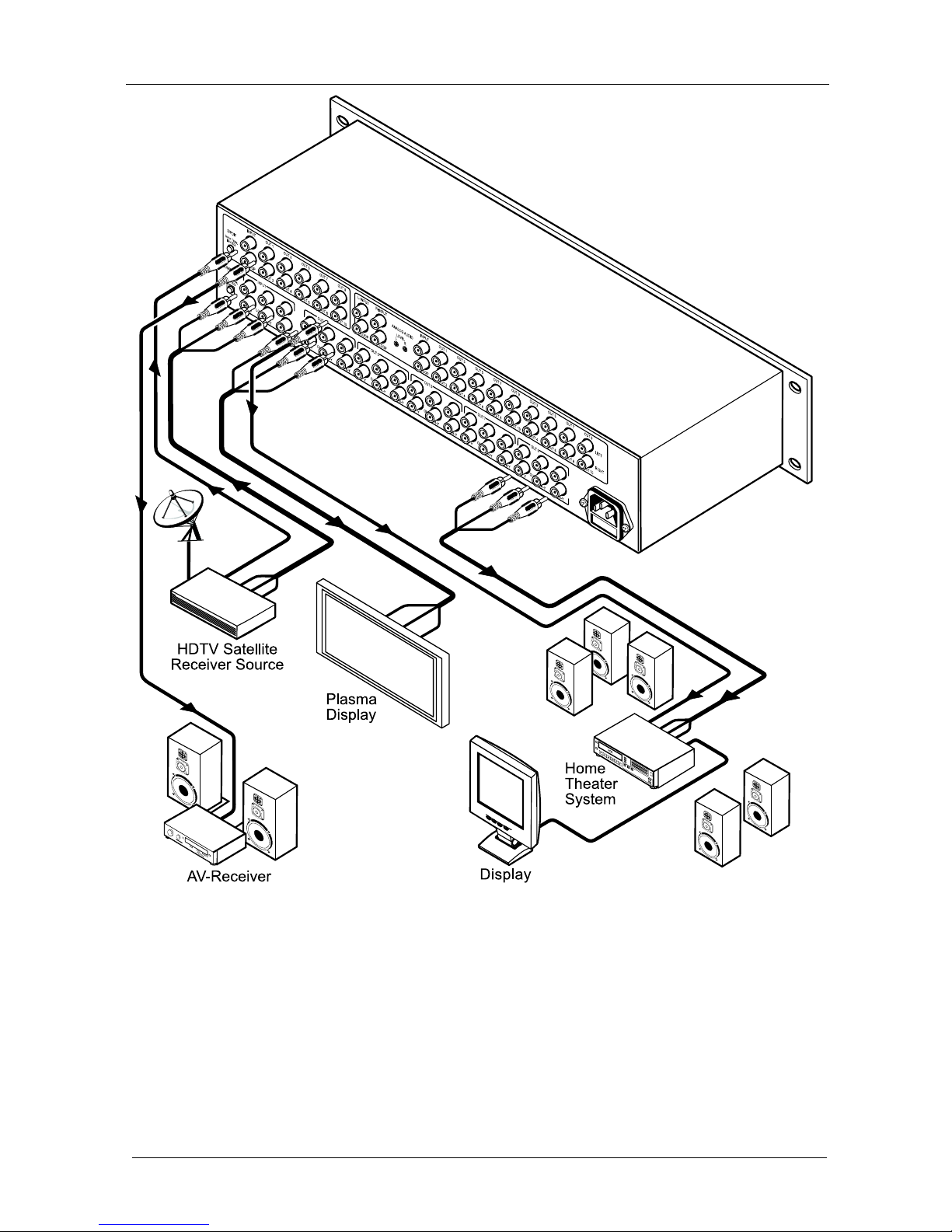

Figure 4: Connecting a VM-100CA Unit
