Up-and-down
Combined up, down and cross converter

Up-and-down User Manual R2.5 Crystal Vision
118/03/2009
Contents
1Introduction 3
1.1 Operating modes 4
2Hardware installation 6
2.1 Rear modules and signal I/O 6
Rear module connections with RM34 6
Rear module connections with RM29 7
2.2 General Purpose Interface (GPI) 7
3Card edge operation 11
3.1 Card edge controls 11
3.2 Card edge buttons 11
3.3 Card edge rotary control 11
3.4 Reading card edge LEDs 12
3.5 Navigating card edge menus 12
3.6 Card edge configuration 13

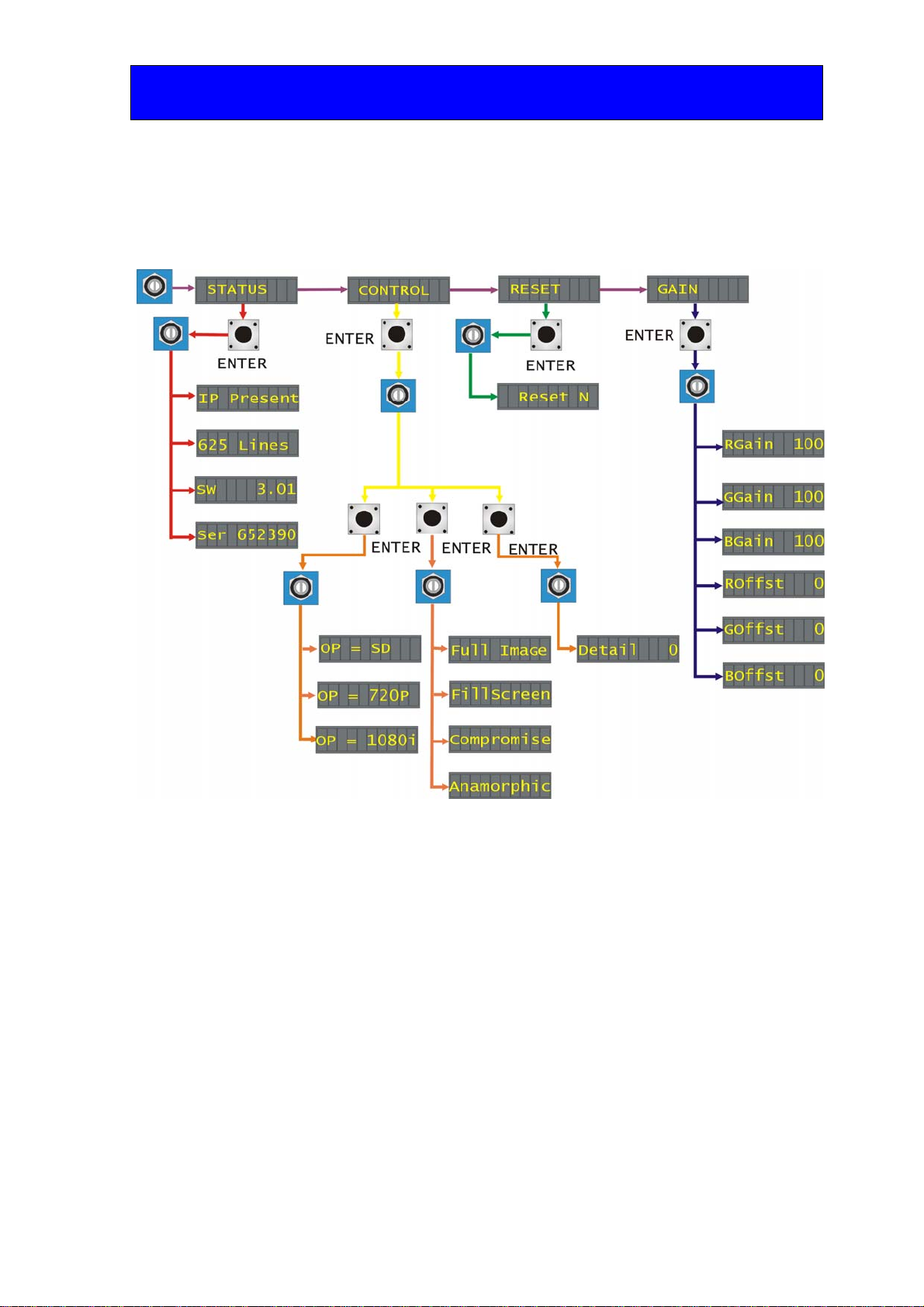

Menu Tree 13
Card edge status 14
Setting the output configuration (Control) 14

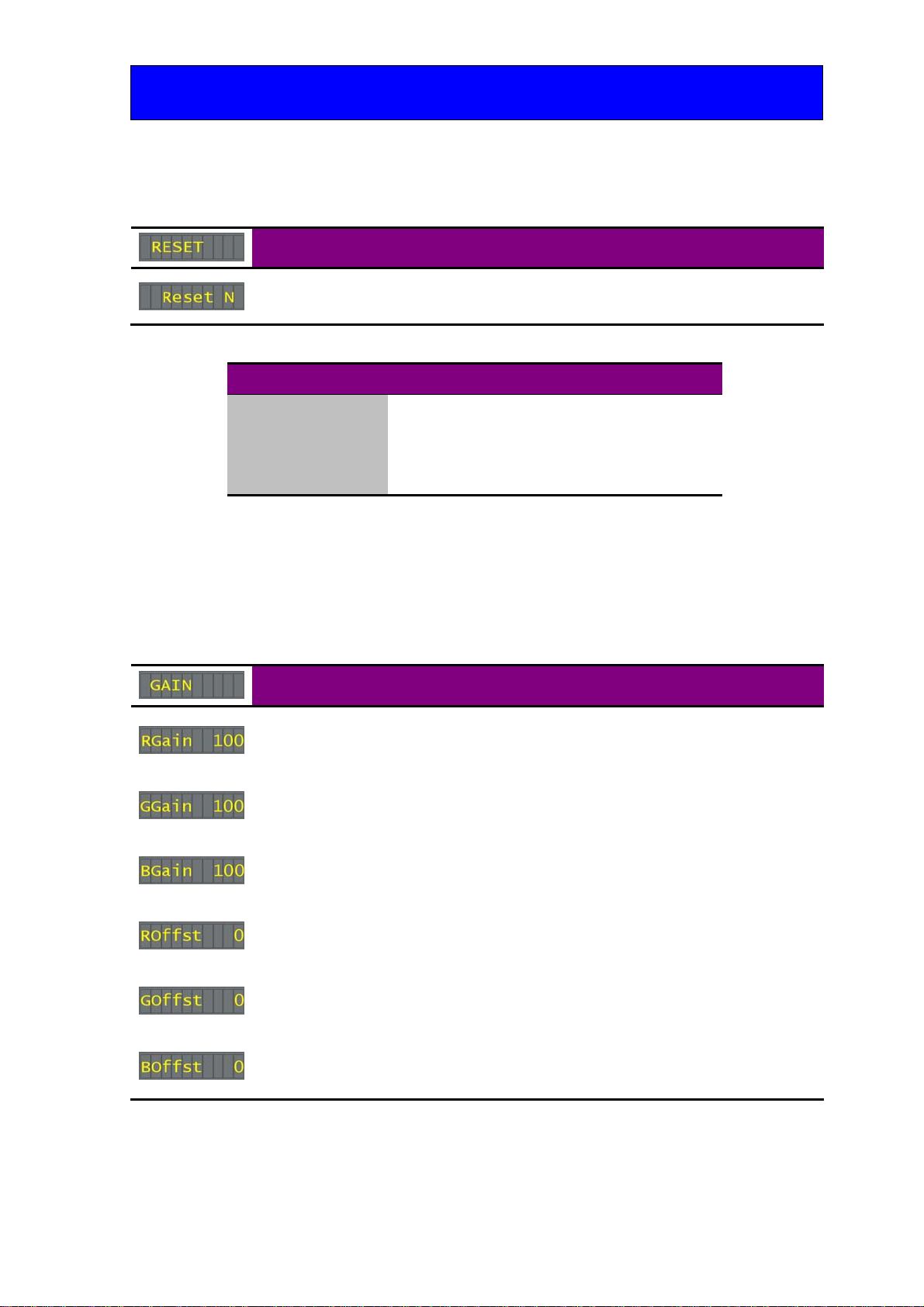

Recalling factory default settings (Reset) 16
Video gains and offsets (Gain) 16

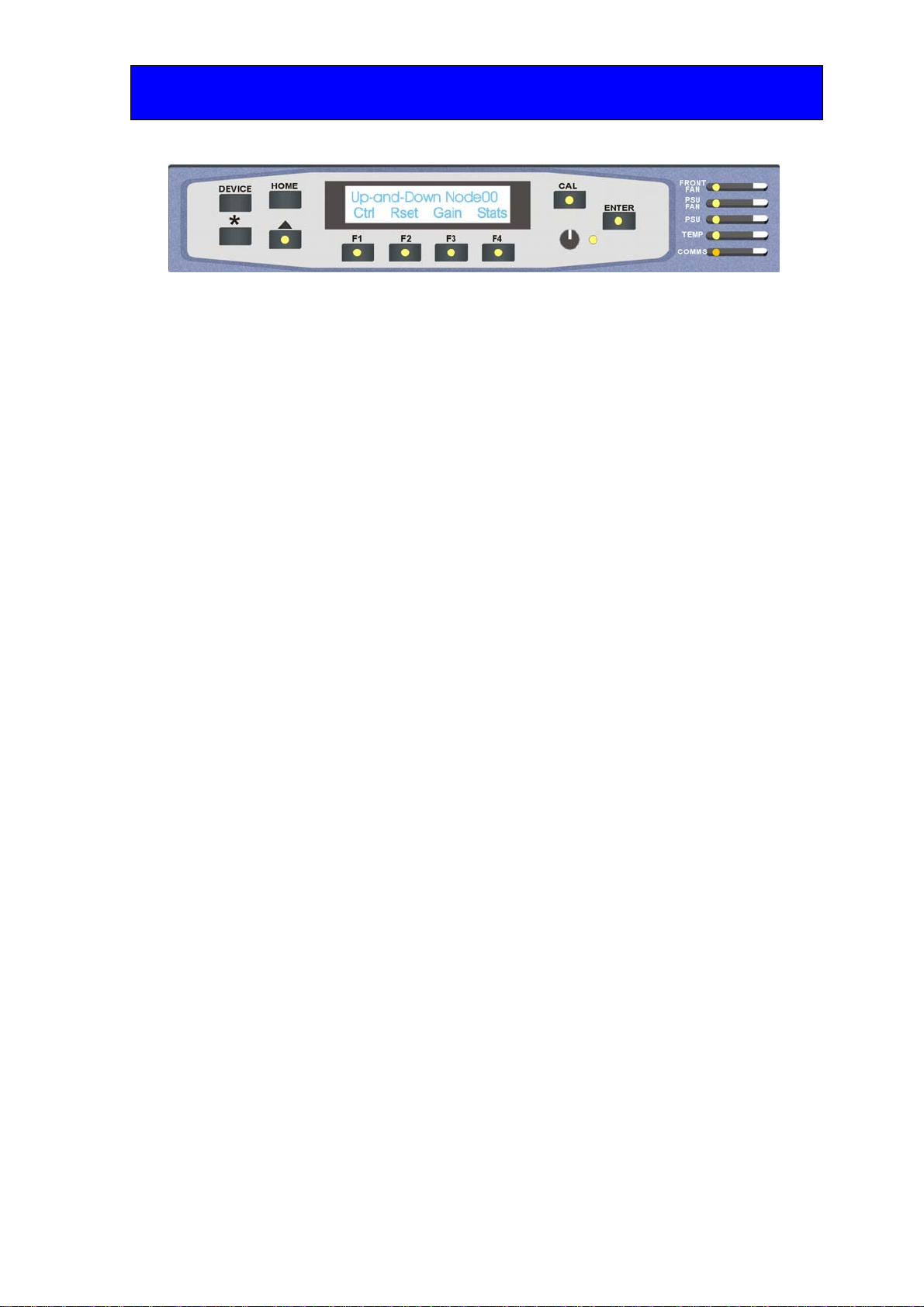

4Using the front control panel 17
4.1 Module selected 17
Updating the display 19
4.2 The Up-and-down active panel menu structure 19

Up-and-down User Manual R2.5 Crystal Vision
218/03/2009
Up-and-down Menu Structure 20
Video Control Menu 20
Reset (factory defaults) 21
Gains and Offsets 21
Status 23
5Statesman 24
5.1 Statesman operation 24
Detail Enhancement 25
Reset (factory defaults) 26
Gains and Offsets 26
6Trouble shooting 27
6.1 Card edge status LEDs 27
Basic fault finding guide 27
7Specification 28
Revision 2. Version 5 software changes and corrections 05/07/07
Revision 3. Page 7 GPI table renumbered 04/10/07
Revision 4. General update 07/11/07
Revision 5. Cross conversion table amended, page 4 10/03/09

Crystal Vision Introduction
Up-and-down User Manual R2.5 318/03/2009
1Introduction
Up-and-down provides format conversion between High Definition and Standard
definition and different HD formats sharing the same line rate. This is achieved by using
the latest motion adaptive video de-interlacing techniques incorporating both detail and
edge enhancement processing. DA outputs are available for both the reclocked input and
converted program.
Up-and-down converter
The main features are as follows:
•Combined up, down and cross conversion
•Motion adaptive video de-interlacing with both detail and edge enhancement
•Flexible aspect ratio conversion
•Auto bypass when input and output are the same standard
•One frame video delay in all modes
•Two scaled outputs and two input loop-throughs
•Fits in standard frames alongside HD, SD and audio products
Up-and-down is a 100mm x 266mm module, which fits in the four standard frames and
can be integrated with any boards from the company’s full product range. The RM34 is
the rear module of choice although the RM29 can also be used.

Crystal Vision Introduction
Up-and-down User Manual R2.5 418/03/2009
1.1 Operating modes
Up-and-down incorporates a number of processing features to ensure that maximum
performance is maintained under all circumstances. To obtain the best results when
scaling up or down generally requires different techniques depending on whether the
video contains slow or fast moving images. Up-and-down employs motion adaptive video
de-interlacing to maximise the picture’s vertical resolution alongside a scaler and frame
rate converter to achieve the best picture that always appears smooth and natural-looking.
Up converting from SD to HD will give a softer picture: the adjustable detail
enhancement feature allows image sharpening. Fine edge detail processing additionally
ensures that the picture remains clear and sharp without creating unpleasant jagged edges.
To maintain best picture quality Up-and-down automatically enters a bypass mode when
the input is the same as the selected output standard. This is achieved by bypassing the
major processing blocks. Whilst in bypass the gain, offset, detail and aspect ratio controls
will be inactive.
Up conversion
625/50 to 720p 50
525/59.94 to 720p 59.94
625/50 to 1080i 50
525/59.94 to 1080i 59.94
Down conversion
720p 50 to 625/50
720p 59.94 to 525/59.94
1080i 50 to 625/50
1080i 59.94 to 525/59.94
Cross conversion
720p 50 to 1080i 50
720p 59.94 to 1080i 59.94
1080i 50 to 720p 50
1080i 59.94 to 720p 59.94

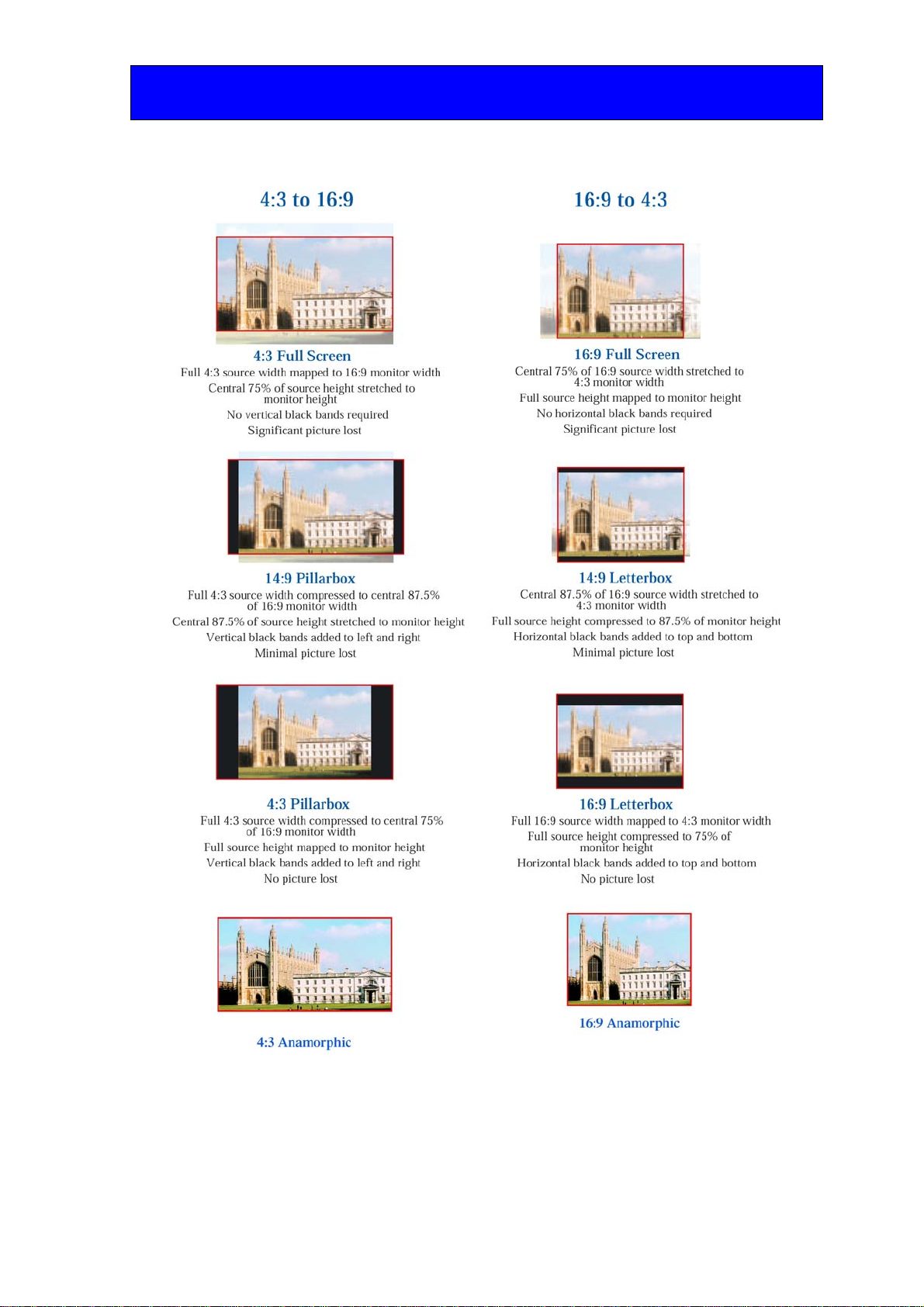

High Definition aspect ratio is always 16:9, but Standard Definition can be 16:9 or 4:3.
Up-and-down has a selection of aspect ratio settings for both SD inputs and SD outputs.
Input / Output format Output aspect ratio
HD(16:9) / SD(4:3)
16:9 Letterbox (Full image)
14:9 Letterbox (Compromise)
16:9 Full Screen (Centre cut)
Anamorphic (compressed horizontally)
Input / Output format Input aspect ratio
SD(4:3) / HD(16:9)
4:3 Pillarbox (Full image)
14:9 Pillarbox (Compromise)
4:3 Full Screen (Centre cut)
Anamorphic (compressed vertically)

Crystal Vision Introduction
Up-and-down User Manual R2.5 518/03/2009
Full 4:3 source width horizontally stretched
to 16:9 monitor width
Full source height mapped to monitor height
No picture lost but possible significant distortion
Full 16:9 source width mapped to 4:3 monitor width
Full source height stretched to monitor height
No picture lost but possible significant distortion

Crystal Vision Hardware installation
Up-and-down User Manual R2.5 618/03/2009
2Hardware installation
The Up-and-down single height module uses the RM34 rear connector that will fit into all
Crystal Vision rack frames. All modules can be plugged in and removed while the frame
is powered without damage.
2.1 Rear modules and signal I/O
The Indigo 4 4U frame will house up to 24 single height modules with up to three power
supplies. The Indigo 2 2U frame will house up to 12 single height modules and dual
power supplies. The Indigo 1 1U frame will house six single height modules and a single
power supply. The Indigo DT desk top box has a built-in power supply and will house up
to two single height modules.
Note: For details of fitting rear connectors please refer to the appropriate frame manual.

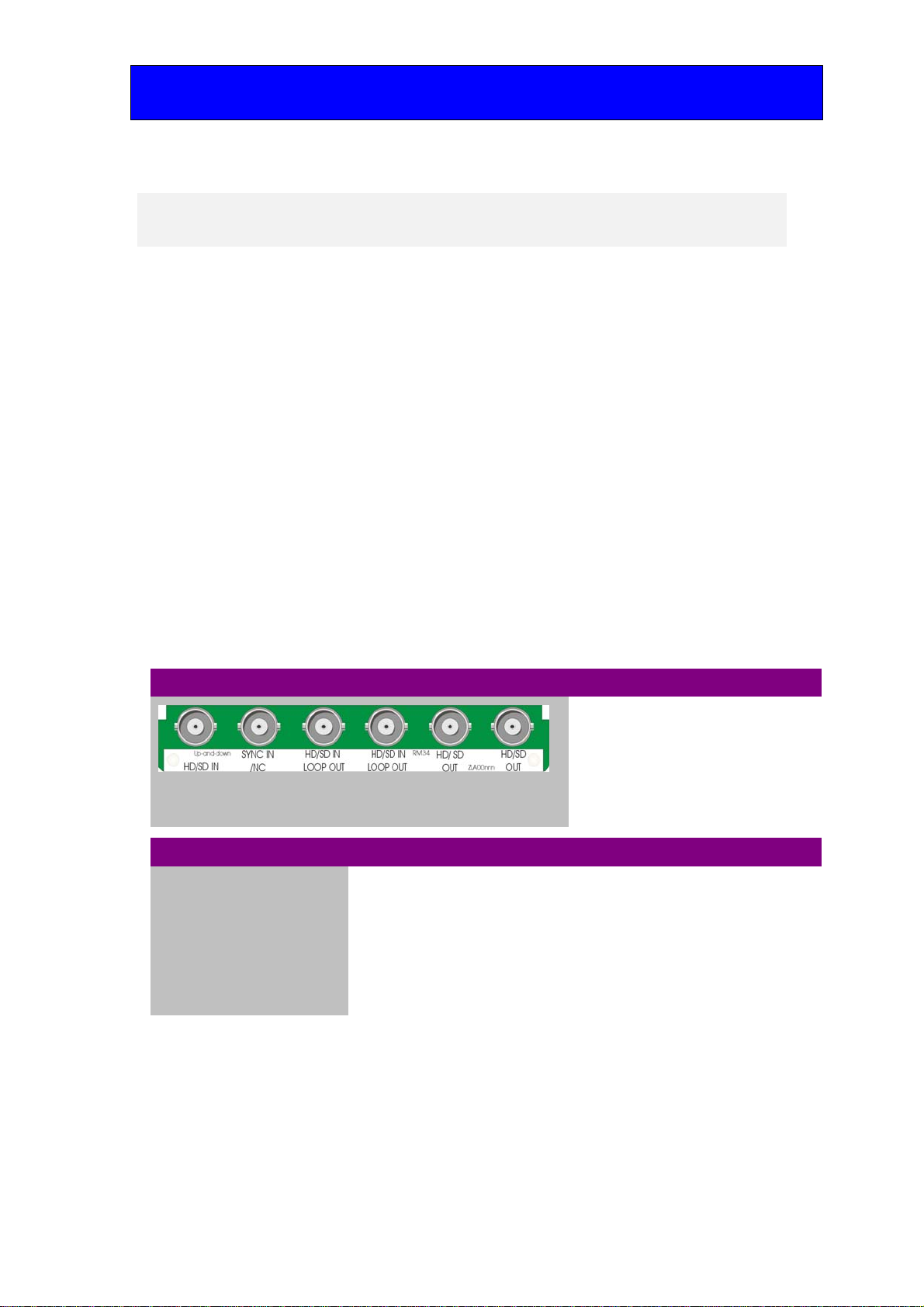

Rear module connections with RM34
The RM34 being the rear module of choice is a single height module that will allow
maximum packing density with the maximum number of outputs available.
RM34 rear module connector Description
RM34
•24 Up-and-down modules per
Indigo 4 frame
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•2 per Indigo DT
•All frame slots can be used
BNC I/O assignment
HD/SD OUT Scaler serial digital output
HD/SD OUT Scaler serial digital output
HD/SDI IN LOOP OUT High Definition / Standard Definition serial digital input reclocked loop-through
HD/SD IN LOOP OUT High Definition / Standard Definition serial digital input reclocked loop-through
SYNC IN/NC No user connection
HD/SD INPUT High Definition / Standard Definition serial digital input

Crystal Vision Hardware installation
Up-and-down User Manual R2.5 718/03/2009
Rear module connections with RM29
The RM29 although no longer available for new installations can also be used. This is
also a single height rear module giving maximum packing density with the maximum
number of outputs available.
RM29 rear module connector Description
RM29
•24 Up-and-down modules
per Indigo 4 frame
•12 per Indigo 2 frame
•Six per Indigo 1 frame
•2 per Indigo DT
•All frame slots can be
used
BNC I/O assignment
HD SDI OUT Scaler serial digital output
HD SDI OUT Scaler serial digital output
HD SDI IN LOOP High Definition / Standard Definition serial digital input reclocked loop-
through
HD SDI IN LOOP High Definition / Standard Definition serial digital input reclocked loop-
through
HD SDI INPUT High Definition / Standard Definition serial digital input
2.2 General Purpose Interface (GPI)
Each frame slot has up to six connections ‘a-f’ for GPI control and monitoring. These
connections are available at the rear of the frame on the 26-way D-type remote
connectors.
GPI Low (<1V) High (+5V)
1 ‘a’
GPI recall of Presets
a,b,c,d high = Preset1, a,b,c,d low = Preset16
2 ‘b’
3 ‘c’
4 ‘d’
5 ‘e’ No function at present
6 ‘f’ No function at present

Crystal Vision Hardware installation
Up-and-down User Manual R2.5 818/03/2009
As supplied, each GPI output has a 270Ωresistor in series with its output. This allows for
an external LED to be driven, connected to a DC voltage of +5V.
Each General Purpose Input (GPI) is fitted with a 10kΩresistor connected to the internal
+5V.
4U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two of eight rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
3 8 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
4 7 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
5 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
6 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
7 5 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
8 4 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
9 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Table shows pin number (remote number)
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (5) 9 (5) 18 (5) 26 (5) 19 (6) 20 (6)
2 7 (5) 16 (5) 17 (5) 25 (5) 10 (6) 11 (6)
3 8 (7) 9 (7) 18 (7) 26 (7) 19 (8) 20 (8)
4 7 (7) 16 (7) 17 (7) 25 (7) 10 (8) 11 (8)
5 5 (5) 6 (5) 15 (5) 24 (5) 1 (6) 2 (6)
6 4 (5) 14 (5) 13 (5) 23 (5) 3 (6) 4 (6)
7 5 (7) 6 (7) 15 (7) 24 (7) 1 (8) 2 (8)
8 4 (7) 14 (7) 13 (7) 23 (7) 3 (8) 4 (8)
9 3 (5) 12 (5) 22 (5) 21 (5) 12 (6) 13 (6)
10 10 (5) 11 (5) 19 (5) 20 (5) 21 (6) 22 (6)
11 3 (7) 12 (7) 22 (7) 21 (7) 12 (8) 13 (8)
12 10 (7) 11 (7) 19 (7) 20 (7) 21 (8) 22 (8)
Table shows pin number (remote number)
Note: Remote 1, Remote 3, Remote 5 and Remote 7 are 26-way high-density D-Type female
sockets. Frame ground is pin 2 and +5V @500mA is pin 1 in each case.
Remote 2, Remote 4, Remote 6 and Remote 8 are 26-way high-density D-Type male plugs
and frame ground is pin 6 in each case and +5V @500mA is pin 15 on Remote 2 and
Remote 6.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A. Remotes 5-8 are similarly
protected.
UpperLower

Crystal Vision Hardware installation
Up-and-down User Manual R2.5 918/03/2009
2U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two of four rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
3 8 (3) 9 (3) 18 (3) 26 (3) 19 (4) 20 (4)
4 7 (3) 16 (3) 17 (3) 25 (3) 10 (4) 11 (4)
5 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
6 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
7 5 (3) 6 (3) 15 (3) 24 (3) 1 (4) 2 (4)
8 4 (3) 14 (3) 13 (3) 23 (3) 3 (4) 4 (4)
9 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
10 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
11 3 (3) 12 (3) 22 (3) 21 (3) 12 (4) 13 (4)
12 10 (3) 11 (3) 19 (3) 20 (3) 21 (4) 22 (4)
Table shows pin number (remote number)
Note: Remote 1 and Remote 3 are 26-way high-density D-Type female sockets. Frame ground is
pin 2 and +5V @500mA is pin 1 in each case.
Remote 2 and Remote 4 are 26-way high-density D-Type male plugs and frame ground is
pin 6 in each case and +5V @500mA is pin 15 on Remote 2.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-4 to approximately 1A.
1U frame GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
3 5 (1) 6 (1) 15 (1) 24 (1) 1 (2) 2 (2)
4 4 (1) 14 (1) 13 (1) 23 (1) 3 (2) 4 (2)
5 3 (1) 12 (1) 22 (1) 21 (1) 12 (2) 13 (2)
6 10 (1) 11 (1) 19 (1) 20 (1) 21 (2) 22 (2)
Table shows pin number (remote number)
Note: Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.

Crystal Vision Hardware installation
Up-and-down User Manual R2.5 10 18/03/2009
Indigo DT desk top box GPI connections
GPI lines ‘a’ to ‘f’ of each card connect to two rear remote connectors as follows:
Slot no. ‘a’ pin ‘b’ pin ‘c’ pin ‘d’ pin ‘e’ pin ‘f’ pin
1 8 (1) 9 (1) 18 (1) 26 (1) 19 (2) 20 (2)
2 7 (1) 16 (1) 17 (1) 25 (1) 10 (2) 11 (2)
Table shows pin number (remote number)
Note: Remote 1: 26-way high-density D-Type female socket. Frame ground is pin 2 and +5V
@500mA is pin 1.
Remote 2: 26-way high-density D-Type male plugs and frame ground is pin 6 and +5V
@500mA is pin 15.
Note. The +5V output is protected by self-resetting thermal fuses, which limit the total
output current available from Remotes 1-2 to approximately 1A.

Crystal Vision Card edge operation
Up-and-down User Manual R2.5 11 18/03/2009
3Card edge operation
3.1 Card edge controls
Once the start-up initialisation procedure is complete, the Up-and-down card can be
controlled or configured from the card edge, the active control panel or the Statesman PC
interface. This chapter will concentrate on the card edge controls.
The front edge of the card provides power rail monitoring, menu selection, variables
adjustment and a ten-digit visual status display.
Up-and-down front edge view
3.2 Card edge buttons
The Up-and-down is fitted with two tactile push button switches that allow the operator to
navigate within the menu structure.
.
Button Function Normal state Up, Action Down
 Up Menu Push to jump up a menu level or cancel a selection
ENTER Select/Action Push to select a menu and to action and confirm a change
3.3 Card edge rotary control
The board edge rotary encoder is used to navigate through the menu categories and adjust
parameter values.
Control Function
SCROLL
/ADJUST
Rotate SCROLL to identify a menu category. In combination with the ENTER button
select and ADJUST to change the current level or select a further option.
Notes: The rotary control can access menus and parameter values by clockwise or anti-clockwise
rotation.

Crystal Vision Card edge operation
Up-and-down User Manual R2.5 12 18/03/2009
3.4 Reading card edge LEDs
Card edge LEDs may be used in conjunction with status information from any connected
remote status panel display or from Statesman if available.
Refer also to the trouble shooting chapter for more help with solving problems and monitoring
status information.
The following table summarises the card edge LED functions and colours:
Name LED
Colour Function when ON Function when Off
HD Yellow Video input standard is HD
(High Definition) Input not present
SD Yellow Video input standard is SD
(Standard Definition)
PSU
OK Green Good power supply (PSU) rails. One or more of the monitor supplies is out of specification
Yellow No function at present
Green No function at present
3.5 Navigating card edge menus
To access the card edge menu system proceed as follows:
•Press the up-arrow [∧] until a top menu category is reached
•Rotate the SCROLL control until the desired menu category is found
•Push ENTER to enter the sub menus of that category
•Rotate SCROLL to select a sub menu
•Push ENTER to select the desired function. Selection will be indicated by the
text being displayed in italic text
•Rotate ADJUST to make the desired change to the selected parameter. The
display brightness will flash slowly to indicate that a change has been made and
requires confirmation
•Push ENTER to action the change. The display will cease flashing
•Use the up-arrow [∧] and SCROLL control to navigate to further menus
Note. The displayed menu brightness will flash slowly if confirmation of a change is required.

Crystal Vision Card edge operation
Up-and-down User Manual R2.5 13 18/03/2009
3.6 Card edge configuration
Menu Tree
Tip. To reach the top menu push the ∧button repeatedly until a top menu is reached. Rotate
the SCROLL control anti-clockwise until the STATUS menu appears.

Crystal Vision Card edge operation
Up-and-down User Manual R2.5 14 18/03/2009
Card edge status
From the STATUS top menu press ENTER then SCROLL to access the status menu options.
Menu Comment
Valid video
input present
Rotate the Scroll/Adj. control to show input video status.
IP Present, IP Missing.
Input video line
rate
Rotate the Scroll/Adj. control to show input video standard.
625 Lines, 525 Lines, IP Missing
Software
version fitted
Rotate the Scroll/Adj. control to show version number of the software
currently fitted.
PCB serial
number
Rotate the Scroll/Adj. control to show the electronically stored PCB
serial number. This should correspond with the serial number label
affixed to the PCB connector.
Setting the output configuration (Control)
Output Standard
From the CONTROL top menu press ENTER then SCROLL to access either the Output
standard, Aspect Ratio selection or Detail control. Press enter to select Output standard.
Menu Comment
Output standard
Rotate Scroll/Adj. to show output standard. Press ENTER to select.
Rotate Scroll/Adj. to select output standard and press ENTER to
select standard definition.
Output standard
Rotate Scroll/Adj. to show output standard. Press ENTER to select.
Rotate Scroll/Adj. to select output standard and press ENTER to
select high definition 720p.
Output standard
Rotate Scroll/Adj. to show output standard. Press ENTER to select.
Rotate Scroll/Adj. to select output standard and press ENTER to
select high definition 1080i.
Note. For all selections the output line rate will be determined by the input line rate.

Crystal Vision Card edge operation
Up-and-down User Manual R2.5 15 18/03/2009
Aspect Ratio controls
From the CONTROL top menu press ENTER then SCROLL to access either Output standard,
Aspect Ratio selection or Detail control. Press ENTER to select Aspect Ratio. These control
will be inactive whilst in bypass mode.
Menu Comment
Full image
Full 4:3 source width compressed to central 75% of 16:9 monitor
width. Full source height mapped to monitor height. Vertical black
bands added to both sides, no picture loss. (4:3 Pillarbox)
Full 16:9 source width mapped to 4:3 monitor width. Full source
height compressed to 75% of monitor height. Horizontal black bands
added to top and bottom, no picture loss. (16:9 Letterbox)
Full screen
Full 4:3 source width mapped to 16:9 monitor width. Central 75% of
source height stretched to monitor height. Significant picture loss.
Central 75% of 16:9 source width stretched to 4:3 monitor width.
Full source height mapped to monitor height. Significant picture loss.
Compromise
Full 4:3 source width compressed to central 87.5% of 16:9 source
width. Central 87.5% of source height stretched to monitor height.
Vertical black bands added left and right. Minimal picture loss.
(14:9 Pillarbox)
Central 87.5% of 16:9 source width stretched to 4:3 monitor width.
Full source height compressed to 87.5% of monitor height.
Horizontal black bands added to top and bottom. Minimal picture
loss. (14:9 Letterbox)
Anamorphic
Full 4:3 source width horizontally stretched to 16:9 monitor width.
Full source height to map to monitor height. No picture loss but
significant distortion.
Full 16:9 source width mapped to 4:3 monitor width. Full source
height stretched to monitor height. No picture loss but significant
distortion.
Detail enhancement
From the CONTROL top menu press ENTER then SCROLL to access either Output
standard, Aspect Ratio selection or Detail control. Press ENTER to select Detail. This
control will be inactive whilst in bypass mode.
Menu Comment
Detail
Rotate the Scroll/Adj. control to set the amount of detail
enhancement required. Press enter to action change. Adjustment 0-
50.

Crystal Vision Card edge operation
Up-and-down User Manual R2.5 16 18/03/2009
Recalling factory default settings (Reset)
From the RESET top menu press ENTER then SCROLL to select YES option.
Menu Comment
Reset Press ENTER to access reset menu. Rotate the Scroll/Adj. control to
select Yes, press ENTER to action reset. Display will confirm reset.
Parameter Default value
Gains 100%
Offsets 0
Aspect Ratio Anamorphic
Detail 0
Video gains and offsets (Gain)
From the GAIN top menu press ENTER then SCROLL to access the video gain and
offset controls. These controls will be inactive whilst in bypass mode.
Menu Comment
R Gain
Rotate SCROLL to show RGain and press ENTER to select.
Rotate [ADJ] shaft encoder to set the R amplitude (80% to 120%).
Example: RGain 100%
G Gain
Rotate SCROLL to show GGain and press ENTER to select.
Rotate [ADJ] shaft encoder to set the G amplitude (80% to 120%).
Example: GGain 100%
B Gain
Rotate SCROLL to show BGain and press ENTER to select.
Rotate [ADJ] shaft encoder to set the B amplitude (80% to 120%).
Example: BGain 100%
R Offset
Rotate SCROLL to show ROffst and press ENTER to select.
Rotate [ADJ] shaft encoder to set the R offset (80% to 120%).
Example: ROffst 100%
G Offset
Rotate SCROLL to show GOffst and press ENTER to select.
Rotate [ADJ] shaft encoder to set the G offset (80% to 120%).
Example: GOffst 100%
B Offset
Rotate SCROLL to show BOffst and press ENTER to select.
Rotate [ADJ] shaft encoder to set the B offset (80% to 120%).
Example: BOffst 100%

Crystal Vision Using the front control panel
Up-and-down User Manual R2.5 17 18/03/2009
4Using the front control panel
4.1 Module selected
This operational guide assumes that the panel has been set up according to the Panel setup
procedure described in the Crystal Vision Control Panel manual.
Note: It is ESSENTIAL that the Panel setup procedure is followed and any old or unknown
passwords cleared prior to using the panel for the first time.

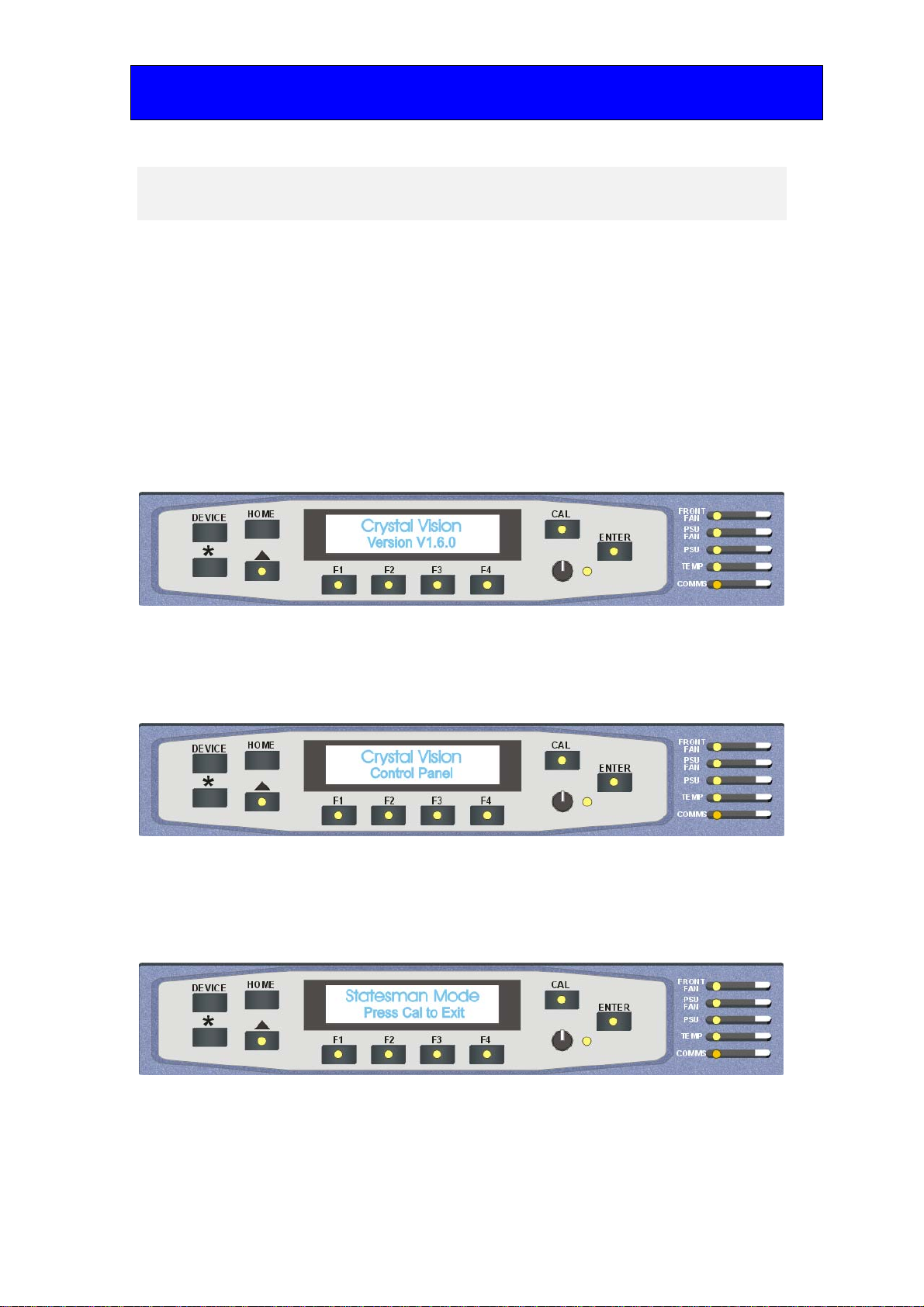

At power up, the two line 20-character screen will display ‘Crystal Vision’ followed by
the firmware version number for the control panel. All eight control panel keys LEDs will
illuminate.
The Crystal Vision control panel start up display
'Control Panel' then briefly replaces the version number display.
If the control panel firmware has been updated for Statesman control (version 1.5.0 or
higher), Statesman Mode will be entered and the message, ‘Press CAL to Exit’ will be
displayed and the CAL LED will light.
Statesman mode is entered by default

Crystal Vision Using the front control panel
Up-and-down User Manual R2.5 18 18/03/2009
To continue with control panel operation or configuration, press the CAL key once. A
second press of the CAL key will return to Statesman control.
The control panel will display the name of the card that first responds to the polling
request together with its location number.
The location number consists of the frame number plus the card position in the frame.
Navigating the display
The functions assigned to control panel keys are:
•DEVICE – enters Device menu to select a card or show cards available / enters Panel
setup when held down during power up / shows frame status when pressed from
Statesman mode
•CAL – enters or leaves Statesman mode / enters panel diagnostics mode when held down
during power up / updates the display
•Asterisk – enters board rename menu from the Device menu
•F1 to F4 – soft keys, function assigned within each menu
•HOME – moves the display to the home menu
•ENTER – accept current selection
•Upward arrow – used to move up the menu structure / enter lock panel menu from the
Device menu
•Rotary control – shaft encoder used to select options or variable data
Note: Please refer to the Crystal Vision Control Panel manual for details of the Panel Setup, Lock Panel and
Diagnostic menus.
Selecting Up-and-down
To select a particular card in a frame, press the DEVICE key to go to the Device menu.
Note, there may be a delay whilst the frame is interrogated during which time the ‘No
cards Found’ could be displayed.
The top line of the display will show ‘Available Cards X’, where X is the number of cards
that have responded so far to the polling request.
The available cards menu
Rotate the shaft encoder and the bottom row will display the successfully polled cards by
name and location or slot number.
In the example above, the card displayed is located in the first frame in slot number 3.
When the desired card is selected press the ENTER key to access that card’s HOME
menu. The message shows that an Up-and-down has been selected.

Crystal Vision Using the front control panel
Up-and-down User Manual R2.5 19 18/03/2009
The Up-and-down home menu
Updating the display
The values displayed on an active front panel are only updated when an adjustment is
made and when changing menu level. If changes occur through the use of card edge
controls or other remote control, the text displayed on the active front panel will not be
updated immediately. If necessary, use the upward arrow to leave and then re-enter a
menu to update the display.
4.2 The Up-and-down active panel menu
structure
At any time the main top-level menu (Home) is obtained by pressing the HOME key.
From the home menu further selections can be made. Active function keys are indicated
by illuminated, integrated LEDs.
The main top-level menus for the Up-and-down module are obtained by pressing the F1-
F4 keys from the HOME menu. Menu keys are illuminated when active and when further
menus are available. The top-level menus are:
•Video controls (Output format selection, Aspect ratio and Detail) – press F1
•Reset (Factory defaults) – press F2
•Gains (Video gains and offsets) – press F3
•Stats (Status) – press F4
When a sub menu has been selected, further options may be obtained by using the Shaft
control to scroll through them. Once the desired option has been located a selection or
value change can be made by either toggling the appropriate function key or by selecting
and using the shaft control to alter a numerical value. A configuration change or value
will be activated as the shaft control is rotated or function button is toggled. The variable
being adjusted will appear in brackets. Pressing Enter will fix the new value.
The following chart shows the available Up-and-down menus. The actual menus available
may vary slightly as software is updated.
