Crystal Vision Introduction
29/09/06ENC116V4 Operational Manual V4_2 3ENC116 User Manual V4.2
1 Introduction
The ENC116 is a 10-bit broadcast quality Serial Digital to Analogue Composite
converter. It accepts either 625 or 525 line input, with automatic detection.
There is one reclocked serial digital output and six analogue PAL/NTSC outputs. The
available outputs depend on the rear module used. Normal single height rear modules
allow access to three of the analogue outputs, whilst an extra three analogue outputs and
one analogue reference loop-through are available in certain frames with alternative rear
modules. On-board links allow the selection of all composite outputs, or a mixture of
composite and Y/C outputs.
Remote control is possible from a front panel control and a remote panel using RS-422 or
RS-232.
The main features are as follows:
•compact single height module
•converts SDI signals to composite and Y/C
•genlock and free-run modes
•4.9 line time-base corrector
•automatic or manual PAL/NTSC standard selection
•adjustable timing, gains and levels
•card edge, Statesman and active panel control

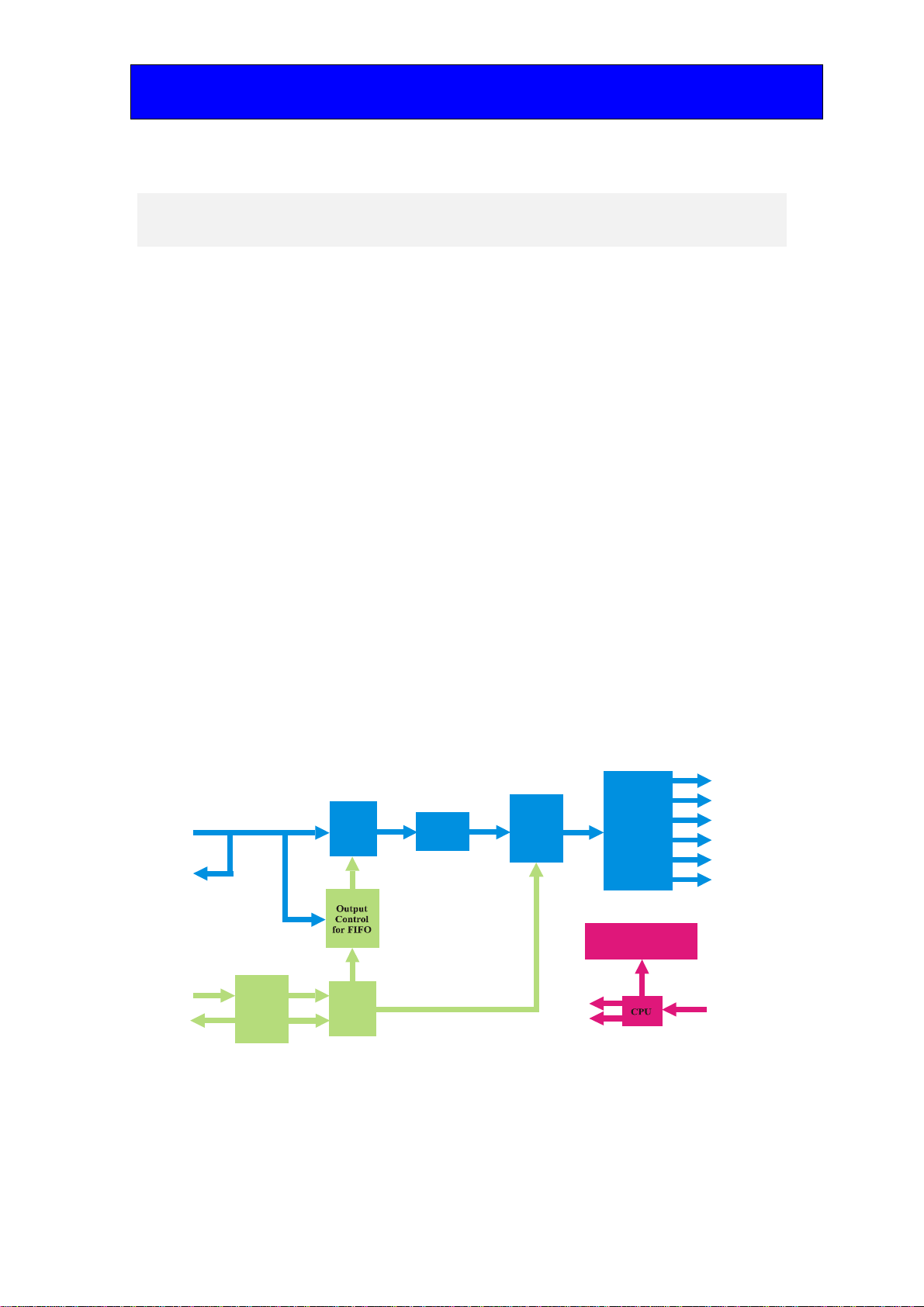

Digital
encoder
and
D to A
Output
select
(links)
Level
adjust
SDI input
Reclocked
loop out
Genlock
+Stable
clock
generator
Y or Composite
Y or Composite
C or Composite
C or Composite
Composite
Composite
0-4.9
line
FIFO
0-4.9
line
delay
B&B
reference
Reference
loop
Genlock
data
10 character
alphanumeric display
Remote/local
control
The ENC116 10-bit SDI converter

Crystal Vision Introduction
29/09/06ENC116V4 Operational Manual V4_2 4ENC116 User Manual V4.2
A 4.9 line time-base corrector is included on both reference & video paths, which allows
serial digital video which has been delayed through prior processing to be re-timed
without the use of external delays or a multi-output SPG.
Two main operational modes are available: genlock mode and free-run mode. In genlock
mode, the composite output is time-base corrected & phase-locked to reference. In free-
run mode, the composite output is locked to the syncs embedded in the serial digital data
stream with phase reset every 8 fields.
If the reference is removed, the encoder switches to freerun mode and output timing
continues as if the reference were still present. If the reference returns, the encoder
genlocks after 1.5 seconds.
If the serial input is removed, the encoder outputs black & burst or one of 3 test patterns
selectable from the local/remote menu. PAL/NTSC standard selected by DIL switch 3.
Note: There may be some picture disturbance as the encoder switches modes or after a change of
standard as the encoder re-acquires genlock.
Output timing can be set to be the same as the analogue reference, or it can be offset to be
between 4µs earlier than the reference and 4.9 lines later. The SDI video input must be
earlier than the required output by a minimum of 4.3µs and a maximum of 4.9 lines. If the
input is outside this window, a valid composite output will still be created, but the picture
content will be vertically offset.
Frame packing density
The ENC116 is a 100mm x 266mm module, which fits in the three standard frames and
can be integrated with any boards from the company’s full product range. It may be used
with the single slot RM01 and RM23 rear connectors, the double slot RM18 rear
connector and the quadruple slot RM02 rear connector.
The RM01 and RM23 single slot rear connectors allows up to 12 modules in a 2U frame,
6 modules in a 1U frame and 2 modules in a desktop box. The RM18 double slot rear
connector accommodates one module but provides access to all ENC116 I/O connections.
The quadruple slot RM02 rear connector accommodates three modules and provides a
mix between packing density and I/O access. It can only be used in 2U frames.

Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 5ENC116 User Manual V4.2
2 Statesman PC control
The Crystal Vision Statesman PC control software is designed to control a range of
Crystal Vision modules via serial control from a PC. Statesman provides a user friendly
means of configuring and operating Crystal Vision modules with the benefit of see-at-a-
glance status monitoring. Most functions can be accessed from Statesman menus.
The main Statesman application communicates with each module in a frame through an
active or Statesman enabled control panel. Statesman control is not possible with only a
passive panel.
Minimum pre-requisites:
•A PC running either Windows 2000 or Windows XP is recommended
•A parallel port dongle for Statesman PCs with attached Crystal Vision frames
•An RS422 serial connection from the host PC to the Control/422 RJ45 or
Remote/RMT 2 connector on Crystal Vision frames
•An active or Statesman enabled control panel MUST be fitted to the frame with
version 1.63 or above firmware – if it is an Indigo frame the firmware must be
V1.04 or above
•An optional RS422 to RS232 converter if the PC has no RS422 ports
2.1 Installing Statesman
•Refer to the readme and/or help file on the CD before proceeding
•To view all application windows, set graphics resolution to at least 1024 x 768
•Remove any previous version of the Statesman software using the Add/Remove
Programs application in the Windows Control Panel
•Ensure that the Statesman dongle is fitted to the parallel port of the host PC
•Insert the Statesman CD and the installation should start immediately – if it
does not, run the setup.exe file on the CD
•Obey any installation program prompts and restart the PC when prompted
Running Statesman for the first time
The Statesman PC Control System may be run from the Crystal Vision programs folder
via the Start menu or by double-clicking on the Crystal Vision.exe file in the installed
program directory.
When the program runs it will require licence information and an administrator name and
password. It will also need to know which computer port is being used to connect to a
Crystal Vision frame(s).
Note: For further details of Statesman configuration please refer to the Statesman manual.

Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 6ENC116 User Manual V4.2
2.2 Statesman operation
Once Statesman is configured it should automatically detect any statesman compatible
modules in the connected frame or frames and display them in the main application left
hand explorer-style window.
Open any frame by clicking on the ‘+’ sign or by double clicking on a frame. Installed
modules should be shown with module icons. Frame and module icons can be named as
desired by right clicking or using the edit menu and choosing rename.
To aid user recognition of module and frame status quickly, the following colour and size
coding is used:
•A module is shown present by full colour and absent by greyed colour
•A module is shown open by large icon size and closed by small icon
•A module is the source of an active alarm if red and not alarmed if green
Double-clicking on a module will enable the display of the main application menus.
Statesman main application window
The two large control panes shown in the upper and lower halves of the window may
display different menus for the same card, or controls for different cards. Click on the
horizontal button-bar between the two panes to close the lower plane or drag the button to
vary the size of the panes.
Warning: Always ensure that the active front panel (if fitted) is in STATESMAN mode. If the front
panel is active, control via Statesman will be subject to high latency and the response to
changes will be slow.

Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 7ENC116 User Manual V4.2
Timing and status
The timing tab provides access to the following
•Vertical delay in lines
•Horizontal delay in pixels
•Fine horizontal delay in 1/32 pixel steps
•Genlock enable
•Status

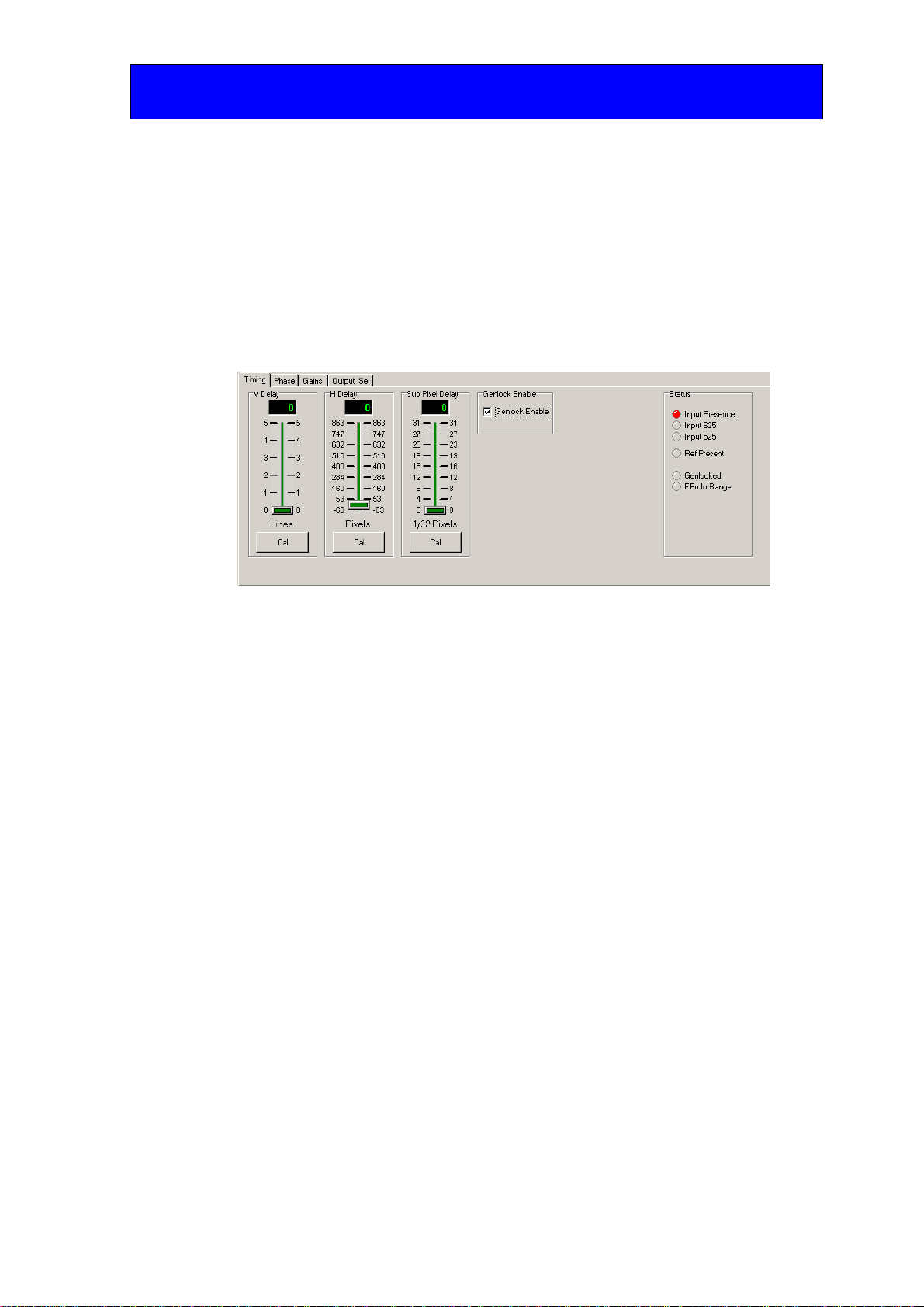

Timing tab
Vertical delay
Slider adjusts delay from 0 to 5 lines in one-line steps. CAL button zeros the current
setting.
Horizontal delay
Slider adjusts delay from –4µs to 1 line in 7 pixel (approx. 0.5 µsec) steps. CAL button
minimises the current setting.
Sub-pixel delay
Slider adjusts delay from 0 to 1 pixels in 1/32 pixel (2ns) steps. CAL button zeros the
current setting.
Genlock enable
Place a tick by Genlock Enable to ensure that the output is sync and burst locked to the
supplied reference. Remove the tick and the output will be sync-locked to the serial
digital input.
If Genlock is ticked but the reference input is absent, the output will be sync-locked to
serial digital input. If there are no SDI or reference inputs the output will be black & burst
(or test patterns if selected).
Status
Input, reference presence and standard are shown along with FIFO and Genlock status.

Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 8ENC116 User Manual V4.2
Setting burst and Chroma phase
The Phase tab provides access to the following:
•Burst phase
•Chroma phase
•Status
Setting Burst and Chroma phase
Burst phase
Knob adds ScH phase offset from 0° to 360° in 1/16° steps. CAL button zeros the current
setting.
Chroma Phase
In NTSC, Chroma knob adds ScH to Chroma phase offset from 0° to 360° in 1/16° steps.
In PAL this control provides a ± 2° ScH to Chroma phase offset.
CAL button zeros the current setting.
Status
Input and reference presence is shown along with FIFO and Genlock status.

Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 9ENC116 User Manual V4.2
Adjusting levels
The Gain tab provides access to the following:
•Luma gain
•U Gain/V Gain
•Burst Gain
•Setup Level/ Setup enable
•Status

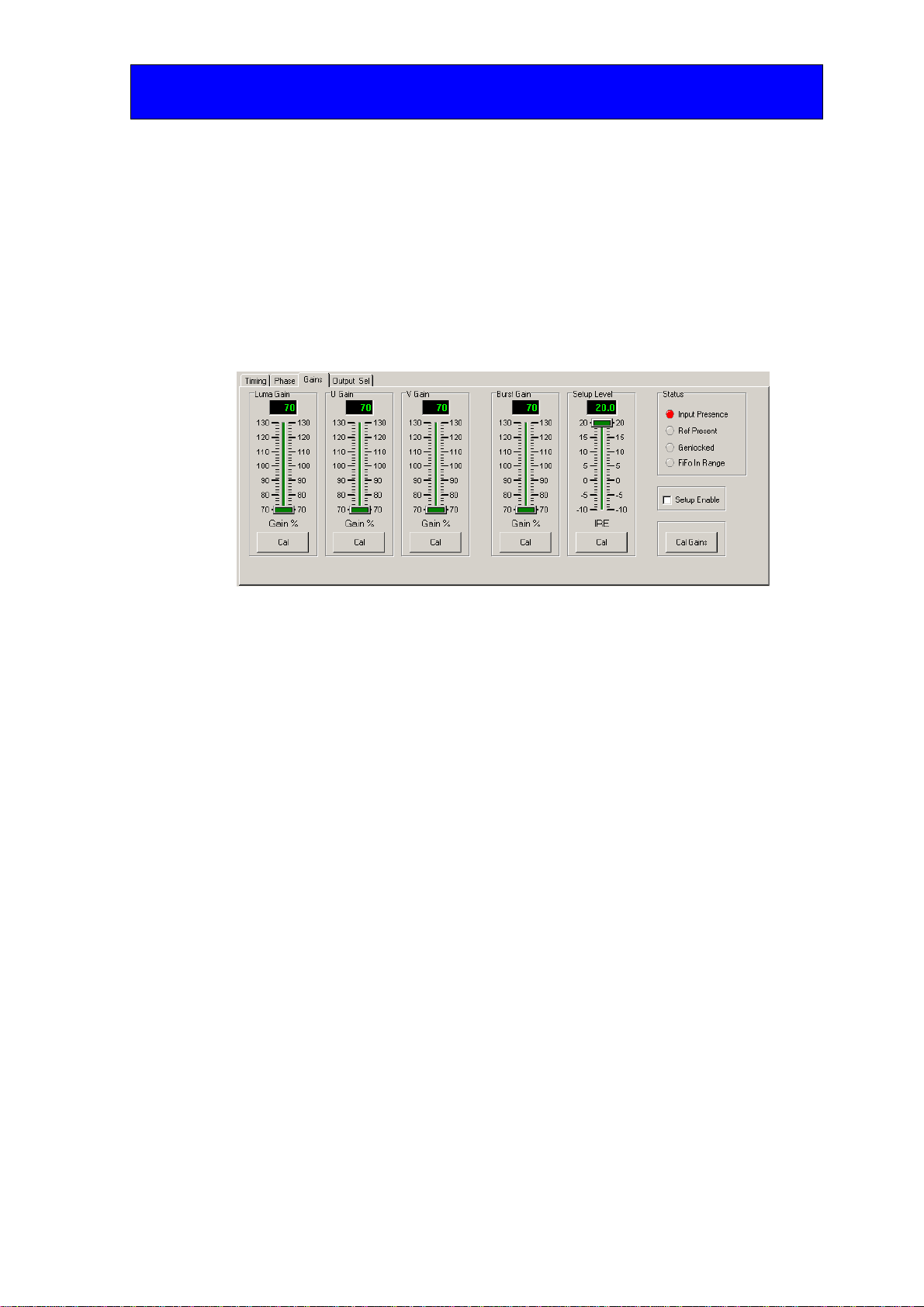

Gain settings
Luma gain
Slider varies Y gain from 70% to 130% in 0.1% steps. CAL button clears the current
setting to 100%.
U/V gain
U slider varies Cb gain from 70% to 130% in 0.1% steps. V slider varies Cr gain from
70% to 130% in 0.1% steps. CAL button clears the current setting to 100%.
Setup gain (NTSC only)
When NTSC Setup is enabled (place tick in Setup Enable box, the IRE slider varies
NTSC Setup in 0.3 IRE steps from –10 IRE to +20 IRE. CAL button clears the current
setting to 0 IRE.
Burst gain
Slider varies burst gain in 0.1% steps from 70 to 130% of nominal. CAL button clears the
current setting to 100%.
Status
Input and reference presence is shown along with FIFO and Genlock status.
Cal Gains
All sliders are returned to their default positions.

Crystal Vision Statesman PC control
29/09/06ENC116V4 Operational Manual V4_2 10 ENC116 User Manual V4.2
Adjusting VBI and test pattern options
The output selection tab provides access to the following:
•VBI enable/blank and first line setting
•Test output or normal
•Status
Output selection settings
Adjusting the VBI
To enable VBI data (unblank) remove any tick in the ‘Blanked’ box, place a tick to
disable or blank VBI data.
Slider varies First Active Line (end of VBI). PAL lines 6 - 22 and 320 – 335 or NTSC
lines 10 – 20 and 273 – 282 when VBI lines are unblanked.
CAL button selects First Active Line as 22/335 for PAL or 20/282 for NTSC.
Output selection
Selects video output from incoming Serial Digital Video, modulated ramp, EBU bars or
100% bars.
Status
Input and reference presence is shown along with FIFO and Genlock status.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 11 ENC116 User Manual V4.2
3 Using the active control panel
This operational guide assumes that the panel has been setup according to the Panel setup
procedure described in the Crystal Vision Controls Panel manual.
Note: It is ESSENTIAL that the Panel setup procedure is followed and any old or unknown
passwords cleared prior to using the panel for the first time.
At power up, the two line 20-character screen will display ‘Crystal Vision’ followed by
the firmware version number for the control panel. All eight control panel keys LEDs will
illuminate.
The Crystal Vision control panel start up display
'Control Panel' then briefly replaces the version number display.
If the control panel firmware has been updated for Statesman control, Statesman Mode
will be entered and the message, ‘Press CAL to Exit’ will be displayed and the CAL LED
will light.
Statesman mode is entered by default

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 12 ENC116 User Manual V4.2
To continue with control panel operation or configuration, press the ‘CAL’ key once. A
second press of the ‘CAL’ key will return to Statesman control.
The control panel will display the name of the card that first responds to the polling
request together with its location number.
The location number consists of the frame number plus the card position in the frame.
Selecting the ENC116

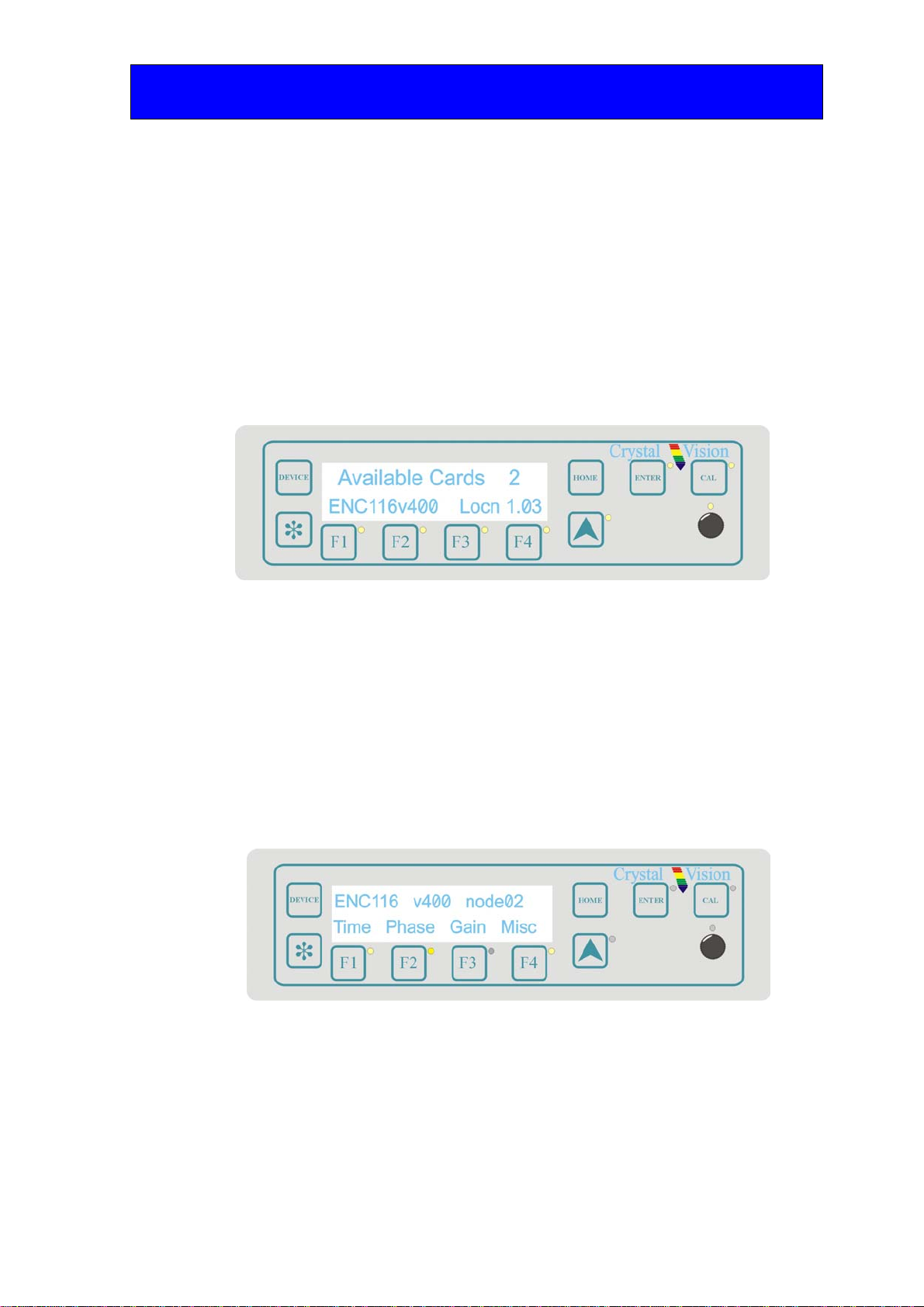

To select a particular card in a frame, press the DEVICE key to go to the Device menu.
The top line of the display will show ‘Available Cards X’, where X is the number of cards
that have responded so far to the polling request.
Device menu showing available cards
Rotate the shaft encoder and the bottom row will display the successfully polled cards by
name and location or slot number.
In the example above, the card displayed is located in the first frame in slot number 12.
When the desired card is selected press the ENTER key to access that card’s HOME
menu.
If remote control has been enabled, the control panel will then enter card mode and
communicate with the ENC116 at the node number last displayed in the available cards
list. If the card is in local mode, 'Remote Ctrl Disabled' will be displayed.
The ENC116 home menu
Note: Card edge DIL switch lever 2 must be DOWN and Jumper links J8 and J9 MUST be set
to ‘422’ to enable an active front panel control in a Crystal Vision Frame. Refer to
Installation Chapter for serial port settings.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 13 ENC116 User Manual V4.2
Navigating the display
The functions assigned to control panel keys are dependent on the card selected for
control, and the panel mode. The following list illustrates the functions when controlling
an ENC116.
•DEVICE – enters Device menu to select a card or card to control / enter Panel
setup when held down during power up / shows frame status when pressed from
Statesman mode
•CAL – Enter or leave Statesman mode / enter panel diagnostics mode when held
down during power up / used to calibrate or clear chosen parameter(s)
•Asterisk – enters board rename menu from the Device menu
•F1 to F4 – soft keys, function assigned within each menu
•HOME – moves the display to the home menu
•ENTER – no function assigned
•Upward arrow – used to move up the menu structure / enter lock panel menu
from the Device menu
•Rotary control – shaft encoder used to select options or variable data
Note: Please refer to the Crystal Vision Control Panel manual for details of the Panel Setup,
Lock Panel and Diagnostic menus.
Updating the display
The values displayed on an active front panel are only updated when an adjustment is
made and when changing menu level. If mode changes occur through the use of card edge
controls or through automatic response to the input video signal, the text displayed on the
active front panel will not be updated immediately. If necessary, use the upward arrow to
leave and then re-enter a menu to update the display.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 14 ENC116 User Manual V4.2
3.1 The ENC116 menu structure
The main top-level menus for a module are obtained by pressing the F1, F2, F3 and F4
keys from that module’s HOME menu. Menu keys are illuminated when active and when
further menus are available. The three top-level menus are:
•Time (Output/Ref delay) – press F1
•Phase (ScH and Chroma phase adjustment) – press F2
•Gain (Level and offset) – press F3
•Misc. (Calibrate, Blanking, Test Patterns, and Status) – press F4
The following chart shows the available ENC116 menus.
The ENC116 menu tree
Note: Function keys and shaft encoder LEDs are illuminated when active.
Menus or function keys associated with the shaft encoder for changing assigned values
are shown with a black circle.
Menu numbering scheme
This manual uses a simple menu numbering convention based on the sequence of keys
required to reach each menu from the top level home menu. For example, menu 1.1.2 is
reached from the home menu by pressing F1, then F2. Menu 1.2.3 is reached by pressing
F2 and then F3.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 15 ENC116 User Manual V4.2
3.2 Adjusting signal timing
Pressing F1 from the home menu will bring up the Time menu, which allows the output to
be delayed with respect to the external reference from –4µs to 5 (4.9) lines. The following
controls are provided:
•Line delay adjustment
•Fine (pixel) and ‘Fast’ (.5µs) delay adjustment
•Sub-pixel delay adjustment
Timing menu structure Description
Use the F keys to select the required delay sub-menu
Vertical delay
Shaft encoder adjusts delay from 0 to 5 lines in one-line
steps. CAL button zeros the current setting.
Horizontal delay - Fast
Shaft encoder adjusts delay from –4µs to 1 line in 7
pixel (approx. 0.5 µsec) steps. CAL button zeros the
current setting.
Horizontal delay – Fine
Shaft encoder adjusts delay from –4µs to 1 line in pixel
steps. CAL button zeros the current setting.
Sub-pixel delay
Shaft encoder adjusts delay from 0 to 1 pixels in 1/32
pixel (2ns) steps. CAL button zeros the current setting.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 16 ENC116 User Manual V4.2
3.3 Setting Chroma and burst phase
Pressing F2 from the home menu will bring up the Phase menu, which allows ScH
(Chroma+burst to line phase) and Chroma phase offset to be adjusted. The following
controls are provided:
•Fine (1/16°) and Fast (.5°) ScH phase
•Chroma phase (NTSC Hue) offset

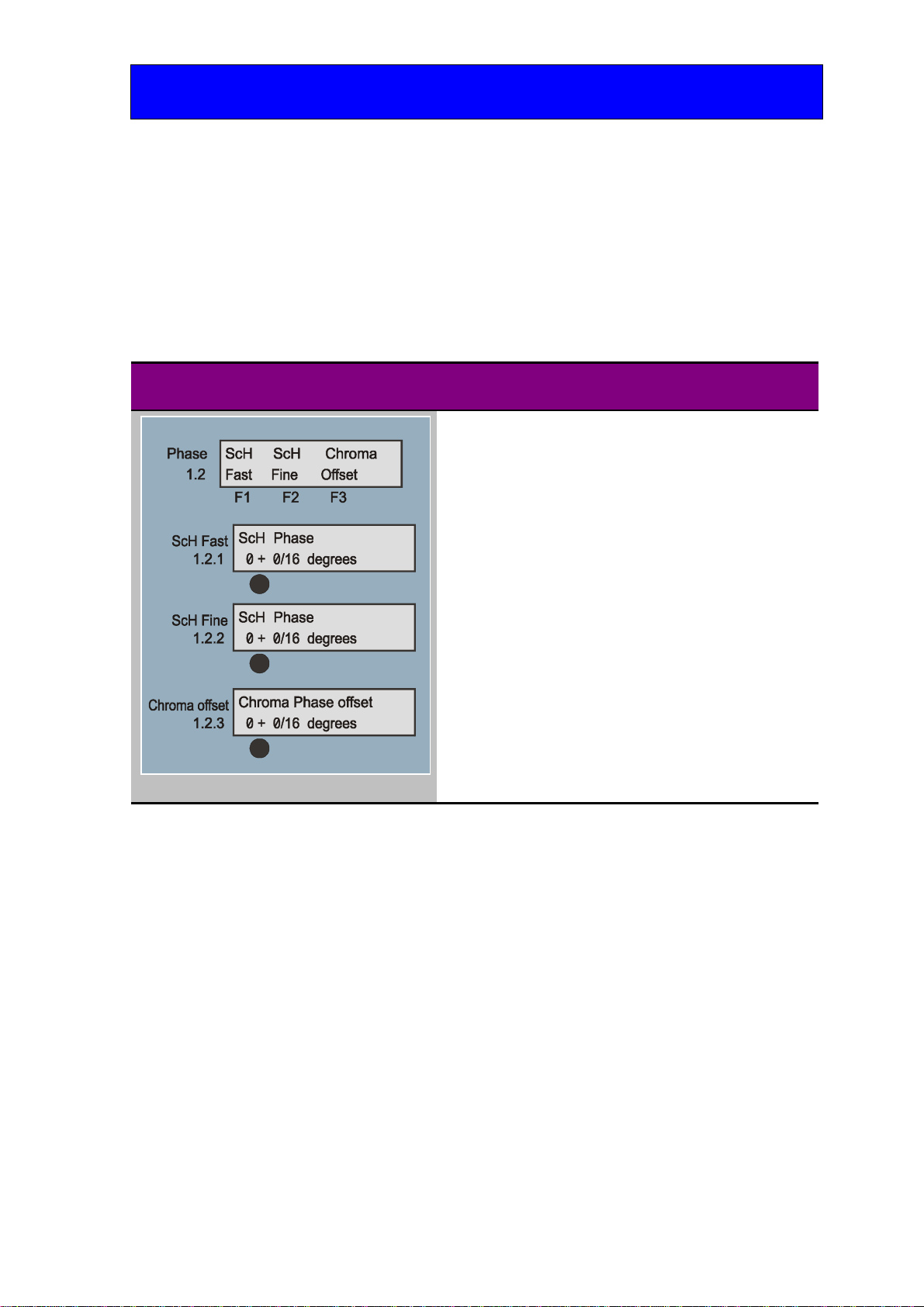

Phase menu structure Description
Use the F1, F2 and F3 keys to select the required phase
sub-menu.
ScH phase – Fast
Shaft encoder adds ScH phase offset from 0° to 360° in
0.5° steps. CAL button zeros the current setting.
ScH phase - Fine
Shaft encoder adds ScH phase offset from 0° to 360° in
1/16° steps. CAL button zeros the current setting.
Chroma Phase (NTSC Hue) offset
In NTSC shaft encoder adds ScH to Chroma phase offset
from 0° to 360° in 1/16° steps.
In PAL this control provides a ± 2° ScH to Chroma phase
offset.
CAL button zeros the current setting.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 17 ENC116 User Manual V4.2
3.4 Adjusting signal gains and offsets
Pressing F3 from the home menu will bring up the Gain menu, which provides the
following functions:
•Composite luminance and Chroma level adjustment
•Burst gain adjustment
•NTSC Setup
•Y/C gain adjustment

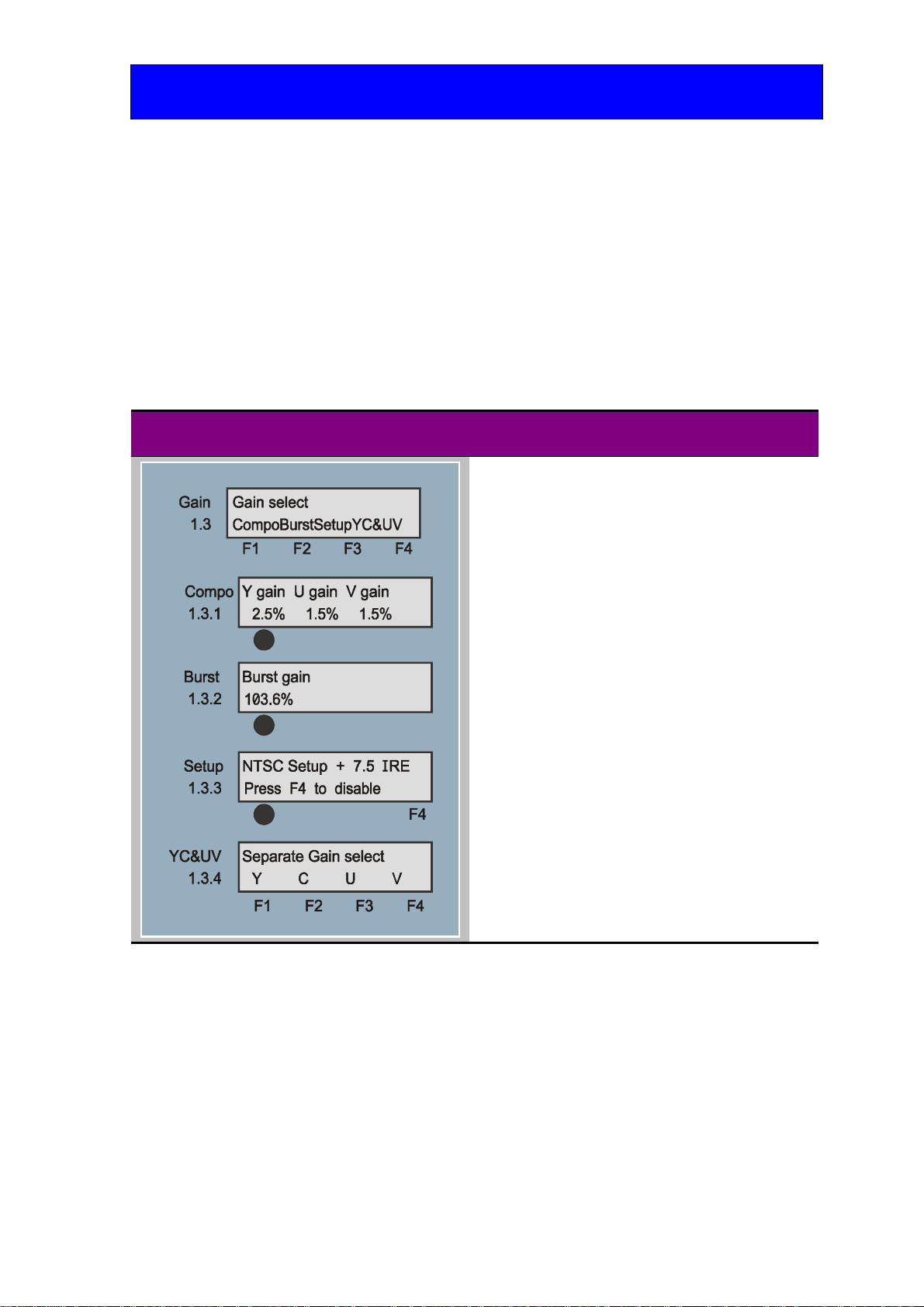

Gain menu structure Description
Use the F keys to select the required Gain sub-menu
Composite gain
Shaft encoder varies YU&V gains simultaneously in
0.1% steps from 0 to 130% of nominal.
CAL button clears the current setting to 100%.
Burst gain
Shaft encoder varies burst gain in 0.1% steps from
80 to 120% of nominal.
CAL button clears the current setting to 100%.
Setup Gain (NTSC only)
When NTSC Setup is enabled (press F4 to
enable/disable), the shaft encoder varies NTSC Setup
in 0.3 IRE steps from –22 IRE to +22 IRE.
CAL button clears the current setting to +7.5 IRE.
Y/C Gain
Use the F keys to select the required Y/C sub-menu
(described in the next section).

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 18 ENC116 User Manual V4.2
Adjusting Y/C gain
The Y/C Gain menu provides the following functions:
•Luminance (Y) level adjustment
•Chrominance (U +V) level adjustment
•Separate U and V level adjustment

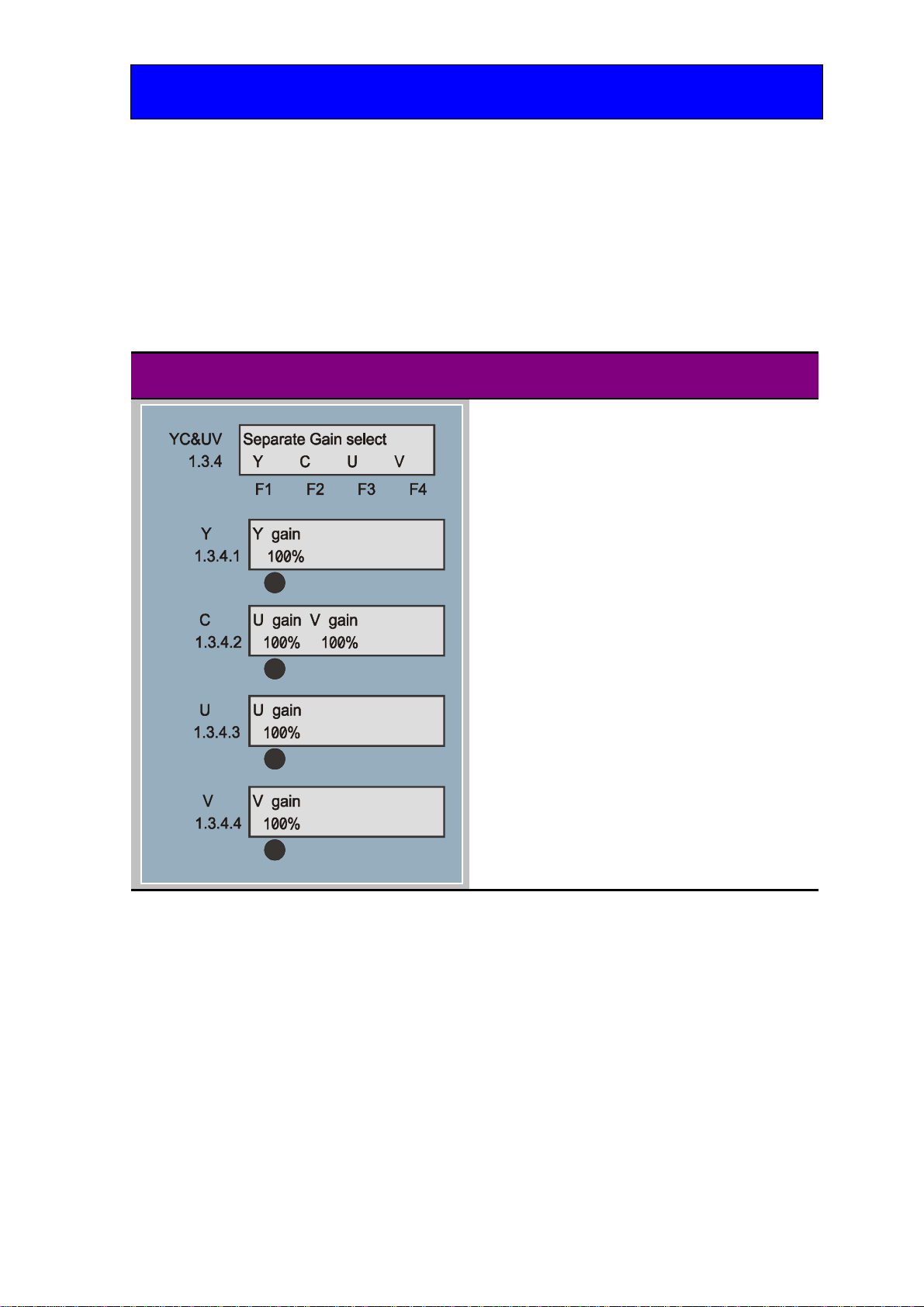

Gain (Y/C) menu structure Description
Use the F keys to select the required Y/C gain sub-
menu
Luminance gain
Shaft encoder varies Y gain in 0.1% steps from 0 to
130% of nominal.
CAL button clears the current setting to 100%.
C gain
Shaft encoder varies U & V gain simultaneously in
0.1% steps from 0 to 130% of nominal.
CAL button clears the current setting to 100%.
U gain
Shaft encoder varies U gain in 0.1% steps from 0 to
180% of nominal.
CAL button clears the current setting to 100%.
V gain
Shaft encoder varies V gain in 0.1% steps from 0 to
130% of nominal.
CAL button clears the current setting to 100%.

Crystal Vision Using the active control panel
29/09/06ENC116V4 Operational Manual V4_2 19 ENC116 User Manual V4.2
3.5 Setting advanced options
Pressing F4 from the home menu will bring up the miscellaneous menu, which provides
the following functions:
•Pattern to be output when input is absent or deselected
•VBI blanking options
•Sync mode
•Quick settings calibration
•Input status

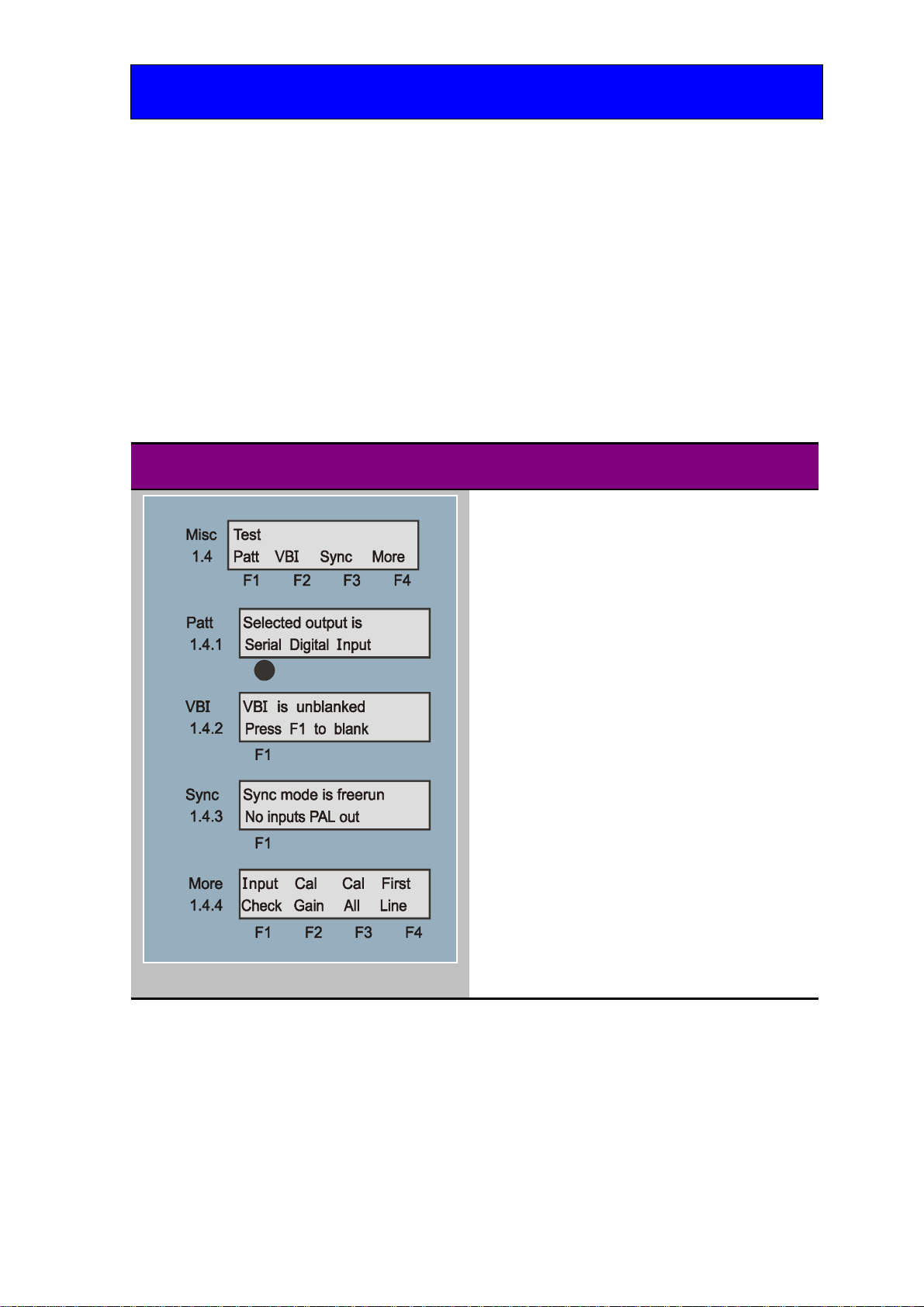

Miscellaneous menu structure Description
Use the F keys to select the required Misc. sub-menu
Pattern select
Shaft encoder selects video output from incoming
Serial Digital Video, modulated ramp, EBU bars or
100% bars.
VBI
F1 blanks or unblanks VBI data interval. (PAL lines
7 to 22 & 320 to 335, NTSC lines 10 to 20 & 273 to
282)
Sync
F1 changes encoder between Genlock mode (output
phase locked to reference sync input) and Freerun
mode (output sync locked to SDI input).
More
Use the F keys to select the required sub-menu
(described in the next section).
Note: Choose Serial Digital Input if black and burst should be output when the input signal is
absent.
