Culina CUL57PGSS User manual

1
CUL57PGSS
Oven Instruction Manual

2
Content
1…………………………………..…………………Important safety information
2…………………………………..…………………Installation
3…………………………………..…………………Prior to start up of the appliance
4…………………………………..…………………Selecting a cooking function and temperature
5…………………………………..…………………Troubleshooting
6…………………………………..…………………Maintenance and cleaning
7…………………………………..…………………Environmental note
8…………………………………..…………………Transportation
Important safety information
This User Instruction Manual contains important information, including safety &
installation points, which will enable you to get the most out of your appliance. Please
keep it in a safe place so that it is easily available for future reference; for you or any
person not familiar with the operation of the appliance.
Warning: ●The appliance and its accessible
parts become hot during use. Care

3
should be taken to avoid touching
heating elements.
●Children less than 8 years of age
shall be kept away unless
continuously supervised.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge or they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
●Asteam cleaner is not to be used.
●Accessible parts may become hot
during use. Young children should be
kept well away when in use.
●Do not use harsh abrasive cleaners or
metal scrapers to clean the oven door
glass as this can scratch the surface,
which may result in the oven glass
shattering.
●Do not use abrasive products to clean
the glass door panel to avoid
scratching it. Otherwise, severe failure
might happen to the appliance.
●The appliance must not be installed
behind a decorative door in order to
avoid overheating.
Operation:
Warning! Danger of fire!
●Do not allow paper or cloth to come
in contact with any heating element.
●Never store or use corrosive
chemicals, vapors, flammables or non
food products in or near oven. It is
specifically designed for use when
heating or cooking food. The use of
corrosive chemicals in heating or
cleaning will damage the appliance
and could result in injury
●If food inside an oven should ignite,
keep door closed. Switch off the oven
and disconnect from supply power.
●Exercise caution when opening the
door. Standing to the side, open the
door slowly and slightly to let hot air
and/or steam escape. Keep your face
clear of the opening and make sure
there are no children or pets near the
oven. After the release of hot air
and/or steam, proceed with your
cooking. Keep doors closed at all time
unless necessary for cooking or
cleaning purposes.
●Only use utensils that are suitable for
use with ovens.
Warning!
Danger of explosion!
●Liquids and other foods must not be
heated in sealed containers since they
are liable to explode.
●If smoke is observed, switch off the
oven and keep the door closed in order
to stifle any flames.
●Do not allow any accessories or
electric cables to contact the hot parts
of the appliance.
Warning!

4
Hot surfaces! Risk of burns!
●During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
●Warning! Accessible parts may
become hot during use. Young children
should be kept away.
●Never move racks or pans when they
are hot. Wait until they cool.
Safety advices:
IMPORTANT!
Always switch off the
electricity supply at the mains
during installation and maintenance.
General Information
●This appliance is designed for
domestic household use and can be
built into a standard kitchen cabinet or
housing unit.
●Certain types of vinyl or laminate
kitchen furniture are particularly prone
to heat damage or discolouration at
temperatures below the guidelines
given above.
●The appliance surfaces will become hot
during use and retain heat after
operation.
●Any damage caused by the non-
compliance of temperature tolerance of
oven during installation or by the too
close distance between the furniture
and the oven will be borne by the owner.
●This appliance is not intended for use
by persons (including children) with
reduced physical sensory, or mental
capabilities, or by those who lack
experience and knowledge, unless they
have been given supervision and
instruction concerning the use of the
appliance by a person responsible for
their safety .
Installation
●The oven must be installed in
accordance with the installation
instructions and all measurements must
be followed.
●All installation work must be carried out
by a competent person or qualified
electrician.
Children
●Please dispose of the packaging
material carefully. Packaging material
can be dangerous to children.
●Make sure to keep children away from
the appliance, children should be
supervised to ensure that they do not
play with the appliance. It might be
dangerous to allow the children to touch
the appliance.
General Safety
●Do not place heavy objects on the oven
door or lean them on the oven door
when it is open, as it may cause
damages to the oven door hinges.
●Do not place those baked hot oil or fat
unattended on unattended areas, as it
will be a fire risk.
●Do not place pans or baking trays
directly on the base of the oven cavity.
●Do not allow cable or plug to come into
contact with the heating areas of
appliance.
●Do not install the appliance next to
curtains or soft furnishings.
●Do not attempt to lift or move cooking
appliances by using the oven door or
handle, as this may cause damage to
the appliance or result in injury to the
person lifting the appliance.
Electrical safety

5
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●The appliance must be placed in such
a way, that the power supply is
accessible at all times.
●Before connecting the appliance to the
power supply, check that the power
supply voltage and current rating
corresponds with the power supply
details shown on the appliance rating
label.
●Never use a damaged appliance!
Disconnect the appliance from the
power source and contact your supplier
if it is damaged.
●Danger of electric shock! Do not
attempt to repair the appliance yourself.
In case of malfunction, repairs are to be
conducted by qualified personnel only.
●To avoid damaging the cord, do not
squeeze, bend or chafe it on sharp
edges. Keep it away from hot surfaces
and open flames as well.
●Lay out the cord in such a way that no
unintentional pulling or tripping over it is
possible.
●Do not open the appliance casing
under any circumstances. Do not insert
any foreign objects into the inside of the
casing.
●Never use accessories which are not
recommended by the manufacturer.
They could pose a safety risk to the
user and might damage the appliance.
Only use original parts and accessories.
●Keep the appliance away from any hot
surfaces and open flames. Always
operate the appliance on a level, stable,
clean and dry surface. Protect the
appliance against heat, dust, direct
sunlight, moisture, dripping and
splashing water.
●Do not place objects with open flames,
e.g. candles, on top of or beside the
appliance.
●WARNING: Ensure that the appliance
is switched off before replacing the
lamp to avoid the possibility of electric
shock.
●The fixed wiring for applicant shall have
an all-pole disconnection device.
Safety:
●Attention, the glass is extremely
fragile.Always wear gloves when
handling.
●For your safety, this product is made of
tempered glass. This type of glass is
highly resistant but has the feature to
retain the "memory" of shocks.
●Therefore, it should handle the product
with the greatest care to avoid shocks
and twists, especially during installation.
●Avoid installing this type of product in
areas where it would be highly exposed
to shocks.
●Do not let children play with the product.
●Do not stick adhesive film on the glass
surface. In case of breakage, it would
generate large pieces that could be
dangerous
Electrical connection
Danger of electric shock!
●Any electrical installation must be
carried out by an authorised
professional.
●All fittings must be installed by a
competent person in accordance with
local regulations. If in doubt, consult a
qualified electrician.

6
●Important! Always switch off the
electricity supply at the mains or
remove the plug from its mains socket
during installation and maintenance. If
the appliance is hard wired we
recommend that the fuse is withdrawn
or circuit breaker switched off at the
distribution board whilst work is in
progress.
●This product must be earthed –if no
earth feed wire is available, consult an
electrician.
●Means for disconnection must be
incorporated in the fixed wiring in
accordance with the wiring rules. This
oven can either be plugged into an
appropriate socket or if hard wired an
appropriate switched fused connection
unit should be used.
●Note! A switched fused connection unit
having a contact separation of at least
3mm in all poles should be connected
in fixed wiring.
●If the oven is to be hard wired,connect
the incoming positive, neutral and earth
cables to the terminals of the switched
fused connection unit. Ensure
connections are tight.
●The spur outlet or mains socket must
still be accessible even when your oven
is located in its housing to enable the
appliance to be disconnected from the
mains supply.
Cleaning
●Always disconnect the power supply
prior to cleaning the appliance. If the
switched fused connection unit or
mains socket is difficult to reach, shut
off the power supply by using the
corresponding circuit breaker at the
distribution board.
●Clean the appliance thoroughly before
first use. The oven should be cleaned
regularly and any food deposits
removed.
●Never clean the oven surfaces by
steam cleaning.
●The oven cavity should only be cleaned
with warm soapy water, using either a
sponge or soft cloth. No abrasive
cleaners should be used.
●Any stains that may appear on the
bottom of the oven will have originated
from food splashes or spilt food, these
splashes occur during the cooking
process. These could possibly be a
result of the food being cooked at an
excessively high temperature or being
placed in cookware that is too small.
●You should select a cooking
temperature and function that is
appropriate for the food that you are
cooking. You should also ensure that
the food is placed in an adequately
sized dish and that you use the drip tray
where appropriate.
Installation

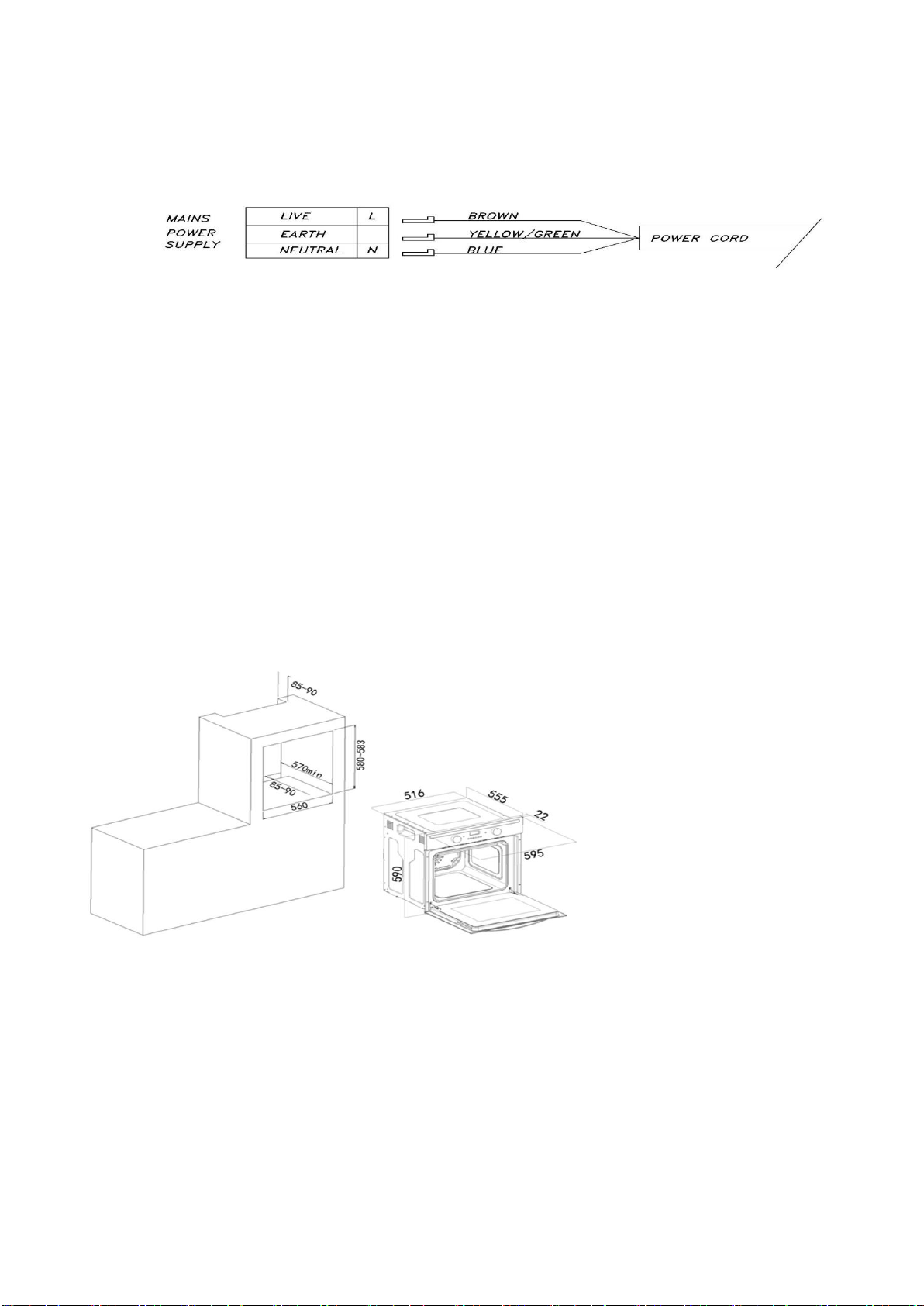

Electrical connection
Before connecting the appliance, make sure that the supply voltage marked on
the Rating Plate corresponds with your mains supply voltage.
WARNING: THIS APPLIANCE MUST BE EARTHED.
⚫This model of oven can be plugged into the mains sokcets or hard wired. If the oven is
to be hard wired it must be connected to a suitable disconnection switch is to be

7
incorporated in the permanent wiring. The switch is to be of approved type and
positioned in accordance with local wiring and electrical rules and specifications. The
switch must have 3 mm air gap contact separation in all poles, in the active (phase)
conductor of the fixed wiring.
⚫To connect the oven power cord, loosen and remove the cover on the terminal block, in
order to gain access to the contacts inside. Make the connection, securing the cord in
place with the cable clamp provided and then immediately close the terminal block
cover again.
⚫If you have to change the oven power cord, the earthing (yellow/green) conductor must
always be 10 mm longer than the line conductors.
⚫The installation must include 1.5m of free cable within the enclosure for ease of
installation and future maintenance.
⚫The mains cable must not touch any hot metal.
⚫Care must be taken to ensure that the temperature of the mains supply cable does not
exceed 50°C.
⚫If the mains supply cable is damaged, then it must be replaced by an appropriate
replacement which can be obtained from Spares Department.
Installing the oven into the kitchen cabinet
⚫The kitchen area should be dry and aired and equipped with efficient ventilation. When
installing the oven, easy access to all control elements should be ensured.
⚫Inatallation method 1:
⚫Installation method 2:

8

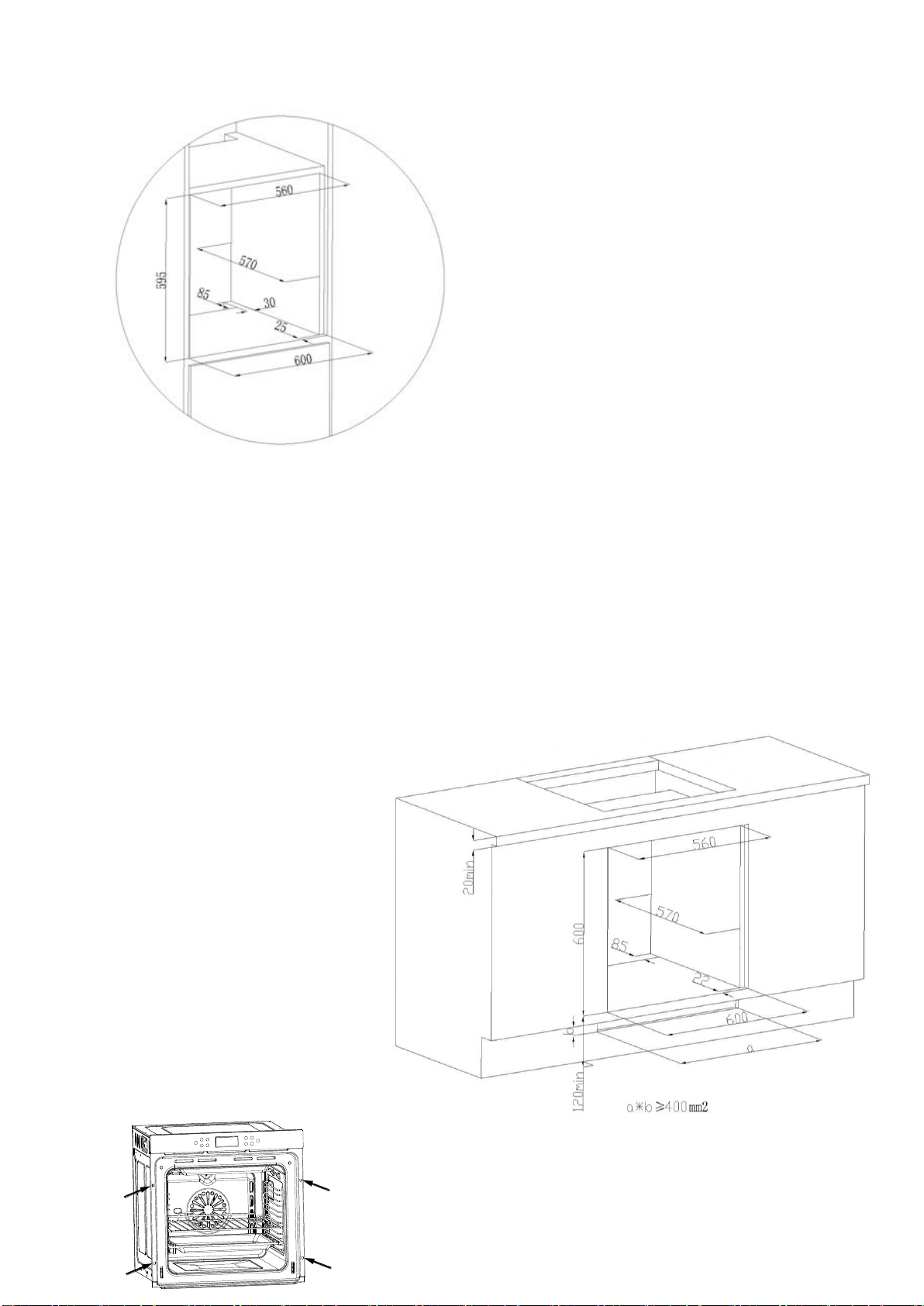

Positioning the appliance
⚫Ensure that the aperture that you will be fitting the oven into is of the size given in the
above diagram.
⚫The oven must be fitted into an oven housing with the ventilation cut-outs shown in the
“Ventilation requirements” section on the next page.
⚫Ensure that the rear panel of the furniture housing unit has been removed.
⚫Ensure that the oven has been securely fixed into the housing unit. The fixing of the
oven into the housing is made by using four screws. These should be screwed through
the oven cabinet and into the housing unit.
Ventilation requirements
(Figure shows the ventilation and cut-out requirements for
the installation of the appliance into a tall housing unit).
A
A
A
A

9
Ensure that the oven has been securely fixed into the housing unit. The fixing of the oven
into the housing is made by using four screws. These should be screwed through the oven
cabinet and into the housing unit.
Prior to start up of the appliance
➢Once this simple operation has been carried out the oven is ready to use for cooking.
➢This appliance is exclusively for domestic use.
➢Use the oven to cook food only.
➢Before cooking,make sure all oven accessories that are not required are removed from
the oven.
➢Pre-heat the oven to the cooking temperature before using it.
➢Place the cooking trays in the center of oven and leave space in between when using
more than one,so that the air can circulate.
➢Do not put oven trays on the base of the oven or cover it with aluminium foil. This will
cause thermal accumulation. The cooking and roasting times will not coincide and the
enamel may be damaged.
➢Try to open the oven door as little as possible to see the food (the oven light remains on
during cooking).
➢Take care when opening the door to avoid contact with hot parts and steam.
A.Specifications
Dimensions
Height:590 mm
Width:595 mm
Depth:555 mm
Specifications
➢4 functions
➢Oven capacity: 51 litres
➢Thermostatically controlled grill
➢Cooling fan
Cooling fan
A tangential cooling fan is fitted inside of this appliance, to make the internal temperature of

10
the oven stable and the external surface temperature lower. After the oven has been used
the cooling fan will run on for a period of time, until the oven is sufficiently cooled.

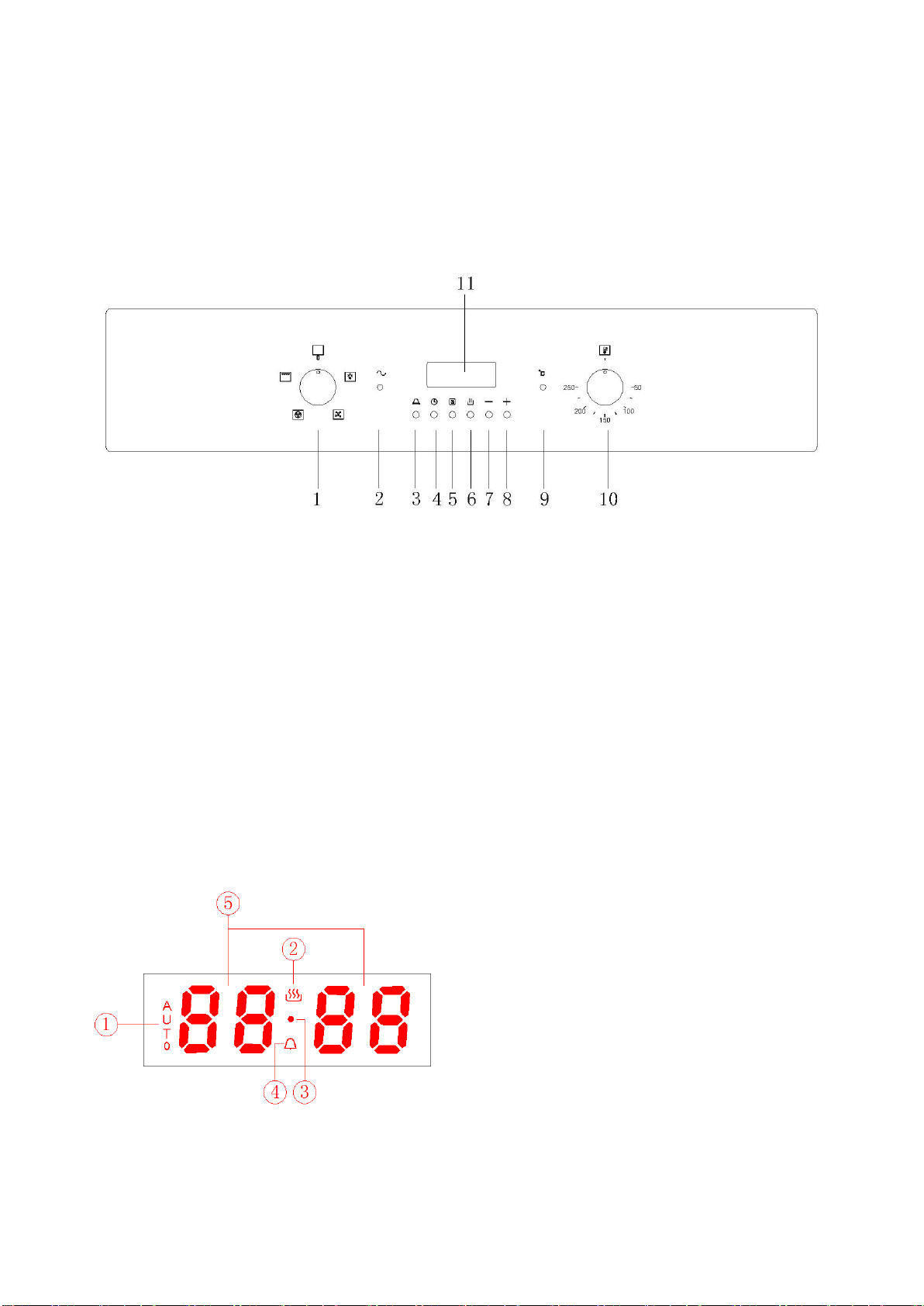

B.Control panel
Here, you will see an overview of the control panel. Depending on the appliance model,
individual details may differ.
1) Oven function selector knob
2) Power lamp
3) Alarm button (K1 button)
4) Cooking time setting button (K2 button)
5) Cooking end time setting button (K3 button)
6) System time setting button(K4 button)
7) Decrease button/ring selection button (K5 button)
8) Increase button(K6 button)
9) Heating lamp
10) Thermostat control knob
11) Digital tube dispayer
Oven programmer/timer display
①“Auto” function icon
②“Oven in use” icon
③Second icon
④Alarm icon
⑤Display the time, can display system
time, clock and cooking time
C. Setting and using the oven programmer/timer
1. Timer working status
Switching the timer status

11
The timer has 3 status, they are standby, select function and working status.
Stand-by status: After connected to the power supply, the display screen will show system
time, the second icon flashes, it is the status before entering cooking function; If exceeds 10
seconds without any operation under standby mode, the display brightness automatically
reduces, press any button to recover to the original brightness.
Select function: In standby status, press K4 or simultaneously press K2 and K3 enter to
the selection function status, the display screen will show system time, it is the status when
oven in use icon and second icon keep bright.
Working status: After completed setting any one of the system time, clock, cooking time or
cooking end time, the display screen will show system time, and it is the status when
corresponding working icon keep bright.
Status switching diagram refer to below:
Status switching diagram
2. Timer function mode switching
In Select function status,you can select timer function mode by button “K1” “K2” “K3” “K4”.
The operation flow and corresponding functional sequence are as followings:
Timer function mode switching diagram
3. Operation instructions
3.1 Power on
For the first time, the buzzer “beep” for once to show that the timer enters into the standby
Semi-automatic
Cooking time
function setting
Automatic
function setting
Semi-automatic
Cooking end
time function
setting
K3
4
System
Time setting
System
Time
display
Alarm
function setting
K4
4
K1
4
K2
4
K3
4
Press K4 or
simultaneously
press K2 and K3
Press K4 or
simultaneously
press K2 and K3
Press and
hold K4
Standby
After selecting the
TIMER function
Select
function
Working
Finished or Press
and hold K4

12
state. The clock shows the system time and starts the timing(The default system time as
0.00). The second icon “ ” is flashing,1 second 1 time, the effect is shown in Pic 5.You can
press “K5”to choose 3 kinds of ring tone, The default is the second ring tone. Whenever
user wants to adjust the ring tone again, press “K5”.
Pic 5 Power-on default clock diagram (standby state)
3.2 Start up
In the standby state, press the “K4” button, the oven in use icon“ ” is always bright, the
second icon “ ” flashes(Pic 6). There is a 5-second lapse for acceptance during which no
button must be touched, timer will enter the select function state. The second icon“ ”will
turn to always bright (Pic 7).
In the standby state, Simultaneously press “K2” and “K3” button can also choose to enter
the select function status. the oven in use icon“ ” and second icon“ ” are always bright
(Pic 7).
Pic 6 Time setting state diagram Pic 7 Select function state diagram
(second icon flashes) (second icon always bright)
In the select function state or working state, press and hold the “K4” button for 3 seconds,
the timer returns to the standby state.
3.3 System time setting function
In the standby state ,press the “K4” button to turn on the oven and enter the system time
setting state. At this time, the oven in use icon“ ” and the system time are always on, and
the second icon “ ” flashes (as shown in Pic 6). You can press “K6” and “K5” to set the
clock. If the clock setting operation is not performed within 5 seconds, the current time is
automatically confirmed, and the second icon “ ” stops flashing and turns to the constant
light display.
In the select function state, press the “K4” button, the second icon “ ” flashes, and the

13
system time can be adjusted. Set the clock by pressing "K6" and "K5". After the setting is
completed, wait for 5 seconds to automatically determine the set time. The second icon
" " stops flashing and turns to the constant light display. The display effect of the setting is
as shown in Pic 8 (set an hour).
Note:
1. System time setting range: 0:00 to 23:59.
2. When setting the time of each function of the timer, short press or long press “K6” and d
“K5” to set the time. Short press means that each press of the button will increase by 1
minute or Decrease by 1 minute, long press to quickly increase the time or decrease the
time in units of 1 minute, so it can set the time quickly.
Pic 8 System time setting completion diagram
3.4 Alarm setting function
In the select function state, press “K1”, the alarm icon “ ” flashes, and the display shows
the alarm time (Pic 9), The default setting “0•00” is displayed for the first setting. Press “K6”
and “K5” to set the alarm time. (Pic 10,eg:assuming 10 minutes is set).
Pic 9 Alarm setting initial state Pic 10 Alarm setting completion status
(alarm icon flashes) (alarm icon flashes)
When the time setting is completed, wait for 5S to automatically confirm this time. The alarm
icon “ ” stops flashing and turns to always bright. The display shows the system time.( Pic
11)
At the end of the time, the alarm icon “ ” (Pic 12)will flash and an intermittent sound signal
will be triggered, which can be interrupted by pressing any button. the alarm icon “ ” turns
off(Pic 13). If it is not stopped, it will do so automatically after 5 minutes.

14
Pic 11 Alarm clock working status diagram Pic 12 At the end of alarm clock time
(alarm clock icon always bright) (alarm clock icon flickering)
Pic 13 Cancel alarm or After alarm clock over
Note:
1. After the alarm time setting is completed, if you need to query the remaining alarm time
or reset the alarm time after entering the working state, you can press the alarm button
“K1” to query or reset the alarm time in the working state. To cancel, press “K1” and then
“K5“ until the alarm timer becomes zero.
2. Alarm time setting range: 0:00 to 23:59.
3. The alarm does not control any of the oven functions.
4. Once set the alarm, if the work state change to the standby state, the alarm will also
continue to run.
3.5 Cooking time setting function
In the select function state, press “K2”, the icon “AUTO” and icon “ ” will flash, and the
display will show the cooking time (the default setting is “0·00” for the first time), the cooking
time and the second icon “ ” are always bright(Pic 14). Set the cooking time by press “K6”
and “K5”. (pic 15, eg:assuming 30 minutes is set).
Pic 14 Cooking time setting initial status Pic 15 Cooking time setting completion status
When the cooking time setting is completed, wait for 5S to automatically confirm this time.
The icon “AUTO” and icon “ ” stop flashing and turn to always bright. The display shows
the system time. (Pic 16)

15
At the end of the set time, The display shows the system time, the icon “ ” goes out, the
second icon “ ” and the automatic function icon “AUTO” flash(Pic 17), the cooking will be
interrupted and the intermittent sound signal will be heard. Cancel it as indicated above. the
icon “AUTO” turn off and enter to standby mode (Pic 18).

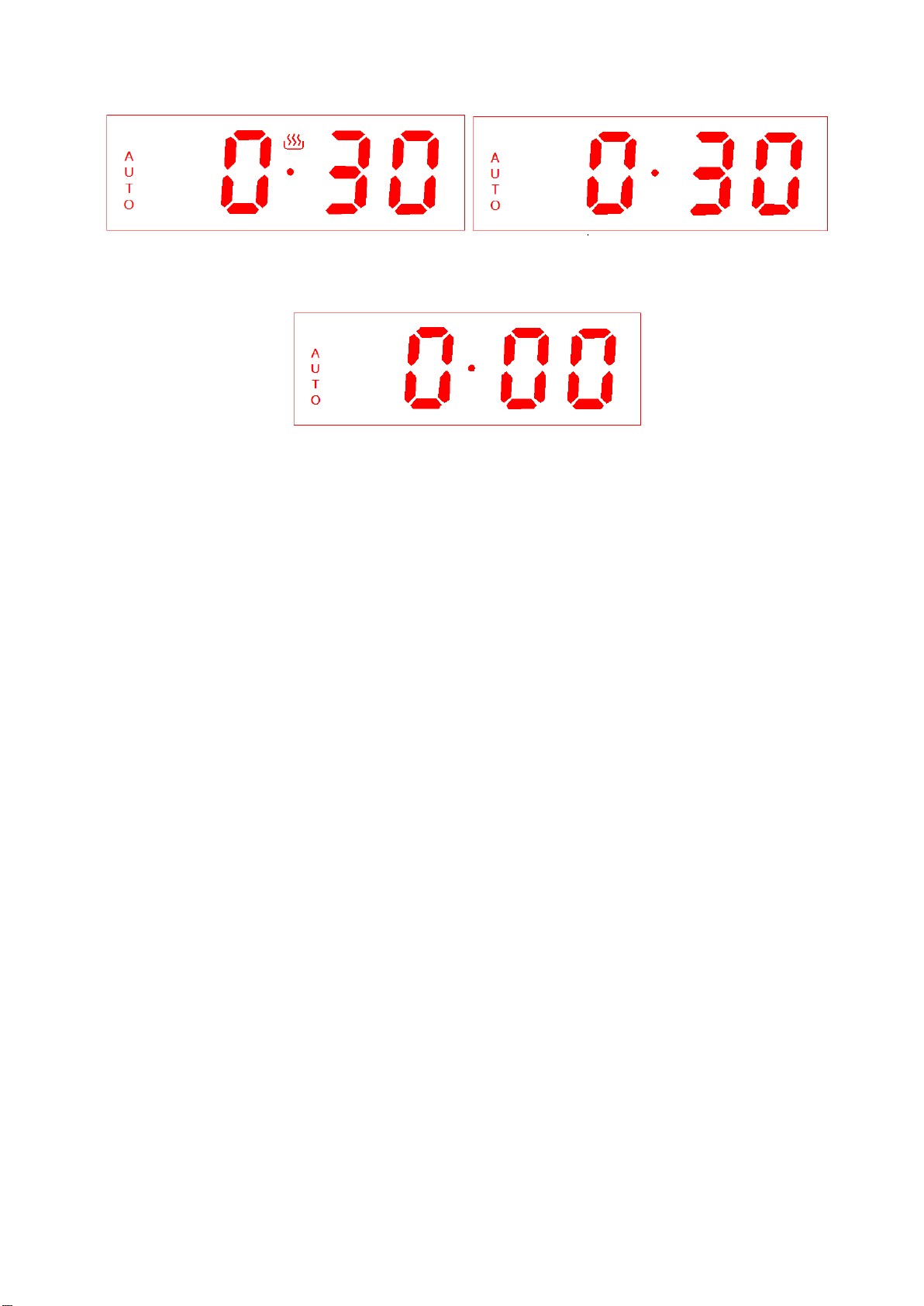

Pic 16 Cooking time working status Pic 17 Cooking time over diagram
(All the icons always bright) (All the icons flickering)
Pic 18 Cancel “AUTO” or After cooking time
Note:
1. After the cooking time setting is completed, if you need to query the previously set
cooking time or reset the cooking time after entering the working state, you can press
the cooking time setting button “K2” to query or reset the cooking time in the working
state.
2. Cooking time setting range: 0:00 to 10:00.
3. The cooking time is not set after power on, the system will automatically shut down after
10 hours of operation, no buzzer reminder function.
3.6 Cooking end time setting function
In the select function state, press “K3”, the icon “AUTO” and icon “ ” will flash, and the
display will show the cooking end time (the default display shows the current system time
for the first time), the cooking end time and the second icon “ ” are always bright(Pic 19),
Set the cooking end time by press "K6" and "K5". (Pic 20, eg:assuming the setup end time
is 0:30).
Pic 19 Cooking end time setting Pic 20 Cooking end time setting
initial status completion status

16
When the cooking end time setting is completed, wait for 5 seconds to automatically confirm
this time. The automatic function icon “AUTO” and the oven in use icon “ ” stop flashing
and turn to always bright. The display shows the system time( Pic 21).
When the cooking end time is reached (assuming the end time is 0:30), the display shows
the system time, the oven in use icon “ ” goes out,the second icon “ ” and the automatic
function icon “AUTO” flashing(Pic 22). the cooking will stop and the intermittent sound signal
will be heard. Cancel it as indicated above. the icon “AUTO” turn off and enter to standby
mode (Pic 23).
Pic 21 Cooking end time working status Pic 22 Cooking finished diagram
(All the icons are always on) (All the icons flashing)
Pic 23 Cancel “AUTO” or After cooking finished
Note:
1. After the cooking end time setting is completed, if you need to query the previously set
cooking end time or reset the cooking end time after entering the working state, you can
press the cooking end time setting button “K3” to query or reset cooking end time in the
working state.
2. The cooking end time is more than the current system time plus cooking time, but less
than 23:59.
3.7 Cooking start time setting function (reservation function)
Select the required temperature and function using the thermostat controls and selector.
In the select function state, the cooking time by pressing “K2” and selecting the required
time with “K6“ and “K5”.( Refer to section 3.5;) as shown in the Pic 24.
Then set the end of the cooking time by pressing “K3” and selecting the required time with
“K6“ and “K5” ( Refer to section 3.6) ,icon “AUTO” is flashing and icon “ ” is always bright ,
as shown in the Pic 25.
After these operations, The display shows the system time and icon “ ” is always bright,
The automatic function icon “AUTO” stops flashing and turns to always bright. showing that
the oven has been programmed. as shown in the Pic 26.

17
Pic 24 Cooking time setting Pic 25 Reservation function setting
completion diagram initial status
Pic 26 Reservation function setting completion status
Practical example:
We want to cook for 45 minutes and for the cooking to end at 2 p.m.
1. We press “k2” and select 0.45 by using “K6“ and “K5”
2. We press “K3” and select 14.00 with “K6“ and “K5”
3. After these operations, the current time will reappear on the display and the and
indicators will show that our programming has been memorised.
4. At 1.15 p.m. (2 p.m. less 45 minutes), the oven will start automatically.
5. At 2 p.m. the cooking will stop automatically and the intermittent sound signal will be
heard.
6. We can switch it off by pressing any button.
3.8 Cancelling the “AUTO”function mode
1. During the semi-automatic function mode setting process, press the “K2” button and the
“K3” button at the same time to cancel the semi-automatic function mode setting and return
to the select function status.
2. In the process of entering the automatic function mode setting, press the “K2” button and
the “K3” button at the same time to cancel the automatic function mode setting and return to
the select function status.
3. After the semi-automatic or fully automatic functions have been set, press the “K2” and
“K3” keys simultaneously to cancel and return to the select function status.

18
Selecting a cooking function and temperature
Using your oven
Selecting an oven function
The oven function selector knob should be used to select the
particular mode of cooking that you require. The appliance
will utilise different elements within the oven cavity,
depending on the oven function that you select. When a
function is selected, the power indicator light will come on.
Four functions mechanical-timer model & the function mode
You have 4 functions for choices. Select cooking function according to different food.
OVEN LIGHT: This mode switches on the oven light and other electric devices do not
work.
DEFROST: The fan runs without heat to reduce the defrosting time of frozen foods.
The time required to defrost the food will depend on the room temperature, the
quantity and type of food.
FAN OVEN: This method of cooking uses the circular element whilst the heat is
distributed by the fan. This results in a faster and more economical cooking process.
The fan oven allows food to be cooked simultaneously on different shelves,
preventing the transmission of smells and tastes from one dish onto another.
FULL GRILL: This method of cooking utilises the inner and outer parts of the top
element, which directs heat downwards onto the food. This function is suitable for
grilling medium or large portions of sausages, bacon, steaks, fish etc.
Thermostat control knob
The oven thermostat control knob sets the required
temperature of the oven. It is possible to regulate the
temperature within a range of 50 - 250°C.
Turn the control knob clockwise.

19
Oven operating light
This light will come on to indicate that the oven’s heating
elements are in operation. The light will turn off when the
temperature set on the thermostat control knob has been
reached. It will cycle on and off throughout the cooking
time.
You should not place food inside the cavity, until the
correct cooking temperature has been reached.
Cooking guidelines
oPlease refer to the information given on food packaging for guidance on cooking
temperatures and times. Once familiar with the performance of your appliance,
temperatures and times can be varied to suit personal preference.
oIf you are using the fan oven function, then you should follow the information given
on the food packaging for this particular mode of cooking.
oMake sure that frozen foods are thoroughly thawed before cooking, unless the
instructions on the food packaging advise that you can “cook from frozen”.
oYou should pre-heat the oven and not place food inside of it until the oven operating
light has gone off. You can choose not to pre-heat when using the fan oven mode;
however you should extend the cooking time given on the food packaging by
approximately ten minutes.
oBefore cooking, check that any accessories that are not required are removed from
the oven.
oPlace cooking trays in the centre of the oven and leave gaps between the trays to
allow air to circulate.
oTry to open the door as little as possible to view the dishes.
oThe oven light will remain on during cooking.
Warnings
oKeep the oven door closed when using any of the grill functions.
oDo not use aluminium foil to cover the grill pan or heat items wrapped in aluminium
foil under the grill. The high reflectivity of the foil could potentially damage the grill
element.
oYou should also never line the base of your oven with aluminium foil.
oDuring cooking, never place pans or cookware directly onto the bottom of your oven.
They should always be placed on the shelves provided.
oThe grill heating element and other internal components of the oven becomes
extremely hot during operation, avoid touching it inadvertently when handling the
food which you are grilling.
oImportant: Be careful when opening the door, to avoid contact with hot parts of the
oven and steam.
oA steam cleaner is not to be used.
oWarning: Accessible parts may become hot during use. Young children should be
kept well away when in use.
oDo not use harsh abrasive cleaners or metal scrapers to clean the oven door glass
as this can scratch the surface, which may result in the oven glass shattering.

20
Troubleshooting
Fault
Cause
Solution
Oven
doesn’t
work.
Something at the connection is
wrong, or it’s not connected.
Turn off main supply and check if some
wire has been disconnected.
Power supply connections are
loose.
Turn off main supply and check if some
wire has been disconnected.
Something at house installation
is wrong.
Turn off main supply and check if some
wire has been disconnected.
Oven light
doesn’t
work.
Light bulb is blown.
Replace bulb as described in the
manual in the section “Maintenance and
cleaning”.
Oven will not
heat.
No function is selected.
Choose a cooking function turning the
selector.
No temperature is selected.
Choose a temperature turning the
selector.
Maintenance and cleaning
⚫The oven should be cleaned after every use. When cleaning the oven the lighting
should be switched on to enable you to see the surfaces better.
⚫The oven chamber should only be washed with warm water and a small amount of
washing-up liquid.
⚫After cleaning the oven chamber wipe it dry.
⚫Never clean the oven surfaces by steam cleaning.
⚫The oven cavity should only be cleaned with warm soapy water, using either a sponge
or soft cloth. No abrasive cleaners should be used.
⚫Any stains that may appear on the bottom of the oven will have originated from food
splashes or spilt food, these splashes occur during the cooking process. These could
possibly be a result of the food being cooked at an excessively high temperature or
being placed in cookware that is too small.
⚫You should select a cooking temperature and function that is appropriate for the food
that you are cooking. You should also ensure that the food is placed in an adequately
sized dish and that you use the drip tray where appropriate.
⚫Outer parts of the oven should only be cleaned with warm soapy water, using either a
sponge or soft cloth. No abrasive cleaners should be used.
⚫If you use any form of oven cleaner on your appliance, then you must check with the
manufacturer of the cleaner that it is suitable for use on your appliance.
⚫Any damage that is caused to the appliance by a cleaning product will not be fixed free
of charge, even if the appliance is within the guarantee period.
⚫Do not use cleaning products containing abrasive materials for the cleaning and
maintenance of the glass front panel.
