Cutech 40600H User manual

User Manual
Read this manual before using machine to avoid serious injury and damage
40600H
13” SPIRAL CUTTERHEAD
PLANER
For technical support, email [email protected] or call 858-886-7333
VER. 06.14.23.

1
TABLE OF CONTENTS
INTRODUCTION 1
WARRANTY 2
PRODUCT SPECIFICATIONS 3
FEATURE IDENTIFICATION 3
GENERAL SAFETY 4
PRODUCT SAFETY 7
GROUNDING INSTRUCTIONS 9
UNPACKING & INVENTORY 11
ASSEMBLY 12

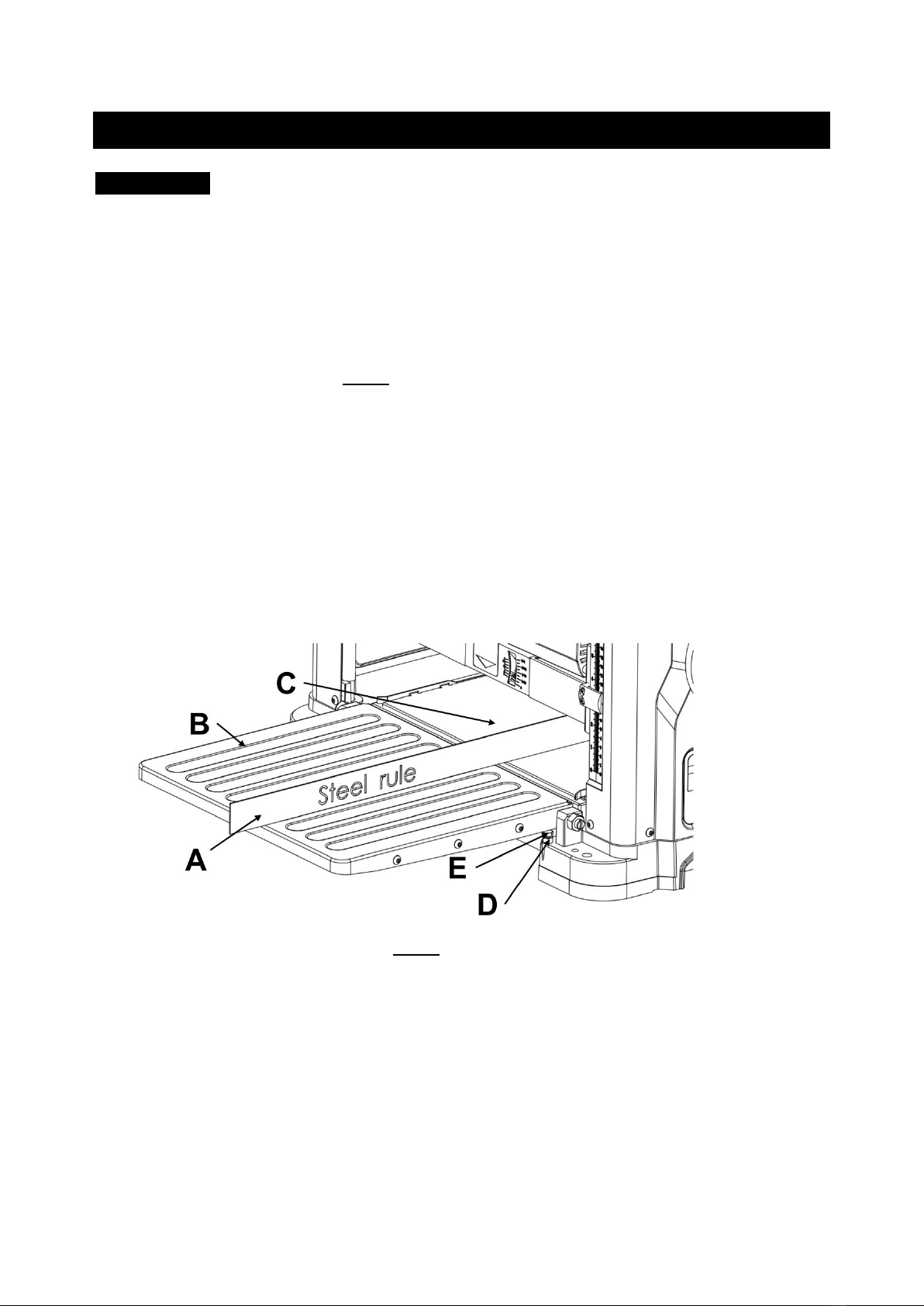

ADJUSTMENTS 14

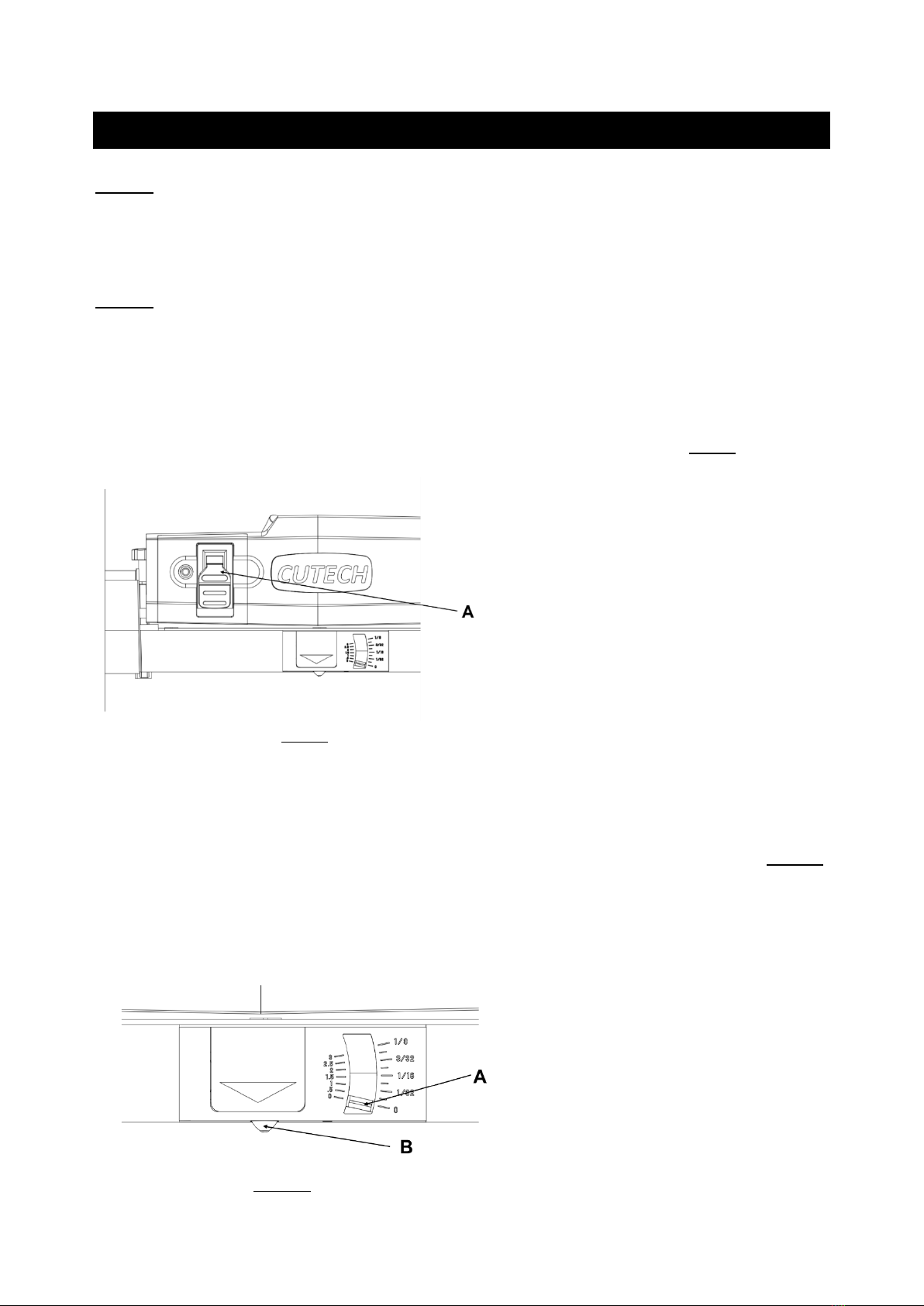

OPERATIONS 18
MAINTENANCE 22
TROUBLESHOOTING GUIDE 24
PARTS 25
PARTS LIST 26
INTRODUCTION
This user manual is intended for use by anyone working with this machine. It should be
kept available for immediate reference so that all operations can be performed with
maximum efficiency and safety. Do not attempt to perform maintenance or operate this
machine until you have read and understand the information contained in this manual. The
drawings, illustrations, photographs, and specifications in this user manual represent your
machine at time of print. However, changes may be made to your machine or this manual
at any time with no obligation to CUTECH.

2
WARRANTY
3 YEAR LIMITED WARRANTY
CUTECH warrants its machinery to be free of defects in workmanship and materials for a
period of three (3) years from the date of the original purchase by the original owner. This
warranty applies to products sold in the United States only. The warranty does not apply to
any product used for professional or commercial production purposes nor for industrial or
educational applications. Such cases are covered by our 1 year Limited Warranty with the
Conditions and Exceptions.
Warranty does not include failures, breakage or defects deemed after inspection by an
Authorized Service Center or our agent to have been directly or indirectly caused by or
resulting from improper use, lack of or improper maintenance, misuse or abuse, negligence,
accidents, damage in handling or transport, or normal wear and tear of any part or component.
Examples are consumables such as inserts and knives or wear items like drive belts, bearings
or brushes. Additionally, warranty is void if repairs or alterations are made to the machine by
an unauthorized service center without the direct consent of CUTECH.
To file a claim of warranty or to find a service center, call 858-886-7333 or email
[e-mail]. Warranty applies to the original buyer only and may not be
transferred. You will need to furnish with your claim a copy of the original sales receipt as proof
of purchase and the serial number from the machine.
The defective units should be returned Freight prepaid to CUTECH’s Authorized Service
Center for inspection. If the warranty claim is considered to be invalid due to exclusions listed
above, CUTECH will at your direction dispose of or return the product. In the event you choose
to have the product returned, you will be responsible for the handling and shipping cost of the
return.
CUTECH furnishes the above warranties in lieu of all other warranties, express or implied.
CUTECH shall not be liable for any special, indirect, incidental, punitive or consequential
damages, including without limitation loss of profits arising from or related to the warranty, the
breach of any agreement or warranty, or the operation or use of its machinery, including without
limitation damages arising from damage to fixtures, tools, equipment, parts or materials, direct
or indirect loss caused by any other part, loss of revenue or profits, financing or interest
charges, and claims by and third person, whether or not notice of such possible damages has
been given to CUTECH. Not responsible for damages of any kind for any delay by or failure
of CUTECH to perform its obligations under this agreement or claims made a subject of a legal
proceeding against CUTECH more than one (1) year after such cause of action first arose.
The validity, construction and performance of this Warranty and any sale of machinery by
CUTECH shall be governed by the law of the State of California, without regard to conflicts of
laws provisions of any jurisdiction. Any action related in any way to any alleged or actual offer,
acceptance or sale by CUTECH or any claim related to the performance of and agreement
including without limitation this Warranty, shall take place in the federal or state courts in San
Diego, California.
CUTECH reserves the right to change the specification without prior notice.

3
PRODUCT SPECIFICATIONS
Feed speed F/min
26 FPM
Cutterhead speed RPM
10,000
Motor RPM
23,000+/-10% (No Load)
Cutterhead diameter
2”
Max planer capacity
6” x 13"
Max depth of cut @ 6”
1/8”
Max depth of cut @ 13”
1/16”
Minimum Length of Stock
10”
Minimum Thickness of Stock
1/8”
Cutter inserts qty
26 (2 sided)
Motor power input
120 V, 60 Hz, AC Only, 15 Amp
Net Weight
68.3Ibs
Shipping Weight
77.4Ibs
Dust Port Opening
2 ½” or 4”
Shipping Dimensions
26” W x 16” D x 21” H
Machine Length
26-1/4”
Machine Depth
34-1/4”
Machine Height
17-3/8”
FEATURE IDENTIFICATION

4
GENERAL SAFETY
NOTE: The WARNING! And CAUTION! symbols indicate a potentially hazardous
situation which, if not avoided, COULD result in death or serious injury. READ THIS
MANUAL completely before assembling and operating this machine.
WARNING! TO AVOID serious injury, death, or damage to the machine, please read,
understand, and follow, all Safety and Operating Instructions before assembling and
operating this machine. This manual is not totally comprehensive. It does not and can not
convey every possible safety and operational problem which may arise while using this
machine. The manual will cover many of the basic and specific safety procedures needed
in an industrial environment.
All federal and state laws, and any regulations having jurisdiction covering the safety
requirements for use of this machine, take precedence over the statements in this manual.
Users of this machine must adhere to all such regulations.
WARNING! Exposure to the dust created by power sanding, sawing, grinding, drilling
and other construction activities may cause serious and permanent respiratory or other
injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the
dust, and avoid prolonged contact with dust. The dust may contain chemicals known to
the State of California to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Always operate tool in well ventilated area and provide for proper dust removal. Use a dust
collection system along with an air filtration system whenever possible. Always use
properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust
exposure, and wash exposed areas with soap and water.
WARNING! ALWAYS wear eye protection. Any machine can throw debris into the eyes
during operations, which could cause severe and permanent eye damage. Everyday
eyeglasses are NOT safety glasses. ALWAYS wear Safety Goggles (that comply with ANSI
standard Z87.1) when operating power tools.
WARNING! ALWAYS wear hearing protection. Plain cotton is not an acceptable
protective device. Hearing equipment should comply with ANSI S3.19 Standards.
WARNING! ALWAYS wear a NIOSH/OSHA approved dust mask to prevent inhaling
dangerous dust or airborne particles.
ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an area that
has slippery floor surfaces from debris, grease, and wax.

5
GENERAL SAFETY (cont.)
CAUTION! ALWAYS unplug the machine from the electrical receptacle when making
adjustments, changing parts or performing any maintenance.
AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the “OFF” position
before plugging in the power cord to the electrical receptacle.
WARNING! AVOID a dangerous working environment. DO NOT use electrical tools in
a damp environment or expose them to rain or moisture.
WARNING! CHILDPROOF THE WORKSHOP AREA by removing switch keys,
unplugging tools from the electrical receptacles, and using padlocks.
CAUTION! DO NOT use electrical tools in the presence of flammable liquids or gasses.
DO NOT FORCE the machine to perform an operation for which it was not designed. It
will do a safer and higher quality job by only performing operations for which the machine
was intended.
WARNING! DO NOT stand on a machine. Serious injury could result if it tips over or
you accidentally contact any moving part.
DO NOT store anything above or near the machine.
WARNING! DO NOT operate any machine or tool if under the influence of drugs,
alcohol, or medication.
EACH AND EVERY time, check for damaged parts prior to using any machine. Carefully
check all guards to see that they operate properly, are not damaged, and perform their
intended functions.
Check for alignment, binding or breakage of all moving parts. Any guard or other part that
is damaged should be immediately repaired or replaced.
WARNING! Ground all machines. If any machine is supplied with a 3-prong plug, it must
be plugged into a 3-contact electrical receptacle. The third prong is used to ground the tool
and provide protection against accidental electric shock. DO NOT remove the third prong.
CAUTION! Keep visitors and children away from any machine. DO NOT permit people
to be in the immediate work area, especially when the machine is operating.
KEEP protective guards in place and in working order.
CAUTION! MAINTAIN your balance. DO NOT extend yourself over the tool. Wear oil
resistant rubber soled shoes. Keep floor clear of debris, grease, and wax.

6
GENERAL SAFETY (cont.)
MAINTAIN all machines with care. ALWAYS KEEP machine clean and in good working
order. KEEP all blades and tool bits sharp.
NEVER leave a machine running, unattended. Turn the power switch to the OFF position.
DO NOT leave the machine until it has come to a complete stop.
REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning the
machine ON.
WARNING! STAY ALERT, watch what you are doing, and use common sense when
operating any machine. DO NOT operate any machine tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
WARNING! USE ONLY recommended accessories. Use of incorrect or improper
accessories could cause serious injury to the operator and cause damage to the machine.
If in doubt, DO NOT use it.
THE USE of extension cords is not recommended for 230V equipment. It is better to
arrange the placement of your equipment and the installed wiring to eliminate the need for
an extension cord. If an extension cord is necessary, refer to the chart in the Grounding
Instructions section to determine the minimum gauge for the extension cord. The extension
cord must also contain a ground wire and plug pin.
CAUTION! Wear proper clothing, DO NOT wear loose clothing, gloves, neckties, or
jewelry. These items can get caught in the machine during operations and pull the operator
into the moving parts. Users must wear a protective cover on their hair, if the hair is long,
to prevent it from contacting any moving parts.
SAVE these instructions and refer to them frequently and use them to instruct other users.
NOTE: Information regarding the safe and proper operation of this tool is also available
from the following sources:
Power Tool Institute
1300 Summer Avenue
Cleveland, OH 44115-2851
www.powertoolinstitute.org
American National Standards Institute
23 West 43rd Street, 4th Floor
New York, NY 10036
www.ansi.org
National Safety Council
1121 Spring Lake Drive
Itasca, IL 60143-3201
ANSI 01.1 Safety Requirements for
Woodworking Machines and the
U.S. Department of Labor Relations
www.osha.gov

7
PRODUCT SAFETY
1. Serious personal injury may occur if normal safety precautions are overlooked or
ignored. Accidents are frequently caused by lack of familiarity or failure to pay
attention. Obtain advice from supervisor, instructor, or another qualified individual who
is familiar with this machine and its operations.
2. Every work area is different. Always consider safety first, as it applies to your work
area. Use this machine with respect and caution. Failure to do so could result in
serious personal injury and damage to the machine.
3. Prevent electrical shock. Follow all electrical and safety codes, including the National
Electrical Code (NEC) and the Occupational Safety and Health Regulations (OSHA).
All electrical connections and wiring should be made by qualified personnel only.
4. WARNING! TO REDUCE the risk of electrical shock. DO NOT use this machine
outdoors. DO NOT expose to rain. Store indoors in a dry area.
5. STOP using this machine, if at any time you experience difficulties in performing any
operation. Contact your supervisor, instructor or machine service center immediately.
6. Safety decals are on this machine to warn and direct you to how to protector yourself
or visitors from personal injury. These decals MUST be maintained so that they are
legible. REPLACE decals that are not legible.
7. DO NOT leave the unit plugged into the electrical outlet. Unplug the unit from the
outlet when not in use and before servicing, performing maintenance tasks, or
cleaning.
8. WARNING! DO NOT handle the plug or planer with wet hands.
9. USE only accessories as described in this manual and recommended by CUTECH.
10. DO NOT pull the planer by the power cord. NEVER allow the power cord to come in
contact with sharp edges, hot surfaces, oil or grease.
11. ALWAYS turn the power switch “OFF” before unplugging the planer.DO NOT unplug
the planer by pulling on the power cord. ALWAYS grasp the plug, not the cord.
12. REPLACE a damaged cord immediately. DO NOT use a damaged cord or plug.
13. DO NOT use the planer as a toy. DO NOT use near or around children.

8
PRODUCT SAFETY (cont.)
14. ENSURE that the machine sits firmly before using. If the machine wobbles or is
unstable, correct the problem by attaching to a bench top prior to operation.
15. This machine is designed to process wood ONLY.
16. WARNING! NEVER position fingers or thumbs near the infeed/ outfeed rollers or
cutterhead.
17. Long pieces of stock should ALWAYS be supported with some type of fixture.
18. DO NOT operate planer with dull or damaged blades.
19. MAKE CERTAIN that the planer is properly adjusted prior to use.
20. DO NOT try and remove excessive amounts of wood in one single pass.
21. INSPECT all stock before planing, ensuring that there are no foreign objects
embedded in the wood, loose knots, or knots that may become loose during operation.
22. WARNING! DO NOT attempt to remove jams until power is disconnected and all
moving parts have come to a complete stop.
23. MAKE SURE that there is adequate operating space on both the infeed and outfeed
sides of the planer before operating.
24. WARNING! DO NOT attempt to plane wood that is less than 10” long or less than
3/16” thick.

9
GROUNDING INSTRUCTIONS
WARNING! This machine MUST BE GROUNDED while in use to protect the operator
from electric shock. In the event of a malfunction or breakdown, GROUNDING provides
the path of least resistance for electric current and reduces the risk of electric shock. The
plug MUST be plugged into a matching electrical receptacle that is properly installed and
grounded in accordance with ALL local codes and ordinances.
If a plug is provided with your machine DO NOT modify the plug. If it will not fit your
electrical receptacle, have a qualified electrician install the proper connections to meet all
electrical codes local and state. ALL connections must also adhere to NEC and OSHA
mandates.
WARNING! IMPROPER ELECTRICAL CONNECTION of the equipment-grounding
conductor can result in risk of electric shock. The conductor with the green insulation (with
or without yellow stripes) is the equipment-grounding conductor. DO NOT connect the
equipment-grounding conductor to a live terminal if repair or replacement of the electric
cord or plug is necessary.
Check with a qualified electrician or service personnel if you do not completely understand
the grounding instructions, or if you are not sure the tool is properly grounded.
WARNING! Electrocution or fire could result if this machine is not grounded properly or
if the electrical configuration does not comply with local and state electrical codes.
MAKE CERTAIN the machine is disconnected from power source before starting any
electrical work.
MAKE SURE the circuit breaker does not exceed the rating of the plug and receptacle.
The motor supplied with your machine is a 120 volt, 60 hertz, single phase motor. Never
connect the green or ground wire to a live terminal. A machine with a 120 volt plug should
only be connected to an outlet having the same configuration as the plug.
WARNING! To reduce the risk of fire or electrical shock, use the proper gauge of
extension cord. When using an extension cord, be sure to use one heavy enough to carry
the current your machine will draw.
The smaller the gauge-number, the larger the diameter of the extension cord is. If in doubt
of the proper size of an extension cord, use a shorter and thicker cord. An undersized cord
will cause a drop in line voltage resulting in a loss of power and overheating.
CAUTION! USE ONLY a 3-wire extension cord that has a 3-prong grounding plug and
a 3-pole receptacle that accepts the machine’s plug. If you are using an extension cord
outdoors, be sure it is marked with the suffix “W-A” (“W” in Canada) to indicate that it is
acceptable for outdoor use.

10
GROUNDING INSTRUCTIONS (cont.)
Make certain the extension cord is properly sized, and in good electrical condition. Always
replace a worn or damaged extension cord immediately or have it repaired by a qualified
person before using it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)
120 VLOT OPERATION OLNY
25’ LONG
50’ LONG
100’ LONG
150’ LONG
0 to 6 Amps
18 AWG
16 AWG
16 AWG
14 AWG
6 to 10 Amps
18 AWG
18 AWG
14 AWG
12 AWG
10 to 12 Amps
16 AWG
16 AWG
14 AWG
12 AWG

11
UNPACKING & INVENTORY
Check shipping carton and machine for damage before unpacking. Carefully remove
packaging materials, parts and machine from shipping carton. Always check for and
remove protective shipping materials around motors and moving parts. Lay out all parts
on a clean work surface.
Remove any protective materials and coatings from all of the parts and the jointer. The
protective coatings can be removed by spraying WD-40 on them and wiping it off with a
soft cloth. This may need to be redone several times before all of the protective coatings
are removed completely.
After cleaning, apply a good quality paste wax to any unpainted surfaces. Make sure to
buff out the wax before assembly.
Compare the items to inventory figures and verify that all items are accounted for. If at all
possible, retain shipping carton for warranty service if ever needed.
NOTE: Some parts may already be installed on your machine. Go through the entire
manual before calling.
If any parts are missing, do not attempt to plug in the power cord and turn “ON”
the machine. The machine should only be turned “ON” after all the parts have been
obtained and installed correctly. For missing parts, contact CUTECH by email
[e-mail] or call 858-886-7333.
1. DUST PORT
1 pc
4. HANDWHEEL KNOB
1 pc
2. HEX WRENCH 4mm x 100mm
1 pc
5. HEX SCREW M5*P0.8*20
1 pc
3. TORX WRENCH
1 pc
6. DUST PORT KNOB
2 pcs

12
ASSEMBLY
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE
POWER SOURCE.
ATTACHING DEPTH ADJUSTMENT HANDWEEL
1. Remove the depth adjustment handwheel by loosening the screw
2. Install the knob on the handwheel by using the provided screw. Then put whole
handwheel assembly over the shaft and tighten. SEE FIG 1.
FIG 1
ATTACHING DUST PORT
1. Facing the rear of the machine, locate the dust port on the cutterhead assembly by
turning 2 dust port knobs. SEE FIG 2.
FIG 2

13
ASSEMBLY (cont.)
2. To minimize sawdust accumulation on your work piece, attach either a 2-1/2 in. or a 4
in. vacuum hose to the dust port.
3. The dust port must be snapped shut completely or chips may fly out of the front of the
planer.
4. The dust port can be opened to allow chips to flow out the back of the planer when a
vacuum system is not used. SEE FIG 3.
FIG 3
SECURING PLANER TO A TABLE OR WORKBENCH
During operation, if there is any tendency for the planer to tip over, slide or walk, the planer
MUST be secured to a supporting surface such as a workbench or table. Four holes are
provided (2 are shown at A below) to securely mount the planer. The surface you are
mounting the planer to should be perfectly flat. SEE FIG 4.
FIG 4

14
ADJUSTMENTS
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE
POWER SOURCE BEFORE ANY ADJUSTMENTS ARE MADE.
LEVELING EXTENSION TABLES
The extension tables must be level with the planer table. To check the extension tables
and adjust if necessary:
1. Lay a straight edge (A) on the planer table (C) with one end of the straight edge over
the infeed table (B). SEE FIG 5.
2. Check to make sure that the infeed table is level with the planer table.
3. If an adjustment is necessary, raise table, loosen lock nuts (D) and adjust Hex Head
Screws (E) on each side of the table until the infeed table is level with the planer
table.This will adjust the outer edge of the table.
4. Recheck for level and repeat adjustment if necessary.
5. Repeat this process for leveling the outfeed table.
FIG 5

15
ADJUSTMENTS (cont.)
RAISING AND LOWERING HEAD ASSEMBLY
The head assembly consists of the cutterhead, knives, feed rollers, cutterhead guard, and
the motor. Raising and lowering of the head assembly controls the depth of cut on the
planer.
To adjust:
1. To raise the head assembly (A), turn the adjusting handle (B) clockwise. SEE FIG 6.
2. To lower the head assembly, turn the adjusting handle counterclockwise.
NOTE: One revolution of the handle will move the cutterhead up or down approximately
1/16”. You can confirm this by referencing the scale (C) on the front right side of the planer.
FIG 6
NOTE: The Repeat Cut Thickness Indicator (D), located on the bottom right side of the
planer, provides a simple way to preset the finished thickness of a work piece. Rotate the
indicator to the desired finished thickness. Use this feature when thickness planing multiple
work pieces to ensure a uniform thickness of all work pieces. See page 19 for more
information. Do not attempt to lower the cutterhead assembly below the preset level as
damage will occur.

16
ADJUSTMENTS (cont.)
ADJUSTING / REPLACING KNIVES FOR THE SPIRAL
CUTTERHEAD
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE
POWER SOURCE BEFORE ANY ADJUSTMENTS ARE MADE.
WARNING! ***Be VERY CAREFUL when handling the knives or cutter tips as they
are EXTREMELY SHARP and can cause serious injury!!! ***
This 13" cutterhead is equipped with 26 indexable cutter inserts. Each cutter insert can be
rotated to reveal one of its two cutting edges. Therefore, if one cutting edge becomes dull
or damaged, simply rotate it 90° to reveal a fresh cutting edge.
In addition, each cutter insert has a reference dot on one corner. As the cutter insert is
rotated, the reference dot location can be used as an indicator of which edges are used
and which are new. When the reference dot revolves back around to its starting position,
the cutter should be replaced.
To rotate or change cutter tip inserts:
1. Face the rear of the machine. Remove the Dust Port. Refer back to the section labeled
ATTACHING DUST PORT in the ASSEMBLY section page 12 for information on
removal.
2. Use the handle wheel to lower the cutterhead assembly down to about 2” on the scale.
3. Rotate the cutterhead to a position where a cutter tip is visible. SEE FIG. 7. next page.
4. Remove the cutter tip screw using the provided Torx T-wrench allowing the tip to be
removed.
5. Carefully clean all dust and dirt off the cutter tip and the cutterhead seat. Replace or
rotate the cutter insert so a fresh sharp edge is facing outward. If available, use pitch
remover to be sure all wood residue is off the cutterhead, cutter insert, and screws,
before attempting to rotate or replace them. Using a shot of compressed air is also
helpful. Be sure to wear safety glasses when using compressed air.
WARNING!
NEVER GRASP CUTTERHEAD
BY HAND AS THIS WILL
RESULT IN SERIOUS INJURY!

17
6. Lubricate the Torx screw threads with light machine oil and wipe the excess oil off the
threads. Install cutter tip insert and torque the Torx screw to 48-60 lbf-in.
FIG 7
Note: Proper cleaning of tips and cutterhead is critical to achieving a smooth finish. Dirt or
dust trapped between the cutter insert and cutterhead will slightly raise the cutter insert,
and make noticeable marks on your work piece the next time you plane.
THICKNESS SCALE ADJUSTMENT
The thickness scale, located on the right of the planer, shows the thickness of the finished
work piece. To make sure the scale is set properly, run a piece of wood through the planer
and measure the thickness of the wood. If the scale is out of alignment, loosen the two
round head screws holding the scale indicator and adjust the thickness indicator to the
correct setting. Make sure to re-tighten the two screws once the adjustment is complete.
SEE FIG 8.
FIG 8

18
OPERATIONS
NOTE: This operations section was designed to give instructions on the basic operations
of this planer. However, it is in no way comprehensive of every planer operation. It is
strongly recommended that you read books, trade magazines, or get formal training to
maximize the potential of your planer while minimizing the risks.
NOTE: This planer is designed to process wood ONLY.
POWER SWITCH
The planer is turned on by flipping the switch into the up position and it is turned off by
flipping the switch in the down position. This planer is also equipped with a special lockout
toggle switch that prevents unauthorized use. To prevent unauthorized use of the planer,
simply pull out the yellow key (A) located on the face of the switch. SEE FIG 9.
FIG 9
DEPTH-OF-CUT INDICATOR
The Depth-Of-Cut Indicator, located on the front of the machine, is a convenient way to
quickly determine how much material is being planed off in one pass.
1. With the machine OFF, insert your work piece just under the cut scale (A). SEE FIG 10.
2. Crank the raising / lowering handle until the button (B) comes in contact with the work
piece. As you rotate the raise / lower handle, the needle on the depth of cut scale will
move showing how much material will be removed in that pass.
FIG 10

19
OPERATIONS (cont.)
REPEAT CUT PRESET
The REPEAT CUT preset, located on the right side of the planer, provides a simple way to
preset the finished thickness of a work piece. The indicator can be set to various
thicknesses. Move the lever to the desired finished thickness. Use this feature when
thickness planing multiple work pieces to ensure a uniform thickness of all work pieces.
SEE FIG 11.
FIG 11
NOTE: When lowering the head assembly, ensure the REPEAT CUT preset is in the lowest
desired thickness position. Failure to do so may result in excess downward pressure by
the cutterhead assembly onto the mechanism and cause damage to the adjustment rod
and upper frame.
GETTING PREPARED
It is always a good idea to use a piece of scrap wood for your first planing attempt. Also,
before each use of the planer, make it a habit of checking for loose fasteners, fittings or
hardware. Turn the planer ON and allow it to reach full speed. Pay close attention to any
excessively loud noises that may be coming from the planer or any excessive vibration. If
either occurs, shut down the planer immediately checking again for loose hardware. Go
through the ASSEMBLY and ADJUSTMENTS sections again if necessary.
