Cutech 40800H-CT User manual
2
TABLE OF CONTENTS
INTRODUCTION
SECTION 1 Warranty .............................................................................................. 3
SECTION 2 Product Specifications ......................................................................... 4
SECTION 3 Feature Identification ........................................................................... 4
SECTION 4 General Safety .................................................................................... 5
SECTION 5 Product Safety ..................................................................................... 8
SECTION 6 Grounding Instructions ...................................................................... 10
SECTION 7 Unpacking & Inventory ...................................................................... 12
SECTION 8 Assembly ........................................................................................... 13
SECTION 9 Adjustments ....................................................................................... 15
SECTION 10 Operations ......................................................................................... 19
SECTION 11 Maintenance ...................................................................................... 22
SECTION 12 Troubleshooting ................................................................................. 24
SECTION 13 Parts List ………………………………………...................................... 25
INTRODUCTION
This user manual is intended for use by anyone working with this machine. It should be kept
available for immediate reference so that all operations can be performed with maximum
efficiency and safety. Do not attempt to perform maintenance or operate this machine until
you have read and understand the information contained in this manual. The drawings,
illustrations, photographs, and specifications in this user manual represent your machine at
time of print. However, changes may be made to your machine or this manual at any time
with no obligation to CUTECH.
3
WARRANTY
2 YEAR LIMITED WARRANTY
CUTECH warrants its machinery to be free of defects in workmanship and materials for a period of two (2)
years from the date of the original purchase by the original owner. This warranty applies to products sold in the
United States only. The warranty does not apply to any product used for professional or commercial production
purposes nor for industrial or educational applications. Such cases are covered by our 1 year Limited Warranty
with the Conditions and Exceptions.
Warranty does not include failures, breakage or defects deemed after inspection by an Authorized Service
Center or our agent to have been directly or indirectly caused by or resulting from improper use, lack of or
improper maintenance, misuse or abuse, negligence, accidents, damage in handling or transport, or normal
wear and tear of any part or component. Examples are consumables such as inserts and knives or wear items
like drive belts, bearings or brushes. Additionally, warranty is void if repairs or alterations are made to the
machine by an unauthorized service center without the direct consent of CUTECH.
To file a claim of warranty or to find a service center, call 858-886-7333 or email support@cutechtools.us.
Warranty applies to the original buyer only and may not be transferred. You will need to furnish with your claim
a copy of the original sales receipt as proof of purchase and the serial number from the machine.
The defective units should be returned Freight prepaid to CUTECH’s Authorized Service Center for inspection.
If the warranty claim is considered to be invalid due to exclusions listed above, CUTECH will at your direction
dispose of or return the product. In the event you choose to have the product returned, you will be responsible
for the handling and shipping cost of the return.
CUTECH furnishes the above warranties in lieu of all other warranties, express or implied. CUTECH shall not
be liable for any special, indirect, incidental, punitive or consequential damages, including without limitation
loss of profits arising from or related to the warranty, the breach of any agreement or warranty, or the operation
or use of its machinery, including without limitation damages arising from damage to fixtures, tools, equipment,
parts or materials, direct or indirect loss caused by any other part, loss of revenue or profits, financing or
interest charges, and claims by and third person, whether or not notice of such possible damages has been
given to CUTECH. Not responsible for damages of any kind for any delay by or failure of CUTECH to perform
its obligations under this agreement or claims made a subject of a legal proceeding against CUTECH more
than one (1) year after such cause of action first arose.
The validity, construction and performance of this Warranty and any sale of machinery by CUTECH shall be
governed by the law of the State of California, without regard to conflicts of laws provisions of any jurisdiction.
Any action related in any way to any alleged or actual offer, acceptance or sale by CUTECH or any claim
related to the performance of and agreement including without limitation this Warranty, shall take place in the
federal or state courts in San Diego, California.
CUTECH reserves the right to change the specification without prior notice.
4
PRODUCT SPECIFICATIONS
Feed speed F/min 16 or 26 FPM
Cutterhead speed RPM 10,000
Motor RPM 23000+/-10% (No Load)
Cutterhead diameter 2”
Max planer capacity 6" x 13"
Max depth of cut @ 6” 1/8"
Max depth of cut @ 13” 1/16"
Minimum Length of Stock 7”
Minimum Thickness of Stock 1/8”
Cutter inserts qty 26 (2 sided)
Motor power input 120 V, 60 Hz, AC Only, 15Amp
Shipping Weight 77 lbs.
Shipping Dimensions 25” W x 16” D x 21” H
Dust Port Opening 2 ½” or 4”

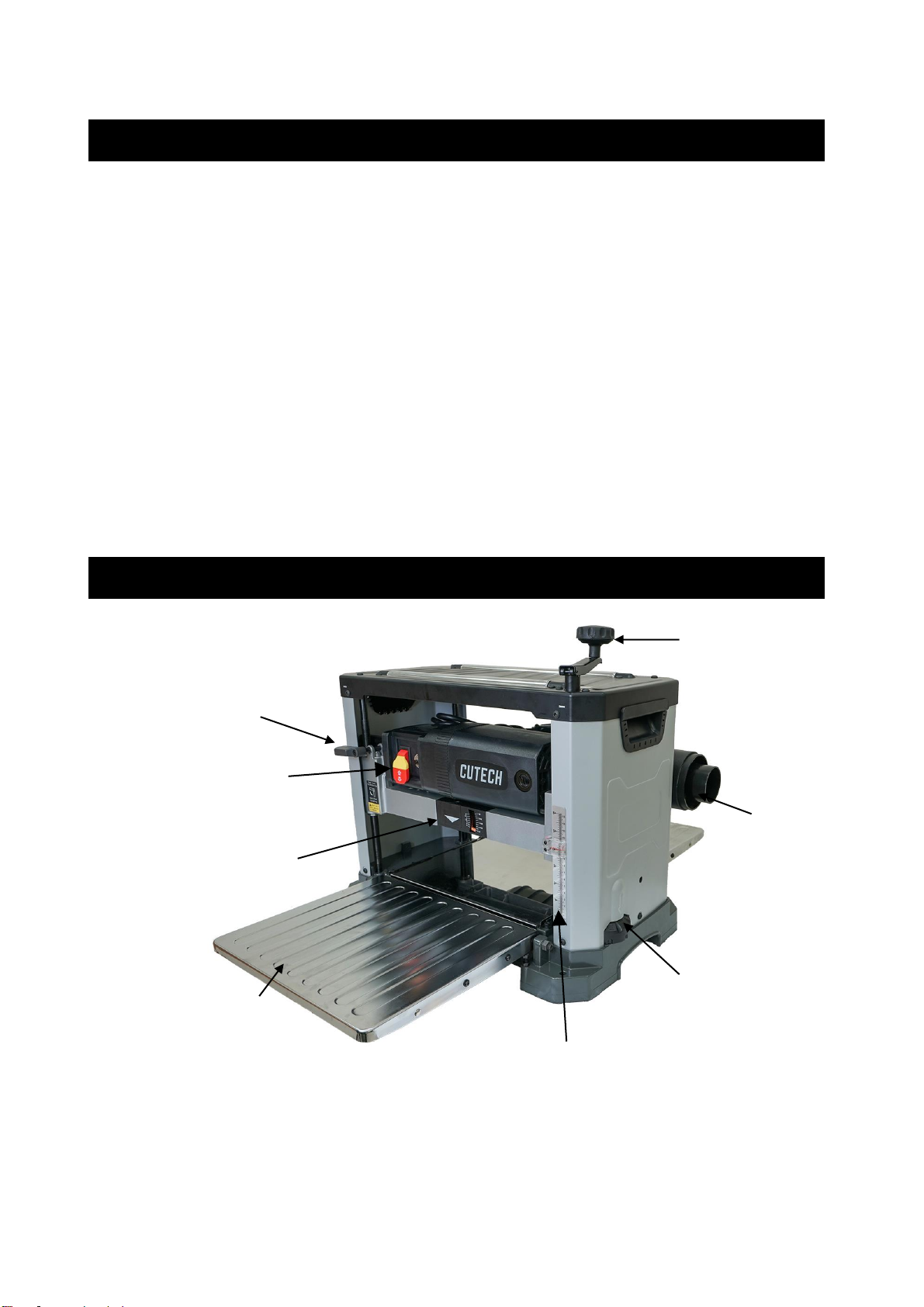

FEATURE IDENTIFICATION
Infeed Table
Thickness Scale
Power Switch
Raise/Lower Handle
Depth-of-Cut Indicator
Repeat Cut
Dust Port
Feed Rate Selector
S
5
GENERAL SAFETY
NOTE: The WARNING! and CAUTION! symbols indicate a potentially hazardous
situation which, if not avoided, COULD result in death or serious injury. READ THIS
MANUAL completely before assembling and operating this machine.
WARNING! TOAVOID serious injury, death, or damage to the machine, please read, understand,
and follow, all Safety and Operating Instructions before assembling and operating this machine. This
manual is not totally comprehensive. It does not and can not convey every possible safety and
operational problem which may arise while using this machine. The manual will cover many of the
basic and specific safety procedures needed in an industrial environment.
All federal and state laws, and any regulations having jurisdiction covering the safety requirements
for use of this machine, take precedence over the statements in this manual. Users of this machine
must adhere to all such regulations.
WARNING! Exposure to the dust created by power sanding, sawing, grinding, drilling and other
construction activities may cause serious and permanent respiratory or other injury, including
silicosis (a serious lung disease), cancer, and death.Avoid breathing the dust, and avoid prolonged
contact with dust. The dust may contain chemicals known to the State of California to cause cancer,
birth defects or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Always operate tool in well ventilated area and provide for proper dust removal. Use a dust collection
system along with an air filtration system whenever possible. Always use properly fitting
NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed
areas with soap and water.
WARNING! ALWAYS wear eye protection. Any machine can throw debris into the eyes during
operations, which could cause severe and permanent eye damage. Everyday eyeglasses are NOT
safety glasses. ALWAYS wear Safety Goggles (that comply with ANSI standard Z87.1) when
operating power tools.
WARNING! ALWAYS wear hearing protection. Plain cotton is not an acceptable protective device.
Hearing equipment should comply with ANSI S3.19 Standards.
WARNING! ALWAYS wear a NIOSH/OSHAapproved dust mask to prevent inhaling dangerous
dust or airborne particles.
6
GENERAL SAFETY (cont.)
ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an area that has slippery
floor surfaces from debris, grease, and wax.
CAUTION! ALWAYS unplug the machine from the electrical receptacle when making adjustments,
changing parts or performing any maintenance.
AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the “OFF” position before
plugging in the power cord to the electrical receptacle.
WARNING! AVOID a dangerous working environment. DO NOT use electrical tools in a damp
environment or expose them to rain or moisture.
WARNING! CHILDPROOF THE WORKSHOPAREAby removing switch keys, unplugging tools
from the electrical receptacles, and using padlocks.
CAUTION! DO NOT use electrical tools in the presence of flammable liquids or gasses.
DO NOT FORCE the machine to perform an operation for which it was not designed. It will do a safer
and higher quality job by only performing operations for which the machine was intended.
WARNING! DO NOT stand on a machine. Serious injury could result if it tips over or you
accidentally contact any moving part.
DO NOT store anything above or near the machine.
WARNING! DO NOT operate any machine or tool if under the influence of drugs, alcohol, or
medication.
EACH AND EVERY time, check for damaged parts prior to using any machine. Carefully check all
guards to see that they operate properly, are not damaged, and perform their intended functions.
Check for alignment, binding or breakage of all moving parts.Any guard or other part that is
damaged should be immediately repaired or replaced.
WARNING! Ground all machines. If any machine is supplied with a 3-prong plug, it must be
plugged into a 3-contact electrical receptacle. The third prong is used to ground the tool and provide
protection against accidental electric shock. DO NOT remove the third prong.
CAUTION! Keep visitors and children away from any machine. DO NOT permit people to be in the
immediate work area, especially when the machine is operating.
7
GENERAL SAFETY (cont.)
KEEP protective guards in place and in working order.
CAUTION! MAINTAIN your balance. DO NOT extend yourself over the tool. Wear oil resistant
rubber soled shoes. Keep floor clear of debris, grease, and wax.
MAINTAIN all machines with care.ALWAYS KEEP machine clean and in good working order. KEEP
all blades and tool bits sharp.
NEVER leave a machine running, unattended. Turn the power switch to the OFF position. DO NOT
leave the machine until it has come to a complete stop.
REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning the machine ON.
WARNING! STAYALERT, watch what you are doing, and use common sense when operating any
machine. DO NOT operate any machine tool while tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious personal
injury.
WARNING! USE ONLY recommended accessories. Use of incorrect or improper accessories
could cause serious injury to the operator and cause damage to the machine. If in doubt, DO NOT
use it.
THE USE of extension cords is not recommended for 230V equipment. It is better to arrange the
placement of your equipment and the installed wiring to eliminate the need for an extension cord. If
an extension cord is necessary, refer to the chart in the Grounding Instructions section to determine
the minimum gauge for the extension cord. The extension cord must also contain a ground wire and
plug pin.
CAUTION! Wear proper clothing, DO NOT wear loose clothing, gloves, neckties, or jewelry.
These items can get caught in the machine during operations and pull the operator into the moving
parts. Users must wear a protective cover on their hair, if the hair is long, to prevent it from contacting
any moving parts.
SAVE these instructions and refer to them frequently and use them to instruct other users.
NOTE: Information regarding the safe and proper operation of this tool is also available from the
8
following sources:
Power Tool Institute American National Standards Institute
1300 Summer Avenue 23 West 43rd Street, 4th Floor
Cleveland, OH 44115-2851 New York, NY 10036
www.powertoolinstitute.com www.ansi.org
National Safety Council ANSI 01.1 Safety Requirements for
1121 Spring Lake Drive Woodworking Machines and the
Itasca, IL 60143-3201 U.S. Department of Labor Relations
www.osha.gov
PRODUCT SAFETY
1. Serious personal injury may occur if normal safety precautions are overlooked or ignored.
Accidents are frequently caused by lack of familiarity or failure to pay attention. Obtain advice
from supervisor, instructor, or another qualified individual who is familiar with this machine and
its operations.
2. Every work area is different. Always consider safety first, as it applies to your work area. Use
this machine with respect and caution. Failure to do so could result in serious personal injury
and damage to the machine.
3. Prevent electrical shock. Follow all electrical and safety codes, including the National Electrical
Code (NEC) and the Occupational Safety and Health Regulations (OSHA). All electrical
connections and wiring should be made by qualified personnel only
4. WARNING! TO REDUCE the risk of electrical shock. DO NOT use this machine outdoors.
DO NOT expose to rain. Store indoors in a dry area.
5. STOP using this machine, if at any time you experience difficulties in performing any operation.
Contact your supervisor, instructor or machine service center immediately.
6. Safety decals are on this machine to warn and direct you to how to protector yourself or visitors
from personal injury. These decals MUST be maintained so that they are legible. REPLACE
decals that are not legible.
7. DO NOT leave the unit plugged into the electrical outlet. Unplug the unit from the outlet when
not in use and before servicing, performing maintenance tasks, or cleaning.
8. WARNING! DO NOT handle the plug or planer with wet hands
9. USE only accessories as described in this manual and recommended by CUTECH.
10. DO NOT pull the planer by the power cord. NEVER allow the power cord to come in contact with
sharp edges, hot surfaces, oil or grease.
11. ALWAYS turn the power switch “OFF” before unplugging the planer.DO NOT unplug the planer
by pulling on the power cord. ALWAYS grasp the plug, not the cord.
12. REPLACE a damaged cord immediately. DO NOT use a damaged cord or plug.
13. DO NOT use the planer as a toy. DO NOT use near or around children.
9
PRODUCT SAFETY (cont.)
14. ENSURE that the machine sits firmly before using. If the machine wobbles or is unstable,
correct the problem by attaching to a bench top prior to operation.
15. This machine is designed to process wood ONLY.
16. WARNING! NEVER position fingers or thumbs near the infeed/ outfeed rollers or cutterhead.
17. Long pieces of stock shouldALWAYS be supported with some type of fixture.
18. DO NOT operate planer with dull or damaged blades.
19. MAKE CERTAIN that the planer is properly adjusted prior to use.
20. DO NOT try and remove excessive amounts of wood in one single pass.
21. INSPECT all stock before planing, ensuring that there are no foreign objects embedded in the
wood, loose knots, or knots that may become loose during operation.
22. WARNING! DO NOT attempt to remove jams until power is disconnected and all moving
parts have come to a complete stop.
23. MAKE SURE that there is adequate operating space on both the infeed and outfeed sides of the
planer before operating.
24. WARNING! DO NOT attempt to plane wood that is less than 7” long or less than 3/16” thick.
10
GROUNDING INSTRUCTIONS
WARNING! This machine MUST BE GROUNDED while in use to protect the operator from electric
shock. In the event of a malfunction or breakdown, GROUNDING provides the path of least
resistance for electric current and reduces the risk of electric shock. The plug MUST be plugged into
a matching electrical receptacle that is properly installed and grounded in accordance withALL local
codes and ordinances.
If a plug is provided with your machine DO NOT modify the plug. If it will not fit your electrical
receptacle, have a qualified electrician install the proper connections to meet all electrical codes local
and state. ALL connections must also adhere to NEC and OSHA mandates.
WARNING! IMPROPER ELECTRICAL CONNECTION of the equipment-grounding conductor can
result in risk of electric shock. The conductor with the green insulation (with or without yellow stripes)
is the equipment-grounding conductor. DO NOT connect the equipment-grounding conductor to a
live terminal if repair or replacement of the electric cord or plug is necessary.
Check with a qualified electrician or service personnel if you do not completely understand the
grounding instructions, or if you are not sure the tool is properly grounded.
WARNING! Electrocution or fire could result if this machine is not grounded properly or if the
electrical configuration does not comply with local and state electrical codes.
MAKE CERTAIN the machine is disconnected from power source before starting any electrical work.
MAKE SURE the circuit breaker does not exceed the rating of the plug and receptacle.
The motor supplied with your machine is a 120 volt, 60 hertz, single phase motor. Never connect the
green or ground wire to a live terminal. A machine with a 120 volt plug should only be connected to
an outlet having the same configuration as the plug.
WARNING! To reduce the risk of fire or electrical shock, use the proper gauge of extension cord.
When using an extension cord, be sure to use one heavy enough to carry the current your machine
will draw.
The smaller the gauge-number, the larger the diameter of the extension cord is. If in doubt of the
proper size of an extension cord, use a shorter and thicker cord. An undersized cord will cause a
drop in line voltage resulting in a loss of power and overheating.
CAUTION! USE ONLY a 3-wire extension cord that has a 3-prong grounding plug and a 3-pole
receptacle that accepts the machine’s plug. If you are using an extension cord outdoors, be sure it is
marked with the suffix “W-A” (“W” in Canada) to indicate that it is acceptable for outdoor use.
11
GROUNDING INSTRUCTIONS (cont.)
Make certain the extension cord is properly sized, and in good electrical condition. Always replace a
worn or damaged extension cord immediately or have it repaired by a qualified person before using
it.
Protect your extension cords from sharp objects, excessive heat, and damp or wet areas.
MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)
120 VOLT OPERATION ONLY
25’ LONG
50’ LONG
100’ LONG
150’ LONG
0 to 6Amps
18 AWG
16 AWG
16 AWG
14 AWG
6 to 10 Amps
18 AWG
16 AWG
14 AWG
12 AWG
10 to 12 Amps
16 AWG
16 AWG
14 AWG
12 AWG
12 to 16 Amps
14 AWG
12 AWG
NOT RECOMMENDED
12
UNPACKING & INVENTORY
Check shipping carton and machine for damage before unpacking. Carefully remove packaging
materials, parts and machine from shipping carton. Always check for and remove protective shipping
materials around motors and moving parts. Lay out all parts on a clean work surface.
Remove any protective materials and coatings from all of the parts and the planer. The protective
coatings can be removed by spraying WD-40 on them and wiping it off with a soft cloth. This may
need to be redone several times before all of the protective coatings are removed completely.
After cleaning, apply a good quality paste wax to any unpainted surfaces including the infeed,
outfeed, and center tables. Make sure to buff out the wax before assembly.
Compare the items to inventory figures and verify that all items are accounted for. If at all possible,
retain shipping carton for warranty service if ever needed.
If any parts are missing, do not attempt to plug in the power cord and run the machine. The machine
should only be turned “ON” after all the parts have been obtained and installed correctly.
NOTE: Some parts may have been installed at the factory. Please check before calling.
For missing parts, contact CUTECH at 858-886-7333.
1. DUST PORT 1 pc
2. HEX WRENCH 4mm x 100 1 pc
3. TORX WRENCH 1 pc
4. RAISE / LOWER HANDLE 1 pc
5. HEX SCREW M5*P0.8*20 1 pc
6. DUST PORT KNOB 2 pcs
1
2
3
4
5
6
13

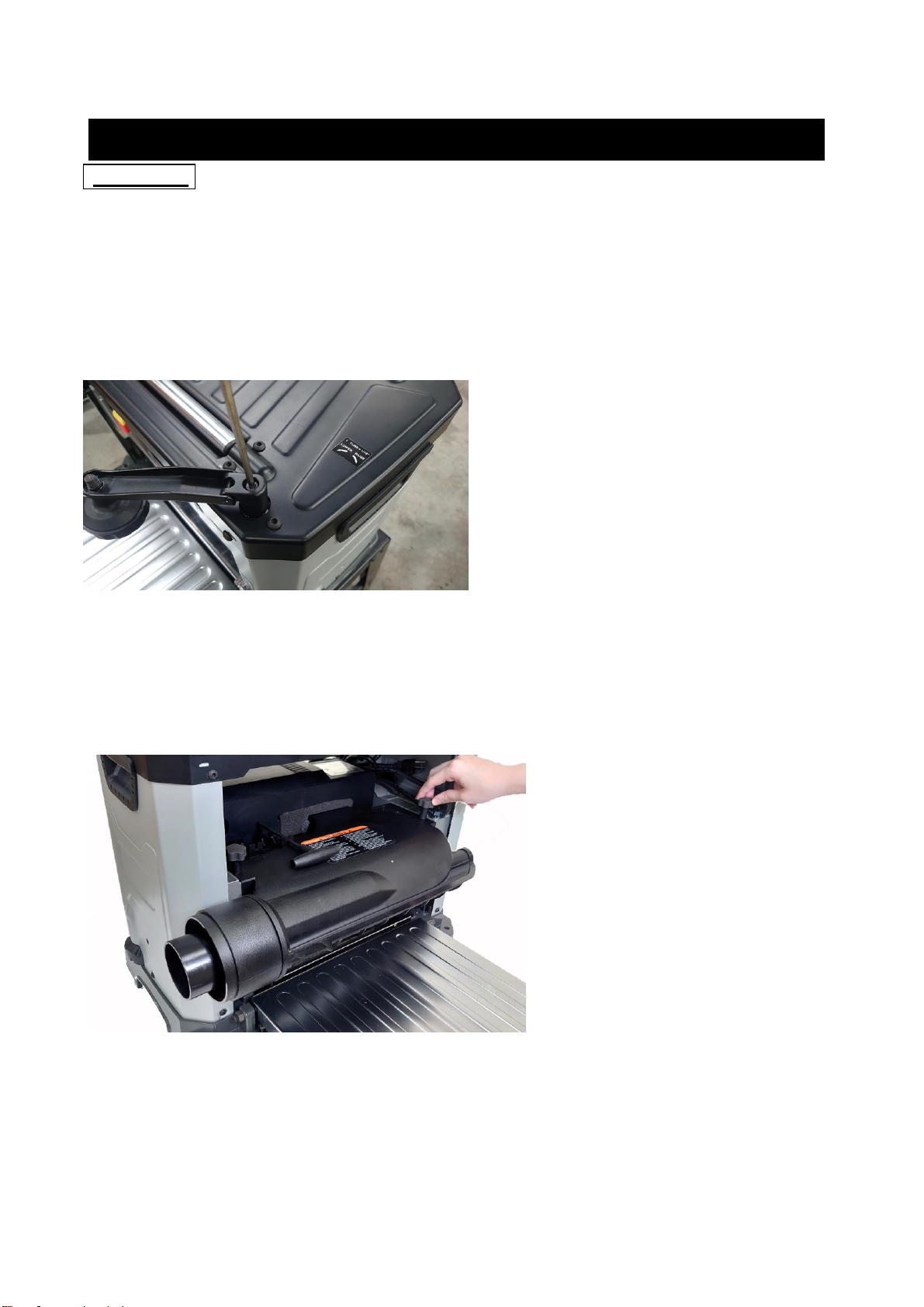

ASSEMBLY
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE
POWER SOURCE.
ATTACHING DEPTH ADJUSTMENT HANDLE
Attach the raise/lower adjustment handle to the shaft located on top of the planer and fasten in place
with 1 Hex Socket Head screw. Tighten screw using supplied hex wrench. SEE FIG 1.
FIG 1
ATTACHING DUST PORT
1. Facing the rear of the machine, locate the dust port on the cutterhead assembly by turning 2
dust port knobs. SEE FIG 2.
FIG 2
14
ASSEMBLY (cont.)
2. To minimize sawdust accumulation on your work piece, attach either a 2-1/2 in. or a 4 in.
vacuum hose to the dust port.
3. The dust port must be snapped shut completely or chips may fly out of the front of the planer.
4. The dust port can be opened to allow chips to flow out the back of the planer when a vacuum
system is not used. SEE FIG 3.
FIG 3
SECURING PLANER TO ATABLE OR WORKBENCH
During operation, if there is any tendency for the planer to tip over, slide or walk, the planer
MUST be secured to a supporting surface such as a workbench or table. Four holes are
provided (2 are shown at A below) to securely mount the planer. The surface you are mounting
the planer to should be perfectly flat. SEE FIG 4.
FIG 4
A
15
ADJUSTMENTS
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER
SOURCE BEFORE ANY ADJUSTMENTS ARE MADE.
LEVELING EXTENSION TABLES
The extension tables must be level with the planer table. To check the extension tables and adjust if
necessary:
1. Lay a straight edge (A) on the planer table (C) with one end of the straight edge over the infeed
table (B). SEE FIG 5.
2. Check to make sure that the infeed table is level with the planer table.
3. If an adjustment is necessary, raise table, loosen lock nuts (D) and adjust Hex Head Screws (E)
on each side of the table until the infeed table is level with the planer table. This will adjust the
outer edge of the table.
4. Recheck for level and repeat adjustment if necessary.
5. Repeat this process for leveling the outfeed table.
FIG 5
E
D
C
A
B
16
ADJUSTMENTS (cont.)
RAISING AND LOWERING HEAD ASSEMBLY
The head assembly consists of the cutterhead, knives, feed rollers, cutterhead guard, and the motor.
Raising and lowering of the head assembly controls the depth of cut on the planer.
To adjust:
1. To raise the head assembly (A), turn the adjusting handle (B) clockwise. SEE FIG 6.
2. To lower the head assembly, turn the adjusting handle counterclockwise.
NOTE: One revolution of the handle will move the cutterhead up or down approximately 1/16”. You
can confirm this by referencing the scale (C) on the front right side of the planer.
FIG 6
NOTE: The Repeat Cut Thickness Indicator (D), located on the bottom right side of the planer,
provides a simple way to preset the finished thickness of a work piece. Rotate the indicator to the
desired finished thickness. Use this feature when thickness planing multiple work pieces to ensure a
uniform thickness of all work pieces. See page 20 for more information. Do not attempt to lower the
cutterhead assembly below the preset level as damage will occur.
A
B
C
D
17
ADJUSTMENTS (cont.)
ADJUSTING / REPLACING KNIVES FOR THE SPIRAL CUTTERHEAD
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE POWER
SOURCE BEFORE ANY ADJUSTMENTS ARE MADE.
WARNING! *** Be VERY CAREFUL when handling the knives or cutter tips as they are
EXTREMELY SHARP and can cause serious injury!!! ***
This 13" cutterhead is equipped with 26 indexable cutter inserts. Each cutter insert can be rotated to
reveal one of its two cutting edges. Therefore, if one cutting edge becomes dull or damaged, simply
rotate it 90° to reveal a fresh cutting edge.
In addition, each cutter insert has a reference dot on one corner. As the cutter insert is rotated, the
reference dot location can be used as an indicator of which edges are used and which are new.
When the reference dot revolves back around to its starting position, the cutter should be replaced.
WARNING! NEVER GRASP CUTTERHEAD
BY HAND AS THIS WILL
RESULT IN SERIOUS INJURY!
To rotate or change cutter tip inserts:
1. Face the rear of the machine. Remove the Dust Port. Refer back to the section labeled
ATTACHING DUST PORT in the ASSEMBLY section page 13 for information on removal.
2. Use the handle to lower the cutterhead assembly down to about 1” on the scale.
3. Insert the supplied Hex wrench through the hole located on the side of the machine beside
the Repeat Cut indicator. Rotate the cutterhead to a position where a cutter tip is visible. SEE
FIG. 7. next page. (You may have to raise or lower cutterhead to be able to insert the Hex
wrench into the cutterhead)
4. While holding the hex wrench to prevent cutterhead rotation, remove the cutter tip screw
using the provided Torx T-wrench allowing the tip to be removed.
5. Carefully clean all dust and dirt off the cutter tip and the cutterhead seat. Replace or rotate the
cutter insert so a fresh sharp edge is facing outward. If available, use pitch remover to be sure
all wood residue is off the cutterhead, cutter insert, and screws, before attempting to rotate or
replace them. Using a shot of compressed air is also helpful. Be sure to wear safety glasses
when using compressed air.
6. Lubricate the Torx screw threads with light machine oil and wipe the excess oil off the threads.
Install cutter tip insert and torque the Torx screw to 48-50 lb-ft.
18
ADJUSTMENTS (cont.)
FIG 7
Note: Proper cleaning of tips and cutterhead is critical to achieving a smooth finish. Dirt or
dust trapped between the cutter insert and cutterhead will slightly raise the cutter insert, and
make noticeable marks on your work piece the next time you plane.
THICKNESS SCALE ADJUSTMENT
The thickness scale, located on the right of the planer, shows the thickness of the finished work
piece. To make sure the scale is set properly, run a piece of wood through the planer and measure
the thickness of the wood. If the scale is out of alignment, loosen the two round head screws (A)
holding the scale indicator (B) and adjust the thickness indicator to the correct setting. Make sure to
re-tighten the two screws once the adjustment is complete. SEE FIG 8.
FIG 8
19
OPERATIONS
NOTE: This operations section was designed to give instructions on the basic operations of this
planer. However, it is in no way comprehensive of every planer operation. It is strongly recommended
that you read books, trade magazines, or get formal training to maximize the potential of your planer
while minimizing the risks.
NOTE: This planer is designed to process wood ONLY.
POWER SWITCH
The planer is turned on by flipping the switch into the up position and it is turned off by flipping the
switch in the down position. This planer is also equipped with a special lockout toggle switch that
prevents unauthorized use. To prevent unauthorized use of the planer, simply pull out the yellow key
(A) located on the face of the switch. SEE FIG 9.
FIG 9
DEPTH-OF-CUT INDICATOR
The Depth-Of-Cut Indicator, located on the front of the machine, is a convenient way to quickly
determine how much material is being planed off in one pass.
1. With the machine OFF, insert your work piece just under the cut scale (A). SEE FIG 10.
2. Crank the raising / lowering handle until the button (B) comes in contact with the work piece.
As you rotate the raise / lower handle, the needle on the depth of cut scale will move showing
how much material will be removed in that pass.
FIG 10
A
A
B
20
OPERATIONS (cont.)
REPEAT CUT PRESET
The REPEAT CUT preset, located on the right side of the planer, provides a simple way to preset the
finished thickness of a work piece. The indicator can be set to various thicknesses. Rotate the
indicator to the desired finished thickness. Use this feature when thickness planing multiple work
pieces to ensure a uniform thickness of all work pieces. SEE FIG 11.
FIG 11
NOTE: When lowering the head assembly, ensure the REPEAT CUT preset is in the lowest desired
thickness position. Failure to do so may result in excess downward pressure by the cutterhead
assembly onto the mechanism and cause damage to the adjustment rod and upper frame.
FEED RATE
CAUTION! ONLY SWITCH FEED RATE SELECTOR WHILE PLANER IS RUNNING..
Switch feed rate selector (A) to slow feed (16FPM) for finishing or fast feed (26FPM) for thicknessing.
SEE FIG 11-1.
FIG 11-1
A
Table of contents
Other Cutech Planer manuals
