BU600E/BU1000E
User’s Manual
K01-C000065-02
IMPORTANT SAFETY INSTRUCTIONS
(SAVE THESE INSTRUCTIONS)
This manual contains important safety instructions. Please read and follow all instructions carefully during
installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or
operate your UPS.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor
area free of conductive contaminants. (See the specifications for the acceptable temperature and humidity
range.)
CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and avoid exposing
the unit to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.
CAUTION! Do not attach non-computer-related items, such as medical equipment, life-support equipment,
microwave ovens, or vacuum cleaners to UPS.
CAUTION! Do not plug the UPS input into its own output.
CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other
liquid-containing vessels on or near the unit.
CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC
power supply to properly disable the UPS.
CAUTION! Do not attach a power strip or surge suppressor to the UPS.
CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
CAUTION! Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries
and the required precautions. Keep unauthorized personnel away from batteries.
CAUTION! The battery supply should be therefore disconnected in the plus and minus pole at the quick
connectors of the battery when maintenance or service work inside the UPS is necessary.
CAUTION! Internal battery voltage is 12Vdc. Sealed, lead-acid, 6-cell battery.
CAUTION! When replacing the batteries, use the same number and type of batteries.
CAUTION! Do not dispose of batteries in a fire. The battery may explode. Do not open or mutilate the battery or
batteries. Released electrolyte is harmful to the skin and eyes.
INSTALLING YOUR UPS SYSTEM
UNPACKING
The box should contain the following: (1) UPS Unit x1; (2) Quick Start Guide x1; (3) User Manual x1.
OVERVIEW
The BU600E/BU1000E provides automatic voltage regulation for inconsistent utility power, and provides
battery backup during power outages. The BU600E/BU1000E ensures consistent power to your computer
system.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours
is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur
during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The
unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data
storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets. DO NOT plug
a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into
the battery power supplied outlets. The power demands of these devices will overload and possibly
damage the unit.
3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is
protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air
conditioner, refrigerator, copier, etc. Avoid using extension cords.
4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will
"beep".
5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this,
turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait
10 seconds. Make sure the circuit breaker / fuse is normal and then turns the UPS on.
6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the
battery every three months to ensure battery life.

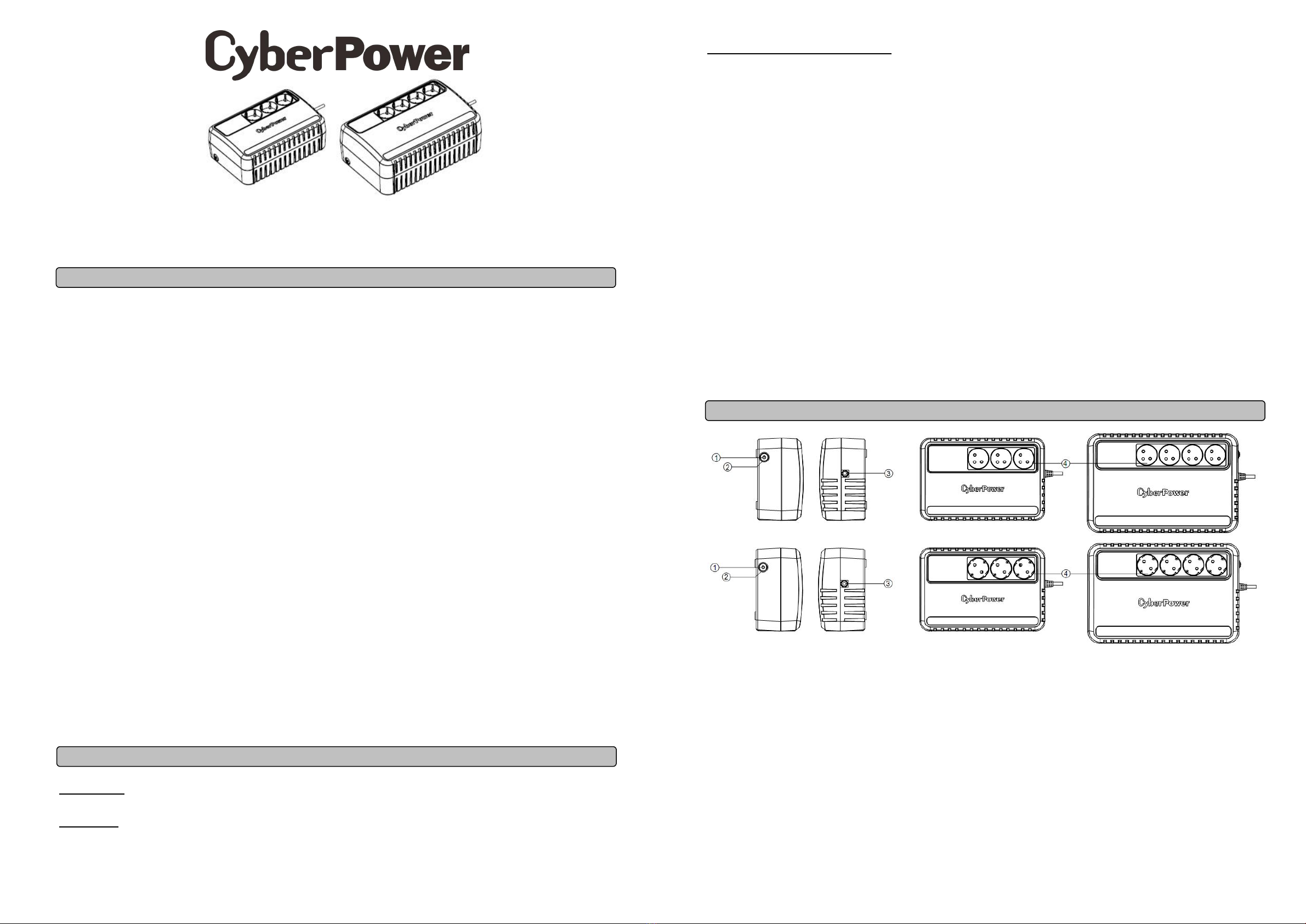

BASIC OPERATION
1. Power Switch
Press the switch for 2 seconds to turn the UPS ON or OFF.
Alarm setting: The audible alarm can be turned OFF or ON by quickly pressing the POWER button
twice. The default setting is for the Alarm On. To turn the Alarm Off, quickly press the power button
twice. You will hear two short beeps when the Alarm is turned off. To turn the Alarm back on, quickly
press the power button twice. You will hear a single short beep when the Alarm is turned on.
2. Led Indicators
This LED is illuminated when the UPS is working.
3. Input Power Cord
Connect to utility power.
4. AC outlet
The UPS provides outlets for connected equipment to insure temporary uninterrupted operation during a
power failure and against surges and spikes.

TECHNICAL SPECIFICATIONS
DEFINITIONS FOR ILLUMINATED LED INDICATORS
LED
Alarm
Condition
On
Off
Normal
Flash
Beep Twice
Utility Failure - The UPS is providing battery power to outlets.
Flash
Rapid
Beeping
Utility Failure - The UPS is providing battery power. The rapid beeps indicate
the battery will run out of power shortly.
On/Flash
Constant
Tone
Overload - Occurs when connected equipment exceeds the rating of the unit.
Turn the UPS off and unplug at least one piece of equipment from the UPS.
TROUBLESHOOTING
Problem
Possible Cause
Solution
The UPS does not perform
expected runtime.
Batteries are not fully charged.
Recharge the battery by leaving the
UPS plugged in.
Battery is slightly worn out.
Contact CyberPower Systems
Technical Support.
The UPS will not turn on.
The unit is not connected to an AC
outlet.
The unit must be connected to a
220-240V outlet.
The battery is worn out.
Contact CyberPower Systems
Technical Support.
Mechanical problem.
Contact CyberPower Systems
Technical Support.
Outlets do not provide power to
equipment
Fuse is blown or breaker is tripped
due to overload.
Turn the UPS off and unplug at least
one piece connected equipment.
Unplug the power cord of the UPS then
replace the blown fuse with a spare
one or press the circuit breaker knob.
Connect power cord then turn the UPS
on. Make sure that your spare fuse
meets the specification.
Batteries are discharged
Allow the unit to recharge for at least 4
hours.
Unit has been damaged by a surge or
spike.
Contact CyberPower Systems
Technical Support.
For more information, visit www.cyberpower.com
All rights reserved. Reproduction without permission is prohibited.
6F, No. 32, Sec. 1, Chenggong Rd., Nangang District, Taipei 115, Taiwan
Model
BU600E
BU1000E
Capacity (VA)
600
1000
Watt (W)
360
600
Input
Voltage Range
165~280Vac
Nominal Frequency
50 Hz
Output
On Battery Output Voltage
Simulated Sine Wave at 220Vac +/-5%
On Battery Output Frequency
50 Hz +/-1%
Overload Protection
Breaker / Fuse
Physical
Total UPS Receptacles
3
4
Dimensions (H x W x D)(mm)
91.5 x 158 x 240
110.5 x 190 x 290
Weight
3.8 kg
6.9 kg
Battery
Sealed Maintenance Free Lead Acid
Battery
RBP0019 x1
RBP0119 x2
Typical Recharge Time
8 Hours
Warning Diagnostics
Indicators
Power On / Using Battery
Audible Alarms
On Battery, Low Battery, Overload, Fault
Environmental
Operating Temperature
0C to 40C
Operating Relative Humidity
0 to 90%
Management
Auto-Charger
Yes
Auto-Restart
Yes
