CYP CLUX-1H8CAT User manual

CLUX-1H8CAT
1 by 8 HDMI to CAT 6
V1.3 Splitter
Operation Manual
CLUX-1H8CAT

Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
 Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
 To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
 Never spill liquid of any kind on or into this product.
 Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
 Do not attach the power supply cabling to building surfaces.
 Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
 To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20091028 Preliminary Release

Table of Contents
1
1
1
1
2
3
4
4
4
6
6
6
6
7
9
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. Pin Denitions ……………...……................................................……
8.1 IR Cable Pin Denition ............................................................
8.2 RJ-45 Pin Denitions.................................................................
9. Connection and Installation ….………………….........…..…..…......
10. Acronyms …......................................................................................

1. Introduction
The 1 by 8 HDMI to CAT6 1.3 splitter when used with CAT6 to HDMI receivers it
will allows user to distribute a HDMI source through CAT6 cable over 45 mters.
This solution provides a direct input of one HDMI to a looped output of HDMI
and 7 CAT6 outputs – a smart way to link and display a single source to 8
different screens simultaneously. Alternatively, the HDMI output can also be
treated as an extender to connect to another HDMI splitter or cascade with
other unit in multiple layers. This unit allows user to transmit HDMI signal via
CAT6 without compression over long distance. The HDMI to CAT6 splitter also
incorporates functions like EDID, System Reset, Deep color and IR systems.
2. Applications
 One HDMI extension source with multi CAT6 to HDMI displays and one
HDMI loop through output
 Home entertainment integration
 Multi-task project presentation
 Showroom Display
 Advertising display control
 System installation control
3. Package Contents
 1 by 8 HDMI to CAT6 Splitter
 1 x IR Receiver
 1 x IR Blaster
 5V DC power supply adaptor
 Power Cord
 Operation Manual
4. System Requirements
 Input source equipment(s) with HDMI Cable(s).
 Output display device(s) with HDMI cables and or CAT 6 to HDMI receiver
with HDMI cable to display.
1

5. Features
 HDMI 1.3, HDCP1.1 and DVI1.0 compliant
 Deep color video up to 12bit, 1080p@60Hz
 One HDMI source connection to one HDMI output and seven CAT6 to
HDMI - allowing users to link up to eight displays simultaneously
 HDCP keysets allows each output to work independently when
connecting to a HDMI display
 Supports DVI source and DVI display by using HDMI to/from DVI adaptor
cable
 Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission (32-192kHz Fs sample rate)
 Supports a wide range of PC and HDTV resolutions from VGA to SXGA
(1280 x 1024) and 480i to 1080p.
 Selects EDID from TV mode or STD mode (this splitter)
 Deep color setting of 8 bit or 12 bit
 IR remote control
 System Reset function
 CEC Bypass
2

6. Specications
Frequency Bandwidth 2.25Gbps (single link)
Input Ports 1 x HDMI female port (Type A connector)
Output Ports 7 x CAT6 output Video/7 x CAT6 output DDC
1 x HDMI female port (Type A connector)
EDID STD / TV
HDMI Audio Output PCM2, 5.1, 7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD,
DTS-HD
HDMI Cable In 1080p 8-bit (15M), 12-bit (10M)
HDMI Cable Out 1080p 8-bit (15M), 12-bit (10M)
CAT6 Cable Out 1080p 8-bit (45M), 12-bit (15M)
HDMI Resolution 480i, ~ 1080p 50/60, 1080p 24, VGA ~ SXGA
IR Frequency 20 ~ 60KHz
ESD Protection Human body model: ±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 5VDC/6A (US/EU standards, CE/FCC/UL certied)
Dimensions (mm) 436(W) x160(D) x 44(H)
Weight(g) 2130
Chassis Material Metal
Silkscreen Color Black
Power Consumption 20W
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (non-condensing)
3

7. Operation Controls and Functions
The following sections describe the hardware components of the unit with
installation and functionality.

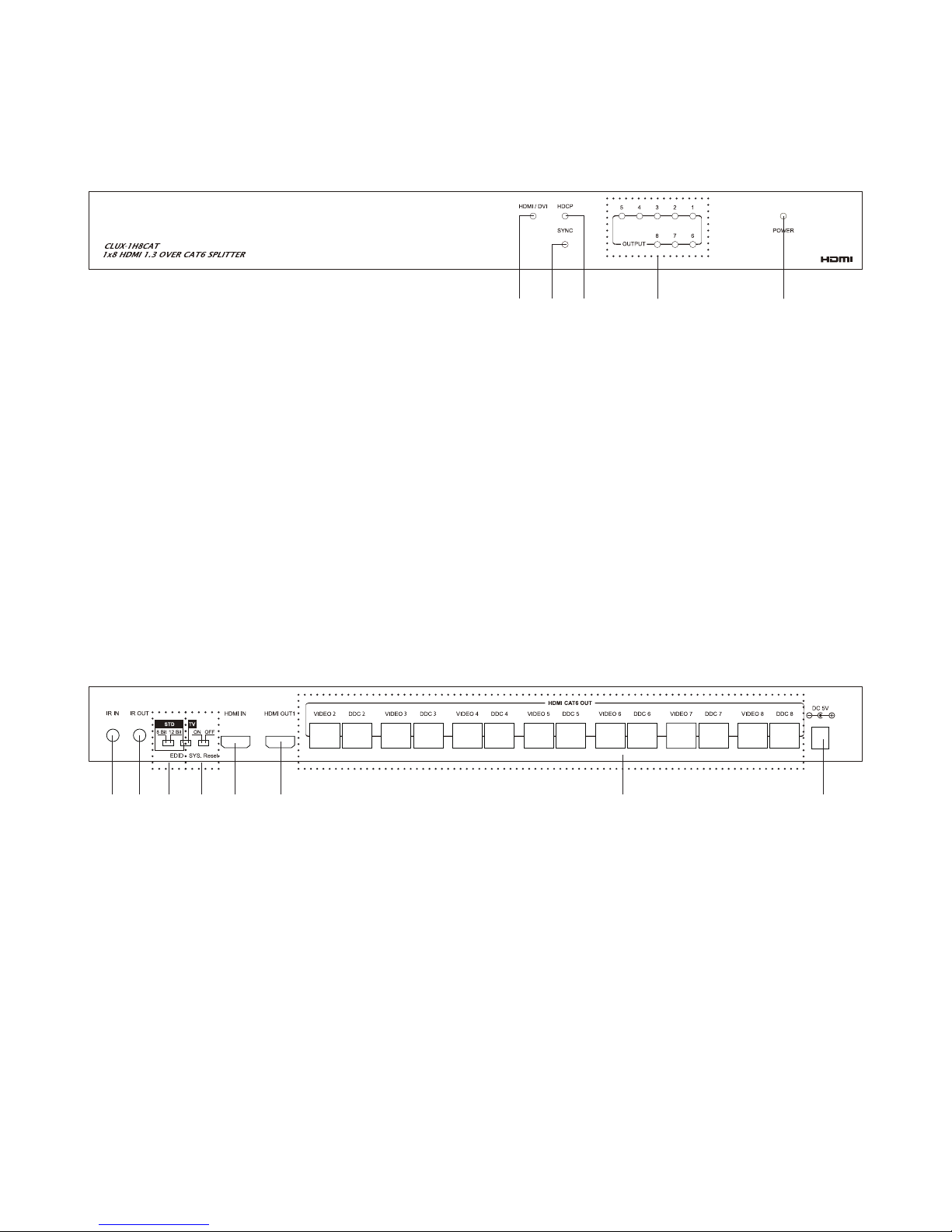

7.1 Front Panel
① HDMI/DVI indicators: When LED illuminate this means the input source
is with HDMI content and when the input source is DVI the LED will not
illuminate.
② HDCP indicators: When the input source is with the HDCP protection the
HDCP LED will illuminate.
③ SYNC Indicator: The LED will illuminate when the device detected source's
signal.
④ Output LED1~8: The LED will illuminate when output display is connected
with power on.
⑤ Power LED: The LED will illuminate when power is on.
7.2 Rear Panel
① IR IN: This slot is to connect with the IR receiver cable included in the
package and use the existing source’s remote controls to control source
equipments.
② IR OUT: This slot is to connect with the IR blaster cable included in the
package and place it in front of the sources for infrared signal sending.
③ EDID Control Switcher: Switch the EDID between STD & TV. Switch to STD
to use built-in EDID or switch to TV to use TV’s EDID. Default factory setting
is on TV, leave as it is when picture is displayed properly.
Note:
1. When EDID switch to TV, the unit will detect the first HDMI output
sink’s EDID and record in the unit. If the first detected output sink is DVI
it will pass to next source until the first HDMI source been detected. The
detection priority is HDMI v1.3 > HDMI v1.2 > DVI.
①② ③ ④ ⑤ ⑥ ⑦ ⑧
⑤④① ② ③
4

2. When EDID switch to STD the unit will use built-in EDID which supports:
Video →1080p 8-bit or 12-bit (max)
Audio →PCM 2CH
3. The EDID selection will only activate when the unit is re-plug and power on.
④ System Reset: Switch to “ON”, the system will send the internal CEC to the
display within 8~10 minutes to force all the displays to switch to HDMI 1 input
port. Meanwhile, the source’s CEC will not functional to the system. When
switch to “OFF”, the system reset function will be terminate. Factory default is
on “OFF”.
⑤ HDMI input: This slot is for connecting the source equipment with HDMI
cables.
⑥ HDMI output: This slots is for connecting the display with HDMI Cable.
Note:
A. Cable tested with CAT-6E / 23AWG / Solid and therefore, cable with
different specication may result in different distance.
B. Cable distance tested with equipment PS3 40G, and 37" SamSung 12 bit
LCD TV.
C. Figures provided in this manual are reference gures only, actual
gures may depend on source and display use with cable specication.
⑦ Video/DDC 2~8: These slots allow you connect to the HDMI displays with
CAT6 to HDMI receiver. When more than one output are connected, the
HDMI outputs play identical video signal simultaneously.
⑧ Power: This slot is to plug the 5VDC power supply included in the package
into the unit and connect the adaptor to an AC wall outlet.
5

8. Pin Denitions

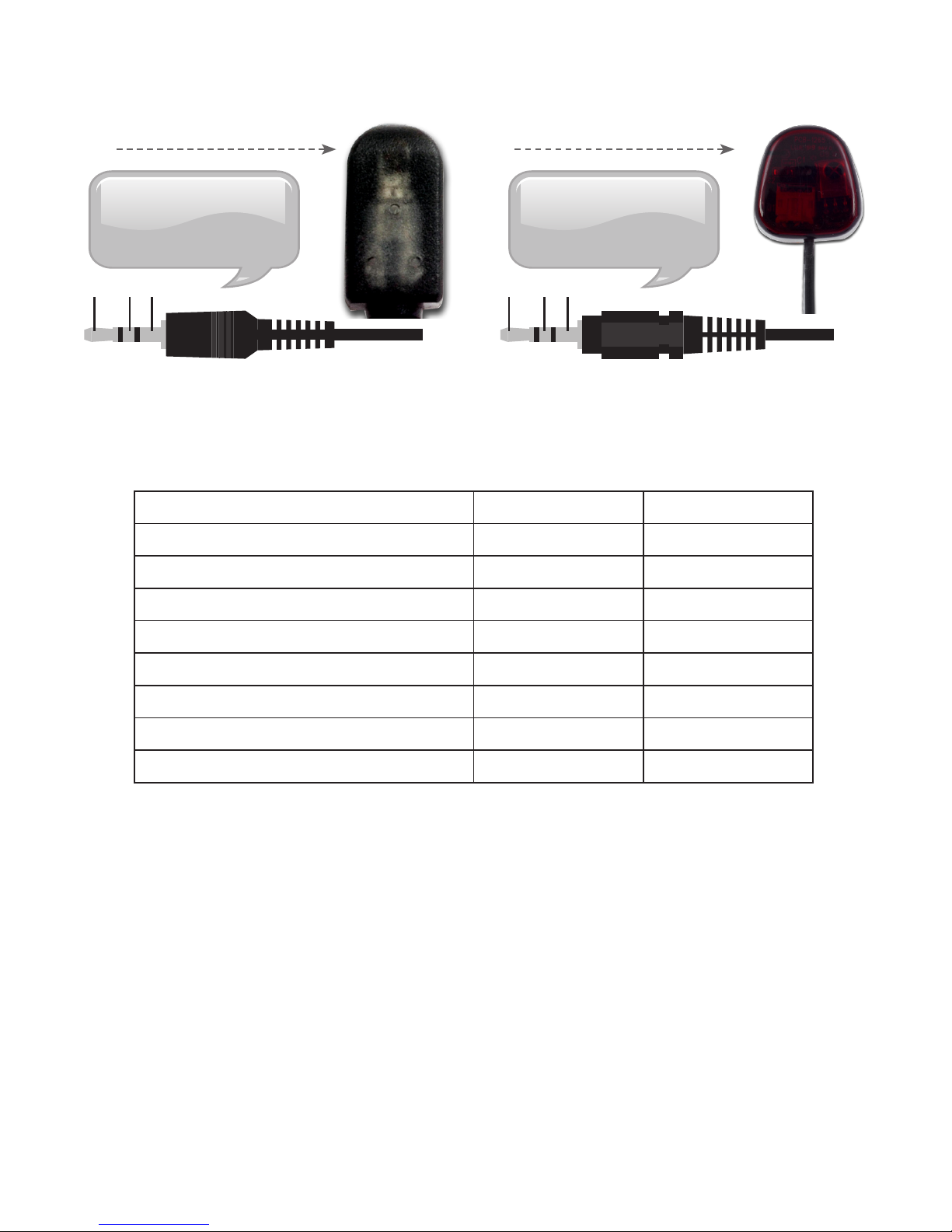

8.1 IR Cable Pin Denitions
Note: The frequency on both IR Receiver & Blaster can support 20~60KHz.
8.2 RJ-45 Pin Denitions
Pin Video DDC
1 TX2+ DDC Bus Clock
2 TX2- NC
3 TX1+ DDC Bus Data
4 TX0+ Power 5V
5 TX0- GND
6 TX1- IR IN
7 TXC+ HPD
8 TXC- CEC
IR Blaster IR Receiver
① ②
① Power 5V
② NC
③ IR blaster signal
① IR signal
② Power 5V
③ Grounding
① ② ③③
6

7
30° 30°
3M 3M
7M
HD TV
HDMI
Cable
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
IR Receiver
DVD HDMI IN
IN OUT CAT6 OUTPUT
CAT6
OUTPUT
IR Blaster
IR Blaster
DVD
AorBorCAorBorC
x3
CLUX-22HC
CLUX-1H4CAT
CLUX-1H8CAT
CH-106TX
CH-1106TX
DDC
VIDEO
DDC
VIDEO
AorBorC
HDMI
HDMI
CAT6
OUTPUT
DVD
HD TV
DDC
VIDEO
CH-106TX CH-1106TX CLUX-1H4CAT CLUX-1H8CAT CMLUX-4H4CAT CLUX-22HC
DDCVIDEO
HDMI
HDMI
HDMI Cable
HDMI IN
CAT6 IN
9. Connection and Installation

8
ABC
HD TV
HDMI
Cable IR Receiver
HDMI
HDMI
30°
30°
3M 3M
7M
HD TV
HDMI
Cable IR Receiver
CAT6
OUTPUT
CAT6
OUTPUT
HDMI
HDMI
30°
30°
3M 3M
7M
DDC
VIDEO
AorBorC
HD TV
HDMI
Cable
HDMI
HDMI
DDC
VIDEO
AorBorC
CH-106RX / CH-1106RX CLUX-1CAT4H / CLUX-1CAT8H CLUX-22HC

Acronyms A
Acronym Complete Term
CAT6 Category 6 cable
DVI Digital Visual Interface
EDID Extended Display Identication Data
HDCP High-Bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
IR Infrared
LPCM Linear Pulse Code Modulation
STD Standard
SYNC Synchronize
SXGA Super Extended Graphics Array
VGA Video Graphics Array
9

20091204 MPM-CLUX1H8CAT
