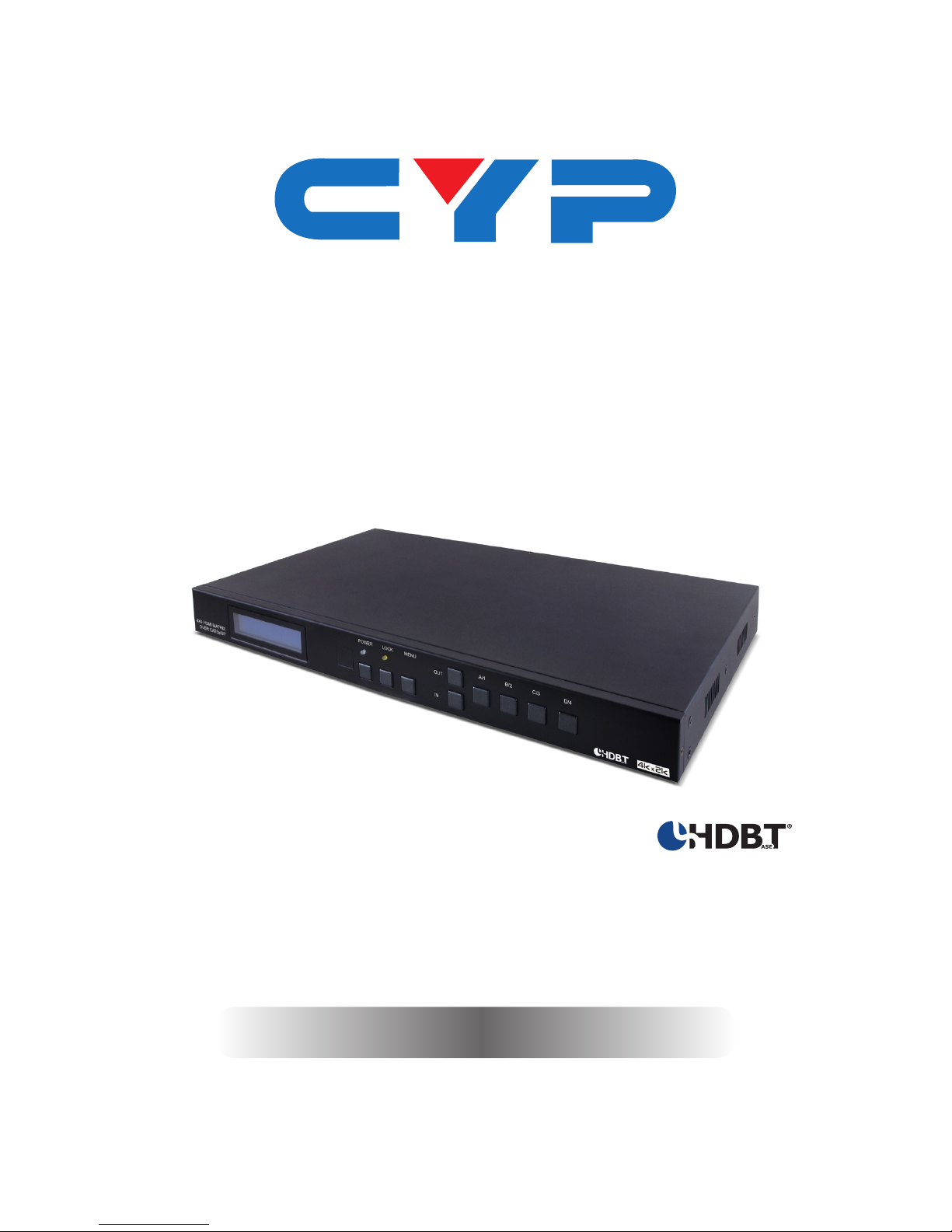

CYP CMPRO-U4H4CVE User manual

CMPRO-U4H4CVE
4×4 HDMI 4K over CAT5e/6/7 Matrix
with LAN Serving
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the
HDBaseT Alliance.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 17/09/14 Preliminary Release
VS1 12/01/16 Updated text/diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Remote Control................................5
6.4 IR Cable Pin Assignment..................6
6.5 RS-232 Pin Assignment .....................6
6.6 RS-232 and Telnet Commands .......7
6.7 RS-232 UART Control.........................9

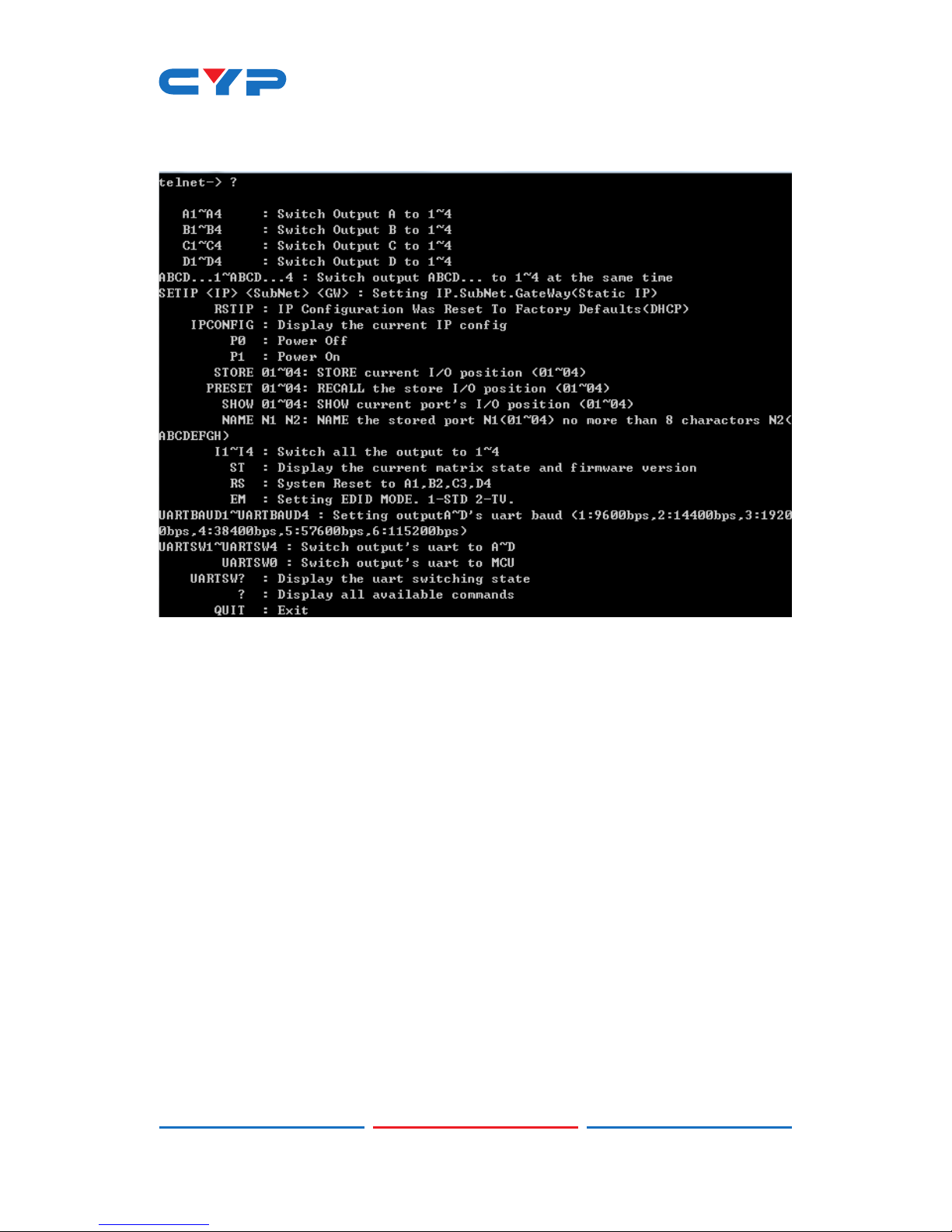

6.8 Telnet Control .................................10
6.9 WebGUI Control .............................12

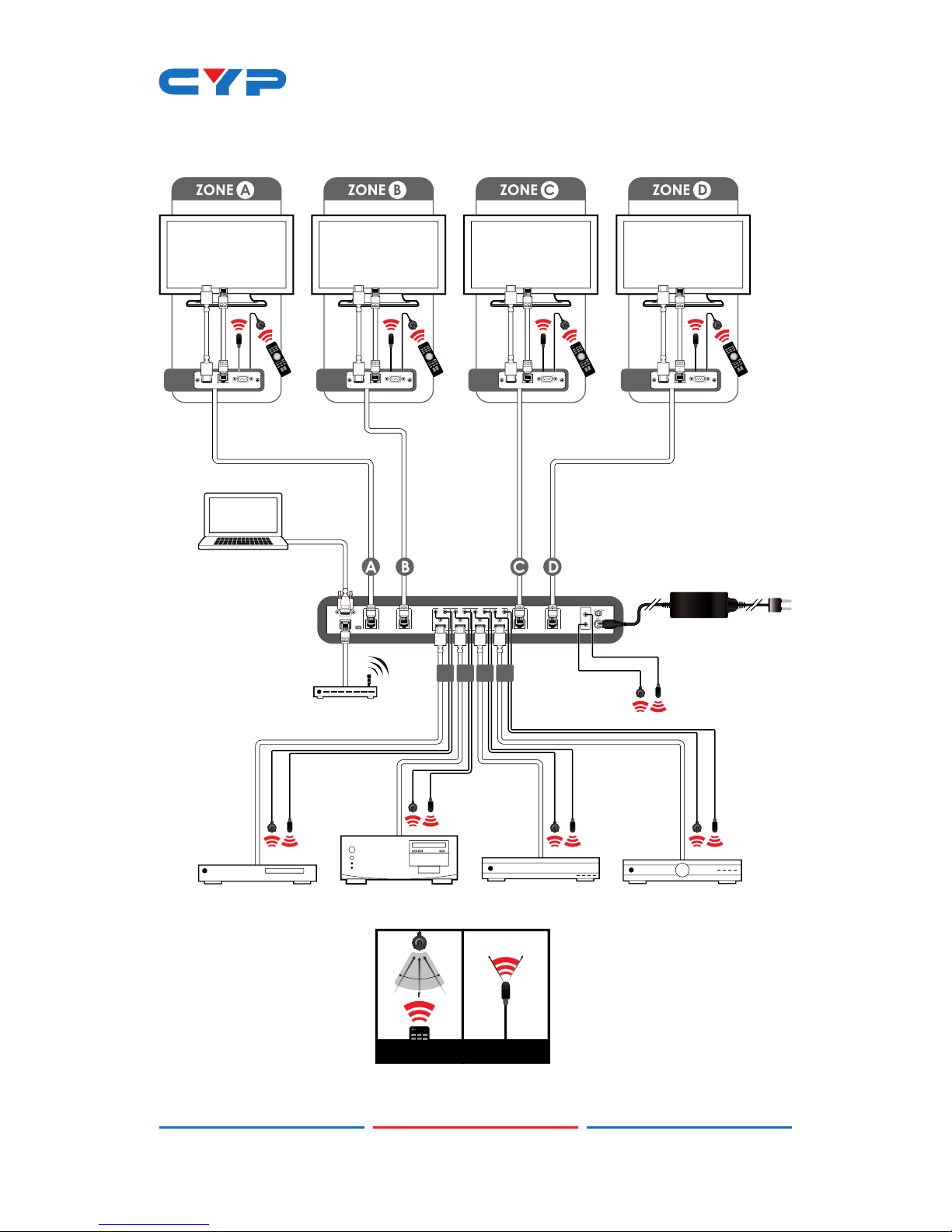

7. Connection Diagram .......................... 13
8. Specications ...................................... 14
8.1 Technical Specication.................14
8.2 Input/Output Resolution................15
8.3 CAT5e/6/7 Cable Specication ...16
9. Acronyms ............................................. 16

1
1. INTRODUCTION
The 4 by 4 HDMI 4K UHD over CAT5e/6/7 Matrix supports the
transmission of video (resolutions up to 4K2K and Full HD), multi-
channel digital audio and control via IR, RS-232, Telnet or WebGUI
from four high denition sources to four HDBaseT™ outputs over a
single CAT5e/6/7 cable (up to 100m at 1080p and 70m at 4K2K) for
each output.
It supports passthrough of high resolution digital audio formats such
as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master
Audio as well as 3D content that can be displayed when connecting
a 3D TV and 3D source.
Additionally, the LAN connectivity will allow a 100BaseT network to be
served to smart TVs or games consoles. The Power over Cable (PoC)
function can power compatible Receivers, providing greater exibility
in installations.
2. APPLICATIONS
• HDMI matrix system
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 1×4 by 4 HDMI 4K UHD over CAT5e/6/7 Matrix
• 1×IR Extender
• 1×IR Blaster
• 1×24 V/3.75 A DC Power Adaptor
• 1×Power Cord
• 1×Remote Control with Battery
• 1×Set of Rack Ears
• 1×Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
Receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• Compatible HDBaseT™ receivers such as CH-507RX
5. FEATURES
• HDMI, HDCP1.1 and DVI compliant
• Supports HDMI 3D features for compatible sources and displays
• Supports resolutions from VGA to WUXGA and 4K2K @50/60 (YUV
420) dependent upon the output display’s resolution capabilities
• Supports distances up to 100 meters at 1080p and 70 meters at 4K2K
through CAT5e/6/7 cables
• Supports HDMI input/output cable lengths up to 10 meters at 1080p
(8-bit/12-bit resolution) or 5 meters at 4K2K resolution
• Supports bi-directional IR from the input and output locations
• Supports control of the matrix via RS-232, remote control, on-panel
control and IP Control (Telnet/WebGUI)
• 1U size design
• Supports external and internal EDID settings
• Supports passthrough of LPCM 7.1CH, Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio
• Supports LAN serving to compatible HDBaseT receivers
• Supports Power-over-Cable (PoC) to compatible HDBaseT receivers
Note:
1. Do not connect the CAT5e/6/7 output of the matrix to the
receiver's LAN port.
2. The PoC function is designed for powering compatible receiver
units only, non-PoC receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Please do not connect more than one active Ethernet link to the
Matrix system, doing so may trigger the unit to shut down.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
4X4 HDMI MATRIX
OVER CAT5e/6/7
POWER LOCK MENU
A/1B/2 C/3D/4
OUT
IN
1 2 3 4 5 6
1
LCM: Displays information about the input and output settings.
2
IR RECEIVE WINDOW: Accepts the remote control signal for this unit
only.
3
POWER: Press this button to power the unit on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
4
LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate when locked.
5
MENU: Press this button to access the LCM menu system, from here
EDID settings can be managed and IP system settings can be
displayed.
6
A~D/1~4 and OUT/IN: Press the OUT or IN button to select the
output or input mode and then press the required number button
to conrm the selection.
For example, if outputs A and B need to be set to input 1 and
outputs C and D need to be set to input 2, then the following
sequence of button presses need to be performed:
Press: OUTABIN1MENU,
and then press: OUTCDIN2MENU.
Note: If the MENU button is not pressed the selection will not be
changed.

4
6.2 Rear Panel
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
1121 3 7 94865
1
RS-232: Connect to a PC or RS-232 control system with a D-sub 9-pin
cable for the transmission of RS-232 commands.
Note: This unit has a routable RS-232 function that can route
commands sent to the matrix to all receivers or accept matrix
control commands from connected receivers. In order for the
receivers to send commands to control the matrix, a null modern
cable/adaptor is required (see Section 6.7 for details).
2
IP & ETHERNET: This port is the link for Telnet or WebGUI controls,
connect to an active Ethernet network with an RJ45 terminated
cable (see Sections 6.8 and 6.9 for details).
Warning: Please do not connect more than one active Ethernet link
to the Matrix system.
3
SERVICE: Manufacturer use only.
4
CAT5e/6/7 OUT A~D: Connect the CAT outputs to the CAT input
port of compatible receiver units with a single CAT5e/6/7 cable
for HDMI Audio/Video, IR/RS-232 control signal transmission and
Ethernet/LAN sharing (dependent on receiver capabilities).
Warning: Please do not connect the CAT5e/6/7 output of the matrix
to the receiver's LAN port.
5
IR IN 1~4: Connect the IR Extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender. The signal received will be transmitted from the IR OUT of
the selected receiver unit.
IR OUT 1~4: Connect to the IR Blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled. It will transmit the IR signal received from IR extenders
connected to the matrix or receivers according to the selected
input.
6
HDMI IN 1~4: Connect to HDMI/DVI source devices such as DVD
players or Set-top boxes with HDMI cables or DVI to HDMI cables.

5
7
ALL IR OUT: Connect an IR Blaster for IR signal transmission to the
source/input location. Place the IR Blaster in direct line-of-sight
of the equipment to be controlled. It will transmit all IR signals
received by any IR extenders connected to receiver units.
8
ALL IR IN: Connect an IR Extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the
IR extender. IR signals received will transmitted by all IR blasters
connected to the receiver units.
9
DC 24V: Plug the 24 V DC power supply into the unit and connect
the adaptor to an AC outlet.
6.3 Remote Control
1
POWER: Press this button to
switch the unit ON or to put it
into standby mode
2
IN: Input selection 1 to 4. Press
to select the required input
setting.
3
OUT: Output selection A to D.
Press to select the required
output setting.
1
23
1A
B
2
C
3
4D
CR-121
IN OUT

6
6.4 IR Cable Pin Assignment
3
1
2
3
2
1
IR Blaster
Power
IR Signal
NC
IR Signal
Power
Grounding
IR Extender
6.5 RS-232 Pin Assignment
MATRIX
►
◄
REMOTE CONTROL CONSOLE
Pin Assignment Pin Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None

7
6.6 RS-232 and Telnet Commands
COMMAND DESCRIPTION
A1~A4 Set output A to input 1~4
B1~B4 Set output B to input 1~4
C1~C4 Set output C to input 1~4
D1~D4 Set output D to input 1~4
AB…1~AB…4 Set output A~D to input 1~4
simultaneously
SETIP <IP> <SubNet> <GW> Set the IP, Subnet and Gateway
conguration (Static IP)
RSTIP Reset IP conguration to default values
(DHCP)
IPCONFIG Show the current IP conguration
P0 Power off
P1 Power on
STORE 01~04 Store the current input and output
connections (01~04)
PRESET 01~04 Recall the stored input and output
connections (01~04)
SHOW 01~04 Show the input and output of the sotred
connections (01~04)
NAME N1 N2 Name the stored input and output
connections (N1=01~04) less than 8
characters (N2=A~H)
I1~I4 Set all outputs to input 1~4
ST Show the current matrix state and
rmware version
RS Reset the system to A1, B2, C3, D4
EM Set the EDID mode to 1 (STD) or 2 (TV)

8
COMMAND DESCRIPTION
UARTBAUD1~6 Set the UART Baud rate of all outputs
to 1~6 (1=9600bps, 2=14400bps,
3=19200bps, 4=38400bps, 5=57600bps,
6=115200bps)
UARTBAUD? Show the UART Baud rate of all outputs
UARTSW1~4 Set the UART routing to output A, B, C or
D and allow the matrix to send RS-232
commands to devices connected to
the receivers
UARTSW0 Set the UART routing to MCU and restore
RS-232 control of the Matrix
UARTSW? Show the UART routing status
?Show all available commands
HELP Show all available commands
QUIT Exit (Telnet only)
Note:
1. Commands will not be executed unless followed by a carriage
return. Commands are not case-sensitive.
2. STD EDID supports EDID settings of 1080p video/2CH audio. TV
EDID supports EDID settings of the display connected to Output A.

9
6.7 RS-232 UART Control
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
RX RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver
RX RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver
RX RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver
RX RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver
Note: This command
allows RS-232 control of
the Matrix.
Note: This command
allows RS-232 control of
the device attached
to RS-232 output of
Receiver connected to
Output A.
Note: This command
allows RS-232 control of
the device attached
to RS-232 output of
Receiver connected to
Output B.
Note: This command
allows RS-232 control of
the device attached
to RS-232 output of
Receiver connected to
Output C.
Note: This command
allows RS-232 control of
the device attached
to RS-232 output of
Receiver connected to
Output D.
UARTSW0
RS-232 Controlled
Device
RS-232 Controlled
Device
RS-232 Controlled
Device
RS-232 Controlled
Device
UARTSW1
UARTSW2
UARTSW3
UARTSW4

10
6.8 Telnet Control
Before attempting to use the telnet control, please ensure that both
the Matrix (via the 'IP & ETHERNET' port) and the PC/Laptop are
connected to the same active network.
To access the telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search eld then press enter.
Under Windows XP go to the 'Start' menu and click on 'Run', type
"cmd' with then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal. See
below for reference.
Once in the command line interface (CLI) type "TELNET", then the IP
address of the unit and '23', then hit enter.
Note: The IP address of the Matrix can be displayed on the unit's LCM
monitor by pressing the Menu button twice.

11
This will bring us into the device which we wish to control. Type "HELP"
to list the available commands.
Type "IPCONFIG" to show all IP congurations. To reset the IP,
type "RSTIP" and to use a set static IP, type "SETIP" (For a full list of
commands, see Section 6.7).
Note: Commands will not be executed unless followed by a carriage
return. Commands are not case-sensitive. If the IP is changed then the
IP Address required for Telnet access will also change accordingly.

12
6.9 WebGUI Control
On a PC/Laptop that is connected to the same active network as the
Matrix, open a web browser and type the unit's IP address on the web
address entry bar. The browser will display the unit's status, control and
user setting pages.
Click on the 'Control' tab to control power, input/output ports, EDID
and reset mode.
Click on the 'User Setting' tab allows you to reset the IP conguration.
The system will ask for a reboot of the unit when any of the settings are
changed. The IP address needed to access the WebGUI control will
also need to be changed accordingly on the web address entry bar.

13
7. CONNECTION DIAGRAM
IR OUT
IR IN
ALL
RS232
IP &
ETHERNET
SERVICE
1
IR IN IR OUT
2
IR IN IR OUT
3
IR IN IR OUT
4
IR IN IR OUT
HDMI IN 1HDMI IN 2HDMI IN 3HDMI IN 4 DC 24V
1
2
3
4
V+
GND
GND GND
V+
CAT5e/6/7 OUT CAT5e/6/7 OUT CAT5e/6/7 OUT
CBA D
CAT5e/6/7 OUT
RXRX RX
1 2 3 4
RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver RS-232 Out
LAN
HDMI Out
CAT5e/6/7to HDMI with LAN/IR/RS232
Receiver
RX
IR EXTENDER
7m
3m 3m
60°
m
IR BLASTER
1.5m
60°
Blu-ray Player
RS-232 Equipped PC
or Control System
CAT5e/6/7
Outputs Power
Supply
Internet Connected
Network Router
IR In All IR Out All
Media Server Satellite Receiver Set-top Box
HDMI
Input
HDMI
Input
HDMI
Input
HDMI
Input
IR In/
Out
IR In/
Out
IR In/
Out
IR In/
Out

14
8. SPECIFICATIONS
8.1 Technical Specication
Video Bandwidth 340 MHz/10.2 Gbps
Input Ports 4×HDMI, 5×IR Extender, 1×RS-232, 1×RJ-45
(Control), 1×Mini USB Type B (For rmware
updated only)
Output Ports 4×CAT5e/6/7, 5×IR Blaster
Supported HDMI Cable
Lengths
10m@1080p, 5m@4K2K (Input/output)
ESD Protection Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply 24 V/3.75 A DC (US/EU standards, CE/FCC/
UL certied)
Dimensions 436 mm (W)×249 mm (D)×44 mm (H)/Jacks
Excluded
436 mm (W)×256.2 mm (D)×48 mm (H)/
Jacks Included
Weight 3352 g
Chassis Material Metal
Color Black
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 66 W

15
8.2 Input/Output Resolution
SUPPORTED RESOLUTION INPUT OUTPUT
640×480@60/72/75/85  
800×600@56/60/72/75/85  
1024×768@60/70/75/85  
1280×720@60  
1280×1024@60  
1600×1200@60  
1920×1200@60RB  
3840×2160p@24/25/30  
4096×2160p@24  
4096×2160p@50/60 (YUV 420)  
480i/576i  
480p/576p  
720p@50/60  
1080i@50/60  
1080p@50/60  
1080p@24/25/30  
