CYP OR-HD88HC User manual

OR-HD88HC
v1.4 HDMI 8 x 8 Matrix Switcher with simultaneous
HDMI & CAT Outputs (inc. IR)
OPERATIONS MANUAL

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 15/02/2012 Preliminary Release

CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 Side Panel ...................................................10
6.4 Remote Control ........................................10
6.5 IR Cable Pin Assignments .....................11
6.6 RS-232 Protocols ......................................12
6.7 RS-232 Commands ..................................13
7. Connection Diagram .......................... 14
8. Specications ...................................... 16
9. Acronyms ............................................. 17

6
1. INTRODUCTION
The OR-HD88HC Matrix Switcher connects eight HDMI sources to 16
displays. This matrix features 8 HDMI outputs and each HDMI output
is mirrored to provide a Twin CAT output which runs simultaneously.
Connect a PU-1106RX Receiver to each of the Twin CAT outputs to extend
the HDMI signal up to 45m for multi-room connectivity.This matrix
switcher can be controlled via the supplied IR Remote Control, RS-232, or
by using the selection buttons on the front of the unit. This device supports
‘Deep Colour’, High Denition Audio, and 3D signal compatibility.
2. APPLICATIONS
HDMI System controls
Video/TV wall display and control
Security surveillance and control
Commercial advertising, displaying and control
Lecture room display and control
Hyper market demonstration and control
3. PACKAGE CONTENTS
8×8 HDMI over Twin CAT6 Matrix
HDMI over Dual CAT6 Receiver (Optional)
1×IR Extender
8×IR Blaster
1×24 V/6.25 A DC Power Adaptor
1×IR Remote Control
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment with HDMI connection cables
Output display or audio receiver equipments with HDMI connection
cables
HDMI over dual CAT6 Receiver(s) with industry CAT6 cable

7
5. FEATURES
HDMI, HDCP 1.1, DVI 1.0 compliant
Resolutions supported: PC - VGA to WUXGA ; HDTV - 480i to 1080p
plus 1080p24fps
High Denition audio supported: Dolby TrueHD, Dolby Digital Plus,
DTS-HD Master Audio + LPCM
The HDMI input is compensated, clock / phase adjusted, and jitter
eliminated so the output is a brand new standard HDMI signal running
up to 15m at 1080p
RS-232, CEC Command functionality, IR Remote Control, and IR
extender supported
Selectable EDID settings - TV (downstream) and STD (xed)
Supports Deep Colour (10 & 12 bit)
Supports 3D signals
Key lock function
Note:
1. This system was tested with CAT-6E/23AWG cables, results may vary with
cables of a dierent specication.
2. Cable distance tested with a Sony PS3 40G, 37" Philips 8-bits LCD TV and
37" Samsung 12-bits LCD TV.
3. Figures provided in this manual are for reference only, actual gures may
vary depending on the source equipment and display being used along
with the type of cables and their specications.

8
6. OPERATION CONTROLS AND FUNCTIONS

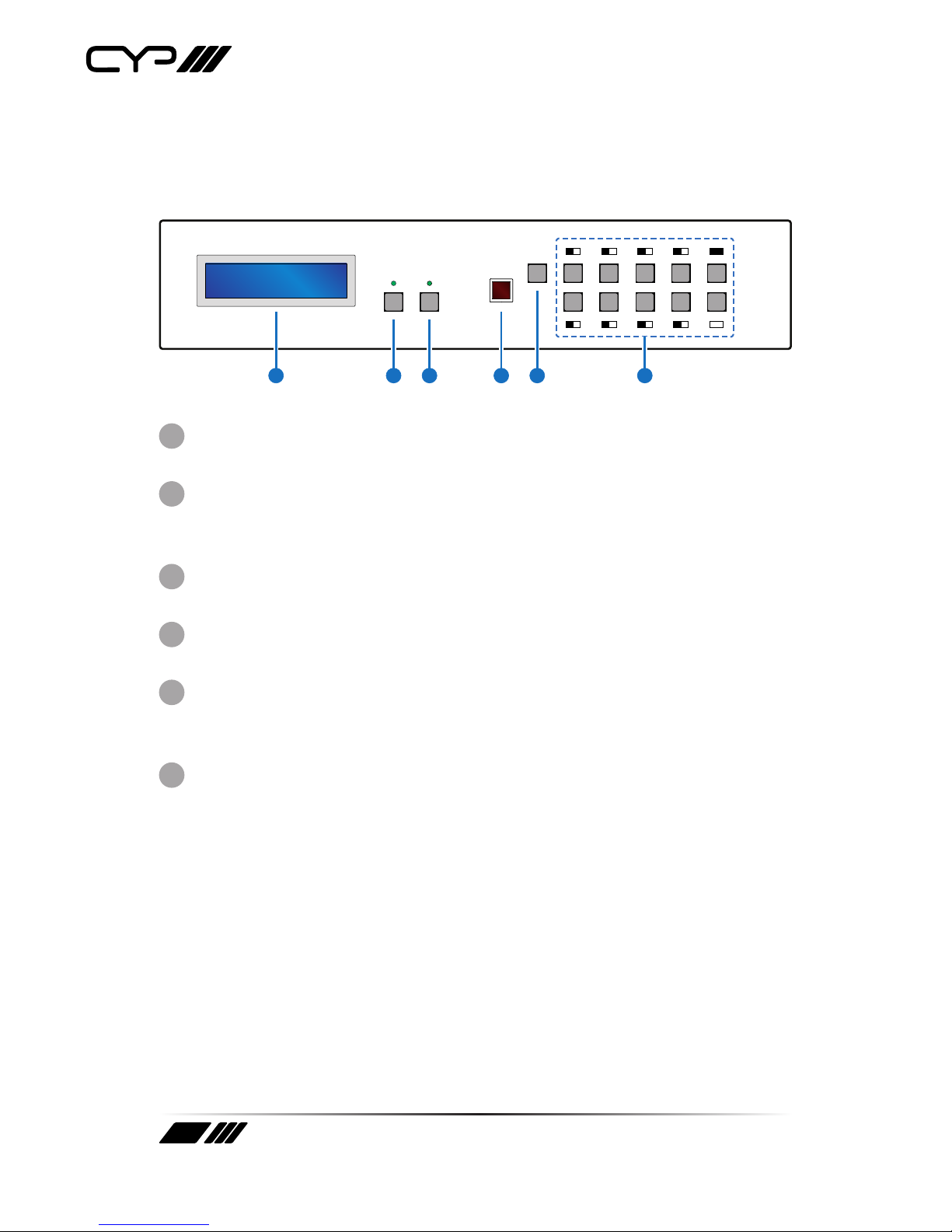

6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
8X8 HDMI MATRIX CMSI-8H8HC
2 3 4 5 61
1
LCM Display: Displays the setting information of each input and
output selection.
2
Power Button LED: Press this button to power the device on/o.
The LED will illuminate green when the power is on, red when it is in
'Standby' mode.
3
LOCK: Press this button to lock all the buttons on the panel, press
again to unlock.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button once to select EDID setting from STD (internal)
1 or TV (external) 2 then press it again to conrm the selection. Press
this button everytime to conrm the selection.
6
1~8/A~H and OUT/IN Buttons: Press the Out or In button to select
the output or input mode then press the required number button to
make the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2 then the following sequence of button
presses need to be performed
Press: Out ABCDIn1Menu,
and then press: OutEFGHIn2Menu.
Note: If the menu button is not press the selection will not be changed.

9
6.2 Rear Panel
LAN
DC 24V
RS232 SERVICE
HDMI VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO VIDEO
DDC DDC DDC DDC DDC DDC DDC DDC
OUTPUT A
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
2 4
3
91
6
8
5
7
1
LAN: Reserved.
2
RS-232: Connect to a PC or laptop with D-Sub 9-pin female cable for
the transmission of RS-232 commands.
3 IR IN: This slot is to connect with the IR extender included in the package
for IR signal receiving from the remote control of this device and the
source and display equipments.
4
SERVICE: This slot is to connect with mini USB-B type cable for rmware
update only.
5
IR OUTPUT A~H: Connect the supplied IR blasters (included in the
package) for IR signal transmission.
6
DDC/VIDEO OUTPUT A~H: Connect to the Receiver units with CAT6
cables from the Receiver for HDMI Audio/Video and IR/RS232 control.
7
HDMI OUTPUT A~H: These slots are to connect to the output display for
simutaneouse output image with CAT6 cables.
8
HDMI INPUT 1~8: Connect to the HDMI input source equipment such
as DVD player or Set-top Box with HDMI cable or DVI to HDMI converter
cable.
9 DC 24V Main Power: This slot is where user connect the 24V DC power
adaptor included in the package and plug the adaptor to an AC wall
outlet for power supply, for powering the main unit.

10
6.3 Side Panel
1
1
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space around
the unit for air circulation
6.4 Remote Control
1
23
1 POWER: Press this button to switch on the device or set it to standby
mode.
2 IN: Input ports selection 1~8.
3 OUT: Output ports selection A~H.

11
6.5 IR Cable Pin Assignments
3
1
3
2
2
1Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Grounding
IR Receiver
IR Blaster

12
6.6 RS-232 Protocols
Pin Assignment
CMSI-8H8HC Remote Control Console
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data bit: 8 bits
Parity: None
Stop Bit: 1
Flow Control: None

13
6.7 RS-232 Commands
Command Description
A1~A8 Switch output A to 1~8
B1~B8 Switch output B to 1~8
C1~C8 Switch output C to 1~8
D1~D8 Switch output D to 1~8
E1~E8 Switch output E to 1~8
F1~F8 Switch output F to 1~8
G1~G8 Switch output G to 1~8
H1~H8 Switch output H to 1~8
ABCD...1~ABCD...8 Switch output ABCD... to 1~8 at the same time
P0 POWER OFF
P1 POWER ON
I1~I8 Switch all the output to 1~8
ST Display the current matrix status and F/W version
RS System Reset to A1, B2, C3, D4, E5, F6, G7, H8
?Display all available commands

14

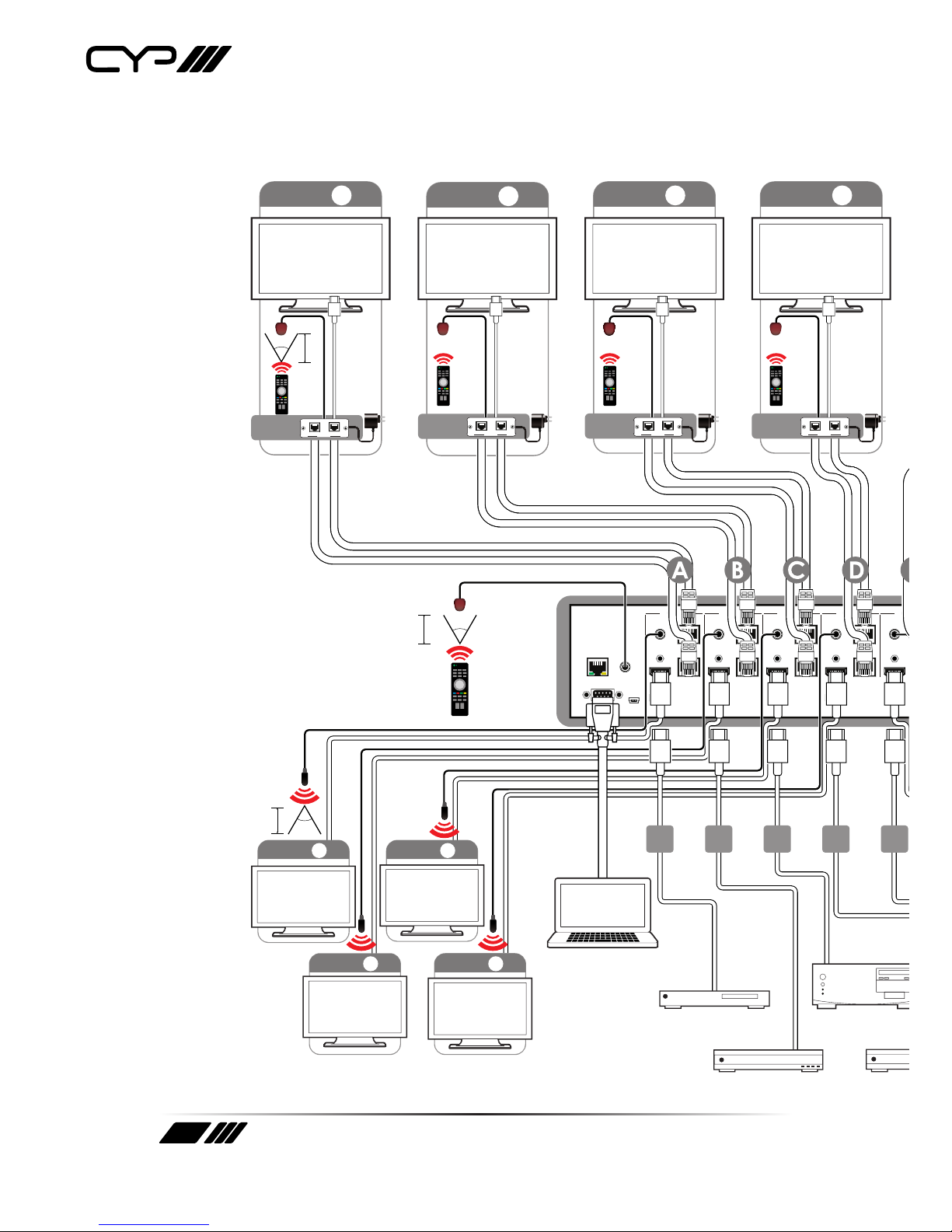

7. CONNECTION DIAGRAM
LAN
DC 24V
RS232 SERVICE
HDMI VIDEO VIDEO VIDEO VIDEO
VIDEO VIDEO VIDEO VIDEO
DDC DDC DDC DDC
DDC DDC DDC DDC
OUTPUT A
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
7m
60°
ZONE A
ZONE B
ZONE C
ZONE D
ZONE E
ZONE F
ZONE G
ZONE H
4 5
6 8
7
321
1.5m
60°
7m
60°
ZONE F
ZONE EZONE GZONE H
ZONE AZONE
BZONE CZONE
D
RX RX RX RX
RX RX RX RX
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT

15
LAN
DC 24V
RS232 SERVICE
HDMI VIDEO VIDEO VIDEO VIDEO
VIDEO VIDEO VIDEO VIDEO
DDC DDC DDC DDC
DDC DDC DDC DDC
OUTPUT A
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
IR
HDMI
OUTPUT B
IR
HDMI
OUTPUT C
IR
HDMI
OUTPUT D
IR
HDMI
OUTPUT
E
IR
HDMI
OUTPUT F
IR
HDMI
OUTPUT G
IR
HDMI
OUTPUT H
IR
IR IN
7m
60°
ZONE A
ZONE B
ZONE C
ZONE D
ZONE E
ZONE F
ZONE G
ZONE H
4 5
6 8
7
321
1.5m
60°
7m
60°
ZONE
F
ZONE
EZONE GZONE
H
ZONE AZONE BZONE CZONE D
RX RX RX RX
RX RX RX RX
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT
VIDEO DDC
CAT6 INPUT

16
8. SPECIFICATIONS
Video Bandwidth 255 MHz/6.75 Gbps
Input Ports 8×HDMI, 1×IR Extender, 1×RS-232,
1×Mini USB-B type(for rmware update
only)
Output Ports 8×Dual CAT6, 8×IR Blaster, 8×HDMI
HDMI Input
Cable Distance
15M/8-bits, 10M/12-bits
HDMI Output
Cable Distance
15M/8-bits, 15M/12-bits
CAT6 Output
Cable Distance
45M/8-bits
ESD Protection Human body model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply 24 V/6.25 A DC (US/EU standards, CE/
FCC/UL certied)
Dimensions 438 mm(W)×255 mm(D)×93 mm(H)
Weight 4458 g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 55 W

17
9. ACRONYMS
ACRONYM COMPLETE TERM
DTS Digital Theater System
DVI Digital Visual Interface
EDID Extended Display Identification Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
LCM Liquid Crystal Monitor
USB Universal Serial Bus
UXGA Ultra Extended Graphics Array
VGA Video Graphics Array

18

19

CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton,
Middlesex, TW17 8BA
Tel: [phone] | Fax: [phone]
Email: [email protected]
www.cypeurope.com
