CYP CMPRO-UA8H8HS User manual

CMPRO-UA8H8HS
8×8 HDMI 4K UHD Matrix
with HDCP 2.2
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
RDV1 22/06/15 Preliminary release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Side Panel .........................................5
6.4 Remote Control................................5
6.5 IR Cable Pin Assignment..................6
6.6 RS-232 Protocol.................................6
6.7 RS-232 and Telnet Commands .......7
6.8 Telnet Control ...................................8
6.9 WebGUI Control .............................10
7. Connection Diagram .......................... 13
8. Specications ...................................... 14
8.1 Technical Specications ...............14
8.2 Supported Resolutions...................15
9. Acronyms ............................................. 16

1
1. INTRODUCTION
The 8 by 8 HDMI 4K2K Matrix supports the transmission of video
(resolutions up to 4K2K Full HD & HDCP 2.2), multi-channel digital audio
and control via IR, RS-232, Telnet or WebGUI from eight high denition
sources to eight outputs.
It supports high resolution digital audio formats such as LPCM 7.1CH,
Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master
Audio as well as 3D content that can be displayed when connecting
a 3D TV and 3D source.
2. APPLICATIONS
• HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 1×8 by 8 HDMI 4K UHD Matrix
• 1×IR Extender
• 1×24 V/6.25A DC Power Adaptor
• 1×Remote control with battery
• 1×Power Cord
• 1×Ear rack
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables

2
5. FEATURES
• HDMI with 4K2K supported, HDCP 2.2 and DVI compliant
• Supports PC resolution up to WUXGA and HDTV resolution up to
4K2K(3840x2160@24/25/30 & 3840x2160@50/60_YUV420, 4096x2160
@24/25/30 & 4096x2160 @50/60Hz _YUV420)
• Supports 3D signal bypass
• Supports pass-through audio LPCM 2/5.1/7.1CH, Dolby Digital
2~5.1CH, DTS 2~5.1CH, Dolby TrueHD and DTS-HD Master Audio
• Supports IR Extension
• Supports RS-232, remote control, on-panel control and IP control
(Telnet & WebGUI)
• 2U size design
• Compliant with DVI source

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
2 3 4 5 61
1LCM:Displays the setting information of each input and output
setting.
2POWER: Press this button to power the device on/standby. The
LED will illuminate green when the power is on, red when it is in
'Standby' mode.
3LOCK: Press this button to lock all the buttons on the panel; press
again to unlock. The LED will illuminate green when locked.
4IR: IR Receiver window (accepts the remote control signal of this
device only).
5MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
61~8/A~H and OUT/IN: Press the OUT button and then the number
buttons to select the required output ports, and press IN button
and then a single number button to select the required input
source, nally press the MENU button to conrm the selection.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2 then the following sequence of
button presses need to be performed:
Press: OUTABCDIN1MENU,
and then press: OUTEFGHIN2MENU.
Note: If the MENU button is not pressed the selection will not be
changed.

4
6.2 Rear Panel
1
2
3
4
V+
GND
GND GND
V+
CONTROL
DC 24V
IR IN
RS 232 SERVICE
A
HDMI OUT
1
HDMI IN
B
HDMI OUT
2
HDMI IN
C
HDMI OUT
3
HDMI IN
D
HDMI OUT
4
HDMI IN
E
HDMI OUT
5
HDMI IN
F
HDMI OUT
6
HDMI IN
G
HDMI OUT
7
HDMI IN
H
HDMI OUT
8
HDMI IN
2 3 4 71 6
5
1CONTROL: This port is the link for Telnet and WebGUI controls, connect
to an active Ethernet link with an RJ45 terminated cable (for further
details, please refer to section 6.8 & 6.9).
Warning: Please do not connect this port directly to the PC/Laptop
as the Telnet function will not work.
2RS-232: Connect to a PC or control system with D-sub 9-pin cable
for the transmission of RS-232 commands.
3IR IN: Connect to the supplied IR extenders for IR signal reception
from the remote control of the Matrix. Ensure that the remote is
within the direct line-of-sight of the IR extender when used.
4SERVICE: Manufacturer use only.
5HDMI OUT A~H: Connect to HDMI equipped TVs or monitors for
display of the HDMI input source signal.
6HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable..
7DC 24V: Plug the 24 V DC power supply into the unit and connect
the adaptor to an AC outlet.

5
6.3 Side Panel
1
1Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
6.4 Remote Control
1POWER: Press this button to switch on the
device or set it to standby mode.
2IN: Input ports selection 1~8.
3OUT: Output ports selection A~H.
1
23

6
6.5 IR Cable Pin Assignment
3
1
2
3
2
1
IR Signal
Power
Grounding
IR Extender
6.6 RS-232 Protocol
MATRIX
►
◄
REMOTE CONTROLLER
Pin Assignment Pin Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 115200bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

7
6.7 RS-232 and Telnet Commands
COMMAND DESCRIPTION PARAMETER
AN Switch output A to input N. N=1~8
BN Switch output B to input N. N=1~8
CN Switch output C to input N. N=1~8
DN Switch output D to input N. N=1~8
EN Switch output E to input N. N=1~8
FN Switch output F to input N. N=1~8
GN Switch output G to input N. N=1~8
HN Switch output H to input N. N=1~8
IN Switch all outputs to input N. N=1~8
AB…..N Switch output AB... to input N. N=1~8
SETIP <x.x.x.x><x.
x.x.x><x.x.x.x>
Set IP, SubNet and Gateway
(Static IP)
X=0~255
IPCONFIG Display the current IP
conguration
None
RSTIP Set IP conguration to DHCP None
P0 Power off None
P1 Power on None
STOREN Store current I/O to position N N=1~8
SHOWN Show current port N I/O
position
N=1~8
PRESETN Preset the store I/O position N N=1~8
NameN N1 Name port N as N1 N=1~8, N1=A~H (Max
Length=8)
ST Show unit rmware version None
EMN Setting EDID mode N N=1 (Standard)/2 (TV)
RS Routing reset to default None
USBISP Update rmware via USB None
HELP(?) Display all available
commands
None
QUIT Quit Telnet None
Note: Any commands will not be executed unless followed by a
carriage return. Commands are case-insensitive.

8
6.8 Telnet Control
Before attempting to use the Telnet control, please ensure that both
the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are
connected to the same active networks.
To access the Telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search eld then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal
See below for reference.
Once in the command line interface (CLI) type "telnet", then the IP
address of the unit and "23", then hit enter.

9
This will bring us into the unit which we wish to control. Type "help" to
list the available commands.
Note: Commands will not be executed unless followed by a carriage
return. Commands are case-insensitive. If the IP is changed then the IP
Address required for Telnet access will also change accordingly.

10
6.9 WebGUI Control
On a PC/Laptop which is connected to an active network system,
open a web browser and type device’s IP address (available from
LCM monitor or OSD menu) on the web address entry bar. The browser
will display the device’s Switch, Data Routing, EDID Settings and
System Settings.

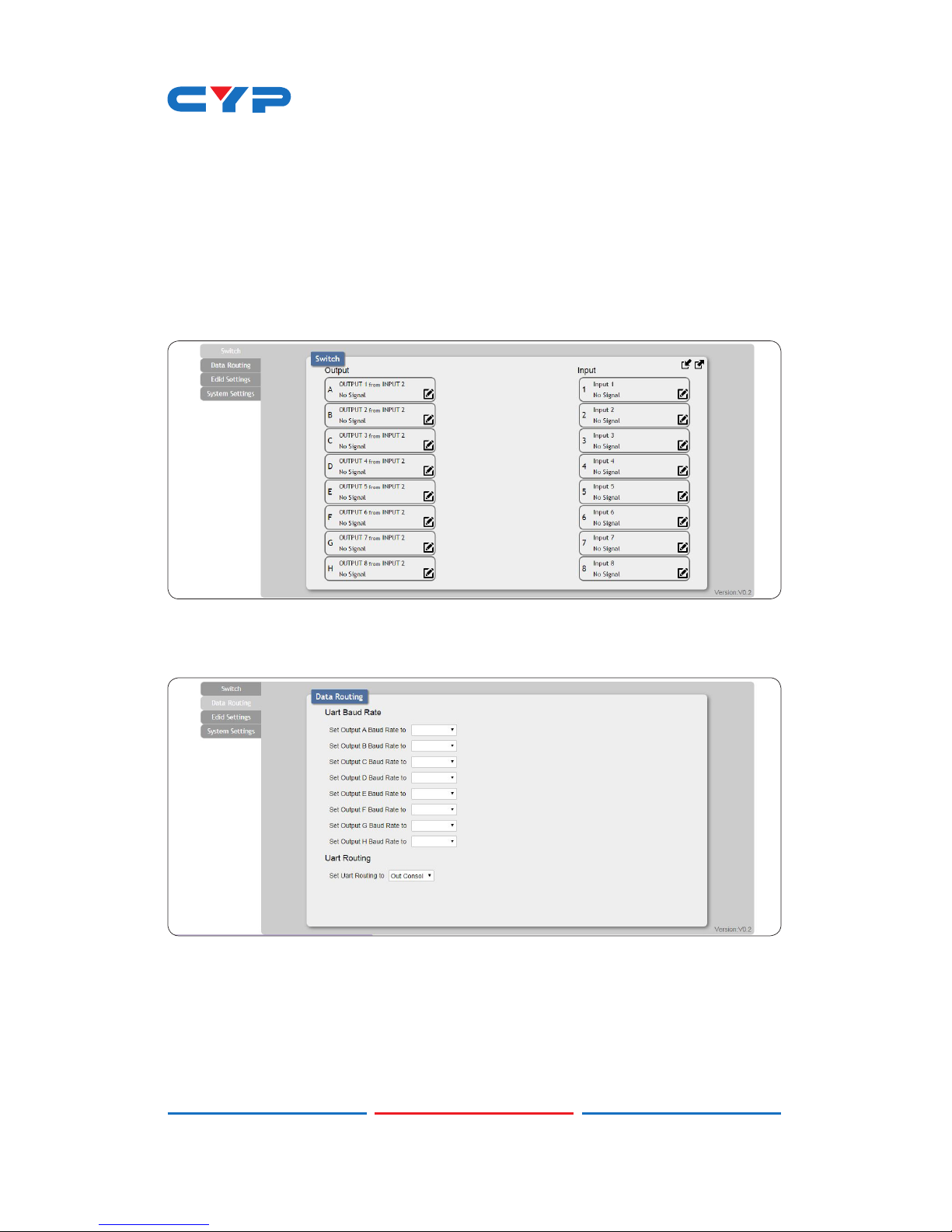

Click 'Switch' page to switch Input and output setting.
Click on 'Data Routing' page to set up Output Baud rate and Uart
Routing status.

11

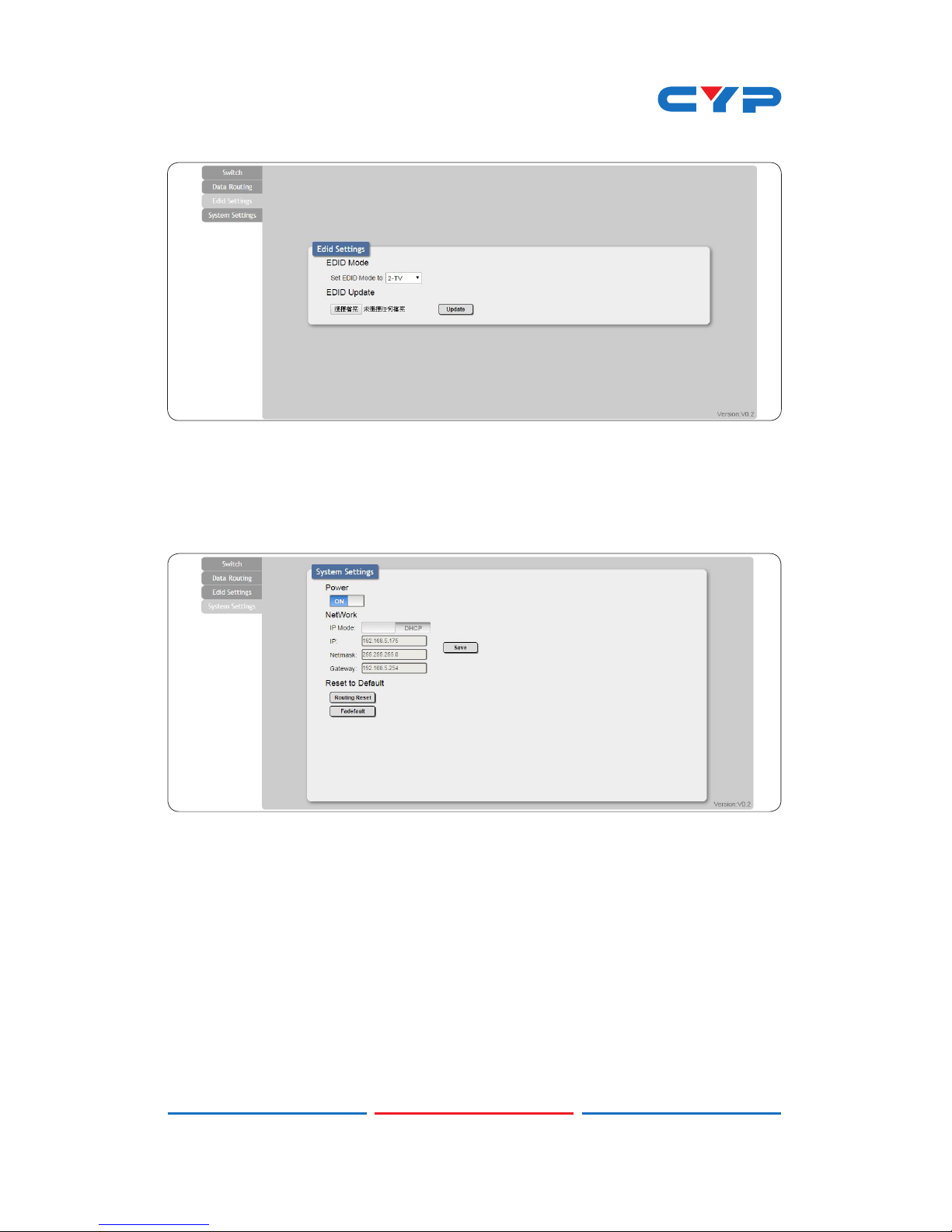

Click on 'EDID Settings' page to Setting EDID mode or update EDID.
Click on 'System Settings' to control power on / off, Network status
setting and reset to default settings.
Note: It will need to click on save button once you nished network
parameters setting.

12
7. CONNECTION DIAGRAM
1
2
3
4
V+
GND
GND GND
V+
CONTROL
DC 24V
IR IN
RS 232 SERVICE
A
HDMI OUT
1
HDMI IN
B
HDMI OUT
2
HDMI IN
C
HDMI OUT
3
HDMI IN
D
HDMI OUT
4
HDMI IN
E
HDMI OUT
5
HDMI IN
F
HDMI OUT
6
HDMI IN
G
HDMI OUT
7
HDMI IN
H
HDMI OUT
8
HDMI IN
1234
5678
Power Supply
LAN
RS-232
IR Extender
HDMI Inputs
HDMI Outputs
Set-top Box
Media Server
Media Server
DVD/Blu-ray Player
DVD/Blu-ray Player
Set-top BoxSatellite Receiver Satellite Receiver
HDTV
HDTV HDTV HDTV
HDTVHDTV
HDTVHDTV
RS-232 Equipped
PC or Notebook
Wireless Router
(with Internet
Connection)
Smartphone or
Tablet Device

13
7. CONNECTION DIAGRAM
1
2
3
4
V+
GND
GND GND
V+
CONTROL
DC 24V
IR IN
RS 232 SERVICE
A
HDMI OUT
1
HDMI IN
B
HDMI OUT
2
HDMI IN
C
HDMI OUT
3
HDMI IN
D
HDMI OUT
4
HDMI IN
E
HDMI OUT
5
HDMI IN
F
HDMI OUT
6
HDMI IN
G
HDMI OUT
7
HDMI IN
H
HDMI OUT
8
HDMI IN
1234
5678 Power Supply
LAN
RS-232
IR Extender
HDMI Inputs
HDMI Outputs
Set-top Box
Media Server
Media Server
DVD/Blu-ray Player
DVD/Blu-ray Player
Set-top BoxSatellite Receiver Satellite Receiver
HDTV
HDTV HDTV HDTV
HDTVHDTV
HDTVHDTV
RS-232 Equipped
PC or Notebook
Wireless Router
(with Internet
Connection)
Smartphone or
Tablet Device

14
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 300 MHz/9 Gbps
Input Ports 8×HDMI, 1×IR (3.5mm), 1×RS-232 (9-pin
D-sub), 1×Control (RJ-45), 1×USB (Service
only)
Video Resolutions 480i~1080p@24/50/60, 4K@24/25/30,
4K@50/60 (YUV420) & VGA~WUXGA
IR Frequency 30~50 kHz
Baud Rate 115200 bps
Output Ports 8×HDMI
Power Supply 24 V/6.25 A DC (US/EU standards, CE/FCC/
UL certied)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±6 kV (contact discharge)
Dimensions 438 mm (W)×249 mm (D)×88 mm (H)/
Jack Excluded
438 mm (W)×256.7 mm (D)×92 mm (H)/
Jack Included
Weight 4592 g
Chassis Material Metal
Color Black
Operating Temperature 0˚C~40˚C/32˚F~104˚F
Storage Temperature −20˚C~60˚C/−4˚F~140˚F
Relative Humidity 20~90% RH (non-condensing)
Power Consumption ? W

15
8.2 Supported Resolutions
Resolution Input Output
640×480@60 √ √
720×480p@60 √ √
720×576p@50 √ √
800×600@60 √ √
1024×768@60 √ √
1280×720p@50 √ √
1280×720p@60 √ √
1280×1024@60 √ √
1600×1200@60 √ √
1920×1080i@50 √ √
1920×1080i@60 √ √
1920×1080p@24 √ √
1920×1080p@24FP √ √
1920×1080p@25 √ √
1920×1080p@30 √ √
1920×1080p@50 √-
1920×1080p@60 √ √
1920×1200@60 (RB) √ √
3840×2160@24 √ √
3840×2160@25 √ √
3840×2160@30 √ √
3840×2160@50 (YUV420) √ √
3840×2160@60 (YUV420) √ √
4096×2160@24 √ √
4096×2160@50 (YUV420) √ √
4096×2160@60 (YUV420) √ √

16
9. ACRONYMS
ACRONYM COMPLETE TERM
CLI Command Line Interface
DTS Digital Theater System
DVI Digital Visual Interface
GUI Graphical User Interface
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television
IR Infrared
LCM Liquid Crystal Module
USB Universal Serial Bus
VGA Video Graphics Array
WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce
Blanking)
