CYP CLUX-1HLR User manual

CLUX-1HLR
HDMI Video Wall Rotation Processor
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
VERSION HISTORY
REVISION DATE SUMMARY OF CHANGE
VS1 26/09/18 Final technical review
VS2 04/10/18 Added Sections 6.3.1 to 6.3.7 and 7.3

CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................2
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Front Panel ................................................. 3
6.2 Rear Panel.................................................. 4
6.3 Video Wall Control Software ................... 5
6.3.1 Software Operation......................... 5
6.3.2 Video Wall Unit Search.................... 6
6.3.3 Basic Unit Settings & Conguration 8
6.3.4 Pre-Dened Video Wall Layouts... 14
6.3.5 Customized Video Wall Layouts... 16
6.3.6 Multi-Zone Video Wall Layouts ..... 20
6.3.7 Conguration Export/Import......... 22
6.4 RS-232 Control ......................................... 24
6.5 Telnet Control .......................................... 24
6.6 RS-232 and Telnet Commands .............. 25
7. Connection Diagram ....................................35
7.1 Basic Screen Array System ..................... 35
7.2 Advanced Screen Array System ........... 36
7.3 4K Quad-Zone Screen Array System..... 37
8. Specications ................................................38
8.1 Technical Specications ........................ 38
8.2 Video Specications............................... 39
8.3 Audio Specications............................... 40
8.4 Cable Specications .............................. 40
9. Acronyms .......................................................41

1
1. INTRODUCTION
This HDMI Video Wall Rotation Processor is capable of scaling and
rotating the input source to nearly any angle and size desired. Its the
ideal solution for presenting sources across the unique video display
arrangements often found in commercial displays, control rooms, or
classrooms. HDMI Input and output resolutions up to 1080p@60Hz with
LPCM audio up to 7.1 channels at 192kHz are supported. In Rotation
Mode the output is locked to 1080p, but video latency is only 1 to 2
frames and the unit is capable of scaling and rotating the source, with
an accuracy of 1°, as required. In Scaler Mode, the unit can scale to
a selection of output resolutions, up to 1080p@60Hz as well as apply
video mirror, ip and freeze effects to the output.

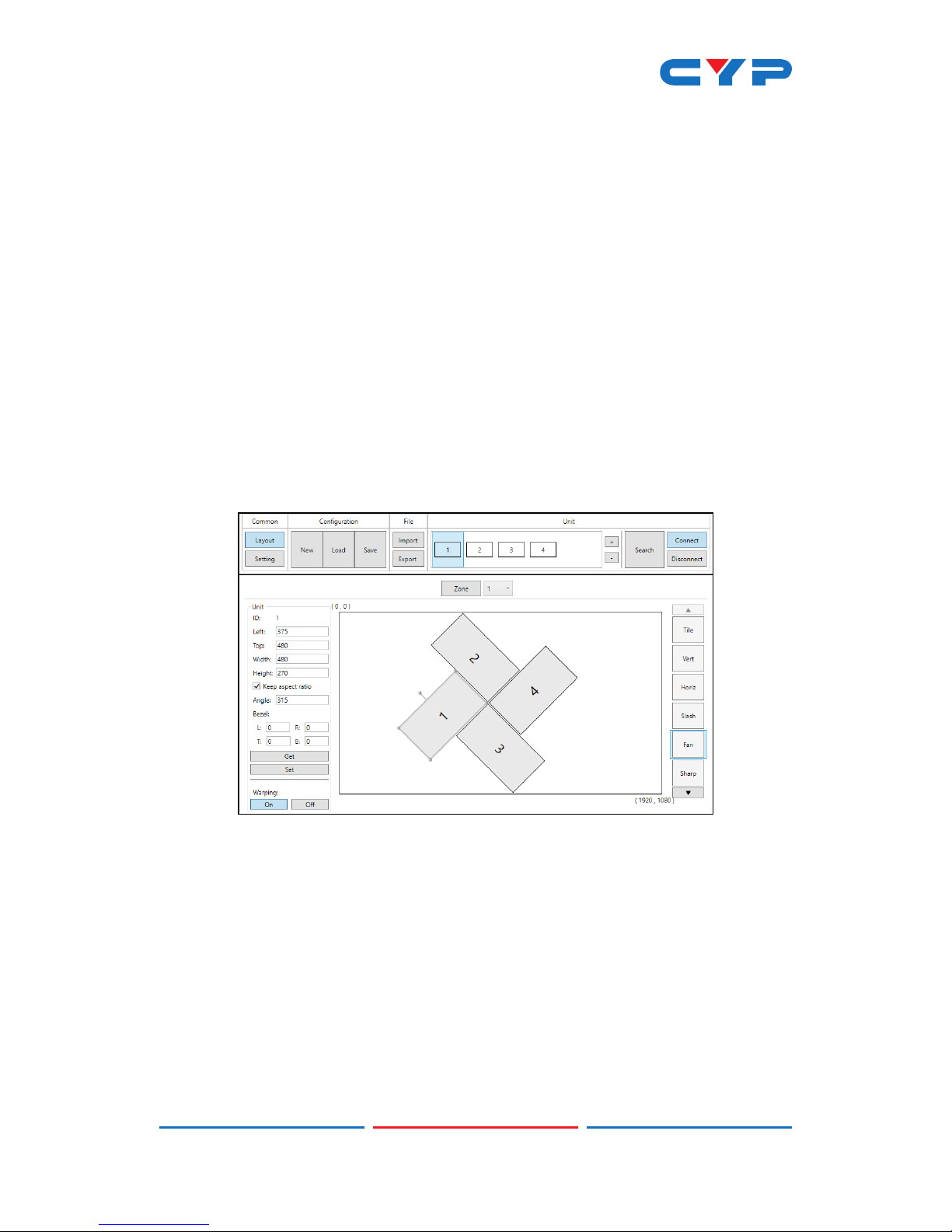

By combining multiple units with an HDMI splitter or matrix it is possible
to create fantastically varied arrangements of rotated displays for
large video wall applications. This is perfect for creating distinct
and eye-catching advertising or promotional displays limited only
by your imagination. Conguring these large video walls is made
simple by use of our Video Wall PC application, allowing the user
to visually lay out and congure the entire video wall at one time in
a graphical WYSIWYG user interface. A number of common video
wall arrangement presets are included with the software by default
to make it possible to get started quickly. Basic control of the unit is
provided by front panel controls with an informational OSD. Complete
control of the unit is accomplished by use of Telnet, RS-232 or the
Video Wall PC software.
2. APPLICATIONS
• Public Commercial Displays
• Demo Room Displays
• Hotel Lobby Information Displays
• Live Public Events

2
3. PACKAGE CONTENTS
• 1×HDMI Video Wall Rotation Processor
• 1×5V/2.6A DC Power Adapter
• 1×Shockproof Feet (Set of 4)
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as media players, video game
consoles or set-top boxes.
• HDMI receiving equipment such as HDTVs, monitors or audio
ampliers.
5. FEATURES
• HDMI 1.3 & HDCP 1.4 compliant
• 1 HDMI input and 1 HDMI output
• Input and output supports HD resolutions up to 1080p@60Hz
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
Bitstream, and HD Bitstream
• Only 1 to 2 frames of video latency
• Supports horizontal/vertical video warping with zooming in/out and
360 degree display rotation in 1° increments (Rotation Mode)
• Video mirror, ip, and freeze (Scaler Mode)

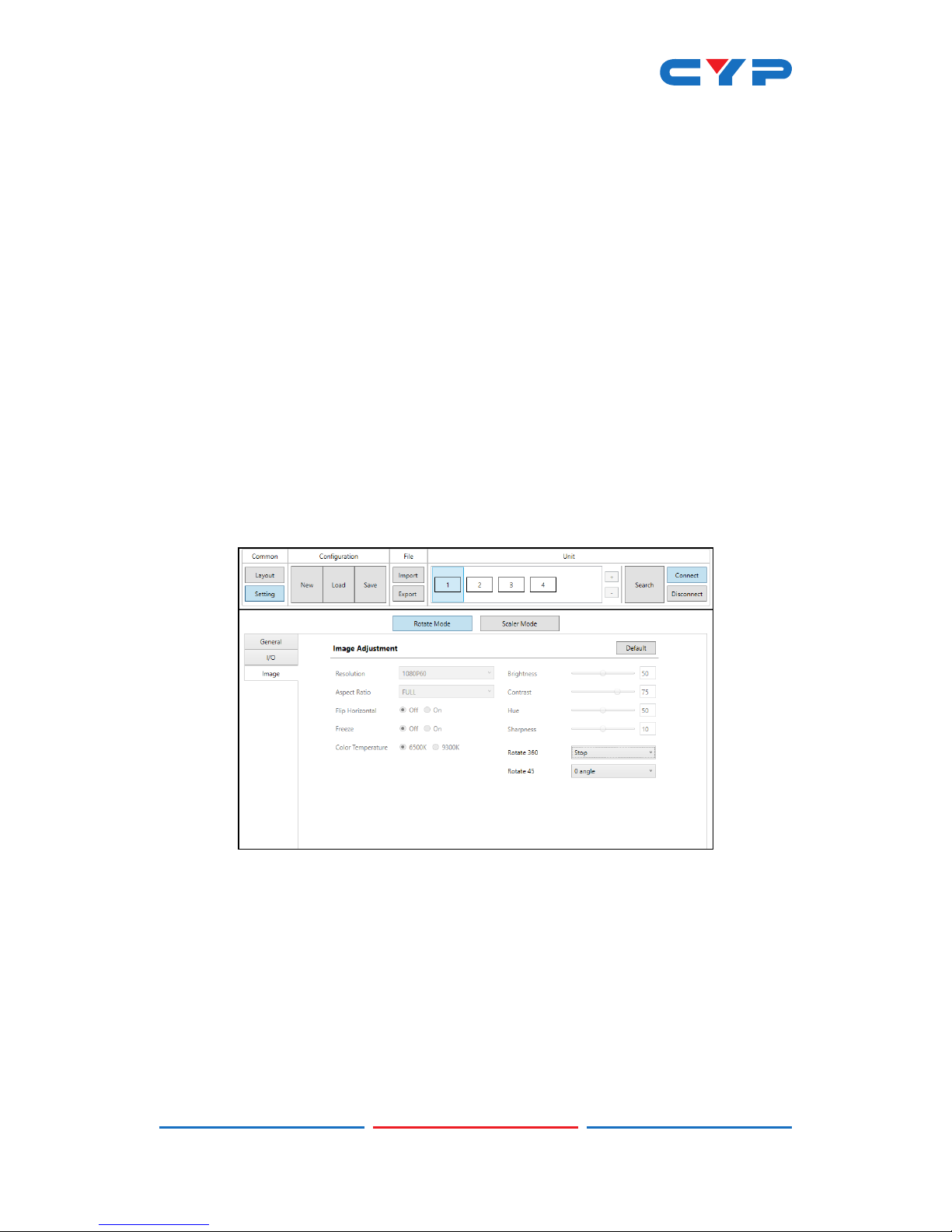

• Wide variety of video adjustments, including: contrast, brightness,
hue, sharpness, aspect ratio
• Custom EDID management
• Basic control of the unit is provided by front panel controls with an
informational OSD
• Complete control of the unit is accomplished by use of Telnet, RS-
232 or the Video Wall PC software

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SERVICE POWER MODE
SCALE ROTATE
HDMI VIDEO PROCESSOR
ASPECT
RATIO
AUDIO
MUTE
VIDEO
STILL
OSD
INFO. SCALE
WARPING
ON/OFF
AUDIO
MUTE
360º
ROTATE
45º
ROTATEROTATE
1 2 3 4 56 7 8 9
1SERVICE PORT: This port is used for logo upload, EDID upload and
rmware updates.
2POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
3MODE BUTTON: Press the button to toggle between Scaler Mode
and Rotation Mode.
4SCALE LED: This LED will be illuminated when the unit is in Scaler
Mode.
5ROTATE LED: This LED will be illuminated when the unit is in Rotation
Mode.
6ASPECT RATIO & WARPING ON/OFF BUTTON
AScaler Mode: Press to switch between the available output
aspect ratios (Full, 4:3, 16:9, 16:10).
BRotation Mode: Press to turn Warping Mode on or off.
7AUDIO MUTE BUTTON: Press to mute or unmute the audio output.
8VIDEO STILL & 360° ROTATE BUTTON
AScaler Mode: Press to freeze the video output.
Note: Audio will continue to play while the video is frozen.
BRotation Mode: Press to enter automatic 360° rotation mode
and toggle through the available rotation directions and speeds
(slow counterclockwise, slow clockwise, fast counterclockwise,
fast clockwise, stop).
Note: Activating 360° rotation will disable Warping Mode.
9OSD INFO. & 45° ROTATE BUTTON
AScaler Mode: Press to display information about the unit on the
OSD including details about video, audio and Ethernet.

4
BRotation Mode: Press to rotate the output video in 45 degree
increments. Press and hold this button to display the OSD Info
screen.
Note: Activating 45° rotation will disable Warping Mode.
6.2 Rear Panel
DC 5V
CONTROLRS-232INOUT
1 2 3 4 5
1OUT PORT: Connect to an HDMI TV, monitor or amplier for digital
video and audio output.
2IN PORT: Connect to HDMI source equipment such as a media
player, game console or set-top box.
3RS-232 PORT: Connect directly to a PC, laptop or other serial
control device to send RS-232 commands to control the unit.
4CONTROL PORT: Connect directly, or through a network switch,
to your PC/laptop to control the unit via Telnet or the control
software.
5DC 5V PORT: Plug the 5V DC power adapter into this port and
connect it to an AC wall outlet for power.

5
6.3 Video Wall Control Software
The Video Wall Control software provides complete control over the
Video Wall Rotation Processor via Ethernet or RS-232. This software
can scan the local network, as well as any RS-232 connections on the
PC, for controllable units to add to the current video wall grouping.
Multiple video wall congurations can be stored in the software for
quick local recall, or the congurations can be exported as a le for
use in other video wall deployments.
In addition to video wall design, creation, and positioning, this

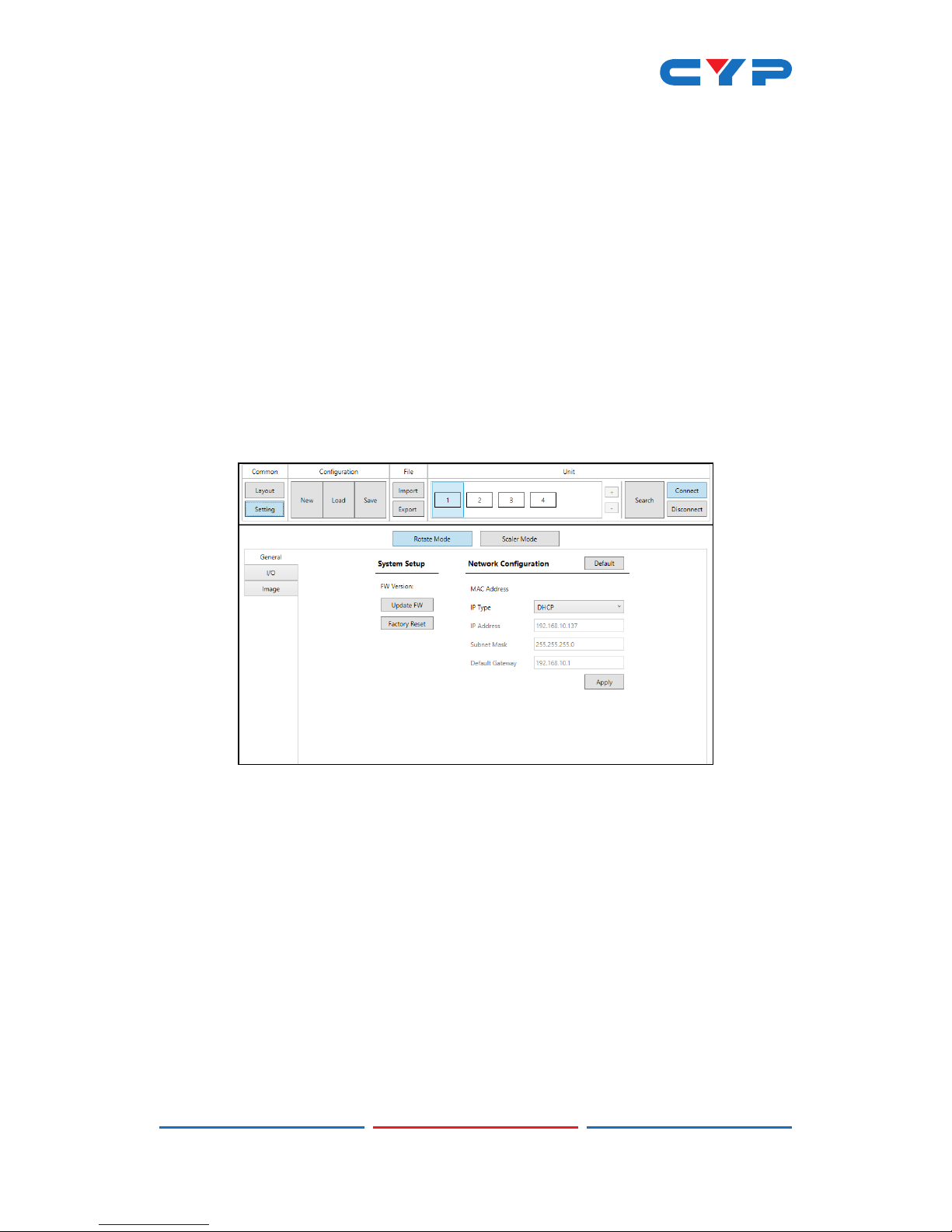

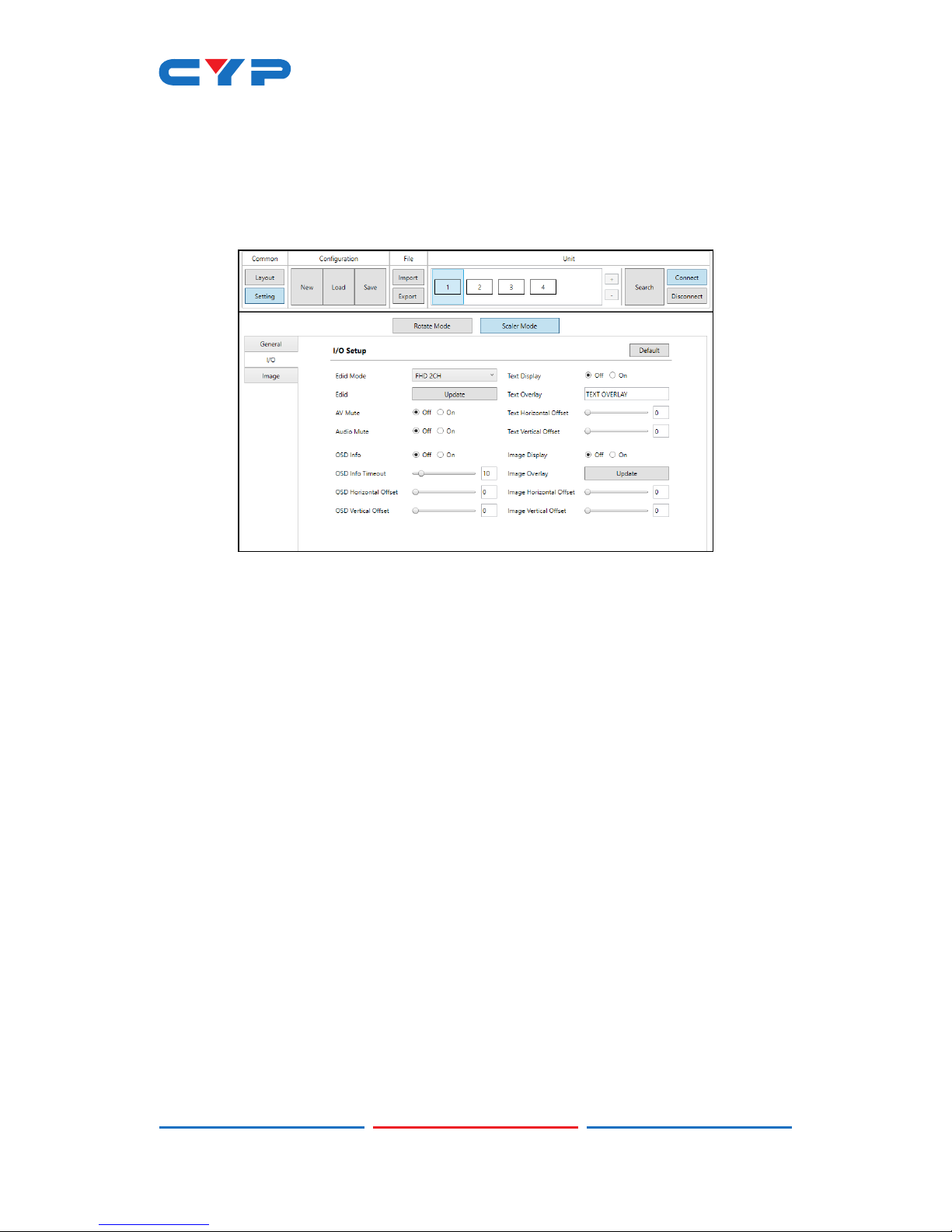

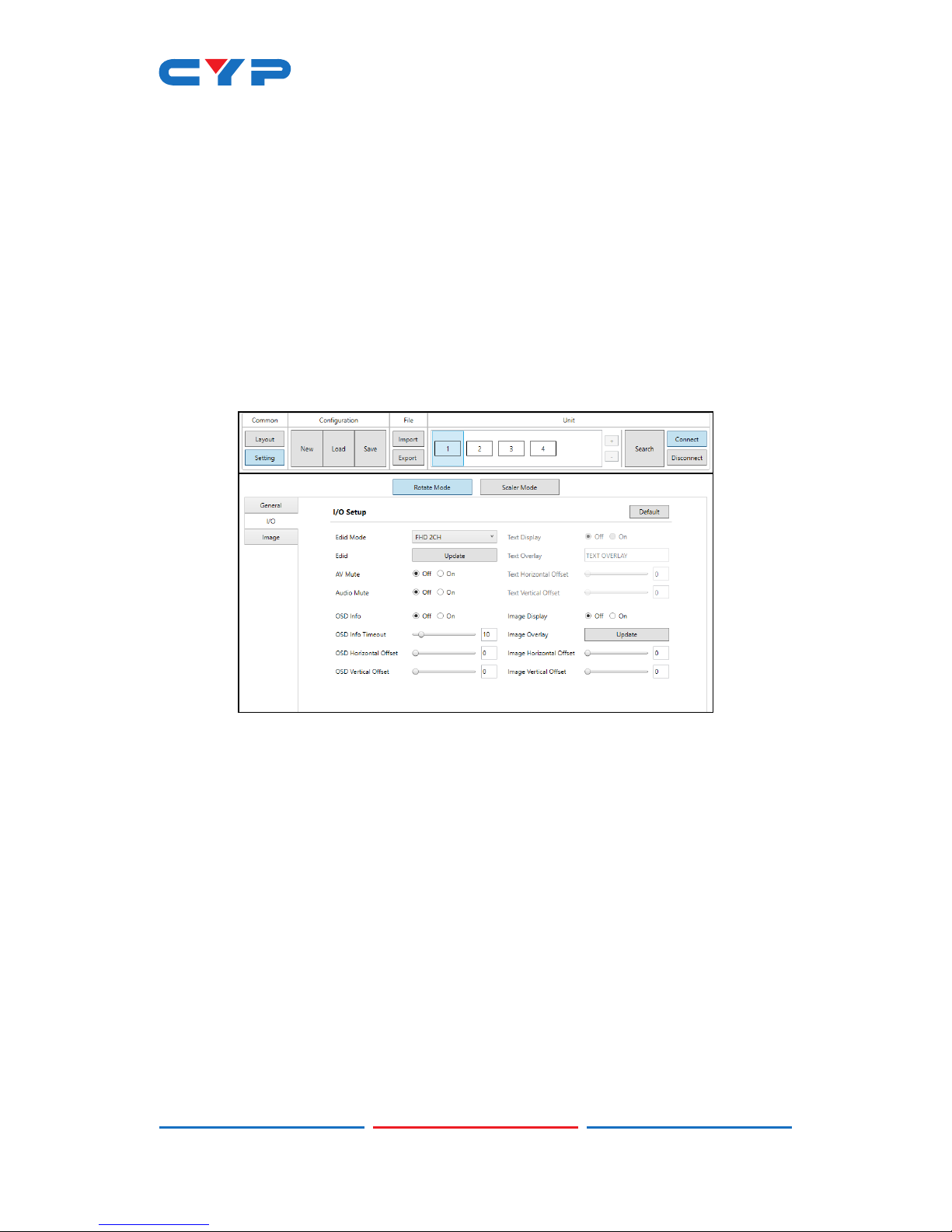

software can also be used to congure the scaler mode of the unit, if
needed.
6.3.1 Software Operation
Please obtain the “Video Wall Control” software from your authorized
dealer and save it in a directory where you can easily nd it.
Ensure that all the units you wish to control have been powered on
and that they are all connected to the same network as your laptop/
PC. Start the software by double clicking on the *.exe le to start the
Video Wall Control software.

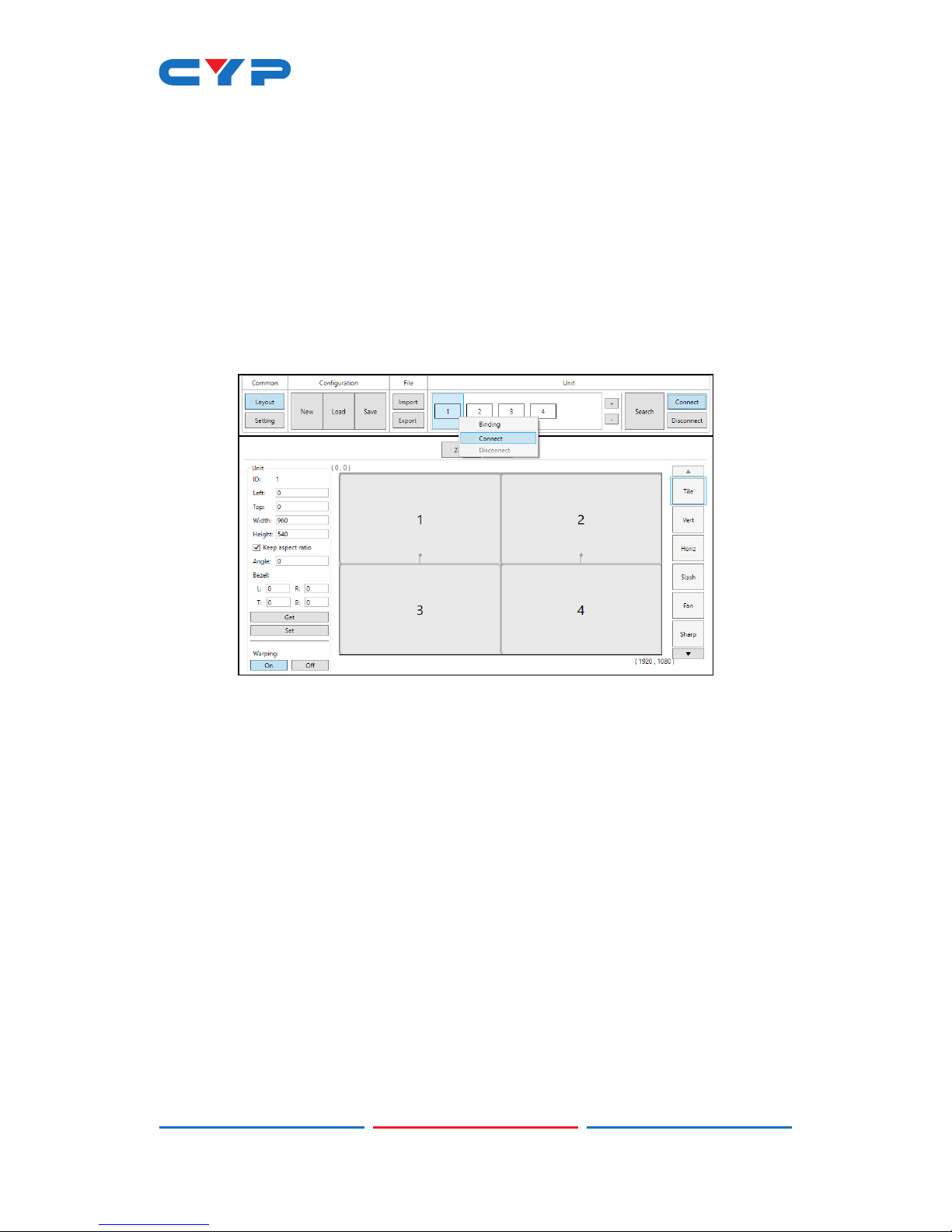

By default, when the software starts, the layout will be empty. Dummy
displays may be added to/removed from the layout using the
“+”/“−” buttons in the “Unit” section if there are no live units
available for control and the user wishes to visualize different display
arrangements. To add physical units to the layout, perform a “Search”.
Note: This software is only compatible with Windows 7 or later PCs.

6

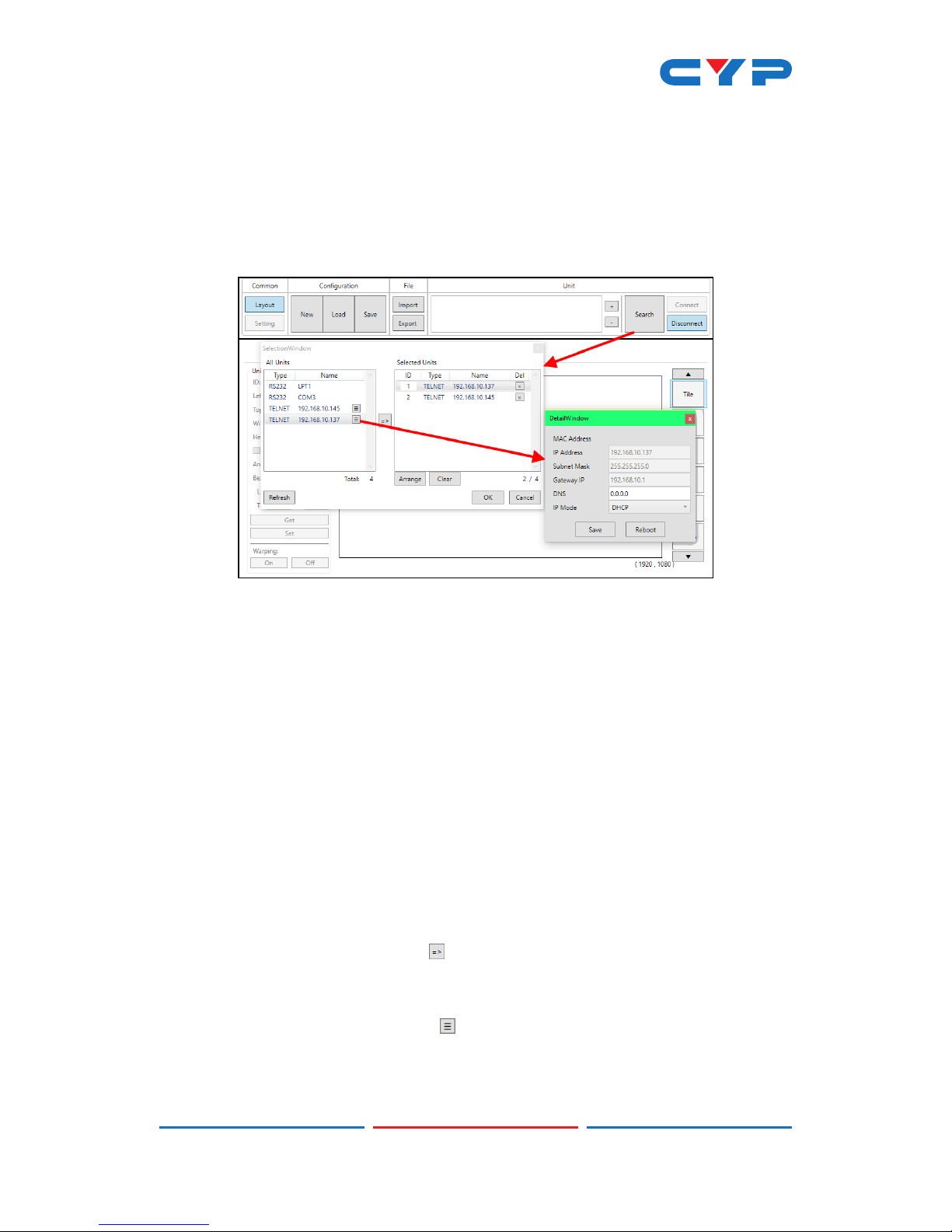

6.3.2 Video Wall Unit Search
By clicking on the “Search” button at the top-right corner of the
window, all Video Wall Rotation Processors that are located on the
local network or are directly connected via RS-232 can automatically
discovered. Each detected unit can then be added to the current
video wall layout and assigned a unique ID number.
1) Search Button: Click on the “Search” button to open the Unit
Selection Window. All detected units on the local network as
well as all available local serial ports will be listed in the “All Units”
section. After all units have been selected and arranged, click on
the “OK” button to add them to the layout.
Note: Units connected via RS-232 can’t be directly detected, so
all available serial ports will be listed, even if they do not currently
have a connected unit.
■ All Units List: All detected units on the local network as well as
all available local serial ports are listed here. All detected units
are identied by their IP address. If additional units are added
to the network after the window is opened, click “Refresh” to
detect them. Selecting a Unit (or serial port) and then clicking
the right arrow button ( ) will place them in the Selected Units
window in the order they are added. The Ethernet details of
each detected unit may also be changed by clicking on the
associated details icon ( ).
■ Selected Units: All selected units will appear here with an ID
number indicating their order to be added to the layout. If you
wish to re-order the units, type new ID numbers next to each

7
unit and click “Arrange”. To remove an individual unit from the
list, click the “X” next to it’s name. To remove all units, click the
“Clear” button.
After all desired displays have been added to the layout, each
display must be connected to so that they may be controlled. If
some displays that need to be a part of the layout are not currently
available for connection, dummy monitors may be added in their
place. Displays that are no longer a part of the layout may also
be disconnected, or removed completely. Each display can be
connected or disconnected individually, or as a group.
2) Connect Button: Clicking the “Connect” button will activate the
software's connection to all discovered units, allowing control and
conguration of those units. To connect to only a single unit, right
click on the unit's number and select "Connect".
3) Disconnect Button: If you want to ensure that no additional settings
are sent to the units, click the “Disconnect” button and all units will
be disconnected from the software. To disconnect a single unit,
right click on the unit's number and select "Disconnect".
Note: Disconnected units will still be shown in the layout, but the
"Get", "Set", and "Setting" functions will not be available.
4) +/− Buttons: To add dummy units (displays with no physical
unit currently connected) to a layout, click the “+” button. To
completely remove both real and dummy units from a layout,
select the unit to remove and then click the “−” button.

8
6.3.3 Basic Unit Settings & Conguration
The basic conguration and settings for each connected unit can be
set by selecting the unit to congure from the “Unit” section and then
clicking on the “Setting” button in the upper-left “Common” section of
the window. The operational mode of the unit (Rotate Mode or Scaler
Mode) may be set here, as well as the Ethernet, I/O, and mode-
specic image features. To exit the setting conguration tabs and
return to the layout mode, click on the “Layout” button in the upper-
left “Common” section of the window.
Note: Some conguration options are not available in both modes.
The “General” tab provides control over the network conguration,
and provides a way to initiate a rmware update or perform a factory
reset. This tab provides the same options in both operational modes.
1) System Setup: Displays the current rmware version and provides
options to update the rmware or perform a factory reset on the
unit.
■ Update FW Button: Provides a way to update the unit’s
rmware. Insert a USB thumb drive, with a valid rmware le
(*.bin format) in the root directory, into the unit’s USB service
port then click the “Update FW” button. After the update is
complete the unit will automatically reboot.
■ Factory Reset Button: Selecting this will reset the unit’s settings
back to their factory defaults.
2) Network Conguration: The IP Address, Netmask and Gateway
can be set manually, or DHCP can be enabled for automatic IP

9
Conguration if your local network supports it. Click on “Apply”
to conrm and activate any changes made to these settings. To
return these settings to their factory defaults, click on the “Default”
button.
Note: If the IP address is changed then the IP address required for
Software or Telnet access will also change accordingly.
6.3.3.1 Rotation Mode Conguration
The “I/O” tab in Rotation Mode provides control over input and output
functions such as EDID selection, audio/video mute, OSD Information,
and custom graphics overlay. To return these settings to their factory
defaults, click on the “Default” button.
1) EDID Mode: Select the preferred EDID for the unit to use from the
dropdown menu (FHD 2CH, FHD MCH, User, and Sink).
2) EDID Update: To upload a custom User EDID, insert a USB thumb
drive, with a valid EDID le named “USEREDID.BIN” in the root
directory, into the unit’s USB service port then click the “Update”
button.
3) AV Mute: Enables or disables the audio/video mute function. When
enabled, video output will be black, and audio will be muted.
4) Audio Mute: Enabled or disables the audio mute function. When
enabled, the audio output will be muted.
5) OSD Info: The OSD Info On/Off selector both shows the current OSD
Info state and provides a control to manually activate it. When
“On” is manually selected the OSD Info will show on the output
until the set timeout value has expired then it will revert to “Off”.

10
6) OSD Info Timeout and Offset: The OSD Info timeout value (in
seconds) and horizontal and vertical position may be set here.
7) Image Overlay Display: Enables or disables the custom image
overlay feature.
Note: Enabling OSD Info will automatically disable the Image
Overlay.
8) Image Overlay Update: To upload a custom overlay image, insert
a USB thumb drive, with a valid graphics le named “LOGO.BMP”
(1920×1080 max resolution, 8-bit color) in the root directory, into
the unit’s USB service port then click the “Update” button.
9) Image Overlay Positioning: Set the horizontal and vertical position
of the upper-left corner of the custom overlay image.
The “Image” tab in Rotation Mode provides control over the
automatic 360° rotation mode as well as the 45° xed screen rotation
mode. To return these settings to their factory defaults, click on the
“Default” button.
1) Automatic 360° Rotation Mode: Allows activation of the automatic
360° rotation mode. Select the speed and direction from the
dropdown menu (slow counter-clockwise, slow clockwise, fast
counter-clockwise, fast clockwise, stop).
2) Fixed 45° Rotation Angle Mode: Allows rotating the source image
to xed, 45°, angles. Select the preferred rotation angle from the
dropdown menu.

11
6.3.3.2 Scaler Mode Conguration
The “I/O” tab in Scaler Mode provides control over input and output
functions such as EDID selection, audio/video mute, OSD Information,
customized text overlay, and customized graphics overlay. To return
these settings to their factory defaults, click on the “Default” button.
1) EDID Mode: Select the preferred EDID for the unit to use from the
dropdown menu (FHD 2CH, FHD MCH, User, and Sink).
2) EDID Update: To upload a custom User EDID, insert a USB thumb
drive, with a valid EDID le named “USEREDID.BIN” in the root
directory, into the unit’s USB service port then click the “Update”
button.
3) AV Mute: Enables or disables the audio/video mute function. When
enabled, video output will be black, and audio will be muted.
4) Audio Mute: Enabled or disables the audio mute function. When
enabled, the audio output will be muted.
5) OSD Info: The OSD Info On/Off selector both shows the current OSD
Info state and provides a control to manually activate it. When
“On” is manually selected the OSD Info will show on the output
until the set timeout value has expired then it will revert to “Off”.
6) OSD Info Timeout and Offset: The OSD Info timeout value (in
seconds) and horizontal and vertical position may be set here.
7) Text Overlay Display: Enables or disables the custom text overlay
feature.
Note: Enabling OSD Info or Image Overlay will automatically
disable the Custom Text Overlay.

12
7) Text Overlay Content: Type the text to display when the Custom
Text Overlay is active. The text string can be up to 32 characters
long.
8) Custom Text Overlay Positioning: Set the horizontal and vertical
position of the custom text overlay.
9) Image Overlay Display: Enables or disables the custom image
overlay feature.
Note: Enabling OSD Info or Custom Text Overlay will automatically
disable the Image Overlay.
10) Image Overlay Update: To upload a custom overlay image, insert
a USB thumb drive, with a valid graphics le named “LOGO.BMP”
(1920×1080 max resolution, 8-bit color) in the root directory, into
the unit’s USB service port then click the “Update” button.
11) Image Overlay Positioning: Set the horizontal and vertical position
of the upper-left corner of the custom overlay image.
The “Image” tab in Scaler Mode provides control over the output
resolution and aspect ratio, horizontal ip and video freeze features,
as well as multiple video color and quality settings. To return these
settings to their factory defaults, click on the “Default” button.
1) Output Resolution: Selects the output resolution to use in Scaler
mode. Selecting “Native” will make the unit automatically
select an output resolution based on the detected EDID of the
connected display.
2) Aspect Ratio: Selects the aspect ratio to use for the scaled output.
“Full” stretches the source to ll the output resolution, regardless

13
of the original aspect ratio. The “4:3”, “16:9”, and “16:10” options
force the source to output at the specied aspect ratio relative to
the currently selected output resolution.
3) Horizontal Flip: When enabled, ips the scaled output horizontally.
4) Video Freeze: When enabled, freezes the scaled video output.
Note: While the output is frozen, audio will continue to play
normally.
5) Color Temperature: Provides control over the color temperature of
the scaled output image.
6) Brightness: Provides control over the overall brightness of the
scaled output image.
7) Contrast: Provides control over the overall contrast of the scaled
output image.
8) Hue: Provides control over the hue shift of the scaled output
image.
9) Sharpness: Provides control over the amount of sharpness
processing to apply to the scaled output image.

14
6.3.4 Pre-Dened Video Wall Layouts
The position, size and angle of the display connected to each unit is
set in the Layout window when in Rotation Mode. If you are currently
in the Setting window, clicking on the “Layout” button in the upper-
left “Common” section of the window will switch back to the Layout
window and activate Rotation mode.
The outline of the layout window represents the source video
(1920×1080 pixels) and each display must be placed within this space,
without exceeding the edges (not including bezel size, if active). Each
display contains a number which matches the ID number of the unit
that is connected to it and the size/position of each display (listed
to the left) is measured in pixels relative to its size/position within the
layout space. Pre-dened layouts do not include bezel compensation.
Note: Video wall conguration and warping is not available in Scaler
Mode.
This control software provides a number of common, pre-dened,
video wall congurations which can be selected and easily applied
to any connected units. All pre-dened congurations are designed
around video walls containing 4 displays.
1) Selecting Pre-Dened Layouts: Select any of the provided pre-
dened layouts from the right-hand scroll bar. After selecting a
new layout, you must conrm that you wish to leave the current
layout.
Note: It is not possible to save changes to the pre-dened layouts.
Switching to a new layout will remove any changes made to the

15
current layout.
■ Available Pre-Dened Layouts
12
34
1 2 3 4
4
3
2
1
1
2
3
4
4
3
2
1
4
3
2
1
Tile
Vert
Horiz
Slash
Fan
Sharp
After conrming the preferred layout, select all of the units involved
in the video wall from the “Unit” section at the top of the window
and then click on the “Set” button in the bottom-right corner of
the window to upload the new layout conguration to all selected
units. After clicking “Set”, the units will take a few seconds to fully
update with the new conguration.
