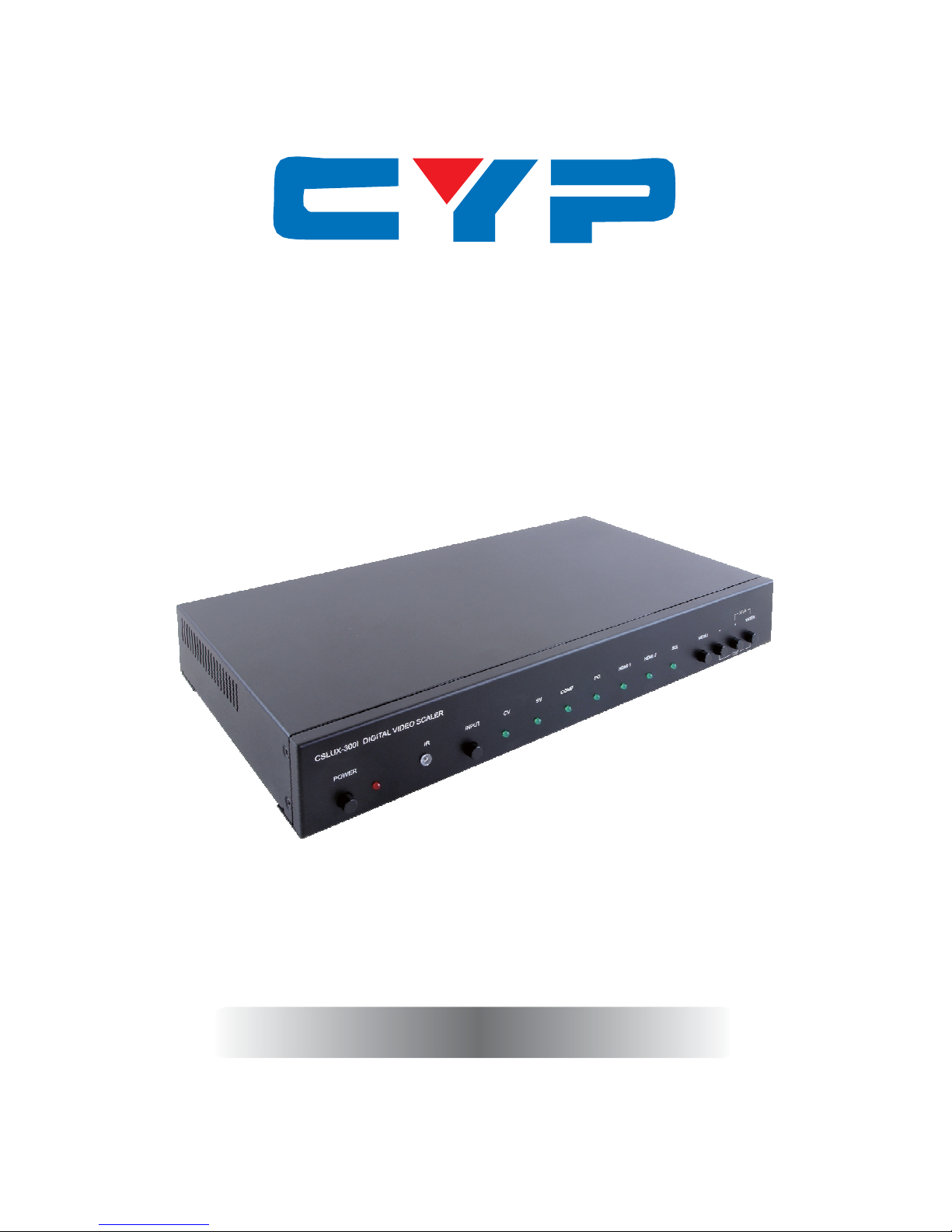

CYP CSLUX-300I User manual

CSLUX-300I
Digital Video Scaler
O
Op pe er ra at ti io on n M Ma an nu ua al l

DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COP RIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version VR1.0 November 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFET PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTOR
VERSION NO. DATE DD/MM/
SUMMAR OF CHANGE
VR0 13/11/12 Preliminary Release
VR1 18/12/12 Add D-Sub to RCA adaptor
VR2 11/01/13 Add support Timing chart and protocol

CONTENTS
1. Introduction............................................ 1
2. Applications ........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features .................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................ 3
6.2 Rear Panel......................................... 4
6.3 Remote Control................................ 6
6.4 RS-232 Protocols ............................... 7
6.5 RS-232 Commands........................... 8
6.6 OSD MENU....................................... 10

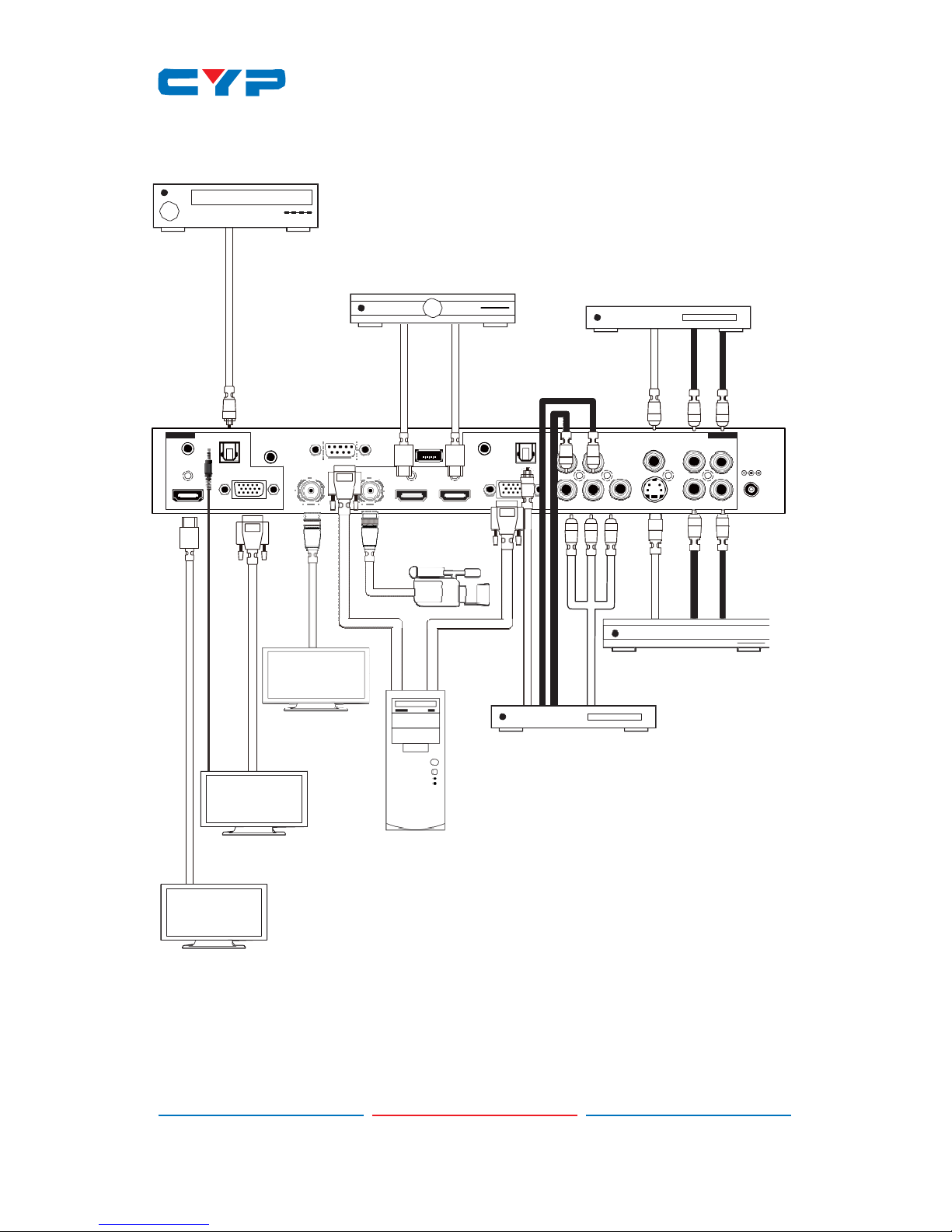

7. Connection and Installation............... 12
8. Specifications ...................................... 13

6
1. INTRODUCTION
The Digital Video Scaler has CV, SV, HD, Component, PC, HDMI and
SDI inputs and can scale the signal into HDMI, VGA with audio output
ports plus a SDI loop out. This high performance digital video scaler
supports HDMI output resolution up to 1080p /WUXGA and Analog
Digital Conversion (ADC) & Digital Analog Conversion (DAC) allowing
a wide range of AV signal to be insert to a high-Definition signal and
displaying. Further, with OSD, remote, RS-232 and on-panel controls
that makes whole for this Digital Video Scaler a friendly using device.
2. APPLICATIONS
• Lecture hall
• Meeting room
• Conference hall
3. PACKAGE CONTENTS
• Digital Video Scaler
• Remote Control (CR-117)
• D-Sub to RCA adaptor cable
• Power Adaptor
• Operation Manual
4. S STEM REQUIREMENTS
Input source equipments such as Blu-ray/DVD players or SDI camera,
output display and amplifier or speaker and connection cables.
5. FEATURES
• Supports multi AV inputs to HDMI or PC/HD outputs
• Supports EDID and HDCP
• Supports 3D de-interlace, noise reduction and 3D Comb filter
• Supports frame rate conversion
• Supports SDI loop out
• SDI peration at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s,
1.485/1.001Gb/s and 270 Mb/s
• Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE
292M, SMPTE 259M-C
• Supports signal input and output distanes of up to 300m for SD
signals, 200m for HD signals and 100m for 3G signals
Note: 1. SDI cable distance tested with belden 1694A. Operating
distances may be ery if used with cables of different specifications.

7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
CSLUX-300I DIGITAL VIDEO SCALER
XGA
POWER IR INPUT CV SV COMP PC HDMI 1 HDMI 2 SDI MENU
- + ENTER
1 2
3
720P
4 5 6
1
POWER & LED:
Press this button to switch ON or set the device to standby mode.
Once the device is connected with power supply the LED will
illuminate and the device will switch to ON automatically.
2
IR:
This IR window receives only the IR signal from the remote control
included in the package.
3
INPUT button and LEDs:
Press this button sequentially to switch in between the input sources
rotationally. LED will illuminate accordingly to the selected input
source.
4
MENU:
Press this button to enter into the OSD menu.
5
-/+:
Press these buttons to scrolled down and up in the OSD selection.
6
ENTER:
Press this button to confirm the selection. Press this button together
with + button to switch output to XGA instantly or with - button to
switch output to 720p instantly.

8
6.2 Rear Panel
2 3 4 5 6
OPTICAL
RS232
SERVICE 1 SERVICE 2
OPTICAL R
L CV R L
L/R L/R
PC/HD
SDI
LOOP OUTPUT SDI
PC
DC 5V
HDMI HDMI 1 HDMI 2
Cr/Pr Cb/Pb Y SV R L
1 7
1
OUTPUT:
L/R: Connect to speaker or amplifier for audio output in stereo
format.
HDMI: Connect to HDMI display or amplifier for video or video and
audio display.
OPTICAL: Connect to speaker or amplifier for audio output in
digital format.
PC/HD: Connect to monitor/display for video output display. For
HD output,use D-Sub 9pin to 3 RCA adaptor cable for output HD
timing from 480p~1080p.
2
SERVICE 1:
Reserved for factory use only.
3
SDI LOOP OUTPUT:
Connect to SDI display or SDI extender for instant SDI input signal
display or extending the SDI signal to further area.
4
RS-232:
Connect with PC/NB and use RS-232 command to control the
device.
5
SERVICE 2:
Reserved for factory use only.
6
INPUT:
SDI: Connect to SDI camera or other SDI source equipment for
both video and audio signal sending.
HDMI 1: Connect to HDMI source equipment such as Blu-ray/DVD
player for both video and audio signal sending.

9
HDMI 2: Connect to HDMI source equipment such as Blu-ray/DVD
player for both video and audio signal sending.
L/R: Connect to source equipment’s L/R output with 3.5Ø phone
jack for audio signal sending.
PC/HD: Connect with PC/NB source equipment for video signal
input with D-Sub 15pin cable.
OPTICAL: Connect to source equipment’s optical output for audio
signal sending.
CbCr/HDPbPr + L/R: Connect to source equipment such as video/
DVD player for both video and audio signal sending.
CV + L/R: Connect to source equipment such as video/DVD player
for both video and audio signal sending.
SV + L/R: Connect to source equipment such as video/DVD player
for both video and audio signal sending.
7
DC 5V:
Plug the power adaptor included in the package and connect it
to the AC wall outlet for power supply.

10
RESET
7
6.3 Remote Control
1
INPUT: Press this button sequentially
to switch in between the input
sources rotationally. LED will
1
illuminate accordingly to the
INPUT
CV
POWER
2
SV COMP
selected input source. 3
2
POWER: Press this button to switch
ON or set the device to standby
mode. Once the device is
connected with power supply.
4
3
CV/SV/COMP/PC/HDMI1/HDMI2/
SDI: Press these hot keys to switch
input source instantly.
6
4
EXIT: Press this button to exit the
menu or the current selection under
OSD.
5
MENU: Press this button to enter into
the OSD menu.
6
RESET: Press this button to set the
device back into the factory default
setting.
PC HDMI 1 HDMI 2
SDI
EXIT MENU
5
OK
AUTO
ADJUST
8
CR-117
7
AUTO ADJUST: Press this button when output image is not fitting the
display's screen perfectly. The device will auto adjust the image to
full screen.
8
OK & ▲▼◄►: Press OK to confirm the selection or press the arrow
buttons to scrolled in the OSD selections.

11
CSLUX-300I
P I N Assignment
1 NC
2 T x
3 R x
4 NC
5 G N D
6 NC
7 NC
8 NC
9 NC
Remote Control
P I N Assignment
1 NC
2 R x
3 T x
4 NC
5 G N D
6 NC
7 NC
8 NC
9 NC
6.4 RS-232 Protocols
►
◄
Baud Rate: 9600 bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

12
6.5 RS-232 Commands
Command Description Contents
iJL Start RS-232
S SOURCE 0~6 Select input source
R SOURCE Inquire input source
SDI(0) / HDMI1(1) /
HDMI2(2) / YPBPR(3) /
VIDEO(4) / SVIDEO(5)/
PC(6)
S OUTPUT 1~25 Select output timing
R OUTPUT Inquire output timing
RGB Encoded, 60 Hz:
640*480(1)/800*600(2)/
1024*768(3)/1280*768(4)/
1360*768(5)/1280*720(6)/
1280*800(7)/1280*1024(8)/
1440*900(9)/1400*1050(10)/
1680*1050(11)/
1600*1200(12)1920*1080(13)/
1920*1200(16)/
YUV Encoded:
480p(17)/720p 60(18)/
1080p 60(19)/ 1080i 60(20)/
576p(22)/720p 50(23)/
1080p 50(24)/ 1080i 50(25)
S SIZE 0~6 Select output size
R SIZE Inquire output size
OVERSCAN(0) / FULL(1) /
BEST FIT(2) / PAN SCAN(3)/
LETTER BOX(4) /UNSER 2(5)
/ UNDER 1(6)
S CONTRAST 0~60 Contrast Setting
R CONTRAST Inquire contrast setting
S BRIGHTNESS 0~60 Brightness setting
R BRIGHTNESS Inquire brightness setting
S HUE 0~60 Hue setting
R HUE Inquire hue setting
S SATURATION 0~60
Saturation setting
R SATURATION Inquire saturation setting
S SHARPNESS 0~30 Sharpness setting

13
R SHARPNESS Inquire sharpness setting
S NR 0~3 Noise reduction setting
R NR Inquire noise reduction
setting
OFF(0) / LOW (1) /
MIDDLE(2) / HIGH(3)
S AUDIODELAY 0~3 Audio delay setting
R AUDIODELAY Inquire audio delay
setting
OFF(0) / 40ms (1) /
110ms(2) / 150ms(3)
S AUDIOMUTE 0/1 Audio mute setting
R AUDIOMUTE Inquire audio mute
setting
ON(0) / MUTE(1)
S SDIAUDIO 0~3 SDI Audio CH setting
R SDIAUDIO Inquire SDI audio
CH setting
CH1CH2(0), CH3CH4(1)
CH5CH6(2), CH7CH8(3)
S AUDIOSELECT 0/1
Audio input setting
R AUDIOSELECT Inquire audio input
setting
Analog (0)
Optical (1) at CV, SV,
YPbPr, PC
S KEY LOCK 0/1 Key lock setting
R KEY LOCK Inquire key lock setting
ENABLE(0) / DISABLE(1)
FW Firmware checking
S RESET 1 Pre-reset
S POWER 0/1 Power Setting OFF (0) / ON (1)
R POWER Inquire Power Setting
EXIT Exit
1) iJL command must first be insert before starting using RS-232
command to control the device. This command is CASE-SENSITIVE.
Other RS-232 command will be not executed unless followed with a
CR+LF (Carriage Ret + Line Feed) and commands are CASE-
INSENSITIVE.
2)Audio delay supports only on analog L/R output.
3)When HDMI input is with HDCP, PC/HD will output no image.
4)Digital Audio supprts LPCM 2CH only therefore, please ensure source
input audio is sending LPCM 2CH's audio signal in order to
avoidunceccessary audio noise.

14
6.6 OSD MENU
1
st
Layer
2
nd
Layer
3
rd
Layer
4
th
Layer
640 x 480 60
800x600 60
1024x768 60
1280x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720X480P 60
1280X720P 60
1920X1080I 60
1920X1080P 60
720X576P 50
1280X720P 50
1920X1080I 50
OUTPUT
1920X1080P 50
OVER SCAN
FULL
BEST FIT
PAN SCAN
LETTER BOX
UNDER 2
SIZE (VIDEO mode
only)
UNDER 1
OFF
INFO MODE INFO ON
AUTO SETUP
H_POSITION
V_POSITION
PHASE
CLOCK
XGA
WXGA/XGA WXGA
DISPLAY
PC (PC mode only)
RESET

15
R
G
B
R OFFSET
G OFFSET
COLOR
B OFFSET
CONTRAST 0~60 30
BRIGHTNESS 0~60 30
HUE 0~60 30
SATURATION 0~60 30
SHARPNESS 0~30 0
OFF
LOW
MIDDLE
COLOR
NR.
HIGH
VOLUME 0~100
OFF
40mS
110mS
DELAY
150mS
ON
SOUND MUTE
CH1 – CH2
CH3 – CH4
CH5 – CH6
SDI AUDIO
CH7 – CH8
ANALOG
AUDIO
AUDIO SELECT
(CV, SV, YpbPr, PC
only)
SPDIF
FACTORY RESET
OFF
KEY LOCK ON
OFF
SETUP
POWER SAVE ON
INPUT
OUTPUT
INFORMATION
REVISION
Bold characters are Factory default setting.

16
7. CONNECTION AND INSTALLATION
AVR with Optical Input
Set-top Box or DVD Player Composite video and stereo
audio from DVD player
OPTICAL
RS232
SERVICE 1 SERVICE 2
OPTICAL R
L
CV R L
L/R L/R
PC/HD
SDI
LOOP OUTPUT SDI
PC
DC 5V
HDMI HDMI 1 HDMI 2
Cr/Pr Cb/Pb Y SV R L
Camcorder
S-Video and stereo audio
from Blu-ray player
SDI Monitor
Component and stereo audio
from DVD player
Monitor with 3.5 mm
audio input speaker PC
TV or Monitor

17
8. SPECIFICATIONS
Input Port 1 x Composite,
1 x S-Video,
1 x Component, YcbCr or YPbPr
1 x PC/HD,
2 x HDMI w/HDCP
1 SD/HD/3G-SDI,
1 x Optical, LPCM, 2CH
4 x L/R ,
1 x USB (service only),
1 x HP Jack (service only),
1 x RS-232 (Control Only)
Output Port 1 x HDMI,
1 x PC/HD,
1 x SDI (Loop out),
1 x Optical, 1 x L/R
Supports Input Resolution COMP: YCbCr 625i 50 Hz
YPbPr 480i, 480p, 720p,
1080i, 1080p, all 60 Hz
PC : up to WUXGA 60 Hz
HDMI : up to 1080p 60 Hz, 12 bit
Supports Output Resolution N°14 timings RGB encoded; All 60 Hz
From VGA to UXGA; 1920x1080; WUXGA
N°8 Timing YUV encoded:
480p, 720p, 1080i, 1080p 60 Hz
576p, 720p, 1080i, 1080p 50 Hz
Power Supply 5V/3A DC (US/EU standards, CE/FCC/
UL certified)
Dimensions (mm) 320mm(W) x 182mm(D) x 44mm(H)
Weight(g) 1600
Chassis Material Metal
Silkscreen Color Black

18
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption(W) 10.5

C PRESS TECHNOLOG CO., LTD
Home page: http://www.cypress.com.tw
20120820 MPM-CSLUX300I

CSLUX-300I
Digital Video Scaler
O
Op pe er ra at ti io on n M Ma an nu ua al l
