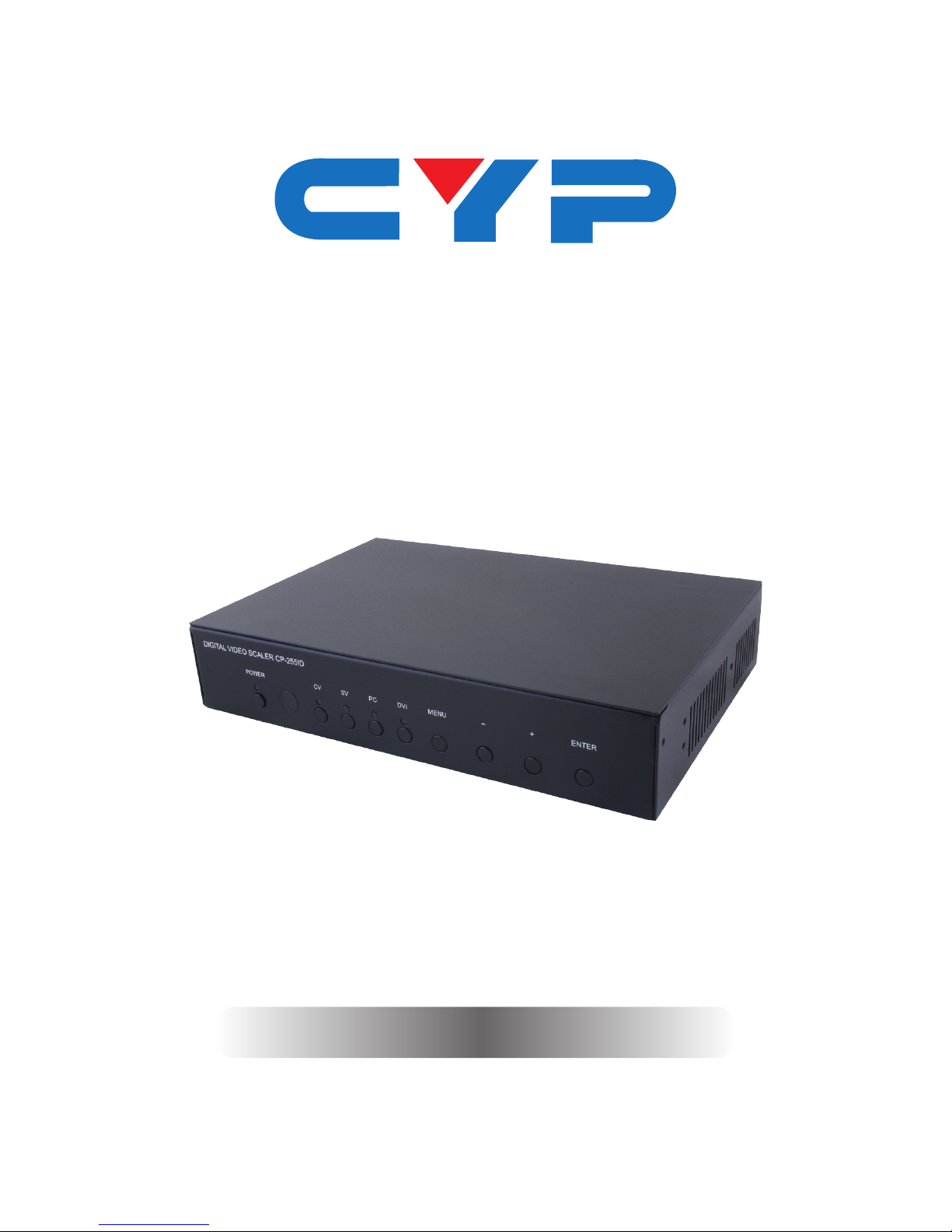

CYP CP-255ID User manual

CP-255ID
Digital Video Scaler
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version VR1.0 November 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 07/13/12 Preliminary Release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
7. Remote Control...................................... 4
7.1 RS-232 Protocols ...............................5
7.2 RS-232 Command ............................5
7.3 OSD MENU.........................................8
8. Connection Diagram .......................... 12
9. Specications ...................................... 13
10. Acronyms ........................................... 15

1
1. INTRODUCTION
The Digital Video Scaler has CV, SV, PC & DVI inputs and can scale the
signal into DVI with audio output. This high performance digital video
scaler supports all the functions of DVI with resolution up to 1080p /
WUXGA a wide range of AV signal to be insert to a high-Denition
signal and displaying. Further, with OSD, remote, RS-232 and on-panel
controls that makes whole for this Digital Video Scaler a friendly using
device.
2. APPLICATIONS
• Analog to Digital video signal conversion
• Displaying low resolution video on High-Denition display
3. PACKAGE CONTENTS
• Digital Video Scaler
• Remote Control (CR-118)
• Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipments such as PC/NB or DVD Player with HDMI to
DVI adaptor and output display with active speaker and connection
cables.
5. FEATURES
• Supports multi inputs to DVI output
• Supports video and audio synchronize display
• Supports 3D de-interlace, noise reduction and Comb lter
• Supports frame rate conversion
• Supports RS-232, IR, Remote and on panel controls

2
6. OPERATION CONTROLS AND FUNCTIONS

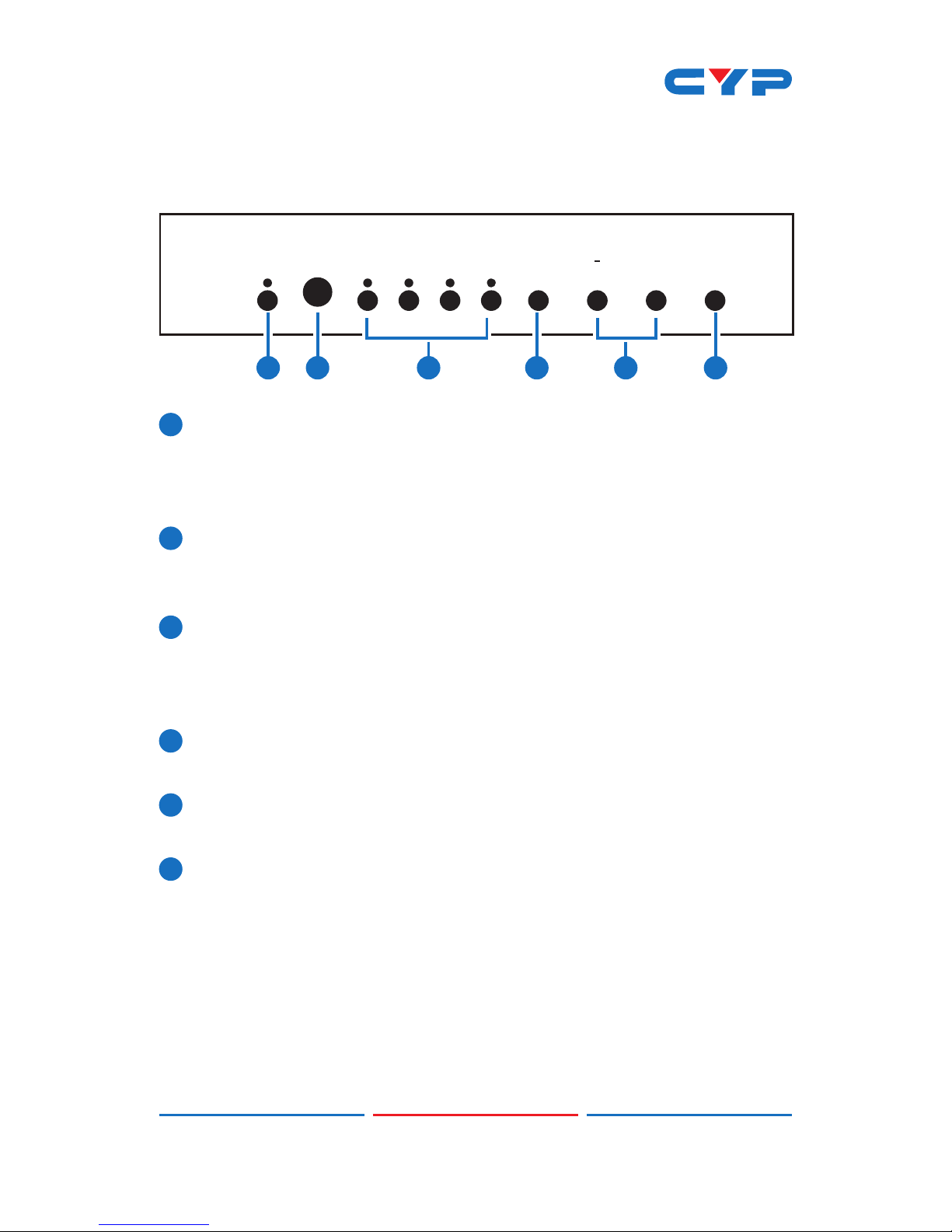

6.1 Front Panel
POWERCVSVPCDVI MENU ENTER - +
DIGITAL VIDEO SCALER CP-255ID
1 2 4 63 5
1POWER & LED:
Press this button to switch ON or set the device to standby mode.
Once the device is connected with power supply the LED will
illuminate and the device will switch to ON automatically.
2IR:
This IR window receives only the IR signal from the remote control
included in the package.
3INPUT button and LEDs:
Press this button sequentially to switch in between the input sources
rotationally. LED will illuminate accordingly to the selected input
source.
4MENU:
Press this button to enter into the OSD menu.
5-/+:
Press these buttons to scrolled down and up in the OSD selection.
6ENTER:
Press this button to conrm the selection. Press this button together
with – to switch output timing to 720p@60 instantly. Press this button
together with + to switch output timing to XGA (1024x768) instantly.

3

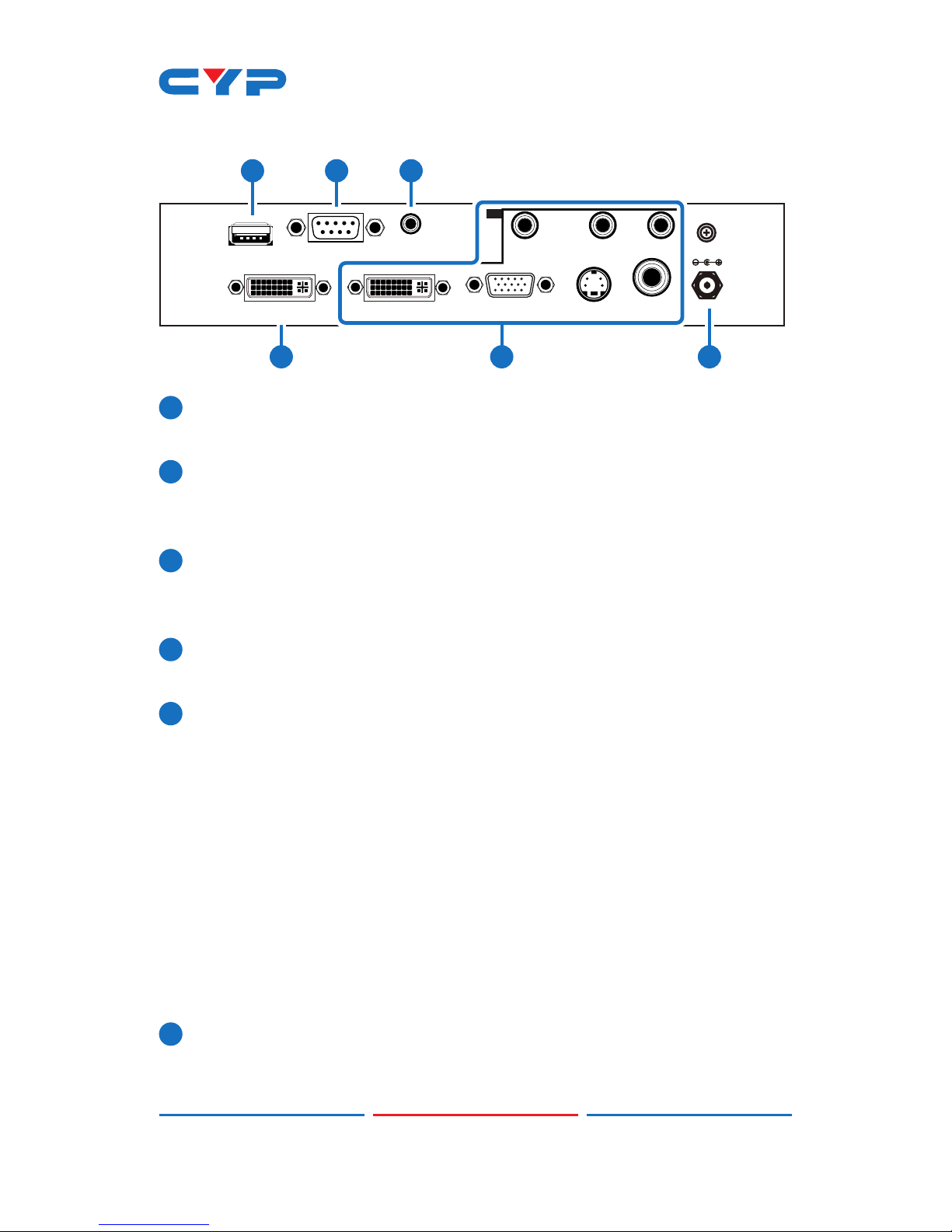

6.2 Rear Panel
DVI OUT DVI VGASVCV
SERVICE
RS232
L/R OUTL/R LR
IN
DC 5V
1 2 4
3 65
1SERVICE 1:
Reserved for factory use only.
2RS-232:
Connect with PC/NB and use RS-232 command to control the
device.
3DVI OUTPUT:
Connect to DVI display for video or graphical display. Compatible
with HDMI to DVI adaptor.
4L/R OUT:
Connect to speaker or amplier for audio output in stereo format.
5IN:
DVI: Connect to DVI source equipment such as PC/NB for input
signal sending. Compatible with HDMI to DVI adaptor.
L/R: Connect to source equipment’s L/R output with 3.5Ø phone
jack for audio signal sending.
VGA: Connect with PC/NB source equipment for video signal input
with D-Sub 15pin cable.
CV + L/R: Connect to source equipment such as video/DVD player
for both video and audio signal sending.
SV + L/R: Connect to source equipment such as video/DVD player
for both video and audio signal sending.
6DC 5V:
Plug the power adaptor included in the package and connect it
to the AC wall outlet for power supply.

4
7. REMOTE CONTROL
1POWER:
Press this button to switch ON
or set the device to standby
mode. Once the device is
connected with power supply it
is on automatically.
2CV/SV/PC/DVI:
Press these hot keys to switch
input source instantly.
3EXIT:
Press this button to exit the menu
or the current selection under
OSD.
4MENU:
Press this button to enter into the
OSD menu.
5RESET:
Press this button to set the
device back into the factory default setting.
6AUTO ADJUST:
Press the button to optimize the positioning of the picture (picture
centering) on the screen.
7 OK & ▲▼◄►:
Press OK to conrm the selection or press the arrow buttons to
scrolled in the OSD selections.
CR-118
POWER
CV
SV
PC
EXIT MENU
OK
RESET AUTO
ADJUST
DVI
1
2
4
6
7
3
5

5
7.1 RS-232 Protocols
CP-255ID
►
◄
Remote Control
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx2 Rx
3 Rx3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
7.2 RS-232 Command
Command Description Contents
iJL Start RS-232
S SOURCE 1~4 Select input source DVI(1) / VIDEO(2) / SVIDEO(3)/
PC(4)
R SOURCE Inquire input source

6
S OUTPUT 1~25 Select output timing Native(0)/ 640*480(1)/
800*600(2)/ 1024*768(3)/
1280*768(4)/
1360*768(5)/ 1280*720(6)/
1280*800(7)/ 1280*1024(8)/
1440*900(9)/ 1400*1050(10)/
1680*1050(11)/
1600*1200(12)1920*1080(13)/
1920*1200(16)/
480p(17)/ 720p 60(18)/ 1080p
60(19)/ 1080i 60(20)/
576p(22)/ 720p 50(23)/ 1080p
50(24)/ 1080i 50(25)
R OUTPUT Inquire output timing
S SIZE 0~6 Select output size OVERSCAN(0) / FULL(1) /BEST
FIT(2) / PAN SCAN(3)/LETTER
BOX(4) /UNSER 2(5) / UNDER
1(6)
R SIZE Inquire output size
S CONTRAST 0~60 Contrast Setting
R CONTRAST Inquire contrast setting
S BRIGHTNESS
0~60
Brightness setting
R BRIGHTNESS Inquire brightness setting
S HUE 0~60 Hue setting
R HUE Inquire hue setting
S SATURATION
0~60
Saturation setting
R SATURATION Inquire saturation setting
S SHARPNESS 0~30 Sharpness setting
R SHARPNESS Inquire sharpness setting
S NR 0~3 Noise reduction setting OFF(0) / LOW (1) / MIDDLE(2) /
HIGH(3)
R NR Inquire noise reduction
setting

7
S AUDIODELAY
0~3
Audio delay setting OFF(0) / 40ms (1) / 110ms(2) /
150ms(3)
R AUDIODELAY Inquire audio delay
setting
S AUDIOMUTE 0/1 Audio mute setting ON(0) / MUTE(1)
RAUDIOMUTE Inquire audio mute
setting
S KEY LOCK 0/1 Key lock setting ENABLE(0) / DISABLE(1)
R KEY LOCK Inquire key lock setting
FW Firmware checking
S RESET 1 Pre-reset
S POWER 0/1 Power On/Off OFF(0) / ON(1)
R POWER Power Status
EXIT Exit
Note: 1. iJL command must rst be insert before start using RS-232
command to control the device. This command is CASE-
SENSITIVE.
2. Other RS-232 commands will be not executed unless
followed with a carriage return and are case-insensitive.
Baud Rate 9600 bps
Parity No
Data Bit 8 Bits
Stop 1 Bit
Flow Control No

8
7.3 OSD MENU
1st Layer 2nd layer 3rd Layer
DISPLAY OUTPUT Native
640X480 60
800x600 60
1024x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720X480P 60
1280X720P 60
1920X1080I 60
1920X1080P 60
720X576P 50
1280X720P 50
1920X1080I 50
1920X1080P 50

9
SIZE (VIDEO mode
only)
OVER SCAN
FULL
BEST FIT
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1
MODE INFO INFO
ON
OFF
PC(PC mode only) AUTO SETUP No
YES
H_POSITION 0~60
(30)
V_POSITION 0~60
(30)
PHASE
CLOCK
WXGA/XGA XGA
WXGA
RESET NO
YES

10
COLOR COLOR R 0~1023
(512)
G0~1023
(512)
B 0~1023
(512)
R OFFSET 0~1023
(512)
G OFFSET 0~1023
(512)
B OFFSET 0~1023
(512)
CONTRAST 0~60 (30)
BRIGHTNESS 0~60 (30)
HUE (VIDEO mode
only)
0~60 (30)
SATURATION (VIDEO
mode only)
0~60 (30)
SHARPNESS (VIDEO
mode only)
0~30 (0)
NR. (VIDEO mode
only)
OFF
LOW
MIDDLE
HIGH
AUDIO VOLUME 0~100
DELAY (L/R output
only)
OFF
40mS
110mS
150mS
SOUND ON
MUTE

11
SETUP FACTORY RESET NO
YES
KEY LOCK OFF
ON
POWER SAVE OFF
ON
INFORMATION INPUT
OUTPUT
REVISION
Note: Bold Italian fonts are the Factory default setting.
( ) are default settings

12

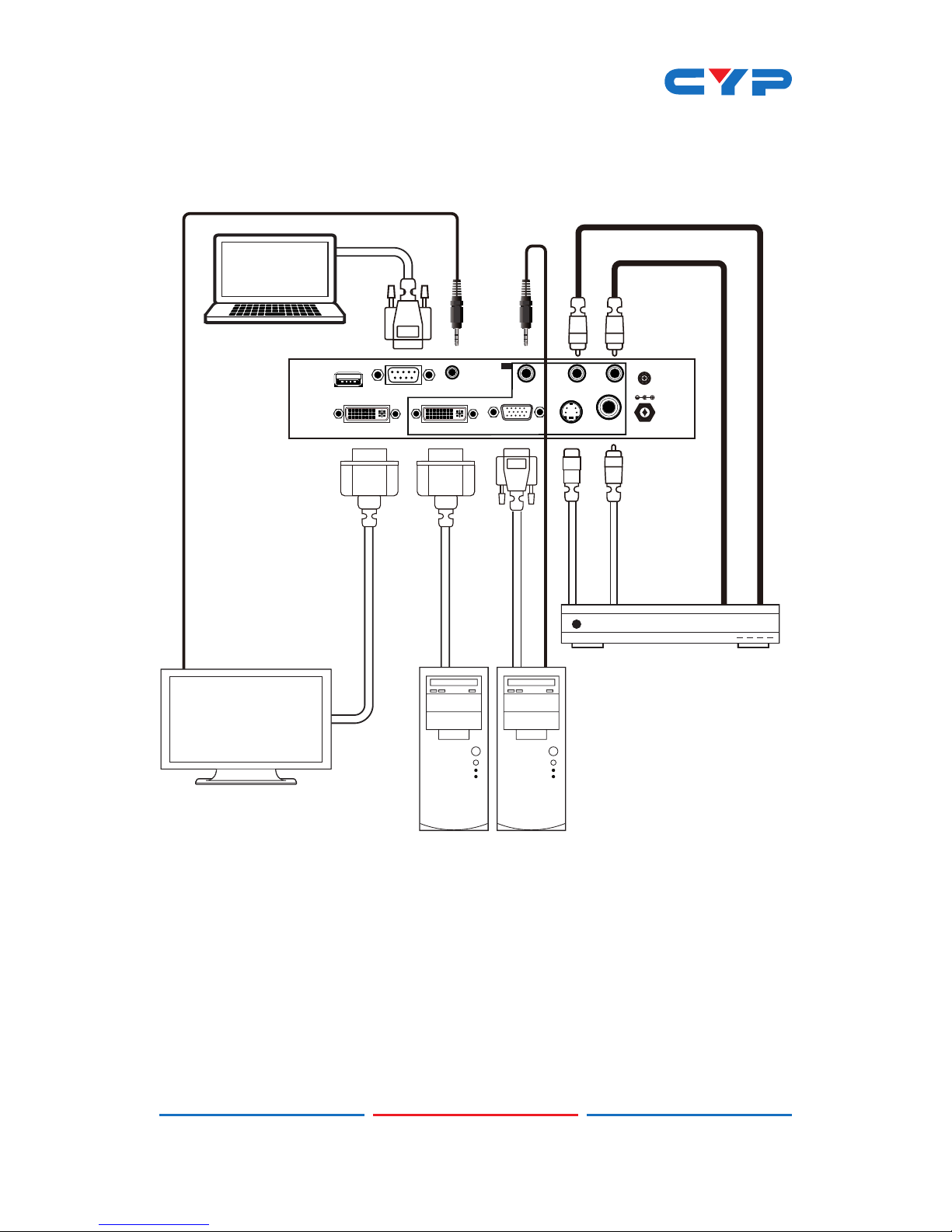

8. CONNECTION DIAGRAM
DVI OUT DVI VGA SV CV
SERVICE
RS232
L/R OUT L/RLR
IN
DC 5V
S-Video/Composit Video and
stereo audio from Blu-ray
player
RS-232 Equipped
PC or Laptop
PC

13
9. SPECIFICATIONS
Video Bandwidth 165MHz
Input Port 1 x Composite, 1 x S-Video, ,1 x VGA,
1 x DVI, 1 x L/R, 1 x LR, 1 x USB (service
only), 1 x RS-232 (Control Only)
Output Port 1 x DVI, 1 x L/R
Supports Input
Resolution
Up to UXGA & 1080p
Supports Output
Resolution
Up to WUXGA & 1080p
Power Supply V / A DC (US/EU standards, CE/FCC/UL
certied)
Dimensions (mm) 215mm(W) x 165mm(D) x 47mm(H)
Weight(g) 970g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 5.7w
Input Resolution PC DVI/HDMI AV/SV
NTSC √
PAL √
VGA640*480
(@60/72/75Hz)
√ √
SVGA800*600
(@56/60/72/75Hz)
√ √
XGA1024*768
(@60/70/75Hz)
√ √
XGA+1152*864 @75Hz √ √

14
1280*720 @60Hz √ √
1280*768 @60Hz √ √
1280*800 @60Hz √ √
1280*960 @60Hz √ √
1280*1024 (@60/75Hz) √ √
1360*768 @60Hz √ √
SXGA+1400*1050 @60Hz √ √
WXGA+1440*900 @60Hz √ √
UXGA1600*1200 @60Hz √ √
WSXGA1680*1050 RB
@60Hz
√ √
1920*1080 @60Hz √ √
1920*1200 RB @60Hz √ √
480I/576I √
480P/576P √
720P(@50/60Hz) √
1080I(@50/60Hz) √
1080P(@24/30/50/60Hz) √
DVI/HDMI output Resolution
Native
640*480@60Hz
800*600@60Hz
1024*768@60Hz
1280*768@60Hz
1360*768@60Hz

15
1280*720@60Hz
1280*800@60Hz
1280*1024@60Hz
1440*900@60Hz
1400*1050@60Hz
1680*1050@60Hz
1600*1200@60Hz
1920*1080@60Hz
1920*1200@60Hz
480P
576P
720P(@50/60Hz)
1080I(@50/60Hz)
1080P(@50/60Hz)
10. ACRONYMS
ACRONYM COMPLETE TERM
COMP Component
CV Composite Video
DVI Digital Visual Interface
RGB Red Green Blue
SDI Serial Digital Interface
VGA Video Graphics Array
UXGA Ultra Extended Graphics Array
WUXGA Widescreen Ultra Extended Graphics Array
