CYP CSLUX-300 User manual

CSLUX-300
Multi-Format to HDMI Scaler
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 02/04/14 Preliminary Release

CONTENTS
1. Introduction............................................1
2. Applications...........................................1
3. Package Contents ................................1
4. System Requirements............................1
5. Features..................................................2
6. Operation Controls and Functions.......3
6.1 Front Panel.........................................3
6.2 Rear Panel .........................................4
6.3 Remote Control.................................6
6.4 RS-232 Pin Assignment......................7
6.5 RS-232 Commands............................8
6.6 OSD Menu........................................10
6.7 Input Resolution Support................14
6.8 Output Resolution Support.............15
7. Connection Diagram ..........................16
8. Specications ......................................17
9. Acronyms.............................................18

1
1. INTRODUCTION
This Multi-Format to HDMI Scaler is an advanced HDMI, PC, Composite,
S-Video and Component switcher/scaler. This device can scale and
switch input sources and display them to its HDMI and VGA/HD
outputs simultaneously, with their associated audio signals, at a wide
range of output resolutions (up to 1080p or WUXGA(RB)). Control is via
IR remote, or via front panel buttons and includes an on-screen menu
providing settings and system information.
2. APPLICATIONS
• Digital and analog signal convergence
• Convert analog video/audio signals for use with digital displays
• Integrate multiple sources and signal types to a single display in a
meeting room or conference hall environment
3. PACKAGE CONTENTS
• Multi-Format to HDMI Scaler
• Remote Control (CR-143)
• 5 V/3 A DC Power Adaptor
• D-sub 15-pin to 3 RCA Adaptor Cable
• Operation Manual
4. SYSTEM REQUIREMENTS
Source equipment such as Blu-ray/DVD players, VGA or HDMI display
and amplier/active speakers with connection cables.

2
5. FEATURES
• Supports HDMI, Composite Video, S-Video, and PC (VGA)/HD
(Component) inputs
• Supports HDMI and VGA/Component (with adaptor) outputs
• Supports analog stereo, optical and coaxial digital inputs and
optical digital output, analog stereo output or embedding to HDMI
output
• Supports conversion of multiple video formats and audio input to
HDMI or PC/HD and analog stereo outputs
• Supports EDID and HDCP
• Supports 3D de-interlacing, noise reduction and 3D comb lter
• Supports frame rate conversion
• Supports RS-232, remote handset, and front panel control

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
TUPNIREWOP PMOCVSVCRI RETNEUNEM2IMDH1IMDHCP
-
+
CSLUX-300 DIGITAL VIDEO SCALER XGA
720P
1 2 4 63 5
1POWER and LED
Press this button to switch the device ON or to put the device
into STANDBY mode. When the device is connected to an active
power supply, the LED will illuminate and the device will switch ON
automatically.
2IR Window
Receives only the IR signal from the supplied remote control.
3INPUT Button and LEDs
Press to repeatedly select the required input. An LED will illuminate
to indicate the currently selected source.
4MENU
Press this button to enter into the on-screen menu (OSD).
5−/+ (Minus/Plus)
Use these buttons to navigate down and up in the on-screen
menu.
6ENTER
Press this button to conrm the selection.
Note:Pressing'−'(MINUS)andENTERsimultaneouslywill
immediatelyswitchtheoutputresolutionofthedeviceto720p60.
Pressing'+'(PLUS)andENTERsimultaneouslywillimmediatelyswitch
theoutputresolutionofthedevicetoXGA.

4

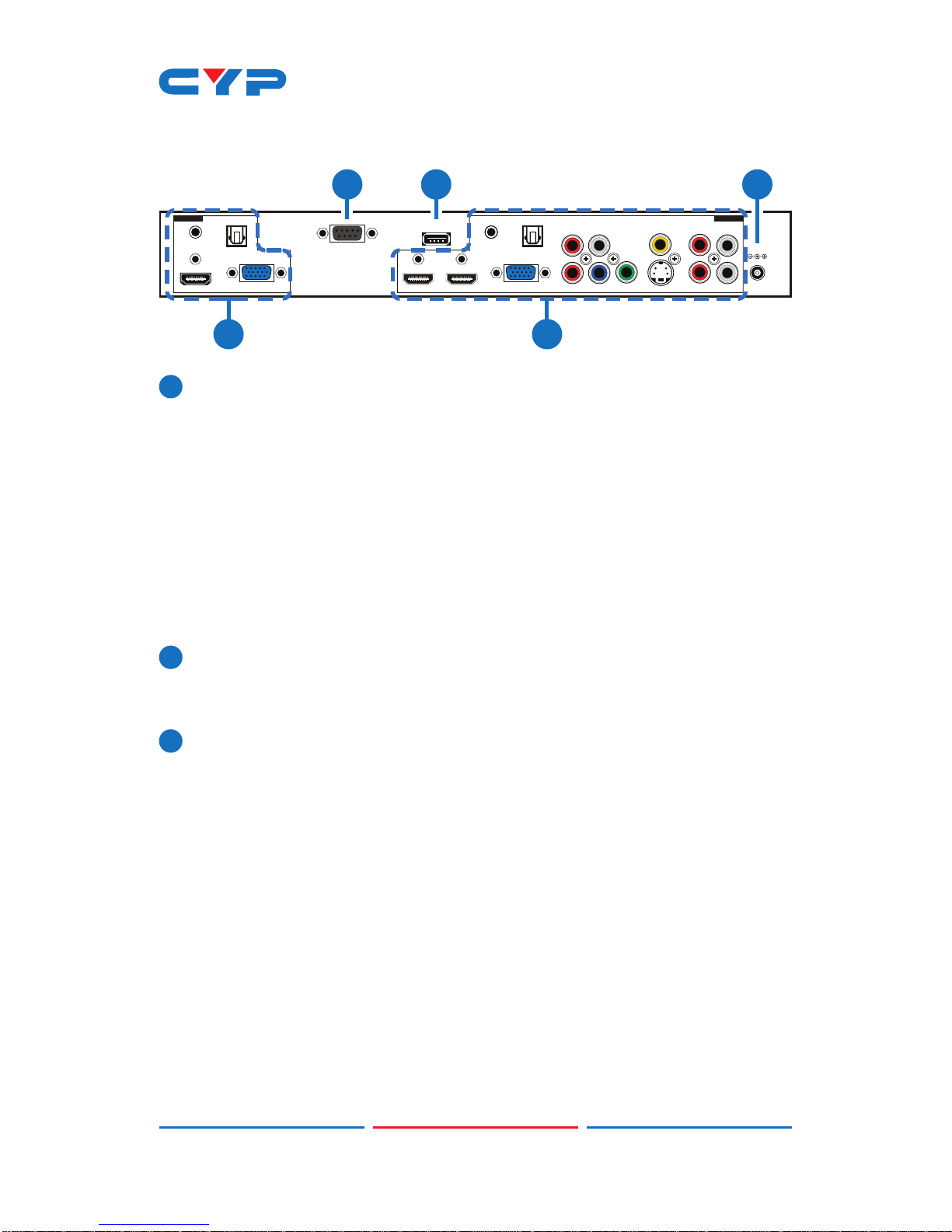

6.2 Rear Panel
DC 5V
ECIVRES
OPTICAL OPTICAL
RS232
L/R L/R
Cr/Pr Cb/Pb YSV
RL
RL
RLCV
HDMI HDMI 1 HDMI 2
PC/HD PC
OUTPUT INPUT
1 4
2 3 5
1OUTPUTS
HDMI: Connect to an HDMI display or amplier for video and/or
audio output.
PC/HD: Connect to a monitor/display for video output. For HD
(Component) output, use the supplied D-sub 15-pin to 3 RCA
adaptor cable for HD resolutions from 480p~1080p.
OPTICAL: Connect to an amplier or active speakers for audio
output in digital format.
L/R: Connect to an amplier or active speakers for audio output in
stereo format.
2RS-232
Connect to a PC/Laptop to use RS-232 commands to control the
device (See Section 6.5 for details on RS-232 commands).
3SERVICE
Reserved for manufacturer use only.

5
4INPUTS
HDMI 1: Connect to an HDMI source such as Blu-ray/DVD player for
both video and audio signal conversion.
HDMI 2: Connect to an HDMI source such as Blu-ray/DVD player
for both video and audio signal conversion.
PC: Connect to a PC/Laptop source for video signal input with a
D-sub 15-pin cable.
YCbCr/YPbPr and L/R: Connect to source equipment such as a
DVD player for both video and audio signal conversion.
SV and L/R: Connect to an S-Video source such as a video/DVD
player for both video and audio signal conversion.
CV and L/R: Connect to a composite video source such as video/
DVD player for both video and audio signal conversion.
OPTICAL: Connect to a source's optical output for audio signal
conversion.
L/R: Connect to source's L/R output with 3.5mm Mini-jack for audio
signal conversion.
5DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.

6
6.3 Remote Control
1POWER
Press this button to switch the device ON
or to put the device into STANDBY mode.
2INPUT
Press to repeatedly select the required
input. An LED will illuminate to indicate
the currently selected source.
3CV/SV/COMP/PC/HDMI 1/HDMI 2
Press to directly select the required input.
4EXIT
Press this button to exit the menu or the
current selection in the on-screen menu.
5MENU
Press this button to enter the on-screen
menu.
6RESET
Press this button to return the device to the factory default settings.
7AUTO ADJUST
Press the button to optimize the positioning of the picture (picture
centering) on the screen.
8 ▲▼◄► and OK
Press OK to conrm the selection or use the directional buttons to
navigate the on-screen menus.
CR-143
POWERINPUT
PC HDMI 1 HDMI 2
EXIT MENU
OK
RESET AUTO
ADJUST
2
4
6
1
5
7
8
3
SVCV COMP

7
6.4 RS-232 Pin Assignment
MULTI-FORMAT TO
HDMI SCALER
►
◄
REMOTE CONTROL
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 9600bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1

8
6.5 RS-232 Commands
COMMAND DESCRIPTION
S SOURCE 1~6 1=HDMI1
2=HDMI2
3=YPbPr
4=VIDEO
5=S-VIDEO
6=PC
R SOURCE Reports the numerical equivalent for
SOURCE setting (as above)
S OUTPUT 0~25 0=Native
1=640×480
2=800×600
3=1024×768
4=1280×768
5=1360×768
6=1280×720
7=1280×800
8=1280×1024
9=1440×900
10=1400×1050
11=1680×1050
12=1600×1200
13=1920×1080
16=1920×1200
17=480p
18=720p@60
19=1080p@60
20=1080i@60
22=576p
23=720p@50
24=1080p@50
25=1080i@50
R OUTPUT Reports the numerical equivalent for OUTPUT
setting (as above)
S SIZE 0~6 0=OVERSCAN
1=FULL
2=BEST FIT
3=PAN SCAN
4=LETTER BOX
5=UNDER 2
6=UNDER 1
R SIZE Reports the numerical equivalent for SIZE
setting (as above)
S CONTRAST 0~60 Setups the numerical equivalent for
CONTRAST setting (as left)
R CONTRAST Reports the numerical equivalent for
CONTRAST setting
S BRIGHTNESS 0~60 Setups the numerical equivalent for
BRIGHTNESS setting (as left)
R BRIGHTNESS Reports the numerical equivalent for
BRIGHTNESS setting

9
COMMAND DESCRIPTION
S HUE 0~60 Setups the numerical equivalent for HUE
setting (as left)
R HUE Reports the numerical equivalent for HUE
setting
S SATURATION 0~60 Setups the numerical equivalent for
SATURATION setting (as left)
R SATURATION Reports the numerical equivalent for
SATURATION setting
S SHARPNESS 0~30 Setups the numerical equivalent for
SHARPNESS setting (as left)
R SHARPNESS Reports the numerical equivalent for
SHARPNESS setting
S NR 0~3 0=OFF
1=LOW 2=MIDDLE
3=HIGH
R NR Reports the numerical equivalent for the
NOISE REDUCTION setting (as above)
S AUDIO DELAY 0~3 0=OFF
1=40ms 2=110ms
3=150ms
R AUDIO DELAY Reports the numeric equivalent for AUDIO
DELAY setting (as above)
S AUDIO MUTE 0/1 0=ON 1=MUTE
R AUDIO MUTE Reports the numeric equivalent for AUDIO
MUTE setting (as above)
S KEY LOCK 0/1 0=ENABLE 1=DISABLE
R KEY LOCK Reports the numeric equivalent for KEY
LOCK setting (as above)
FW Checks the FIRMWARE version
S RESET 1 Setups the numerical equivalent for RESET
setting (as left)
S POWER 0/1 0=OFF 1=ON
R POWER Reports the numeric equivalent for POWER
setting (as above)
Note:
1. AudioDelayisonlysupportedonAnalogStereooutput.
2. WhentheHDMIinputisencodedwithHDCP,noimagewillbe
outputfromthePC/HDoutput.

10
3. OnlyLPCM2channeldigitalaudioissupported,pleaseensure
thatthesourceaudioissettoLPCM2channelaudioinorderto
avoidunnecessaryaudionoise.
4. RS-232commandswillbenotexecutedunlessfollowedwitha
carriagereturnandLF.Commandsarecase-insensitive.
6.6 OSD Menu
MAIN MENU SUBMENU 3RD MENU 4TH MENU
DISPLAY OUTPUT 640×480 60
800×600 60
1024×768 60
1280×768 60
1360×768 60
1280×720 60
1280×800 60
1280×1024 60
1440×900 60
1400×1050 60
1680×1050 60
1600×1200 60
1920×1080 60
1920×1200 60
720×480P 60
1280×720P 60*
1920×1080I 60
1920×1080P 60
720×576P 50
1280×720P 50
1920×1080I 50
1920×1080P 50

11
MAIN MENU SUBMENU 3RD MENU 4TH MENU
DISPLAY SIZE
(For VIDEO input) OVER SCAN
FULL*
BEST FIT
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1
MODE INFO OFF
INFO*
ON
PC
(For PC input) AUTO SETUP
H_POSITION
V_POSITION
PHASE
CLOCK
WXGA/XGA XGA*
WXGA
RESET

12
MAIN MENU SUBMENU 3RD MENU 4TH MENU
COLOR COLOR R
G
B
R OFFSET
G OFFSET
B OFFSET
CONTRAST 0~60
BRIGHTNESS 0~60
HUE 0~60
SATURATION 0~60
SHARPNESS 0~30
NR OFF*
LOW
MIDDLE
HIGH
AUDIO VOLUME 0~100
DELAY OFF*
40ms
110ms
150ms
SOUND ON*
MUTE
AUDIO SELECT
(For AV/SV/YPbPr/
VGA input)
ANALOG*
S/PDIF

13
MAIN MENU SUBMENU 3RD MENU 4TH MENU
SETUP FACTORY RESET
KEY LOCK OFF*
ON
POWER SAVE OFF*
ON
INFORMATION INPUT
OUTPUT
REVISION
Note:ItemswithAsterisk(*)aretheFactorydefaultsettings.

14
6.7 Input Resolution Support
INPUT RESOLUTION CV/SV COMP PC HDMI
NTSC/PAL ---
480i/576i --
480p/576p --
720p@50/60Hz --
1080i@50/60Hz --
1080p@50/60Hz --
VGA@60/72/75Hz - -
SVGA@56/60/72/75Hz - -
XGA@60/70/75Hz - -
SXGA@60/75Hz - -
UXGA@60Hz - -
1280×800@60Hz - -
1680×1050RB@60Hz - -
1920×1080@60Hz - -

15
6.8 Output Resolution Support
OUTPUT RESOLUTION PC/HD HDMI
480p/576p HD
720p@50/60Hz HD
1080i@50/60Hz HD
1080p@50/60Hz HD
VGA@60Hz
SVGA@60Hz
XGA@60Hz
SXGA@60Hz
UXGA@60Hz
1280×768@60Hz
1280×800@60Hz
1360×768@60Hz
1400×1050@60Hz
1440×900@60Hz
1680×1050@60Hz
1920×1200@60Hz

16

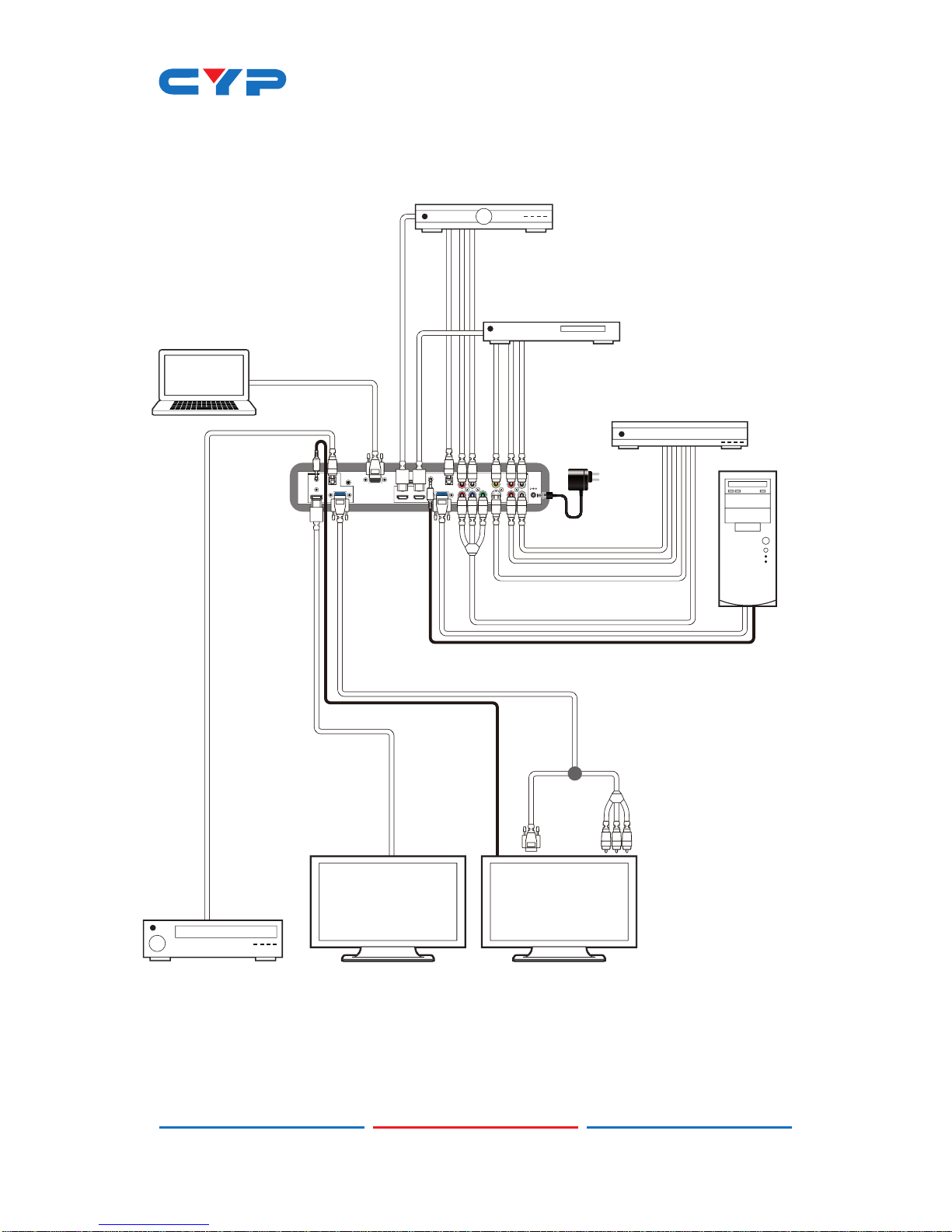

7. CONNECTION DIAGRAM
DC 5V
2ECIVRES1ECIVRES
OPTICAL OPTICAL
RS232
L/R L/R
Cr/Pr Cb/PbY SV
RL
RL
RLCV
HDMI 1 HDMI 2
PC/HD PC
OUTPUT INPUT
HDMI
OR
HD Satellite Receiver
Set-top Box
PC
PC or RS-232
Control System
Blu-ray/DVD Player
VGA and Analog Audio Inputs
HDMI, Optical Digital and
Analog Audio Inputs
HDMI, Composite Video and
Analog Audio Inputs
S-Video and
Analog Audio Inputs
HDMI
Output
Analog
Audio
Output
Optical
Digital
Output
VGA
Output
Power
Supply
Component
Output
TV or Monitor with
3.5mm audio input
TV or MonitorAV Receiver
RS-232
Other manuals for CSLUX-300
1
Table of contents
Other CYP Media Converter manuals
Popular Media Converter manuals by other brands

Connection Technology Systems
Connection Technology Systems WPC-2012 Series user guide

AV TOOL
AV TOOL AVT-3190HD instruction manual

IMC Networks
IMC Networks McPC TP/BNC Operation manual

Binder
Binder 8012-0556 installation manual

DYNAPAR
DYNAPAR NorthStar Rim Tach RT8500 instruction manual

Elabs
Elabs QVP401 instruction manual
