CYP CPT-380 RGB User manual

PC to TV Converter
(CPT-380 RGB)
Operation Manual
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

Introduction
This unit is a PC to TV scaler converter, which is designed to convert a variety of
computer images to interlaced NTSC / PAL / RGB or YUV. It is ideal for use in
applications like video conferences, home theater, business presentation, lecturing room
or viewing PC image on TV.
Precautions
1. Do not expose this product to direct sunlight.
2. Keep the unit away from radiator, heat sources and magnetic field.
3. Do not place it in very dusty or humid locations.
4. Use this unit in a horizontal position only.
5. Do not put heavy objects on top of the converter.
6. Put the unit in an open space that has good ventilation.
7. If the unit is acting abnormally keep the unit away from TV or other electronic
equipment.
8. Unplug the unit from the power supply when it is not to be used for a long period
of time.
eatures
•Automatically detects and down converts the incoming PC images to NTSC,
PAL, RGB or YUV.
•Supports high-resolution PC input up to UXGA (1600x1200@60Hz).
•Output video format is selectable between composite/S-Video, YUV and RGB
through a control button on the remote.
•Supports high input refresh rate up to 140Hz(VGA).
•Adjustable images scaling.
•Pan, Position and Zoom.
•Advanced 2-D flicker filter ensures flicker-free picture.
•Last memory.
•Adjustment and control through RS-232 interface.
•Useful functions, overscan, freeze, test pattern, magnifier.
•Remote control.
•OSD operation display.
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

Operation Controls and unctions

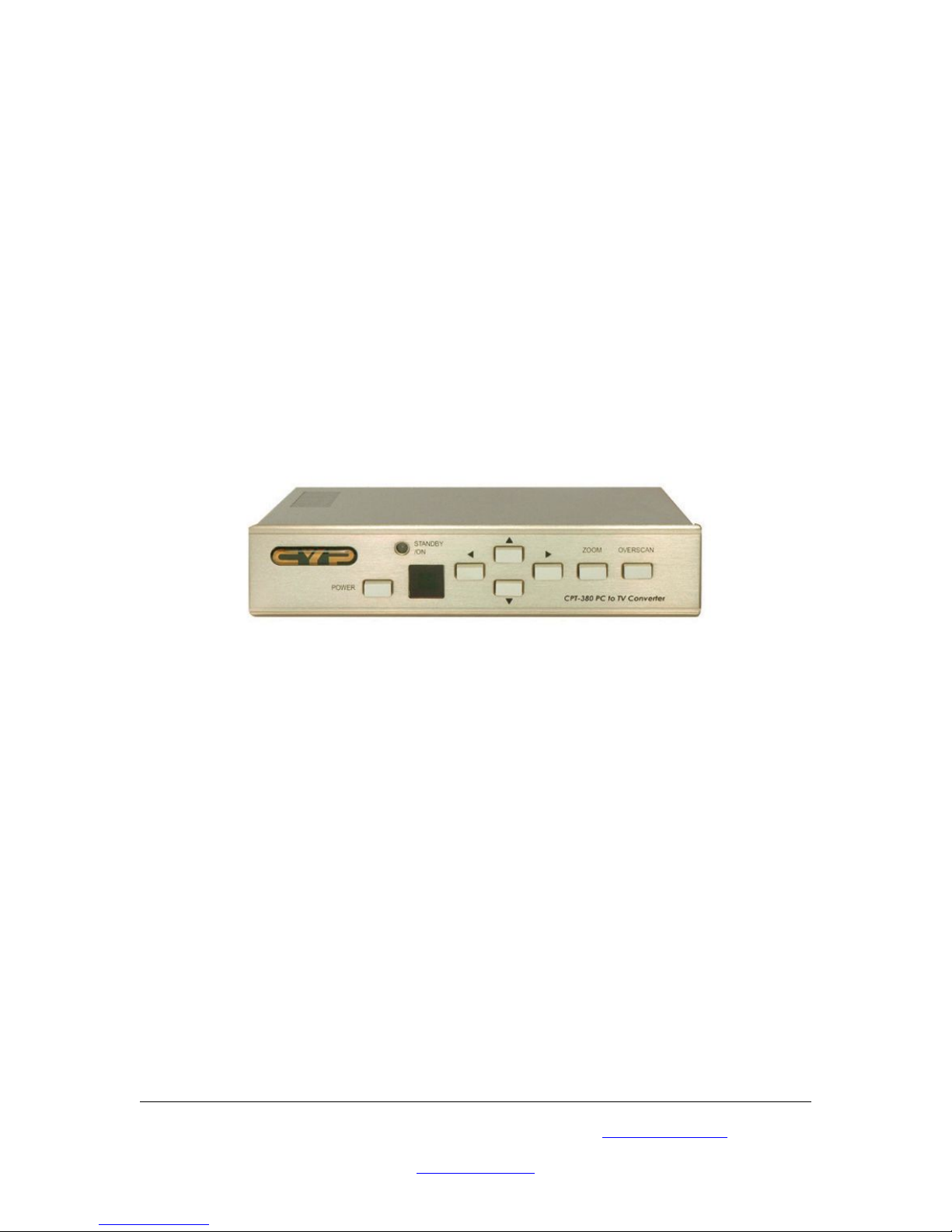

ront Panel
1. Power Button- This button is used to turn the unit on or standby.
2. Standby/On LED- This indicator illuminates in red when in STANDBY mode.
The LED illuminates in green when the unit is in ON mode.
3. Up Arrow- Under zoom mode push the button to adjust the picture upward.
4. Down Arrow- Under zoom mode push the button to adjust the picture downward.
5. Left Arrow- Under zoom mode push the button to adjust the picture leftward.
6. Right Arrow- Under zoom mode push the button to adjust the picture rightward.
7. Zoom Button- This button is used to zoom in or out of a picture.
8. Overscan Button- Push this button if you wish to underscan or overscan the
picture.
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

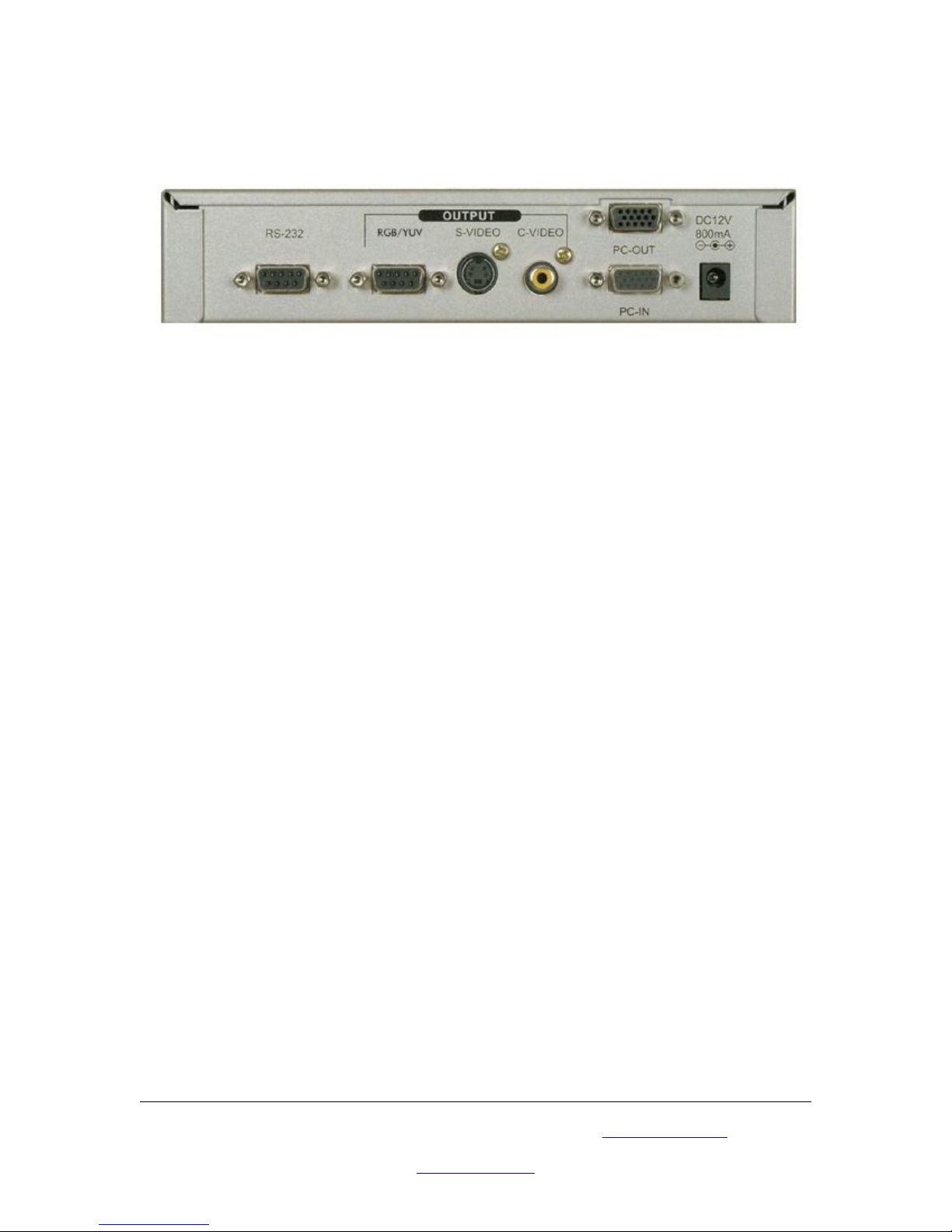

Rear Panel
1. RS-232- Connect this port using a 9 Pin D-Sub connector.
2. RGB/YUV Output- This is the RGB/YUV output port. Connect the output port
to your device using a HD-15 connector cable.
3. S-Video Output- This is the S-Video output port. Connect the output port to your
device using a mini-din connector cable.
4. C-Video Output- This is the Composite Video output port. Connect the output
port to your device using a RCA connector cable.
5. PC-Out- This is the PC Out port. Connect this port to your device using a HD-15
connector.
6. PC-In- This is the PC In port. Connect this port to your device using a HD-15
connector.
7. Power DC-12V 800mA - Centre positive- This is the power supply input port.
Connect your power supply to the port.
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

Remote Control
1. Power- This is the button used to turn the power On or Off.
2. Video setting adjustment- This button is used for the adjustment of picture
contrast, brightness, colour and sharpness.
3. V-Reset- Press this button to reset picture adjustment to factory default values.
4. NTSC-PAL- Press the button to select either NTSC or PAL as video output.
5. Colour bar patter-On/Off- Press the button to show colour bar pattern on the
screen when there is no PC input, press the button again to close the colour bar.
6. Image reeze-On/Off- Press the button to freeze or unfreeze the image.
7. Output format- Press repeatedly to toggle through CV/SV-RGB-YUV.
8. Underscan/Overscan- Press the button to choose an overscan or underscan
image.
9. 9 blocks selection zoom- Under zoom mode press one of the buttons to select the
corresponding sub-area, which is 1/9 of the full screen.
10. Zoom On/Off- Press the button to zoom in on a picture, press again to zoom out.
11. Horizontal/Vertical adjustment knob- Adjust the size or the position of an
image when it is under zoom, pan/position, or size/EXP mode. Adjust the setting
value of picture adjustment in 2.
12. Default- Press the button to revert the following parameters to factory-preset
values: zoom, position, size and picture adjustment.
13. Pos/Pan- hen a picture is in underscan mode, press the button to do position
adjustment. hen a picture is in overscan mode, press the button to do pan
adjustment.
14. System Reset- Press the button to revert all system parameters back to factory-
preset values. The system parameters are default as follows- overscan, NTSC
output, 4:3 aspect, normal brightness, video settings reset (position, pan, size,
expand reset).
15. Size/EXP- hen a picture is in underscan mode, press the button to do size
adjustment. hen a picture is in overscan mode, press the button to do expand
adjustment.
16. Aspect- Press the button to switch between standard 4:3 and wide screen 16:9
aspect ratio.
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

RS-232 Software operation
-PC OS: indows 98/ME/2000/XP.
-Software Installation:
1. Place installation CD on CD-ROM Drive.
2. Execute setup.exe on installation CD.
3. OS maybe needs to update some files. Please restart the PC. After re-starting the PC,
execute setup.exe again.
4. Click taskbar menu- Start-Programs-CPT-380 to execute software.
- If RS-232 is not ready then software enters into virtual mode.
- After RS-232 and the converter is ready, start the software again and enter into real
mode.
MAIN PANEL
1. Power: Power On/Off.
2. Mode indicator- Grey icon: virtual mode operation.
Coloured icon: Real mode operation.
3. System reset- Reset CPT-380 unit.
4. Zoom- Drag and move to the place where you want to see.
If the PC screen image is changed then press refresh.
5. Magnifier- Drag and move magnifier to the place where you want to see.
If the screen image is changed then click refresh.
6. Overscan/underscan- TV overscan adjustments are “pan” and “expand”.
Underscan adjustments are “position” and “size”.
7. Option- TV systems- NTSC or PAL output.
Aspect patter: 4:3 or wide-screen.
Test pattern: Colour bar test pattern- On/Off.
indow on top: Application software window always on top-On/Off.
8. Position/Pan- Position is for underscan, pan is for overscan.
9. Size/Expand- Size is for underscan, expand is for overscan.
10. Output ormat- The output format can be Composite Video/S-Video, RGB or
YUV.
11. reeze- This is to freeze the screen.
12. Video settings- Contrast brightness, colour and sharpness adjustment.
13. Close- Terminate application software.
14. Minimize- Shrink application software to window taskbar.
15. System tray- Shrink application software to system tray, click the loan and return
to normal window.
16. About- Display application software version and firmware version.
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

Software Operation
1. Close- Terminate application software.
2. Position/Pan and Size/Expand Adjustments- Position/Size for Underscan,
Pan/Expand for Overscan.
3. Output ormat- Select the output format desired- toggle through C-Video/S-
Video, RGB or YUV.
4. Screen freeze- Still screen.
5. Video Settings- Contrast, brightness, colour and sharpness adjustment.
Connection and Installation
The AC adaptor power unit should not be plugged into a wall outlet until all connections
are complete.
- Connect your Output device (TV-NTSC/PAL) to the Composite Video/S-Video
Output port (Number 3/4 on the rear panel). Composite Video requires a RCA cable
connector, while S-Video requires a mini-din connector cable for connection from the
output port to the device.
- Connect your device (RGB/YUV TV) to the RGB/YUV output port (Number 2 on
the rear panel) using a HD-15 connector.
- Connect your PC output device (LCD monitor) to the PC Out port (Number 5 on rear
panel). The PC requires a HD-15 connector for connection between the output port
and the device.
- Connect your PC input device (PC, Notebook) to the PC In port (Number 6 on rear
panel). The PC requires a HD-15 connector for connection between the input port and
the device.
- RS 232 is provided with a communication interface by connecting the 9 Pin D-Sub
terminal to connect with your PC (Number 1 on the rear panel).
- Connect the power supply to the power supply input port.
Once all connections are complete, switch the power button ON and please connect the
power supply provided to the power socket.
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

Specifications
Input Terminal HD-15 R/G/B/H/V
Input Resolution Common resolution lists:
VGA @ 60 Hz up to 140 Hz refresh rate.
SVGA @ 60 Hz up to 120 Hz refresh rate.
XGA @ 60 Hz up to 85 Hz refresh rate.
SXGA @ 60 Hz refresh rate.
UXGA @ 60 Hz refresh rate.
Output Terminal Composite Video RCA
S-Video mini din
PC-Out (pass-through) HD-15
PC-In HD-15
RGB/YUV- Out HD-15
Output System NTSC or PAL TV system
R/G/B/H/V (PC pass through)
R/G/B/Sync Fh= 15KHz, Fv= 50/60 Hz
Y/U/V Sync Fh= 15KHz, Fv=50/60 Hz
RGB/YUV HD-15 Pins definition
The sync pin is composite sync.
Controls Front panel control, IR remote control,
RS-232 control.
Accessories HD-15 (male) to HD-15 (male) VGA
cable x 1.
IR remote control x 1.
Application software CD x 1.
Power DC 12V 800mA center: positive
Dimensions 240 ( ) x 155 (D) x 50 (H) mm
Weight 1 Kg
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv

Remote Control Protocol
* The connection between the converter and the remote control is with a RS-232 modem
cable.
Pins definition of modem cable
CPT-380-RGB Remote Controller
S- 232 Transmission ormat:
Baud Rate: 9600 bps
Data Bit: 8 bits
Parity: None
Stop Bit: 1 bit
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NS , 2304 Australia, [email protected]
Phone [phone] Fax [phone]
www.converters.tv
Pin Definition
1 NC
2 R x D
3 T x D
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
Pin Definition
1 NC
2 T x D
3 R x D
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
