Cypress CH-1507TX User manual

CH-1507TX & CH-1507RX
HDMI to CAT5e/6/7 Transmitter and Receiver with
LAN/IR/RS-232/PoE
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 21/10/13 Prelimiary Release
VS1 09/12/13 Updated Text/Diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Transmitter Front and Rear Panels ..3
6.2 Receiver Front and Rear Panels......4
6.3. IR Cable Pin Assignment .................5
6.4. D-Sub 9-Pin Denitions .....................5
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
8.1 Technical Specications ..................7
8.2 CAT5e/6/7 Cable Specication ......8
9. Acronyms ............................................... 8

1
1. INTRODUCTION
The CH-1507 Transmitter and Receiver set can send uncompressed
audio/video and IP data over a single run of CAT5e/6/7 cable at
a distance of up to 100 meters. It has the added benet of control
through the built-in RS-232 and IR ports and a bi-directional LAN
serving connection. The receiver (PD) can be powered by the PoE
(48V) function of the transmitter (PSE), allowing for greater exibility in
installations
2. APPLICATIONS
• 48V PoE (Power over Ethernet) from Transmitter (PSE) to Receiver (PD)
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• 1×HDMI to CAT5e/6/7 (with LAN/IR/RS-232) Transmitter
• 1×CAT5e/6/7 to HDMI (with LAN/IR/RS-232) Receiver
• 1×IR Blaster
• 1×IR Extender
• 1×48 V/0.83 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such as a DVD/Blu-ray player and HDMI
equipped output display (TV or monitor).

2
5. FEATURES
• HDMI with 3D, 4K×2K support, HDCP and DVI compliant
• Simultaneous transmission of uncompressed data over a single
CAT5e/6/7 cable up to 100m/328ft
• HDBaseT™ 5PlayT™ convergence: uncompressed high denition Video
and Audio, LAN serving, Power over Ethernet and RS-232/IR control
• Uncompressed video support up to 1080p@60 Hz/36-bit
• High denition audio support up to LPCM 7.1CH, Dolby TrueHD,
Dolby Digital Plus and DTS-HD Master Audio
• Supports audio sampling rates of 32 kHz to 192 kHz
• Supports standard 48V power from Transmitter (PSE) to Receiver (PD)
• Supports CEC bypass
• Installation friendly
Note:
1. This system was tested with CAT5e/6/7 cables, results may vary
with cables of a different specication.
2. The standard 48V PoE function is designed for powering
compatible Receiver units only—non-PoE Receivers will need
their own power supply. Receivers from other brands may not be
compatible.
3. For playback of 4K×2K HDMI source signals, a 4K×2K capable
display and High Speed HDMI cables are required.

3
6. OPERATION CONTROLS AND FUNCTIONS

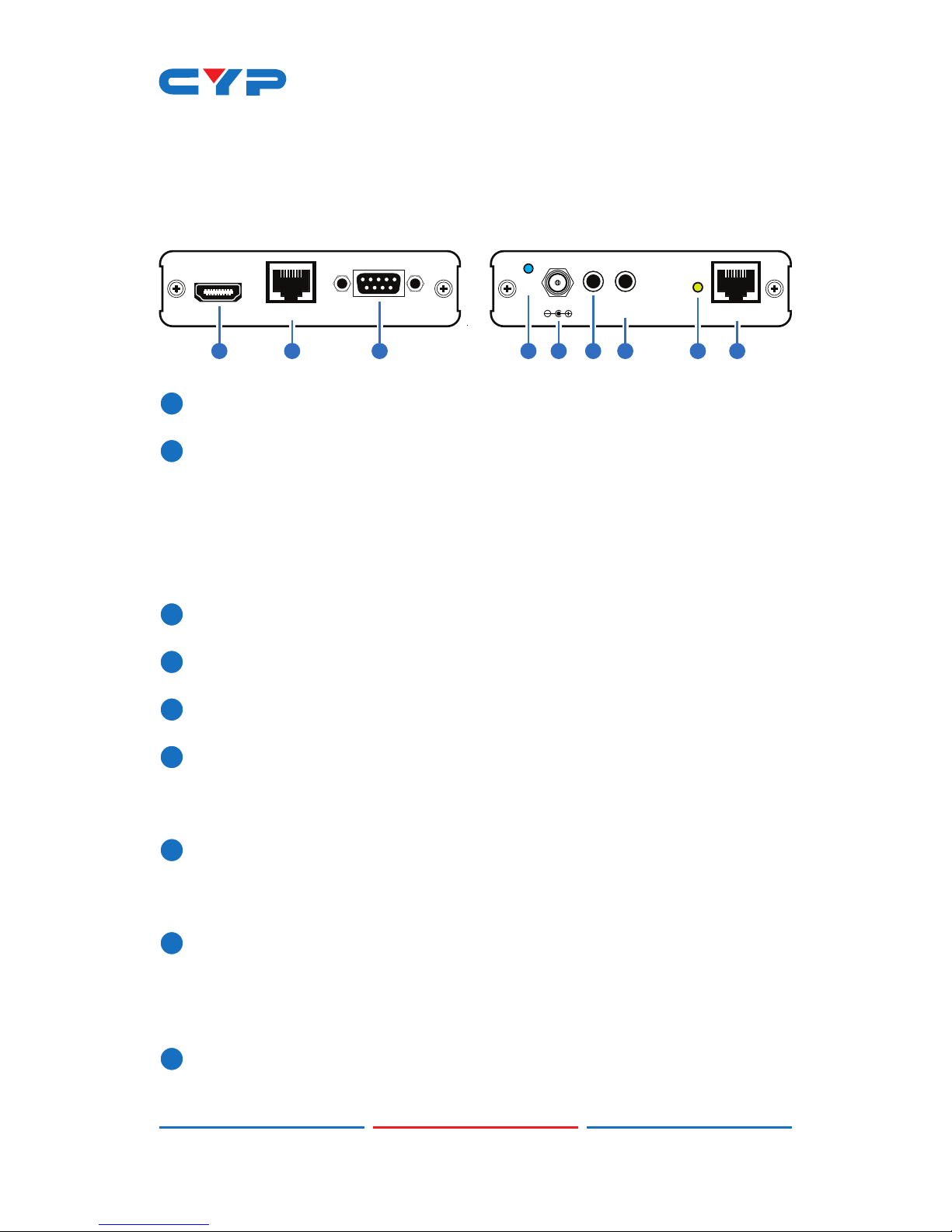

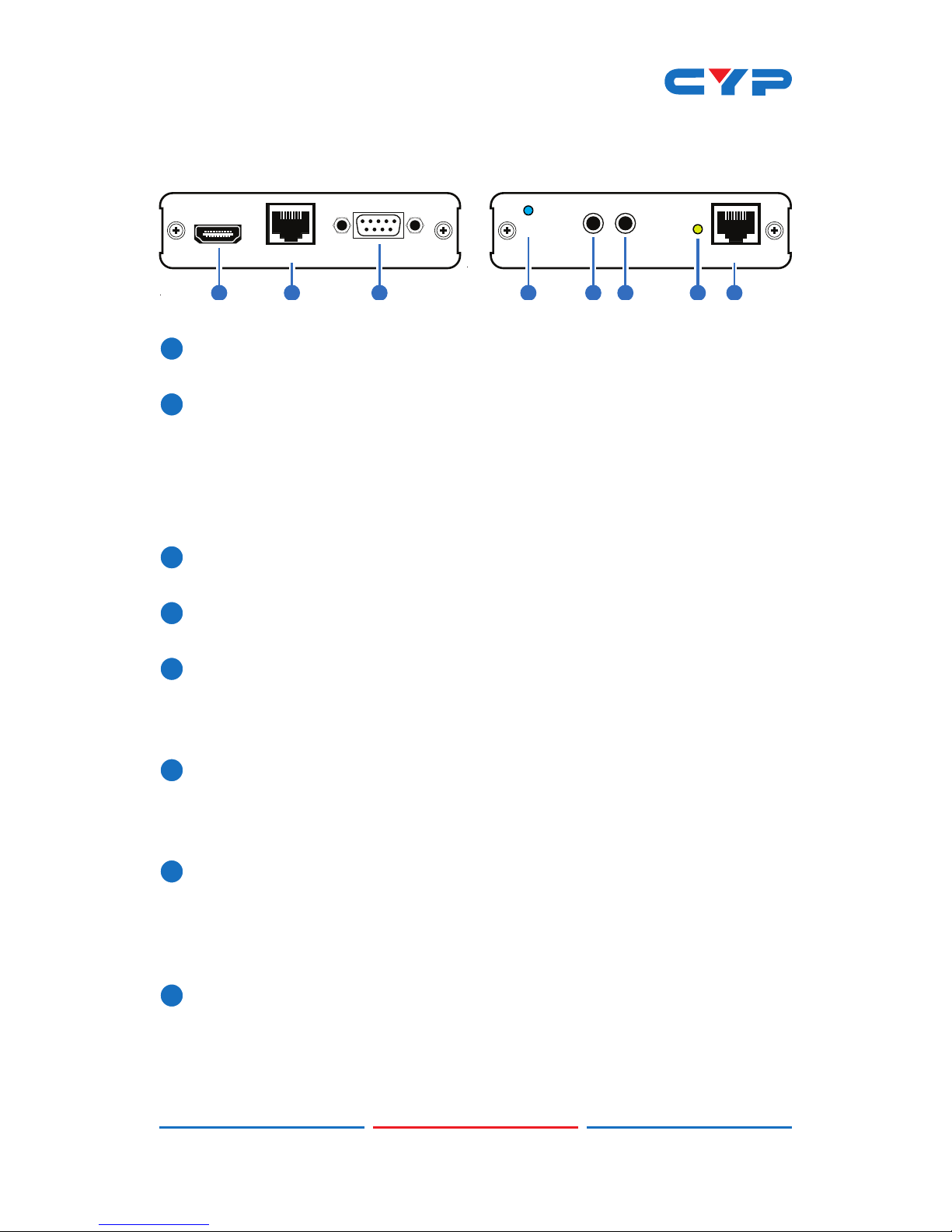

6.1 Transmitter Front and Rear Panels
RearFront
RS-232 In
LAN
HDMI In
HDMI to CAT5e/6/7 with LAN/IR/RS232
Transmitter
CAT5e/6/7 Out
Link
IR2 Extender
IR1 Blaster
DC 48V
Power
2 31 64 7 8 95
1
HDMI IN: Connect to HDMI source equipment such as a DVD or
Blu-ray player.
2
LAN: Connect to an active network for LAN serving. This allows
network access (including internet access if available) to
be shared to any device (e.g. a smart TV or games console)
connected to the LAN port of the receiver
Warning: DO NOT connect the LAN connection to the CAT5e/6/7
output, doing so may trigger a power shut down and may damage
the device.
3
RS-232 IN: Connect to a PC or laptop with D-Sub 9-pin male cable
for the transmission of RS-232 commands.
4
POWER LED: This blue LED will illuminate when the device is
connected to a power supply.
5
DC 48V: Connect the 48 V DC power supply to the transmitter and
Plug the adaptor into an AC outlet.
6
IR 1 BLASTER: Connect an IR Blaster cable for IR signal transmission.
IR signals received by an IR extender connected to the receiver
unit will be transmitted by this blaster. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
7
IR2 EXTENDER: Connect an IR Extender cable for IR signal reception.
Signals received will be transmitted from any IR blaster connected
to the receiver unit. Ensure that the remote being used is within the
direct line-of-sight of the IR Extender.
8
LINK LED: The yellow LED will illuminate when both the source
connected to the transmitter and the display connected to the
receiver are connected. The LED will blink regularly to indicate
that no signal is being received from the display and irregularly to
indicate that an error has occurred.
9
CAT5e/6/7 OUT: Connect to the receiver unit with a single
CAT5e/6/7 cable for transmission of all data signals.

4
6.2 Receiver Front and Rear Panels
RS-232 Out
LAN
HDMI Out
CAT5e/6/7 to HDMI with LAN/IR/RS232
Receiver
RearFront
CAT5e/6/7 In
Link
IR1 Extender
IR2 Blaster
Power
2 31 65 7 84
1
HDMI OUT: Connect to a HDMI equipped TV/monitor for display of
the HDMI input source signal.
2
LAN: Connect to a LAN equipped device (such as a smart TV or
games console) to share the network access (including internet
access if available).
Warning: DO NOT connect the LAN connection to the CAT5e/6/7
output, doing so may trigger a power shut down and may damage
the device.
3
RS-232 OUT: Connect to the device that is to be controlled (via
D-Sub 9-pin female cable) by RS-232 commands.
4
POWER LED: This blue LED will illuminate when the device is
connected to a power supply.
5
IR2 BLASTER: Connect an IR Blaster cable for IR signal transmission.
IR signals received by an IR extender connected to the transmitter
unit will be transmitted by this blaster. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
6
IR1 EXTENDER: Connect an IR Extender cable for IR signal reception.
Signals received will be transmitted from any IR blaster connected
to the tranmitter unit. Ensure that the remote being used is within
the direct line-of-sight of the IR Extender.
7
LINK LED: The yellow LED will illuminate when both the source
connected to the transmitter and the display connected to the
receiver are connected. The LED will blink regularly to indicate
that no signal is being received from the display and irregularly to
indicate that an error has occurred.
8
CAT5e/6/7 IN: Connect to the transmitter unit with a single
CAT5e/6/7 cable for transmission of all data signals.

5

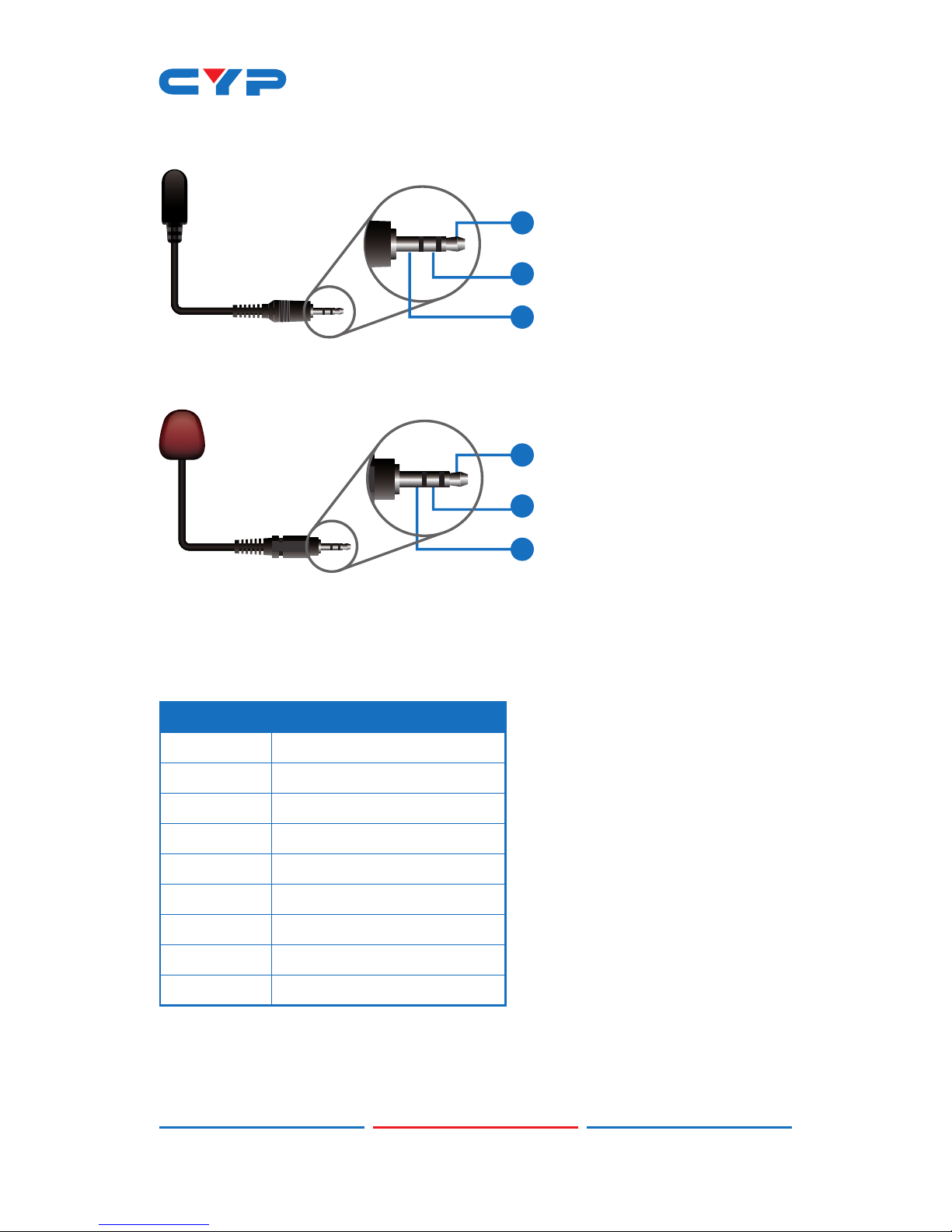

6.3. IR Cable Pin Assignment
3
1
2
3
1
2
Power 3.3V
IR Blaster Signal
NC
IR Signal
Power 3.3 V
Ground
IR Extender
IR Blaster
6.4. D-Sub 9-Pin Denitions
PIN DEFINE TX / RX
1N/C
2TxD / RxD
3RxD / TxD
4N/C
5GND
6N/C
7N/C
8N/C
9N/C

6

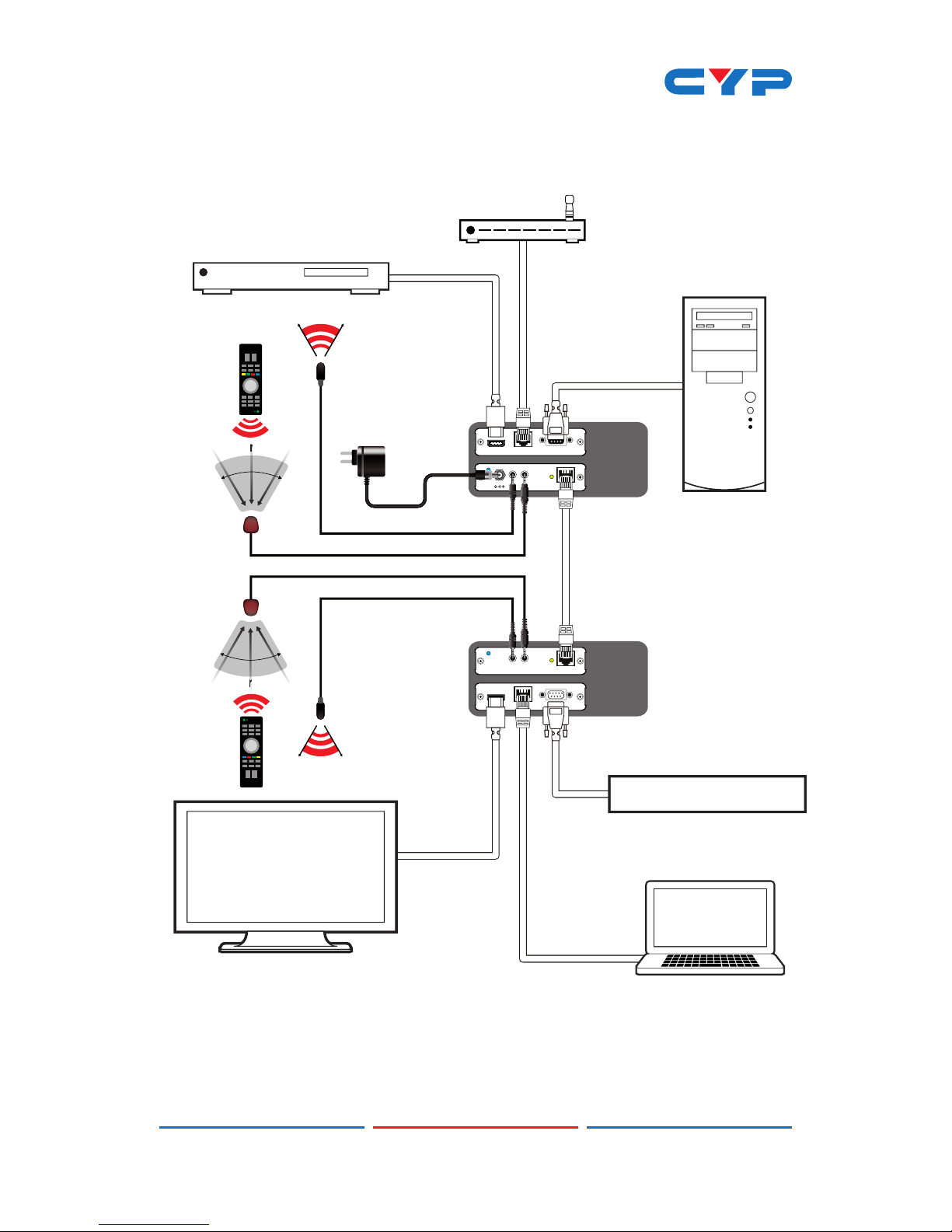

7. CONNECTION DIAGRAM
RS-232 IN
LAN
HDMI IN
HDMI to CAT5e/6/7 with LAN/IR/RS-232
Transmitter
CAT5e/6/7 OUT
LINK
IR2
EXTENDER
IR1
BLASTER
DC 48V
POWER
CAT5E/6/7 IN
LINK
IR1
EXTENDER
IR2
BLASTER
POWER
RS-232 OUT
LAN
HDMI OUT
CAT5e/6/7 to HDMI with LAN/IR/RS-232
Receiver
1.5m
60°
1.5m
60°
7m
3m 3m
60°
m
7m
3m 3m
60°
m
TV or Monitor
RS-232 Equipped
PC or Notebook
RS-232 Equipped
HDMI Switcher
Notebook
DVD/Blu-ray Player
Internet Modem
or Router
Power Supply
CAT5e/6/7
Cable (100m)
IR Blaster 1
HDMI
Output
LAN
RS-232
HDMI
Input
IR Extender 2
IR Extender 1
IR Blaster 2 RX
TX
LAN
RS-232

7
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 300MHz/10.2Gbps
Ethernet Speed 100 Mbps
Transmitter
Input Ports 1×HDMI, 1×IR Extender,1×RS-232, 1×LAN
Output Ports 1×CAT5e/6/7, 1×IR Blaster
Receiver
Input Ports 1×CAT5e/6/7, 1×IR Extender
Output Ports 1×HDMI, 1×RS-232, 1×IR Blaster, 1×LAN
HDMI In Cable Distance 15m/1080p@8-bit or 6m/1080p@12-bit
HDMI Out Cable
Distance
15m/1080p@8-bit or 10m/1080p@12-bit
CAT6 Cable Distance Up to 100m
HDMI Resolutions
Support
480i~1080p@50/60, 1080p@24, 3D,
4K×2K@24/25/30 & VGA~WUXGA
IR Frequency 30~50 kHz
ESD Protection Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Power Supply 48 V/0.83 A DC (US/EU Standards, CE/FCC/
UL certied)
Dimensions 102 mm (W)×113 .5 mm (D)×25 mm (H)/TX
102 mm (W)×107 mm (D)×25 mm (H)/RX
Weight 262 g/TX, 262 g/RX
Chassis Material Aluminum
Chassis Color Silver
Power Consumption 15 W
Operating Temperature 0 °C~40 °C/32 °F ~104 °F
Storage Temperature −20 °C~60 °C/−4 °F~140 °F
Relative Humidity 20~90 % RH (non-condensing)

8
8.2 CAT5e/6/7 Cable Specication
Cable Type Range Pixel Clock
Rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz, 36
bits, 3D (data rates
lower than 5.3 Gbps
or below 225 MHz
TMDS clock).
70 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K×2K, 30Hz video
formats
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
HDCP High-bandwidth Digital Content Protection
HDMI High Denition Multimedia Interface
IR Infrared
PD Powered Device
PSE Power Sourcing Equipment

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
20130524 MPM-CH1507
