Czur ET-16 User manual

CZUR TECH CO., LTD.
Website http://www.czur.com
E-mail [email protected]
Skype [email protected]
Room 1701, Oriental Science and Technology Building, No.16, Keyuan Road, Nanshan
District, Shenzhen, China.

USER MANUAL
(ET Series)

Contents
CHAPTER 1. INTRODUCTION.........................................................................................................4
1.1 PRODUCT SUMMARY...................................................................................................................4
1.2 PRODUCT DIMENSIONS...............................................................................................................4
1.3 PRODUCT APPEARANCE .............................................................................................................. 5
1.4 PRODUCT SPECIFICATIONS.......................................................................................................... 7
1.5 PACKAGING AND ACCESSORIES .................................................................................................... 7
CHAPTER 2. OPERATION GUIDELINES............................................................................................8
2.2.1 Computer Mode (USB-PC)......................................................................................................9
2.2.2 Wi-Fi Mode.............................................................................................................................9
2.2.3 Visual Presenter Mode (HDMI) .............................................................................................10
2.3 HARDWARE UPDATE................................................................................................................. 10
2.4 RESTORE FACTORY SETTING ..................................................................................................... 10
CHAPTER 3. FREQUENTLY ASKED QUESTIONS AND TROUBLESHOOTING ...................................... 10
3.1 PC MODE (USB) PROBLEMS...................................................................................................... 10
3.2WI-FI MODE (SMART PHONE)PROBLEMS.....................................................................................11
3.3 VISUAL PRESENTER MODE (HDMI) PROBLEMS ............................................................................ 12
CHAPTER 4. TERMS OF SERVICE .................................................................................................. 13
4.1 AFTER SALE SERVICE AND GUARANTEE....................................................................................... 13
4.2 WARRANTY PROCESS ............................................................................................................... 13
4.3 CONTACT INFORMATION ........................................................................................................... 14

Chapter 1. Introduction
1.1 Product Summary
The CZUR scanner is a new type of intelligent scanner whose foremost features are its
extremely high scanning speed, its ability to recognize and correct for curved, incorrectly
positioned, or soiled pages, and its ability to quickly and easily convert scanned pages to
more useful formats (PDF, searchable PDF, TIFF, or text documents.)
It can operate as a scanner when connected to either a PC (by a USB cable), or to a smart
phone (by an app over a Wi-Fi connection.) Or, via HDMI cable (not included), it can provide
input to visual display device.
The scanner can, using built-in algorithms, automatically handle pages otherwise difficult
or very time-consuming to scan. For example, it can automatically flatten the curved pages
of open books (using laser lines), erase fingerprints, automatically split double pages into
two, and correct pages positioned incorrectly. This allows large books to be scanned and
archived very quickly.
It's a completely new approach to scanning and can save hours of time scanning either
simple or complex tasks of document digitizing, archiving, and sharing. It is unlike any
scanner in its price range.
1.2 Product Dimensions

1.3 Product Appearance
CZUR Scanner
TFT
Head
Hand Button
Foot Pedal
1. Microphone
2. Base
3. Top Casing
4. Laser light
5. Vertical bar
6. LED brightness(high/low)
7. Zoom in (+) (HDMI mode only)

8. Zoom out (-) (HDMI mode only)
9. Scan (start next scan) (see Note A below)
10. TFT display screen (see TFT Notes below)
11. Wi-Fi indicator light (see Note B below)
12. Scan indicator light (see Note C below)
1 3. Power indicator light (White)
14. HD CMOS camera
15. Bank of LED lights
16. Bank of LED lights
17. Power on/off switch
18. DC 9V 2A, AC volt 100-240V 50/60Hz
19. To USB cable for computer connection
20. USB port for Foot Pedal or Hand Button
21. Reset Button (see Reset Button Notes below)
22. HDMI interface- for Visual Presenter
23. Hand Button light "Scan in progress"
24. Hand Button (to start next scan)
25. Foot Pedal cover
26. Foot Pedal base
Notes

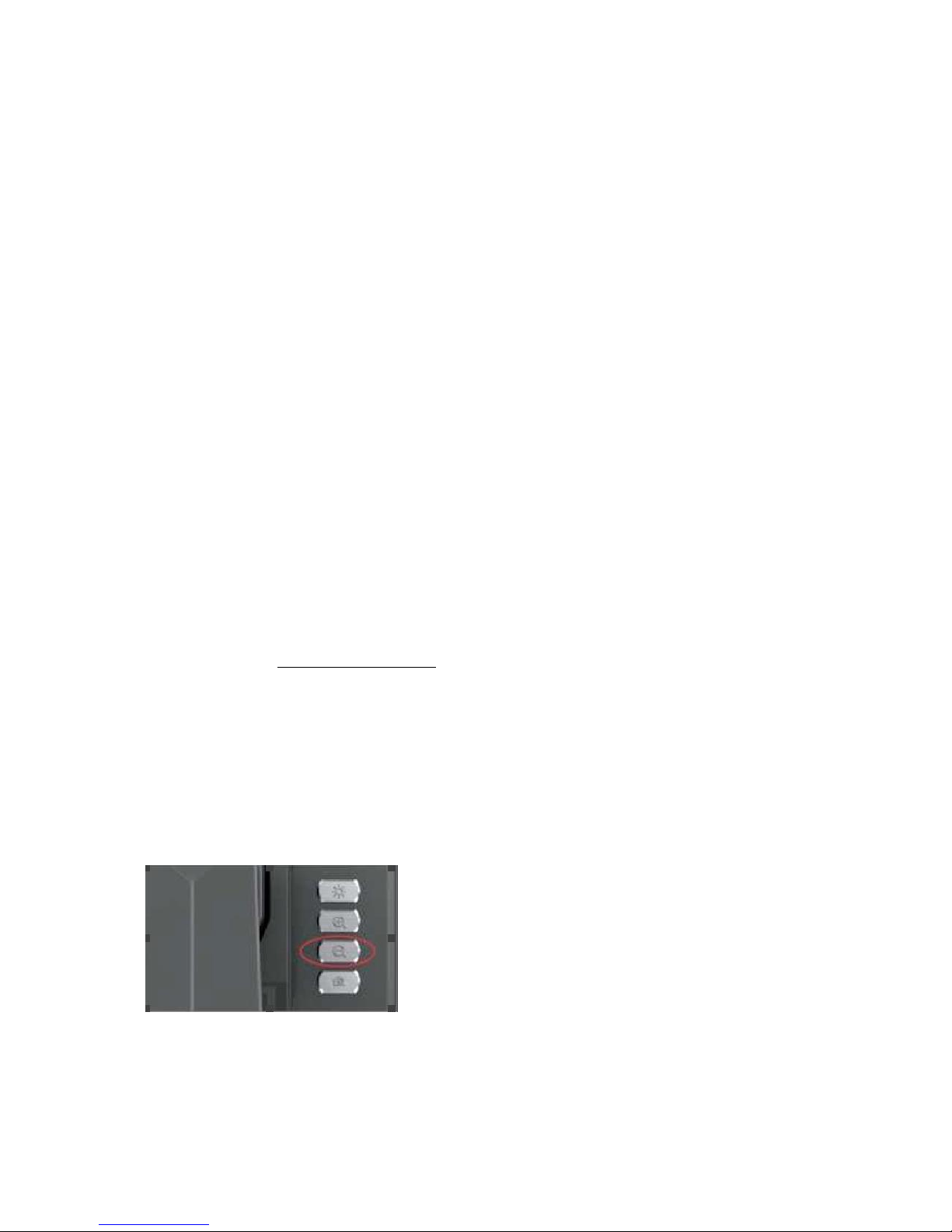

A. In Wi-Fi mode, press and hold Scan button for 3 seconds to quickly release your account
from the scanner.
B. Green & blue lights flash. Wait for sound.
C. Red light on = scanning (don't move page). Red light off = scan is complete. TFT Notes
•TFT = Thin Film Transistor, a type of LCD flat-panel display screen.
•In HDMI mode, screen is off.
•When connected to a PC, displays if uploading or not to the PC.
•When using a smart phone, shows if connected or not and if uploading to the cloud or not.
Reset Button Notes
•Short Press = Retry Connection. Searches for Wi-Fi connection to smart phone (green light
flashes.)
•Long Press (hold for 6 seconds) = Reset. Erases Wi-Fi name & password; waits for 10-second
long tone; green & blue lights flash alternately.

1.4 Product Specifications
Type
Model
ET16
Basic
characteristics
Pixel
16M
Resolution
4608*3456
Speed
≈1.5S
Format
≤A3
Video Format
MJPG
Picture Format
JPG/PDF
Configuration
parameters
Processor
32 MIPS CPU
DDR
1Gbit
Flash
2G Byte
Laser rays
3 laser rays
TFT
√
MIC
√
Smart scan
support
Specific
functions
Visual Presenter
support
Wi-Fi
support, 2.4Hz
Cloud service
support
OCR
support
SDK
support
Software function
flattening curve, erasing fingerprint,
smart paging, correction position,
edge cutting, auto scanning.
System
XP/Win 7/Win 8/Win 10, 32bit/64bit;
Mac OS 10.11 and above
1.5 Packaging and Accessories
Item
Specification
Amount (pcs)
Scanner
CZUR smart scanner
1
Hand button
USB interface, 1.2M
1
Foot pedal
USB interface,2.0M
1
USB cable
USB interface,1.5M
1
AC/DC Power adapter
Input AC :100-240V-50/60HZ 0.6A output DC:9V/2A
1
Soft texture pad
530*401 *2.0MM
1
Specific fingerstalls
Left hand big 8i small; Right hand big & small
4
CD-ROM
CD-R,D=120MM
1

User manual
Color printing,72.25*105MM
1
Quality Certificate
White card, 55x90MM 250g
1
Warranty Card
Art paper, 120x100MM 210g
1
Quick Start Guide
100*83MM Coated paper color printing
1
Chapter 2. Operation Guidelines
2.1 Scanning Preparation
1. Place the scanner on a surface (table, desk, or counter) large enough to fit the pages
you plan to scan or display.
2. Plug either the Hand Button or Foot Pedal into the scanner' s USB port (in the back
of the base).

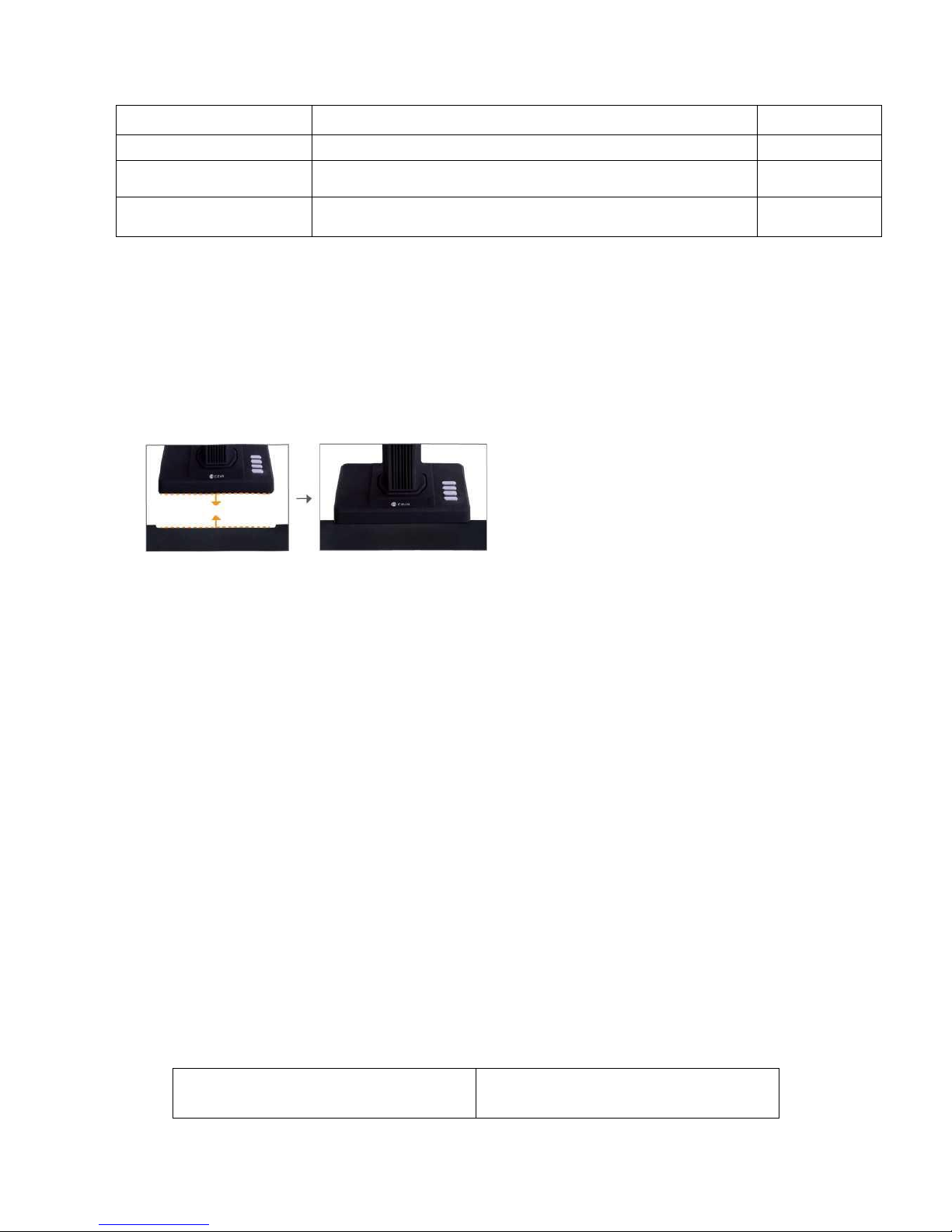

3. Spread the black pad under the scanner' s head. Ensure that the gap of the "black
soft pad" align with device.
4. Check the LCD on the head portion to see if the black document pad covers the
entire screen and ensure that the desk surface or random edges are not included
within the scan. (it is extremely important to make sure that the black document
pad covers the entire screen properly to help the smart algorithm carries out its
calculations and ensure image processing is carried out properly).
5. Special reminders
1) When scanning larger projects (such as books or multiple documents), we
recommend using the Computer Mode (USB-PC) and connecting to the foot pedal to
make the scanning process more efficient. Using a computer during scanning will
provide additional editing functions to improve the quality and professionalism of the
scanned and processed images. Wi-Fi Mode is suitable for scanning documents with
only a few pages and require only a little or no editing or additional processing.
2) Avoid scanning documents in places near windows or environments with strong
lighting. Excessively bright ambient lighting will affect the brightness of the ET laser
lines and negatively affect scanning results.
3) When scanning books, the 3 laser lines of the ET scanner must be on the curved pages.
Failure to do so will negatively affect scanning results.
4) Please wear the special finger cots provided with the ET scanner when holding down
the pages during the scanning process to ensure that the finger removal function
works properly. Failure to wear the finger cots would affect the finger removal
algorithm.
5）When scanning, review your own needs and select the proper processing modes of
either [Flat Single Page] or [Facing Pages].
[Flat Single Page] mode for single, flat
sheets of paper
[Facing Pages] mode for bound sheets
of paper (books)

Auto-recognition of paper edges
Auto-recognition of page curvature
Auto-cropping and tilt correction
Auto-flattening of curved pages and
removal of fingers (with finger cots)
2.2 Work Mode
There are 3 ET modes: (1) USB, (2) HDMI, and (3) Wi-Fi. The sequence of priority is USB >
HDMI > Wi-Fi.
1. When HDMI connection has been established, the Wi-Fi mode will be automatically
switched off.
2. When USB connection has been established, both HDMI and Wi-Fi modes will be
automatically switched off.
3. When the device is not connected via USB or HDMI, the device will revert to Wi-Fi
mode.
2.2.1 Computer Mode (USB-PC)
-to control the scanner from a PC and store the scans on its disk
•Install the CZUR software on the PC. Get the CZUR software either from the
enclosed CD, or from the website: http://www.czur.com -►Support ET Series. (Mac
OS only supports downloading from website)
•Attach the USB cable from the scanner base to the PC. Turn everything on.
•Open CZUR software, which offers you three choices: Scan-Export-Batch. For more
details, please go to http://www.czur.com Support ET Series, choose "CZUR Scanner
Software Instruction"
2.2.2 Wi-Fi Mode
- to control the scanner from a smart phone and store the scans in the CZUR Cloud
(http://www.czur.cc)
6. Download and install the "CZUR Cloud" app on your smart phone. Get the app
either from Apple's App Store, Google's Play Store, by searching the web for "CZUR
Cloud," or by using this link: http://www.czur.com/app2.
7. Register and login in the App. press "device manage", then press "Bind up/use a new
ET". Use your smart phone to scan the "QR code" under the scanner and follow the
online instructions.
8. Input Wi-Fi name, password (only support 2.4G Wi-Fi) and follow the online
instructions to finish networking setup.
When green light is on (Wi-Fi indicator), it means CZUR connects to router successfully.
Also you can see "Connecting to CZUR ..."" Connected" on the TFT screen. However, if TFT
screen shows "Disconnected", it means CZUR fail to connect to "CZUR Cloud" server,
please check your network.
9. To connect your scanner to another account, do the following. Note that the
scanner can be connected to only one account at a time, but that account can be
alternated.
a. Open CZUR scanner App and log into your account.
b. Go to "Device Manage" and select icon.
c. then:
" © " to add this other account to this device.

" © " to remove the user from sharing this device.
"Unbind device" to unbind administrator authority for this device. "Transfer device" to
change administrator authority for this device.
10. Usage authority release.
a. Your account will automatically be released from Wi-Fi mode if you don't upload
any scanned images or perform any other operation for 15 minutes. Other shared
users can then apply for usage authority with their own Cloud account.
b. To quickly release Your account from Wi-Fi mode, press and hold the scan button on
the base of the scanner for 3 seconds. The TFT screen will display "Completed" and
usage authority for your device will be released - so other users can apply for usage
authority with their own account.
Usage authority application.
Log into your account on the "CZUR Cloud" App. Then choose "Device Manage" and
"Apply" to apply usage authority for your device.
2.2.3 Visual Presenter Mode (HDMI)
Plug in power adapter, and connect device with projector, TV or electronic
whiteboard via HDMI cable. In HDMI mode, device should be disconnected with
USB cable (PC).
Power on CZUR, enter visual presenter mode automatically.
If projector or TV is without signal, switch "signal source", choose HDMI port.
Function
[Zoom out] and [Zoom in] button have six levels 12 times to zoom the displayed screen.
Adjust the object/ document to show the correct orientation on the displayed screen.
2.3 Hardware Update
Go to the website http://www.czur.com/ and click "Support" . Choose the proper ET series
and download "Device upgrade package". Follow the online rules to upgrade hardware
carefully.
Attention: Please download the corresponding series upgrade package, and see the
upgrade instructions carefully before upgrade, otherwise it may cause unpredictable
problem.
2.4 Restore Factory Setting
Plug in power adapter, then press and hold the [Zoom out] button for around 3 seconds.
Then you can see that TFT screen shows "Initializing...". Restore factory setting finishes
when TFT screen shows "Initialized"
[Zoom out] button
Chapter 3. Frequently Asked Questions and Troubleshooting
3.1 PC Mode (USB) Problems
1. Unable to turn the scanner on. The TFT screen and power indicator
