Chapter I Operation Guidelines
1.1 Scanning Preparation
Set up the scanner, and make sure the black document pad is placed like the picture
below. Check the LCD and ensure the black document pad covers the entire screen
without showing its edges.
1.2 When Open the Software
Open page:
Scanner: to scan books/docs
Visual Presenter: to record videos while TFT screen can display

CZUR TECH CO., LTD.
3
1.3 When Scanning:
1.3.1 Four Processing Methods
1. Flat Single Page: to scan unbounded non-curvature documents
·
The area within the yellowish line is what the after-scan JPG looks like. The lines can
automatically adapt to the shape of the document.
·
The software can auto crop the unnecessary outside of the yellowish line.
·
The software can auto correct the book center even if the book is not placed
horizontally.
Note: the following incorrect operation might result in a less satisfying.
scanning result:
·
When the black document pad doesn’ t properly cover the full screen.

CZUR TECH CO., LTD.
4
·
When the other irrelevant objects are on the black document pad.

CZUR TECH CO., LTD.
5
·
When the software is in flat single page mode, there is no auto curve-straightening
function applied.

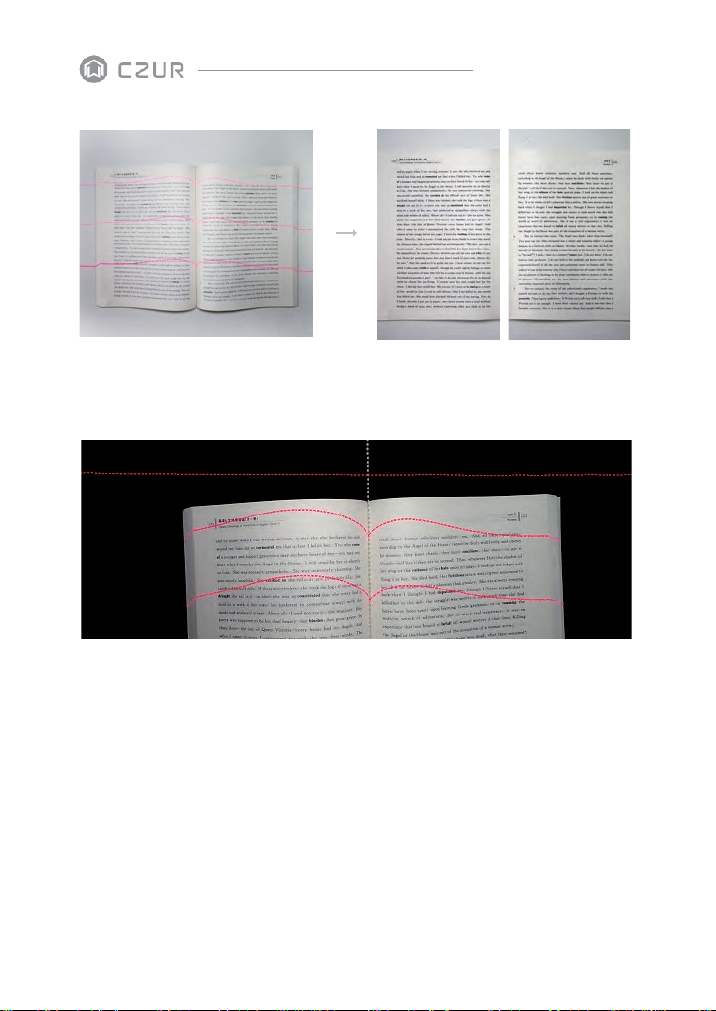

2. Facing Pages: to scan bounded books with curvature
·

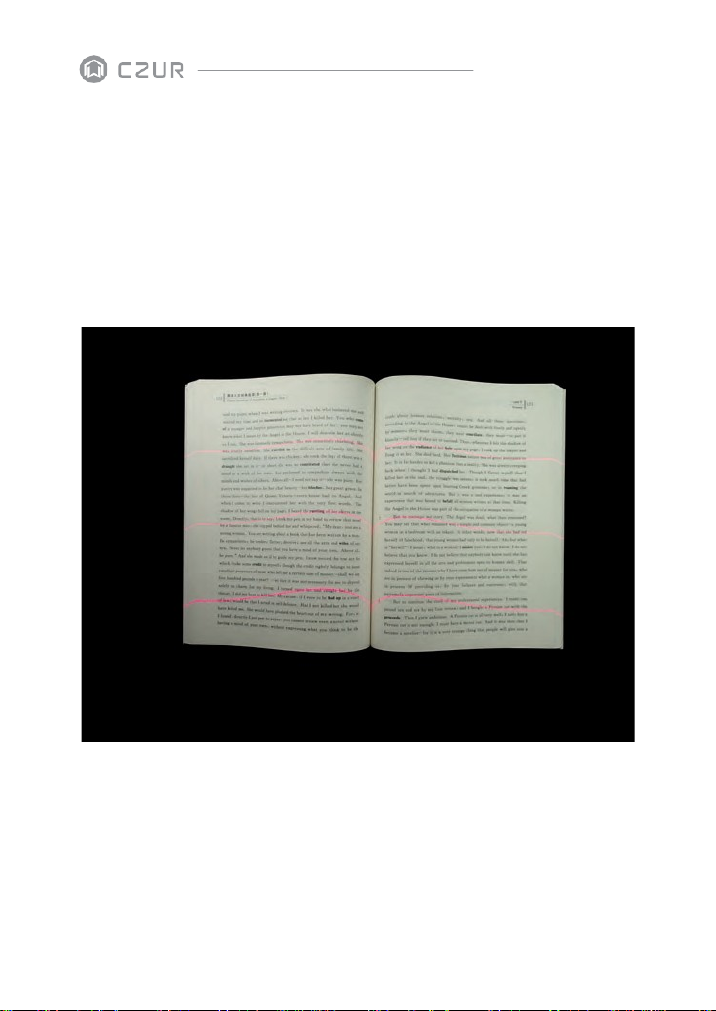

Books must be placed under where the three red lasers are (see picture below). The
length of the book must be more than 12cm.
· Can scan the next page when the three lasers line disappear or when you hear the
hint tone
Note: the following incorrect operation might result in a less satisfying scanning result:
Not using the black document pad.

CZUR TECH CO., LTD.
6
·
Not all the three lasers are on the books.
3. Manual Selection: to manually select the specific area which needs to be scanned.
Note: there is no auto curve-straightening technology used here

CZUR TECH CO., LTD.
7
before
after

CZUR TECH CO., LTD.
8
4. No processing: to take a picture of the object and present the object as what it is.
1.3.2 Five Color Modes
1. Color: for docs with colors.
2. Patterns: for ID card. It maintains the background pattern of ID card orpassport.
3.
Stamps: for docs with stamps on. This color mode can maintain the color of the
stamps (only in blue).
4.
Grayscale: for engineering to draw. This mode can make the lines clearer.
5.
B&W: only in black and white. For books and docs with mainly words.
1.3.3 Other Functions:
1. Auto scan: when it is on, the algorithm will detect when pages are turned.
2. Exposure: to adjust the camera exposure.
3.
Hint tone: Audible Bell

CZUR TECH CO., LTD.
9
1.4 After Scan

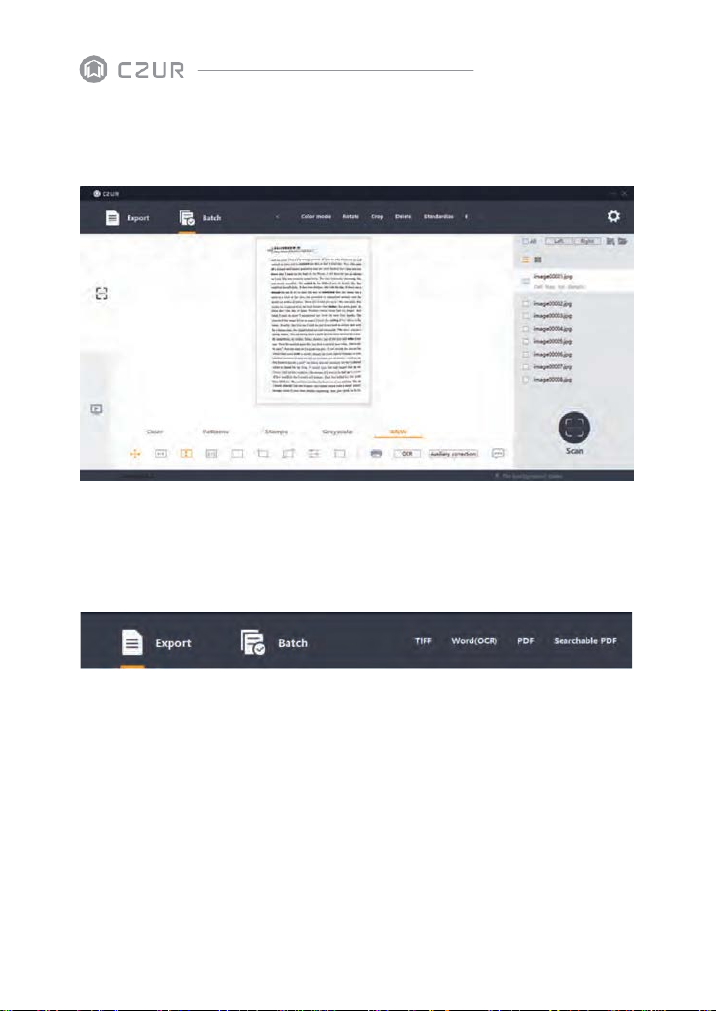

1.4.1 Export Function: to export selected/all images to TIFF,
WORD, PDF, Searchable PDF and Excel.
Note:
If converted to Word, the background color of the pages need to be white and clean
without special characters. Otherwise the OCR might not be able to recognize the words
properly.
1.4.2 Batch Function: to edit images in batch.

CZUR TECH CO., LTD.
10
1. Standardize: To change the size, DPI (from 72 to 350), color (background color) and
alignment of the selected images.
2. Quality: adjust the contrast, sharpness and thickness of the images.
1.4.3 Auxiliary Correction: to show what the docs look like when
scanning with three laser lines.
1. Adjust the central seams: to edit a photo; Adjust the white line and the software crops
the photo according to the new white line.
2. Adjust the laser line: to edit a photo; Adjust the laser lines to the indicated laser lines
on the picture.

CZUR TECH CO., LTD.
11
1.5 Visual Presenter
Please see the video:
https://www.youtube.com/watch?v=dE1jAfesPUU
https://www.youtube.com/watch?v=072h9INK2Ys (from 29mins to the end)
Chapter II Introduction
2.1 Product Dimensions

CZUR TECH CO., LTD.
12
2.2 Product Appearance
3
1 4
5
2
6
7
CZUR Scanner
19
18
17
16
15
10
11 LCD Connection Ports
12
13 20 22
21
23
14
Top Casing Hand Button Foot Pedal
24 25
Side Lights Port Side Lights Touch Button
8
9

CZUR TECH CO., LTD.
13
1. Microphone
2. Base
3. Top casing
4. Laser light
5. Vertical bar
6. LED brightness(high/low)
7. Scan(start next scan)
8. LCD (see LCD Notes below)
9. Video record indicator light
Blinking green lights= Recording in progress.
Green light off = Video record has been stopped.
10. Scan indicator light
11. Power indicator light (White)
12. HD CMOS camera
13. Bank of LED lights
14. Bank of LED lights
15. Power on/off switch
16. DC 9V 2A,AC volt 100-240V 50/60Hz
17. To USB cable for computer connection
18. USB port for Foot Pedal or Hand Button
19. Reset button (see Reset Button Notes below)
20. Hand button light “Scan in progress”
21. Hand button (to start next scan)
22. Foot pedal cover
23. Foot pedal base
24. Side lights port
25. Side lights touch button
LCD Notes
· LCD= Liquid Crystal Display, a type of flat-panel displayscreen.
· When connected to a PC, displays if uploading or not to the PC.
Reset Button Notes
· Short Press = Retry Connection.
· Long Press (hold for 6 seconds) = Reset.

CZUR TECH CO., LTD.
14
2.3 Product Specifications
Type
Model
ET16 Plus
Basic
characteristics
Pixel 16M
Resolution 4608*3456
Scanning speed ≈1.5S
Format
≤A3
Video format
MJPG
Picture format
JPG
Export format
PDF/TIFF/WORD/EXCEL/Searchable PDF
Configuration
parameters
Processor
32 MIPS CPU
DDR
1Gbit
Laser rays
3 laser rays
LCD √
MIC √
Specific
functions
Smart scan √
OCR √
SDK √
Software function
Flattening Curve, Finger removal, smart paging, Smart tilt
corrections and auto-cropping, auto-scan.
Operating systems supported XP/Win7/Win8/Win10, 32bit/64bit;
macOS 10.11 and above
2.4 Packaging and Accessories
Item Specification Amount (pcs)
Scanner CZUR smart scanner 1
Side lights Magnetic connector 1
Hand button USB interface, 1.2M 1
Foot pedal USB interface, 2.0M 1
USB cable USB interface, 1.5M 1
AC/DC power adapter Input AC: 100-240V-50/60HZ 0.6A output DC: 9V/2A 1
Black document pad 530*401*2.0MM 1
Specialized finger cots Left hand; Right hand 2
CD-ROM CD-R, D=120MM 1
User manual Color printing, 126*178MM 1
