Czur ET18 Pro User manual

USER MANUAL（ET18 Pro）
CZUR TECH CO., LTD.
Website: http://www.czur.com
E-mail: [e-mail]
Skype: [e-mail]
9F, North Wing, West Block, PKU-HKUST ShenZhen-HongKong
Institution,Gaoxin South 7th Road, Nanshan District, Shenzhen, China
Room1001,10th Floor, Block A, No.32A Huoju Road, High-tech Industrial
Zone, Dalian City, Liaoning Province, China

Chapter I Introduction
1.1 Product Summary .........................................................................................2
1.2 Product Dimensions ......................................................................................2
1.3 Product Appearance .....................................................................................3
1.4 Product Specifications ..................................................................................5
1.5 Packaging and Accessories ..........................................................................5
Chapter II Operation Guidelines
2.1 Scanning Preparation ...................................................................................6
2.2 Work Mode ....................................................................................................8
2.2.1 Computer Mode (USB-PC) ...................................................................8
2.2.2 Visual Presenter Mode (USB-PC) .........................................................8
2.2.3 Wi-Fi Mode ............................................................................................9
Chapter III Frequently Asked Questions and Troubleshooting
3.1 PC Mode(USB) Problems ...........................................................................11
3.2 Wi-Fi Mode Problems ...............................................................................13
Chapter IV Terms of Service
4.1 After Sale Service and Guarantee ..............................................................14
4.2 Contact Information ....................................................................................15
Contents
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
The symbol indicates DC voltage.
RECYCLING: This product bears the selective sorting symbol for Waste electrical and electronic
equipment ( WEEE ). This means that this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

Chapter I Introduction
1.1 Product Summary
1.2 Product Dimensions
The CZUR scanner is a new type of intelligent scanner whose man features are its
extremely high scanning speed, its ability to recognize and correct for curved, incorrectly
positioned, or soiled pages, and its ability to quickly and easily convert scanned pages to
more useful formats (PDF, searchable PDF, TIFF, or text documents.)
The scanner can,（using built-in algorithms）automatically handle pages otherwise
difficult or very time-consuming to scan. For example, it can automatically flatten the
curved pages of open books (using laser lines), erase fingerprints, automatically split
double pages into two single pages, and correct incorrectly positioned pages. The scanner
allows large books to be scanned and archived very quickly.
It’s a completely new approach to scanning and can save hours of time on either simple or
complex tasks of document digitizing, archiving, and sharing. It is unlike any scanner in its
price range.
2
CZUR TECH CO., LTD.

Microphone
Base
Top casing
Laser light
Vertical bar
LED brightness(high/low)
Scan (start next scan) (see Note A below)
LCD (see LCD Notes below)
Wi-Fi indicator light (see Note B below)
Scan indicator light (see Note C below)
Power indicator light (White)
HD CMOS camera
Bank of LED lights
Bank of LED lights
Power on/off switch
DC 9V 1.5A, AC volt 100-240V 50/60Hz
To USB cable for computer connection
USB port for Foot Pedal or Hand Button
Hand button light “Scan in progress”
Hand button (to start next scan)
Foot pedal cover
Foot pedal base
Side lights port
Side lights touch button
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
LCD Notes
Notes
Reset Notes, ,
LCD= Liquid Crystal Display, a type of flat-panel display screen.
When connected to a PC, displays if uploading or not to the PC.
A. In Wi-Fi mode, press and hold the scan button for 3 seconds to quickly release your
account from the scanner.
B. Green & Blue lights flash. Wait for sound.
C. Red light on = scanning (don’t flip the page). Red light off = scan is complete.
·
·
These buttons are only for maintenance. Function are not open to users.
·
43
1.3 Product Appearance
CZUR TECH CO., LTD.
1
2
3
4
5
6
7
CZUR Scanner
LCD Connection Ports
8
9
10
11
18
17
16
15
Top Casing Hand Button Foot Pedal
12
13
14
19
20 21
22
Side Lights Touch ButtonSide Lights Port
23 24

Place the scanner on a surface (table, desk, or counter) large enough to hold the
pages you plan to scan or display.
Plug either the Hand Button or Foot Pedal into the scanner's USB port (in the back of
the base).
Spread the black document pad under the scanner's head. Ensure that the gap of the
"black document pad" aligned with the device.
1.
2.
3.
Check the LCD on the head portion to see if the black document pad covers the entire
screen and ensure that the desk surface or random edges are not included within the
scan. (It is extremely important to make sure that the black document pad covers the
entire screen properly to enable the smart algorithm to carry out its calculations and
ensure image processing is carried out properly).
Special reminders
4.
5.
When scanning larger projects (such as books or multiple documents), we recommend
using the Computer Mode (USB-PC) and connecting to the foot pedal to make the
scanning process more efficient. Using a computer during scanning will provide
additional editing functions to improve the quality and professional of the scanned and
processed images.
Avoid scanning documents in places near windows or environments with strong
lighting. Excessively bright ambient lighting will affect the brightness of the ET laser
lines and negatively affect scanning results.
1)
2)
Chapter II Operation Guidelines
2.1 Scanning Preparation
1.4 Product Specifications
1.5 Packaging and Accessories
Item
Scanner
Side lights
Hand button
Foot pedal
USB cable
AC/DC power adapter
Black document pad
Specialized finger cots
CD-ROM
User manual
Specification
CZUR smart scanner
Magnetic connector
USB interface, 1.2M
USB interface, 2.0M
USB interface, 1.5M
Input:AC 100-240V-50/60HZ Output:DC 9V 1.5A
530*401*2.0MM
Left hand; Right hand
CD-R, D=120MM
Color pages, 126*178MM
Quantity (pcs)
1
1
1
1
1
1
1
2
1
1
5 6
Model
Pixel
Resolution
Scanning speed
Format
Video format
Picture format
Export format
Processor
DDR
Laser rays
LCD
MIC
Smart scan
OCR
SDK
Wi-Fi
Software function
Operating systems supported
Type
Basic
characteristics
Configuration
parameters
Specific
functions
ET18 Pro
18M
4896*3672
≈1.5S
≤A3
MJPG
JPG
PDF/TIFF/WORD/EXCEL/Searchable PDF
32 MIPS CPU
1Gbit
3 laser rays
√
√
√
√
√
support, 2.4Hz
Flattening Curve, Finger removal, smart paging, Smart tilt
corrections and auto-cropping, auto-scan.
XP/Win7/Win8/Win10, 32bit/64bit;
macOS 10.11 and above
CZUR TECH CO., LTD.

When scanning books, the 3 laser lines of the ET scanner must be on the curved
pages. Failure to do so will negatively affect scanning results.
Please wear the specialized finger cots provided with the ET scanner when holding
down the pages during the scanning process to ensure that the finger removal function
works properly. Failure to wear the finger cots would affect the finger removal
algorithm.

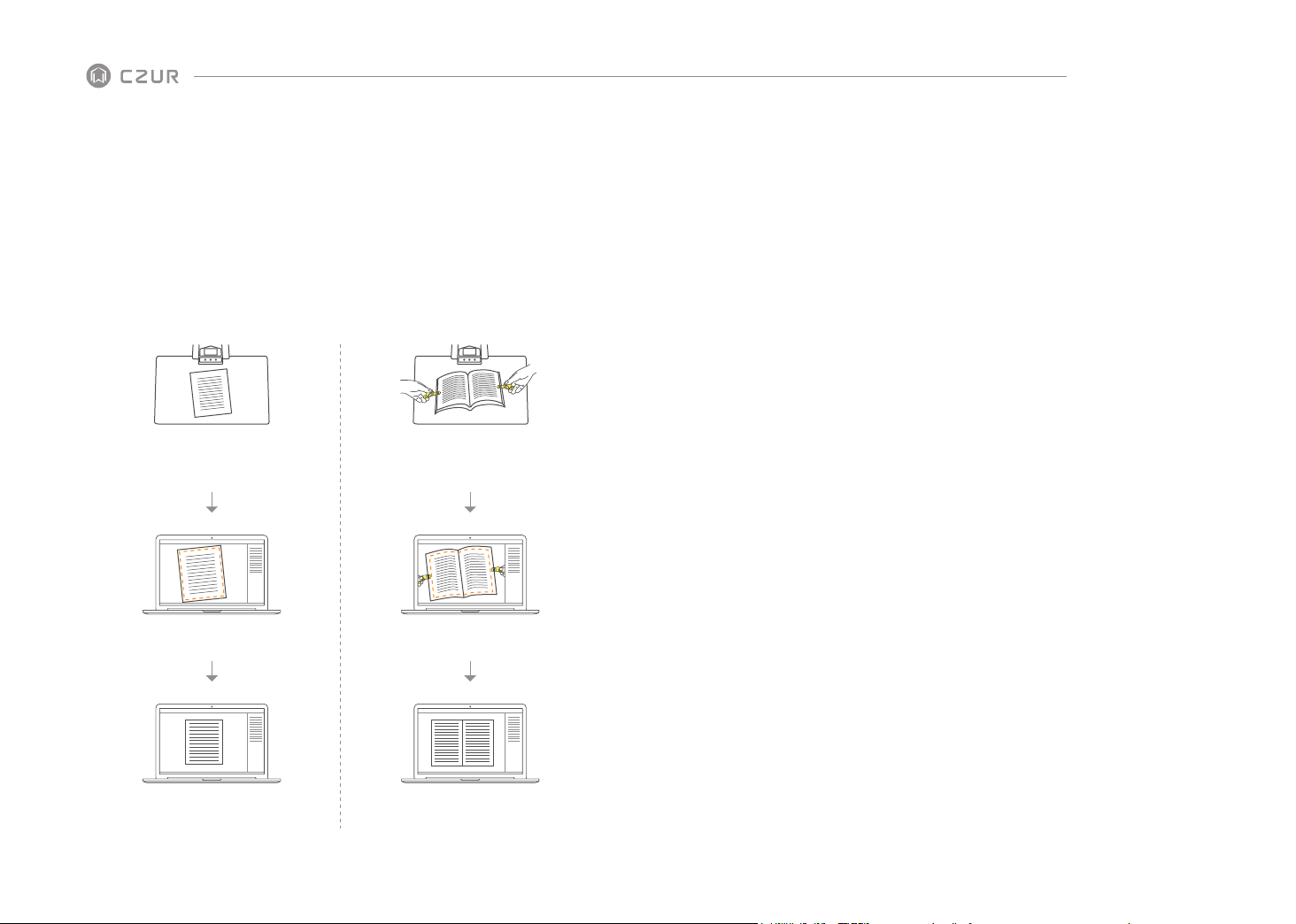

When scanning, review your requirements and select the proper processing modes of
either [Flat Single Page] or [Facing Pages].
[Flat Single Page] mode for single, flat
sheets of paper
[Facing Pages] mode for bound
sheets of paper (books)
Auto-cropping and tilt correction Auto-flattening of curved pages and
removal of fingers (with finger cots)
Auto-recognition of paper edges Auto-recognition of page curvature
3)
4)
5)
When scanning magazines, coated paper, and other reflective materials, switch the
side lights ON and switch the main lights OFF for best results (only for advanced
version).
6)
2.2.1 Computer Mode (USB-PC)
– to control the scanner from a PC and store the scans on its disk.
Install the CZUR software on the PC. Get the CZUR software either from the included
CD, or from the website: http://www.czur.com →Support → ET Series.(macOS only
supported by downloading from website)
Attach the USB cable from the scanner base to the PC. Turn everything on.
Open CZUR software, which offers you three choices: Scan-Export-Batch. For more
details, please go to http://www.czur.com → Support → ET Series, choose “ET18 Pro
→ User Manual” .
·
·
·
2.2 Work Mode
7 8
2.2.2 Visual Presenter Mode (USB-PC)
Plug in power adapter, and connect device with computer via USB cable. Then
connect computer to projector.
CZUR TECH CO., LTD.
–

When the indicator light indicates steady green, press the “Scan” button once.
If the screen shows both “Ready” and “User & Account,” you can start scanning.
If the screen shows “No User,” it means the ET device is available for a new user
account, you can open CZUR app on your phone to apply to add a CZUR account to
the device.
Link and unlink CZUR administrator account; Add and delete CZUR user account; ET
administrator authority transfer and other user s application for ET usage.
Link and unlink CZUR administrator account
Administrator authority transfer and share use of ET
If there s only one account linked to the scanner, the user can unlink the account.
Other users can scan the QR code on the device base to apply for use when the
administrator shares the device.
Add and Delete user account.
a. Open CZUR App.
b. Go to “My ET,” choose the scanner model.
c. then:
Tap “ ” to add a user account to the device. (The user added can apply to use the
ET scanner);
Tap “ ” to delete a user account.
△Open and login to the CZUR app on your phone, tap “Add ET Scanner,” scan the
QR code on ET base, and tap “Link Now” (The first account linked to ET will become
the administrator account) .
△Open CZUR app on your phone, go to “My ET scanner” and tap on the device
model, and tap “Unlink” to unlink CZUR administrator account.
△“Change ownership” allows for a change of administrator authority to another
CZUR account.
△Automatic share use: If one user does not upload any scanned images or perform
any operation for 15 minutes, other shared users can then apply to use the device with
their own cloud account.
△Active share use: Press the “Camera” button of ET for 3 seconds under Wi-Fi Mode,
others can use the device when the LCD screen shows “Completed.”
2.2.3 Wi-Fi Mode
Function Details
Turn on ET scanner (no USB or HDMI connection) and it will automatically enter Wi-Fi
mode.
Install CZUR app on your phone. The APP can be downloaded from App Store, Google
Play Store, or http://www.czur.com/cn/app/czur.
Register and login to the APP, tap “Add Functions,” choose “ET,” tap “ Add ET
scanner,” then scan the QR code under ET scanner base, tap “Link now” and follow
APP instructions to finish the linking.
Input Wi-Fi SSID and password (only support 2.4G) to connect ET device to Wi-Fi.
When ET is connected to CZUR server, start scanning with the ET device, and you can
see scan results in CZUR App after refreshing.
Connect your phone to the Internet, open CZUR APP, tap the device model that has
been added, tap “connect Wi-Fi” to enter network setting interface, input Wi-Fi SSID
and password, and follow APP instructions to finish network connection (only support
2.4G).
When the Wi-Fi indicator light indicates steady green, it means the ET device has
connected to router successfully.
When ET’ s LCD screen shows “Connecting to CZUR ...,” it means the device is
connecting to CZUR server.
△If the LCD screen shows “Disconnected,” it means the device fails to connect to
CZUR server, and you need to check the router network.
△If the LCD screen shows “Connected,” it means the device connected to CZUR
server successfully.
CZUR APP Account Connection
To connect your scanner to another account, perform the following. Note that the
scanner can only have one administrator account at a time, and the administrator can
share the device with other users.
CZUR TECH CO., LTD.
–
–
–
–
–
–
–
–
–
·
·
·
·
·
·
·
·
910

– Scanned images are distorted, the font is twisted, or there are other distortions.
The black document pad may be misaligned. Make sure it s positioned properly under
the scanner head. You cannot scan what won t fit within the boundaries of this pad.
What you want to scan may be too big. It must fit within the boundaries of the matte
black pad.
There might be interfering items in the preview area. Make sure none of the following
are there: your hand, the Hand Button s cord, your mobile phone, a pen, etc. Only the
document to be scanned should be in the scanning preview area to allow the
algorithms to work properly.
·
·
·
Sticky on/off switch. Turn the on/off switch on and off a few times.·
Possible faulty power connection. Make sure the power supply actually has power, the
adapter is properly connected, and the power switch is turned to On.
·
Anti-virus software may be interfering. Lower your anti-virus or firewall s security level
or disengage it while installing the CZUR software. Then reengage it.
·
Faulty software download. Download the software again & make sure it completely
downloads before trying to install it.
·
– The software cannot be installed.
The software will only work with Windows XP,7, 8, or 10 systems and some macOS
systems. Or you may have entered the wrong scanner SN. Check the scanner SN
underneath the base. Note that there is no number 1 (one) in the SN.
·
When first using the software, nothing shows in the preview frame, and I am unable to
scan.
Make sure all USB connections are firm, especially between the scanner and the
PC.
Make sure the PC’ s “Device Manager” recognizes the scanner. If you see a yellow
exclamation mark with an “Unknown Device” indication, right click it to update the drive
or disable and then re-enable the device, and then retry the software.
Enter "device manager" , then disable the other "scanner" or "camera" driver.
Try restarting the PC or using a different one.
·
·
·
·
– SN errors.
The scanner s SN is underneath the base. Note that there is no number 1 (one) in
the SN.
·
– Unable to turn the scanner on. The LCD screen and power indicator light are dark.
– Share use application.
3.1 PC Mode (USB) Problems
Chapter III Frequently Asked Questions and Troubleshooting
CZUR TECH CO., LTD.
△Administrator logs into CZUR account on the App, chooses the scanner model in
“My ET,” tap “Device visibility,” then other users can apply to use the device.
△Other users log into their accounts on “CZUR” App, tap “add ET scanner,” scan the
“QR code” under the scanner to become a share user, then tap “Start to use” to use
the device.
11 12
–

All after sales policy of this product shall be subject to the laws and regulations of the
country of sales.
The scope of warranty covers the scanner device, the adapter, the hand button, and
the foot pedal. Consumables and external appearances are not covered by the
warranty.
When sending in the product for repairs, please contact us or our local agent.
We apologize for not issuing notices for subsequent upgrades or version updates of
the product. This Company reserves the right of final decision on the interpretation of
the above articles.
Warranty scope exception:
This product may only be used in areas where surrounding temperatures are less
than 40 oC.
Failures or damages caused by incorrect installation or using the product in
environments that exceed the specified work conditions (for examples, in places that
are too hot or too humid).
Damages caused by using components not from this Company or when the user
attempts to replace components by himself / herself.
Check if ET scanner is powered on with no USB cable connection.
Check state of “Wi-Fi indicator” (refer to 1.3)
Flashing green light means the device is searching for a connection
Steady green light means the device is connected to the network.
·
·
·
·
·
·
·
·
Reset Wi-Fi connection (Refer to 2.2.3).
Make sure your Wi-Fi SSID and password are correct.
Reboot your physical router or use another router.
Check if ET scanner is powered on with no USB cable connections.
Check Wi-Fi indicator light: if the light indicates steady green, the scanner is connected
to the server. If not, try to reconnect the device to the network by pressing the reset
button in the back of the base once quickly. The green light will flash on and off while it
again tries to make a connection.
Check if the server and your scanner are connected, and make sure your Wi-Fi
network is available.
Check the account connection by pressing the “scan” button once. If the LCD screen
shows “Ready” and shows “User and Account,” it means the device is connected to a
CZUR account. If not connected, log into your CZUR App, go to “My ET,” select the
scanner, then tap “Apply.”
If the light is steady blue, the scanned image is being transmitted to the server.
·
·
·
4.1 After Sale Service and Guarantee
Chapter IV Terms of Service
Dear user, thank you for using the smart scanner manufactured by our company. To
protect your legal rights, please review and comply with the following standards and
reminders.
– Unable to connect ET scanner to router
– Unable to scan in Wi-Fi Mode.
3.2 Wi-Fi Mode Problems
CZUR TECH CO., LTD.
13 14
–
–
–
–
–
–
–

15 16
CZUR TECH CO., LTD.
Failures or damage caused by unauthorized repairs, modifications, or abuse caused
by the user.
Damage caused by repairs carried out by unauthorized repair centers.
Other errors and failures caused by software installation or software settings, or
problems and failures caused by computer viruses.
Damage caused by natural disasters, accidents, or human factors.
Damage caused by inappropriate storage (including damage caused by rats or liquid
infiltration) .
4.2 Contact Information
Get technical support and information as follows ways
CZUR TECH CO., LTD.
Website: http://www.czur.com/
E-mail: [e-mail]
Skype: [e-mail]
9F, North Wing, West Block, PKU-HKUST ShenZhen-HongKong Institution,
Gaoxin South 7th Road, Nanshan District, Shenzhen, China
Room1001,10th Floor, Block A, No.32A Huoju Road, High-tech Industrial
Zone, Dalian City, Liaoning Province, China
–
–
–
–
–
