GL60 Plus Gimbal Searchlight User Manual
V1.0
2021.09.30

Contents
1. Introduction of Gimbal Searchlight Series
2. disclaimer and warning
3. GL60 Plus Gimbal Searchligh introduction
4. GL60 Plus Gimbal Searchlight installation tutorial
5. CZZN APP installation and use of tutorial
6. DJI Pilot APP use tutorial
7. firmware upgrade
7.1 Online firmware upgrade
7.2 TF card firmware upgrade
I.
Introduction of Gimbal Searchlight Series
The czi Gimbal Searchlight series are suitable for
nighttime drone inspection and search, film and TV
making fill-in light, power grid repair, serves as
emergency lighting and used in other scenarios.
GL60 Plus gimbal searchlight interfacing with DJI
SKYPORT V2 adapter ring and DJI M300 RTK drone OSDK
adapter, no extra power supply needed, plug and play,
perfect payload for DJI M300 RTK.

II.
Disclaimer and Warning
Thank you for purchasing czi products. The contents
mentioned herein are related to your safety and legal
rights and responsibilities. Before using this product,
please read this document carefully to ensure that you
have set up the product properly. Failure to follow and
comply with the instructions and warnings in this
document may result in injury to you and others , damage
to the product or other surrounding items. This
document and all related documents are subject to the
final interpretation of czi. Updates are subject to change
without notice. Please visit the official website at
www.gzczzn.com for the latest product information.

Caution
GL60 Plus is a precision optical device, the main body is
fully sealed to prevent dust and water. In case of
hardware problems, please return to the manufacturer
and contact the after-sales service, do not disassemble
and repair by unauthorized personnel, otherwise you will
lose the warranty and repair eligibility.
1. The installation method of GL60 Plus Gimbal
Searchlight is the same as DJI drone gimbal camera,
please make sure it is correctly installed before taking off.
2. The GL60 Plus works before the drone takes off, the
power is limited to 30% by default (power can be
manually adjusted to 50% or 100%); after takeoff, the
power can reach 100%.

III.
Introduction to the GL60 Plus Gimbal
Searchlight
The GL60 Plus Gimbal Searchlight weighs 750 grams and
is rated at 120 W. The optical imaging structure consists
of multiple lenses, with a 15° angle of illumination and
an effective irradiation distance of 150 m. With uniform
brightness and high colour consistency, it provides
unprecedented aerial illumination for drone operations
at night. With the DJI SKYPORT V2 adapter ring, it can be
directly mounted on the DJI M300 RTK. The GL60 Plus is
the perfect partner for the DJI M300 RTK as it is
waterproof and dustproof and can work reliably in harsh
weather conditions; with an advanced automatic
temperature control system, the light attenuation is less
than 5% after 1000 hours of operation. The GL60 Plus is a
reliable partner for the DJI M300 RTK.

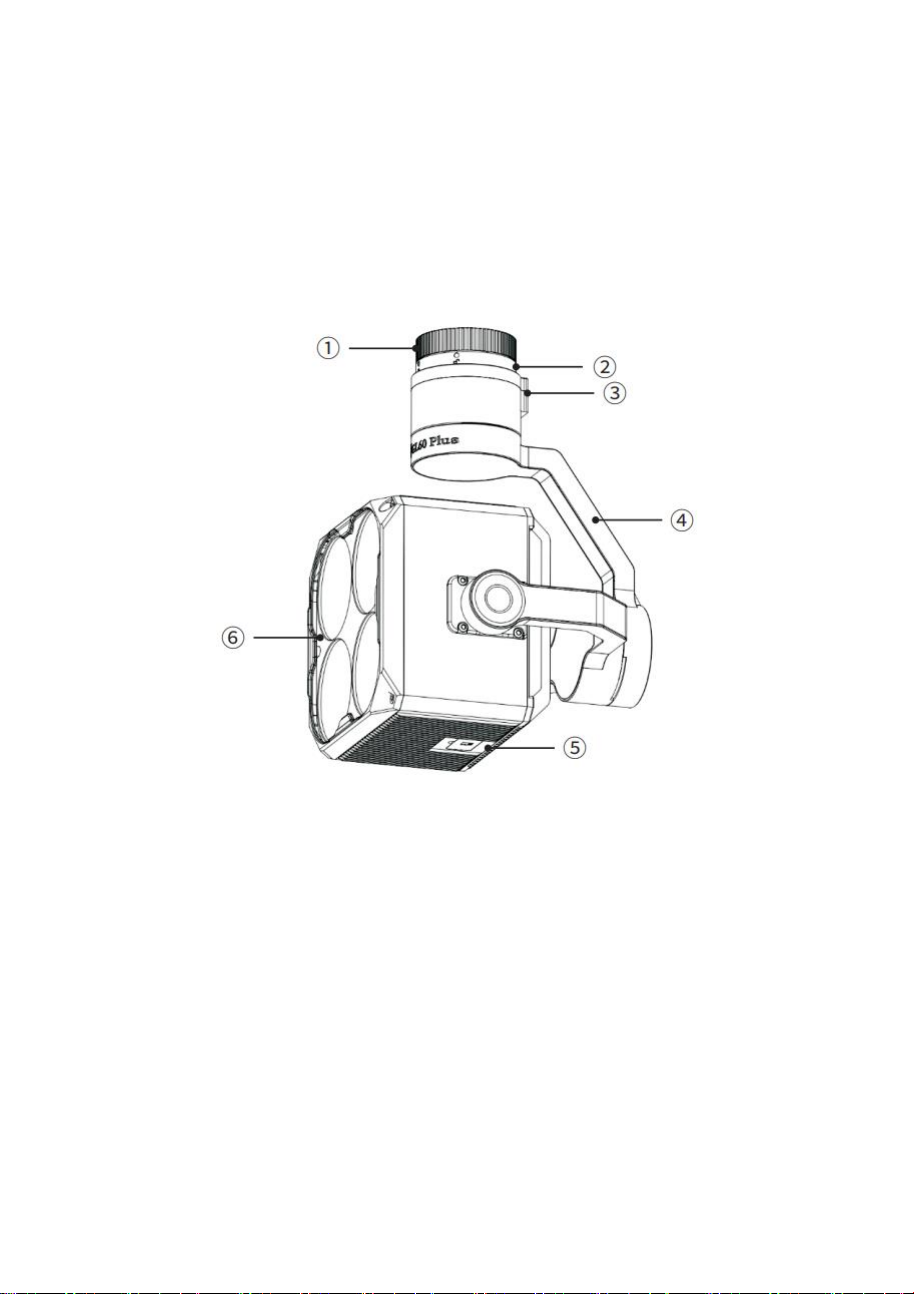

（1）GL60 Plus Gimbal Searchlight
1、Dust cover 2、DJI SKYPORT V2 adapter ring
3、OSDK power supply port 4、Tri-axis stabilized gimbal
5、TF card slot cover 6、Light outlet

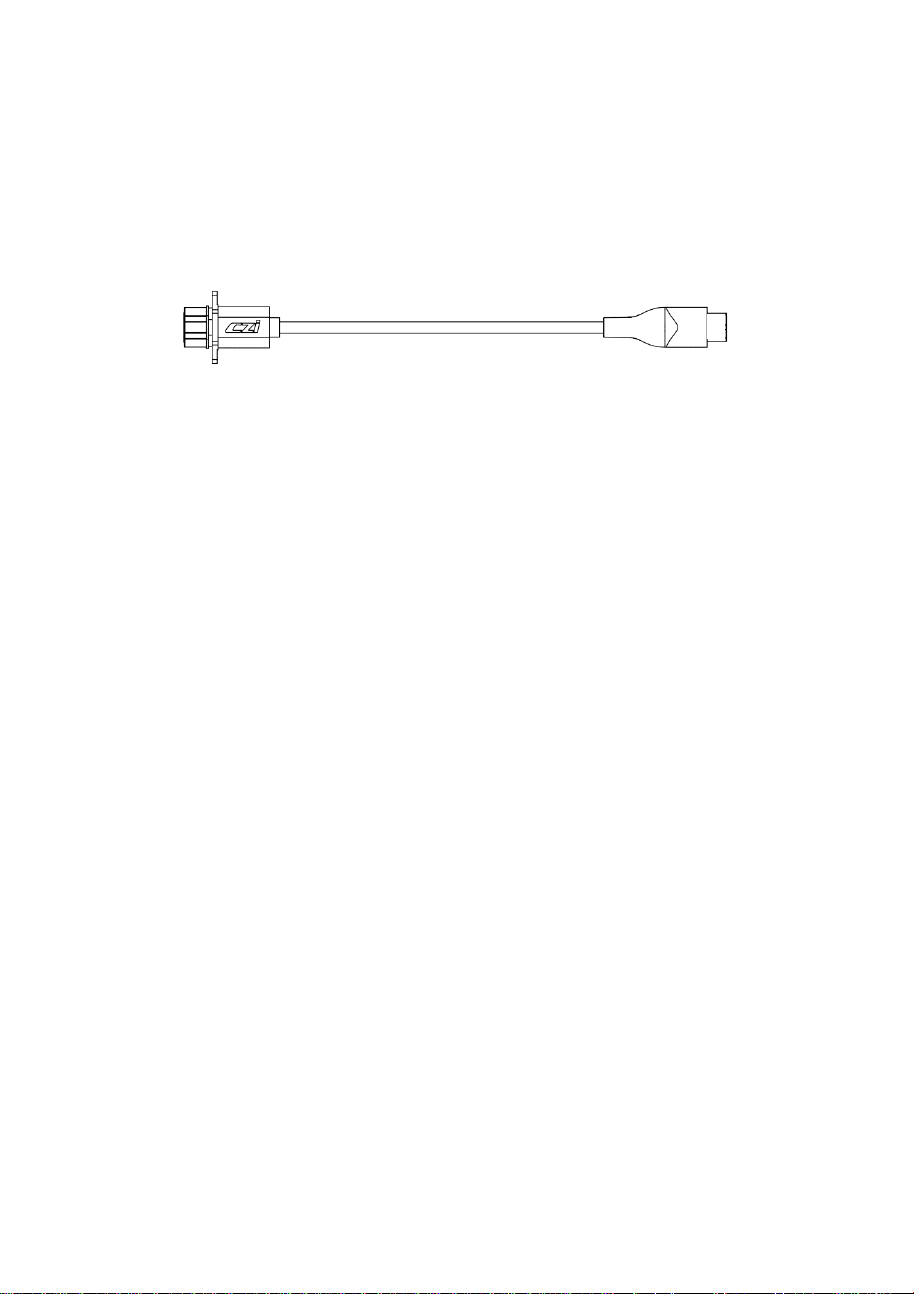

（2）OSDK Power Cable
7. Power cable port 1 (connects to the OSDK end on
top of the DJI M300 RTK)
8. Power cable port 2 (connects to the OSDK power
supply port ③of the GL60 Plus)
⑦Port 1
⑧Port 2

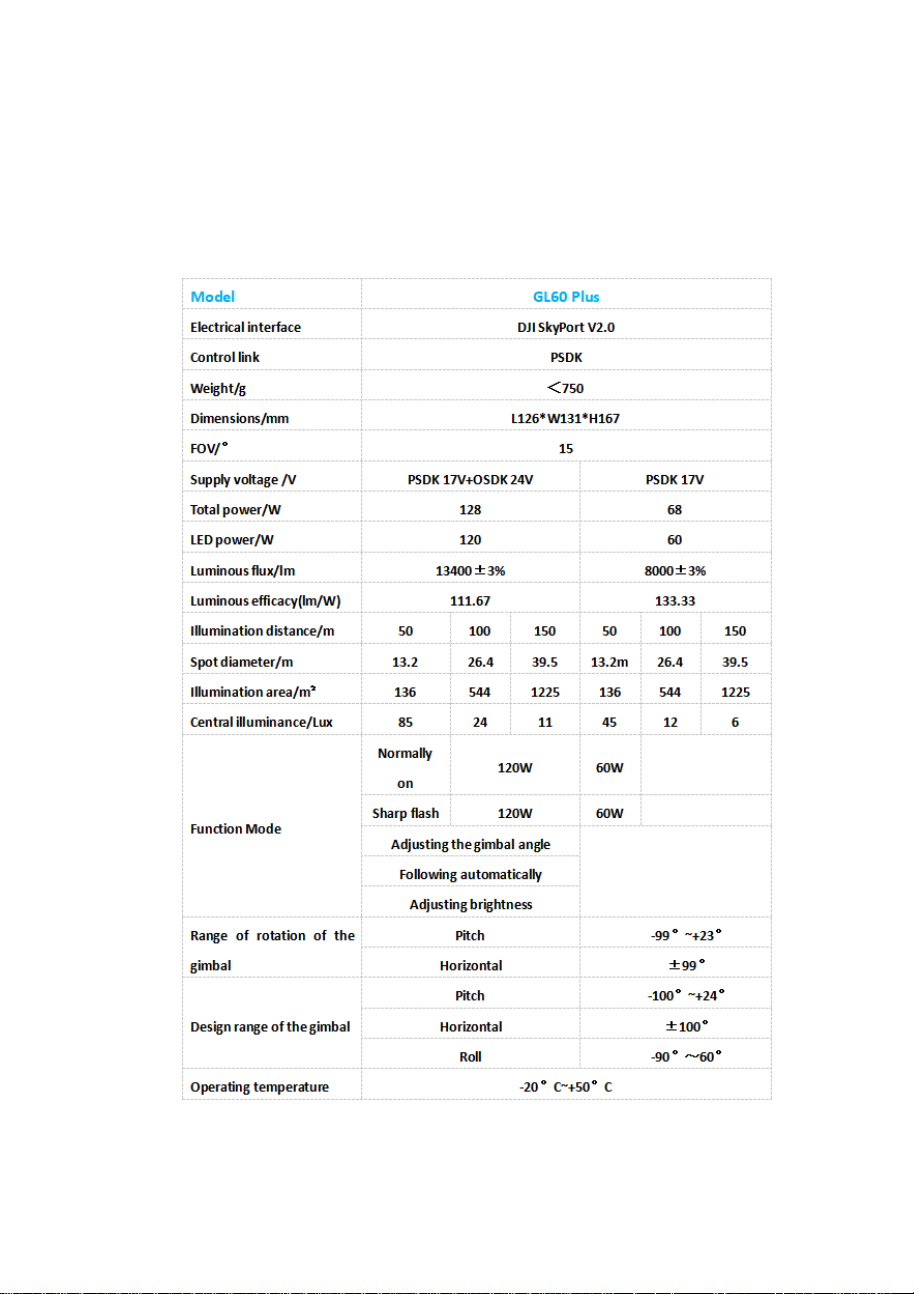

Specification:

IV. GL60 Plus Gimbal Searchlight Installation Tutorial
1、Remove the protective cover of the GL60 Plus gimbal
searchlight interface, align it with the no. 2 gimbal port of
the drone, push upwards and gently rotate the GL60 Plus
gimbal interface counter-clockwise to align the two red
markers and lock the gimbal. After installation is
complete, check the GL60 Plus Gimbal Searchlight is
securely mounted.
（1）（2）

2. Connect the OSDK power cable, to the OSDK port
of the DJI M300 RTK and the GL60 Plus Gimbal
Searchlight.
(Note: Do not operate with DJI M300 RTK ON. must be
OFF)

V. CZZN APP installation and use tutorial
1、Download the CZZN APP and copy it to a flash disk,
and install it on DJI remote control, to get the
installation package.
①Go to the official website
http://en.gzczzn.com/?lg=1
to download CZZN APP and copy it to your flash disk or
TF high-speed card.
②Use the CZZN APP installation package already in the
TF high-speed card or flash disk.
2、Click CZZN to enter the software interface.

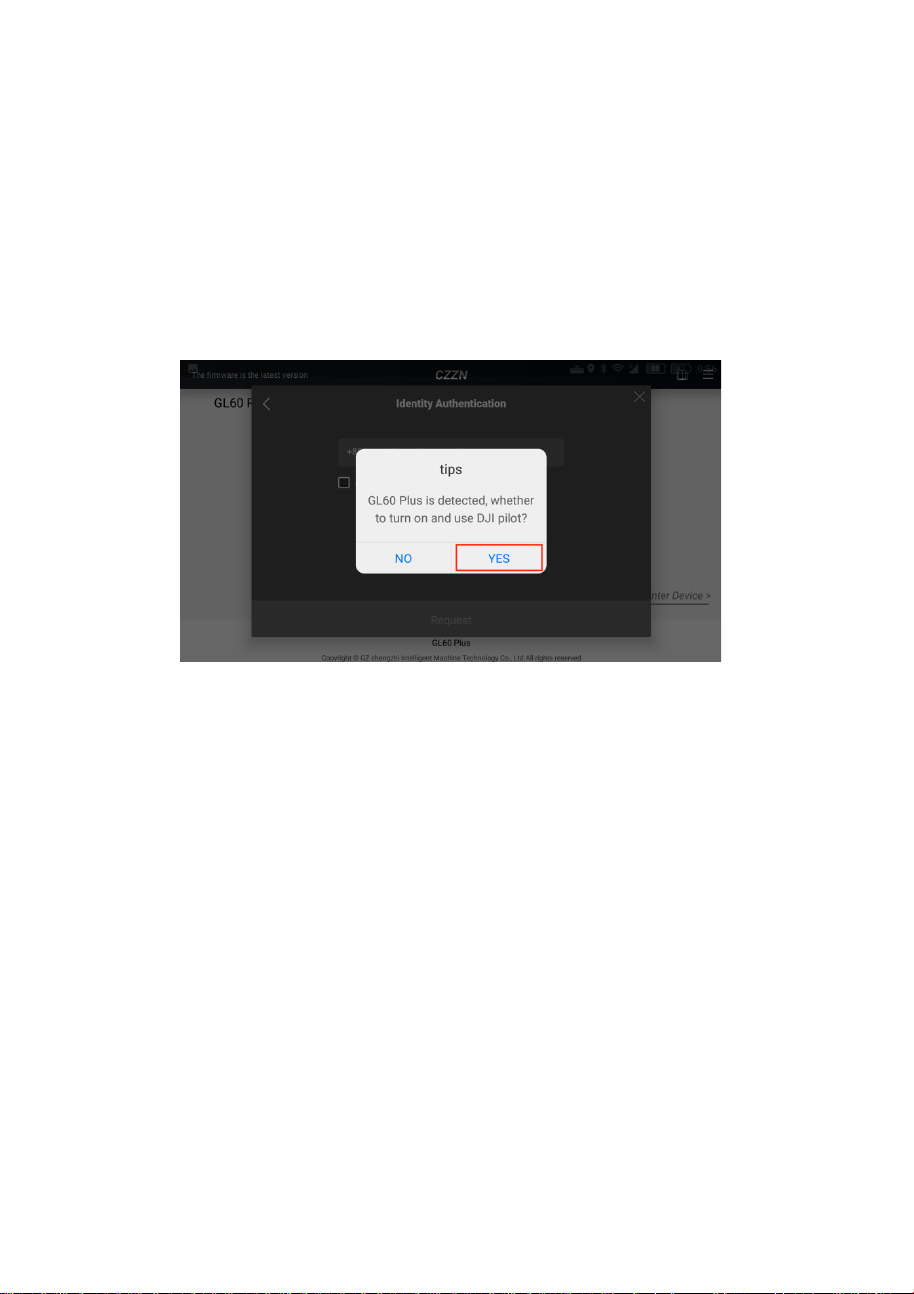

3, (correctly install the GL60 Plus gimbal searchlight) to
enter the main interface, pop up notice "detected GL60
Plus, whether to open and use DJI Pilot", click to confirm,
to enter the DJI Pilot main interface, and open
the hovering dialogue window.
1. switch to the main interface of DJI Pilot APP. The
wording GL60 Plus is displayed in the lower left
corner, indicating that the GL60 plus gimbal
searchlight loading is successfully identified; on the
interface, the blue virtual button is the hovering
window for options. Click on manual flight.

5、hovering options：“ ”—— turn the light on
“”—— flashing mode
“”、“ ”、“ ”、“ ”—— gimbal fine tune
“”—— Double gimbals synchronized button
“”—— brightness tuning
VI.

DJI Pilot APP use tutorial
1、Click DJI Pilot to enter the main interface.
2, into the main interface, the lower left corner shows
the word GL60 Plus, indicating that the recognition
success, you can proceed to the next step, click on the
manual flight.

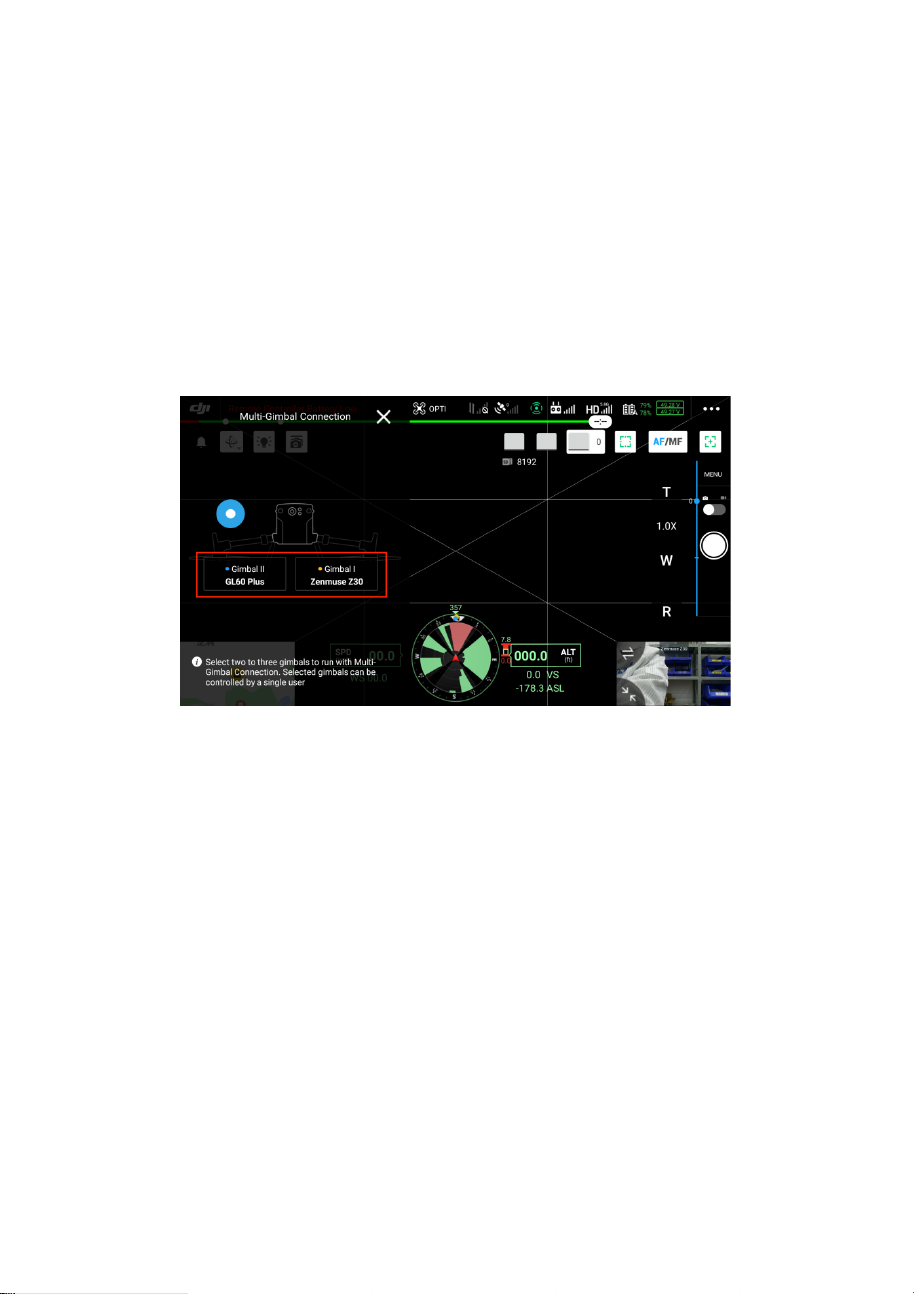

3、After entering the main interface, click on the
multi-gimbals synchronization button, select gimbal
Ⅰand gimbal Ⅱto synchronize the gimbals, and
when synchronizing the payloads following, the
horizontal angle of GL60 plus is the same as the
payload being followed.
4. Click on the menu bar and click on the third party
payload option to enter the GL60 Plus gimbal searching
light interface.

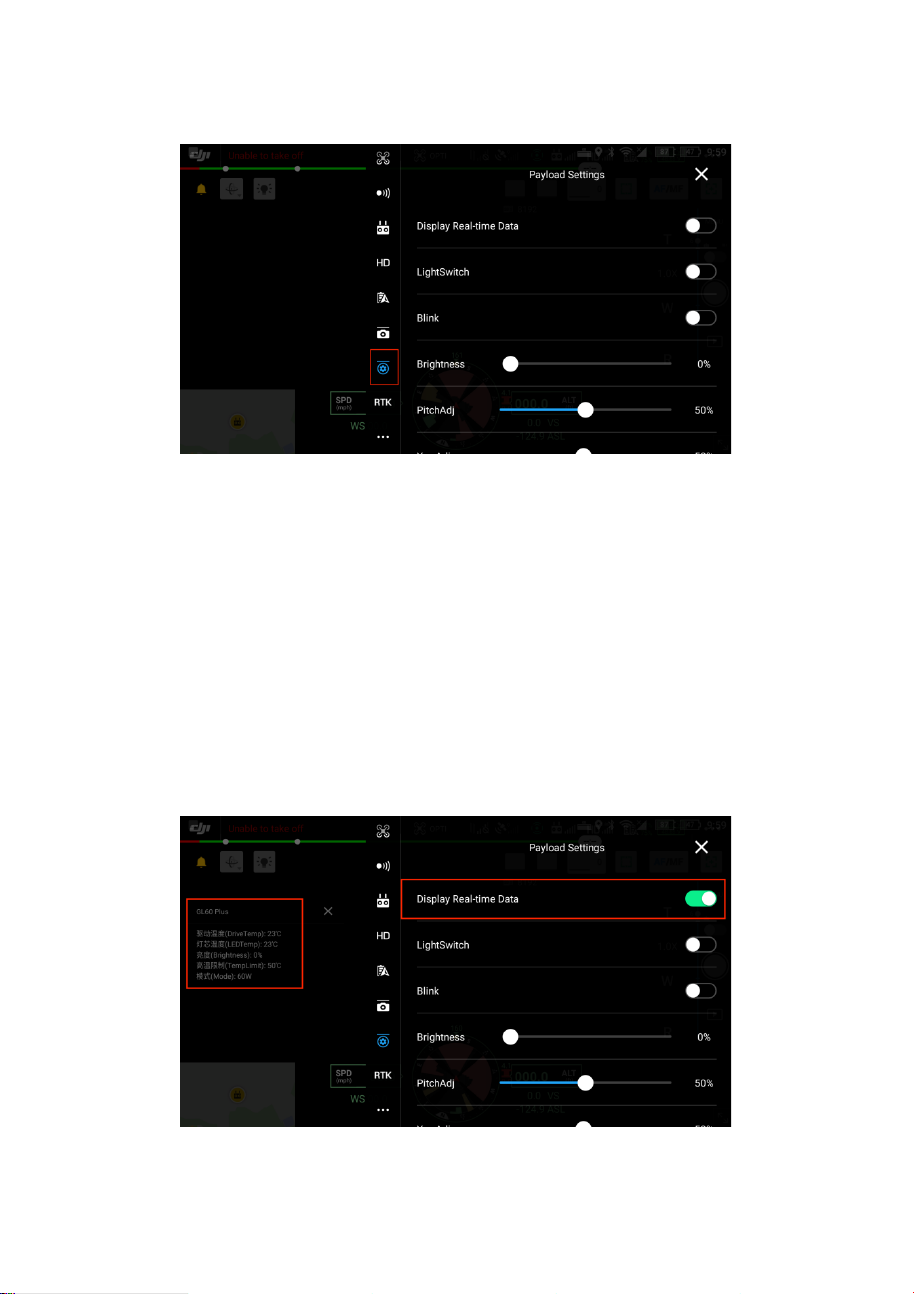

5. Click on the Data button and a status display dialogue
box will pop up in the top left corner of the main
interface, where you can observe the status of
parameters such as real-time temperature and power of
the GL60 Plus.

6. Click on the light button to control the light's
brightness; click on the flashing button to turn on the
bursting mode; slide the brightness progress bar
option to adjust the brightness of the light.

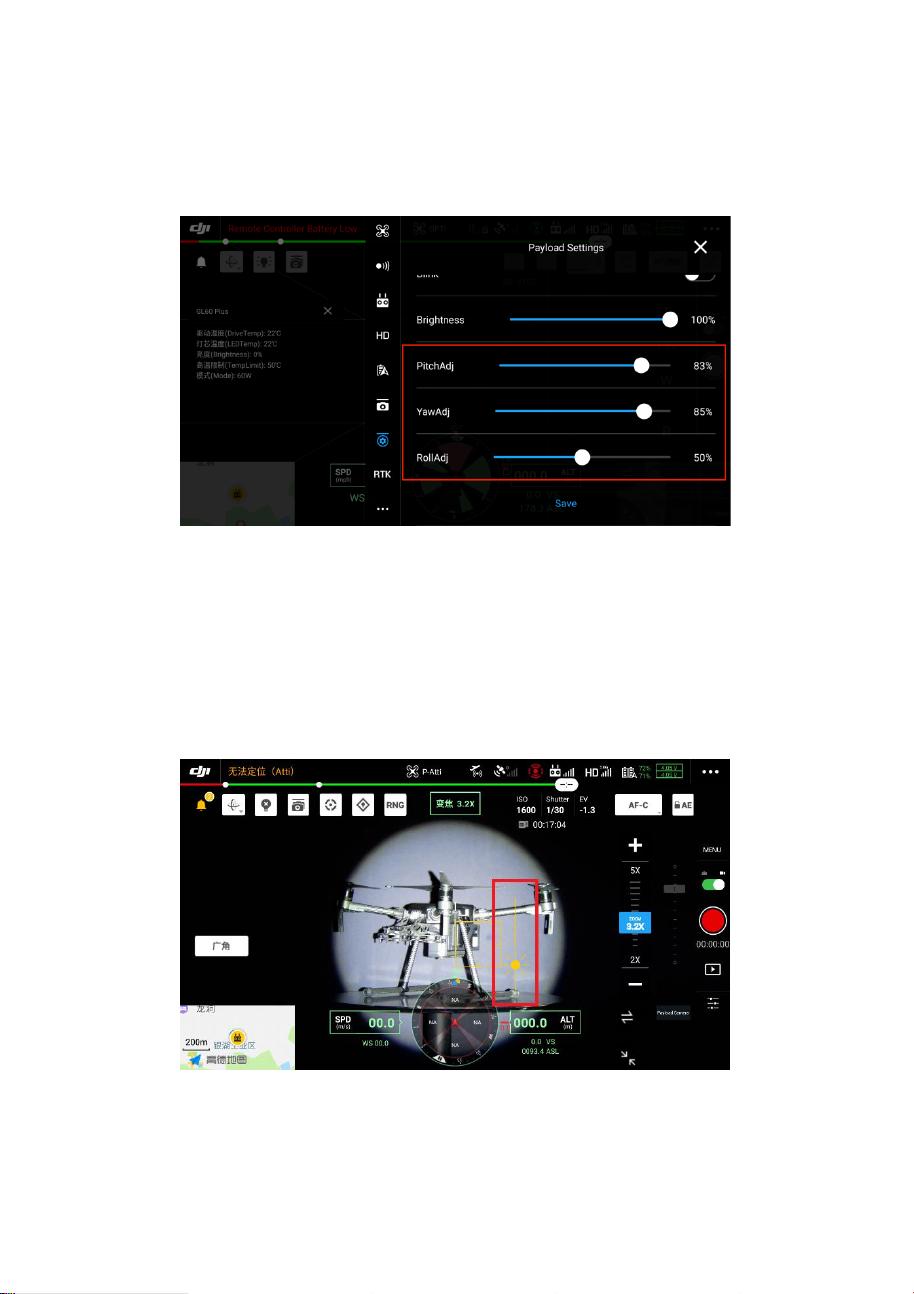

7. Use the H20 and GL60 Plus Tilt fine tuning button,
the Heading fine tuning button and the Horizontal fine
tuning button to make fine tuning to the position of
the light spot in the frame so that the light spot
remains in the center of the view. After a single fine
tuning you need to click the Save Fine Tuning button.
The maximum fine tuning is ±5°at a time and after
saving the fine tuning you can fine tune it again by ±
5°until the control limit angle is reached.

8. When observing the target, if the camera is
overexposed, slide the exposure button on the screen
to adjust it.

VII.
Firmware Upgrade
7.1 Online firmware upgrade
1. Open the CZZN software, click on the menu button
at the top right and click on Firmware Management.

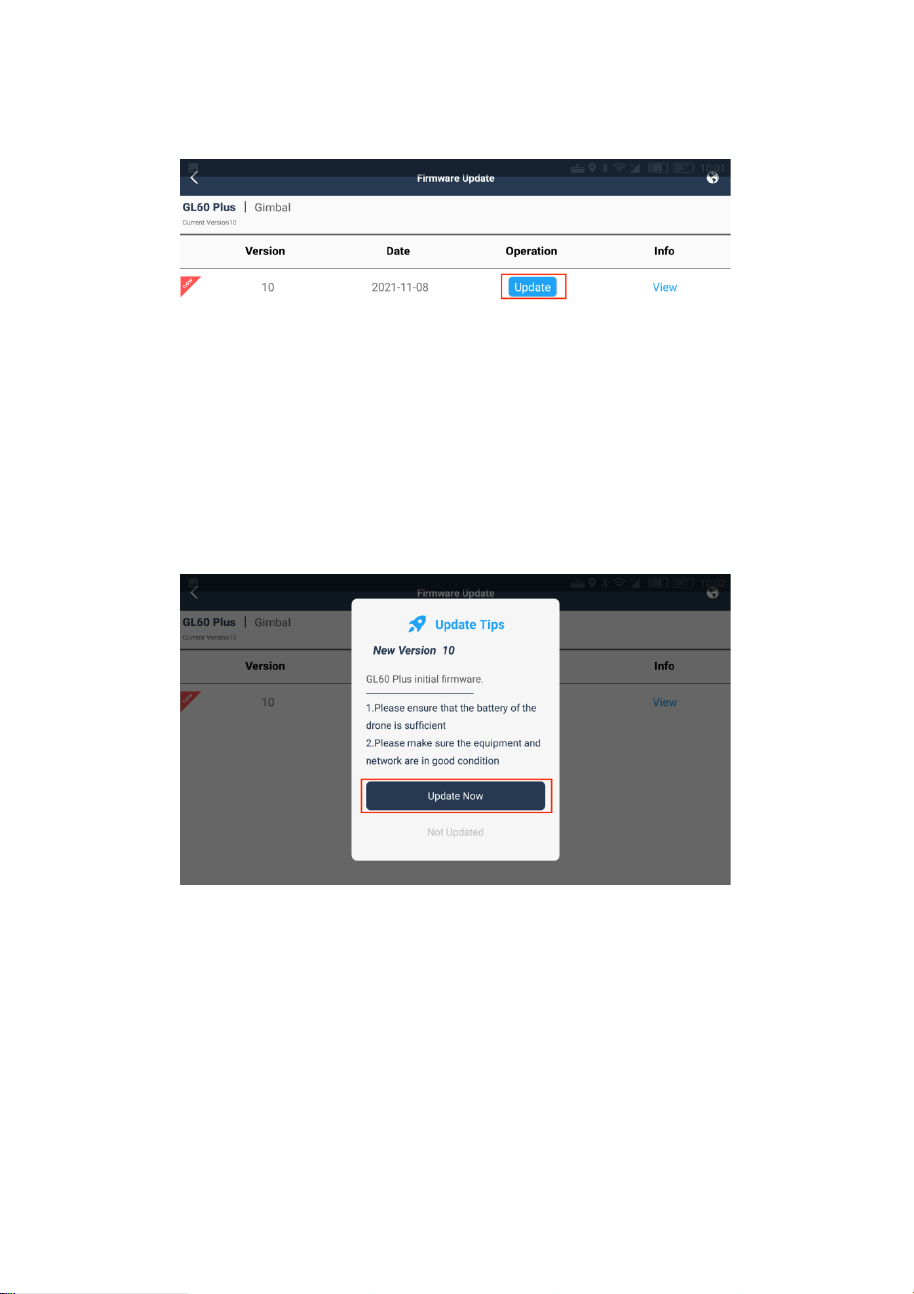

2. Go to the firmware management interface, find the
latest version of Firmware and click Refresh or Upgrade.

3、Click update
4、Wait for Firmware update successfully
