D-Link DAP-1320 User manual

iD-Link DAP-1320 User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United
States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of
their respective companies.
Copyright © 2013 by D-Link Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 September 5, 2012 • Initial release for Revision A1
1.1 August 27, 2013 • Initial release for Revision A2
Preface

iiD-Link DAP-1320 User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Product Overview.............................................................. 1
Package Contents......................................................................... 1
Minimum Requirements............................................................ 2
Introduction ................................................................................... 3
What is a Wireless Extender? ............................................ 4
Features............................................................................................ 5
Front/LED Indicator.............................................................. 6
Side and Bottom/WPS and Reset.................................... 7
Wireless Installation Considerations...................................... 8
Installation ......................................................................... 9
Connect Your DAP-1320 to Your Router Using WPS......... 9
Conguration...................................................................11
Wireless Setup Wizard...............................................................11
QRS Mobile App Setup.............................................................15
Web-based Conguration Utility..........................................19
Login........................................................................................19
Setup Wizard ........................................................................20
Home.......................................................................................23
Wi-Fi Settings .......................................................................24
Extended Wi-Fi Settings ...................................................25
Network Settings ................................................................26
Advanced Settings ........................................................26
Tools ................................................................................................29
Admin .....................................................................................29
System ....................................................................................30
Upgrade Firmware..............................................................31
Statistics .................................................................................32
Wireless Security Options ...............................................33
Security Protocols...............................................................33
Encryption.............................................................................34
Authentication.....................................................................34
Conguring WPA/WPA2 Personal.........................................35
Connecting to a Wireless Network .................................37
Connecting to Wireless Clients Using WPS .......................37
Windows® 8...................................................................................38
Windows® 7...................................................................................40
WPA/WPA2 ............................................................................40
Windows Vista®............................................................................43
WPA/WPA2 ............................................................................44
WPS/WCN 2.0 .......................................................................46
Windows® XP................................................................................47
WPA/WPA2 ............................................................................48
Troubleshooting ..............................................................50
Wireless Basics .................................................................52
What is Wireless?.........................................................................53
Tips...................................................................................................55
Table of Contents

iiiD-Link DAP-1320 User Manual
Table of Contents
Networking Basics...........................................................56
Windows® 8 Users...............................................................56
Windows® 7/Vista® Users..................................................56
Windows® XP Users............................................................56
Statically Assign an IP Address ..............................................57
Windows® 8 Users ...............................................................57
Windows® 7/ Vista® Users .................................................58
Technical Specications ..................................................59
Contacting Technical Support ........................................60
Warranty...........................................................................61
Registration .....................................................................68

1D-Link DAP-1320 User Manual
Section 1 - Product Overview
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.
DAP-1320 Wireless Range Extender
Wi-Fi Conguration Card
Quick Install Guide

2D-Link DAP-1320 User Manual
Section 1 - Product Overview
Network Requirements • IEEE 802.11n or 802.11g wireless clients
• IEEE 802.11n or 802.11g wireless router or access point
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh, Android or Linux-based operating
system
Browser Requirements:
• Internet Explorer 6
• Safari 4
• Firefox
• Chrome
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
Minimum Requirements

3D-Link DAP-1320 User Manual
Section 1 - Product Overview
Introduction
TheWireless Range Extender (DAP-1320) enables you to extend your existing wireless network coverage by placing theWireless
Range Extender in between your router and your wireless client devices. This is great for extending your wireless coverage to
hard-to-reach places like basements, home oces or upstairs bedrooms that are distant from your wireless router. The Wireless
Range Extender is also ideal for mobile device connections.
Note: Place the DAP-1320 within equal distance of your existing network/router and wireless clients.

4D-Link DAP-1320 User Manual
Section 1 - Product Overview

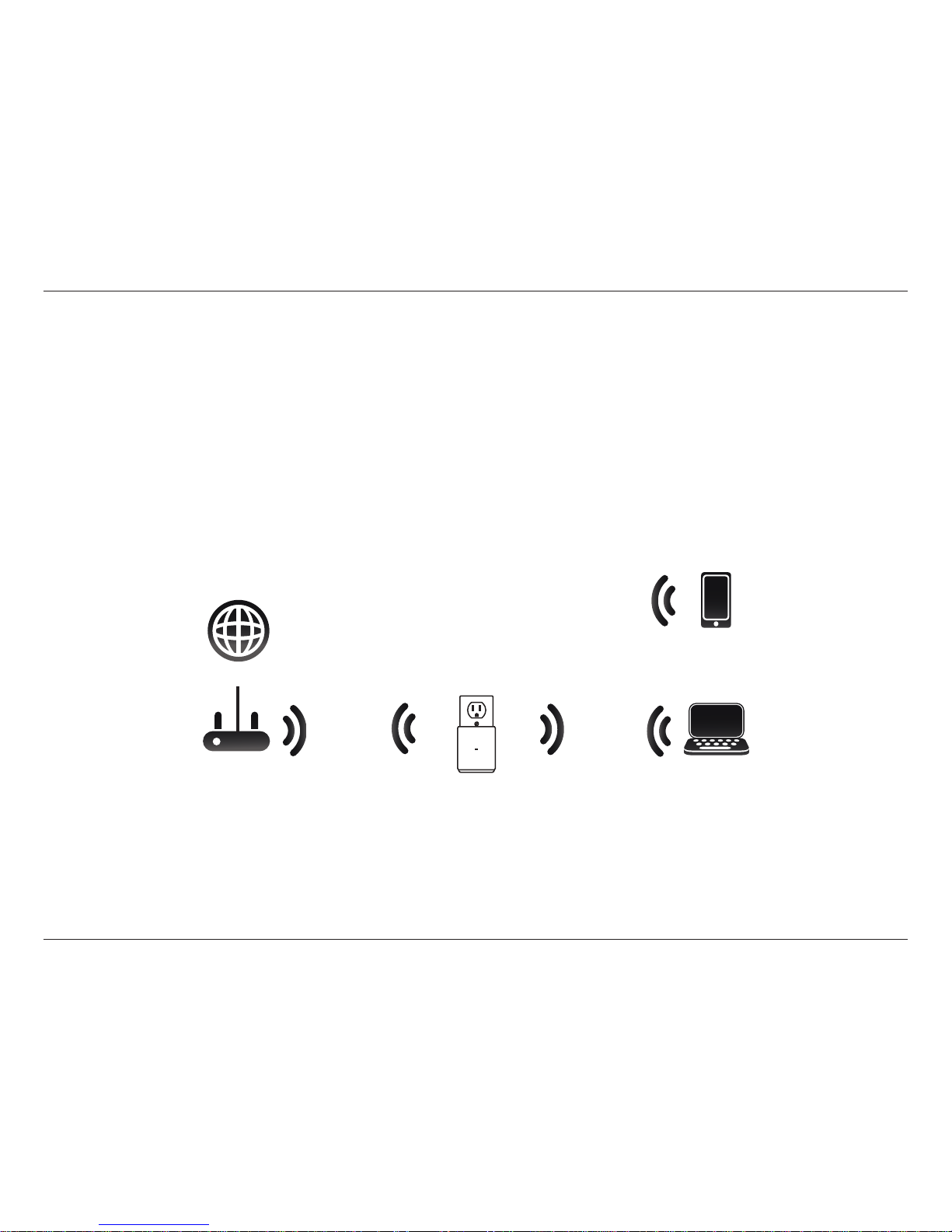

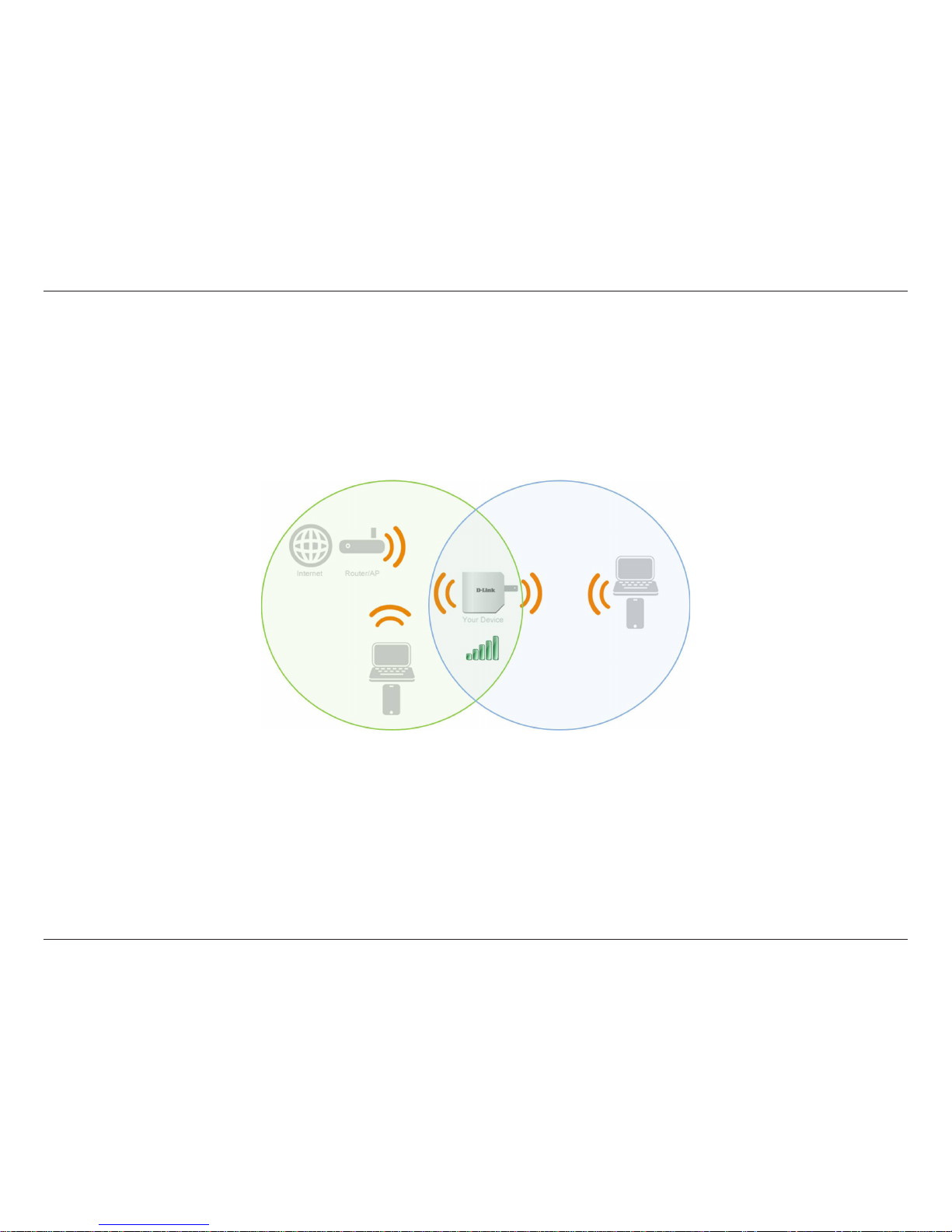

What is a Wireless Extender?
The DAP-1320 acts as a repeater to extend the range of an existing wireless network to provide better signal for parts of your
home or oce that may have poor or no reception.Your existing wireless signal will be rebroadcast by the DAP-1320, allowing you
to reach the farthest corners of your home or oce . The extended network can simply use the same network credentials as the
existing network, or you can specify a dierent network name and password, giving you the exibility to control network access.
Mobile Device
Computer
Wireless Router
Internet
DAP-1320

5D-Link DAP-1320 User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The DAP-1320 provides up to 300Mbps* wireless connection with other 802.11n
wireless clients. This capability allows users to participate in real-time activities online, such as video streaming,
online gaming, and real-time audio.
• Extend Internet access for wireless devices - Allows you to extend your internet access throughout your
home with devices such as laptops, smartphones, tablets and more.
• IEEE 802.11n and 802.11g Compliant - The DAP-1320 is still fully compatible with the IEEE 802.11g standards,
so it can connect with existing 802.11g USB and Cardbus adapters.
* Maximum wireless signal rate derived from IEEE Standard 802.11g and 802.11n specications. Actual data throughput will vary. Network conditions and environmental factors,
including volume of network trac, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely
aect wireless signal range.
Features

6D-Link DAP-1320 User Manual
Section 1 - Product Overview
Hardware Overview

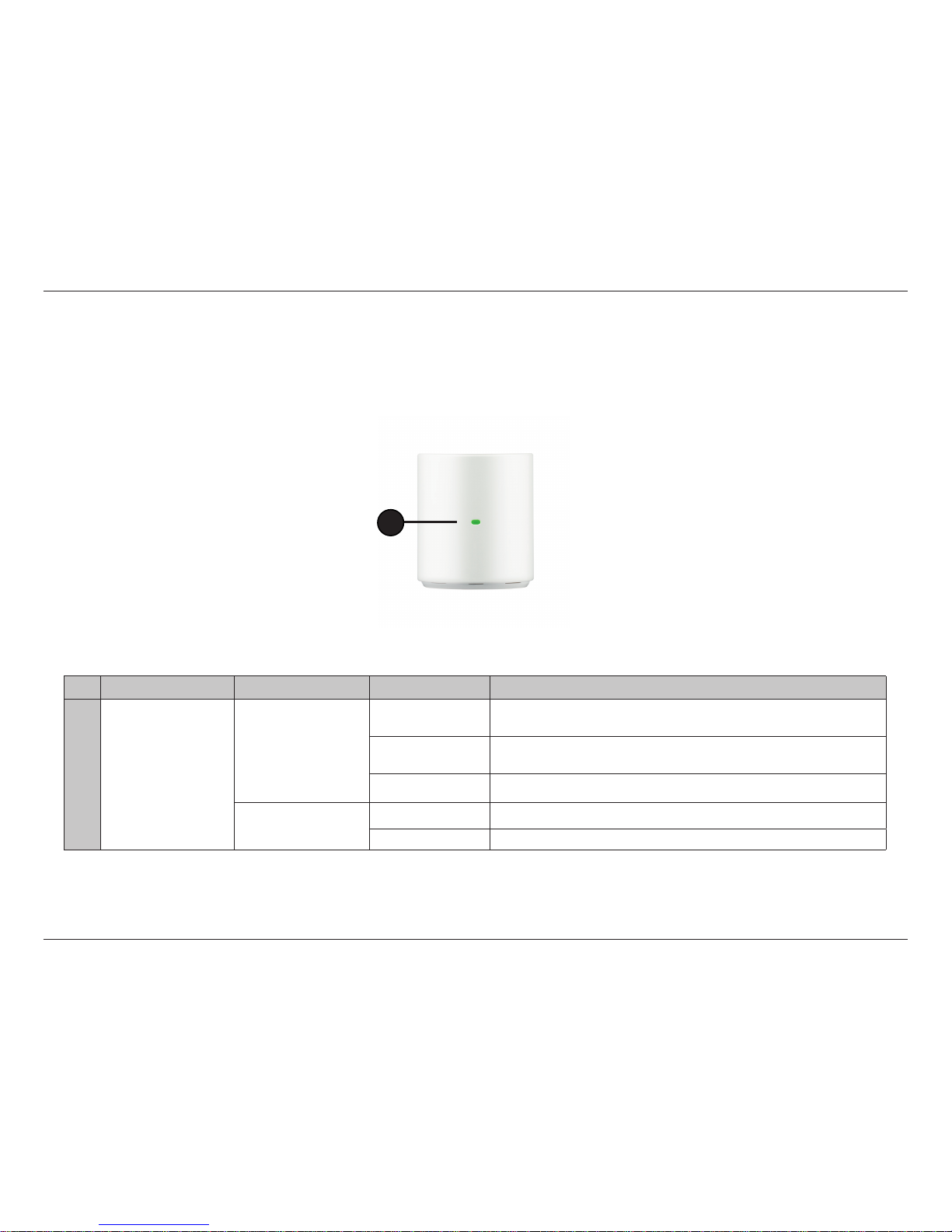

Front/LED Indicator
LED Indicator Color Status Description
1 Power/Status
Green
Solid Green The device is securely connected to a wireless router or access
point.
Blinking Green The device is processing a connection after the WPS button has
been pushed.
Light o The device is o.
Amber Blinking Amber The device is booting up.
Light o The device is not receiving power. Try a dierent outlet.
1

7D-Link DAP-1320 User Manual
Section 1 - Product Overview
Hardware Overview

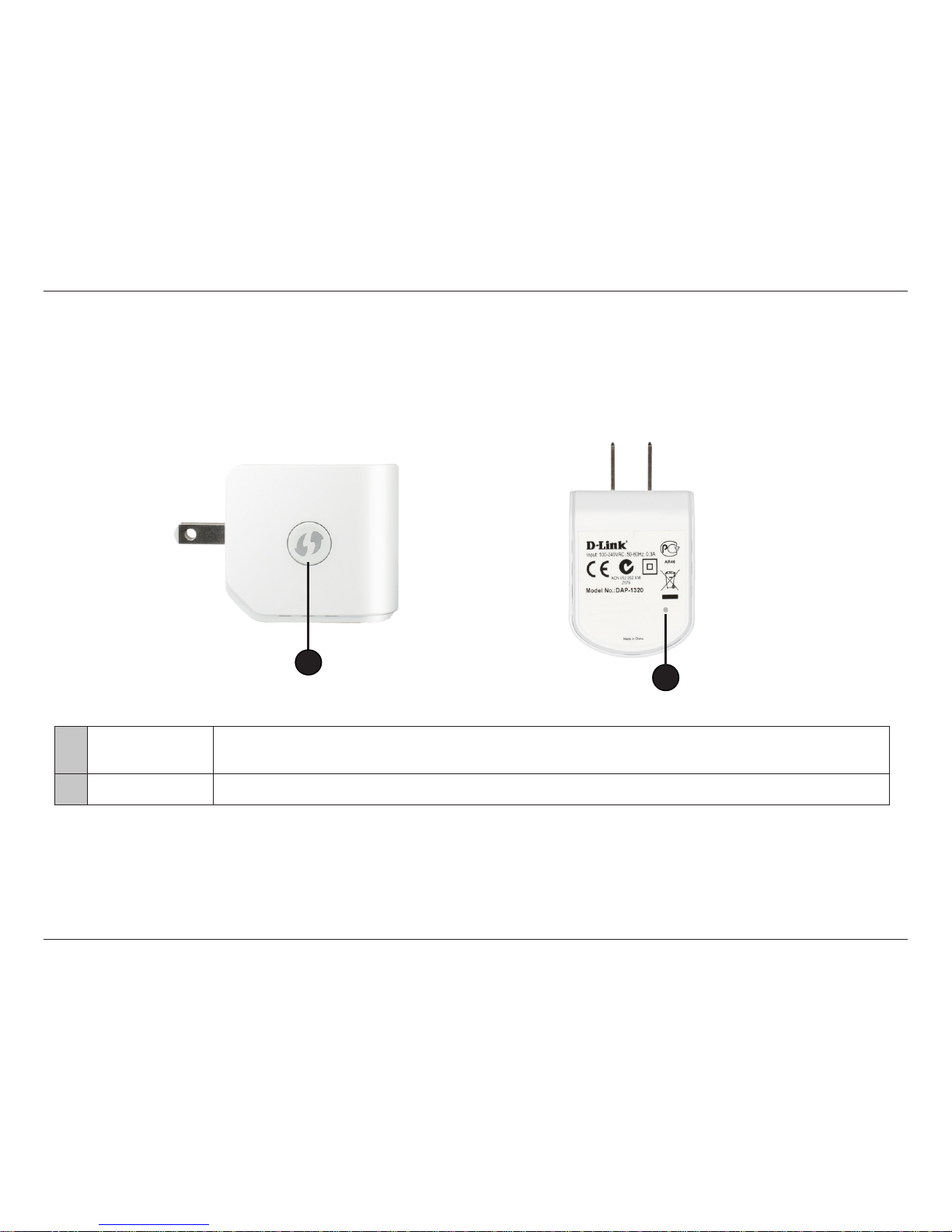

Side and Bottom/WPS and Reset
1WPS Button Press the WPS (Wi-Fi Protected Setup) button for a minimum of one second to automatically connect with Wi-Fi
clients. When the LED on the front of the device turns solid green, this means the DAP-1320 is connected.
2Reset Button Press and hold the reset button for six seconds to reset the DAP-1320 to the factory default settings.
12

8D-Link DAP-1320 User Manual
Section 2 - Installation
Wireless Installation Considerations
The D-Link wireless device lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings,
or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types
of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to
follow these basic guidelines:
1. Keep the number of walls and ceilings between the D-Link device and other network devices to a minimum.
Each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that
the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle
appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position
devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
3. Building Materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range.
Try to position access points, wireless routers, and computers so that the signal passes through drywall or open
doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le
cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF
noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security
systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone
base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not
in use.

9D-Link DAP-1320 User Manual
Section 2 - Installation

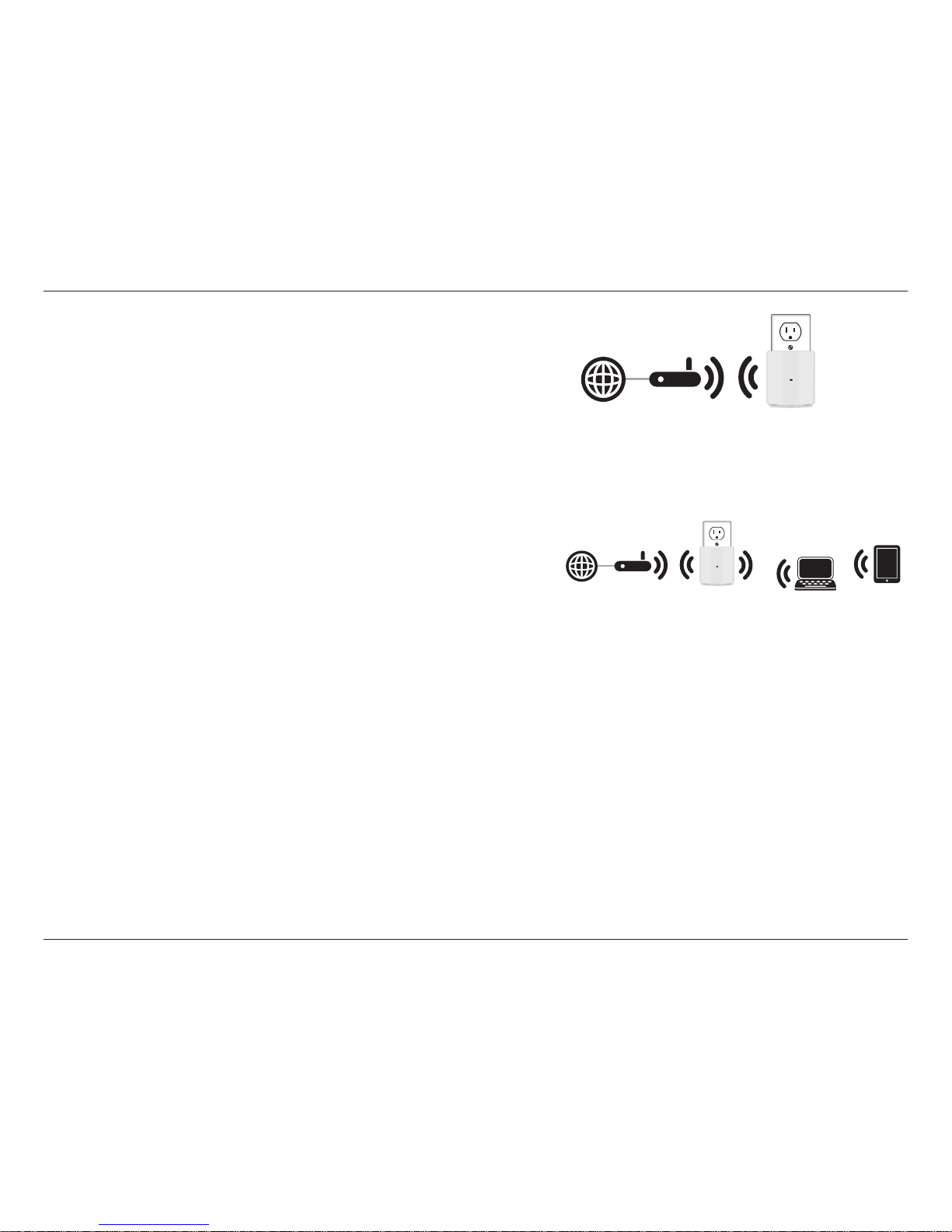

Connect Your DAP-1320 to Your Router Using WPS
Step 2 - Press the WPS button on your wireless router.
The easiest and most secure way to connect your DAP-1320 to your the router or access point is with WPS (Wi-Fi Protected
Setup). Refer to your user manual for your router or access point to make sure you understand how to enable WPS. Once you
know, follow the steps below:

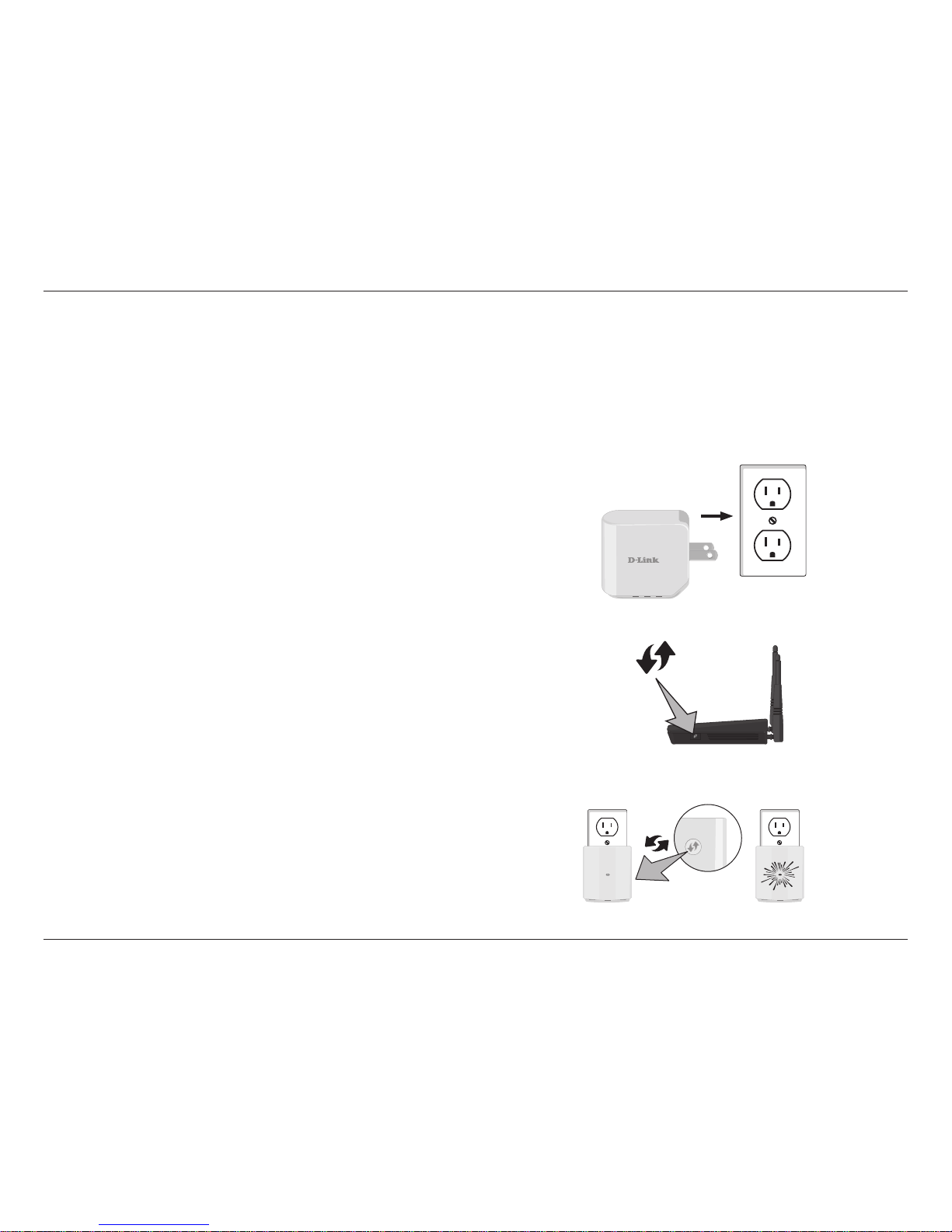

Step 1 - Find an available outlet near your wireless router. Plug the
DAP-1320 in, and wait until the power LED is blinking amber.
Step 3 - Within one minute, press and hold the WPS button on the
DAP-1320 until the light starts blinking green and then release.
Allow up to two minutes for the WPS process to nish.
DAP-1320
WPS Button
Note: Usually the WPS LED will blink once it is pressed. Check your
router’s user manual for more information.
WPS Button
Installation

10D-Link DAP-1320 User Manual
Section 2 - Installation
Step 6 - To connect your wireless clients to the DAP-1320, You can
use the Wi-Fi Network Name (SSID) and the Wi-Fi Password
located on your Wi-Fi Conguration Card. Or use WPS (Wi-Fi
Protected Setup). Refer to “Connecting to Wireless Clients
Using WPS”on page 37.
Step 4 - Your router or access point and DAP-1320 will be securely
connected when the LED light turns solid green.
Note: If your devices are not connected, try moving your DAP-1320 closer
to your wireless router or access point and repeat steps 2 and 3.
Note: For your wireless client to connect to the DAP-1320, you must use the same Wi-Fi Network Name (SSID) and Wi-Fi Password
as your DAP-1320 that is located on the Wi-Fi Conguration Card. If you would like to change your Wi-Fi Network Name (SSID) and
Wi-Fi Password refer to “Extended Wi-Fi Settings” on page 25.
Step 5 - You can now unplug and move the DAP-1320 to a location
between your wireless router and the area that you need to
extend wireless coverage to.

11D-Link DAP-1320 User Manual
Section 3 - Conguration

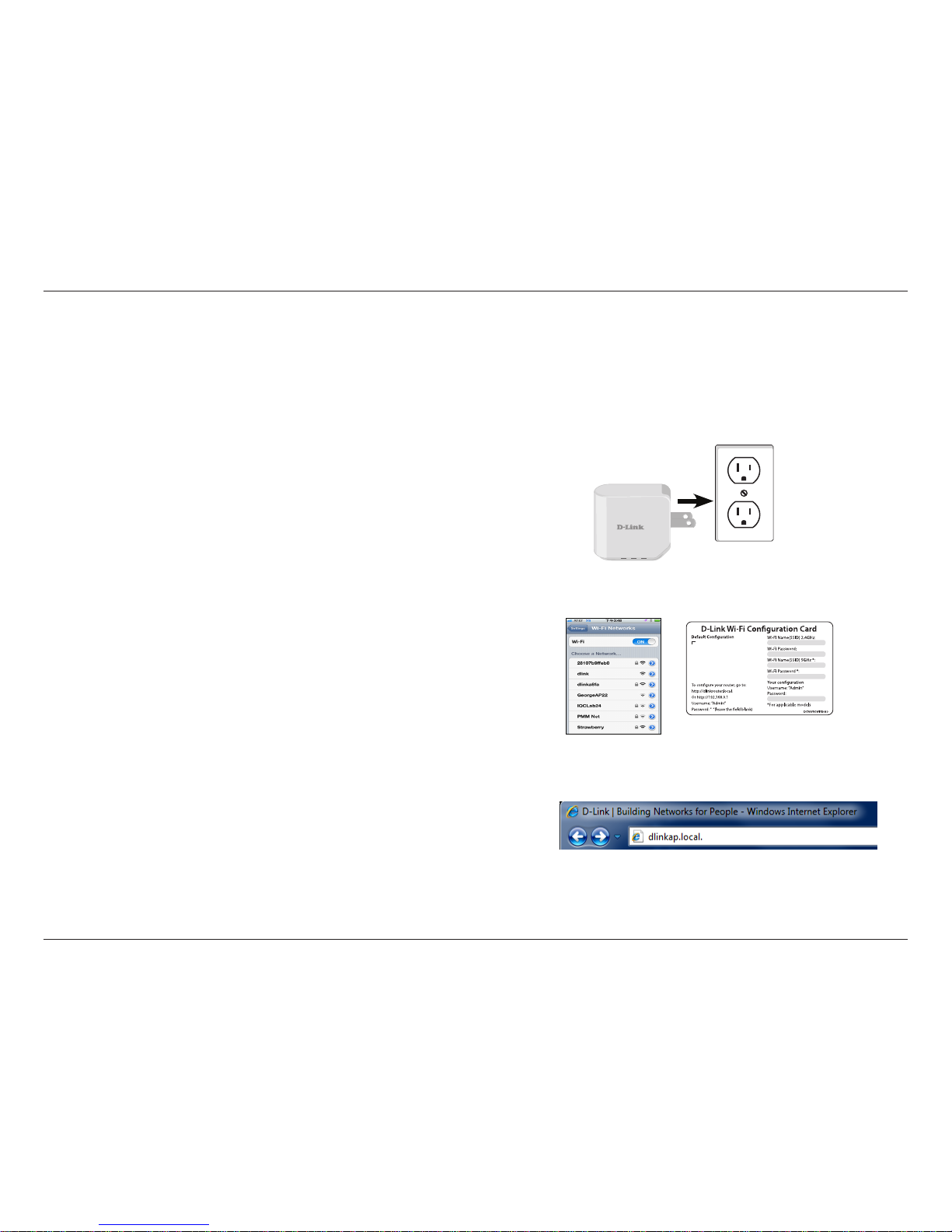

1. Find an available wall outlet near your wireless router. Plug in the
DAP-1320, and wait until the power LED turns to a blinking amber.
This means the device is booting up.
2. From your wireless computer, go to the Wireless Utility to display
the available Wi-Fi Networks and select the Wi-Fi Network Name
(SSID) that is on the Wi-Fi Conguration Card (ex: dlink-a8fa). Then,
enter the Wi-Fi Password which is also located on your Wi-Fi
Conguration Card. (ex: akbdj19368).
3. Open a web browser and enter http://dlinkap.local./.Or you can
enter the IP address of the DAP-1320.*
DAP-1320
Conguration
Wireless Setup Wizard
Wi-Fi Name(SSID) 2.4Ghz:
dlink-2c19
Wi-Fi Name(SSID) 5GHz:
dlink-2C1B-media
Password:gccnu80856
Use a wireless computer or mobile device with a web browser to access the Setup Wizard. As an alternative , you can go to the
“Web-based Conguration Utility” on page 19.
* The default IP address is 192.168.0.50. Once the DAP-1320 connects to your router, it will get assigned a new
IP address based on your router/network’s DHCP settings. You will need to log in to your router and view the
DHCP table to see what IP address was assigned to the DAP-1320. The MAC address is printed on the label on
the DAP-1320.

12D-Link DAP-1320 User Manual
Section 3 - Conguration

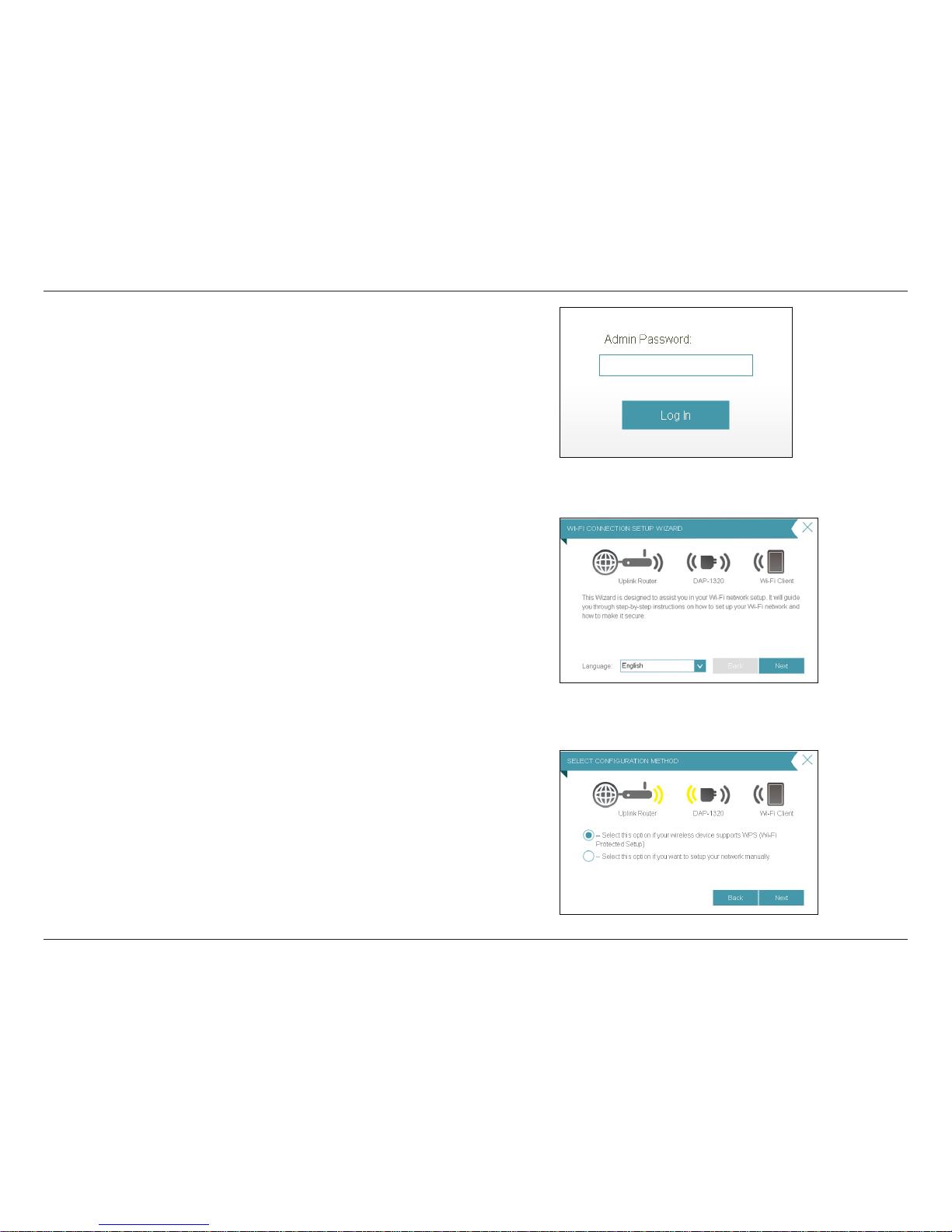

6. If your wireless device supports WPS, click on Select this option if
your wireless device supports WPS (Wi-Fi Protected Setup). For
manual setup, skip to Step 8 on the next page.
Click Next to continue. You will see instructions on the screen that
say, Press the Push Button (physical or virtual) on the AP or Router...
5. Select your Language from the drop-down menu and click Next
to continue.
4. By default, Admin is the user name. Enter the Admin Password
(blank by default) and click Login.
Note: If this is your rst time logging into the DAP-1320, you will be
directed to the Setup Wizard automatically.

13D-Link DAP-1320 User Manual
Section 3 - Conguration

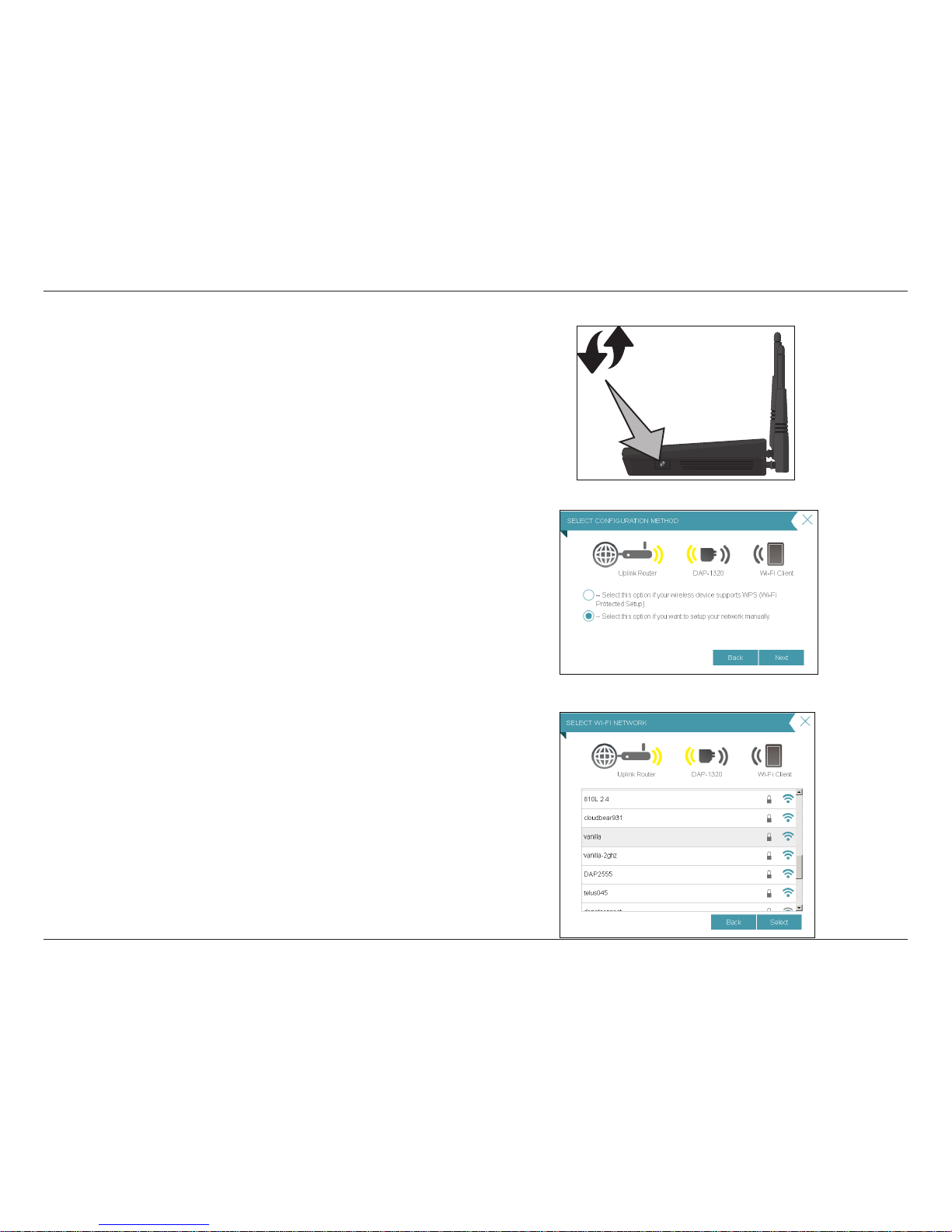

8. If your wireless device does not support WPS, click Select this
option if you want to set up your network manually.
Click Next to continue.
9. Wait while your device scans for available Wi-Fi networks. You will
see a list of networks found. Select the Wi-Fi Network you wish to
use, and click Select.
Note: If the network you would like to connect to is not listed, click
Back and select the manual option again to perform another scan.
Make sure you are in range of your wireless router.
7. Press and hold the WPS button on your wireless router or access
point until the light starts blinking green and then release. Allow
up to two minutes for theWPS process to nish.When a connection
is successfully established, the LED on the device should turn solid
green.
Note: Refer to your router or access point’s user manual instructions
for the WPS process.
WPS Button

14D-Link DAP-1320 User Manual
Section 3 - Conguration
11. The DAP-1320 will rebroadcast theWi-Fi connection from the uplink
router as an Extended Network. Enter an Extended Wi-Fi network
name and Extended Wi-Fi network password.
If you would like to use the same SSID and password as your uplink
router, check the box at the bottom of the screen. This will extend
the network that your router is currently broadcasting.
Click Next to continue.
12. The setup process is now complete. A summary page will appear
displaying the settings for both the connection to the Wi-Fi Network
and the Extended Wi-Fi network. It is recommended that you make
a note of this information for future reference.
Click Save to save your settings and exit the wizard.
10. If the wireless network you selected is secure, you will be prompted
to enter the Wi-Fi Password.
Click Next to continue.

15D-Link DAP-1320 User Manual
Section 2 - Installation
QRS Mobile App Setup

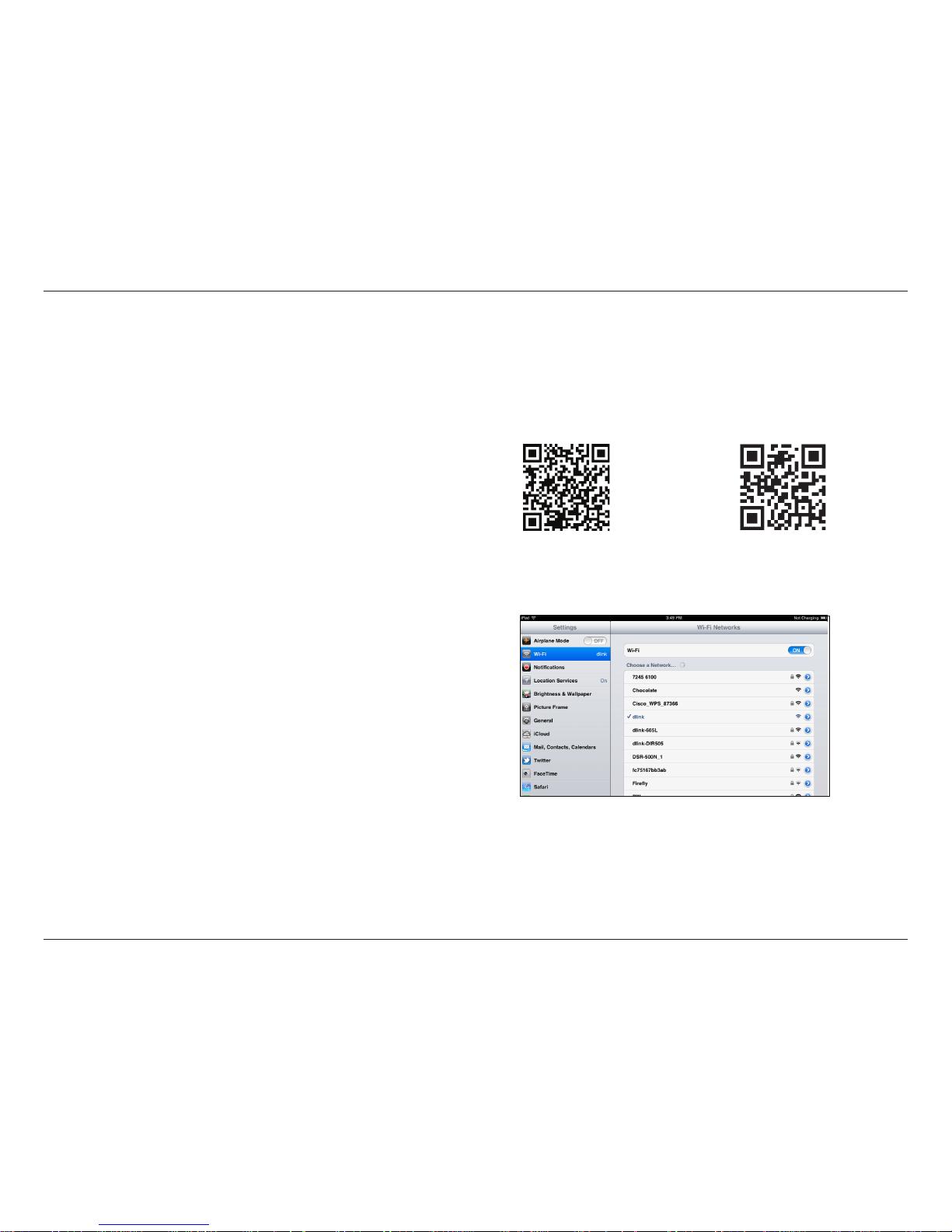

Search for QRS Mobile in the App Store or Google Play, or use your
mobile device to scan the QR codes on the right to download
the QRS Mobile app from the App Store (left) for your iOS device,
or from Google Play (right) for your Android device.
For iOS For Android
Connect to the Wi-Fi Network that is displayed on the Wi-Fi
Conguration Card included in your package (ex: dlink-a8fa).
Then, enter the Wi-Fi Password also printed on the Wi-Fi
Conguration Card (akbdj1936).
The DAP-1320 can be set up from your iOS or Android smartphone or tablet device using the QRS Mobile app.

16D-Link DAP-1320 User Manual
Section 2 - Installation

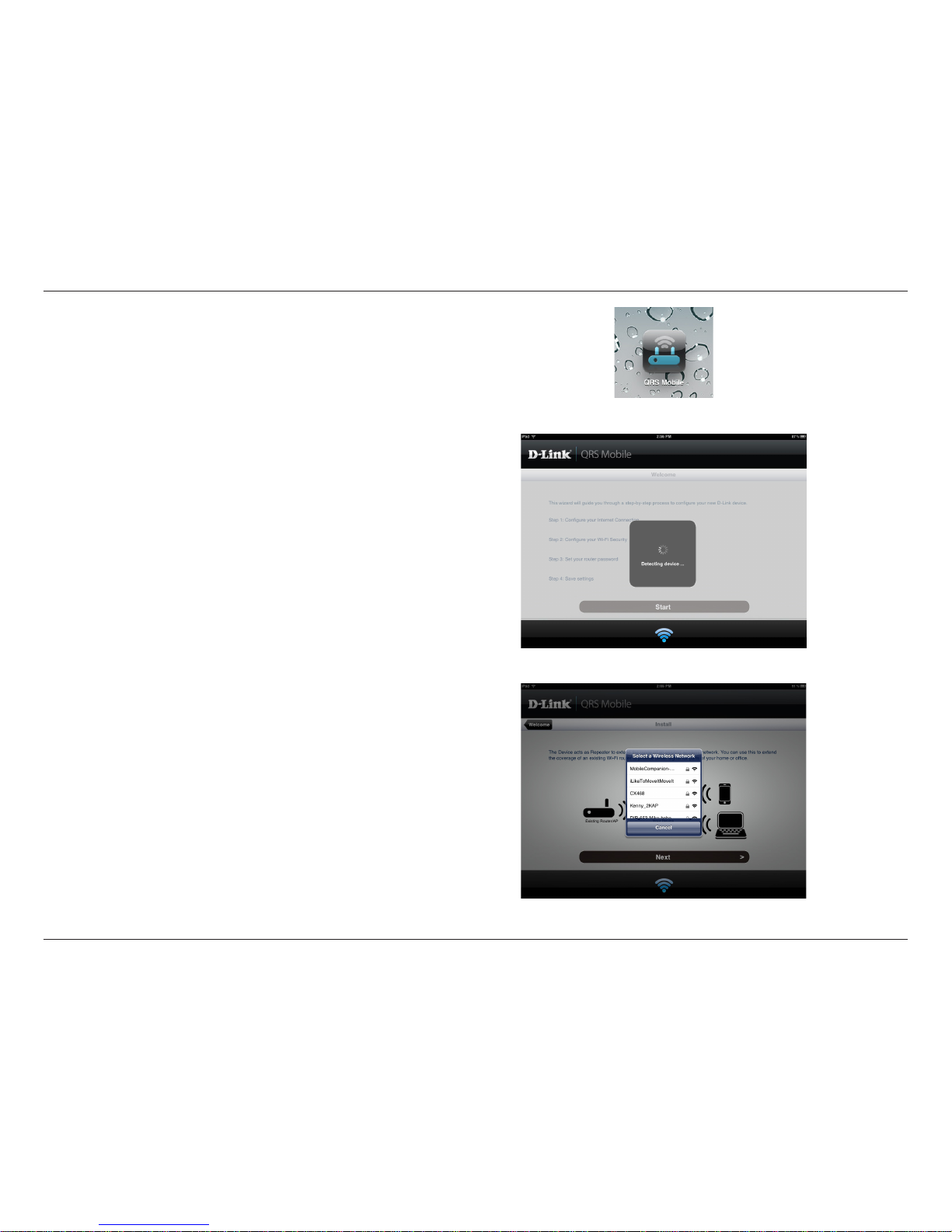

Once your mobile device is connected, tap on the QRS Mobile
icon.
Tap Start to continue.
QRS Mobile will rst detect your DAP-1320, then scan for available
Wi-Fi networks. Select the Wireless Network you wish to extend
and enter the Password if required.
