D-Link DAP-1330 Manual

Technical Support Setup Procedure
Page | 1
How to configure DAP-1330 as Access Point with non-default
wireless SSID?
(Note: Please ensure the de ice LED is blinking orange colour before you do
setup.
If it is not blinking in orange colour, follow the guide on page 3 on how to reset
the de ice before follow the guide to setup.)

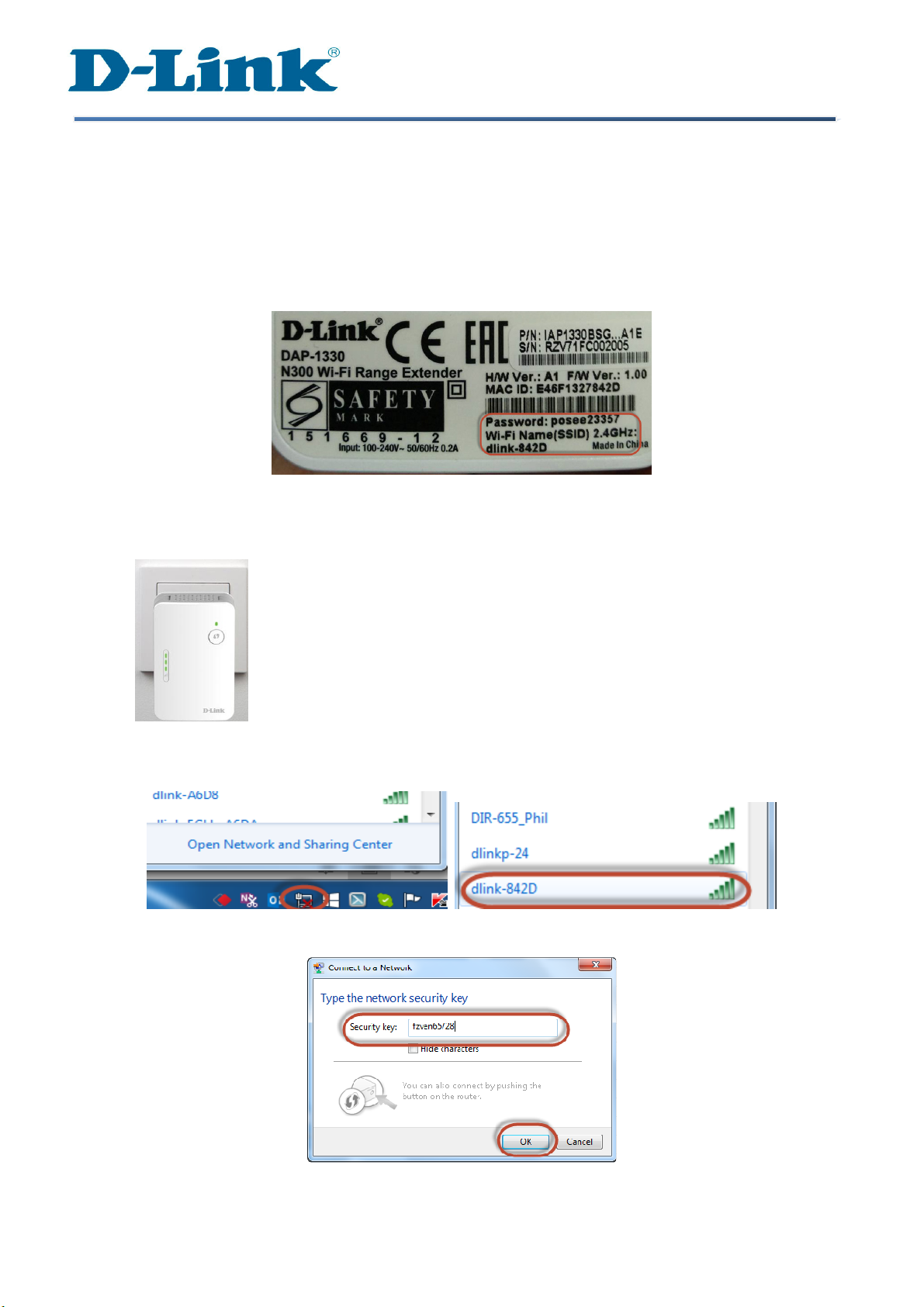

Step 1: Copy down the wireless name and password that was on the sticker of the device.
Step 2: Plug DAP-1330 direct to power outlet.
Step 3: Click on the Computer Icon on the right bottom side of the Windows. Select the Wireless
network name that was copy down.
Step 4: Enter the Wifi Passwor which had copy down earlier on. Click on OK.

Technical Support Setup Procedure
Page |

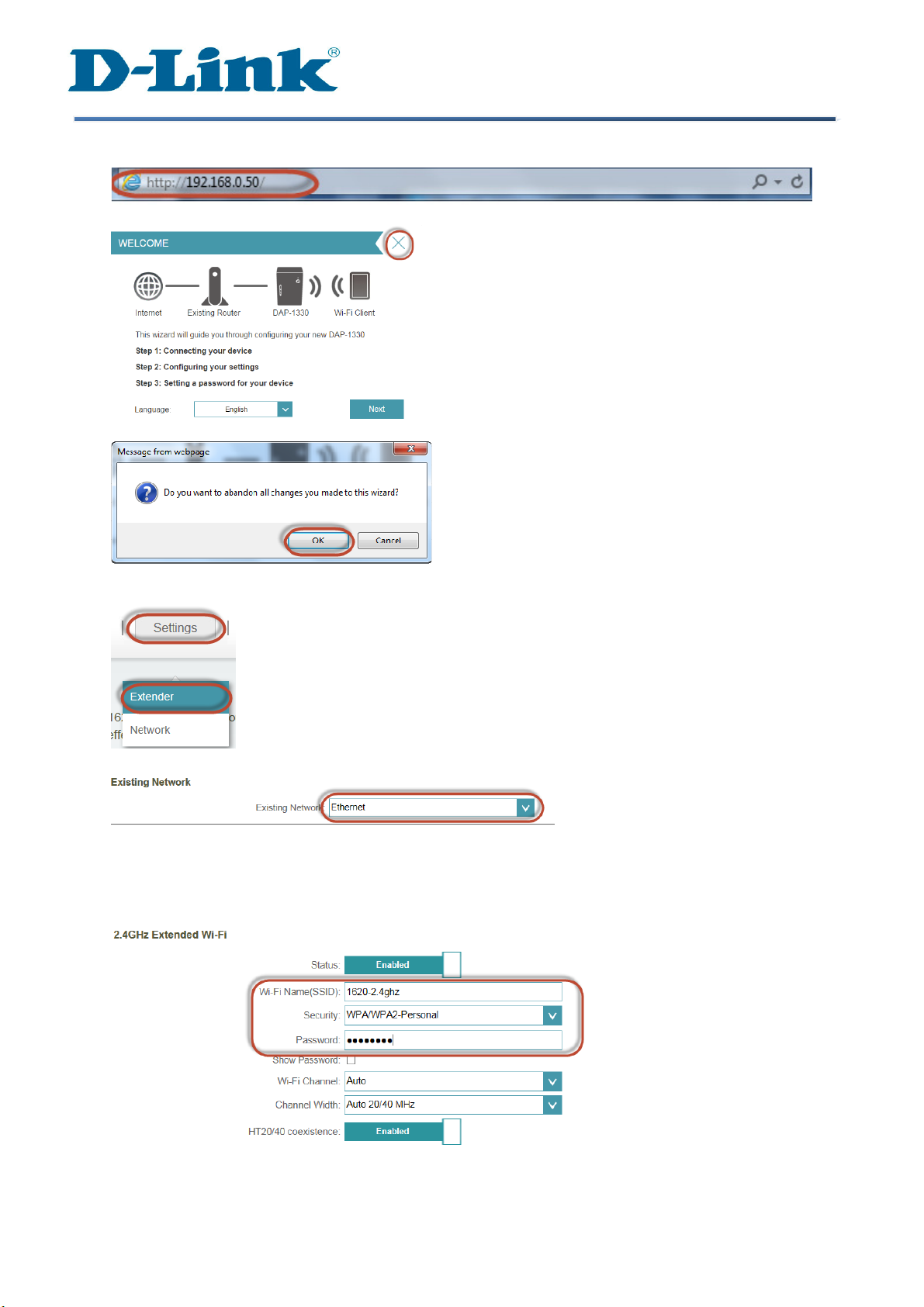

Step 5: Open Internet Explorer and enter http://192.168.0.50 on the URL bar.
Step 6: Click on X.
Step 7: Click on OK.
Step 8: Click on Settings and select Exten er.
Step 9: Select Ethernet for Existing Network.
Step 10: 2.4Ghz Exten e Wi-Fi
a) Give a different Wi-Fi Name in the box beside Wi-fi Name (SSID).
b) Give a different Wi-Fi Passwor in the box beside Passwor

Technical Support Setup Procedure
Page | 3

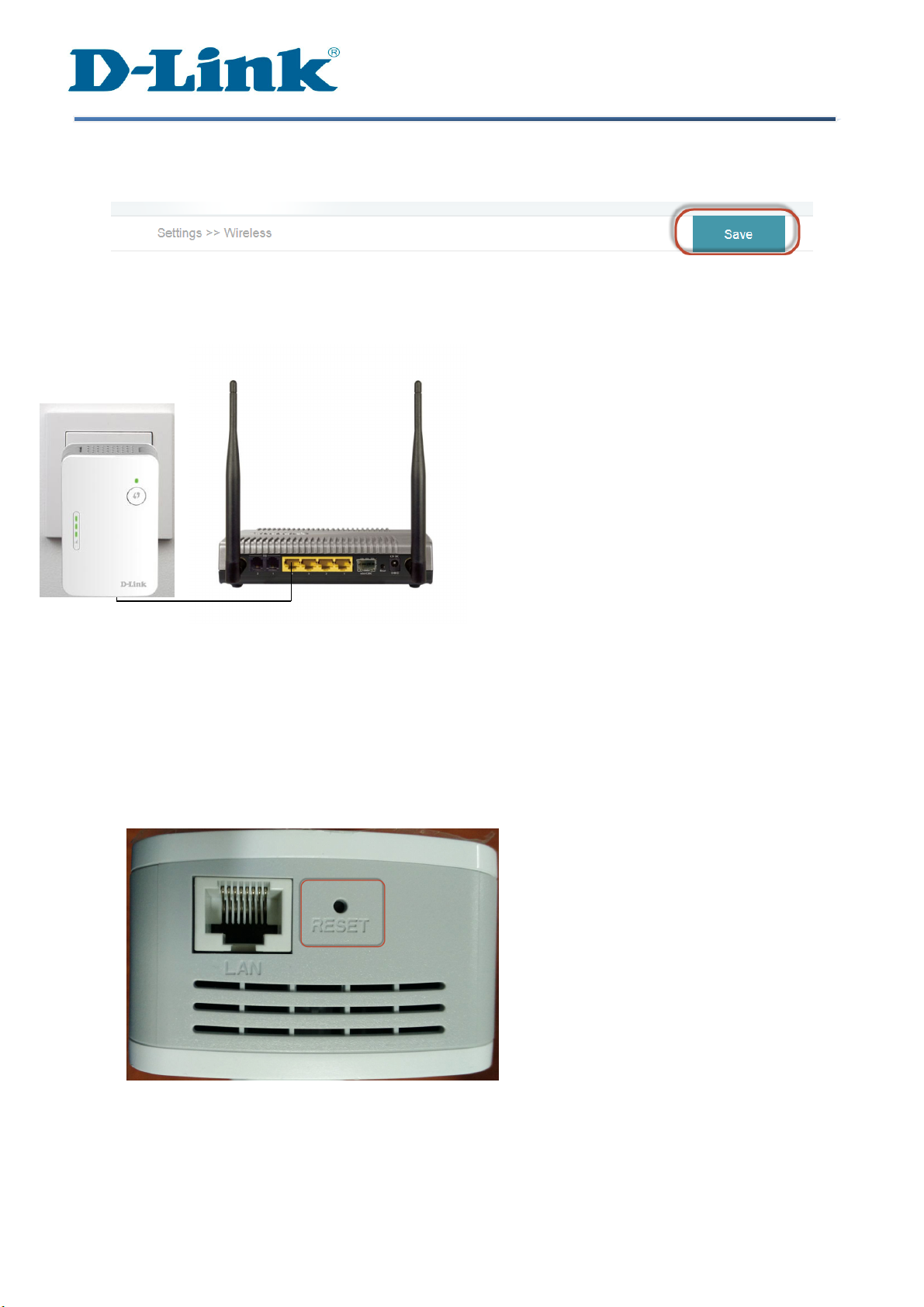

Step 11: Click on Save.
Step 12 a) Plug DAP-1330 direct to power outlet.
b) Connect LAN Cable from DAP-1330 to LAN port of the Router.
Step 13: Use computer to connect to the wireless you had setup.
--- END ---
How to reset DAP-1330?
Step 1: Plug DAP-1330 direct to power outlet.
Step 2: Power on DAP-1330 and wait for 1 min.
Step 3: Use a paper clip to press and hold the Reset Button for 30 second.
Step 4: Wait for 2 min for the device to fully power on after reset.
--- END ---
