D-Link AirPlus DWL-800AP+ User manual

D-Link AirPlus DWL-800AP+
Enhanced 2.4 GHz Wireless Range Extender
Manual
Building Networks for People

2
Contents
1. Package Contents ............................................. 3
2. Introduction........................................................ 4
3. Wireless Basics ................................................. 8
4. Getting Started ................................................ 11
5. Using the Configuration Menu......................... 13
6. Troubleshooting............................................... 18
7. Networking Basics........................................... 24
8. Technical Specifications .................................. 53
9. Contacting Technical Support.......................... 55
10. Warranty and Registration............................... 56

1. Package Contents
Contents of Package:
• D-Link AirPlus DWL-800AP+ Enhanced 2.4GHz Wireless Range
Extender
• Power Supply (5V, 2.5A)
• Manual and Warranty on CD
• Quick Installation Guide
Note: Using a power supply with a different voltage rating than the one included with
the DWL-800AP+ will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements For Configuration:
• Computer with Windows, Macintosh, or Linux-based operating
system with an installed Ethernet adapter
• Internet Explorer 6.0 or later, or Netscape Navigator version 6.0 or
above, with JavaScript enabled

4
2. Introduction
The D-Link AirPlus DWL-800AP+ Wireless Range Extender is an enhanced
802.11b high-performance, wireless device. It is an ideal way to extend the
reach and number of computers connected to your wireless network.
The DWL-800AP+ can act as an access point or a wireless repeater. In
repeating mode, the DWL-800AP+ repeats the wireless signal of D-Link
AirPlus access points and wireless routers to extend the range of your
wireless network.
Unlike most 802.11b devices, the DWL-800AP+ is capable of data transfer
rates up to 22 Mbps (compared to the standard 11 Mbps) when used with
other D-Link AirPlus products such as the DWL-520+ Wireless PCI Adapter,
DWL-650+ Wireless Cardbus Adapter, and the DI-614+ Wireless Router.
After completing the steps outlined in the Quick Installation Guide (included
in your package) you will have the ability to share information and resources,
such as files and printers, and enjoy the freedom that wireless networking
brings.
The DWL-800AP+ is compatible with most popular operating systems,
including Macintosh, Linux and Windows, and can be integrated into a large
network. This Manual is designed to help you connect the DWL-800AP+ and
the D-Link AirPlus 2.4GHz Wireless Adapters into a network in Infrastructure
mode. Please take a look at the Getting Started section in this manual to
see an example of an Infrastructure network using the DWL-800AP+.
This manual provides a quick introduction to wireless technology and its
application as it relates to networking. Please take a moment to read through
this manual if you need to get acquainted with wireless technology.

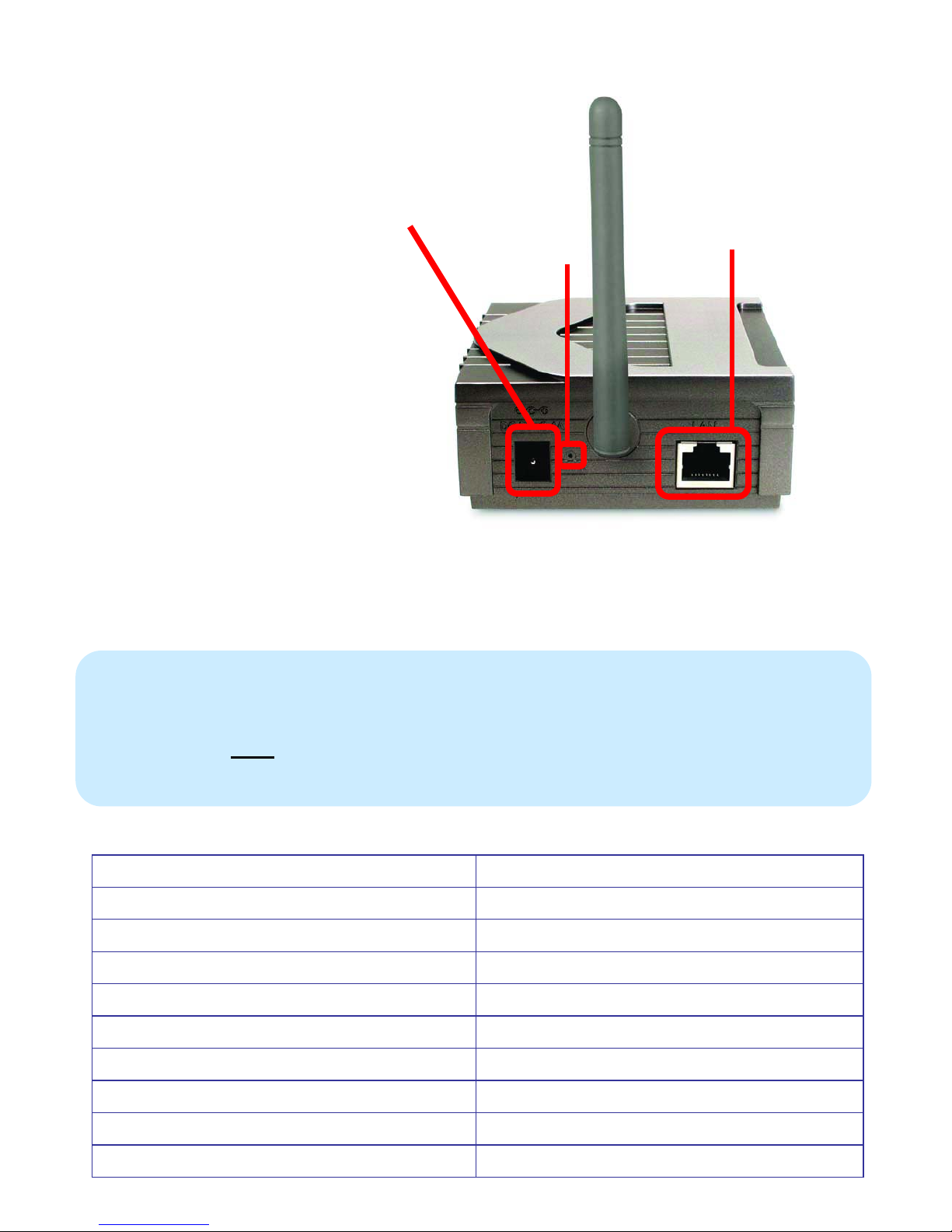

Connections
Ethernet Port – this RJ-45
Auto MDI/MDIX port provides
connection to a network
device using a
Cat 5 Ethernet
cable. (The Auto
MDI/MDIX port
accommodates either a
Straight-Through or a Cross-
Over cable and is auto-
sensing.)
Reset Button –
press this button to revert to
the factory default settings of
the DWL-800AP+
Power Receptor – connect
one end of the 5V DC Power
Adapter (included) to the power receptor on the DWL-800AP+ and connect
the other end of the Power Adapter to a power outlet.
Factory Default Settings for the DWL-800AP+*
Wireless Mode Repeater
SSID default
Channel 6
Transmission rates Auto
Encryption No
Administrator password Blank (no password needed)
IP Address mode Static
IP Address 192.168.0.30
IP Subnet 255.255.255.0
username admin (all lower case)
Ethernet
Reset Button
Power Receptor
Category 5 is the most reliable grade of twisted-
p
air cable. It Is available as eithe
r
Straight-Through cable or Cross-Over cable. Always check your installation
instructions to make sure that you have selected the correct type of Category
5
cable for your other networking devices. The DWL-800AP+ will accept either type
of cable and will automatically sense the cable that you are using.

6
*By default, the DWL-800AP+ is set to Repeater mode. Just input the 12-
digit Ethernet MAC address (e.g., 0080CO2C5551) of the remote router or
access point that you wish to repeat. If you wish to use the DWL-800AP+ as
an access point, you can select this option instead. Go to the Wireless tab in
the Web Configuration Utility to make these selections.
Features & Benefits
• Extends the range of your wireless network
• Up to 2X Faster with AirPlus Products - high-speed wireless data
transfer rates up to 22Mbps. With twice the data rate and capacity,
the DWL-800AP+ delivers media rich content such as digital images,
videos, and MP3 files much faster than standard 802.11b networks
• Fully 802.11b Compatible – Fully compatible with the IEEE 802.11b
standard and interoperable with all existing 802.11b compliant
devices
• Stronger Network Security with 256-bit WEP Encryption – Supports
64/128/256-bit WEP encryption for higher level of security for your
data and wireless communication than encryption found in existing
802.11b products
• Setup Wizard – for easy configuration.
• Web-based interface for Managing and Configuring – Easy-to-use
interface independent of the operating system
• 2 Different Operation Modes – Capable of operating in Access Point
or Repeater mode. In Repeater mode the DWL-800AP+ will extend
your existing wireless network up to 328 feet when used with the
D-Link AirPlus DI-614+ Enhanced Wireless Router; the AirPlus
DI-714P+ Enhanced Wireless Router with Print Server; the AirPro
DI-764 Multimode Wireless Router, the AirPro DI-754 Multimode
Wireless Router with the DWL-650+, or the AirPremier
DWL-1000AP+ Enterprise Wireless Access Point
• Auto-MDI/MDIX Ethernet port

LEDS

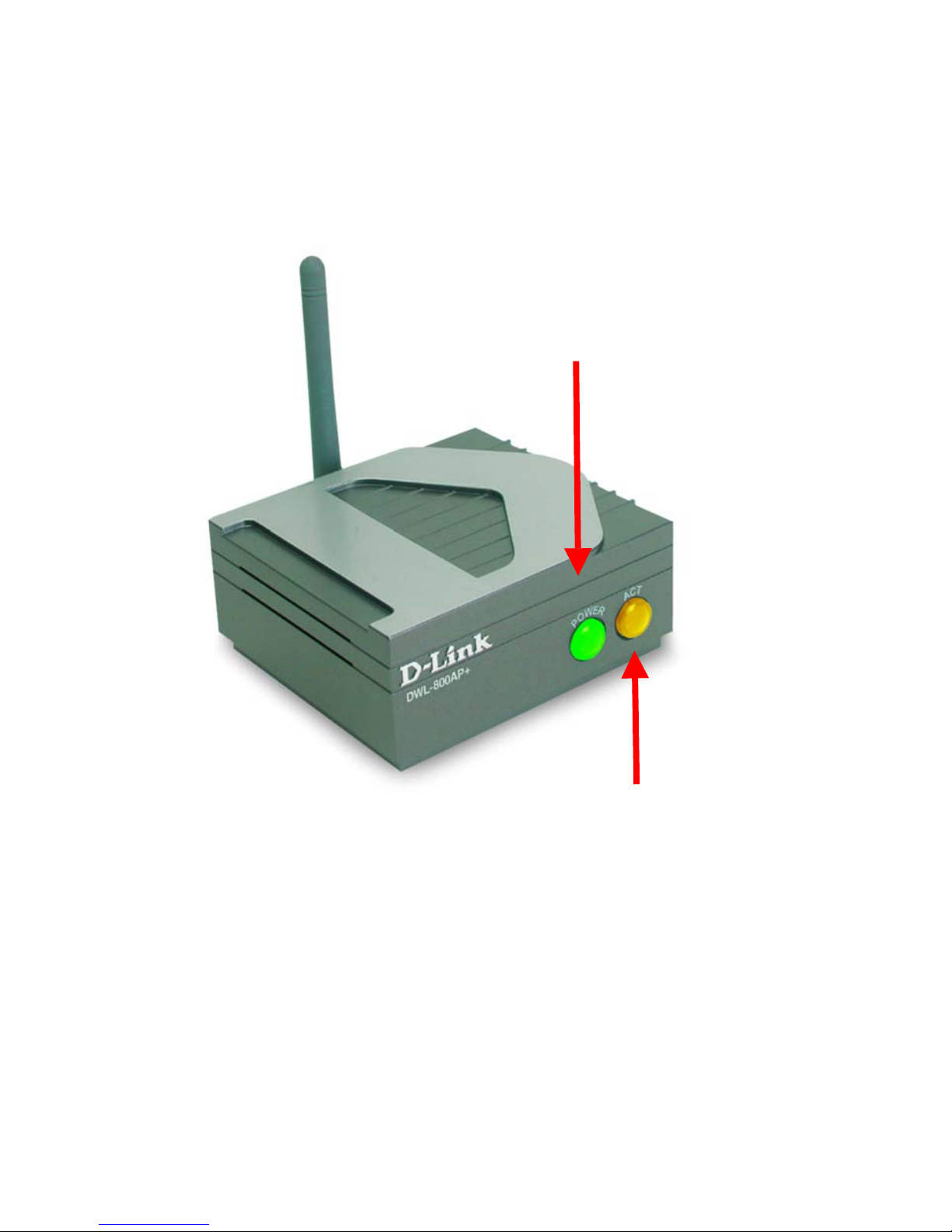

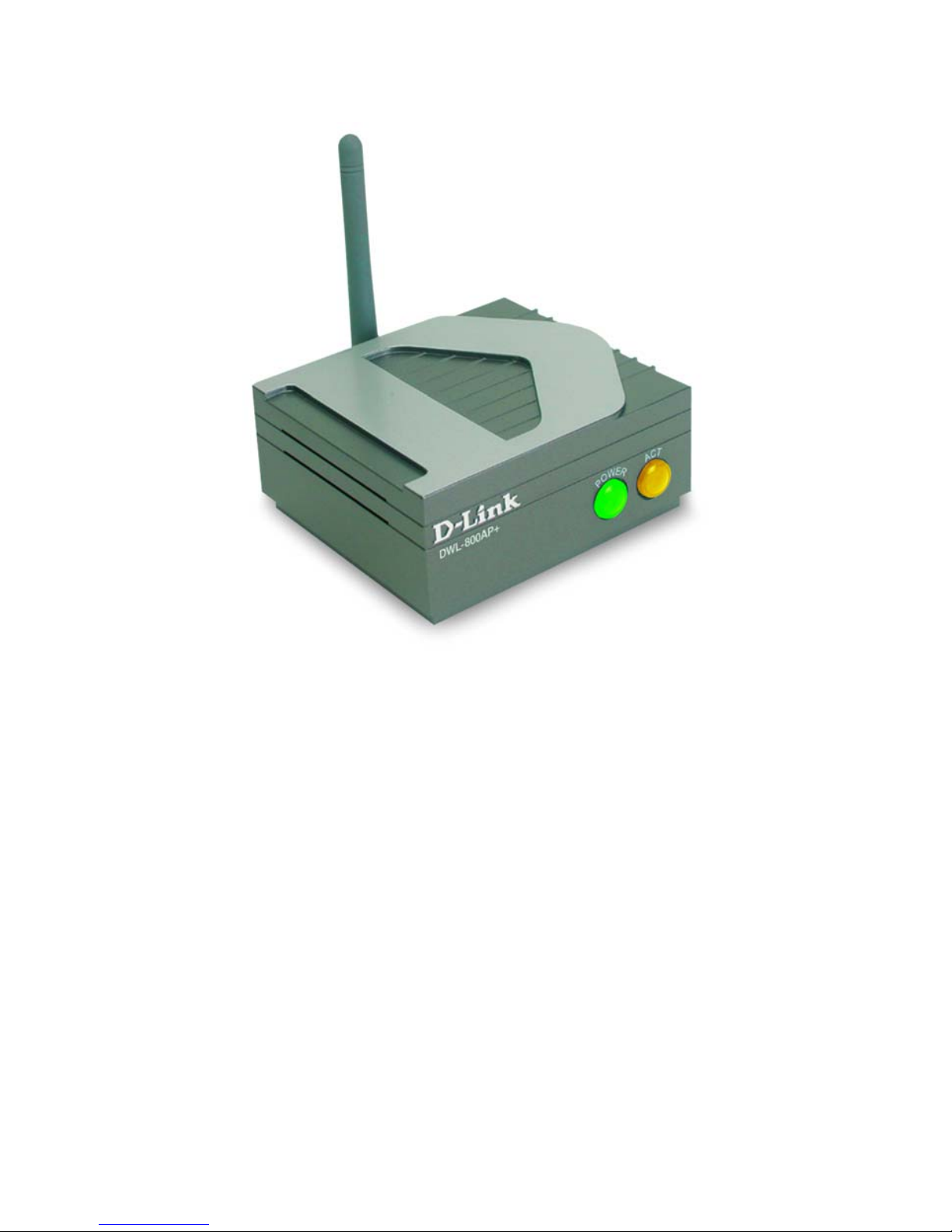

LED stands for Light-Emitting Diode. The DWL-800AP+ Wireless Range
Extender has 2 LEDs as shown below:
Power – a steady
Green light indicates a
proper connection to a
power source.
Wireless Link/Act – a
steady Yellow light
indicates a good wireless
connection. A blinking
light indicates that the
DWL-800AP+ is
receiving/transmitting
from/to the wireless
network.

8
3. Wireless Basics
D-Link AirPlus wireless products are based on industry standards to provide
easy-to-use and compatible high-speed wireless connectivity within your
home, business or public access wireless networks. The D-Link AirPlus
wireless family of products will allow you to securely access the data you
want, when and where you want it. You will be able to enjoy the freedom that
wireless networking delivers.
A wireless local area network (WLAN) is a cellular computer network that
transmits and receives data with radio signals instead of wires. WLANs are
used increasingly in both home and office environments, and public areas
such as airports, coffee shops and universities. Innovative ways to utilize
WLAN technology are helping people to work and communicate more
efficiently. Increased mobility and the absence of cabling and other fixed
infrastructure have proven to be beneficial for many users.
Wireless users can use the same applications they use on a wired network.
Wireless adapter cards used on laptop and desktop systems, support the
same protocols as Ethernet adapter cards.
Under many circumstances, it may be desirable for mobile network devices
to link to a conventional Ethernet LAN in order to use servers, printers or an
Internet connection supplied through the wired LAN. A Wireless Access
Point (AP) is a device used to provide this link.
People use WLAN technology for many different purposes:
Mobility - Productivity increases when people have access to data in any
location within the operating range of the WLAN. Management decisions
based on real-time information can significantly improve worker efficiency.
Low Implementation Costs – WLANs are easy to set up, manage, change
and relocate. Networks that frequently change, both physically and logically,
can benefit from a WLAN’s ease of implementation. WLANs can operate in
locations where installation of wiring may be impractical.
Installation and Network Expansion - Installing a WLAN system can be
fast and easy and can eliminate the need to pull cable through walls and
ceilings. Wireless technology allows the network to go where wires cannot
go-even outside the home or office.

Scalability – WLANs can be configured in a variety of ways to meet the
needs of specific applications and installations. Configurations are easily
changed and range from peer-to-peer networks suitable for a small number
of users to full infrastructure networks of thousands of users that allow
roaming over a broad area.
The DWL-800AP+ is compatible with the following D-Link AirPlus family of
products:
♦ DWL-650+ Enhanced 2.4GHz Wireless Cardbus Adapter for laptop
PCs
♦ DWL-520+ Enhanced 2.4GHz Wireless PCI card for desktop PCs
♦ DWL-900AP+ Enhanced 2.4GHz Wireless Access Points
♦ DI-614+ Enhanced 2.4GHz Wireless Broadband Router
The DWL-800AP+ is also compatible with the D-Link Air Wireless family of
products and other 802.11b products including:
♦ DWL-650 2.4GHz Wireless Cardbus Adapter for laptop PCs
♦ DWL-520 2.4GHz Wireless PCI card for desktop PCs
♦ DI-713P Print Server
♦ DWL-1000AP and DWL-900AP Wireless Access Points
Standards - Based Technology
The IEEE standard-based technology assures that this product is
interoperable with existing compatible 2.4GHz wireless technology. This
means you will be able to transfer large files quickly or even watch a movie
in MPEG format over your network without noticeable delays. The
technology works by using multiple frequencies in the 2.4GHz range at
speeds up to 22 Mbps. This D-Link AirPlus product will automatically sense
the best possible connection speed to ensure the greatest speed and range
possible with the technology.
Installation Considerations
Designed to go up to 1,312 feet (400 meters) outdoors and up to 328 feet
(100 meters) indoors, D-Link AirPlus DWL-800AP+ lets you access your
network using a wireless connection from virtually anywhere within its
operating range. Keep in mind, however, that the number, thickness and
location of walls, ceilings or other objects that the wireless signals must pass
through may limit the range. Typical ranges vary depending on the types of
materials and background RF (radio frequency) noise in your home or

10
business. The key to maximizing wireless range is to follow these basic
guidelines:
1. Keep the number of walls and ceilings between the wireless range
extender and your receiving device (e.g., the DWL-650+) to a minimum -
Each wall or ceiling can reduce your D-Link AirPlus Wireless product’s
range from 3-90 feet (1-30 meters.) Position your Range Extender,
Access Points, Residential Gateways, and computers so that the number
of walls or ceilings is minimized.
2. Be aware of the direct line between the wireless range extender, Access
Points, Residential Gateways (routers) and computers. A wall that is 1.5
feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters)
thick! Position the range extender, Access Points and adapters so that
the signal will travel straight through a wall or ceiling (instead of at an
angle) for better reception.
3. Building Materials can impede the wireless signal - A solid metal door or
aluminum studs may have a negative effect on range. Try to position the
range extender, Access Points, and computers with wireless adapters so
that the signal passes through drywall or open doorways and not other
materials.
5. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical
devices or appliances that may generate extreme RF noise.
